REYLAX 24V Triac dimmable LED driver (80W, 3.33A) for constant voltage LED installations

If you’re setting up LED lights that you actually want to dim smoothly, the REYLAX 24V Triac dimmable LED driver is aimed at that job. It’s designed for constant-voltage LED applications, with a Triac dimming approach and a defined dimming range. On paper, it looks built to be reliable day-to-day rather than flashy.

That said, it’s not a universal “fix everything” driver. It only makes sense for LED loads, and the dimming behaviour will depend quite a bit on whether your LED strip/array sits within the recommended operating window.

The essentials

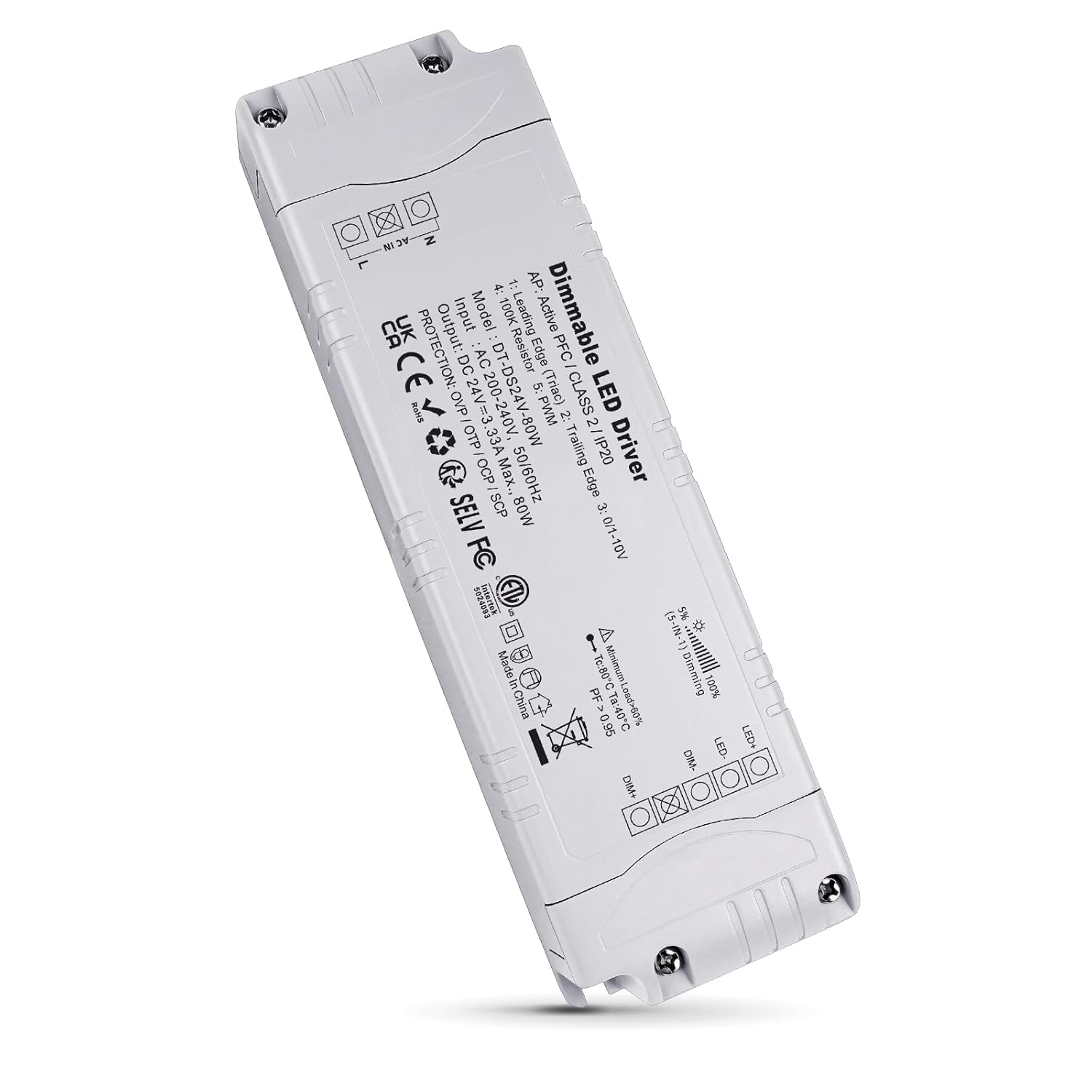

This is a 24V constant-voltage power supply/LED driver for LED applications. The input is AC 200–240V and the output is DC 24V up to 3.33A (80W maximum). For dimming, it’s specified for a range of 5% to 100%.

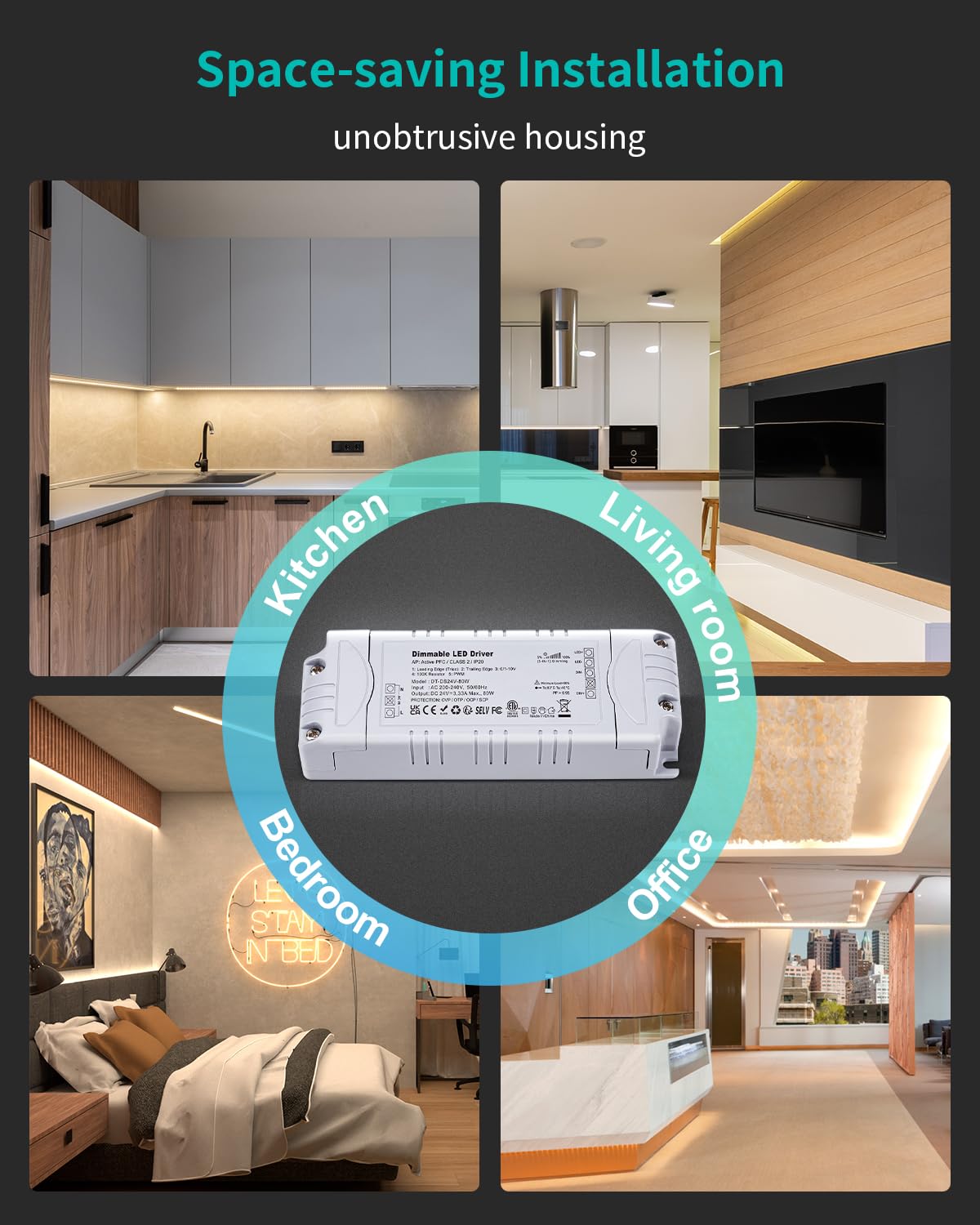

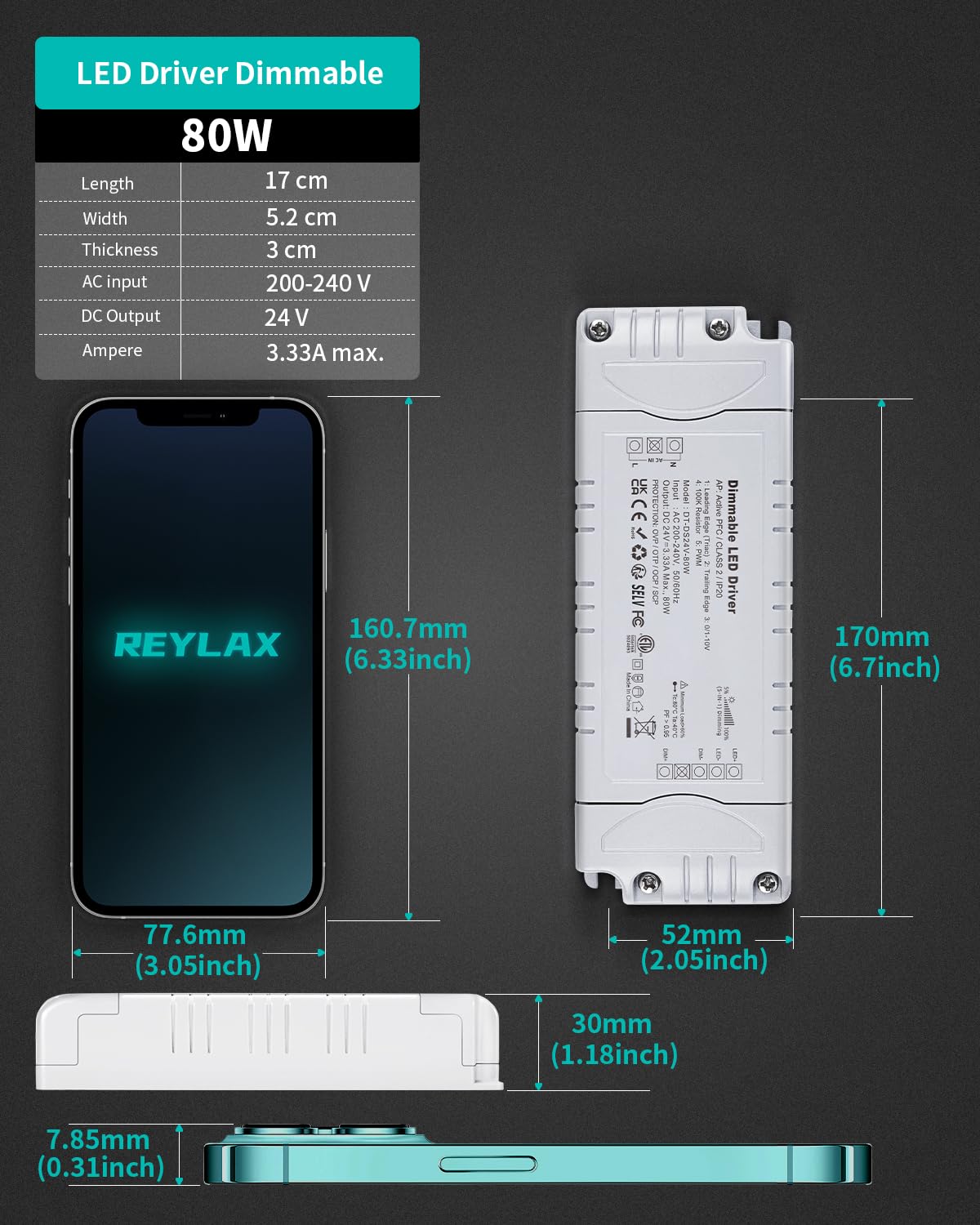

In practical terms, you’d use it where your existing installation needs a proper driver between the mains and a 24V LED load. The “out of sight” angle also matters: it’s a compact unit made from Class II flame-retardant material, intended to fit into most cut-outs.

What stands out in day-to-day use

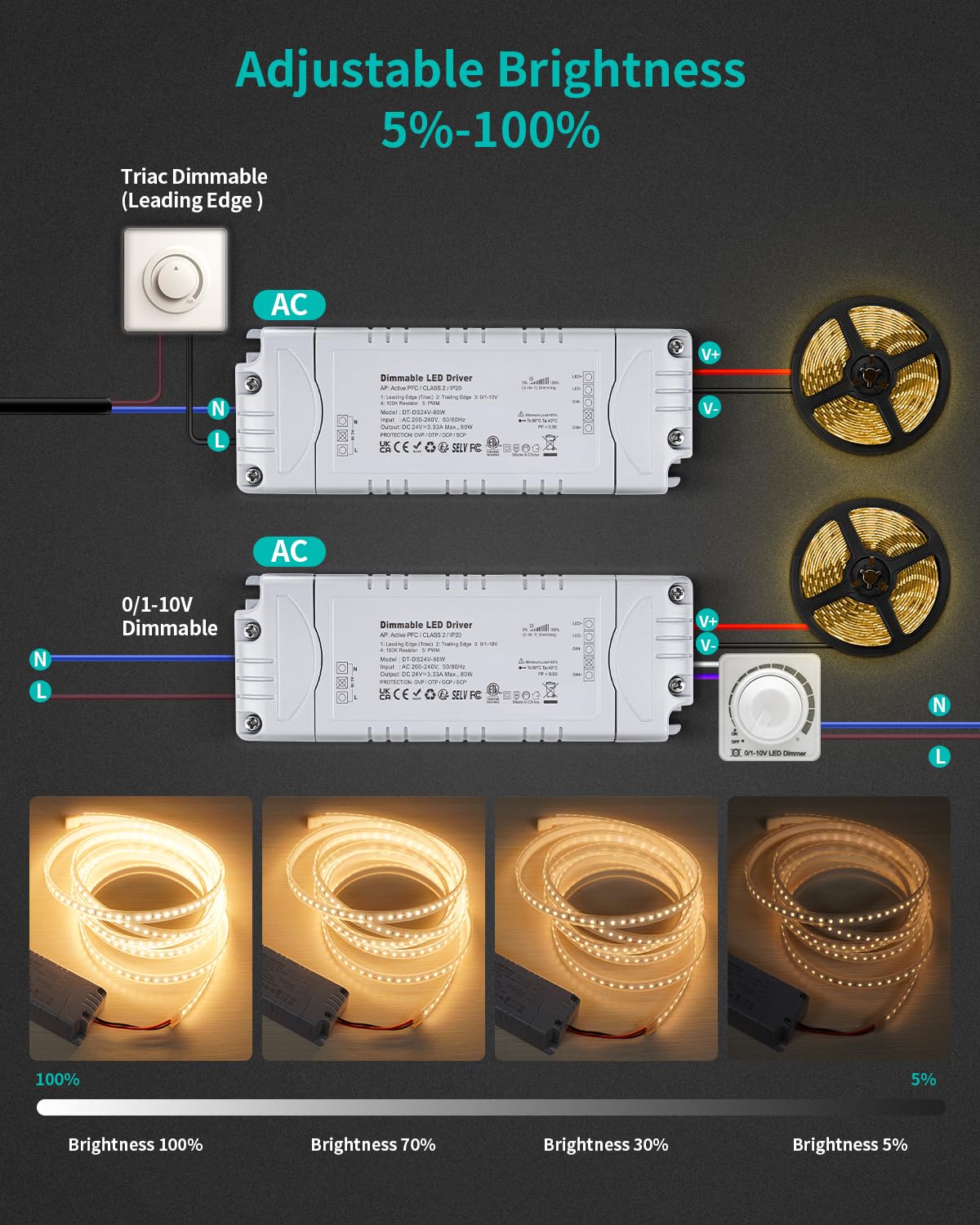

The biggest selling point here is the dimming design. With Triac dimming and a 5%–100% stated range, it’s aimed at installations where you want usable control from near-low light up to full brightness.

There’s also a sensible electrical/efficiency story. The power factor is specified as greater than 0.95, which typically means less waste and less burden on the supply compared with drivers that sit lower on power factor.

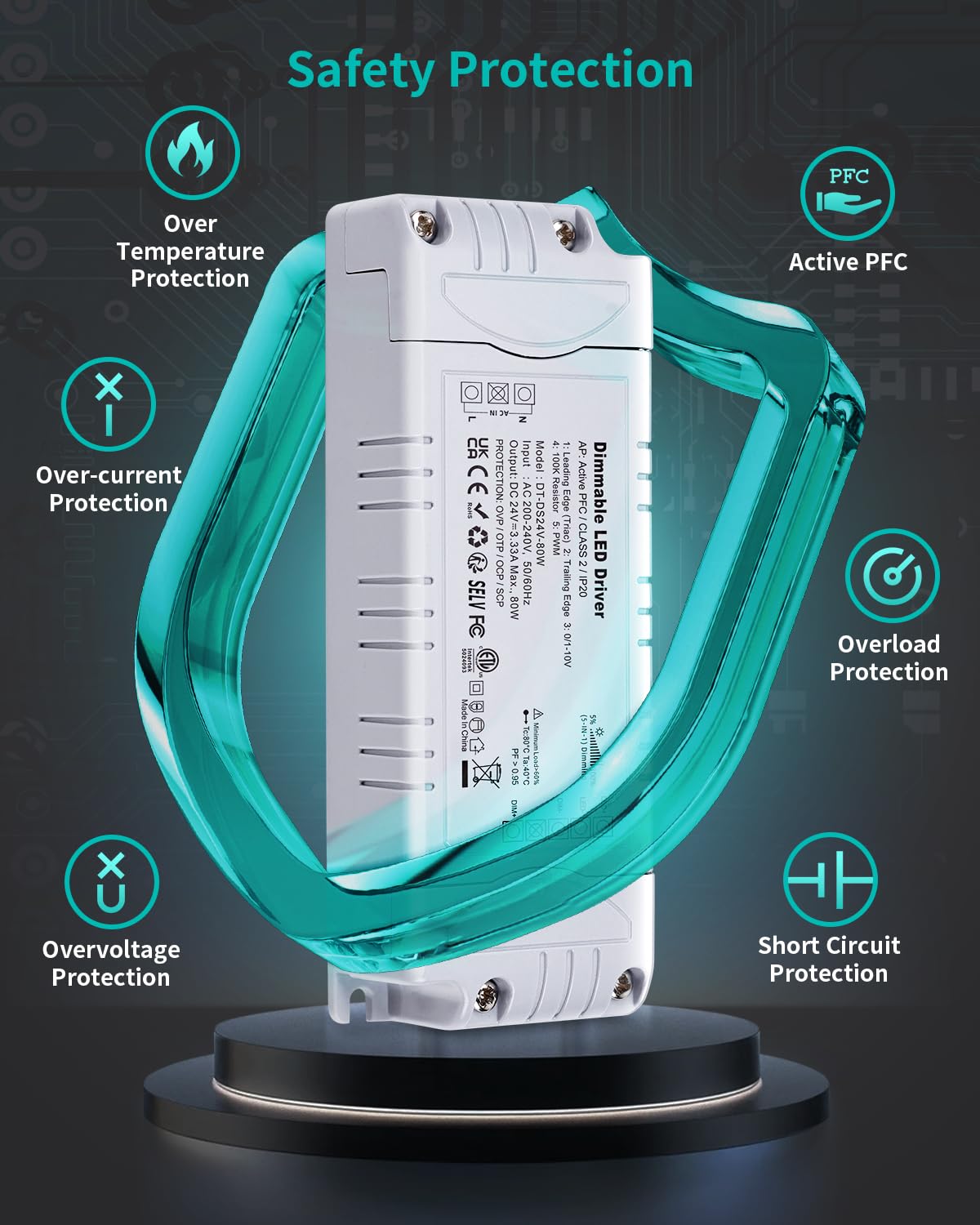

On top of that, the safety positioning is fairly comprehensive for this category: short-circuit, over-current, over-voltage and over-temperature protections are listed. That doesn’t make it indestructible, but it does reduce the risk of a driver running into avoidable faults.

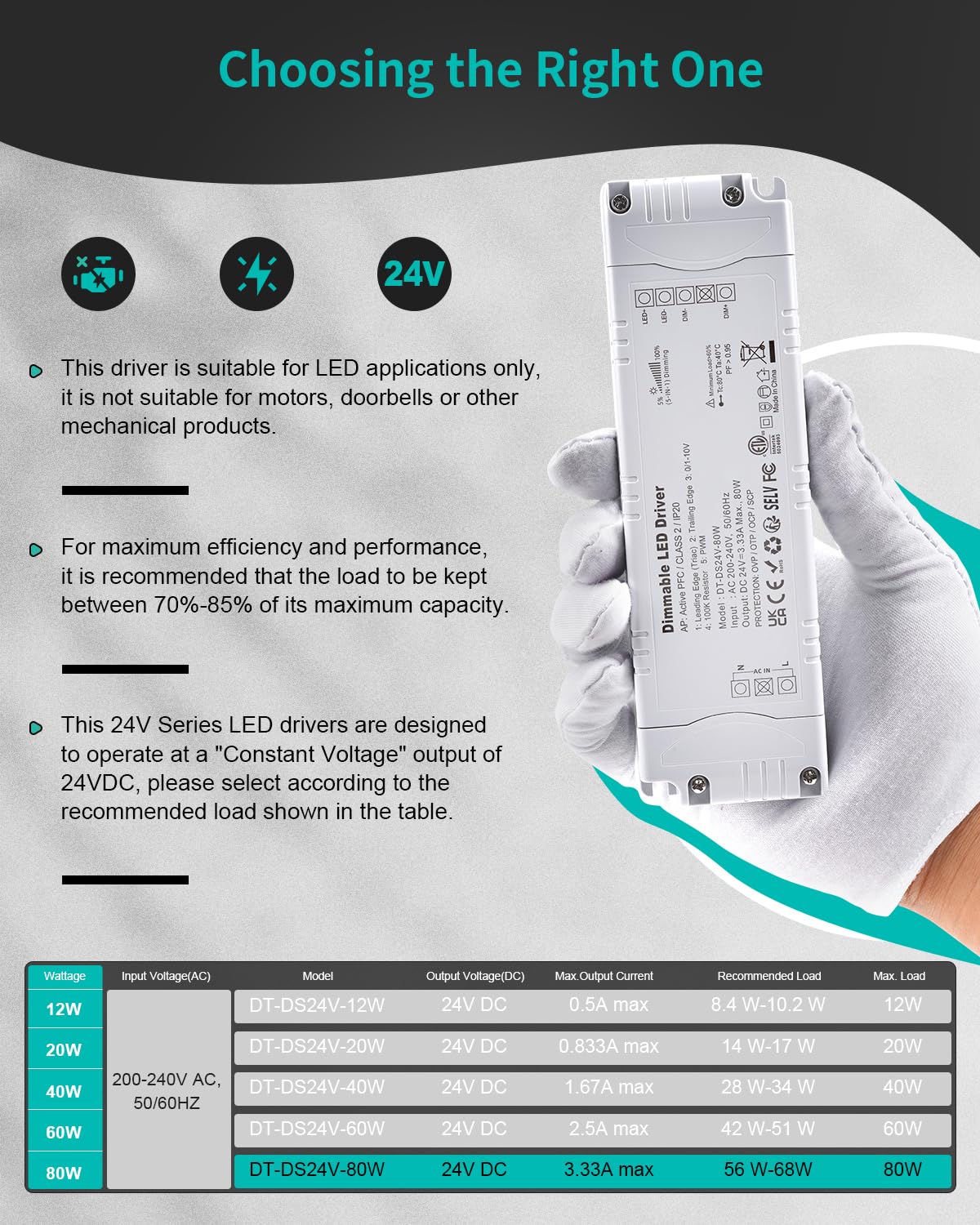

Key compatibility & where it may fall short

This driver is for LED applications only. It’s explicitly not suitable for motors, doorbells or other mechanical products. So if you’re looking to power something non-LED, this is a hard stop.

It also comes with a loading recommendation: for best efficiency and performance, keep the load between 70% and 85% of its maximum capacity. With an 80W unit, that guidance is there for a reason—if your LED load is consistently too low (or too close to full load), the experience may be less smooth or less optimal than expected.

There’s another small practical limitation to bear in mind: while the driver is described as having moisture and dust protection and being compact, the exact installation environment still matters. If you’re pushing it into a damp or awkward enclosure, it’s worth checking your overall IP approach rather than assuming one line in the listing covers everything.

Quick overview of specs that affect buying decisions

Here are the details that typically influence whether a driver “fits” your current setup: - Input: AC 200–240V - Output: DC 24V, up to 3.33A (80W max) - Dimming range: 5%–100% - Recommended load window: 56W–68W - Power factor: greater than 0.95

Those numbers are the practical checklist: you’re matching voltage (24V constant voltage), current/total wattage (within the maximum, and preferably within the recommended range), and the dimming system type (Triac).

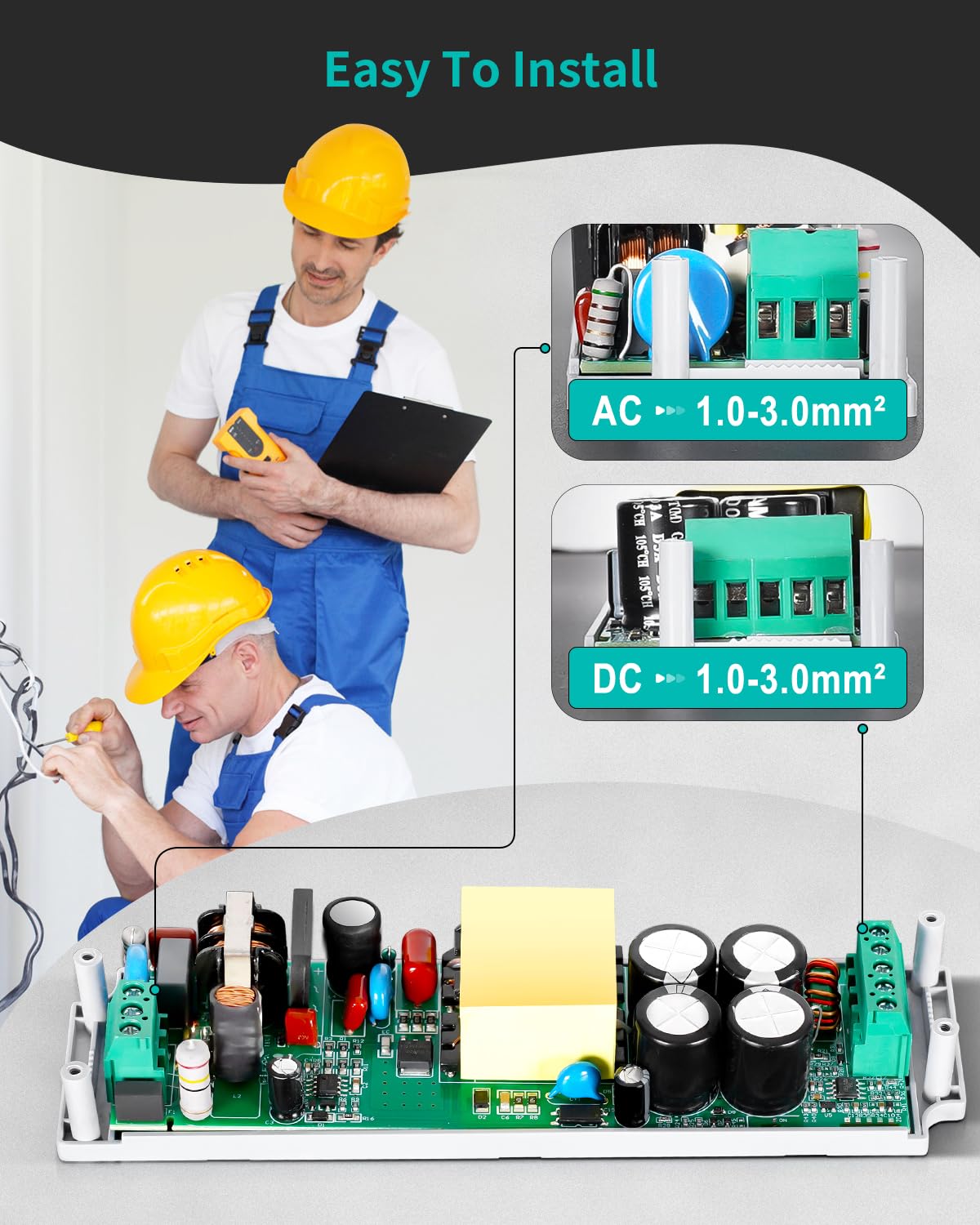

Installing it without overcomplicating things

The unit is described as compact and suitable for most cut-outs, plus it’s Class II flame-retardant. It also states it’s easy to install and wire.

A concrete example: if you’re upgrading a 24V LED strip run and you already have a compatible Triac dimmer, this driver is the kind of component you’d put behind the mounting area. You’d wire mains input to the driver, then run the 24V constant voltage output to your LED strip/array, aiming to keep the total LED wattage within the listed recommended load range for smoother operation.

Is it worth it?

It’s worth buying the REYLAX 24V Triac dimmable LED driver if you have (or plan) a 24V LED installation that you want to dim using a Triac dimmer, and your total LED load sits within the recommended window (56W–68W is stated) rather than floating around well below/near maximum.

You may want to skip it if you need a driver for non-LED equipment, or if your LED wattage requirement can’t realistically be held near that recommended loading guidance—then you might end up with a “works, but not quite right” situation.

For anyone building or replacing a compact LED driver for a 24V constant-voltage setup, it’s a sensible middle-of-the-range practical pick: the protections, power factor and dimming spec all point to a unit intended for real installations, not just bench testing.

Mini FAQ

Can this driver be used for non-LED products?

No. It’s stated to be for LED applications only and not suitable for motors, doorbells or other mechanical products.

What dimming range does it support?

The dimming range is specified as 5% to 100%.

What voltage and output should I expect?

It takes AC 200–240V input and outputs DC 24V up to 3.33A maximum.

What wattage should my LED load be?

The listing recommends keeping the load between 70% and 85% of maximum capacity, and it also states a recommended load of 56W–68W.

Is it suitable for enclosed installations?

It’s described as moisture and dust protected and made from Class II flame-retardant material, but your specific enclosure/IP requirements should still be considered before fitting.
