Thermalright Phantom Spirit 120 EVO CPU Air Cooler with Dual PWM Fans
Product description
The essentials
The Thermalright Phantom Spirit 120 EVO is an air CPU cooler built around a classic premise: move heat away from the processor with a heatsink and one (in this case, two) cooling fans. On paper it leans towards dependable everyday cooling rather than exotic features, and that’s often where you get the most value for money.
It uses 7×6mm heat pipes with an AGHP “upgraded 4th generation” approach, a design aimed at improving heat transfer depending on orientation. It also pairs that heatsink section with dual PWM fans, which should make it easier to maintain quieter operation at lower loads while still having fan headroom when the CPU is working hard.
Key points for buying
If you’re trying to choose a CPU air cooler without overthinking it, this one is set up for the common Intel and AMD sockets it claims support for. It also includes mounting hardware guidance via installation instructions or a tutorial, which matters because compatibility is only half the story—getting the bracket and backplate setup right is what makes it feel “plug and usable”.
That said, it’s still an air cooler with a stated height of 157mm, so case clearance is something you’ll want to check before you commit. Big tower coolers can be brilliant, but they can also be annoying if your case is tight near the CPU area.

Tech specs
- Type: CPU air cooler

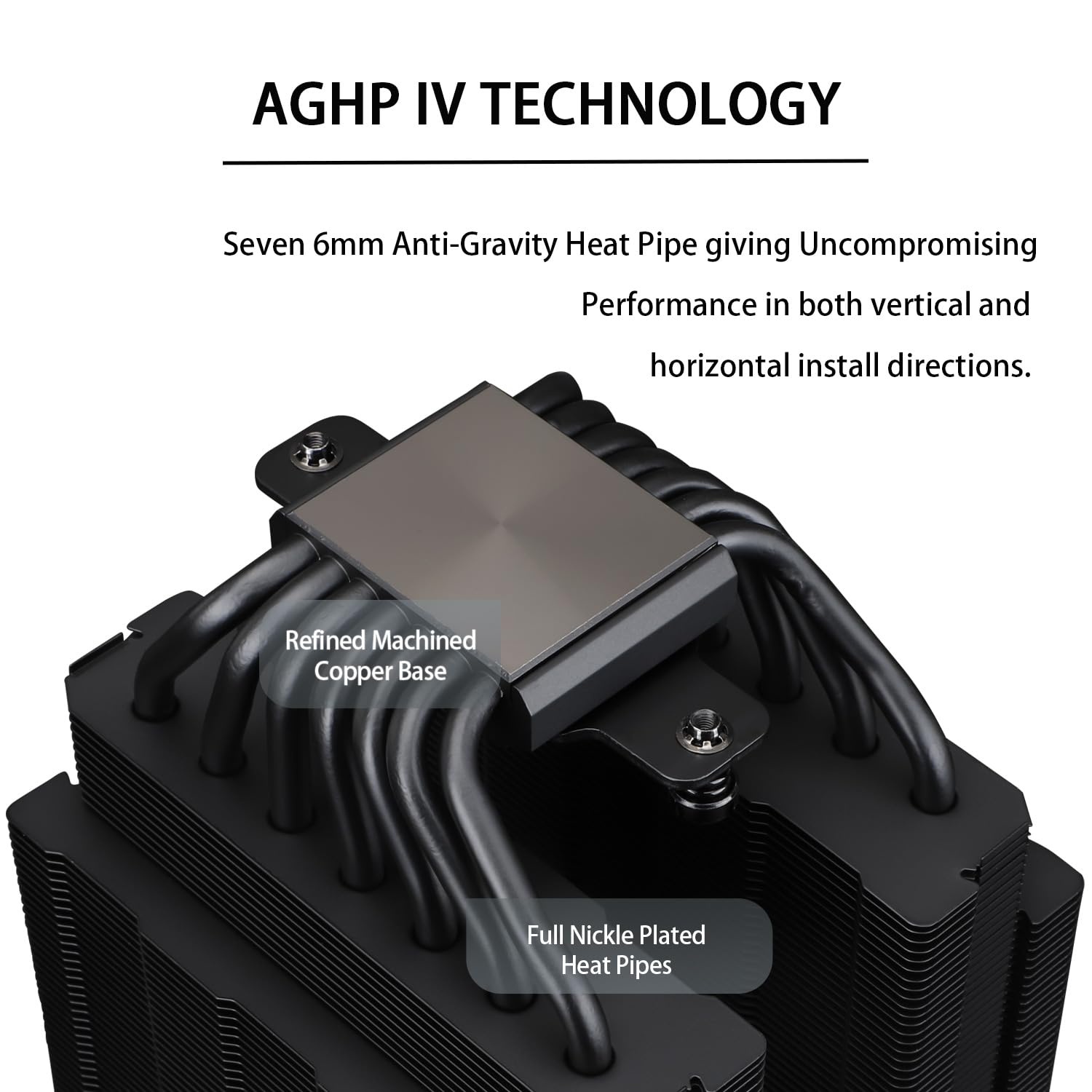

- Heat pipes: 7×6mm (AGHP upgraded 4th generation)

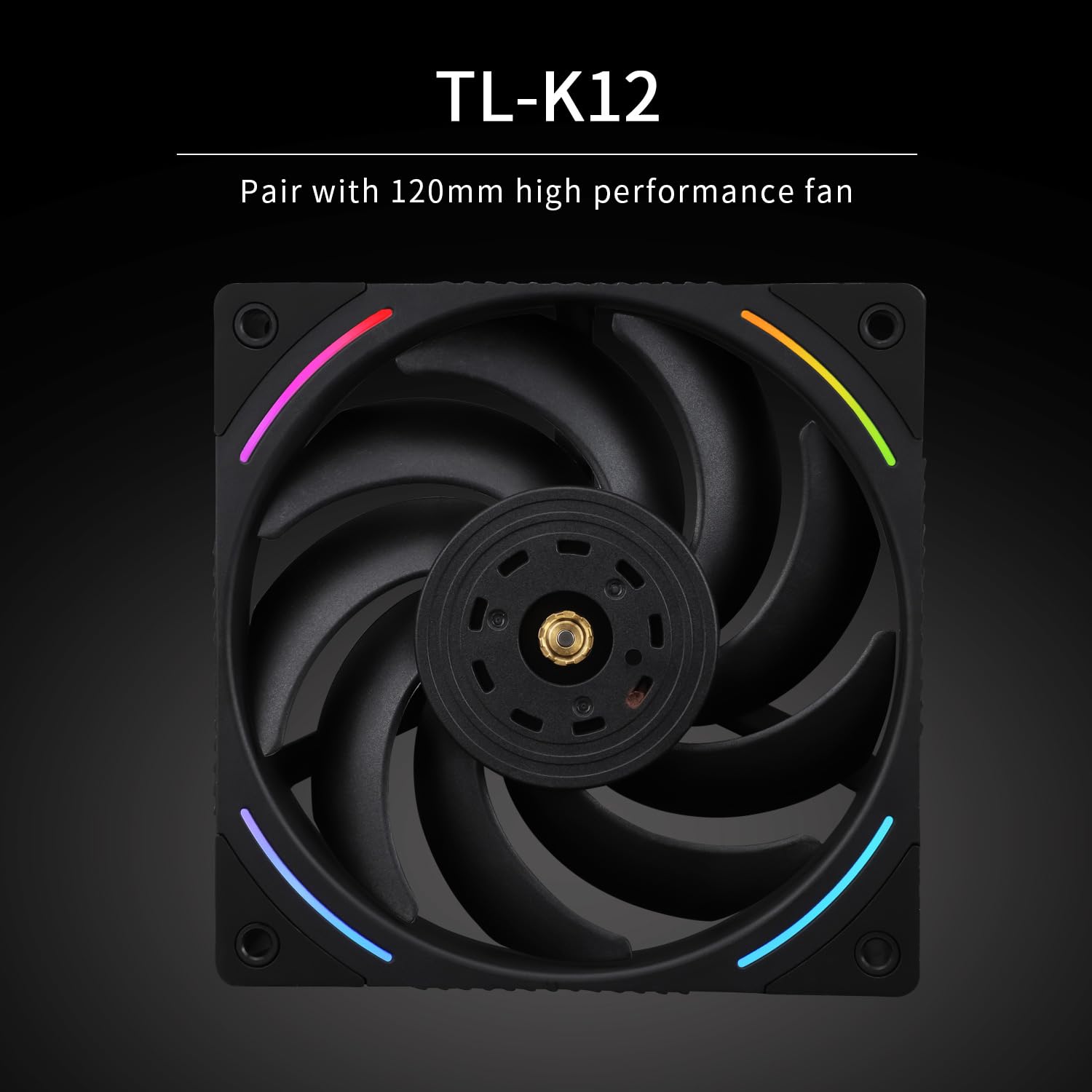

- Fan model: TL-K12
- Fan size: 120×120×25mm
- Fan speed: 2150RPM (±10%)
- Fan control: Dual PWM fans
- Power port: 4-pin
- Voltage: 12V
- Max airflow: 69CFM
- Noise level: ≤27dB(A)
- Bearings: S-FDB (for long service life)
- Heatsink height: 157mm
- Materials (heatsink / insulation grade): PBT + PC

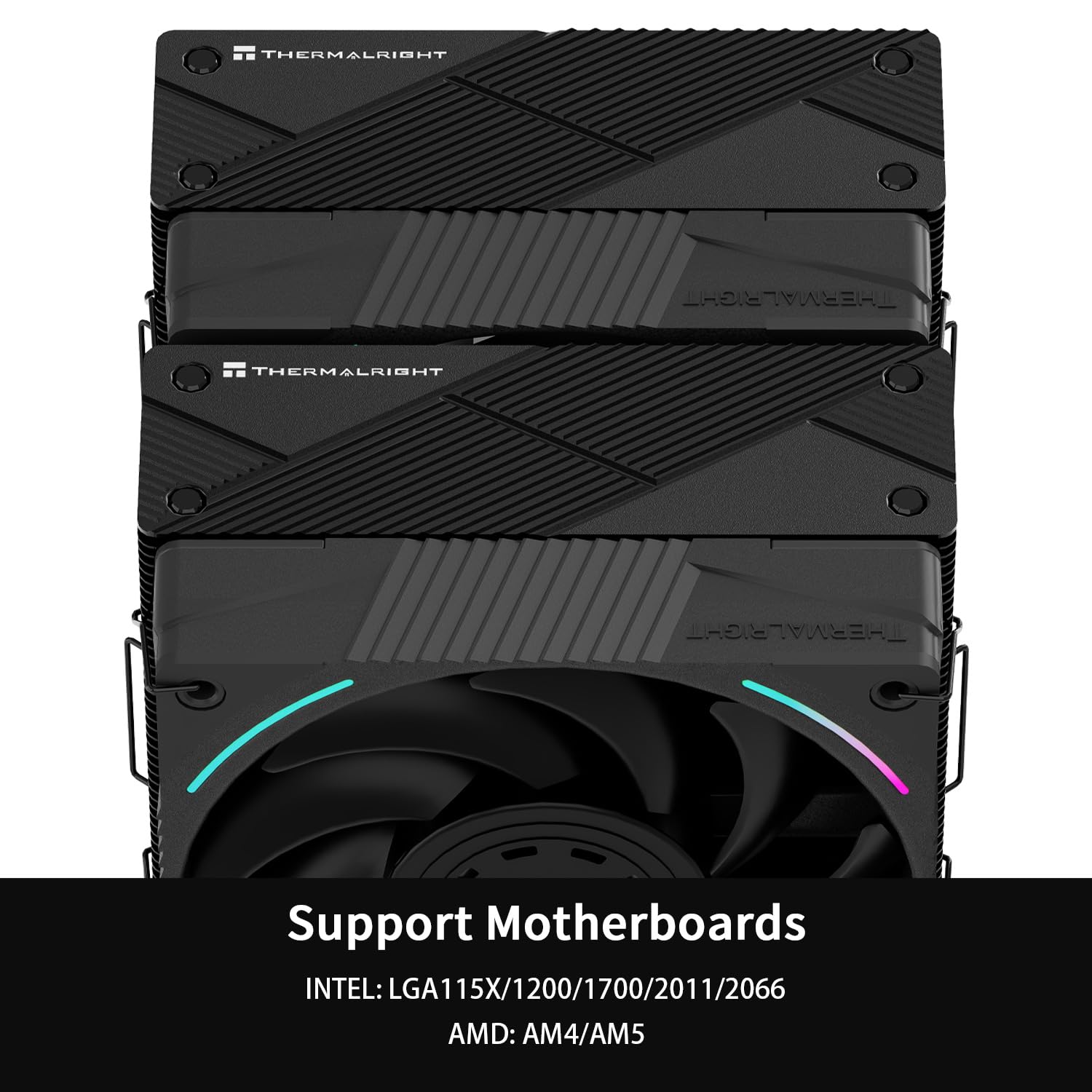

- CPU socket support (as stated): Intel LGA1851, 1700, 1150, 1151, 1155, 1156, 1200, 2011, 2066, AMD AM4, AM5
What stands out in day-to-day use


The most “real” selling points here are the combination of heat-pipe design and dual PWM control. The 7×6mm heat pipes, plus the AGHP/“inverse gravity” effect described for different vertical/horizontal orientations, is aimed at keeping heat movement consistent across installation setups.
The two fans being PWM-controlled is also the right direction if you care about normal desktop quietness, not just maximum cooling. Under load, you’d expect the fans to ramp, at idle or light tasks, PWM should let them back off.
One practical example: if you’re gaming for an evening and your CPU boosts higher than usual, the dual-fan setup is the kind of layout that can keep temperatures steadier than a single-fan cooler—especially if your case airflow is reasonably good.

Where it may fall short
Even with strong design intent, a few limitations are worth noting.
First, it’s not described as a compact low-profile solution. The 157mm height means it’s more likely to suit mid-tower or larger cases than small form factor builds.
Second, the advertised noise is a maximum figure (≤27dB(A)). Real-world noise depends on fan curves, case ventilation, and how aggressively your motherboard controls PWM. So if you’re very noise-sensitive, it’s worth being realistic and planning to tune fan settings in your BIOS/software.
Who it suits (and who should think twice)
It makes sense if you want a traditional tower-style CPU air cooler for mainstream Intel/AMD platforms, and you’re after a practical balance of cooling ability and controllable fan behaviour.



It might not be the best match if you’re building in a smaller case with limited clearance around the CPU socket area, or if you need an ultra-low-profile cooler for tight RAM/side-panel clearance.
Worth considering if you’re also thinking about longevity. The use of S-FDB bearings is presented as part of a longer industrial-style service-life approach, which is a decent sign for buyers who don’t want to revisit cooling hardware soon.
In the box & installation notes
The description indicates that mounting compatibility is handled via the correct mounting plate/fasteners for different Intel/AMD platforms, and that the installation instructions or a tutorial can be followed to get it fitted. What’s missing from the information you’ve provided is an exact list of what’s included (brackets, screws, thermal paste, etc.), so it’s sensible to double-check the “in the box” details from the listing before ordering.
Also, because it’s a tall cooler, installation is usually easiest when you can test clearance with the side panel off.
Is it worth it?

Buy it if you want a dual PWM tower air cooler that targets broad Intel LGA and AMD AM4/AM5 support, with a heat-pipe design intended to work across different orientations. It’s a solid choice for typical PC builds where you can accommodate a 157mm cooler height and you value controllable fan behaviour over an all-out noisy peak.
Skip it (or at least be cautious) if your case space is tight, you can’t easily verify clearance, or you require a low-profile cooler. In those situations, even a well-designed air cooler can become more hassle than it’s worth.
Quick FAQ

What CPU sockets does it support?
It’s listed as supporting Intel LGA1851, 1700, 1150, 1151, 1155, 1156, 1200, 2011 and 2066, and AMD AM4 and AM5.
Are the fans PWM-controlled?

Yes, it uses dual PWM fans with 4-pin power ports.
How tall is the cooler?
The stated height is 157mm, so case clearance is important.
How noisy is it?
The noise level is stated as ≤27dB(A). That’s best treated as a maximum/typical spec rather than a guarantee for your exact build.
Is it a good choice for quiet use?
Because it’s dual PWM, it should be easier to keep quieter at lower loads than fixed-speed setups, but your BIOS fan curve will still influence the final result.
