PWAYTEK HDMI Extender 1080p@60Hz over Cat6, 50m

This HDMI extender from PWAYTEK sends Full HD video over a single Cat5e/Cat6/Cat7 cable up to 50 m, making it practical for linking a media player, PC or set-top box to a remote display. It supports 1080P at 60 Hz and 3D playback, delivering a stable uncompressed signal for presentation rooms, home cinema setups and digital signage.

Key Points

This kit simplifies long-distance HDMI transmission by using power over cable, so only one power adapter is needed for both ends. The unit includes an EDID copy function that helps the source and display negotiate compatible resolutions and audio formats automatically, which can reduce handshake errors when mixing different devices. Installation is plug and play, with metal housings and ventilation slots intended to improve durability and heat dissipation. For best results, the manufacturer recommends high-performance Cat5e, Cat6 or Cat7 cable. ⚡

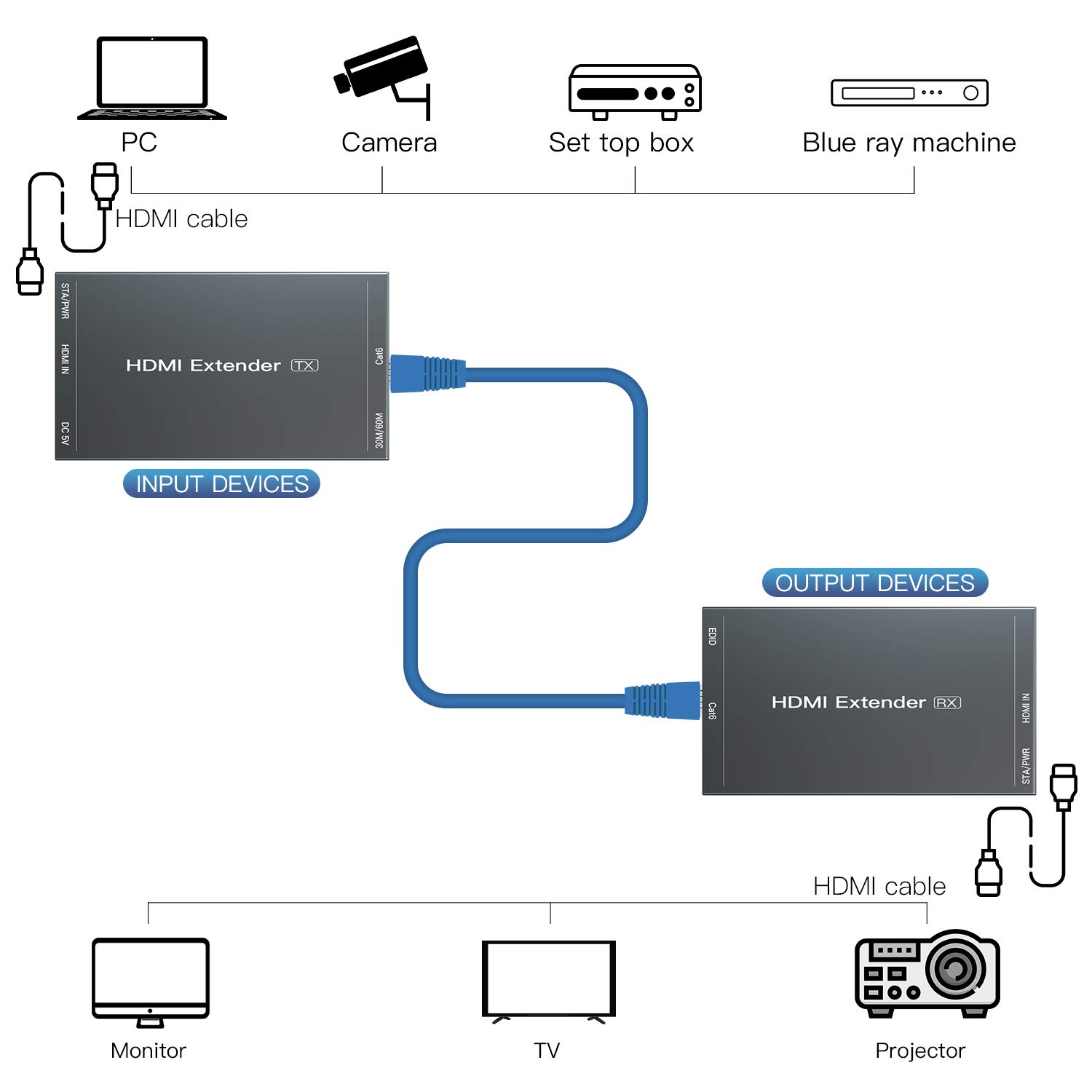

Connectivity is straightforward: the transmitter connects to the HDMI source and the receiver to the display, with a single network cable between them. A small switch lets you select operation for shorter runs or the full 50 m distance, and the design aims to preserve a clear and smooth image across the specified range. Note that the unit complies with HDMI 1.3 according to the manufacturer, so it does not extend beyond Full HD resolution.📺

Technical Specifications

• Name: PWAYTEK HDMI Extender 1080p@60Hz
• Resolution support: 1080P@60Hz, 3D
• Maximum transmission distance: 50 m (164 ft)
• Cable type recommended: Cat5e / Cat6 / Cat7
• Power: Power over cable (POC) with single adapter operation
• Compliance: HDMI 1.3
• Special functions: EDID copy.

Usage Recommendations

Place the transmitter near the source and the receiver beside the display, keeping cable runs away from strong electrical interference. When using cable lengths up to 25 m set the range switch to the 30 m position, and when using lengths between 25 m and 50 m set it to the 50 m position, as indicated by the manufacturer. If you plan to run through conduit or shared cable trays choose a higher grade Cat6 or Cat7 cable to help preserve signal integrity.🔌

If audio or video handshake issues occur, use the EDID copy feature to mirror the display’s capabilities to the source, which often resolves format mismatches. Consider that this extender is designed for Full HD workloads only and will not provide 4K transmission, so it is best suited to systems that require reliable 1080p delivery rather than the latest UHD resolutions.
