MOUNTUP EU0092A TV wall mount 70-inch, 45kg

This full motion TV wall bracket from MOUNTUP gives flexible positioning for living rooms and multi-zone spaces, allowing a flat or curved screen to swivel, tilt and extend for a clearer view. It supports most LED, LCD and OLED TVs between 26 and 70 inches and helps reduce glare or improve viewing angles when you move the screen for films, gaming or communal watching.

Key Points

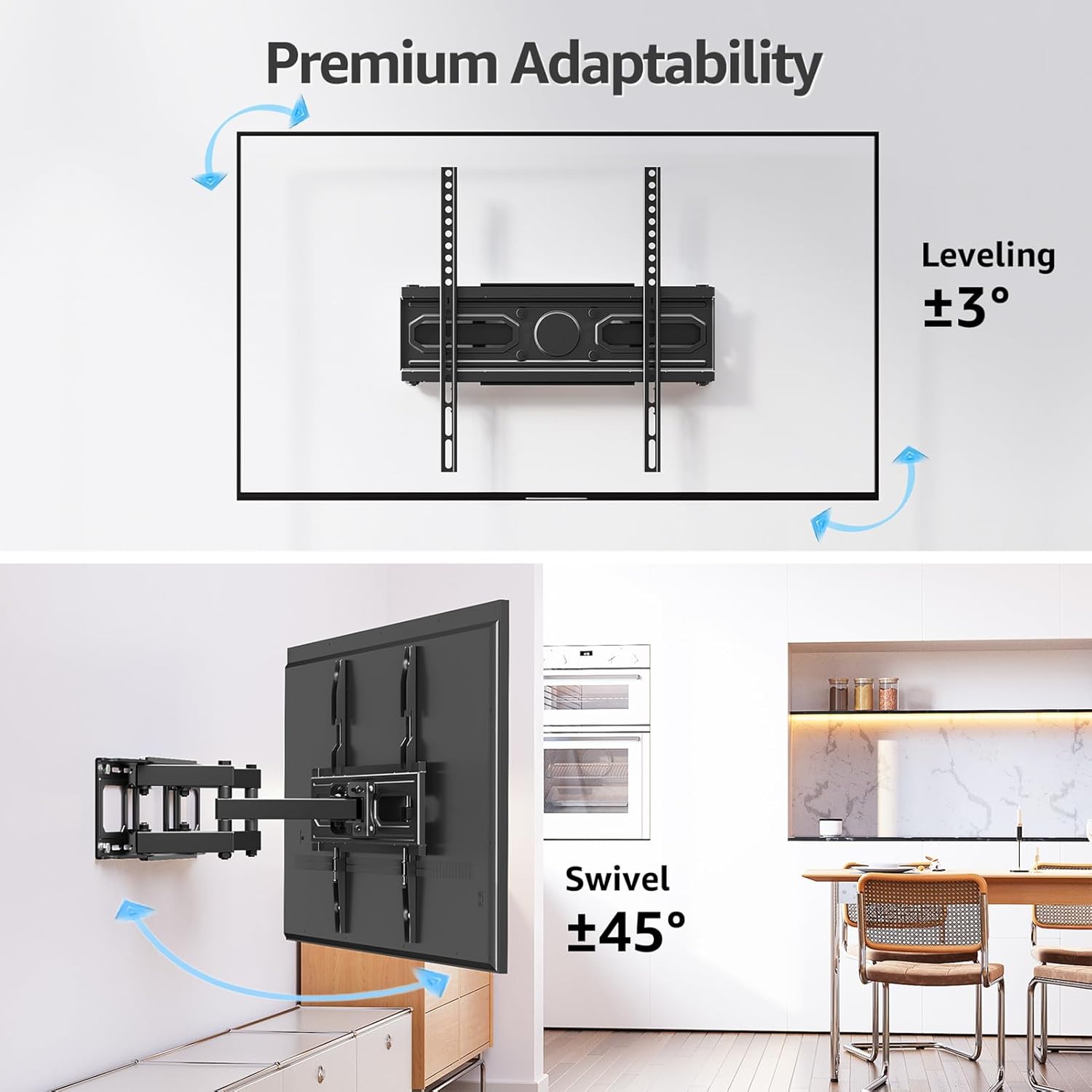

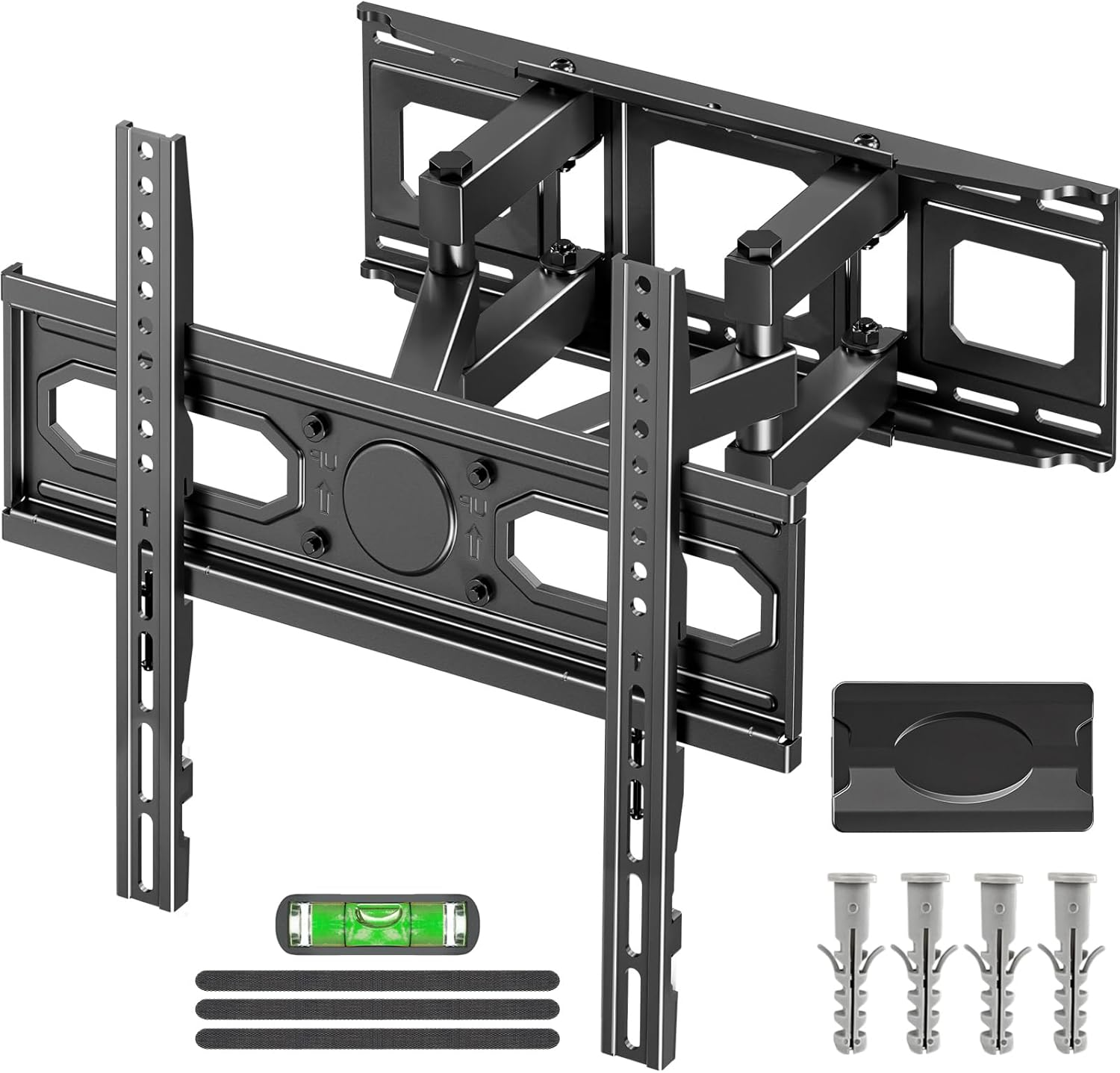

This bracket supports televisions up to 45 kg with VESA hole patterns from 100 x 100 mm to 400 x 400 mm, making it compatible with a wide range of mid-size and large TVs. The double-arm, full-motion design offers extension from the wall, +/-45° swivel and a tilt range of 5° up and 10° down, so you can angle the screen for different seating positions. The manufacturer includes a paper mounting template and a spirit level to simplify alignment during installation, and customer support is available for queries about fit or fittings. ⚙️

Technical Specifications

• Name: MOUNTUP TV Wall Bracket EU0092A

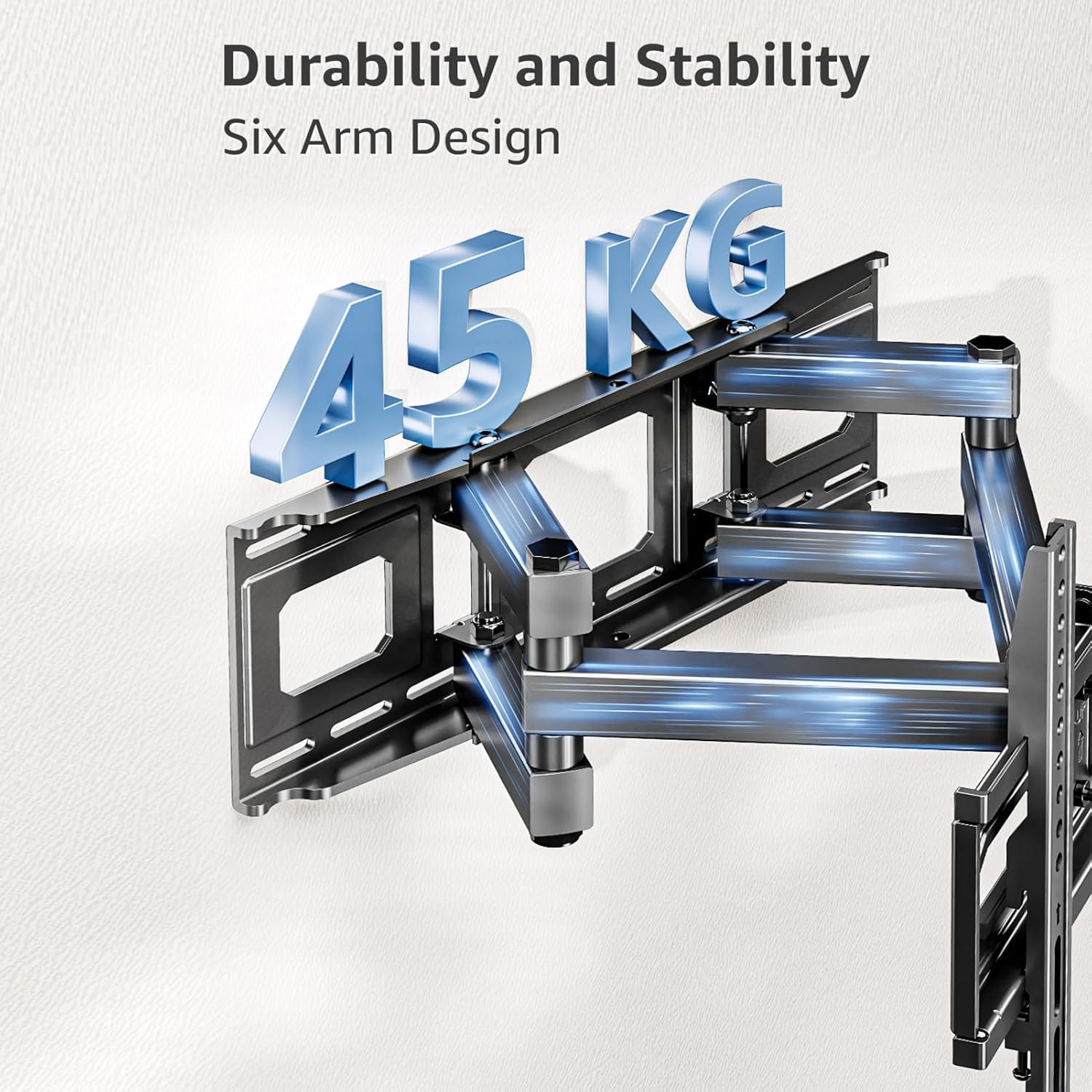

• Maximum load: 45 kg
• Supported screen size: 26–70 inches

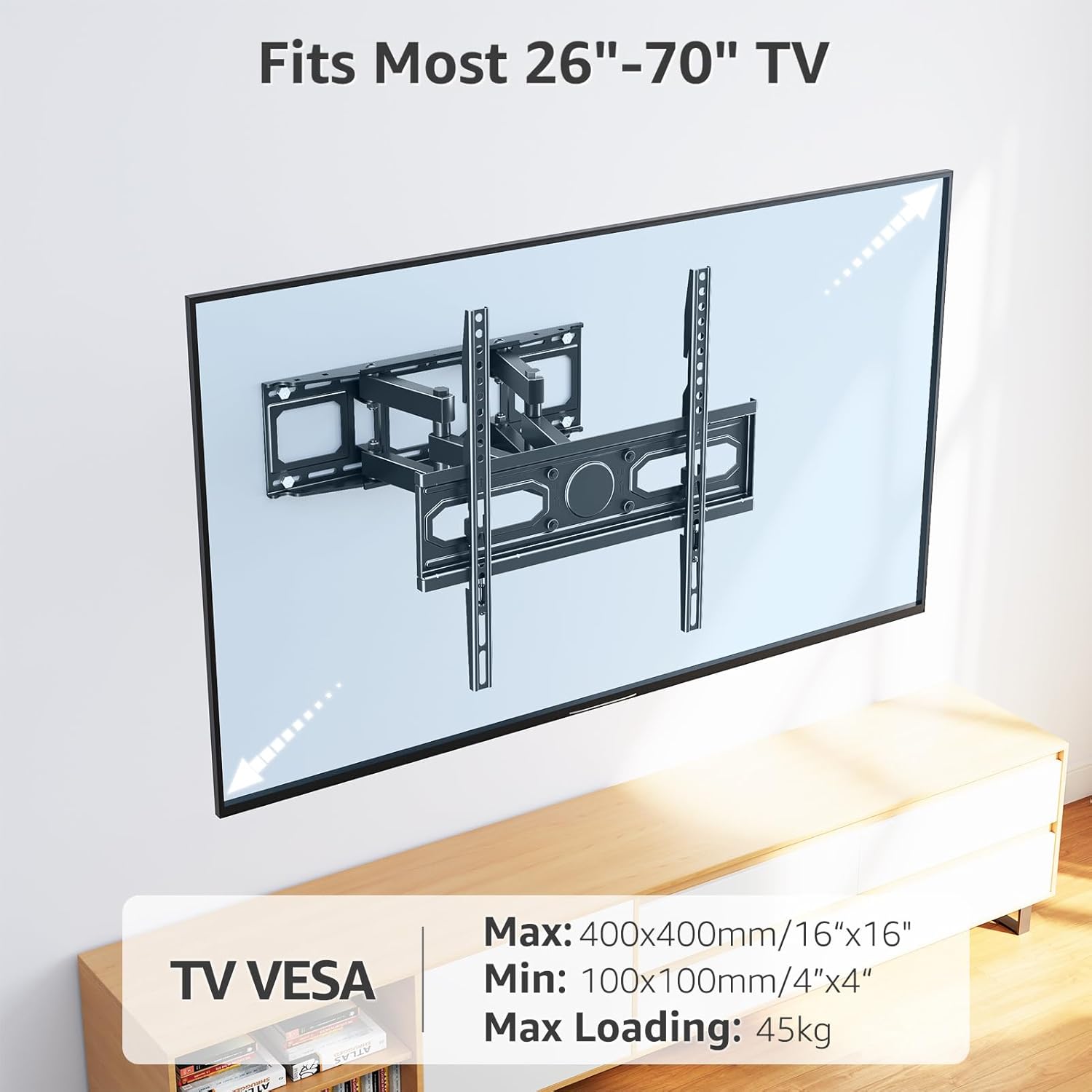

• VESA compatibility: 100 x 100 mm to 400 x 400 mm

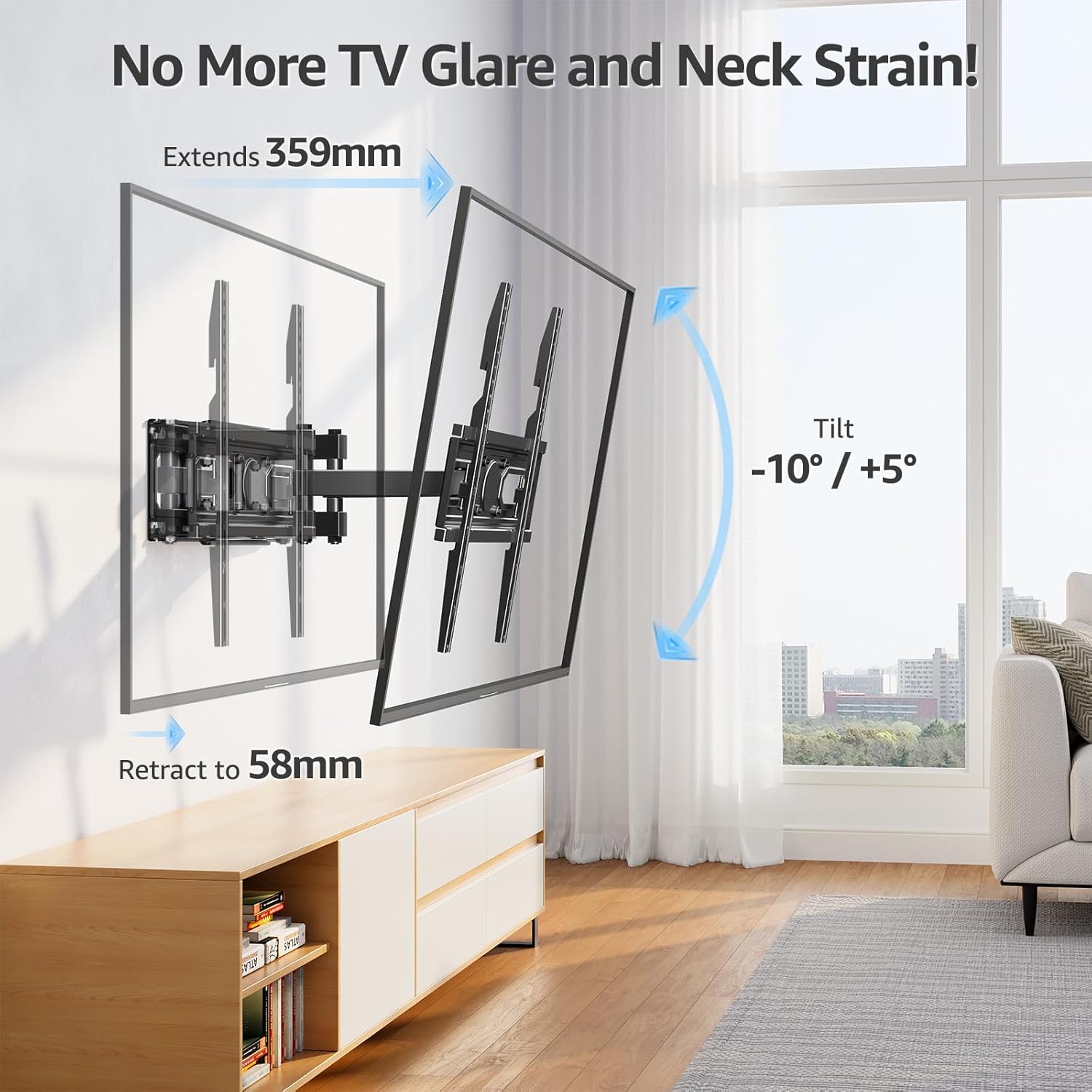

• Tilt: +5° / -10°
• Swivel: +/-45°
• Rotation: +/-3°

Practical Tips

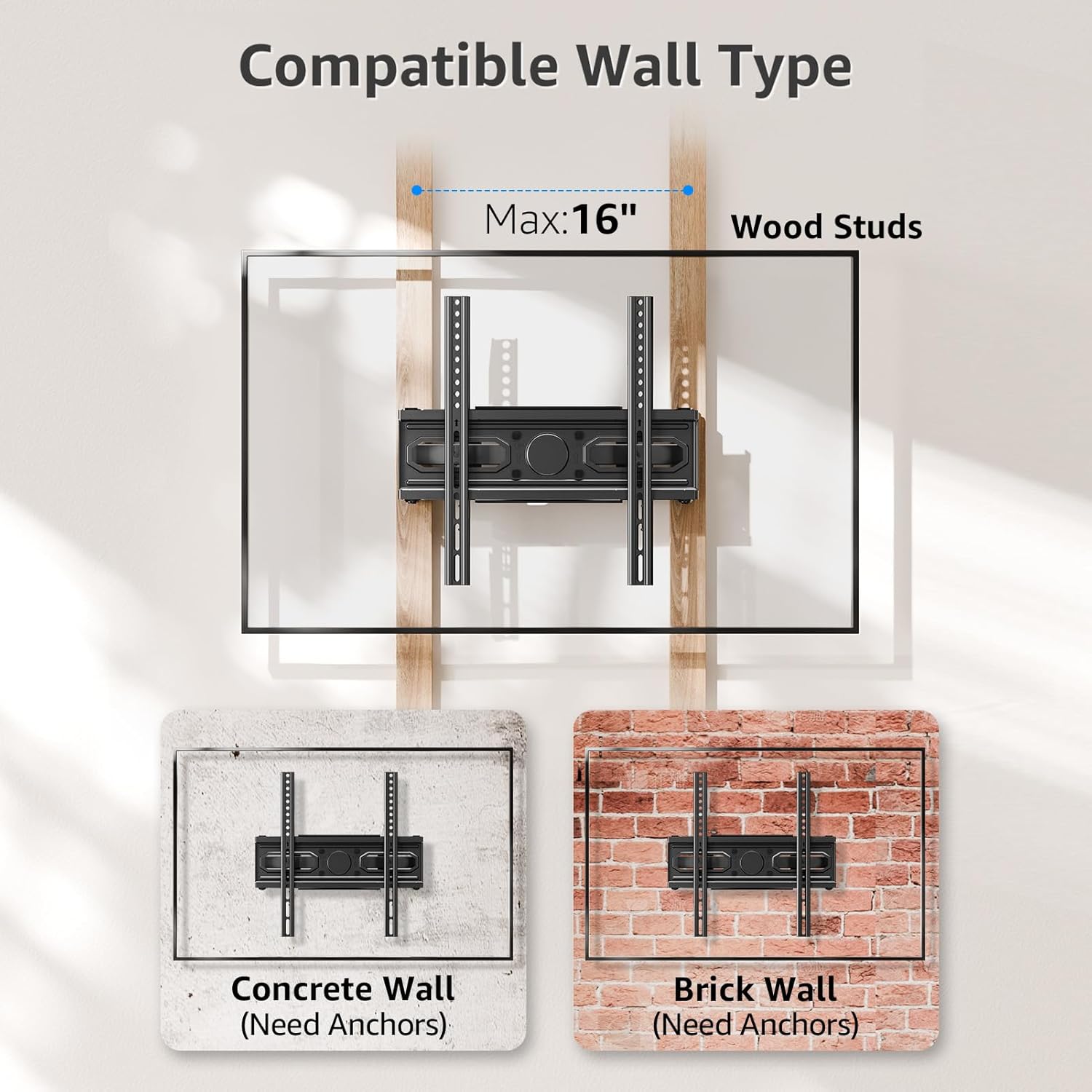

Before installation, check the TV’s weight and the exact VESA pattern to ensure a safe fit. The bracket is not recommended for mounting only on drywall without suitable anchors. For sunny rooms, small adjustments to the tilt can noticeably reduce reflection and improve contrast. If you need to mount on concrete, the manufacturer can provide 10 x 61 mm concrete anchors on request.

Usage Recommendations

Extend and swivel the screen to share viewing with different seating areas, or fold the arms back to save space when the TV is not in use. When installing, have a second person assist with lifting and aligning the TV to the bracket for safer handling and more accurate placement. Consider the cable routing when the arm is extended to avoid strain on connections.
