Alphamount APPIMF7 TV wall mount 26–60 inch, 35kg

This Alphamount wall bracket lets you mount most 26 to 60 inch flat or curved LED and LCD TVs with a compact, adjustable solution for living rooms and bedrooms. It supports TVs up to 35 kg and includes tilt, swivel and extension movements so you can fine tune viewing angles for films, shows and gaming sessions.

Key Points

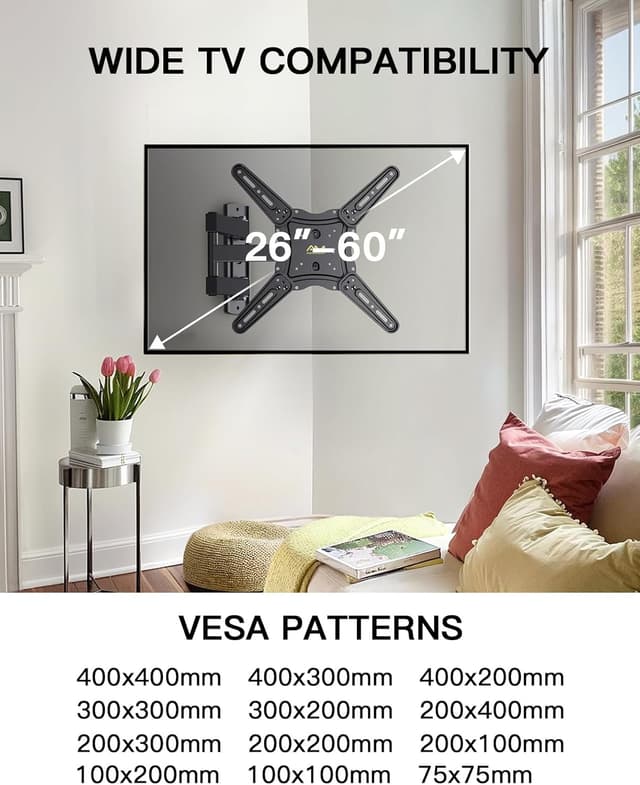

The bracket offers a wide VESA compatibility range, covering common patterns from 75x75mm up to 400x400mm. Tilt range is +5° and -15°, swivel reaches ±90° depending on screen size, and a small rotation adjustment of ±3° helps level the display after installation. The arm retracts to 60mm from the wall and extends to 431.8mm, giving a balance between saving space and providing reach when needed. Assembly hardware and graphic instructions are included, and concrete anchors are supplied for secure mounting on brick or solid walls, so do not rely on drywall alone.

Technical Specifications

• Name: Alphamount APPIMF7
• Screen size compatibility: 26–60 inches
• Maximum load: 35 kg
• VESA compatibility: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 400x300mm, 400x400mm
• Tilt: +5° / -15°
• Extension from wall: 60mm (retracted) to 431.8mm (extended)

Usage Recommendations

Measure your TV’s VESA pattern and weight before installation, and mark the mounting points carefully to align the bracket. Use the provided concrete anchors when fixing to masonry or solid wall surfaces, and avoid mounting only on plasterboard without adequate supports. For larger screens near the 60 inch or 35 kg limits, have a second person help hold the television during attachment to reduce strain and ensure safe fastening. 😊

Positive Aspects

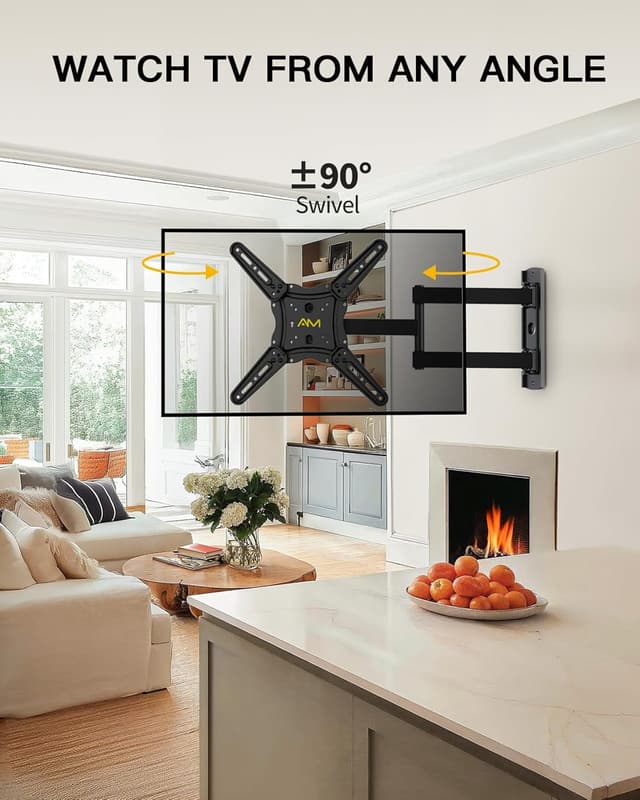

The combination of tilt, wide swivel and a long extension arm gives flexible placement options, particularly useful if you need to change viewing position between seating areas. The compact retracted depth keeps the installation discreet when the arm is not extended, which works well in smaller rooms or where a minimalist appearance is preferred. ⚙️

Limitations and Notes

Consider that maximum swivel angle is influenced by TV size, so the full ±90° rotation may not be available for the largest screens. According to the manufacturer, the bracket is not suitable for installation on unsupported plasterboard without additional reinforcement. 🛠️
