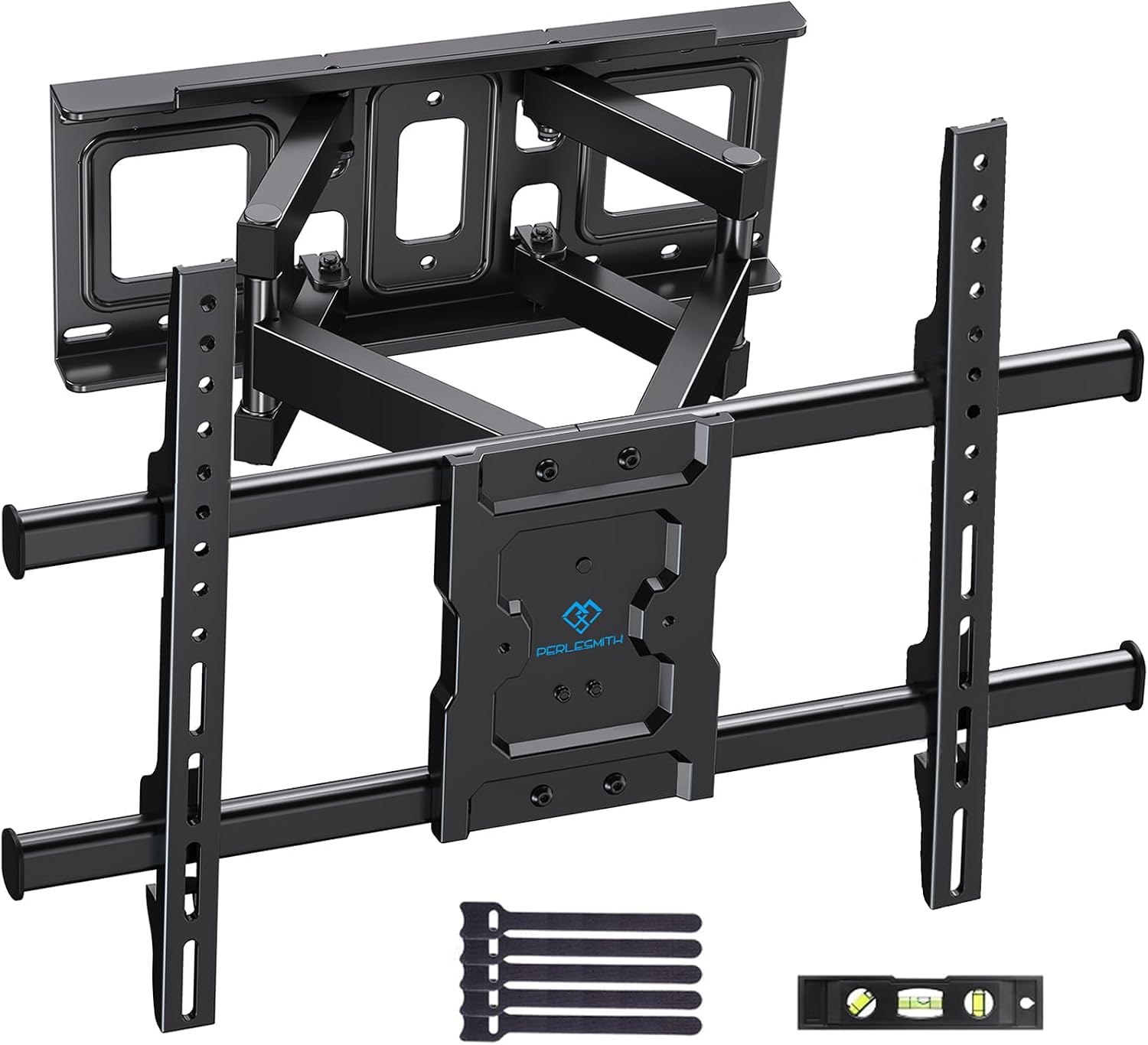

PERLESMITH PSPILFK1 TV bracket 60kg swivel tilt

This articulated wall mount is built for large flat-screen televisions and lets you position a 37 to 85 inch set for better viewing across a room. As a swivel tilt extend TV wall mount it helps reduce glare and relieve neck strain while keeping the screen close to the wall when not in use, making it practical for living rooms, bedrooms and meeting spaces.

Key Points

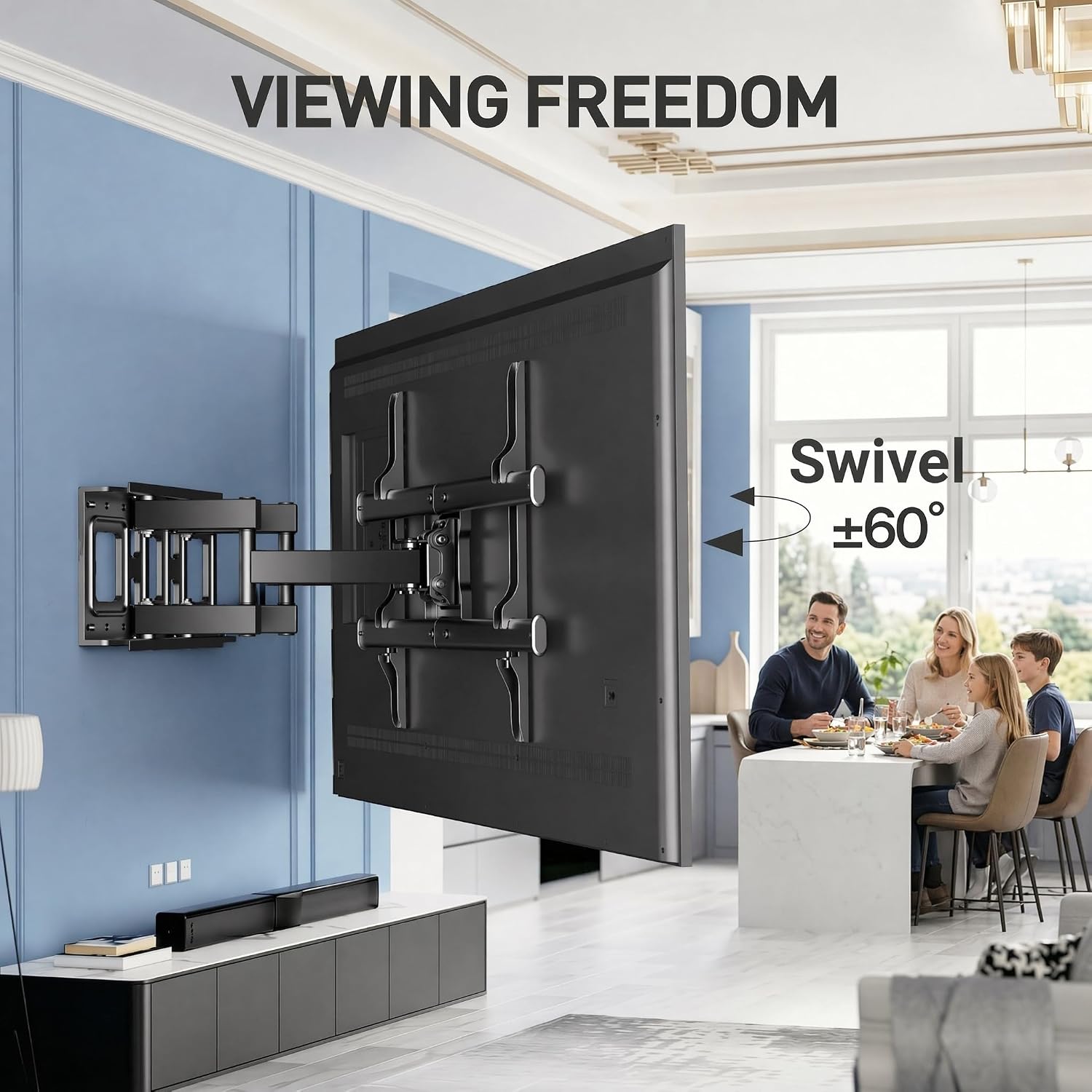

This bracket supports televisions up to 60 kg and fits a wide range of VESA patterns, so it accommodates many current 55 and 65 inch models. The double articulated arms allow the screen to be pulled 76 mm from the wall in its stowed position and extended to 376 mm when you need full articulation. Tilt adjustment of -15° to +5° helps control reflections and the ±60° swivel range means you can adapt the view for different seating arrangements. A small level of fine-tune adjustment of ±3° is available to correct slight misalignments after mounting. For added clarity, PERLESMITH PSPILFK1 is the model used for these specifications. ⚙️

Technical Specifications

• Name: PERLESMITH PSPILFK1

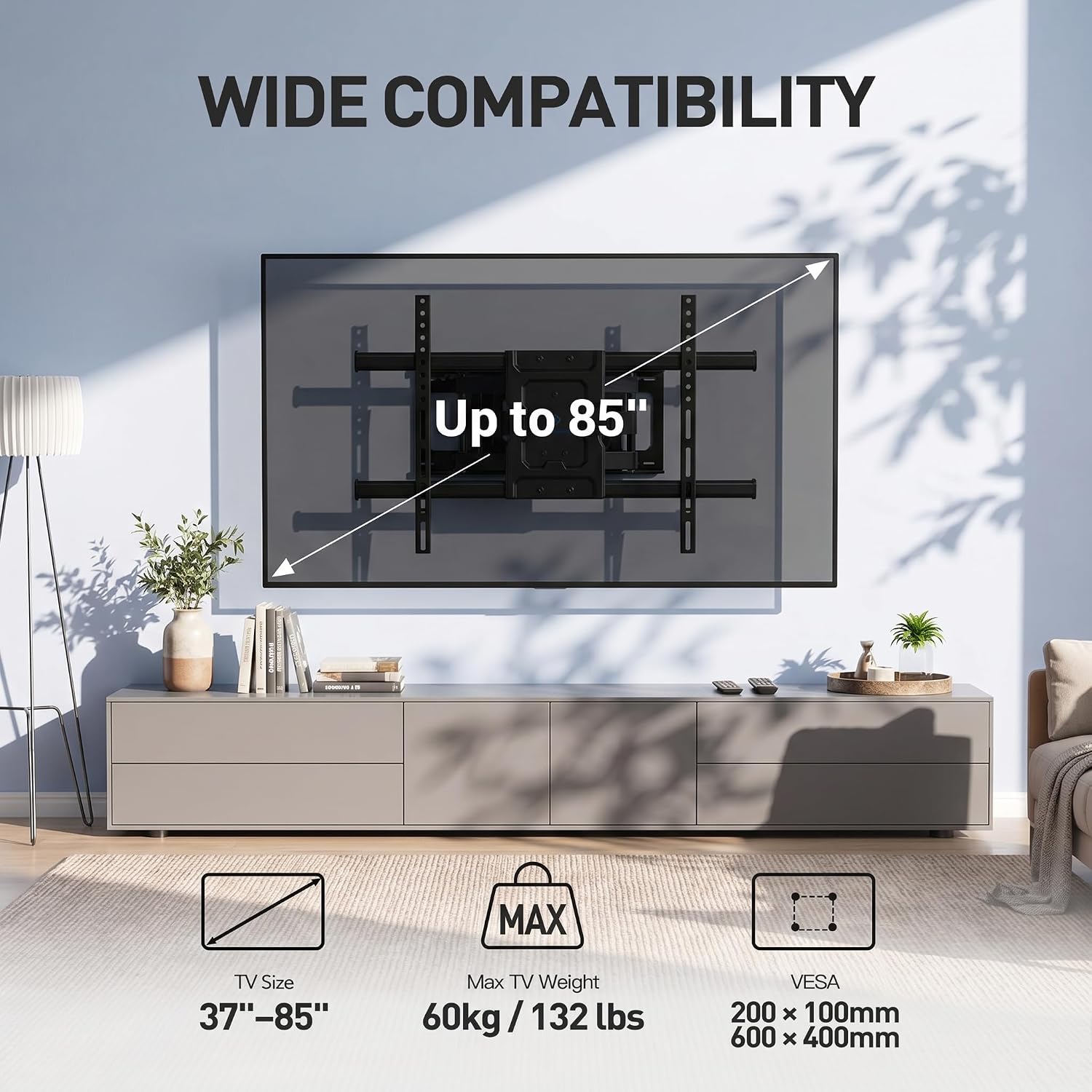

• Compatible screen size: 37-85 inches

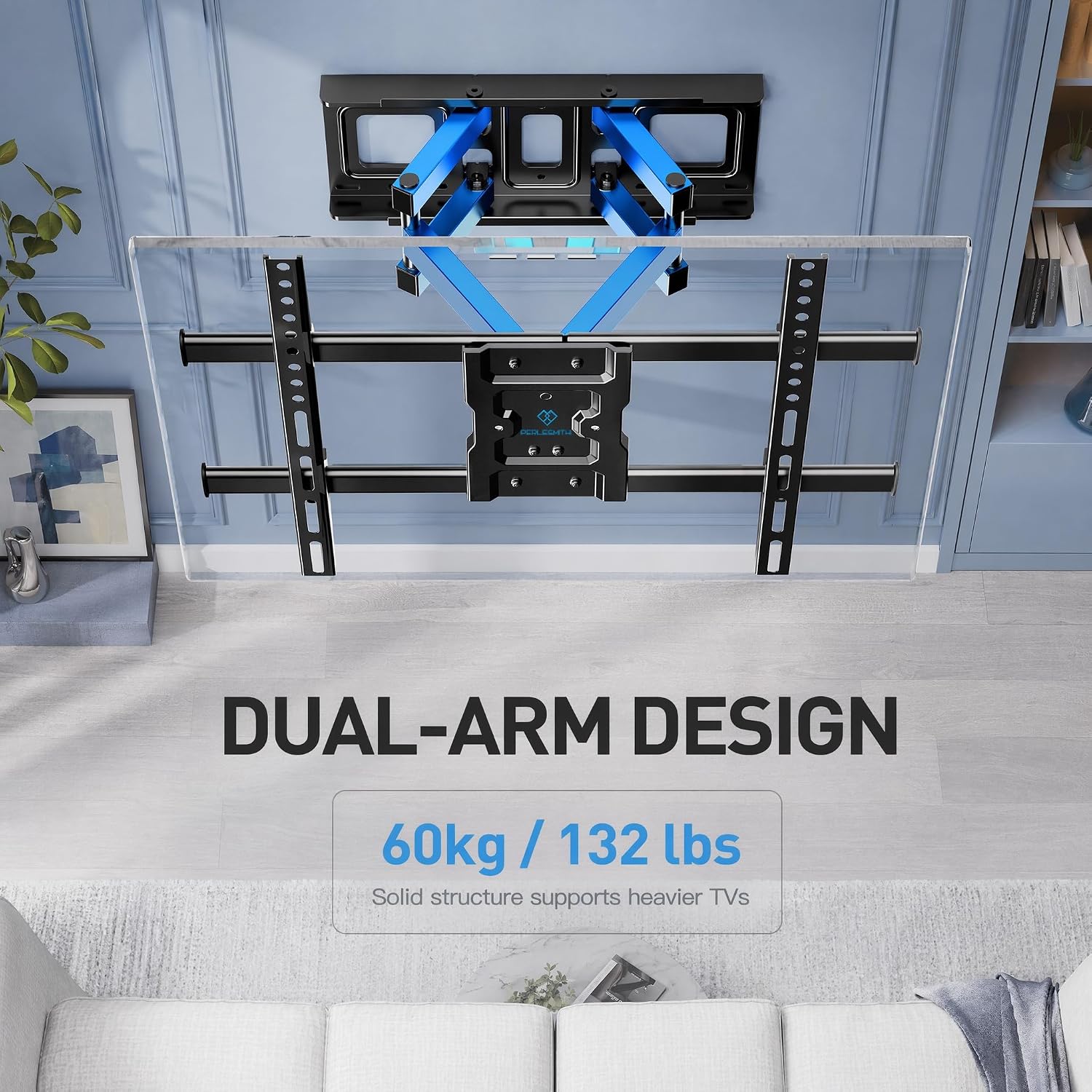

• Maximum load: 60 kg
• Maximum VESA: 600x400 mm

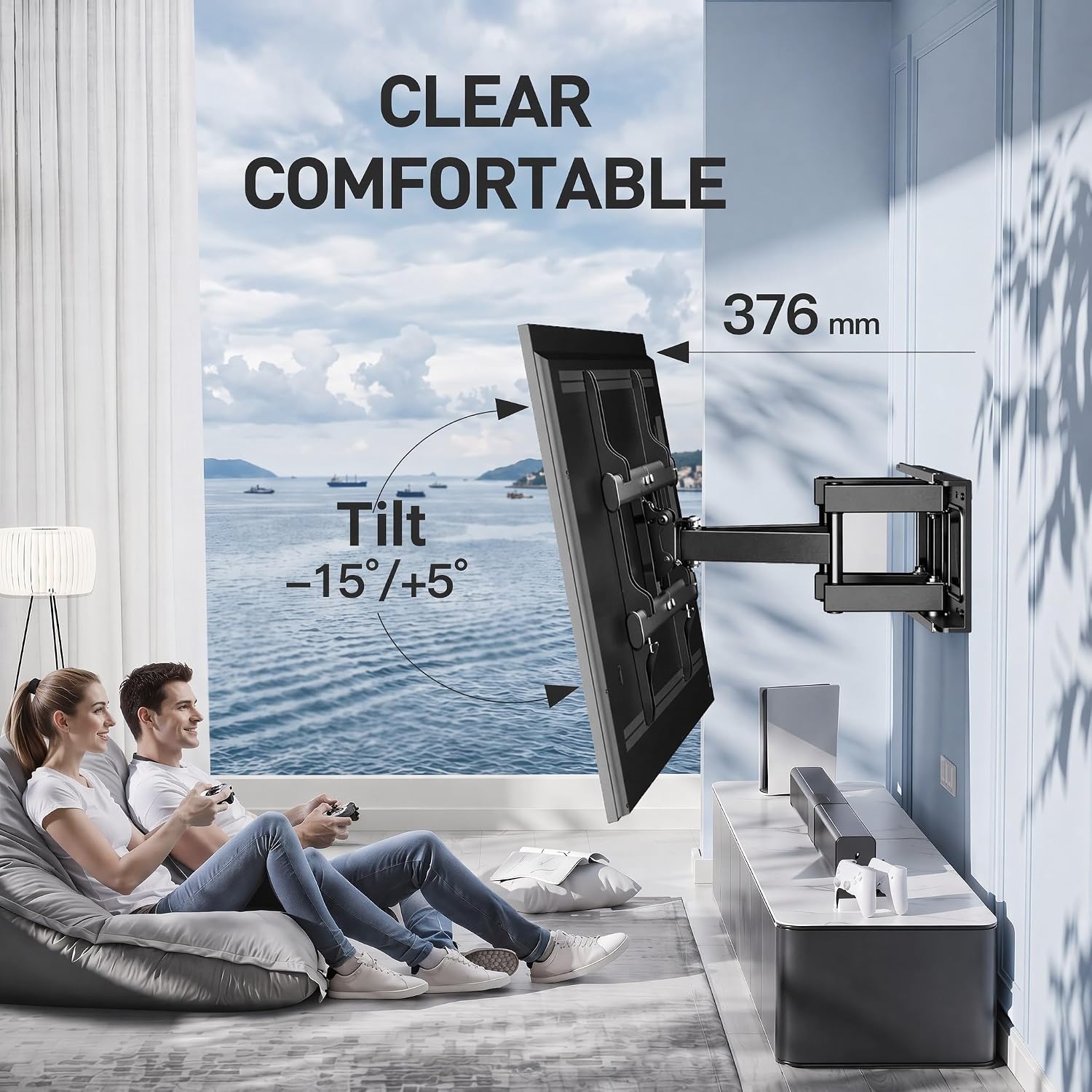

• Tilt range: -15° to +5°

Usage Recommendations

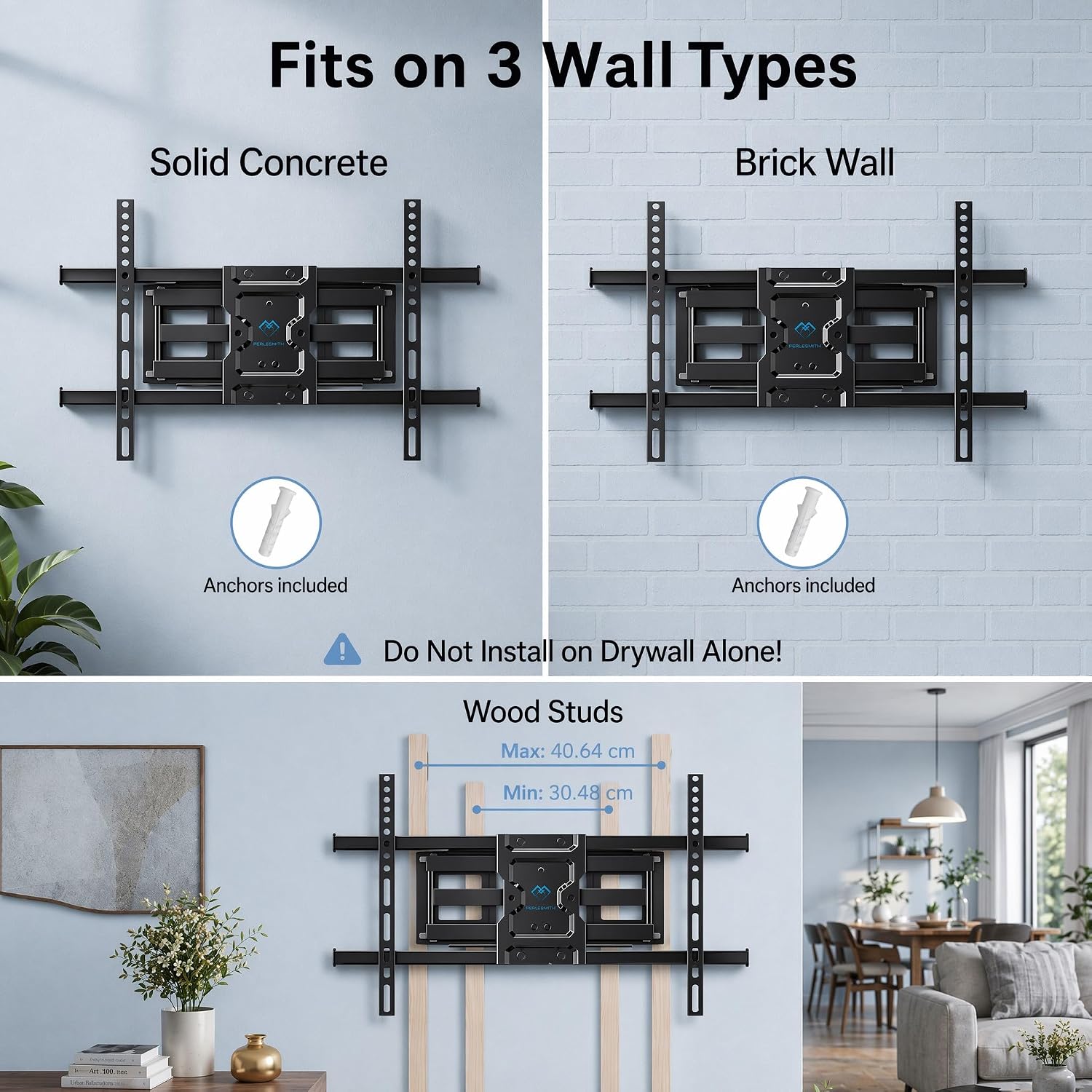

Install the bracket on a solid substrate such as concrete, brick or solid timber studs to ensure secure anchoring, as it is not intended for hollow plasterboard walls without reinforcement. When positioning the mount, consider the maximum swivel angle and the room layout to avoid obstructions when the arms are extended. If the television is especially large, check the VESA pattern and the set weight before proceeding to match the listed capacities. 🛠️

The articulated design makes the mount useful for rooms where viewers move around or where multiple seating positions exist. Pull the TV forward and swivel it towards the main seating area for viewing, then push it back toward the wall to free up space when it is not in use. Note that the maximum swivel may vary with screen size and that the stated weight capacity is according to the manufacturer. 📺
