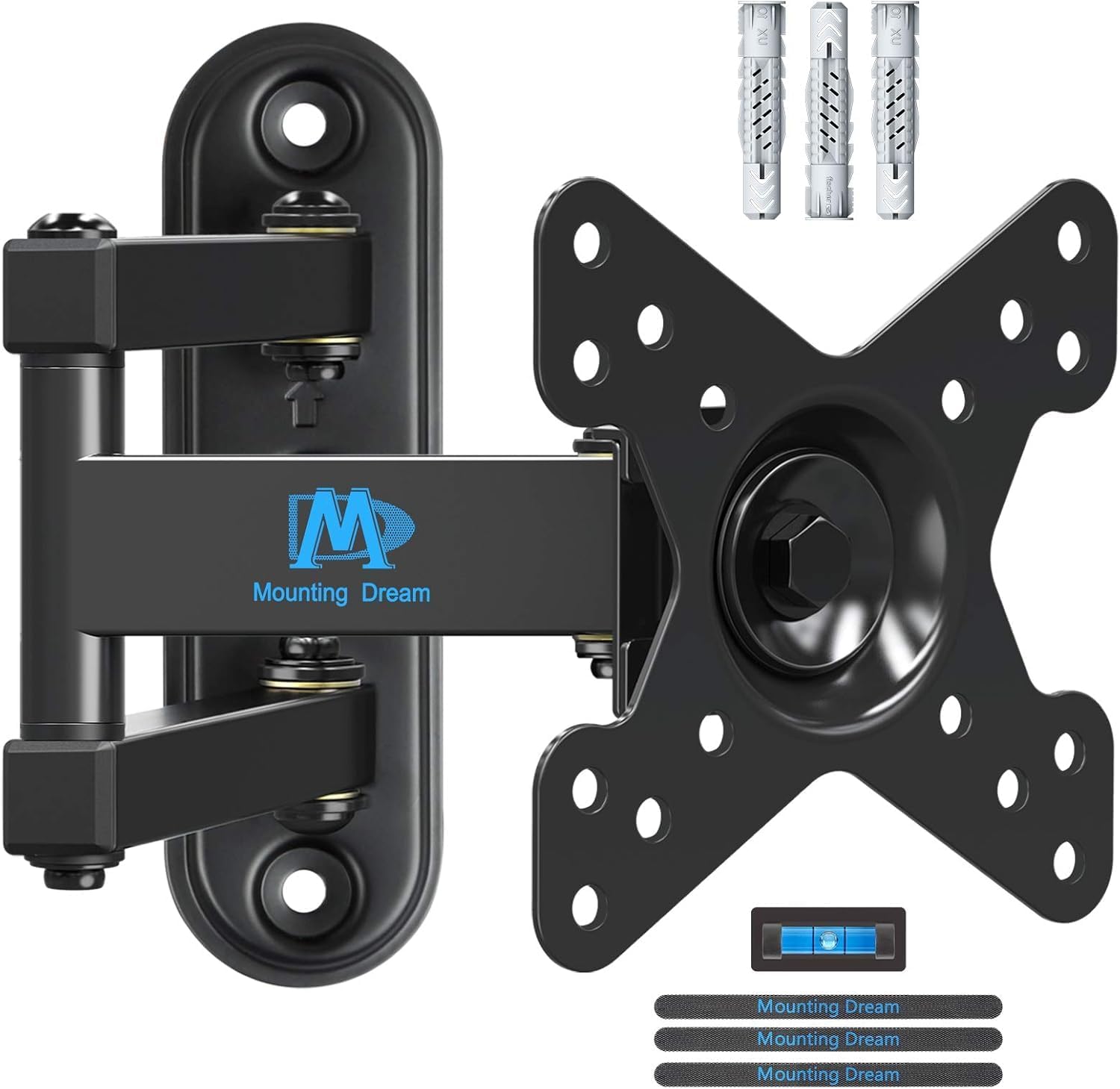

Mounting Dream MD2463-02 swivel TV mount 26-inch

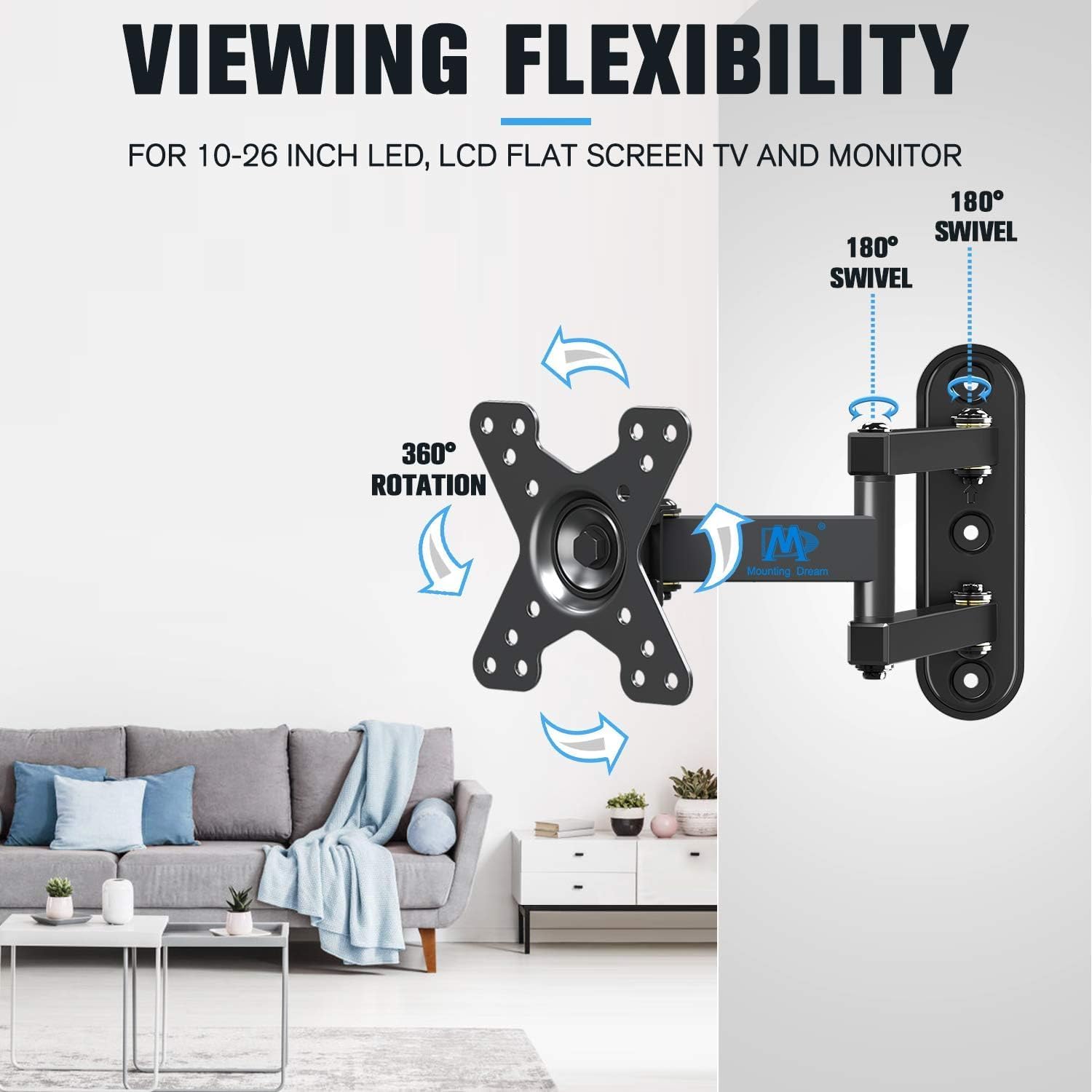

This compact wall mount from Mounting Dream fits small TVs and monitors between 10 and 26 inches and is built for flexible viewing in tight spaces. It supports screens up to 15 kg and offers swivel, tilt and full rotation so you can reduce glare, adjust the angle for different seating positions and pull the screen forward when needed.

Key Points

The bracket accepts VESA patterns 50x50mm, 75x75mm and 100x100mm, covering the most common small-display hole patterns. It tilts 15 degrees up and 15 degrees down to help control reflections and swivels horizontally up to 90 degrees each side depending on screen width. The arm extends to 345 mm from the wall and retracts to 66 mm, offering both a low-profile fit and reach when required. According to the manufacturer the structure is robot-welded for increased consistency and strength. Installation hardware is supplied in labelled bags and basic instructions are included in multiple languages.

Technical Specifications

• Name: Mounting Dream MD2463-02

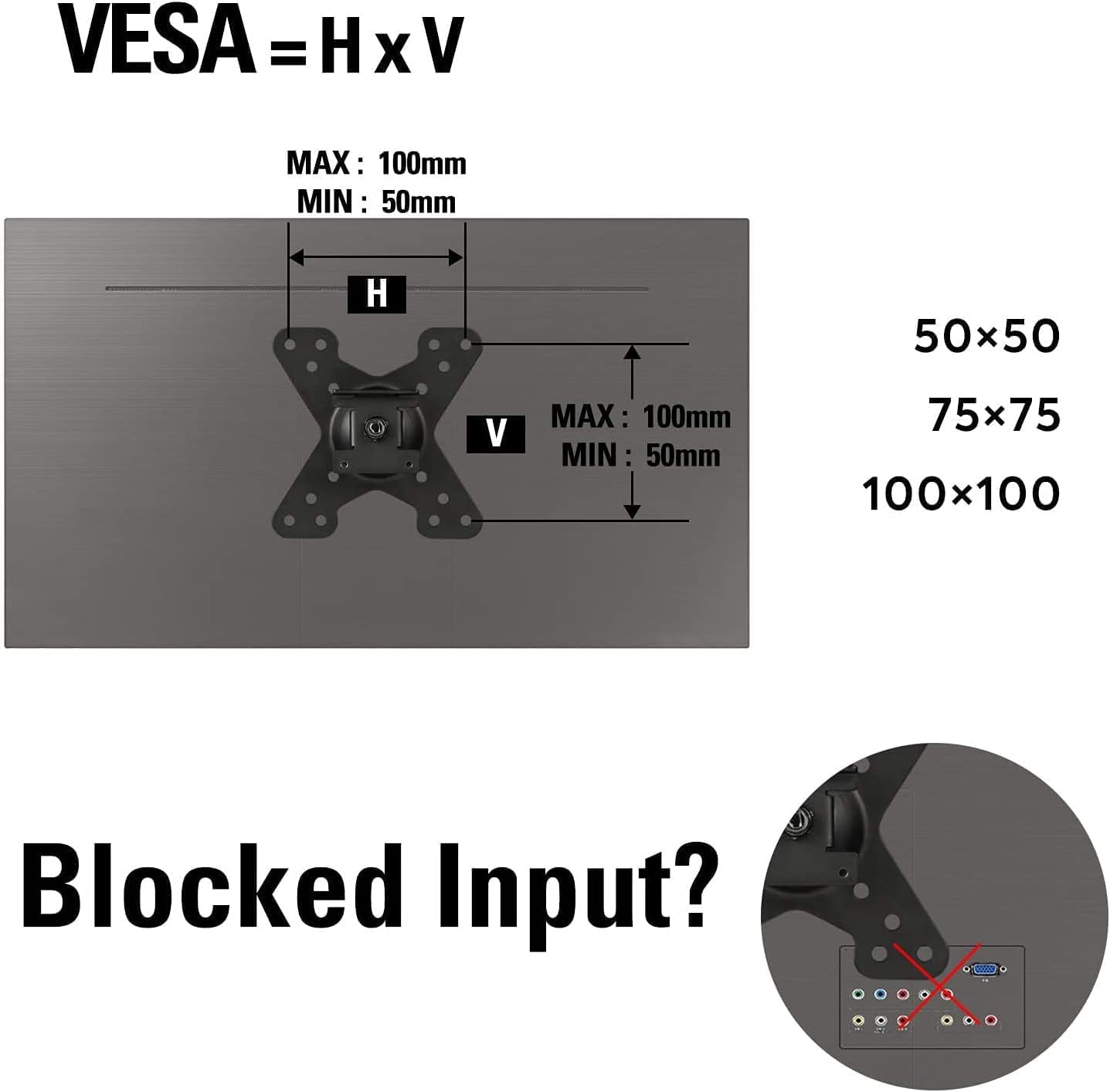

• VESA compatibility: 50x50 mm, 75x75 mm, 100x100 mm
• Screen size range: 10–26 inches
• Maximum load: 15 kg

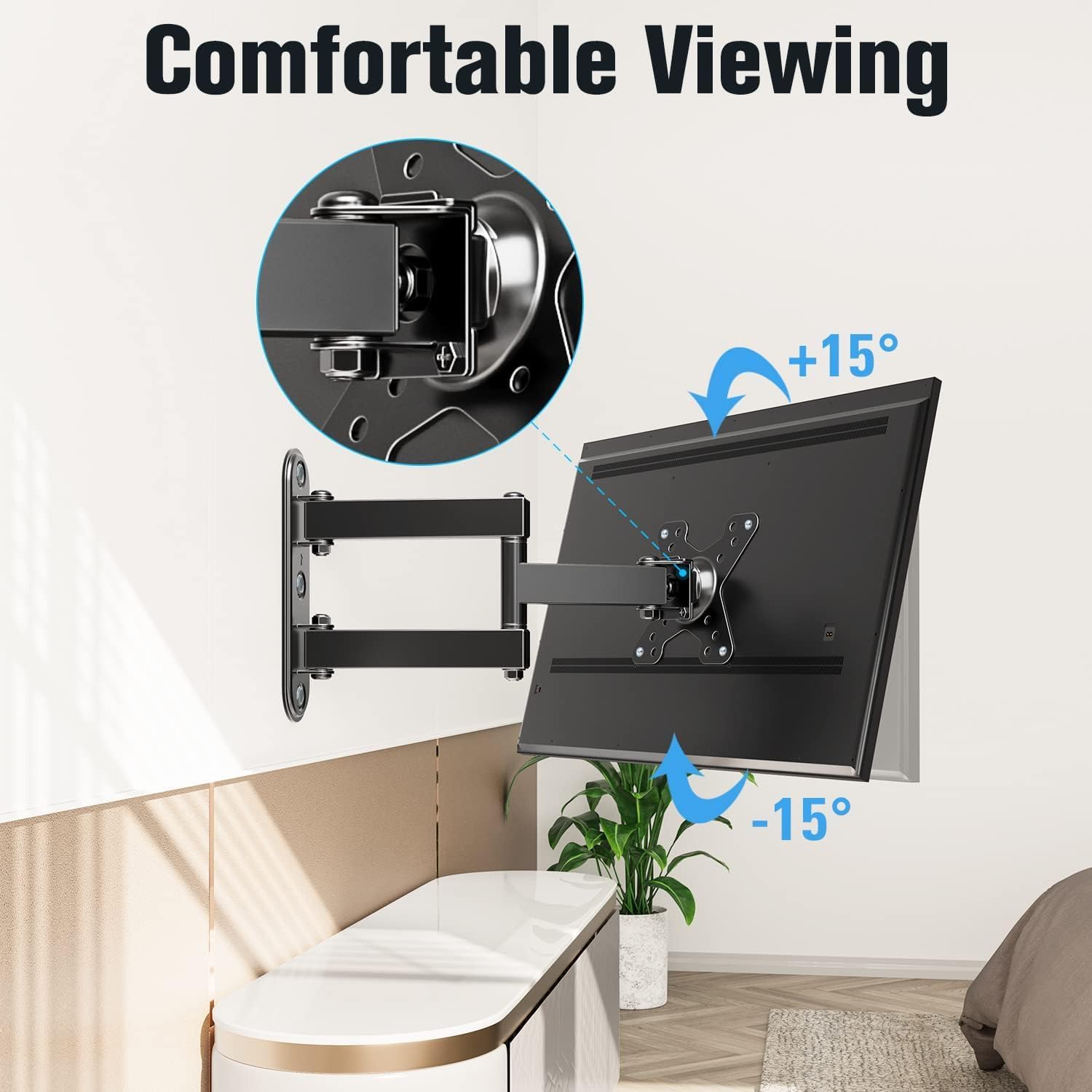

• Tilt range: +15° / -15°

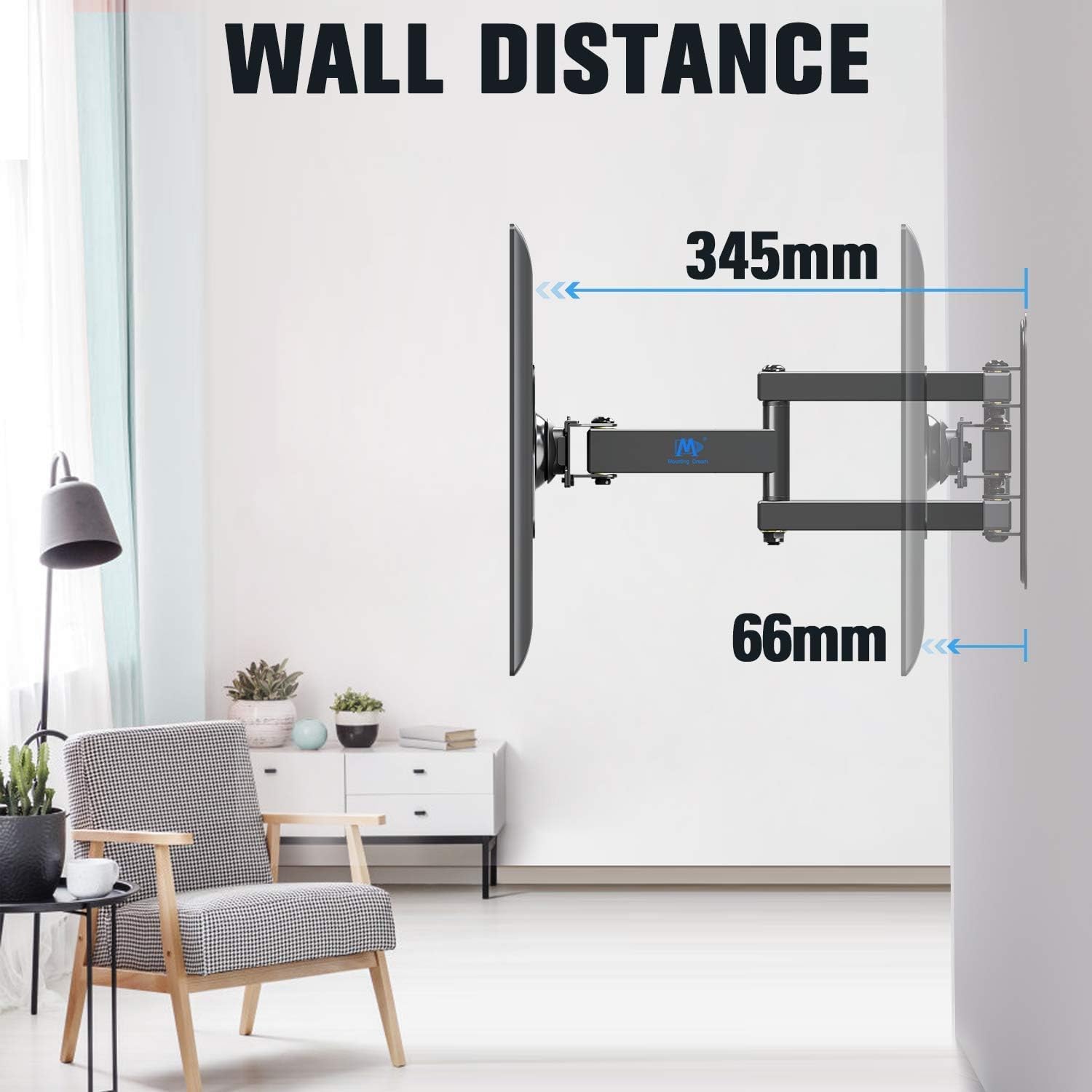

• Extension/retraction: 345 mm extend, 66 mm retract

Usage Recommendations

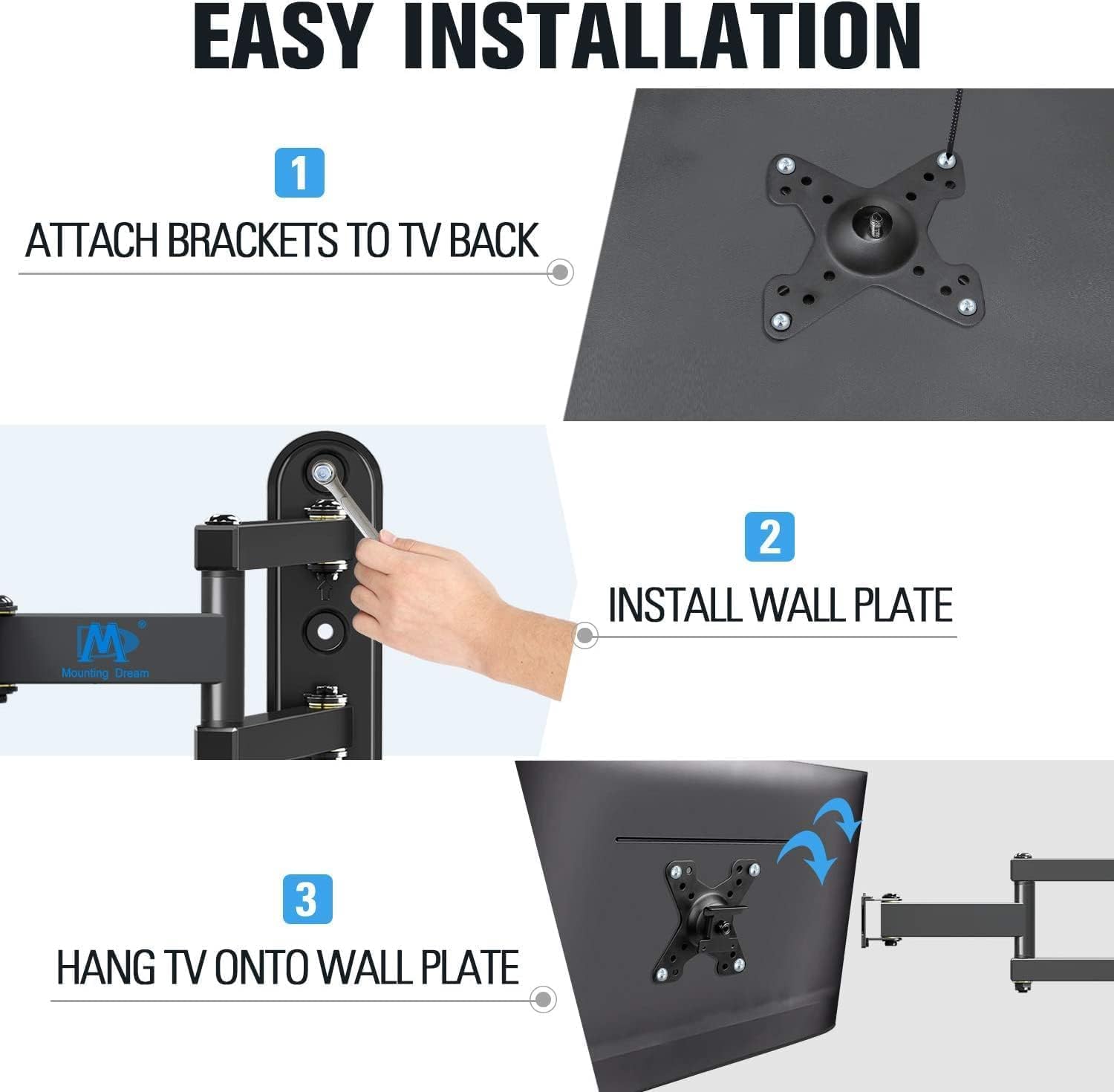

Before fitting, measure the VESA hole spacing on your display and check that the maximum screen width allows the full swivel range without obstruction. The bracket is designed for installation on solid walls and should not be mounted on single-layer plasterboard. Use the marked hardware bags to simplify assembly and have a spirit level handy to ensure a straight installation. If cable management is important, route leads along the arm when extending to keep the appearance tidy.

Positive Aspects

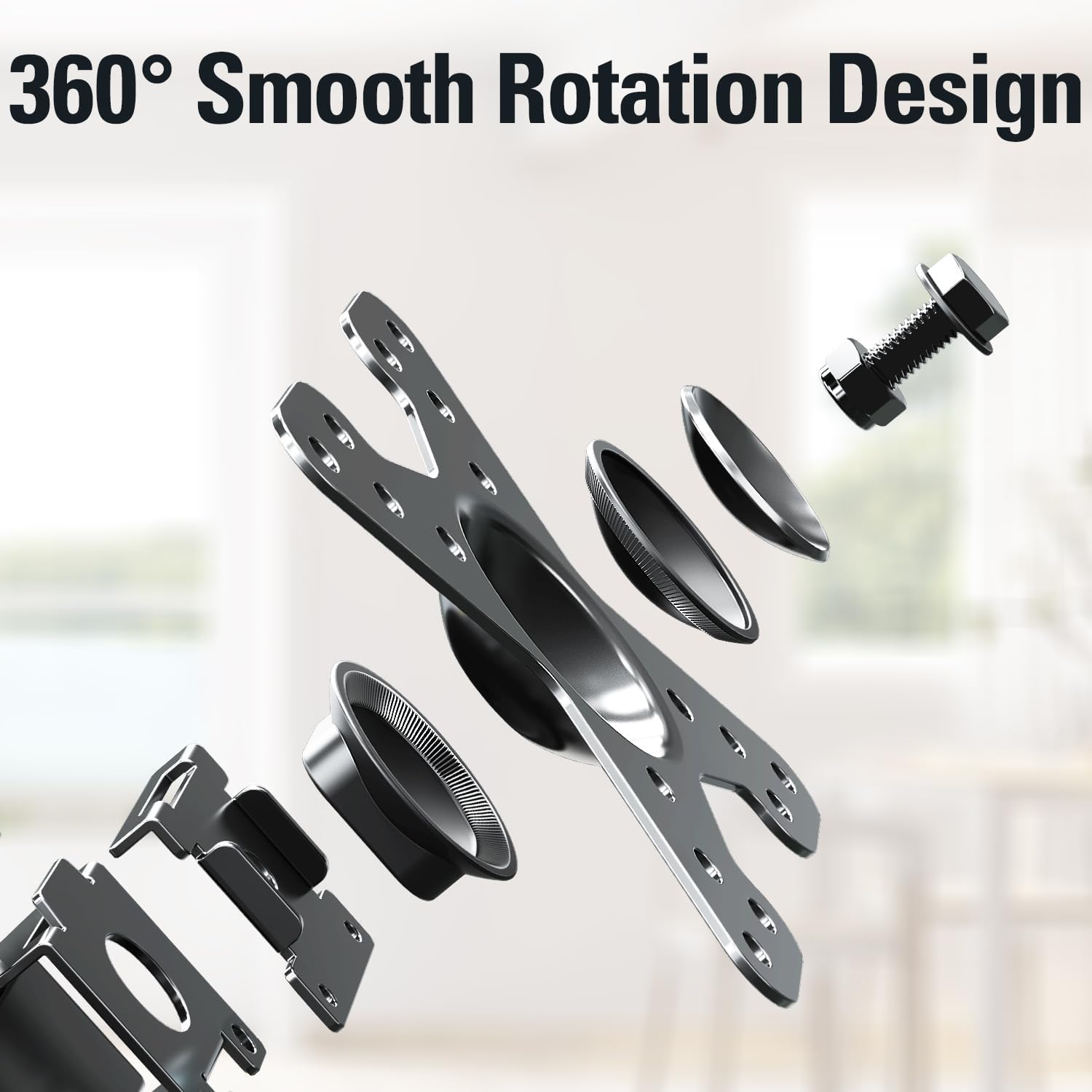

This mount is a practical solution when space is at a premium and you need a compact, adjustable support for a bedroom, kitchen or small office. The ability to rotate the screen a full 360 degrees after installation allows fine levelling and helps when a display needs occasional portrait orientation. The labelled parts system and included fittings reduce setup time, and the combination of tilt, swivel and extension offers a wide range of viewing positions despite the bracket’s small footprint. Consider that for very lightweight or non-standard VESA fittings some adapters may be necessary, and the product is not intended for installation on unsupported hollow partitions.
