ASUS TUF GAMING B760M-PLUS II Micro-ATX Motherboard, LGA 1700, DDR5, PCIe 5.0

A gaming build focused on fast connections has different priorities from a straightforward home PC. The ASUS TUF GAMING B760M-PLUS II is an Intel LGA 1700 motherboard with DDR5 support and a PCIe 5.0 slot.

For online play, its Realtek 2.5G Ethernet connection and TUF LANGuard are relevant features. For a build with several drives, it also provides three PCIe 4.0 M.2 slots.

The choice is practical if those connections match your components and plans. It is a Micro-ATX board, so it is also worth matching its format to the case you intend to use.

Everyday use

This board is designed for desktop PCs using Intel LGA 1700 processors. ASUS lists support for 14th, 13th and 12th Gen Intel processors, making it suitable for a build around one of those generations rather than a system based on a different socket. Its four DDR5 memory slots are a key consideration: the memory must be DDR5, not an older generation.

For a gaming setup connected by cable, the Realtek 2.5G Ethernet port gives the board a clear networking focus. Display connections include HDMI and DisplayPort, while the PCIe 5.0 slot and three PCIe 4.0 M.2 slots offer options for expansion and storage. In a typical build, that could mean using the M.2 slots for several drives while reserving the main slot for a compatible graphics card. The board’s actual fit and component choices still depend on the rest of the PC.

Strengths

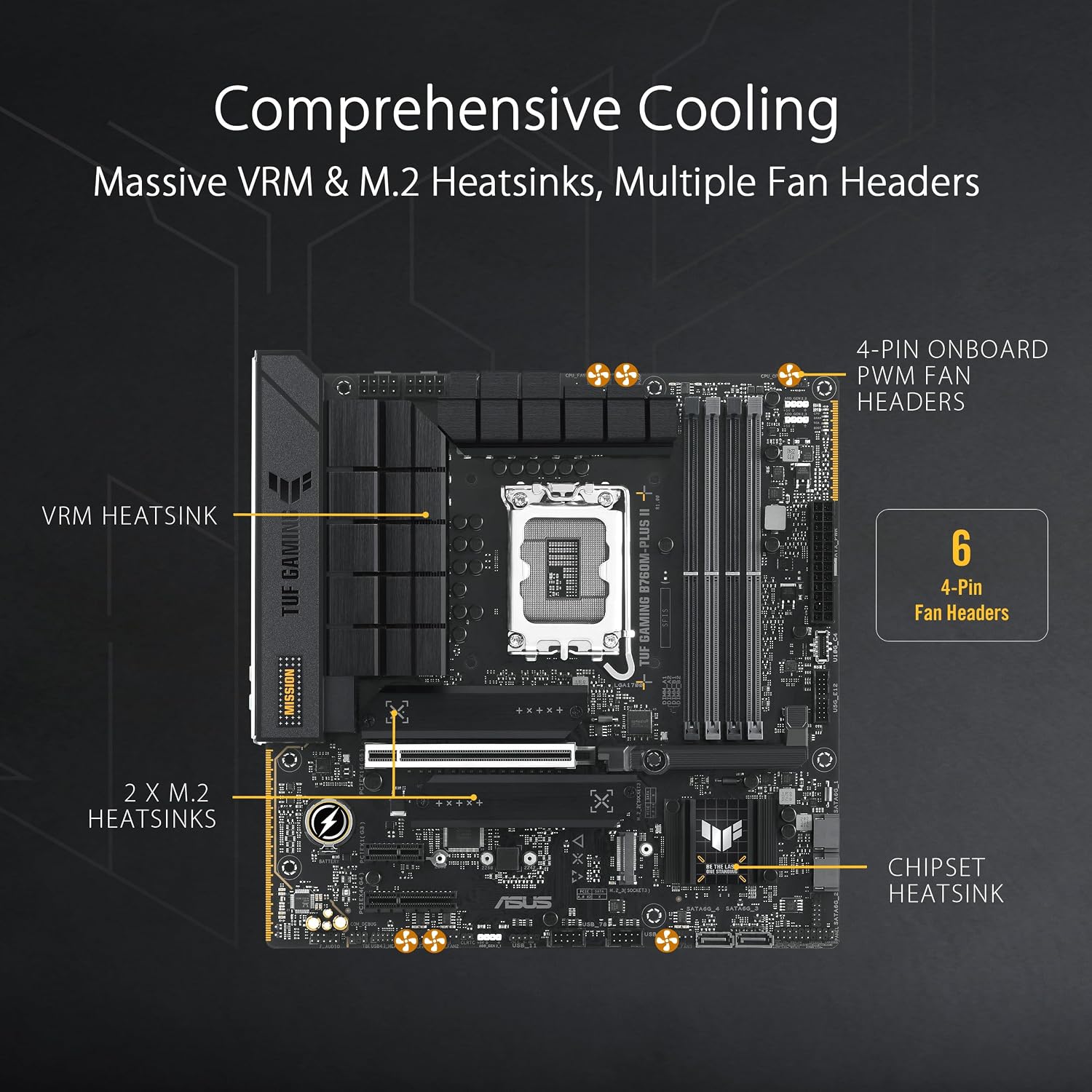

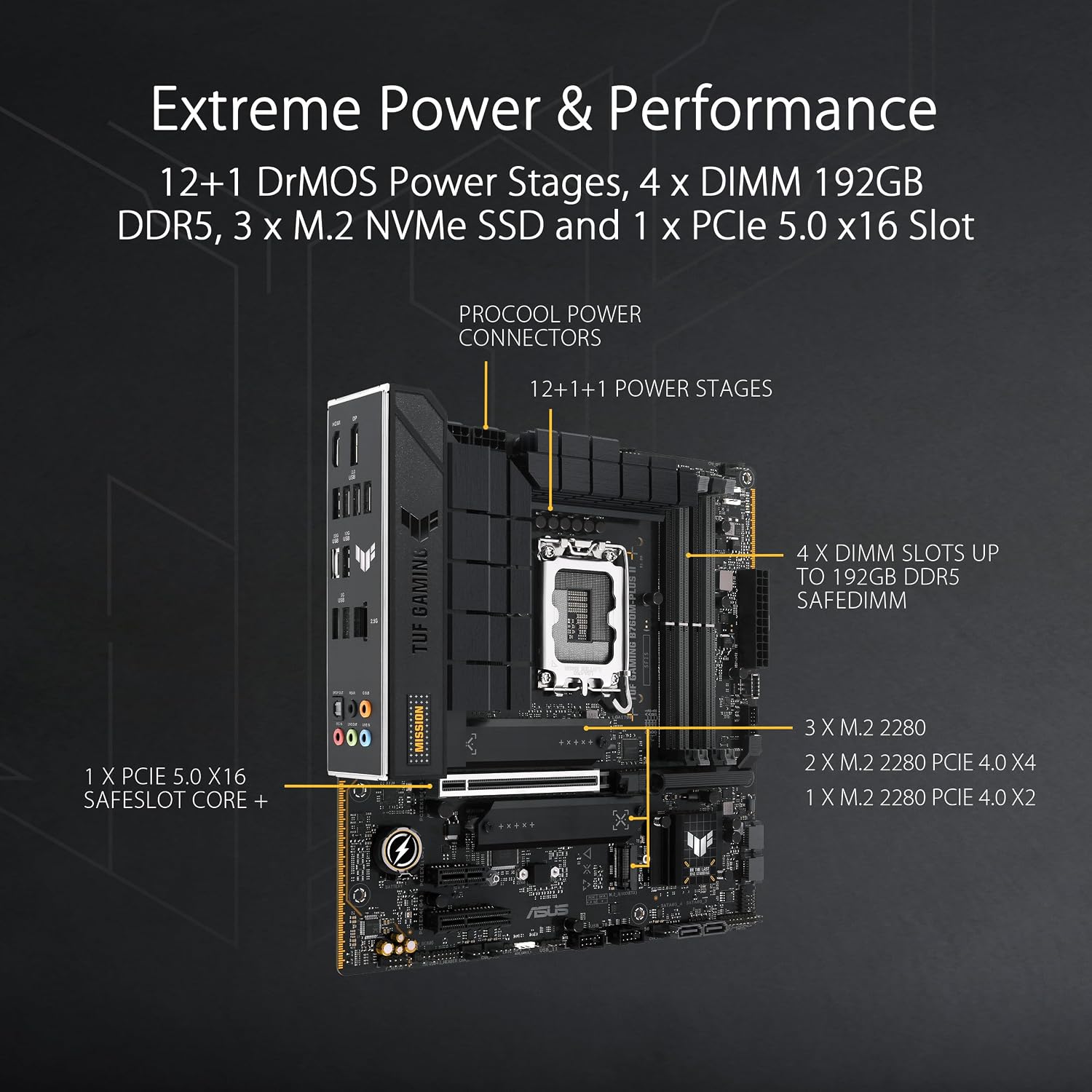

The feature set goes beyond the core socket and memory support. ASUS specifies 12+1 DrMOS power stages, a six-layer PCB, 8+8 ProCool sockets and Digi+ VRM. Cooling provisions include an extended VRM heatsink, an M.2 heatsink, a PCH heatsink, hybrid fan headers and Fan Xpert 2+. These are useful details for builders who want onboard cooling and fan-control options, rather than a more basic board with fewer listed provisions.

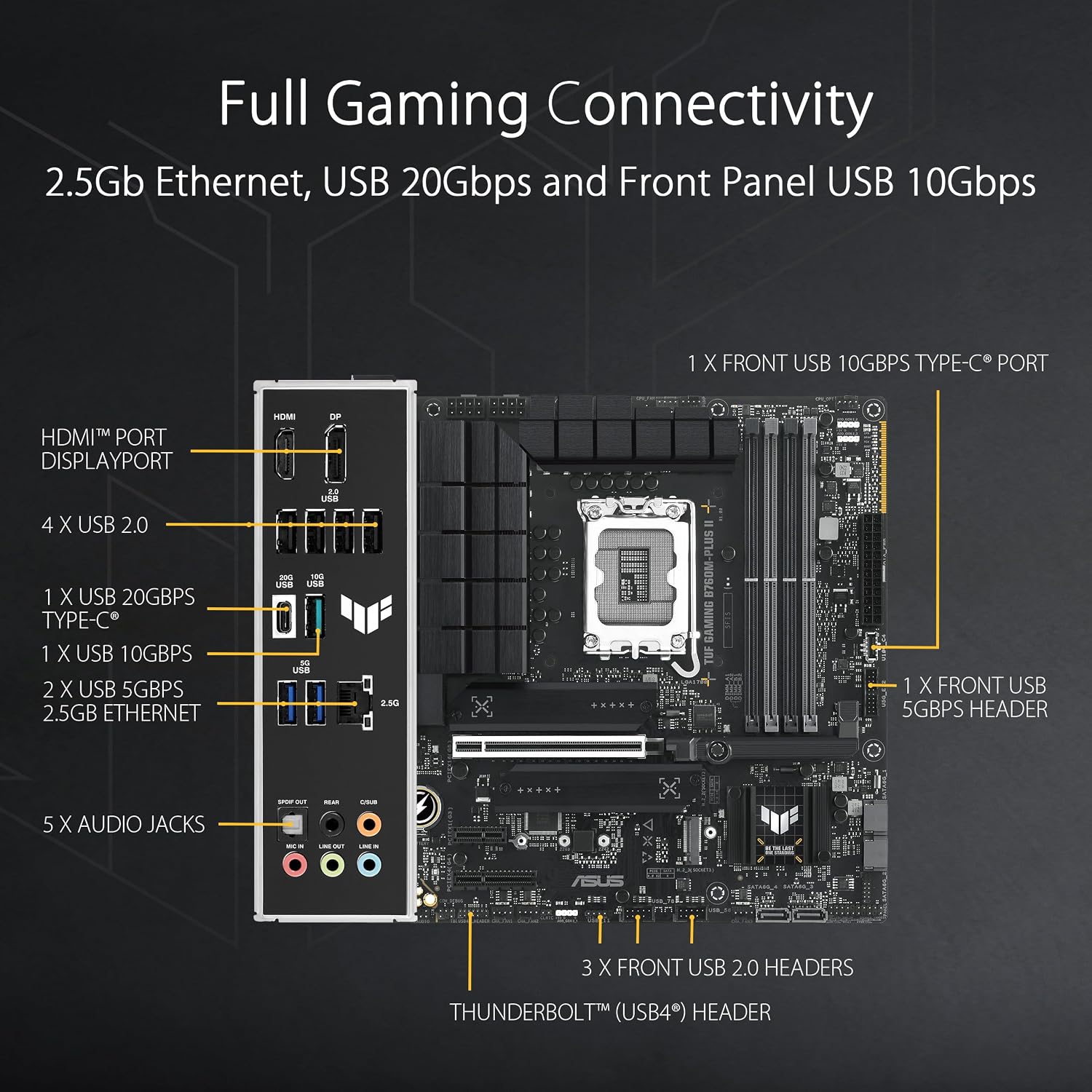

For peripherals, there is a rear USB 10Gbps Type-C port and a front-panel header for USB 10Gbps Type-C. A Thunderbolt header compatible with USB4 is also listed. A power-saving function offers settings for CPU power limits, Aura lighting, fan profiles and the Windows power plan, it provides configuration options, not a stated guarantee of particular energy savings.

Product specs

• Model: TUF GAMING B760M-PLUS II
• Type: Micro-ATX motherboard
• Chipset: Intel B760
• CPU socket: LGA 1700
• Memory: Four DDR5 slots
• Expansion: PCIe 5.0 slot, three PCIe 4.0 M.2 slots
• Connectivity: HDMI, DisplayPort, Realtek 2.5G Ethernet, rear USB 10Gbps Type-C
• Other connections: Front USB 10Gbps Type-C header, Thunderbolt header compatible with USB4

Should you buy it?

It makes sense if you are building around an LGA 1700 Intel processor, want DDR5 memory and value 2.5G wired networking alongside multiple M.2 slots. The mix of expansion, cooling features and USB-C connections suits a gaming or general-purpose desktop where those capabilities will be used. It may not suit you if your existing processor needs a different socket or your available memory is not DDR5, those requirements determine whether this board can form part of your build. Check the case format too, as this model is Micro-ATX.
