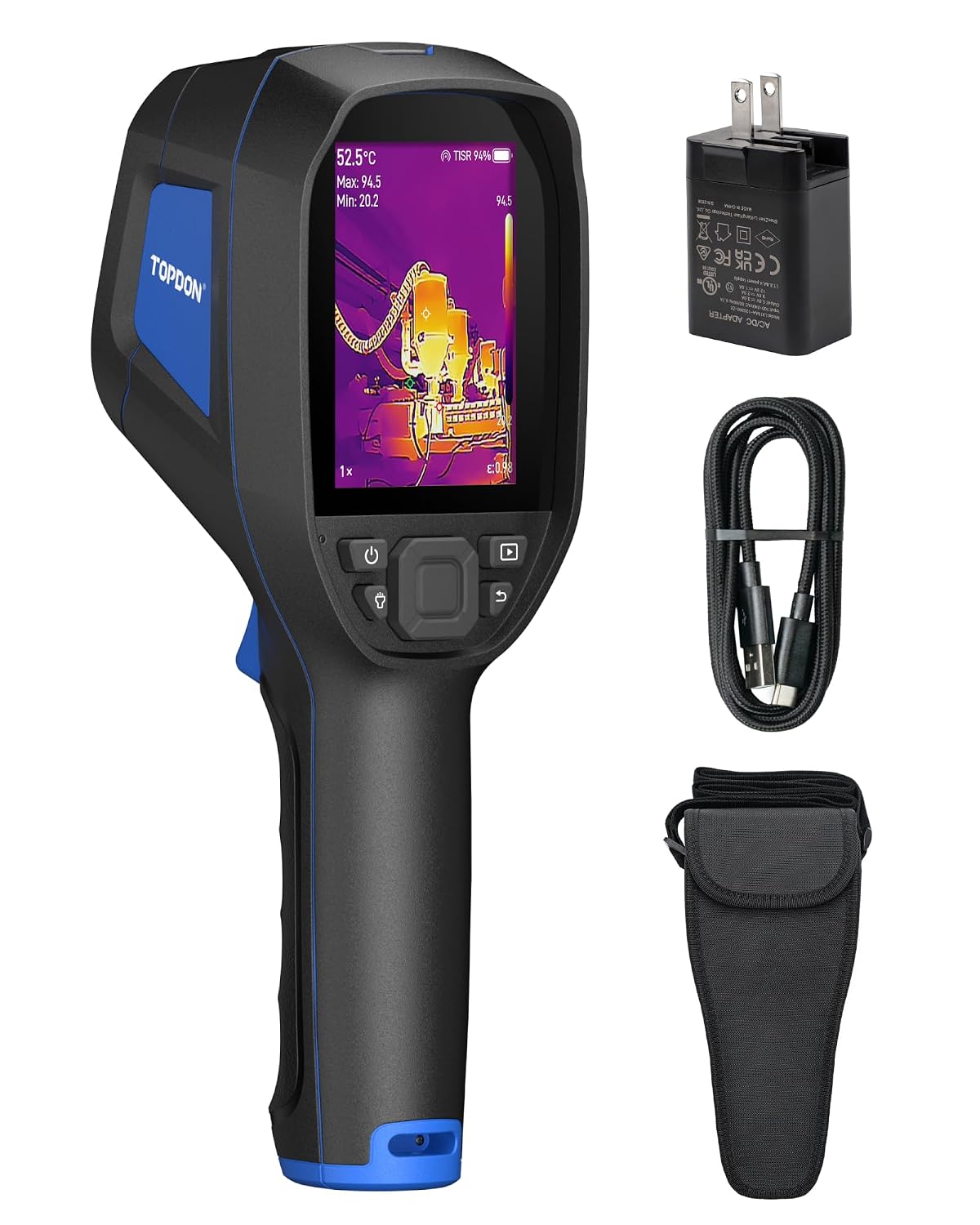

TOPDON thermal imaging camera with 3.5-inch display
Product description
When a quick visual check does not explain a hot or cold spot, a thermal camera can help you see temperature differences across a surface. The TOPDON TC004 pairs its thermal view with a handheld format for inspection work.
Its 3.5-inch screen gives you room to review an image at the device, while a built-in red laser pointer helps identify the area being measured.
For a practical check, scan a piece of equipment, use the pointer to mark the area you want to inspect, then save an image or video for later review. The listing also describes PC analysis and wireless transfer through the TopInfrared app.
How to use it
The TC004 is intended for finding and documenting temperature differences during inspections. Its infrared resolution is listed as 256 × 192, enhanced by TISR to 512 × 384. That distinction matters: the higher figure is the enhanced resolution, not the stated native infrared resolution. The larger display can make it easier to view the thermal image on the spot, but it does not remove the need to interpret what you are seeing in context.
The laser pointer can help you line up a measurement area with the real-world target. After a scan, the camera supports image and video recording, giving you material to refer to when comparing findings or preparing a report. Wi-Fi is listed for transferring files to the TopInfrared mobile app, where the description says you can analyse them and generate reports. What good is a thermal image if you cannot easily connect it to the place you inspected? That combination is useful when you need a record rather than a quick glance alone.
Based on the listed details, the camera also has an integrated LED light, IP54-rated protection against dust and splashes, and 2-metre drop resistance. Those details suit field use, but IP54 is not a claim that the camera is waterproof. The stated battery life is up to 8 hours, and the built-in storage is 64GB. Actual working time and the amount of footage you can keep will depend on use, the listing does not give further test conditions.
Pros
The main appeal is a set of features that supports a full inspection workflow: view temperature differences on the handheld screen, point to a target, record the finding, then transfer files for analysis or reporting. A 64GB capacity offers room for image and video documentation, while the LED light may help in darker or confined areas.
It suits you if you want a portable camera with recording and file-transfer options, rather than a basic thermal viewer used only for immediate checks. The stated drop resistance and dust-and-splash protection are also relevant if the device will travel between work areas.
Spec sheet
- Type: Handheld thermal imaging camera
- Display: 3.5 inches
- Infrared resolution: 256 × 192, enhanced by TISR to 512 × 384
- Storage: 64GB
- Battery life: Up to 8 hours
- Connectivity: Wi-Fi, transfer to the TopInfrared mobile app
- Recording: Images and video, PC analysis supported
- Protection: IP54-rated dust and splash protection, 2-metre drop resistance
- Other: Red laser pointer and integrated LED light
What I’d decide
The TC004 is worth considering if you want to inspect and document temperature differences in one handheld device, especially when saved files and later analysis matter more than simply spotting a warm area. Compared with a simpler viewer that offers fewer recording or transfer options, its listed storage, Wi-Fi and reporting workflow are meaningful additions.
It is not for you if you need a stated native resolution of 512 × 384: the listing describes that figure as TISR-enhanced from 256 × 192. It may also be the wrong fit if you need protection beyond the stated dust-and-splash rating, or detailed information about measurement accuracy and operating conditions, those specifications are not provided here.
