Tenveo NDI PTZ Camera Joystick Controller (KB300PRO) with 7” Quad-Screen Preview

Key takeaways

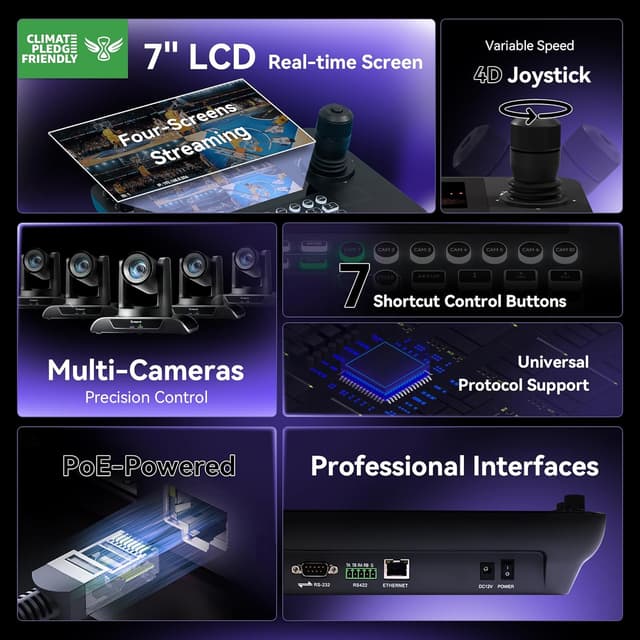

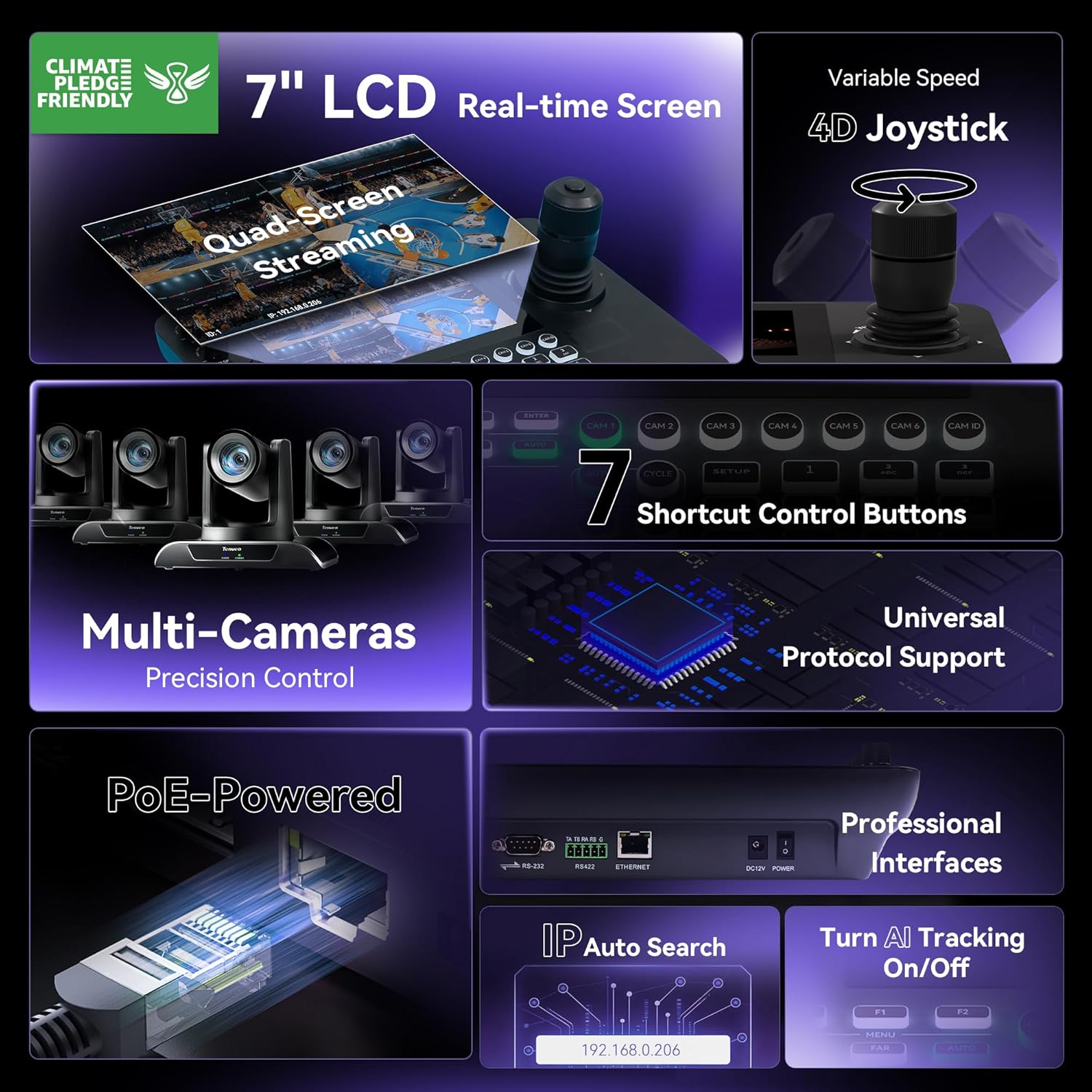

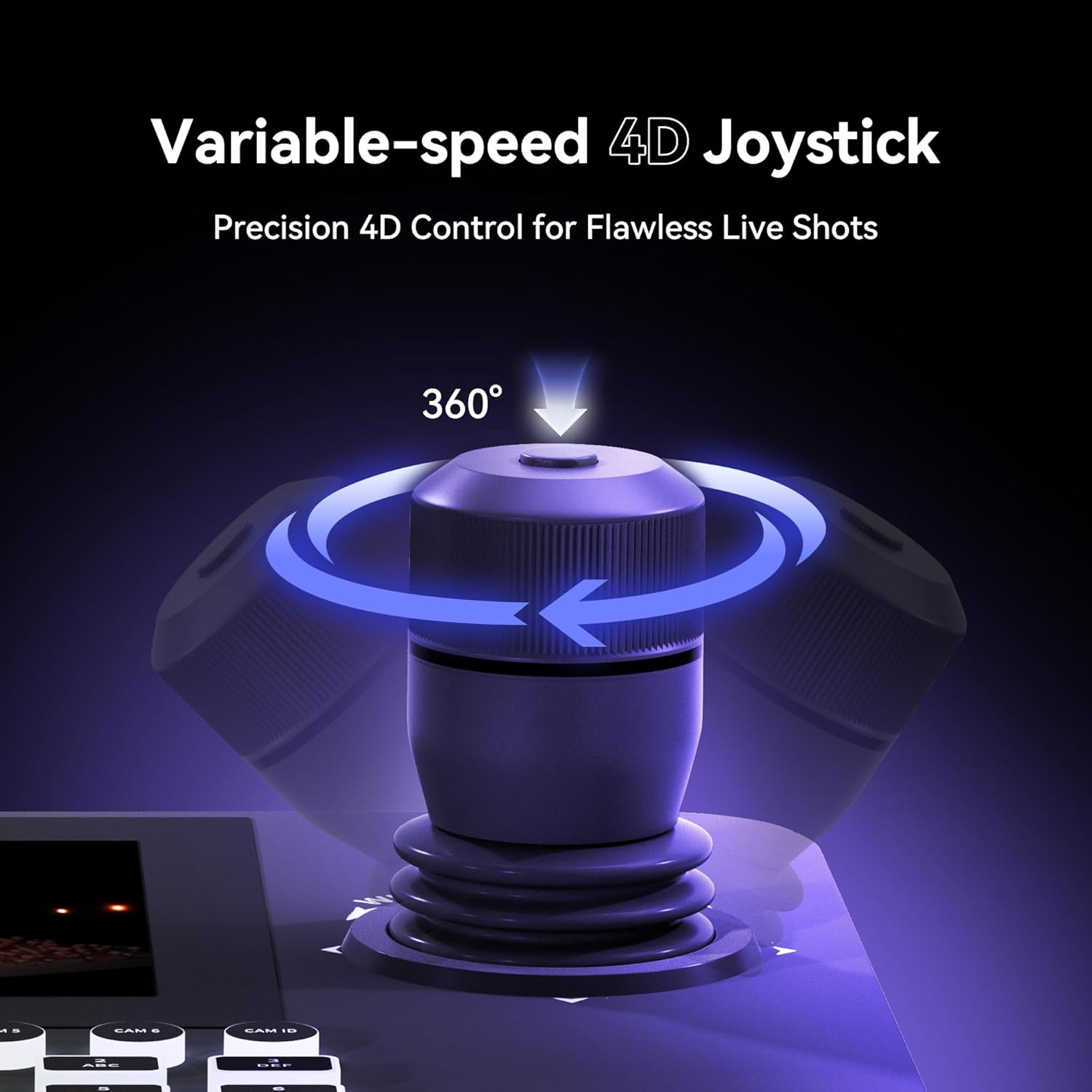

If you run live production and you need confident, on-the-fly camera control, this Tenveo NDI PTZ Camera Joystick Controller is built around that idea: a 7-inch LCD for real-time preview plus a 4D joystick for variable-speed PTZ adjustments. On paper, it’s aimed at fast switching and tight shot timing—exactly the kind of workflow that comes up in church worship live events, sports, and multi-camera streaming.

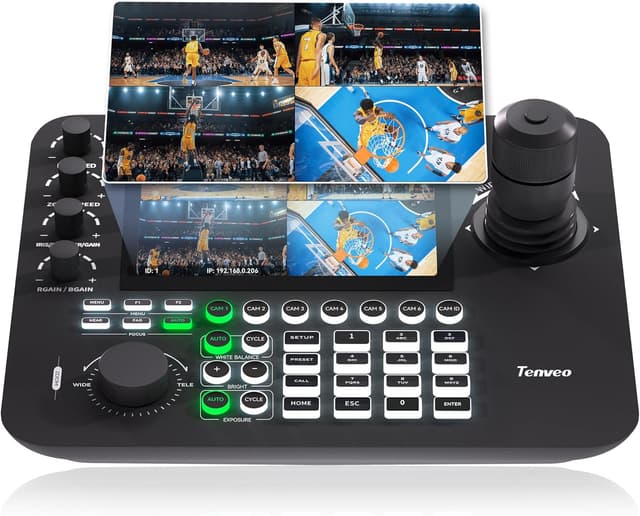

Where it gets interesting is the quad-screen preview. Instead of guessing what Camera 2 or 3 is doing, you can view and manage up to 4 PTZ feeds, then jump to the camera you want via the CAM keys. It’s not a fully “set-and-forget” controller—good results still depend on how your system is configured—but it can reduce blind spots during live moments.

One more thing to keep in mind: the main view supports 1080P30, while the quad-screen is listed as up to 720P30. That’s a realistic tradeoff if you want multi-view all at once.

What you’ll notice during live operation

The core workflow here is simple: you preview, you select, and you steer. The controller supports pan, tilt, zoom, focus, iris, backlight, presets, PTZ speed, and quick camera selection. In a typical use case, you could be on the 7-inch screen monitoring a quad view of four angles, then press the CAM key for the shot you need, use the joystick to reframe smoothly, and drop back to another camera without losing track of the rest of the feed.

It also supports PTZ parameters added through a web interface, plus quick select for 7 cameras. The listing also mentions control of up to 255 PTZ cameras, which suggests it’s designed for bigger conference setups—not just a single camera room.

Where the quad-screen preview helps (and where it won’t)

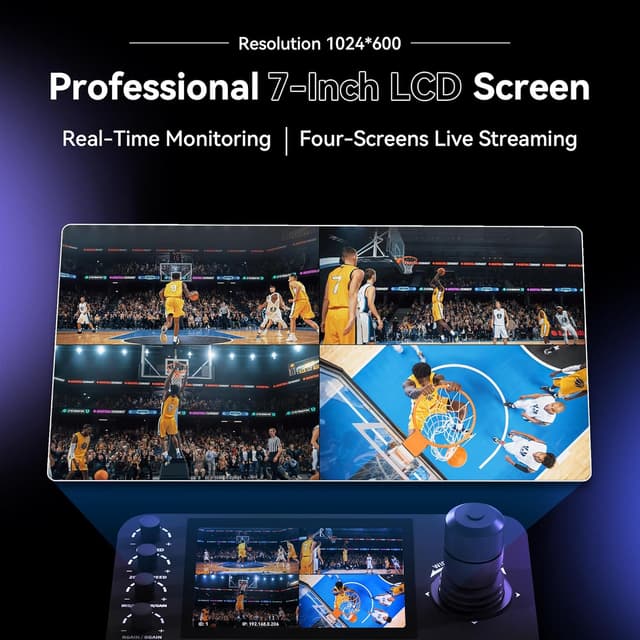

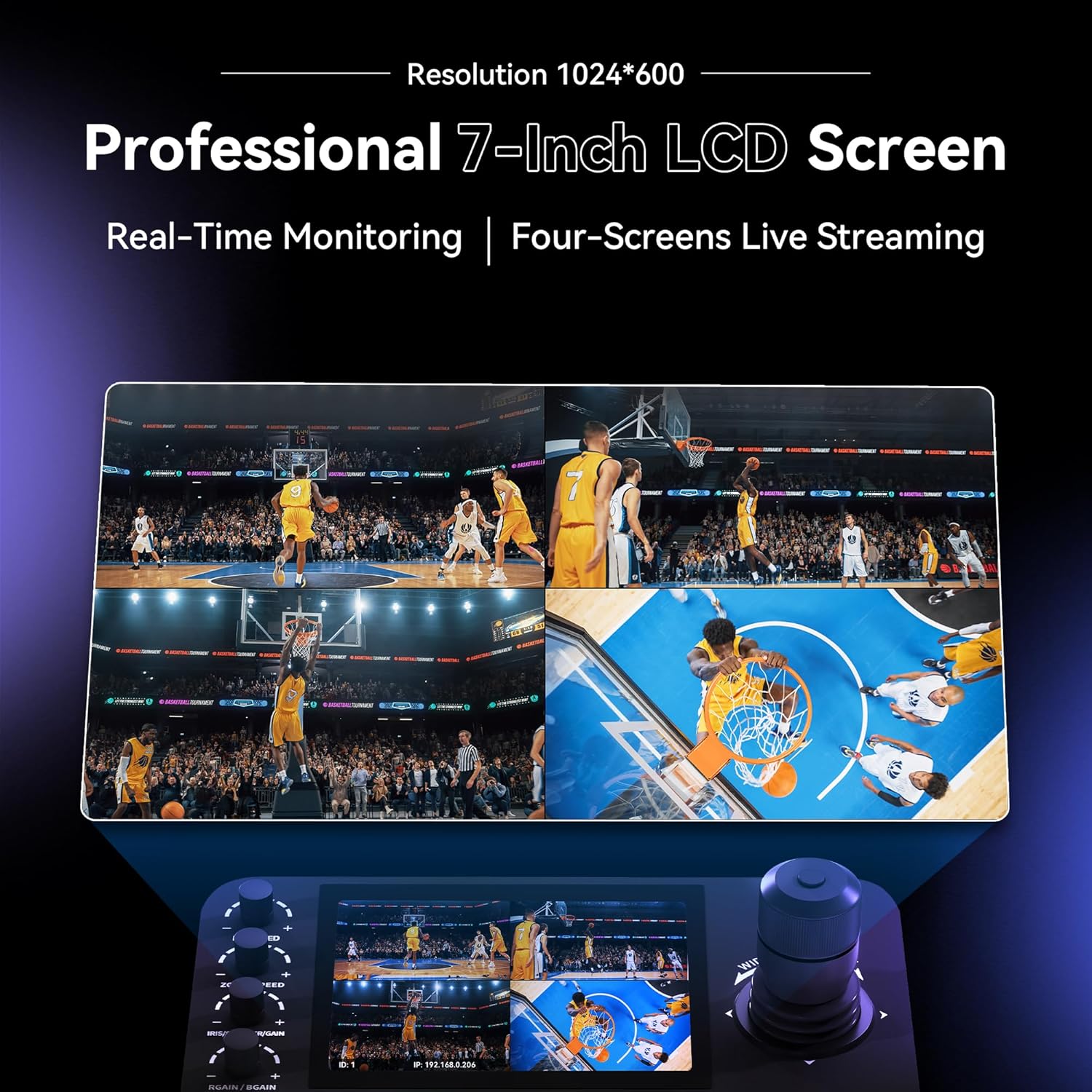

The quad-screen real-time monitoring is the headline for operators who hate camera “surprises.” In practice, this matters when multiple cameras are running simultaneously and switching has to feel instant.

However, the resolution note matters. If your main priority is maximum detail from a single camera feed at higher resolution, the quad-screen mode may feel like it’s dialing back that clarity. Also, multi-view preview is only useful if your NDI/preview pipeline and camera routing are set up cleanly—otherwise you can still end up with confusion, just with more screens.

NDI + protocol support for mixed equipment

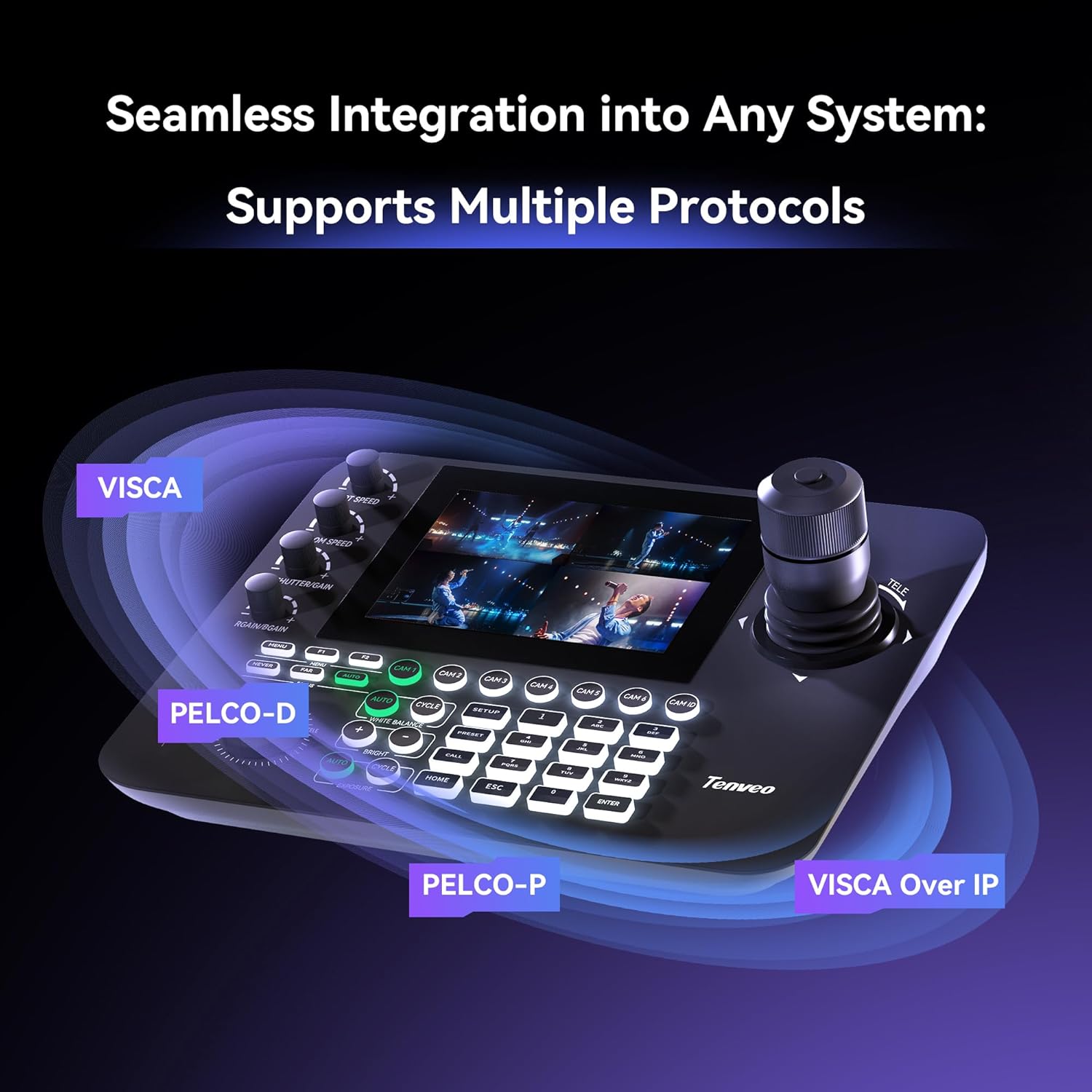

This controller is presented as an NDI PTZ solution, and the listing says an NDI license is included. It’s also described as supporting network and analog two control modes, with protocols including NDI, VISCA, Onvif, Pelco-D, and Pelco-P.

That’s a big deal if you’re building a system with different camera types or if you’re inheriting equipment and need one control solution to cover more than one protocol. It’s also mentioned as compatible in workflows involving OBS, vMix, Zoom, Teams, and YouTube/Facebook—though exact integration details can vary depending on your setup.

Connectivity and practical control setup

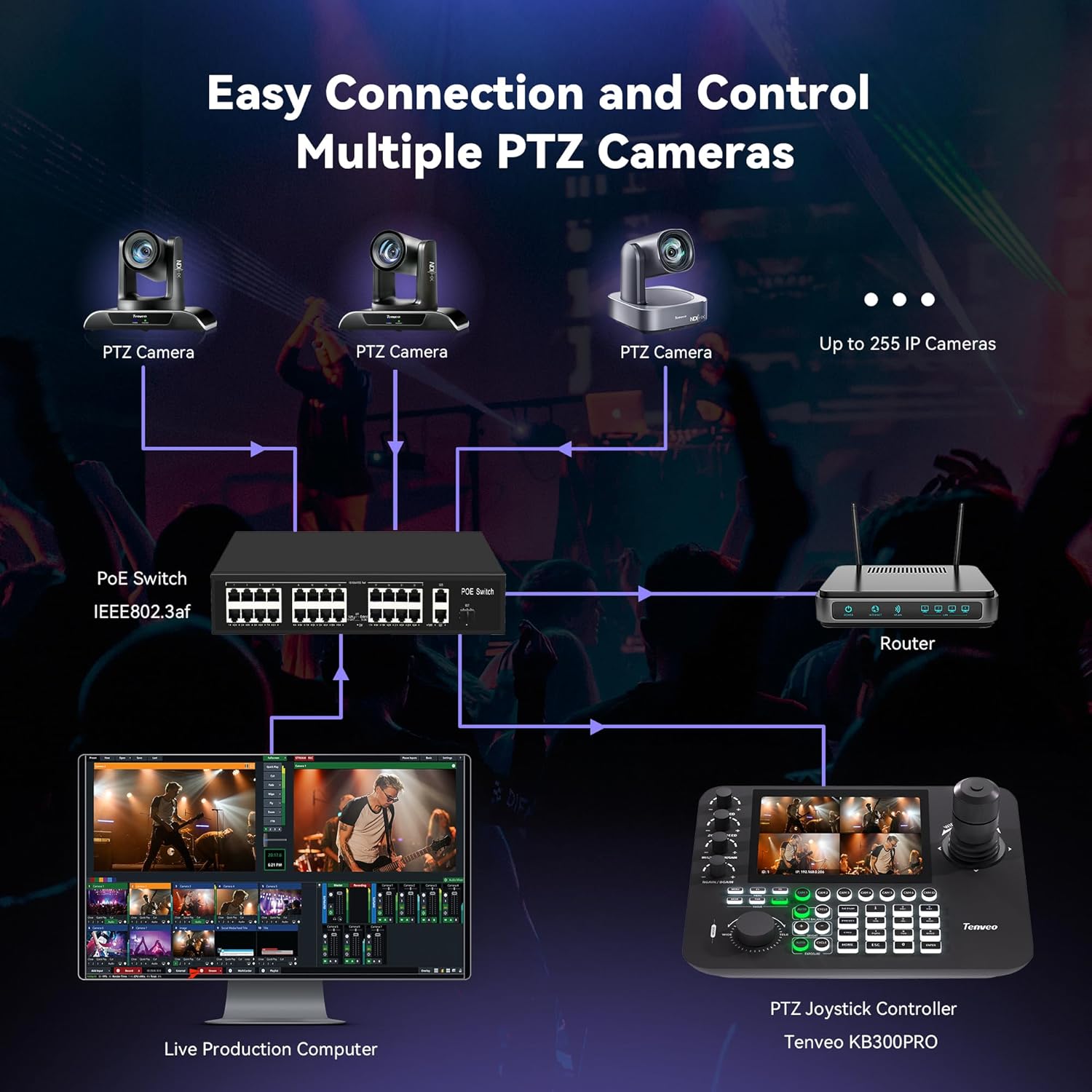

For connections, the listing mentions RS422/RS485, RS232, and RJ45 (Ethernet). It also states PoE support, with the practical benefit being that you can run a single cable to your LAN (assuming your environment is PoE-ready).

There’s also an IP streaming note: it supports IP streaming output frame rate up to 30fps in 1080P. If you’re planning for real-time preview and responsive control, that gives some confidence that the system isn’t designed for slow, delayed monitoring.

Recording and playback for repeatable camera moves

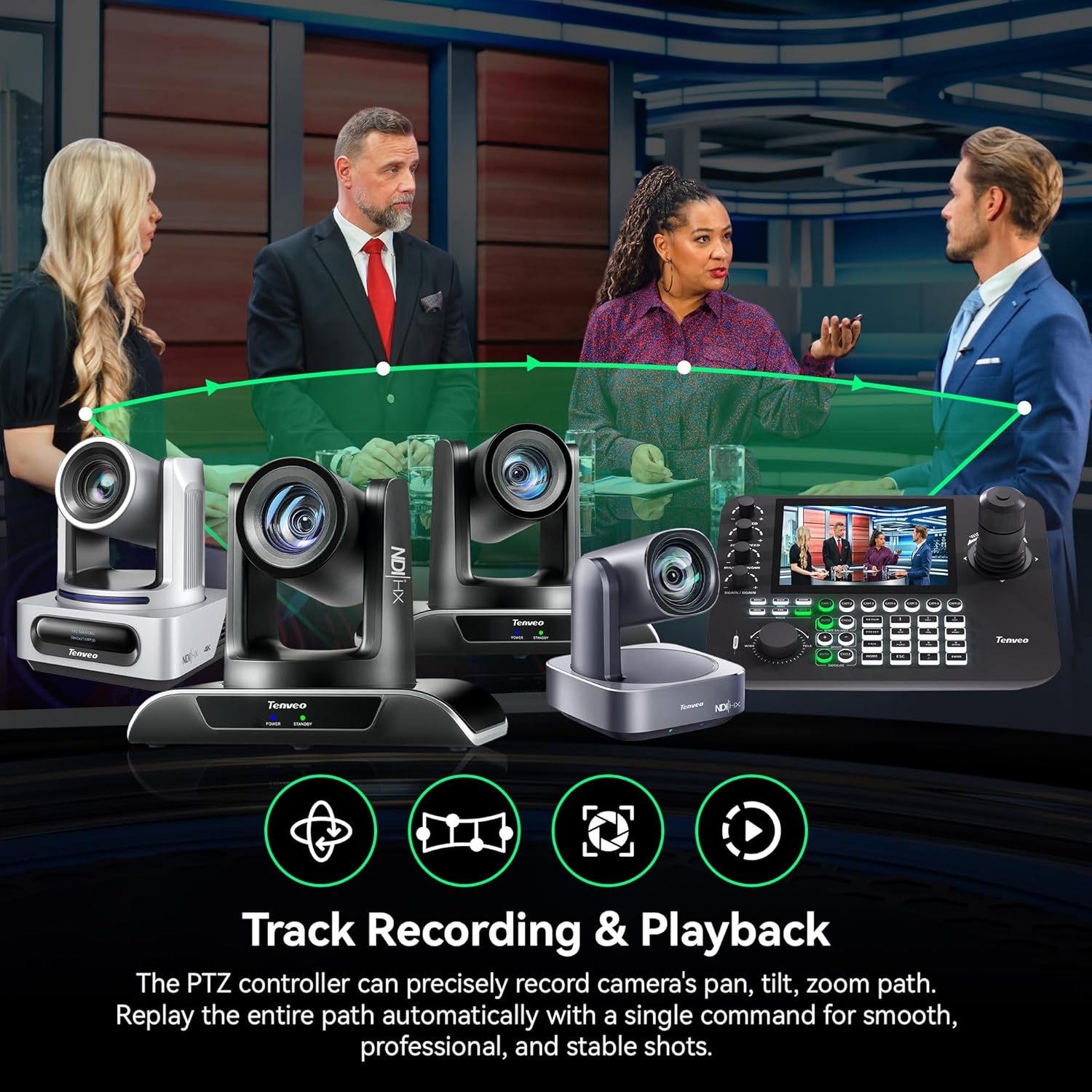

One of the more “operator-friendly” features described is track recording and playback. The controller allows recording a full camera movement sequence (pan, tilt, zoom positions, movement speed, and dwell time). Then you can replay the trajectory with a single command.

That can be useful for scripted moments—think camera moves you want to repeat reliably during an event segment. It’s not the same as having a full automation suite, but it’s a practical shortcut when you know you’ll need the same motion more than once.

Is it worth it?

This Tenveo NDI PTZ Camera Joystick Controller is worth considering if your live workflow depends on quick camera control and you want real-time multi-view monitoring. It especially makes sense if you’re managing multiple PTZ cameras in a conference or church production environment, where instant visual feedback and fast switching can matter more than bells and whistles.

You may want to skip it if you only need control of one camera and don’t care about quad-screen multi-view, or if your setup prioritizes the sharpest single-feed preview at full main-view resolution (since quad-screen is listed up to 720P30). It also helps to have a plan for configuration, because features like NDI integration and protocol coverage still depend on how your camera network and control modes are arranged.

Bottom line: for multi-camera operators who want preview plus responsive PTZ control in one hardware controller, this one feels purpose-built. For minimal setups, it can be more device than you actually need.

Quick FAQ

Can it control PTZ cameras beyond just one?

The listing states it supports quick select for 7 cameras and control up to 255 PTZ cameras, so it’s designed for multi-camera environments.

What preview quality can you expect in quad-screen?

The note says main view supports up to 1080P30, while quad-screen supports up to 720P30.

Does it include an NDI license?

Yes—the listing says the NDI license is included.

Does it support common PTZ control protocols?

It’s described as supporting NDI plus protocols including VISCA, Onvif, Pelco-D, and Pelco-P.

Does it support recording camera moves?

Yes. The listing describes track recording and playback, including pan/tilt/zoom positions, movement speed, and dwell time.
