Renogy Inverter P2 3000W pure sine inverter

This 3000 W pure sine wave inverter from Renogy converts 12 V DC to 120 V AC to power household appliances, RV systems, trucks, campsites and trailers with cleaner output and configurable charging options. It is designed for users who need a reliable inverter with an integrated battery charger and monitoring features, offering a mix of power handling and programmability for off-grid and mobile setups.

Key Points

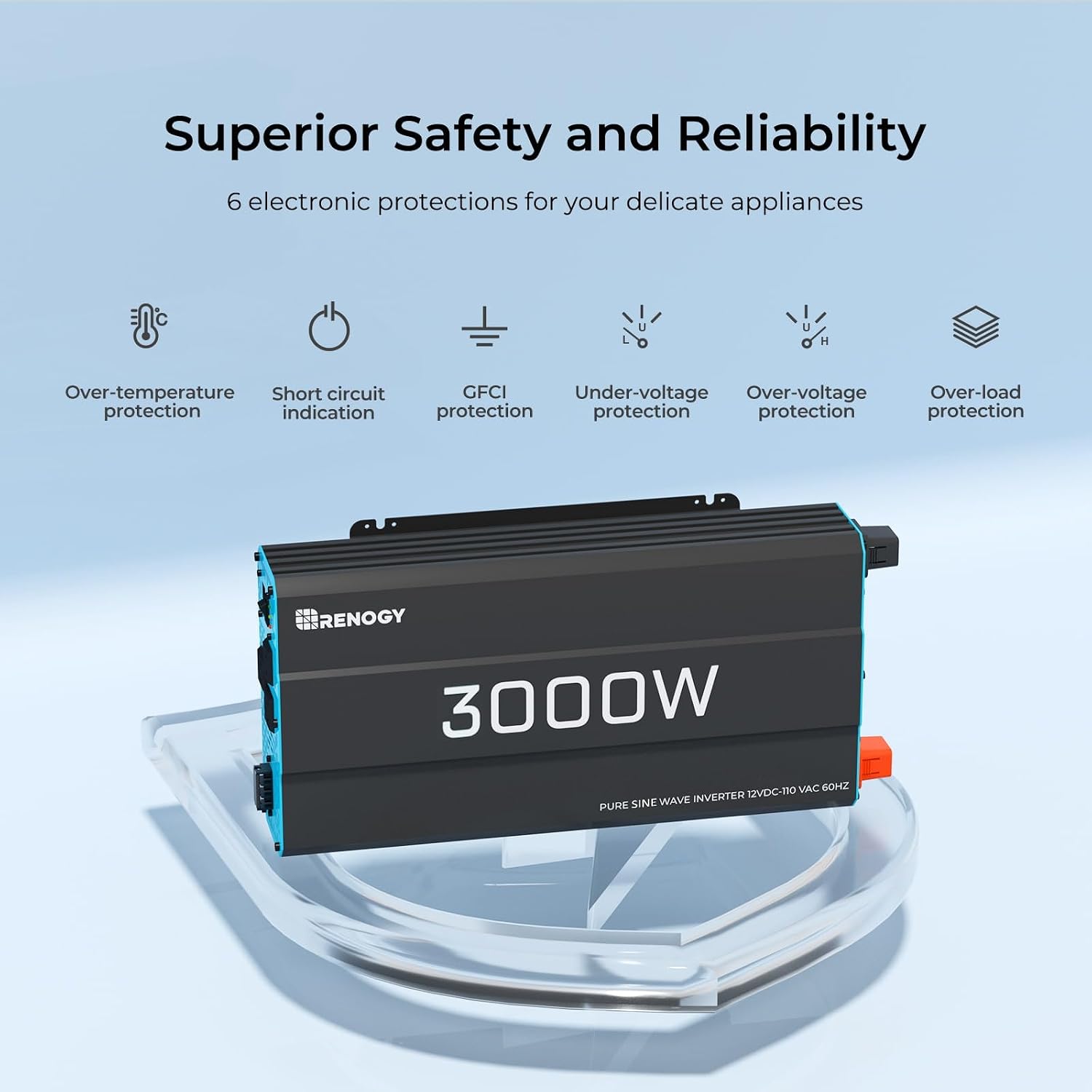

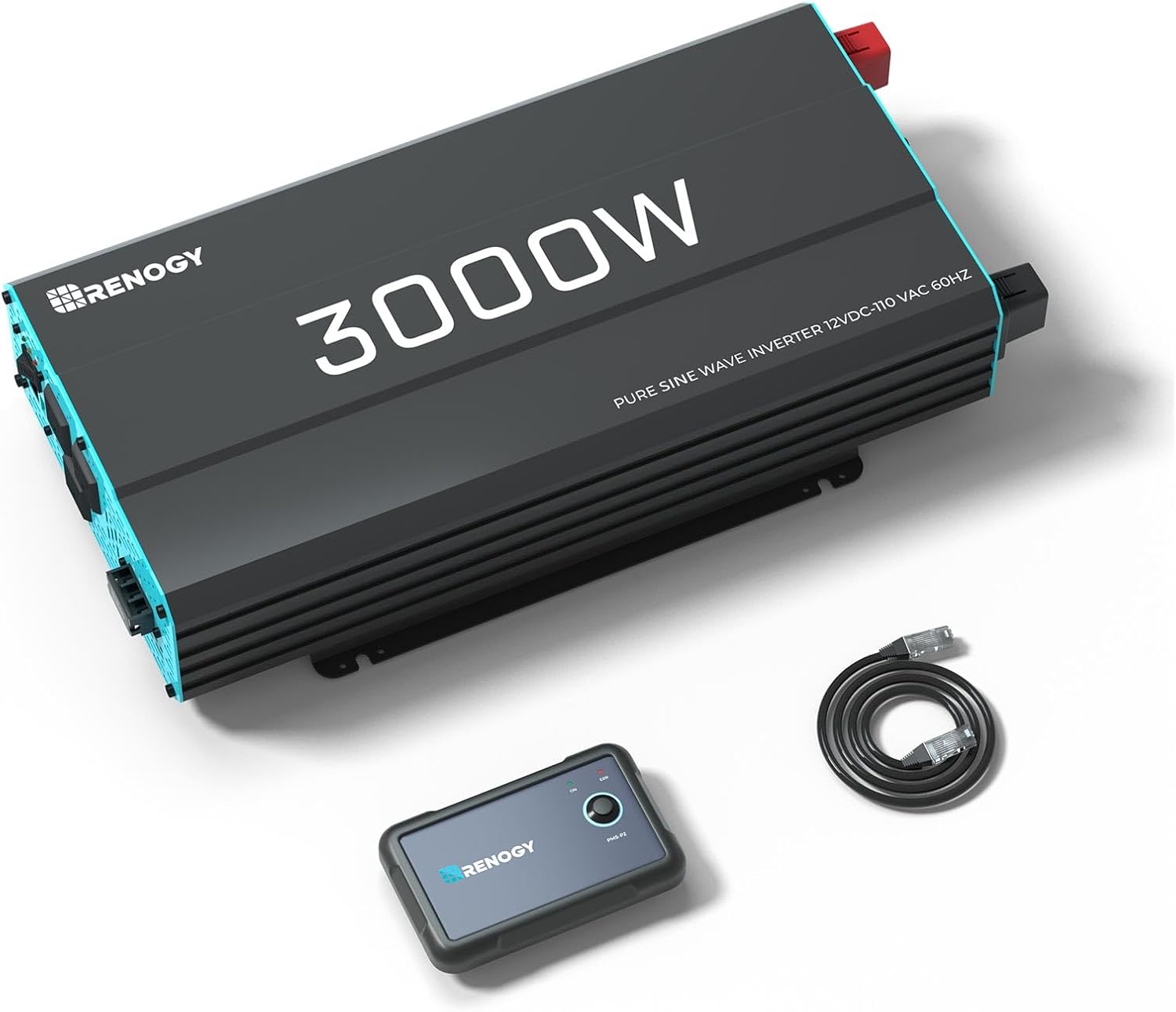

The inverter delivers a high-quality pure sine wave with low total harmonic distortion, so sensitive electronics and motors run more smoothly. An LCD and LED display make it easier to check operating status and adjust settings, and a wired remote control is included for convenient operation from a distance. According to the manufacturer, peak efficiency exceeds 90%, which helps reduce wasted energy during conversion. Multiple built-in electronic protections help guard against over temperature, overload and voltage irregularities. Consider that maximum continuous power is 3000 W and surge capacity will depend on connected loads and battery condition.

Technical Specifications

• Name: Renogy Inversor P2 3000 W
• Power rating: 3000 W continuous
• Input voltage: 12 V DC
• Output voltage: 120 V AC
• Charger: 4-stage battery charger, configurable charging current
• Battery presets: 8 preset voltages including lithium, with user-defined option

Benefits

The integrated 4-stage battery charger simplifies system setup by combining inverter and charger in one unit, reducing installation complexity and saving space. Preprogrammed battery profiles include lithium settings, which helps when pairing with modern battery chemistries and avoids manual voltage tuning. The visual display assists with quick diagnosis of status and fault codes, saving time during troubleshooting. Remote control capability allows placement where access is more convenient, like a control panel in an RV living area or a garage.

Usage Recommendations

Install the inverter near the battery bank to minimize DC cable length, and follow recommended cable sizes to limit voltage drop and heat. For systems using lithium batteries, verify the preset matches the battery manufacturer’s recommended charge parameters before first use. Use the LCD display to confirm charging current settings and monitor efficiency during different loads. In higher ambient temperatures, monitor thermal conditions since sustained heavy loads will increase heat and may trigger protective shutdowns. If precise surge handling is needed for motor-driven appliances, test startup currents separately because inrush demands can exceed nominal ratings.
