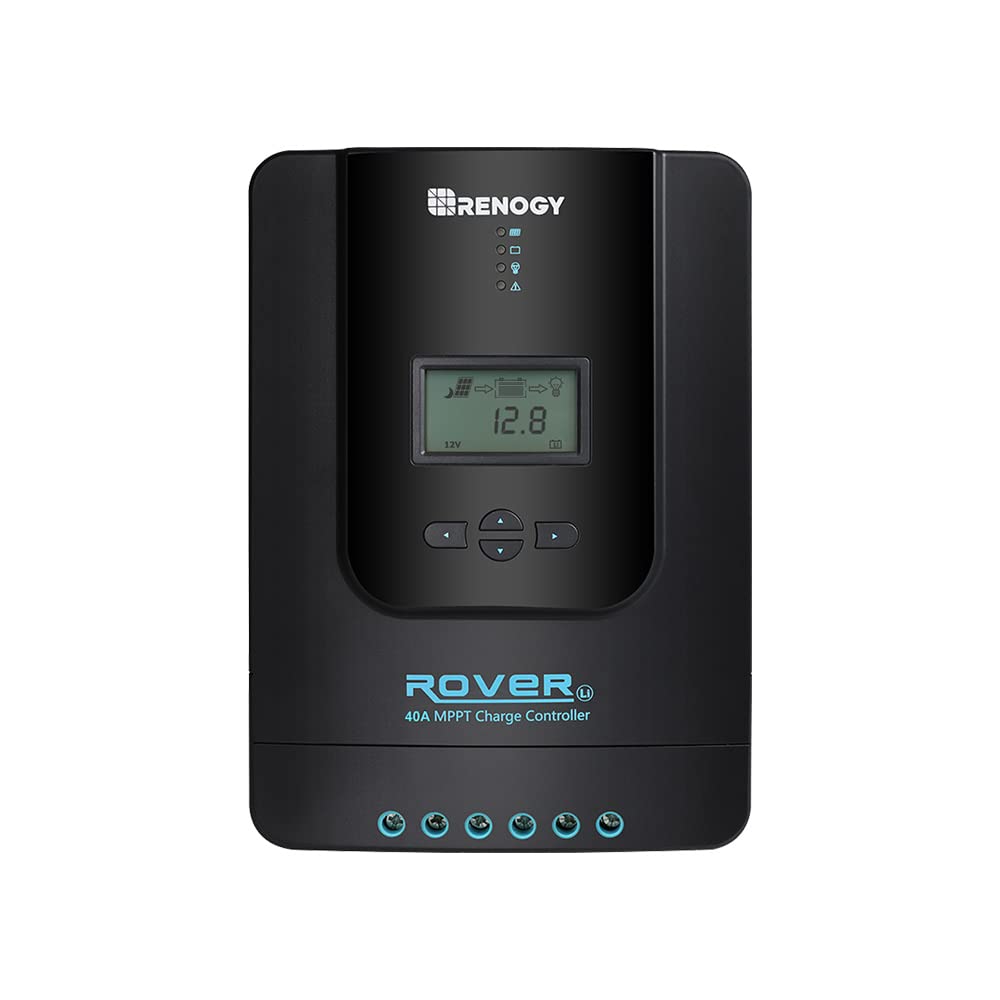

Renogy Rover 40A MPPT Solar Charge Controller ⚡

This MPPT solar charge controller from Renogy manages 12V and 24V systems automatically to keep battery banks healthy and charging efficiently. It is built for off-grid arrays and mobile power setups, offering programmable charging parameters on an LCD and compatibility with sealed, gel, flooded and 12.8V LFP lithium batteries to support a variety of battery types for RVs, cabins and marine use.

Key Points

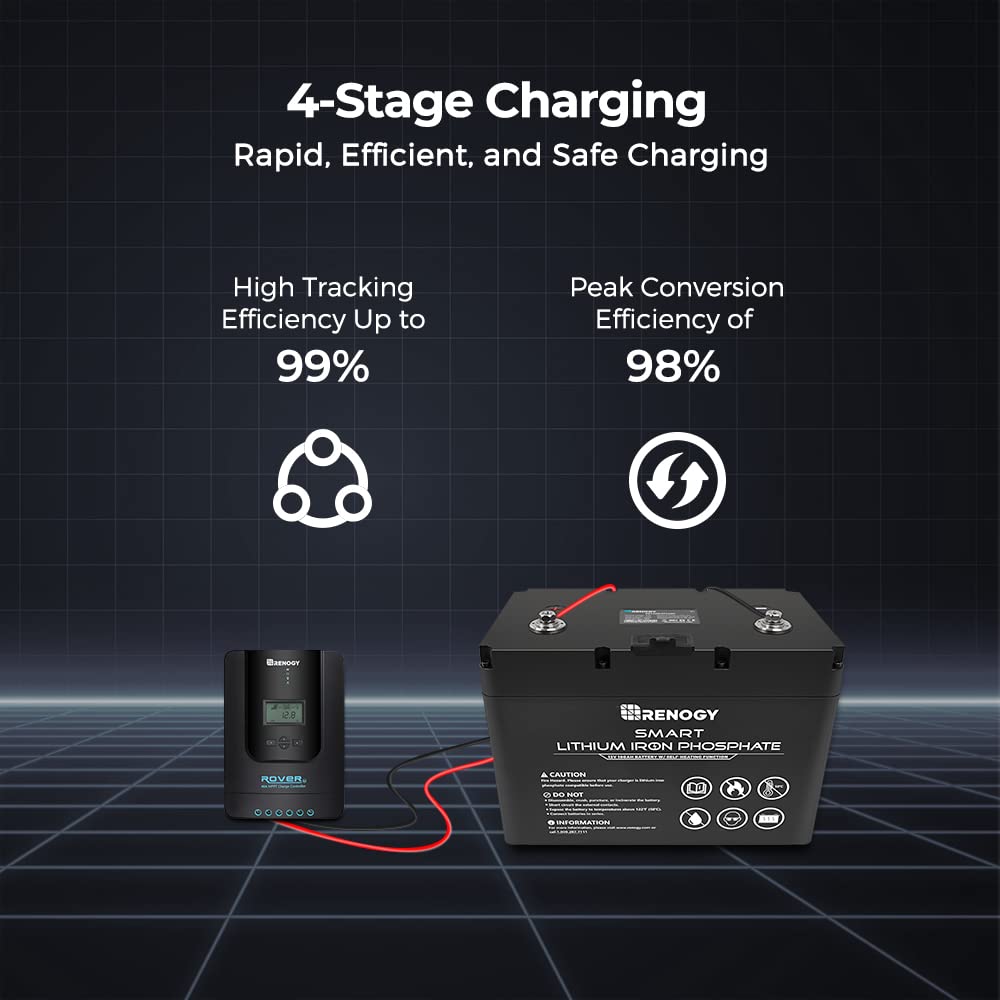

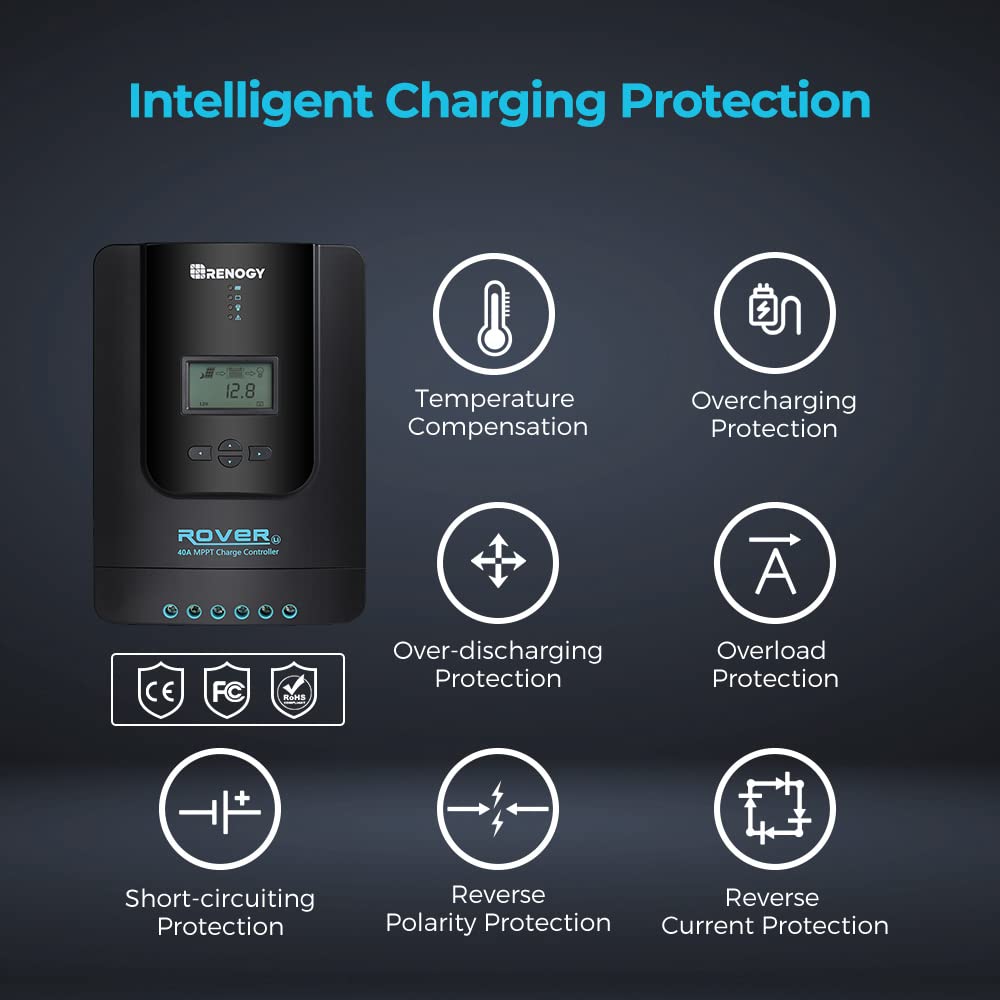

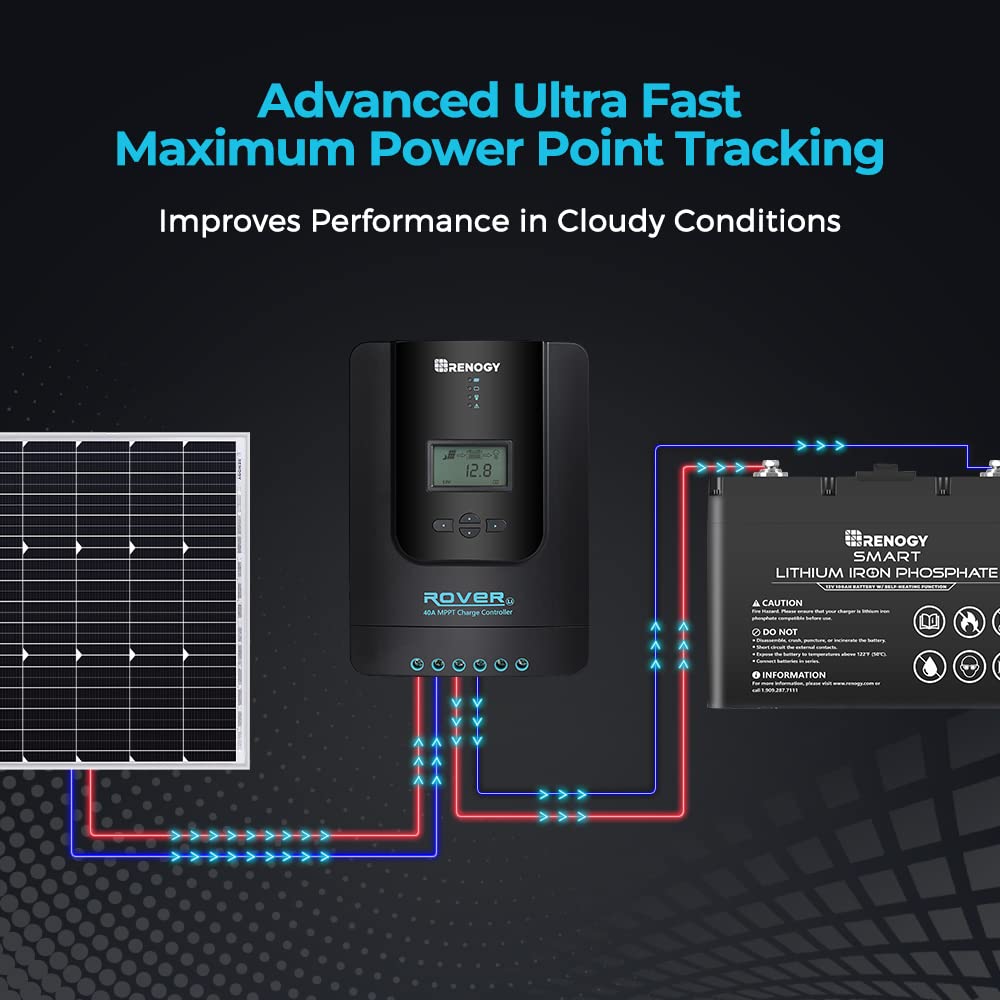

The Rover 40A focuses on efficient power harvesting with MPPT tracking that, according to the manufacturer, reaches high tracking efficiency and a maximum conversion efficiency near 98%. The unit includes multiple electronic protections against overcharge, over-discharge, overcurrent and short circuits. A cast aluminum housing helps dissipate heat during sustained operation. It can also recover excessively discharged lithium batteries in certain cases.

Technical Specifications

• Name: Renogy Rover 40A 12V/24V
• Rated current: 40A
• Input voltage: Automatic detection of 12V or 24V DC

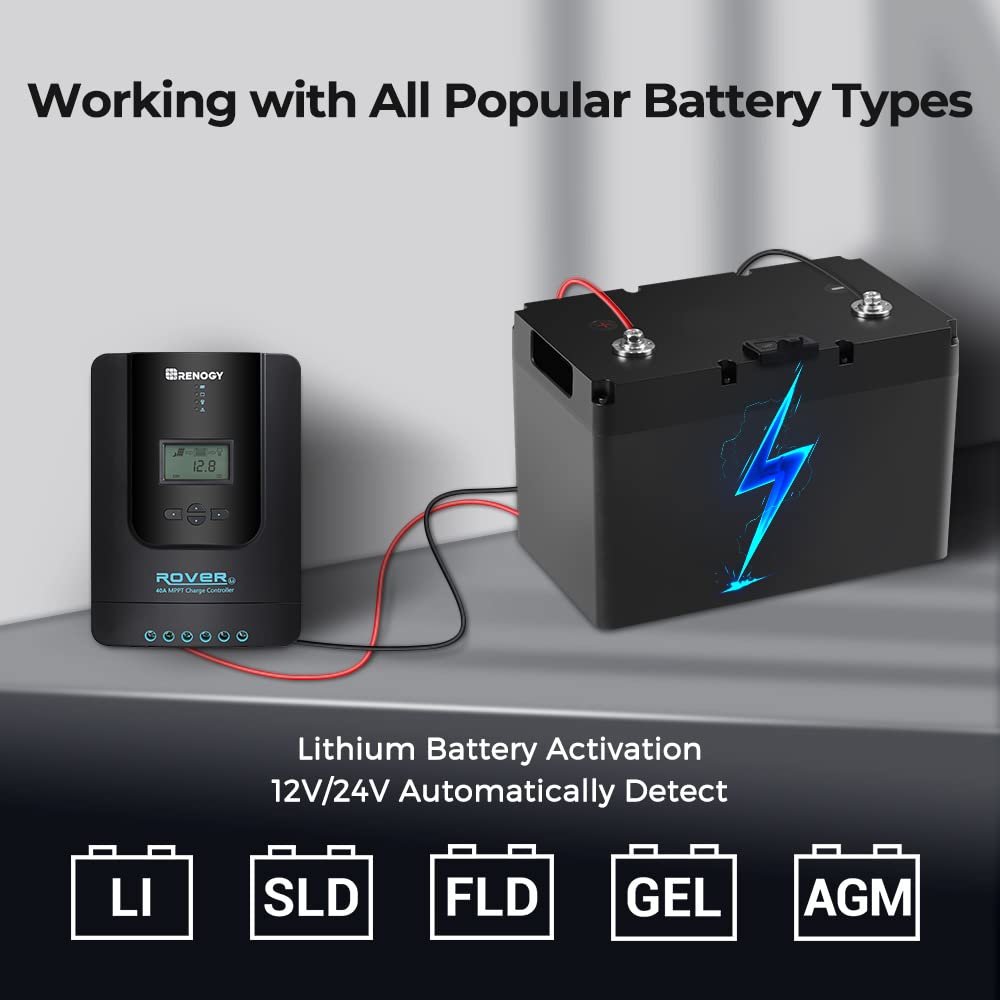

• Battery compatibility: Sealed, Gel, Flooded, Lithium (12.8V LFP)
• Communication: RS232 port for Bluetooth module BT-1

Usage Recommendations

Set the battery type and charging parameters via the adjustable LCD menu to match the chemistry and capacity of your battery bank, and check the charge voltages before first use. For systems with larger PV arrays, monitor operating temperatures since higher input power can raise heat; the aluminum housing aids cooling but adequate ventilation is still advisable. The RS232 interface allows adding Bluetooth monitoring for remote readouts if desired.

Positive Aspects

The controller combines a straightforward user interface with advanced MPPT performance, which can translate into more energy harvested from the same solar array. It accepts multiple battery chemistries, making it flexible for upgrades from lead-acid to lithium systems. The built-in protections reduce the risk of common faults in small solar installations, and the recovery capability for over-discharged lithium cells adds a useful safety net, according to the manufacturer.
