monTEK 0.77" Ultra Slim TV Wall Mount for 43-90 Inch TVs
Product description
This ultra-slim full motion TV wall mount from monTEK brings flexible viewing and a low-profile look to living rooms and media rooms, supporting large flat and curved screens while keeping them close to the wall. It offers swivel, tilt, leveling and extension for easier positioning, making it practical for different seating arrangements and glare control.
Key Points

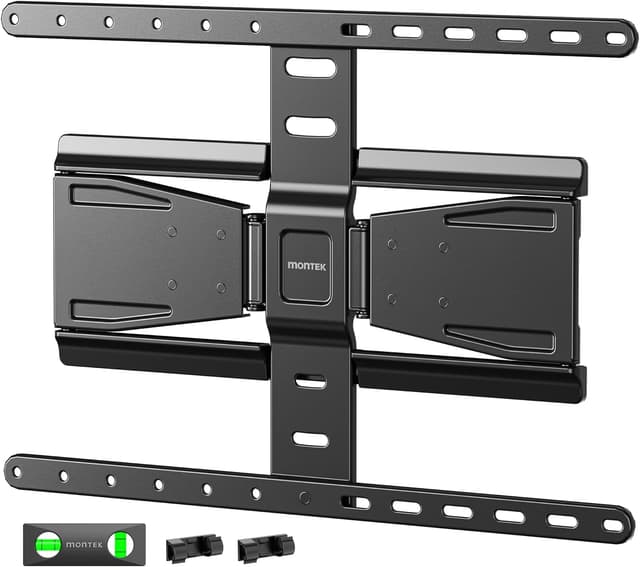

The bracket fits most 43- to 90-inch LCD, LED and OLED TVs with VESA patterns from 100 x 200 mm up to 600 x 400 mm and supports TVs weighing up to 110 pounds according to the manufacturer. Its articulating dual-arm design extends the screen out for improved viewing angles and retracts to a minimal profile to save space. Cable clips and decorative covers are included to hide cables and hide mounting hardware for a neater installation. Note that the mount is intended for solid supporting surfaces such as wooden studs, concrete or brick walls and should not be installed on drywall alone.
Technical Specifications
- Name: monTEK 0.77" Ultra Slim TV Wall Mount
- Compatibility: 43–90 inch TVs, VESA 100 x 200 mm to 600 x 400 mm
- Load capacity: 110 lb (approximately 50 kg)

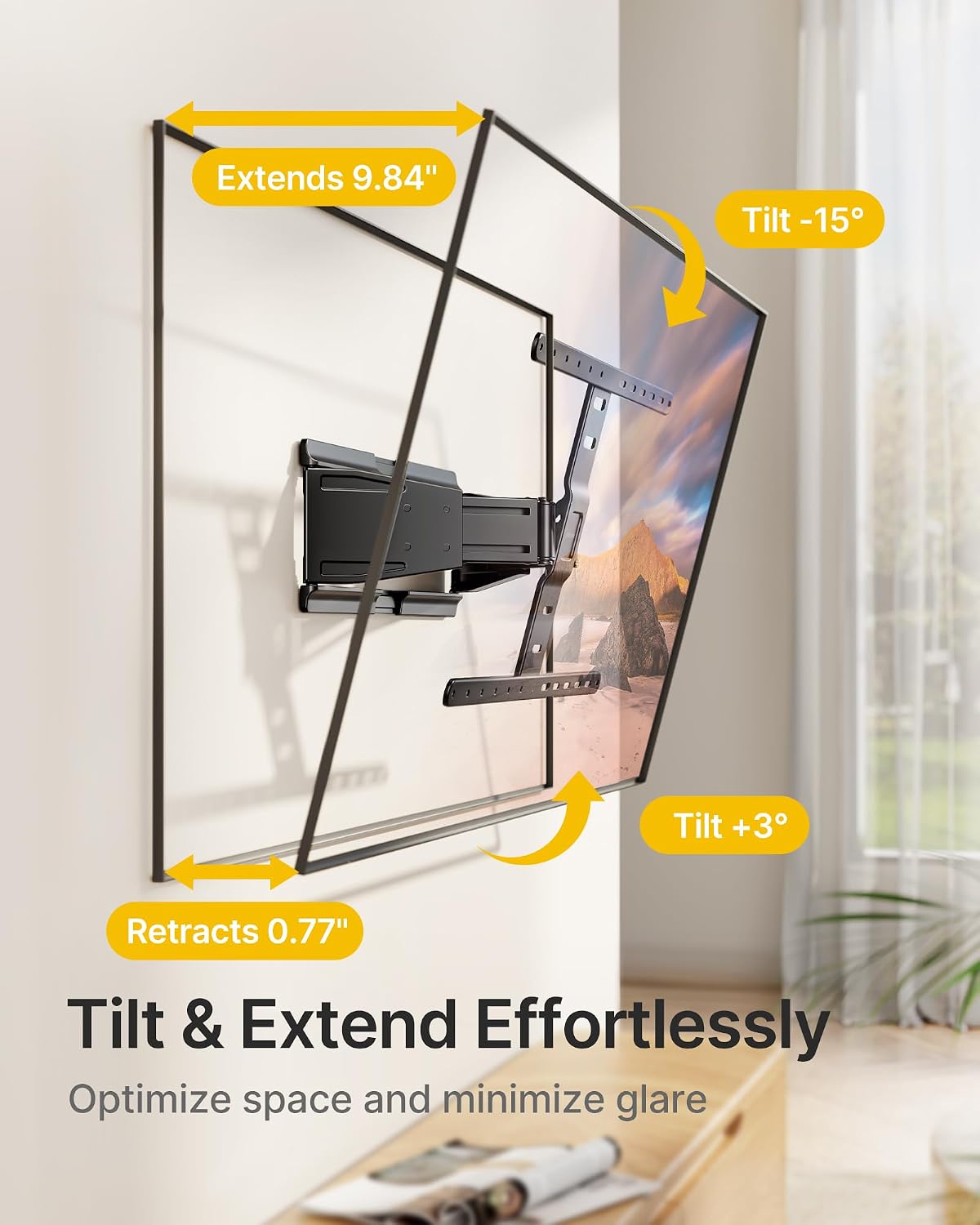

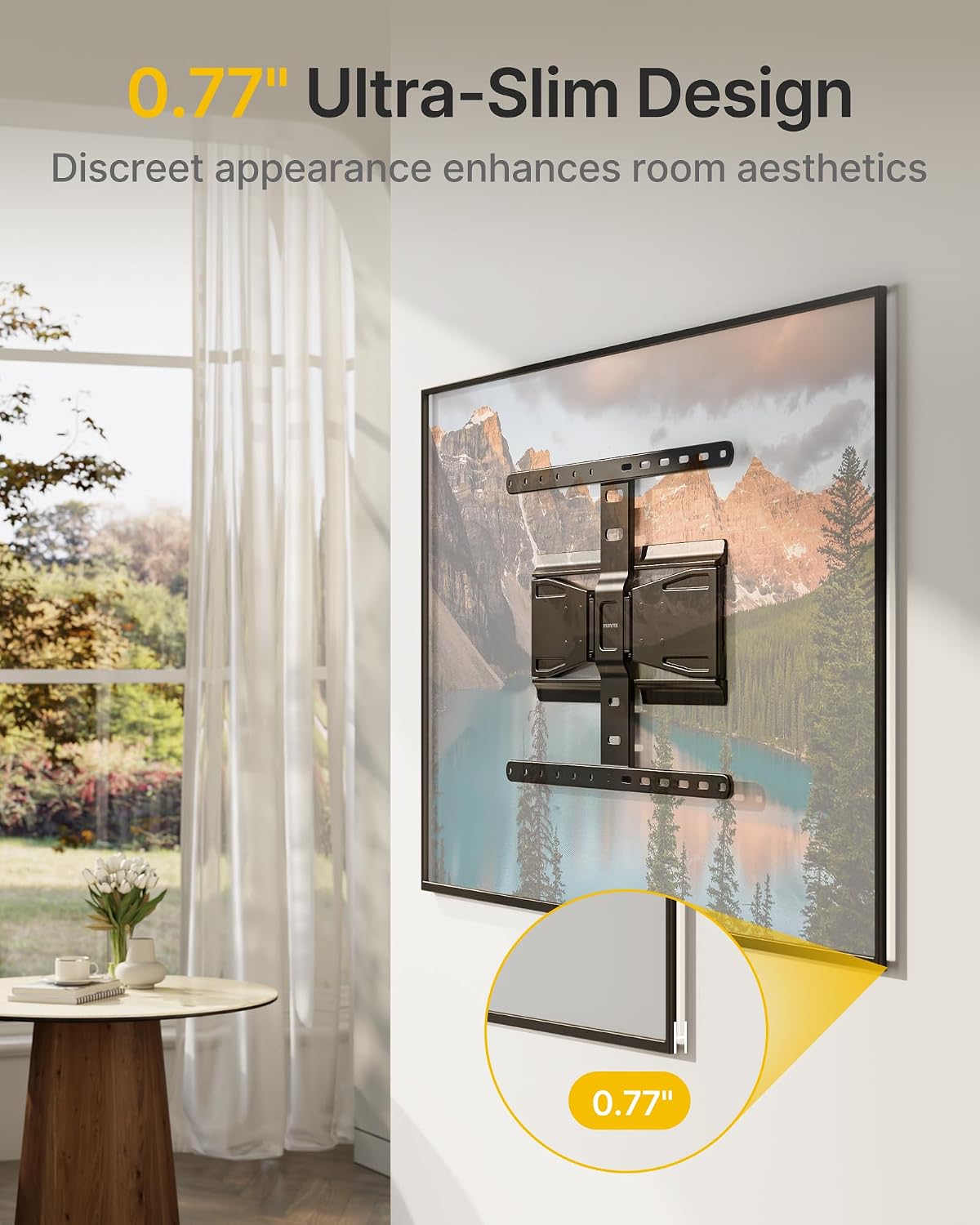

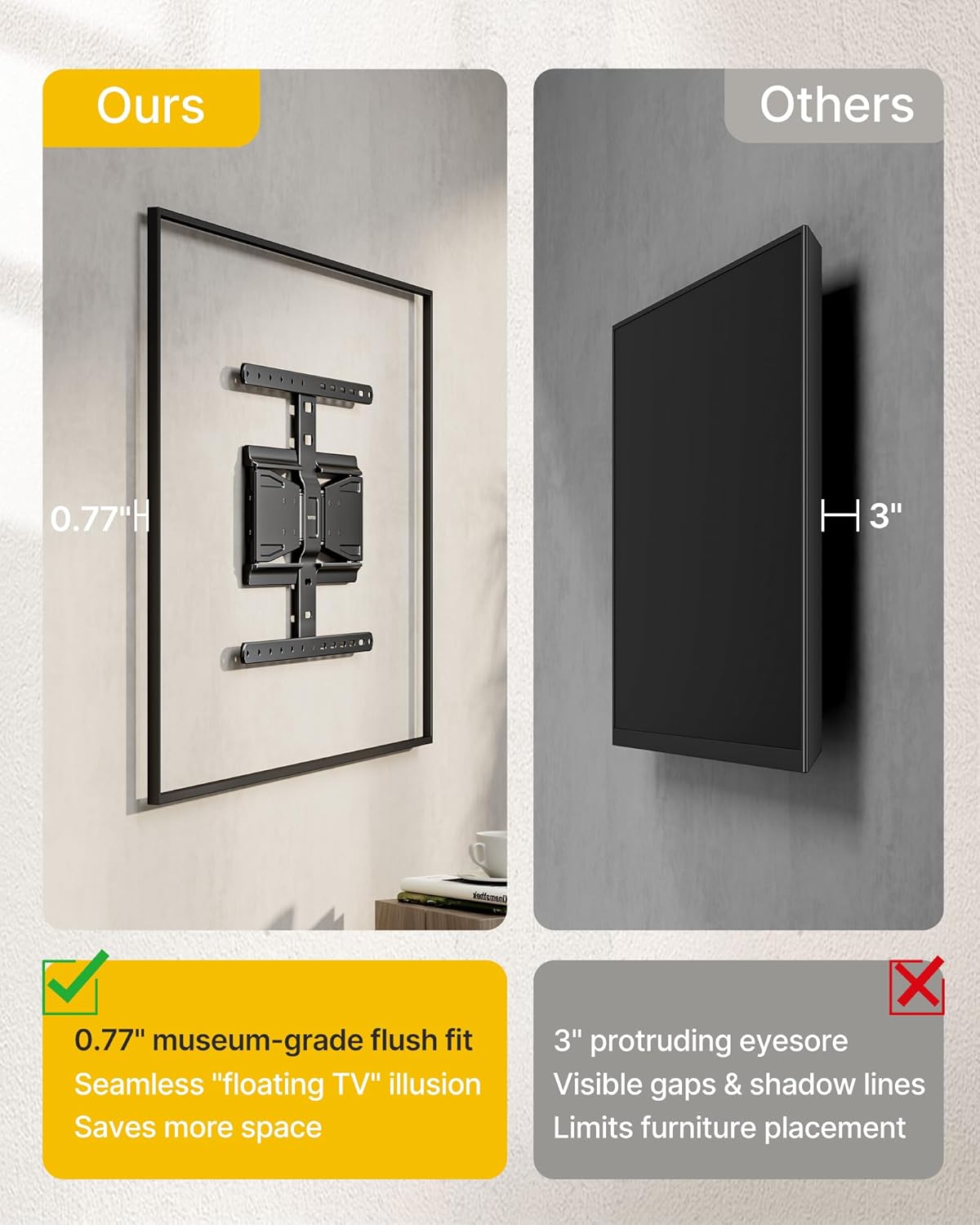

- Extension / profile: extends to 9.84 inches, retracts to 0.77–0.8 inches

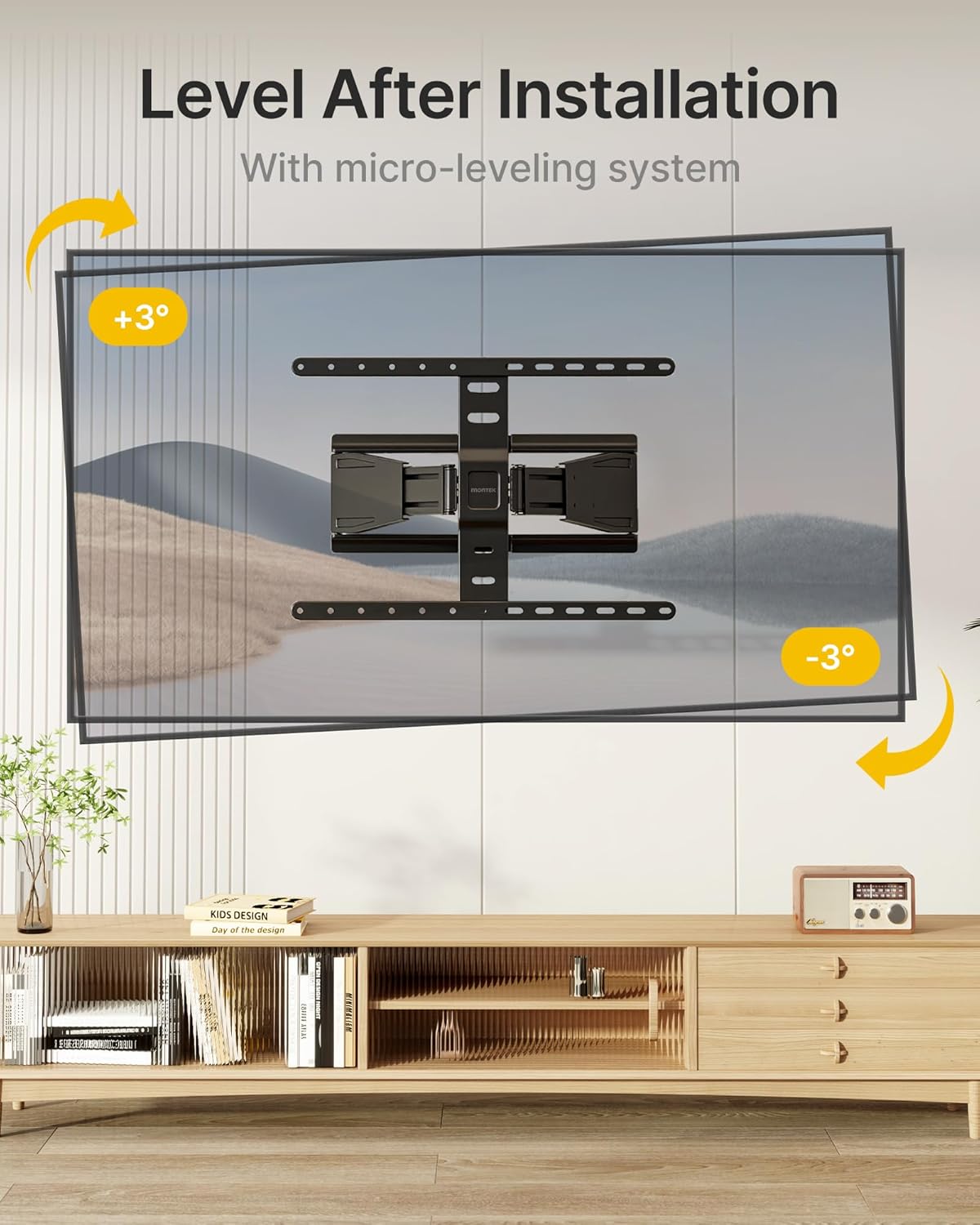

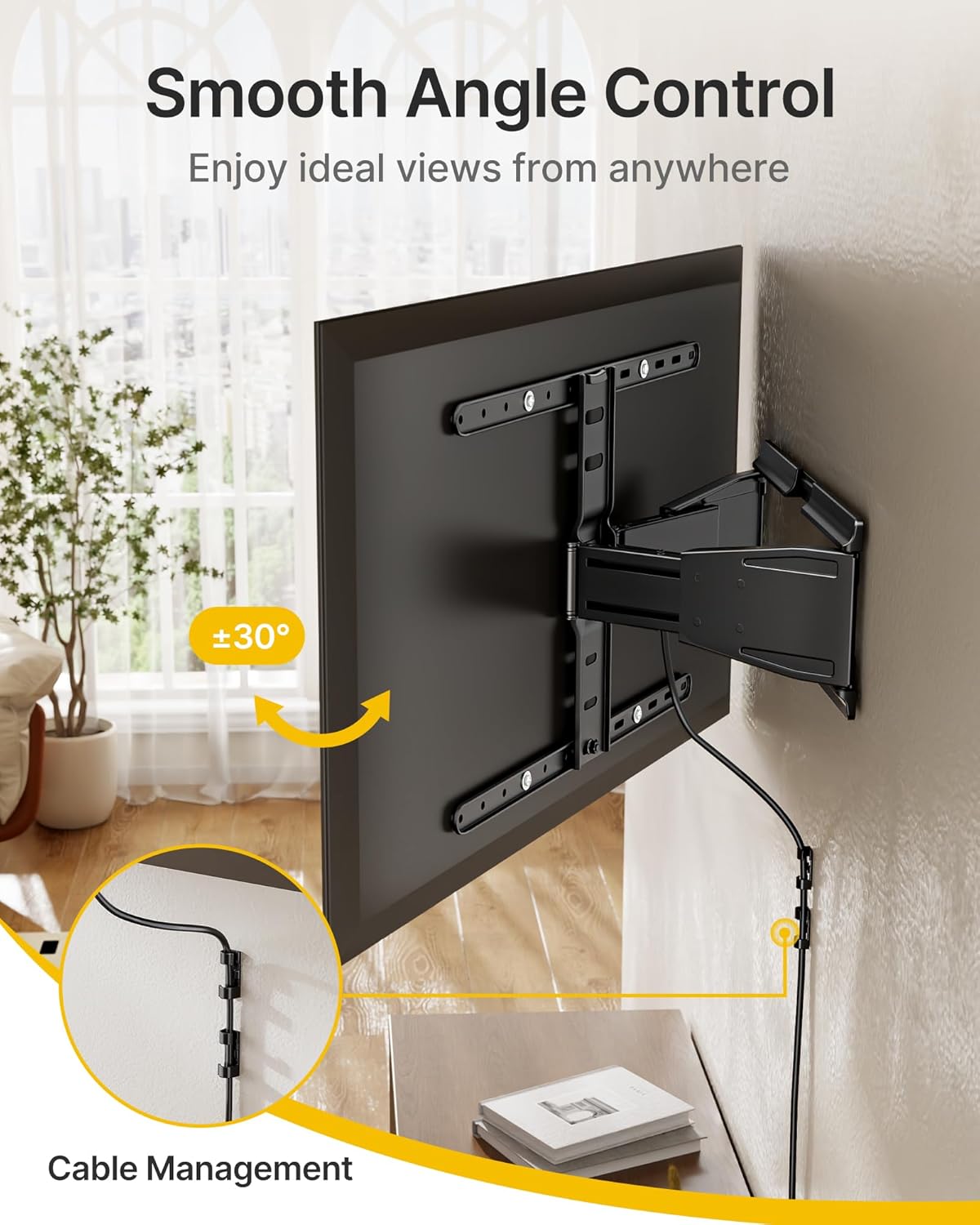

- Tilt / swivel / leveling: tilt +3° / -15°, swivel +/-30°, leveling +/-3°
Usage Recommendations
Position the wall plate on properly spaced studs or a masonry surface to achieve rated load performance. Use the included drill template and bubble level to align the mount before fixing it to the wall, and select the correct VESA holes when attaching the bracket plate to your TV. The no-tools tilt adjustment makes it simple to reduce screen glare from windows and lights, while the swivel and extension allow the TV to be angled for viewers across a room.
Practical Notes and Limitations
Although the design is very slim when retracted, consider the depth of wall-mounted inputs and cable connectors as they may require slight clearance. The manufacturer states the mount is tested to four times its rated load, but installation quality depends on the wall type and fasteners used. If your wall is not solid or if stud spacing differs from typical 16- or 18-inch centers, additional reinforcement or alternate mounting methods may be necessary.
