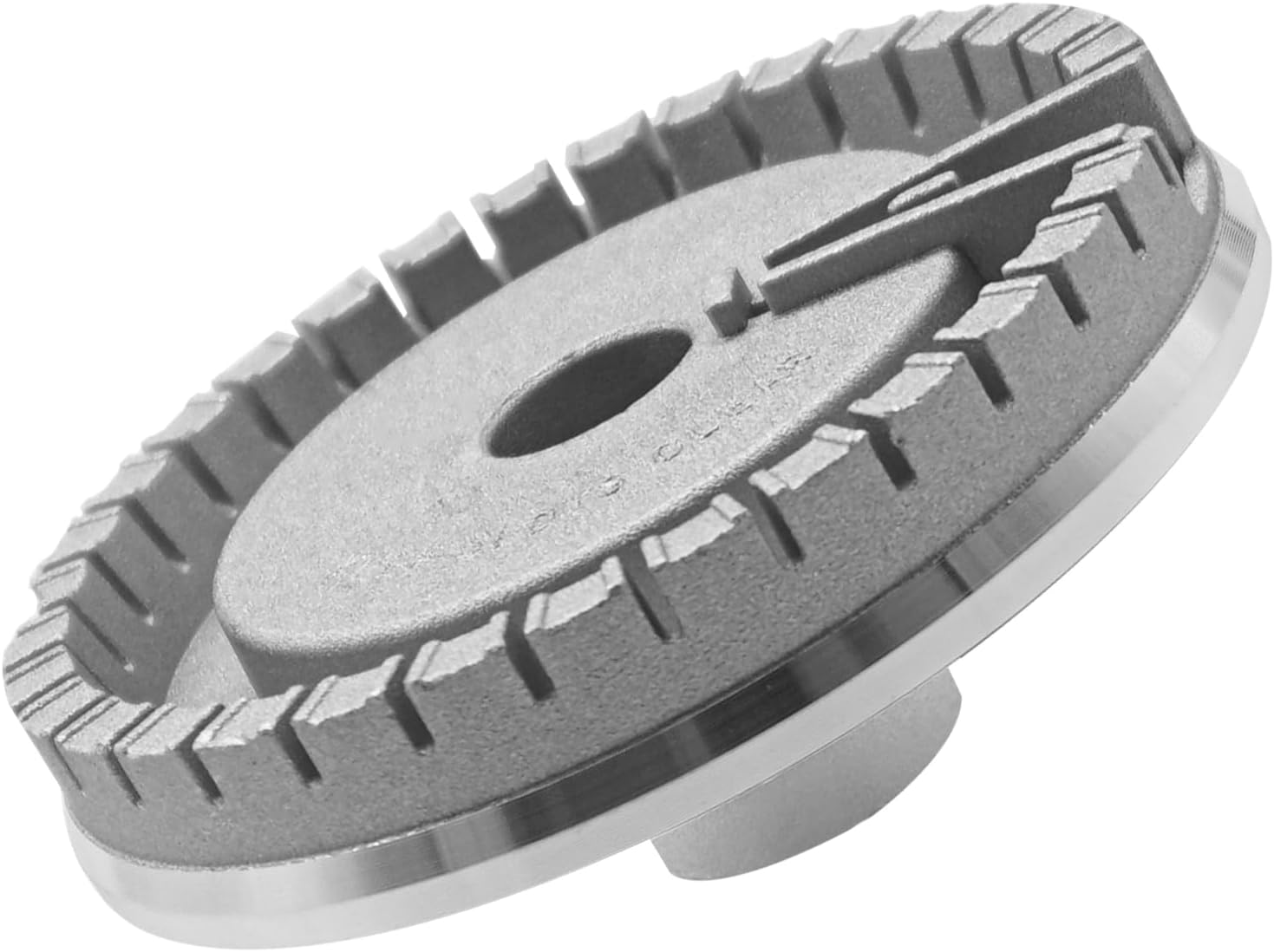

GIBACAD WB16X24722 Extra-Large Gas Range Surface Burner Base

For a range repair focused on the surface burner, the GIBACAD WB16X24722 replaces the burner base in select gas ranges. Its openings distribute gas to create a flame across the cooking area, making it a purpose-built component for restoring the burner assembly.

This part is listed for select GE and Haier ranges, including model references such as JGBS66DEK4WW, JGBS66DEK3BB, and JGP3030Sl1SS. Match the complete model number on your range with the applicable compatibility information before choosing a replacement.

The part number is WB16X24722, and it replaces references 4454597, AP5986249, PS11726674, and EAP11726674. Those cross-references can help identify the correct part when comparing repair information.

Getting the most from it

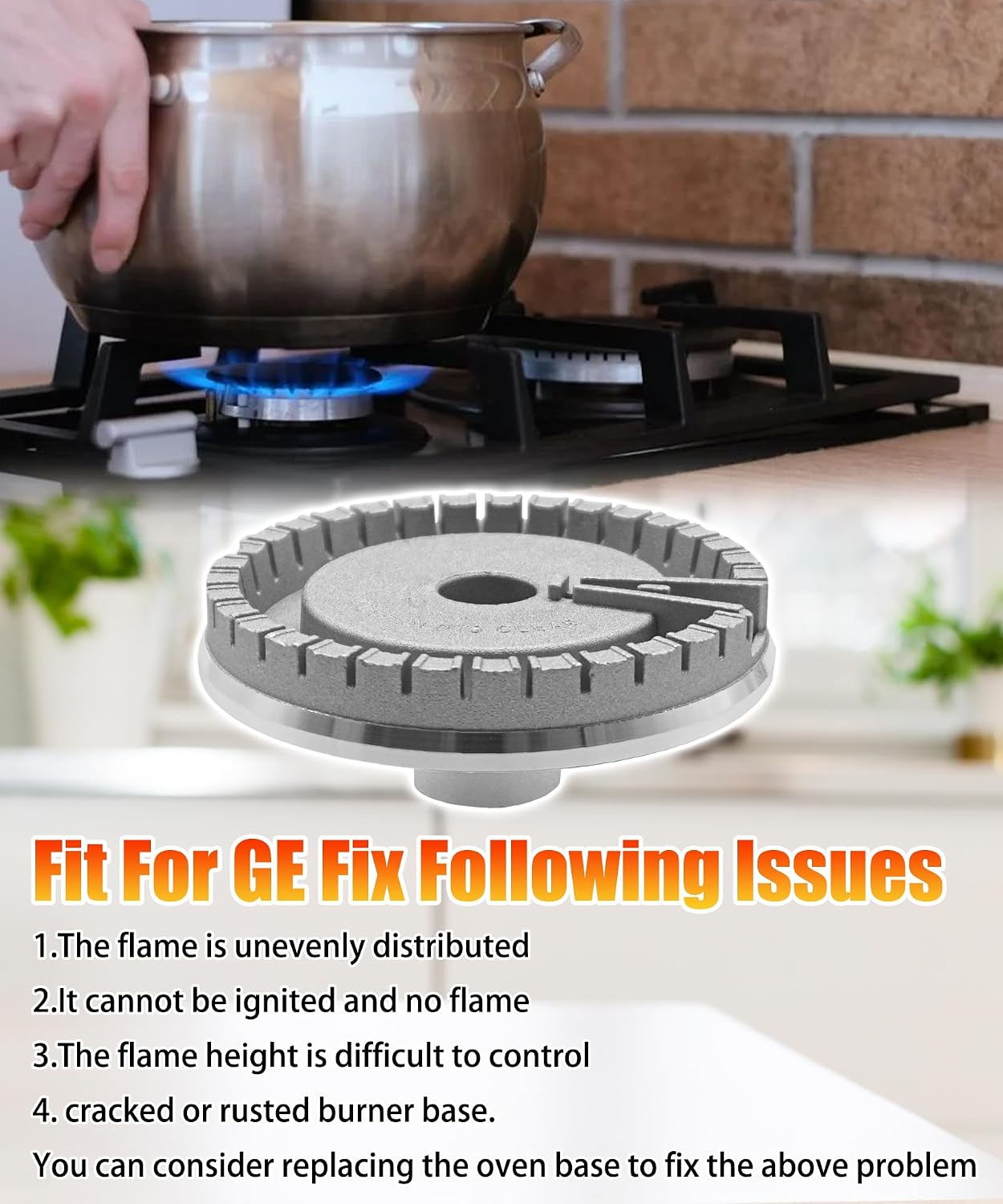

The burner base directs gas through its openings or slots to form a flame across the cooking area. In everyday use, that makes it a central component of the surface burner rather than a general-purpose stove accessory. Replacing this specific part keeps the repair focused on the burner base when that is the component needed for the range.

Compatibility is model-specific. The listed range examples include GE JGB645DEK1BB, JGB645DEK1WW, JGB660DEJ1BB, JGB660DEJ1WW, and JGB700BEJ2TS, as well as the JGBS and JGP model references in the product name. Use the full model number from the range when matching the part, similar-looking model codes can identify different variants.

Installation involves basic hand tools, some range disassembly, and novice repair experience. A multibit screwdriver is listed as the required tool. Before starting, unplug the range or switch off its circuit breaker, shut off the gas valve, and allow the burner to cool completely. These steps help prepare the appliance safely for the repair.

Strengths

The main advantage is its focused purpose: the part is designed to distribute gas at the surface burner, so shoppers can search by the WB16X24722 identifier rather than relying on a broad description such as “stove burner part.” The listed replacement references offer another way to cross-check the component against existing repair information.

For a repair centered on the burner base, a component-specific replacement is a more direct approach than shopping for an unrelated burner accessory or a broader appliance part. Its role is clear, and the compatibility references help narrow the search to supported range models. The listed one-year manufacturer warranty is an additional purchase detail.

Key takeaways

WB16X24722 identifies an extra-large gas range surface burner base. It distributes gas through openings or slots to create a flame across the cooking area, and it is listed as a replacement for 4454597, AP5986249, PS11726674, and EAP11726674. These identifiers are useful when checking a repair part against a range model or an existing replacement reference.

The fit is intended for select GE and Haier ranges, not every gas range. Model examples in the listing include JGBS66DEK4WW, JGBS66DEK3BB, and JGP3030Sl1SS, alongside numerous GE model codes. Confirming the exact range model helps keep the purchase aligned with the intended repair.

When it makes sense

A solid pick if the repair calls for a WB16X24722 surface burner base and the range is among the listed compatible models. The part suits a component-level repair where the burner base itself is the focus, with replacement references to support cross-checking and a defined gas-distribution role once installed. For shoppers who have identified this specific part through their range model or repair reference, it offers a clear path to replacing the burner base rather than choosing a generic stove component.
