FNIRSI 2C23T 3-in-1 Handheld Oscilloscope Multimeter with DDS Generator

What it is and who it’s for

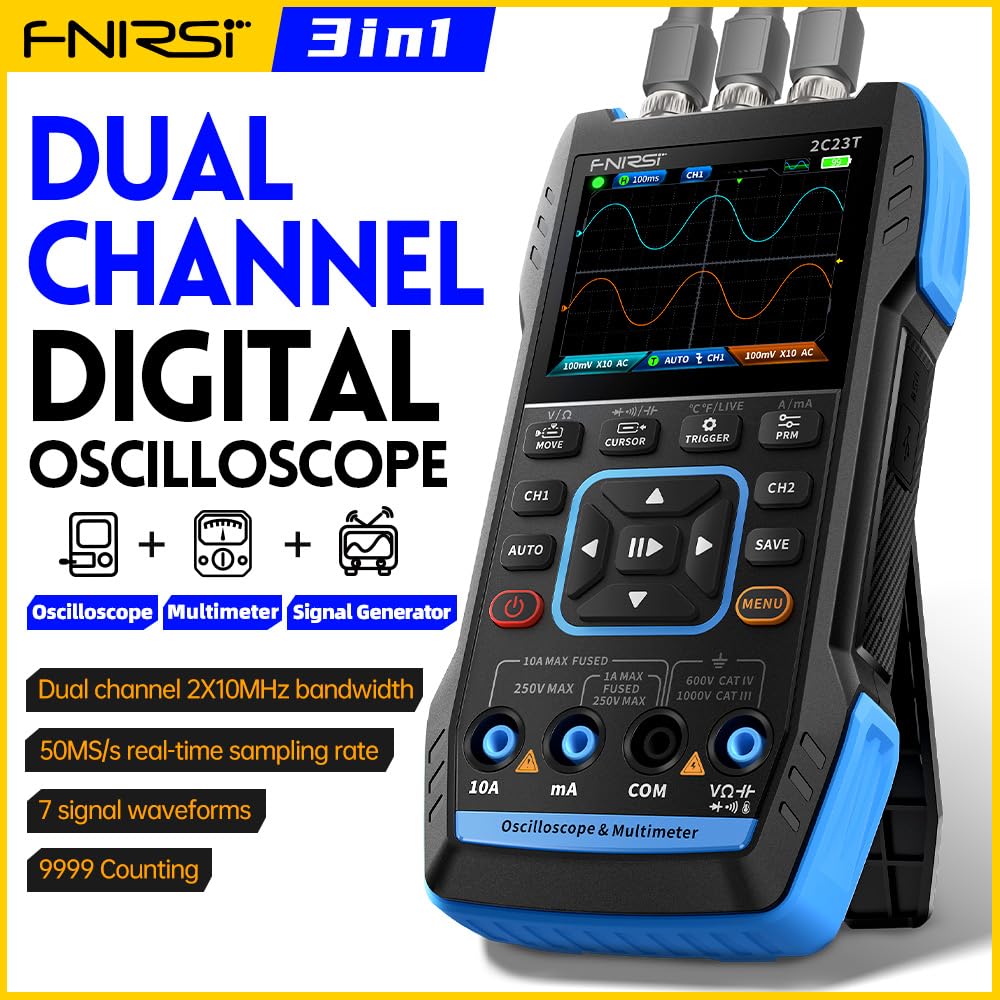

The FNIRSI 2C23T is a compact, handheld 3-in-1 tool that combines a two-channel oscilloscope, a digital multimeter, and a direct digital synthesis (DDS) waveform generator. With a 10 MHz bandwidth, real-time sampling up to 50 MSa/s, and a 32 KB record depth, it’s designed for field technicians, students, and hobbyists who want a portable device that covers basic signal analysis, measurements, and simple waveform output without lugging a full bench setup.

How it helps in practice

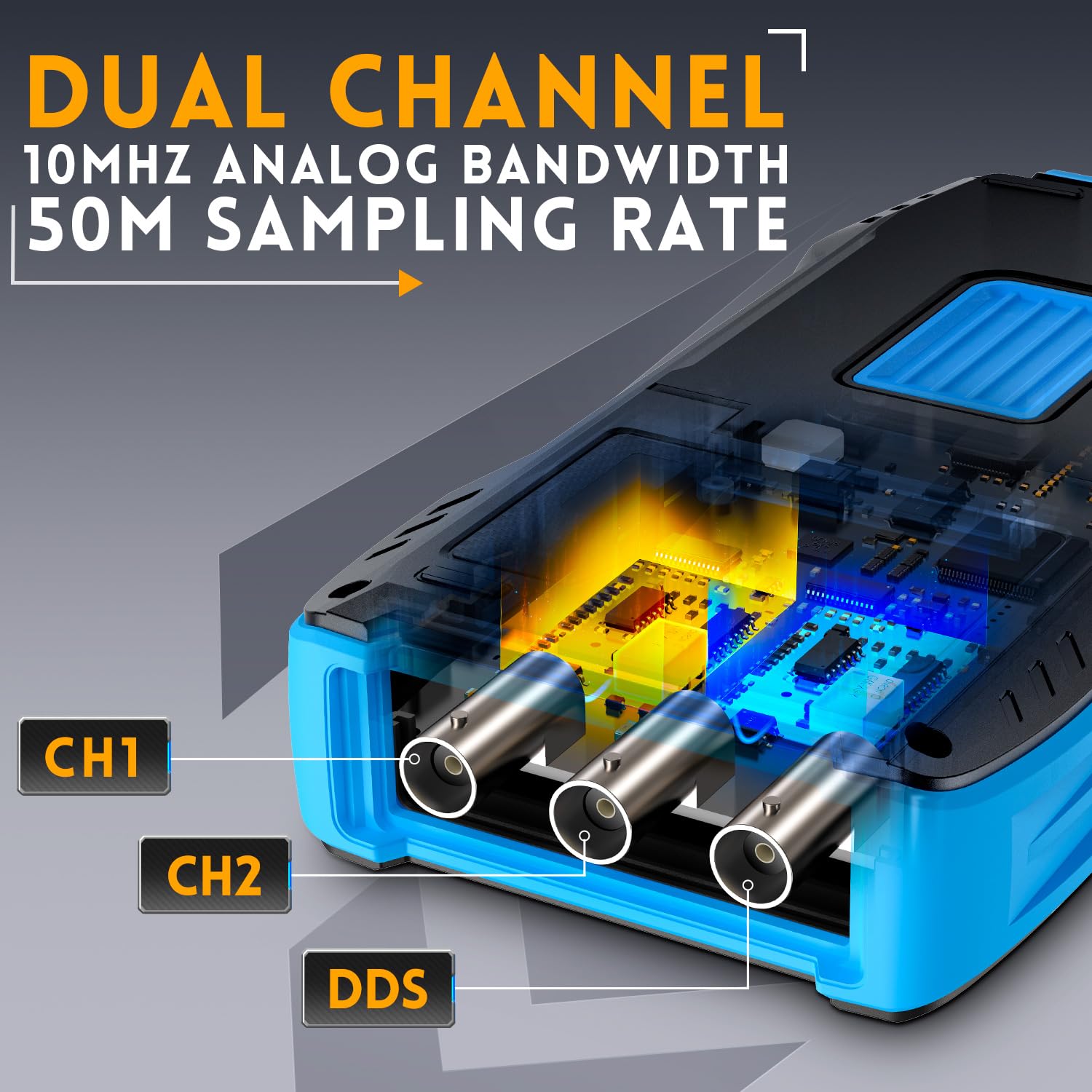

On the oscilloscope side, you get 2 channels, vertical sensitivity from 200 mV/div to 10 V/div, and a maximum probe voltage of 400 V. It also includes an automatic measurement function and the ability to store and export waveform images, which can be handy for documenting results or sharing a quick report from the field.

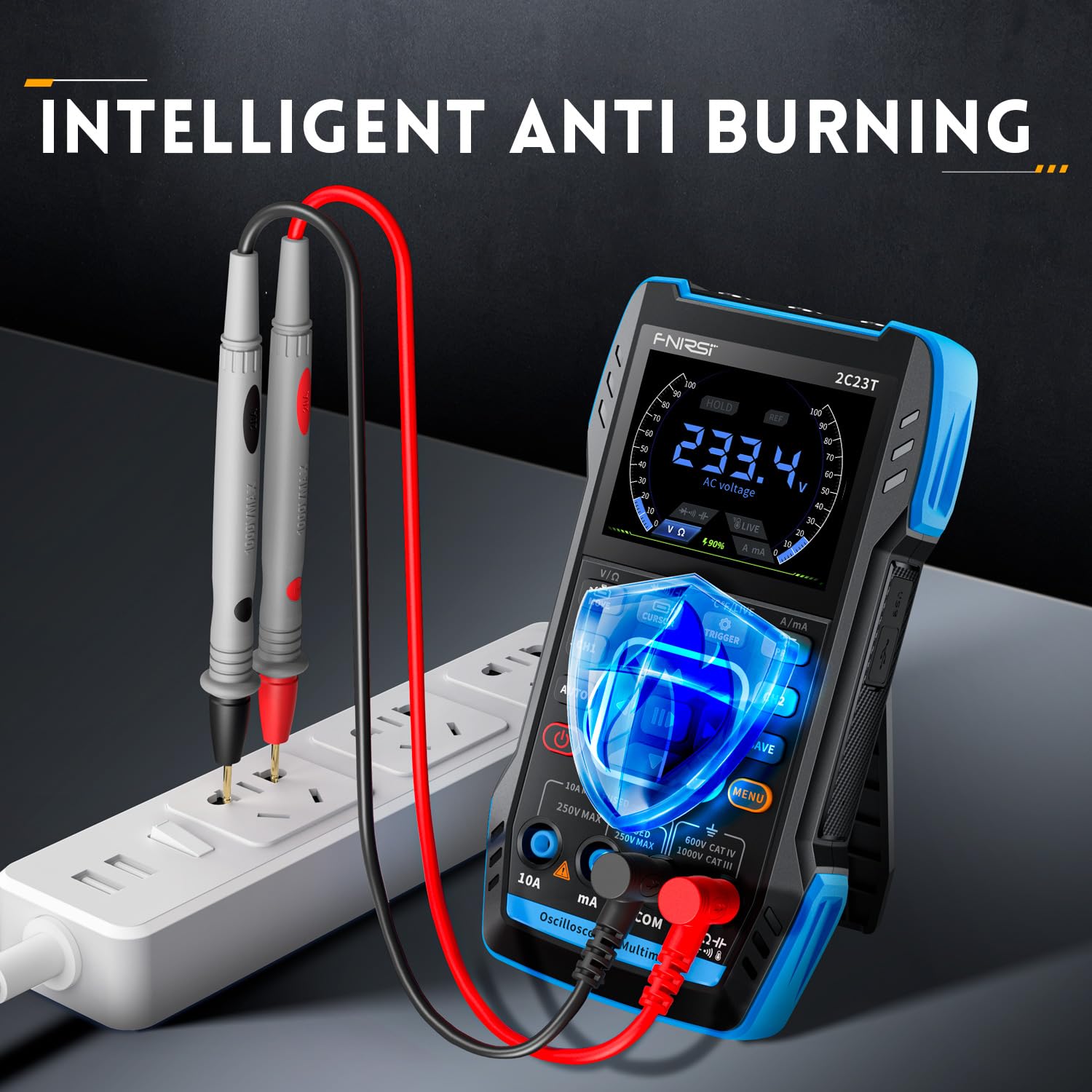

In Multimeter mode, it functions as a 4-digit instrument with up to 10000 counts. It can measure AC/DC voltages, DC/AC currents, resistance, capacitance, diode check, and continuity. This makes it a convenient companion when you’re chasing a fault and need to switch between signal capture and basic component testing.

The built-in DDS generator adds a practical layer for testing and signal verification. It can output up to 2 MHz with 1 Hz step and seven waveform types (sine, square, triangle, full, half, noise, and DC). This is useful for validating circuits or generating test signals on the go.

What stands out and what might fall short

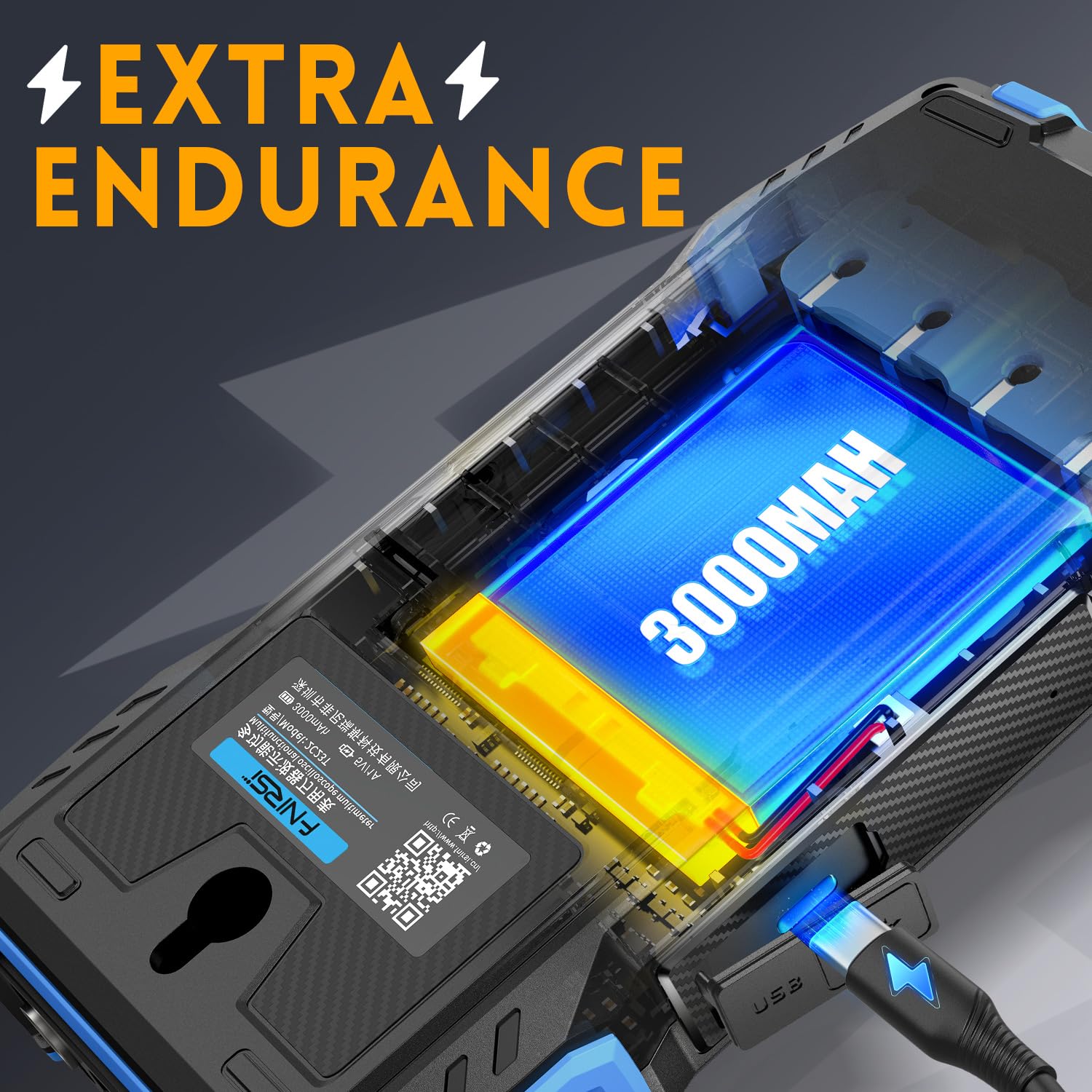

The appeal lies in its multi-function design in a compact form. The FPGA+MCU+ADC hardware composition suggests a cohesive architecture for field use, and the 3000 mAh rechargeable battery promises several hours of use between charges. However, being a handheld device with 10 MHz scope bandwidth, it’s best suited for basic signal inspection, educational labs, or introductory troubleshooting. If your work hinges on high-bandwidth signals, precise timing at high frequencies, or advanced math functions, you may find it limited.

Who this is best for

• Students and hobbyists needing a lightweight, all-in-one tool for learning and simple diagnostics.
• Field technicians who want a portable device to capture signals, check components, and perform basic signal generation on site.
• Environments where carrying a full bench oscilloscope and separate multimeter is impractical.

Who might want to steer clear

If you require high-speed digital signals beyond 10 MHz, very accurate power electronics measurements, or extensive waveform analysis with deep storage, this device may feel underpowered. It’s also prudent to remember that its handheld form factor prioritizes portability over the raw spec depth found in dedicated bench instruments.

What to check before buying

• Power and battery life expectations: standby is claimed at up to 6 hours, actual runtime depends on screen usage and measurements.
• Record depth and data export: 32 KB is modest by bench standards, so plan for short capture sessions and rely on external export for larger datasets.
• Bandwidth vs. use case: 10 MHz is suitable for general signals and moderate-speed electronics but won’t cover high-frequency RF work.
• Signal generator usefulness: 2 MHz max output with seven waveforms is handy for simple checks but not for advanced RF or precise waveform shaping.

Practical usage example

You’re debugging a microcontroller board with a few analog sensors. You pulse a signal, observe the waveform on Channel A, check a sensor line with Channel B, and compare the reference waveform saved earlier to gauge deviation. If a fault pops up, you can quickly switch to the multimeter to measure voltage and resistance without swapping tools, then generate a test waveform to verify the response of a circuit block.

Short comparison: how this approach fits against alternatives

If you need a single, portable device for light debugging and learning, this 3-in-1 approach is convenient. For people who already own a dedicated oscilloscope and a separate multimeter, the FNIRSI 2C23T primarily serves as a compact backup or a budget-friendly on-the-go option. It’s a different balance from a high-end handheld scope with greater bandwidth or from a standalone DDS generator used alongside a different measurement tool.

Decision: Is it worth it?

Is it worth it?

It’s worth considering if you prioritize portability and the convenience of having oscilloscope, multimeter, and signal generator in one device for basic field work, classroom demos, or DIY projects. If your workflows demand higher bandwidth, more precise measurements, or extensive data logging, you may want to explore higher-spec options.

FAQ

• How many channels does it have? It has 2 channels for simultaneous signal observation.
• What is the maximum voltage it can measure? It supports up to 400 V max measurement on the oscilloscope input.
• Can I export waveforms to a PC? Yes, you can store waveform images and export data via a connected data cable.
• What kind of waveforms can the DDS generator produce? It offers seven waveform types, including sine, square, triangle, full, half, noise, and DC, with up to 2 MHz output.
