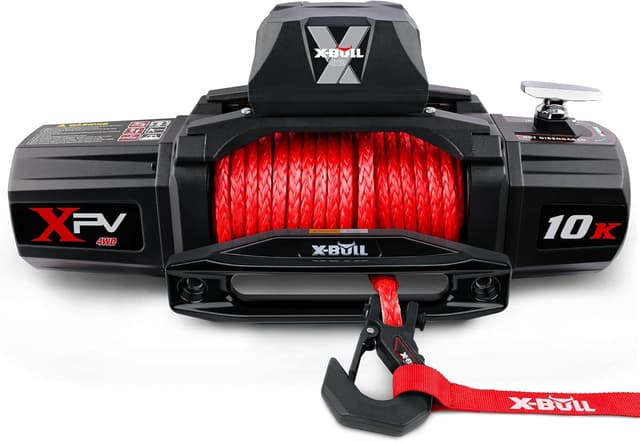

X-BULL Winch 10000 lb Electric Winch Kit (12V) with IP67 Wireless Remote and Synthetic Rope
Product description
The essentials
If you’re shopping for a 10000 lb electric winch, the X-BULL Winch-10000 lb kit is built around one clear idea: control it from a distance, even when conditions aren’t great. It pairs a 12V electric motor with both wireless and corded control, and it’s rated IP67 waterproof—so on paper, it’s meant to handle weather and rougher use better than basic, non-sealed setups.
That said, it’s still a lot of winch for the typical DIY driveway recovery. This is the kind of kit you buy when you want stronger traction under load and you’re willing to do a proper install and wiring plan. If you only need occasional light pulls, you may find yourself overbuying.
Key features that matter in real recovery

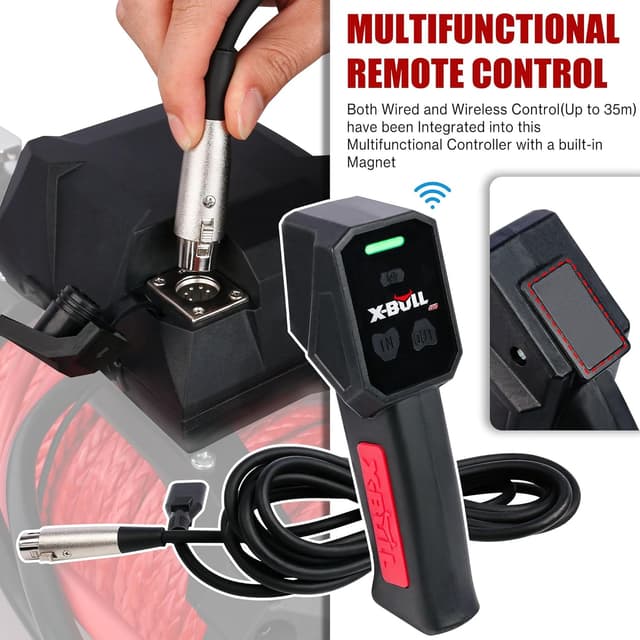

The standout here is the remote control approach. The wireless handheld remote can operate up to 35m (as listed), and the controller is described as IP67 waterproof. In practice, that’s the difference between “standing next to the vehicle” and being able to position yourself while controlling the pull.

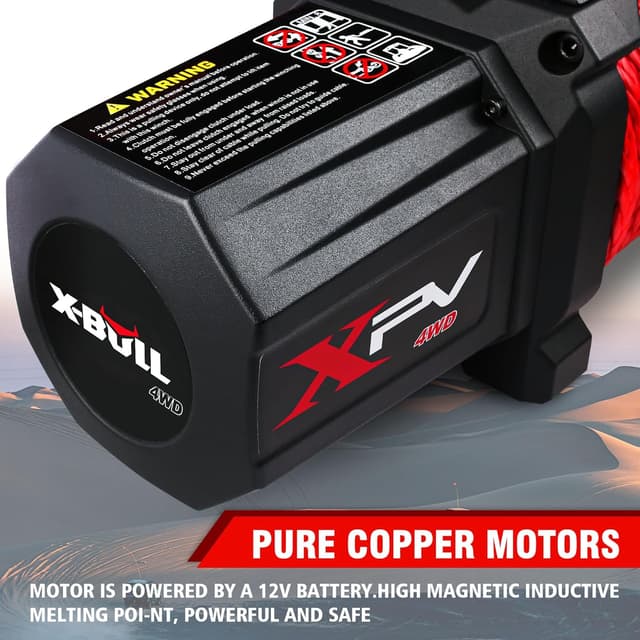

For hauling power, the kit is specified as a 10000 lb capacity electric winch powered by a series-wound DC 12V motor rated at 4.5kW / 5.6 hp output. It also uses a 218:1 planetary gear ratio and a “3 planetary gear system,” which (on paper) supports stronger traction under load and higher linear speed.
There are also design details aimed at durability. The solenoid is described as heat-insulated and tough, and the clutch/gear connection is described as strengthened to help reduce clutch damage risk. Whether those protections feel noticeable comes down to how you use it—short steady pulls will be a different experience than frequent, heavy-duty cycles.
And for basic load control, it’s described as having “Power in & Power out” motor operation for positive load control.
Tech specs (what you should verify before buying)
- Name: X-BULL Winch-10000 lb. Load Capacity Electric Winch Kit
- Type: Electric winch kit (12V)
- Capacity: 10000 lb load capacity
- Motor output: 4.5kW / 5.6hp series wound DC motor (12V)
- Gear ratio: 218:1 planetary gear ratio
- Wireless remote range: up to 35m
- Waterproof rating: IP67
- Synthetic rope size: 3/8" x 85 feet

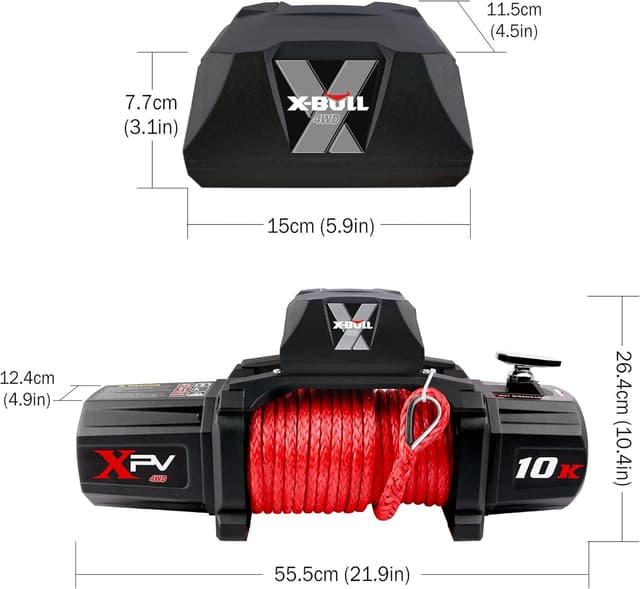

- Installation dimensions: 20.8" x 6.5" x 10.24"
- Mounting bolt type: 10.00 ± 0.015" x 4.50 ± 0.010"
What you’ll notice day to day (and where it may fall short)
The day-to-day difference with this kit is control. Having a wireless handheld remote (up to 35m) plus wired control gives you options if you’re repositioning a vehicle or working around obstacles. The IP67 waterproof rating also suggests the system is intended to be used in wet conditions without you constantly worrying about the controller.
Where it may not be the best fit is if you’re expecting a “plug-and-play” experience with zero planning. The kit includes specific installation dimensions and a mounting bolt footprint, which means your mounting surface and bracket setup have to match what the winch expects. If your vehicle setup is tight or your mounting plan isn’t sorted, the install can become the real bottleneck.
It’s also worth noting: capacity alone doesn’t guarantee it’s the right choice for every recovery scenario. You still need to think about pulling angles, line routing, and how much load you’re actually trying to move. A 10000 lb winch can be overkill if your use is mainly light yard tasks.
Who it’s for (and who should look elsewhere)
It makes sense if you’re doing occasional-to-regular vehicle recovery and you want stronger pulling capability with an emphasis on remote operation. The waterproof IP67 rating also fits people who don’t baby their gear—snow season, rain, muddy lots, that kind of reality.
It might not suit you if: - You only need minor pulls and would rather avoid buying a heavy, high-capacity system. - Your mounting area can’t realistically match the listed installation dimensions and bolt pattern. - You’re not planning any thoughtful line setup, because the winch is only part of safe recovery.
Getting the most from it (practical use)
A simple scenario: imagine a vehicle stuck on a damp, uneven driveway. With a remote that can work up to 35m, you can keep control while you walk to a better sightline or position the line away from immediate obstacles. If you need to switch tactics, the kit’s “wired and wireless control” approach gives you a fallback method.
Also, since the kit specifies a synthetic rope size (3/8" x 85 feet), you’ll want to plan your line length and routing so you’re not fighting shortage or awkward geometry when you need the pull.
Final verdict
If you want a 12V 10000 lb electric winch kit designed around wireless control and IP67 waterproof protection, the X-BULL Winch-10000 lb is worth considering—especially if your recoveries happen in wet or unpredictable conditions. The listed 218:1 planetary gear ratio and 3 planetary gear system point to a setup that’s intended to pull strongly under load.
But don’t ignore the constraints: this is a serious-capacity winch with specific mounting requirements. It’s not the best choice if you need something smaller, simpler, or truly minimal-effort to mount. If your install planning is solid and you value remote operation, this is the kind of kit that can feel more convenient than cord-only setups.
Quick overview FAQ
Is this winch really waterproof enough for outdoor use?
It’s listed with an IP67 waterproof rating, which is a strong signal for outdoor use. Still, installation and line routing matter—so you’ll want to make sure your mounting setup keeps the system protected.
Does it come with wireless control?
Yes. The kit includes a wireless handheld remote (up to 35m listed) and also supports corded control.
How long is the synthetic rope?
The synthetic rope is specified as 3/8" x 85 feet.
What’s the main power source?
It’s a 12V electric winch kit, powered by a series-wound DC motor rated at 4.5kW / 5.6hp output (as listed).
Will this work for every vehicle recovery?
Not automatically. Even with a high capacity winch, safe and effective recovery depends heavily on proper mounting, line setup, and how you manage load and pulling angles.
