AC-DK 2500 lb ATV/UTV Winch Kit with Synthetic Rope, 12V Motor, Wireless Remote & Mounting Plate
Product description
What it is and what it’s for

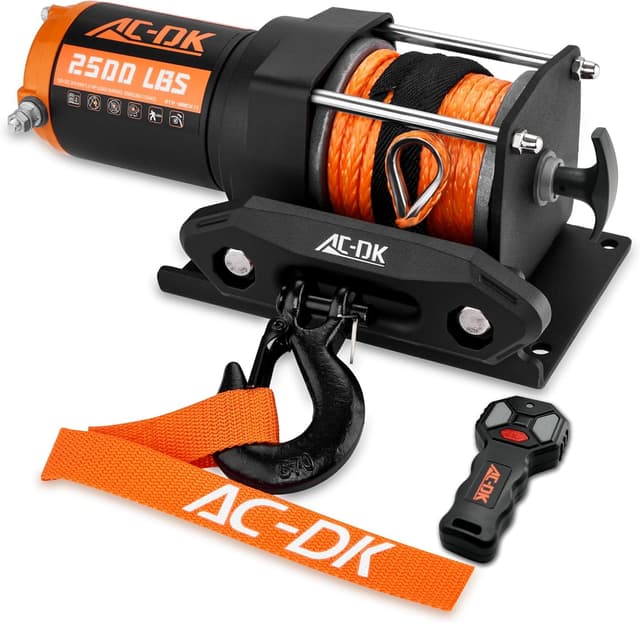

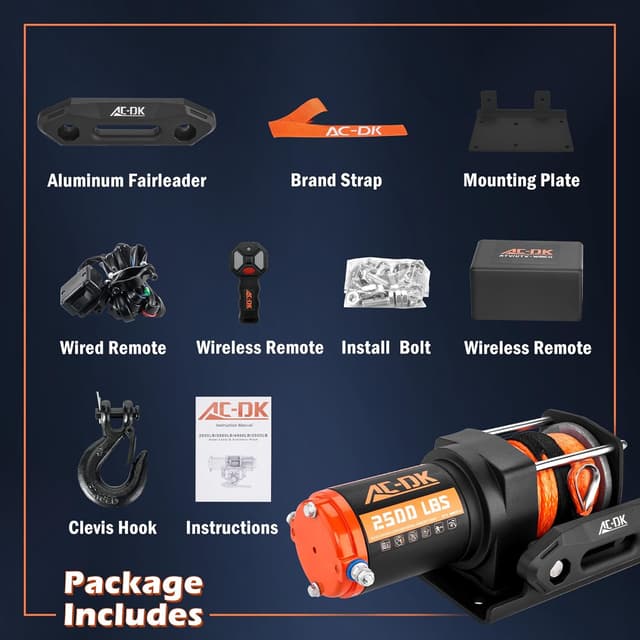

The AC-DK 2500 lb ATV/UTV winch kit is built for people who want a straightforward electric winch setup for off-road recovery or towing-style use—without dealing with the complexity of piecing together every component. It includes a 12V winch, a synthetic Dyneema rope, and both a mounting plate and remote control options (wireless remote plus a wired remote).
On paper, the main story here is the complete “kit” approach and the use of synthetic rope. Synthetic rope can be a lot easier to live with than steel in everyday handling, and Dyneema is designed to resist water issues better than you’d expect from traditional rope materials. That matters if your riding includes wet trails, shoreline work, or situations where gear gets splashed.
Key takeaways (and the one thing to watch)
This winch kit is positioned as a 2500 lb class option, powered by a 12V DC permanent magnet motor and a planetary gear system. The listed gear ratio is 153:1, and the kit targets solid pulling capability with speed control across load vs. free-spooling.

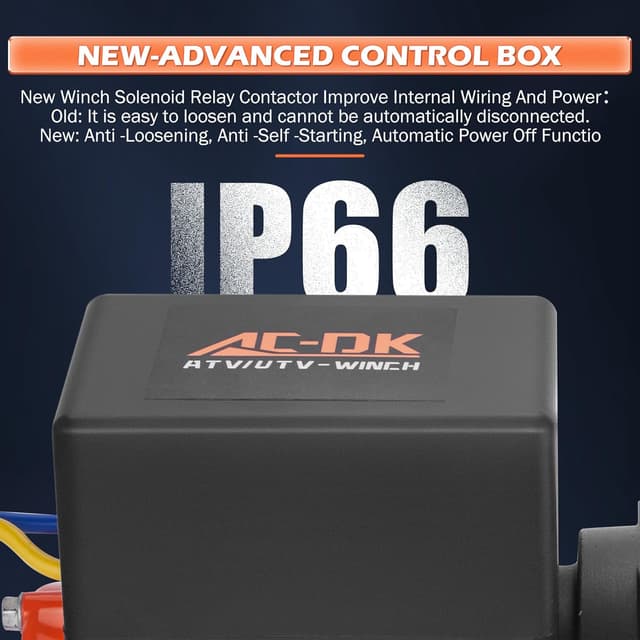

It’s also more “modern” in its control approach than a basic relay-style wiring setup. The description calls out anti-loosening, anti-starting, and auto shutoff behavior via an advanced relay/contactor system.
Still, there’s a practical limitation: the mounting dimensions and hole pattern must match your winch mount/support plate. If your ATV/UTV or front mount doesn’t line up with the stated guide pattern and two-hole plate spacing, you may end up doing extra fitment work. So before buying, treat the bolt pattern check as non-negotiable.
What you’ll notice day to day
A micro-experience helps here. Imagine you’re setting up after a rough ride: you spool the synthetic rope out, hook your strap to a recovery point, and use the wireless remote to take up slack while staying at a safer distance from the line. Because the rope is described as floating in water and designed not to lose strength in wet conditions, it’s less intimidating if it gets damp.
The kit also lists two speed modes: 9 feet/min when fully loaded and 25 feet/min when unloaded. That means in real use you can expect slower, steadier pulling under load, with faster line retrieval when you’re just repositioning the rope.
Performance and drive system, explained simply

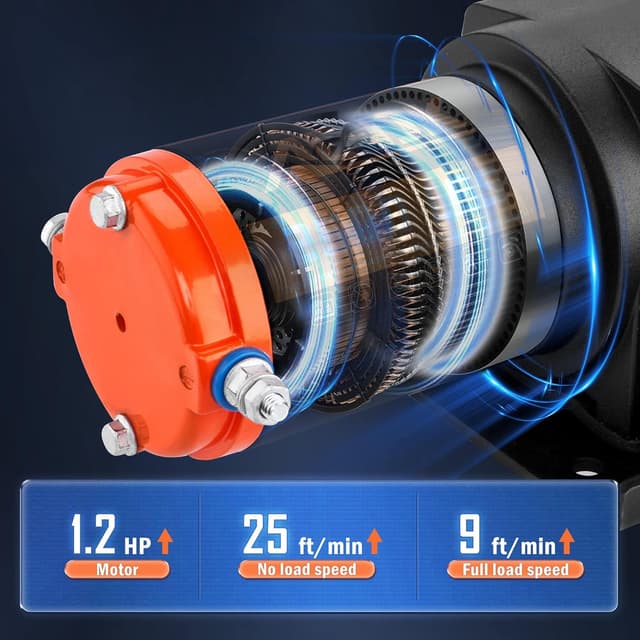

The heart of the kit is a 2500 lb planetary gear setup driven by a 12V DC permanent magnet motor rated at 0.9 kW / 1.2 hp (as listed). The description emphasizes stable output and aims to reduce issues like overheating or damage that can happen if a winch is underpowered.

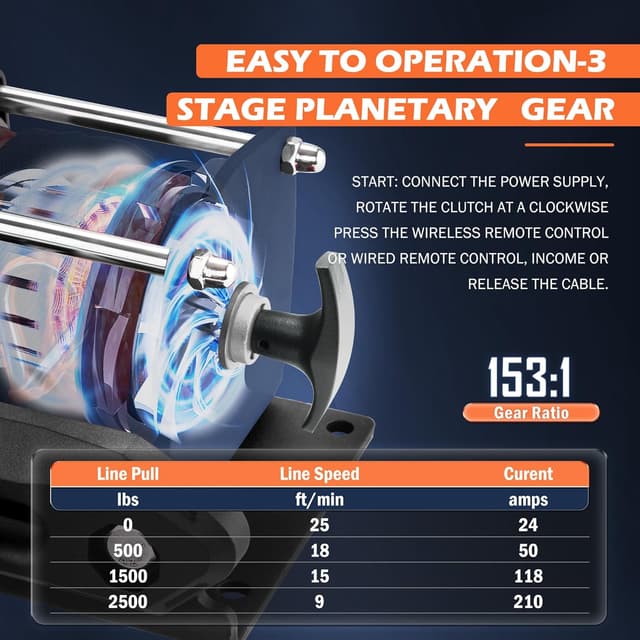

Gear ratio is listed as 153:1, which generally supports stronger mechanical control for pulling. The winch is also described as being “more high and faster than other winches,” but you’ll want to rely on the included speed numbers (loaded vs. unloaded) rather than the broad claim.
Rope and mounting details you should verify before installing
The included synthetic rope is specified as Dyneema: 3/16 diameter x 50 feet. Dyneema is described as strong, lightweight, and resistant to water, and it’s positioned as safer than steel due to the way it behaves under load (the description specifically mentions it doesn’t suffer a possible “closing”). It’s also said to avoid strength loss in wet conditions because it floats and doesn’t degrade the way other materials might.

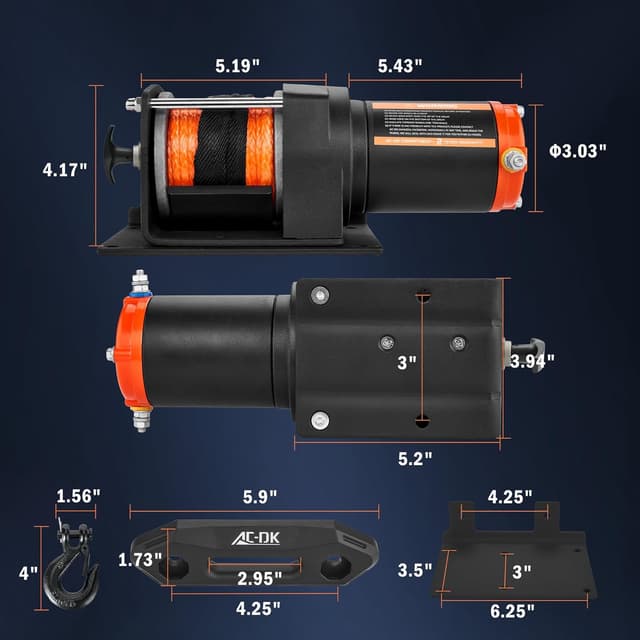

Mounting is where buyers often get burned, so here are the details you need to cross-check with your existing mount:
- Mounting guide pattern: 108 mm
- Mounting plate: 2 holes with spacing listed as 78 mm / 76 mm
The kit explicitly recommends ensuring your bracket hole compatibility with the winch mount before buying. If your ATV/UTV mount uses a different hole layout, this may be more hassle than it’s worth.
Buying verdict
Worth considering if you want a complete AC-DK 2500 lb ATV/UTV winch kit with synthetic Dyneema rope, a 12V motor, and remote control included—especially if your use includes wet trails and you prefer synthetic rope handling over steel.
It may not be the best match if you already have a winch mount with a different bolt pattern and you don’t plan to modify or fabricate a solution. In other words, this kit is “easy” mainly when the mounting dimensions line up.
Also, pay attention to power readiness: the cold-start minimum current is listed as 10 A. If your setup is tight on electrical capacity or you’re unsure your battery/wiring can handle it, it’s a good idea to factor that into your decision.
Mini FAQ
Does this kit include a rope and remote controls?
Yes. The kit description includes synthetic Dyneema rope (3/16 x 50 feet) and mentions both a wireless remote and a wired remote.
What rope material is included?
It’s described as Dyneema synthetic rope, intended to be water resistant and designed to avoid strength loss in wet conditions.
What mounting pattern should I confirm?
Check the listed mounting guide pattern (108 mm) and the two-hole mounting plate spacing (78 mm / 76 mm) against your ATV/UTV support bracket before ordering.
How fast does it pull?
The description lists 9 feet/min when fully loaded and 25 feet/min when unloaded.
Any electrical considerations?
The cold-start minimum current is listed as 10 A, and it’s a 12V winch system.
Should you buy it?
If your priority is a 2500 lb class electric ATV/UTV winch kit with synthetic Dyneema rope, remote control, and a mounting plate designed for a specific hole pattern, this one is worth a close look. Just don’t rush past the bolt-pattern compatibility and the listed cold-start current—those are the two “make or break” details that decide whether install feels smooth or turns into a project.
