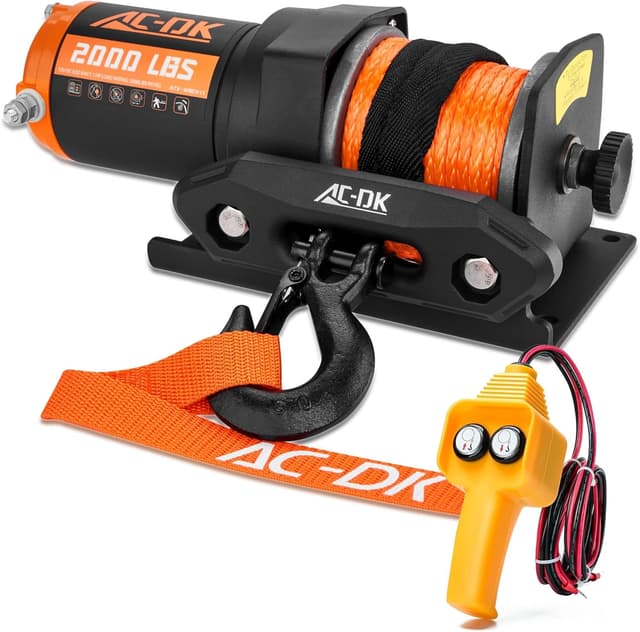

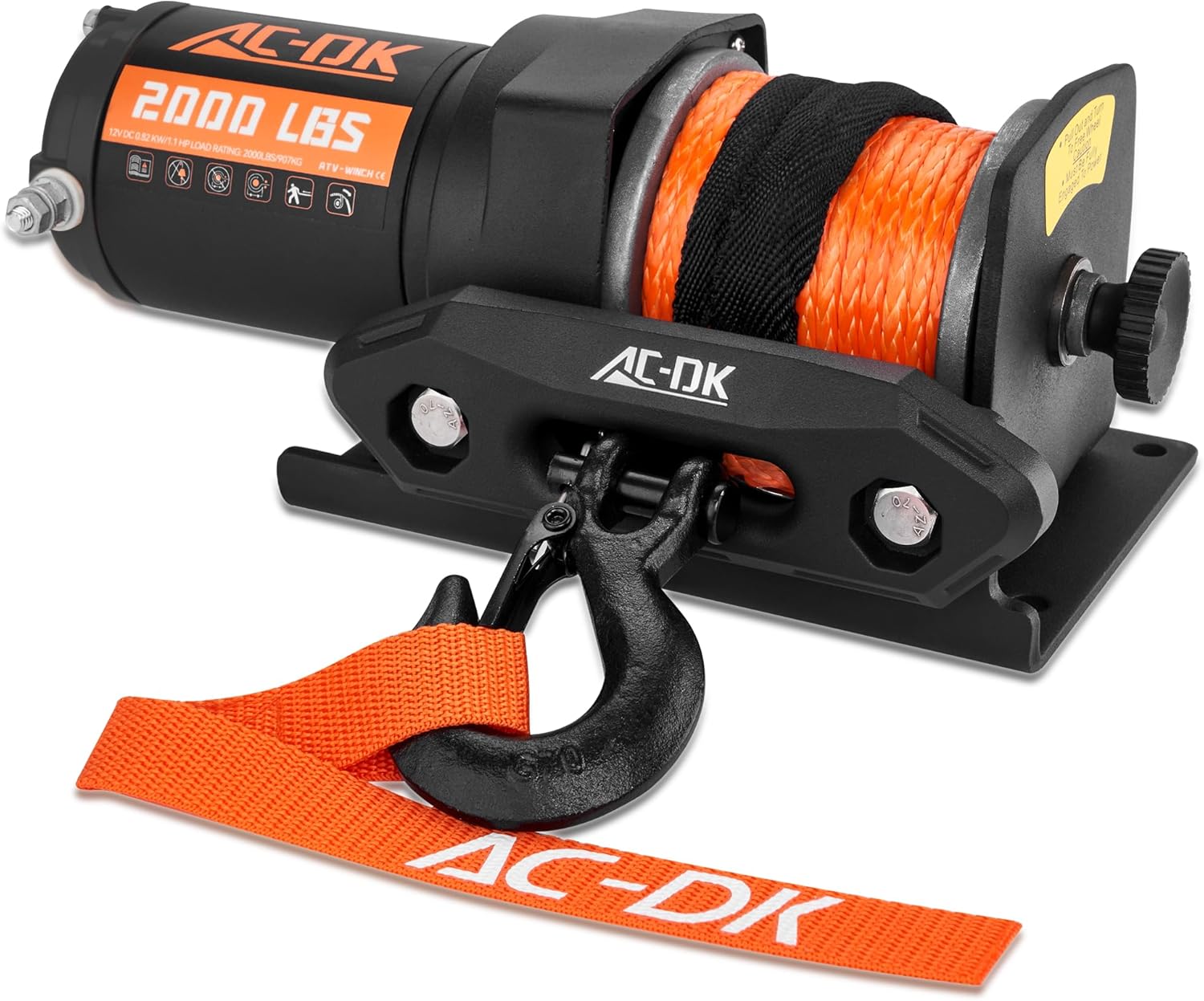

AC-DK 12V 2000-lb ATV/UTV Electric Winch with Synthetic Rope and Wired Remote
Product description
What it is and what it solves
This AC-DK 12V electric winch kit is built for off-road recovery and hauling-style towing on ATVs and UTVs, plus other trailer-style setups where a compact, electric pull solution makes sense. The “2000-lb” rating is the headline, but what really matters in day-to-day use is how the winch rope and remote setup help you pull smoothly when traction is gone.

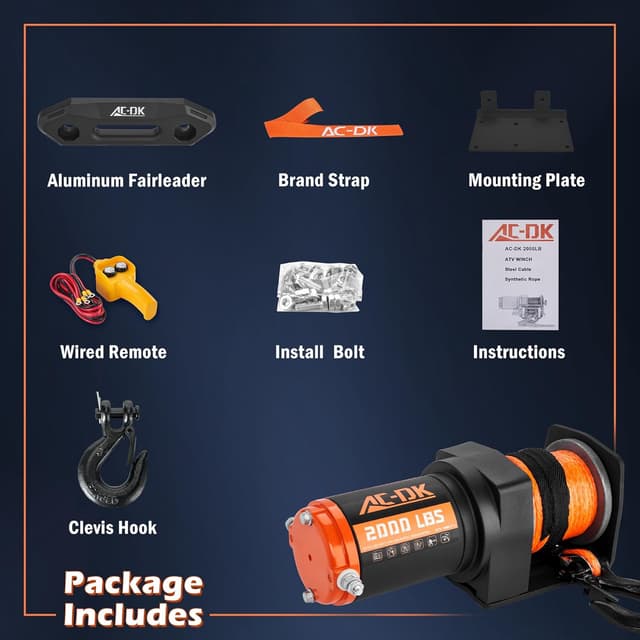

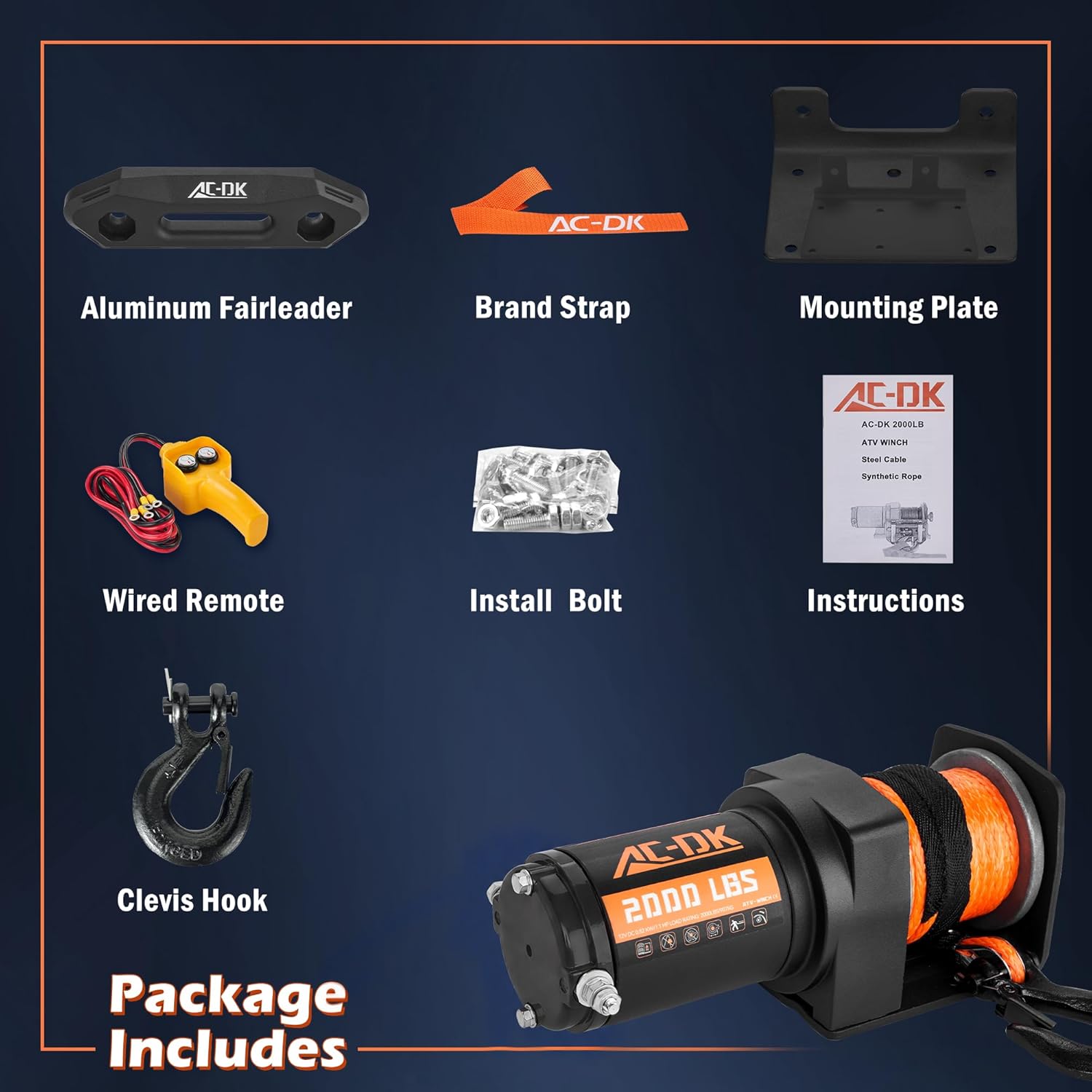

On paper, it’s a straightforward choice for people who want an electric winch without dealing with a hand crank. The kit approach is also handy: it’s meant to include the accessories you need, including a big yellow wired remote handle and a winch mounting plate.
The essentials: rope, remote, and mounting

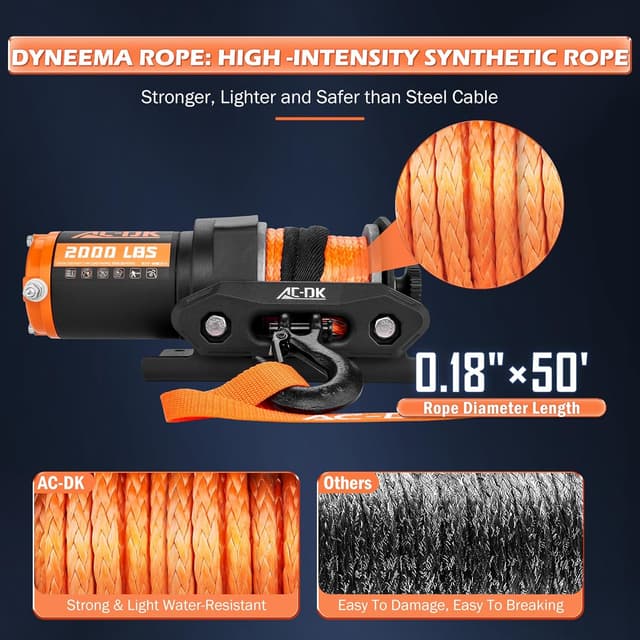

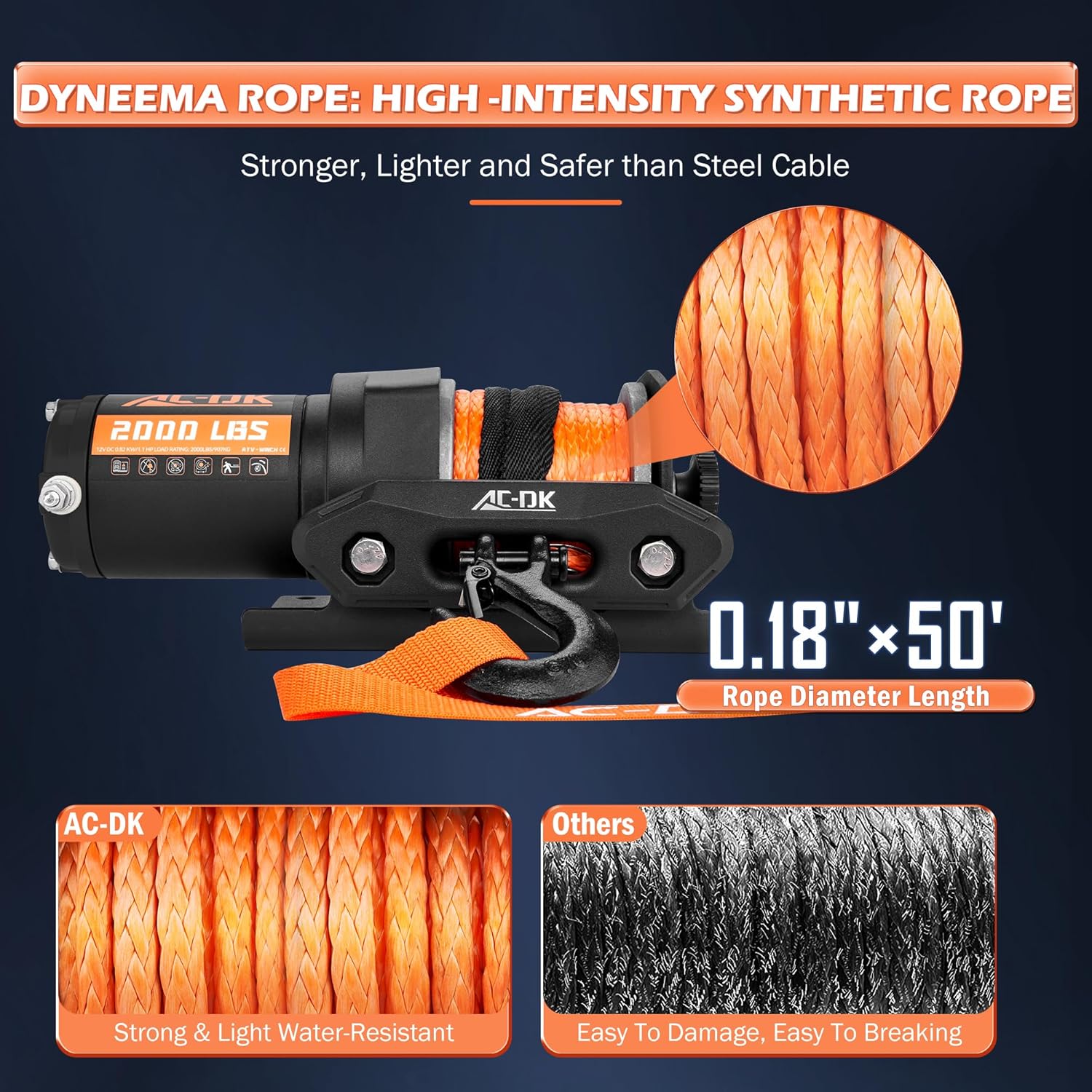

The kit centers around a Dyneema synthetic winch rope (3/16" diameter x 50' length). Synthetic rope can be easier to handle than steel cable, and it’s designed for water-resistance—one of the reasons it’s commonly picked for muddy, wet, or trail-adjacent use. The listing also calls out that the rope floats on water, and it avoids degradation or loss of strength in wet conditions.

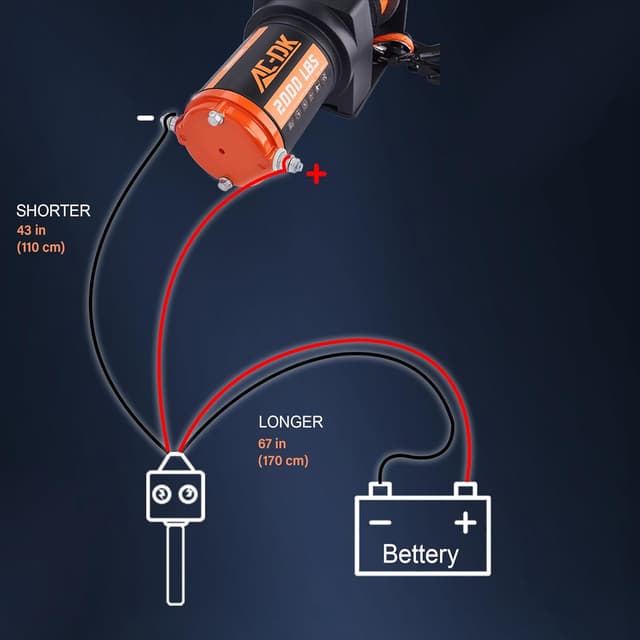

Control is via a wired remote handle in yellow. Wiring is described in simple terms: connect red and black terminals between the handle and the winch, then connect the remaining terminals to your power supply ("+" and "-"). That’s the kind of setup that keeps you from overthinking things, as long as you have access to your power source and you’re comfortable with basic electrical connections.

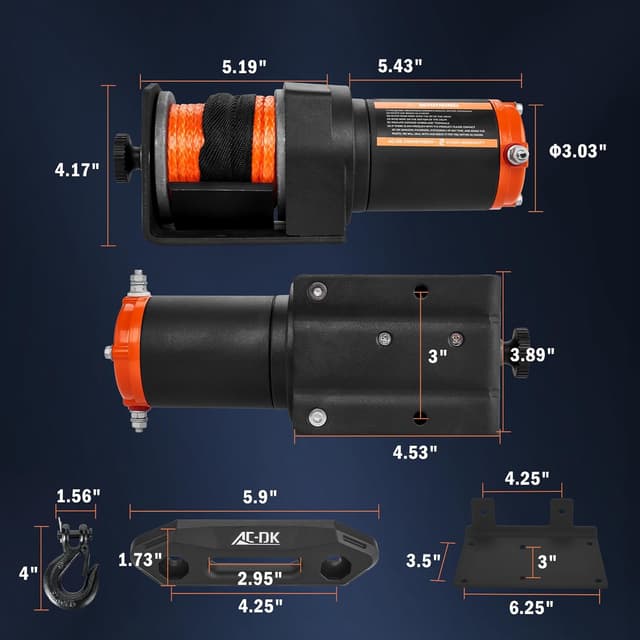

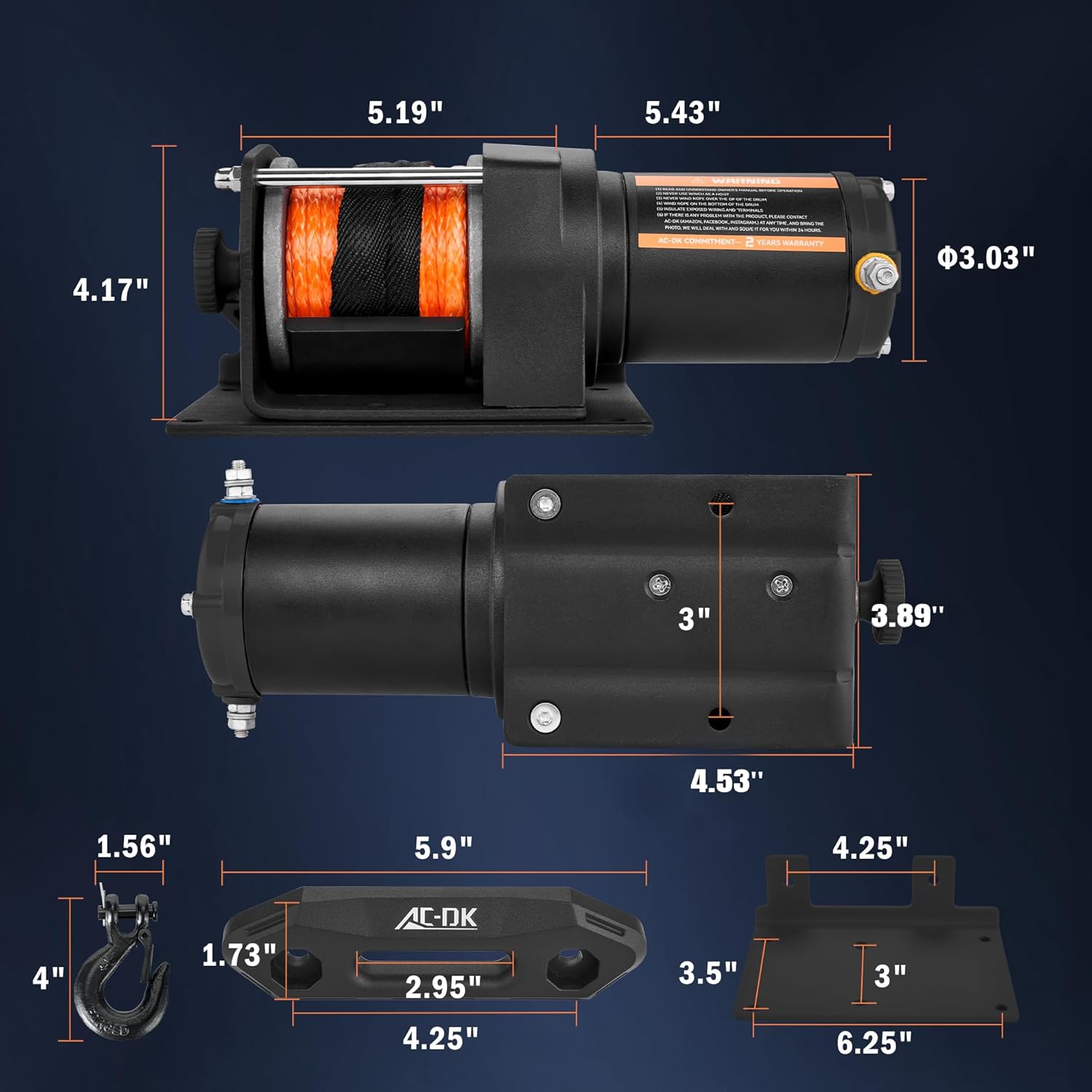

Mounting is where you’ll want to slow down. The fairlead mounting pattern is listed as 4 1/4" (108mm), and the mounting plate uses a 2-hole pattern: 3.10" (78mm) / 3" (76mm). Since bracket spacing can vary, it’s smart to confirm compatibility of your mounting holes with the winch bracket before you buy.
Key takeaways on performance (and where it can feel limited)

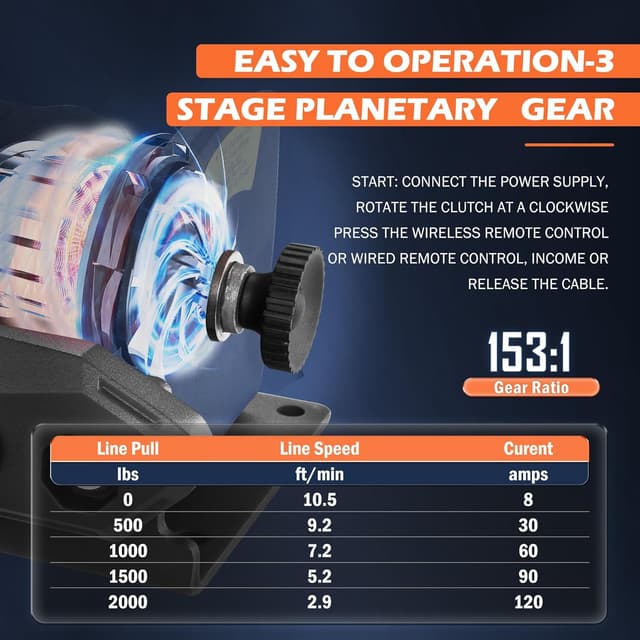

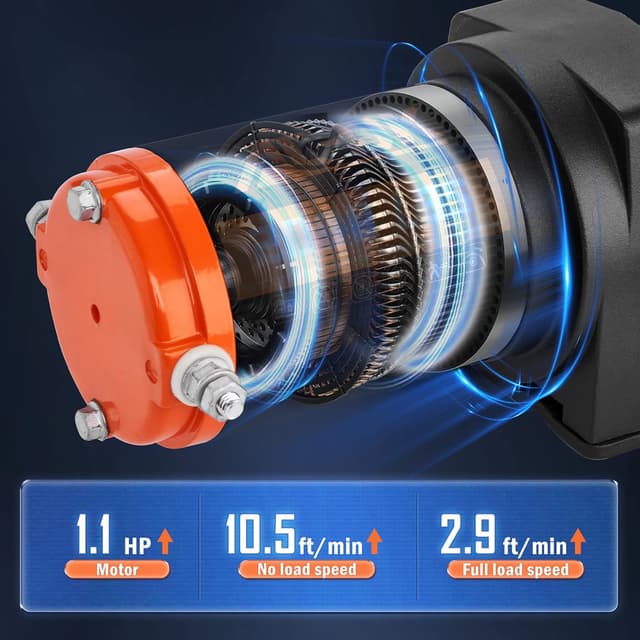

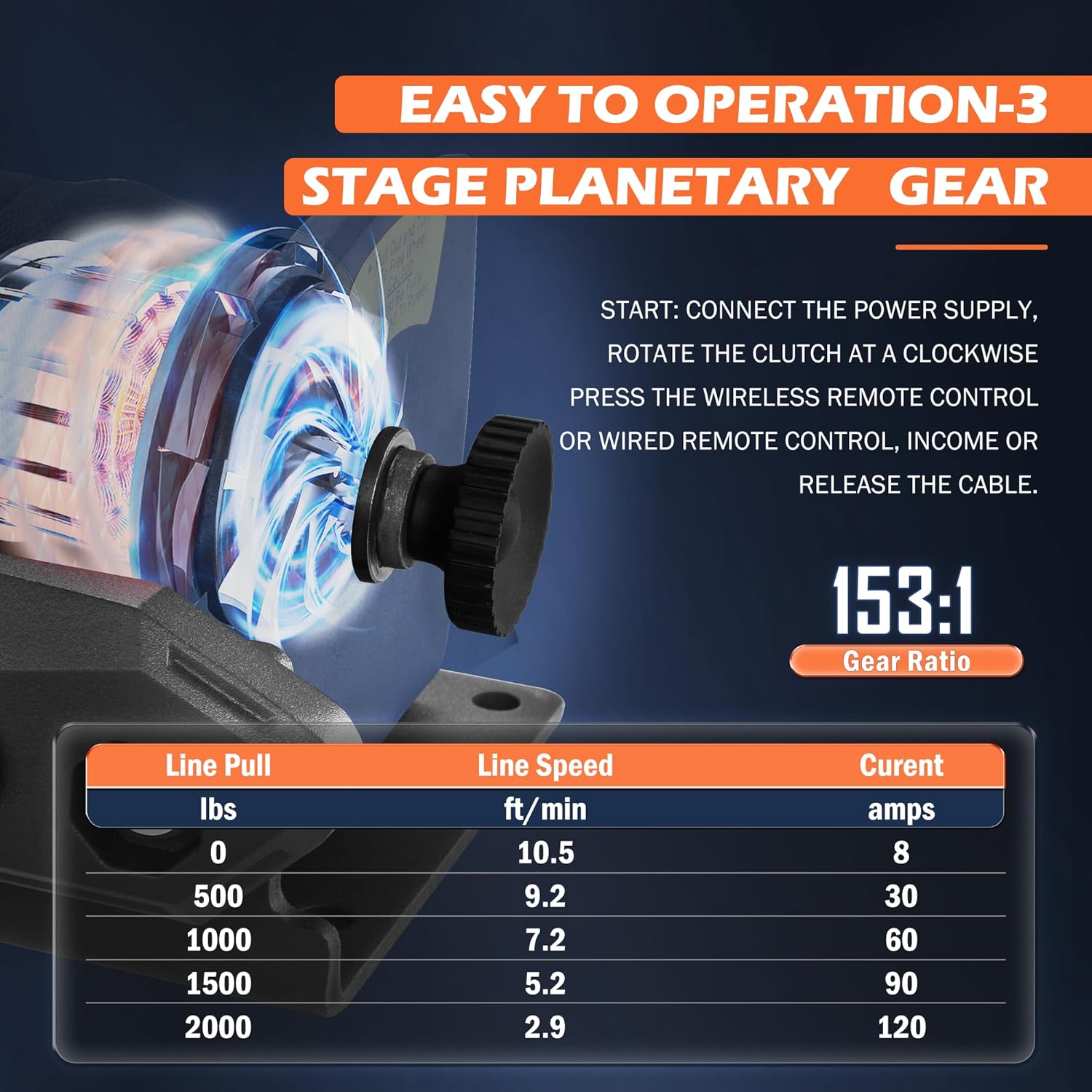

The winch uses a permanent magnet DC 12V motor rated around 0.82kw/1.1hp, paired with a combined planetary gear system. The stated gear speed ratio is 153:1. In practical terms, a higher reduction ratio typically means stronger control at lower speeds—helpful for controlled pulls.
Speed is also provided: 2.9 feet/min when fully loaded, and 10.5 feet/min when empty. That means it’s not designed for fast, throw-it-around pulls. If you’re expecting “rapid rope speed” for frequent tasks, this may feel more like a steady recovery tool than a quick machine.
Another note: the minimum cold starting current is listed as 10A. That’s useful when judging whether your setup can reliably power it, though real-world performance still depends on your specific battery/charging situation and wiring.
Key features you’ll notice in use
- The synthetic Dyneema rope is positioned as a safer winching material, specifically because it won’t suffer potential snapback like some cable setups can.
- The planetary gear system is intended to provide stable output and reduce the chance of overheating or damage caused by insufficient power.
- The remote is wired and described as easy to connect, which can reduce “where did my remote signal go?” stress in the field.
Is it perfect? Not really—this winch reads as a mid-range recovery option rather than something built to endlessly “work fast all day.” If your use case involves heavy, repeated loads, you may end up wishing for a higher-capacity system and/or a more robust setup.
Who it suits (and who should think twice)
Worth considering if you need an ATV/UTV winch for occasional to moderate recoveries, trail towing, or situations where having a synthetic rope and a wired remote helps you stay controlled. It also fits well if you’re specifically shopping around for an electric winch kit with standard mounting dimensions and a listed mounting plate.
It might not suit you if your priority is speed and quick line retrieval, since the fully loaded speed is relatively low. It also may not be the best fit if you can’t confidently confirm that the fairlead and mounting plate hole spacing match your bracket—this listing explicitly asks you to verify mounting compatibility before purchase.
Quick micro-scenario: what a typical recovery could feel like
Imagine you’re out on a muddy trail and a UTV starts to spin in place. With the winch mounted and the wired remote connected, you can control the pull at the press of the handle switch. The synthetic rope is intended to handle wet conditions better than some alternatives, so after a rainy section of trail, you’re not as worried about the rope sitting around in damp conditions.
It won’t feel like a “fast rope shuttle,” but it should feel predictable and controllable for the kind of slow, steady recovery you want when traction is poor.
Is it worth it?
This AC-DK 12V 2000-lb ATV/UTV electric winch is worth a serious look if you want a compact electric recovery solution with a synthetic Dyneema rope, a wired remote handle, and a mounting plate built around specific hole spacing you can verify. The planetary gear system and listed rope material features make it particularly attractive for wet or water-exposed off-road use.
However, you may want to skip it if your mounting bracket doesn’t match the listed pattern, or if you’re buying because you want very fast pulling speed under load. In that case, you’ll likely feel the limitations more than the strengths.
Mini FAQ
FAQ
What rope does this winch use?
It uses a Dyneema synthetic rope listed as 3/16" diameter and 50' length.
Is the remote wired or wireless?
The kit includes a big yellow wired remote handle.
How do you connect the remote and power?
The listing explains connecting the handle power cord terminals (red/red and black/black to the winch terminals), then wiring the other two terminals to your power supply labeled “+” and “-”.
What mounting measurements should I check?
Check the fairlead mounting pattern (4 1/4" / 108mm) and the mounting plate 2-hole spacing (3.10" / 78mm or 3" / 76mm), and confirm your bracket compatibility before buying.
How fast does it pull?
Speed is listed as 2.9 feet/min when fully loaded and 10.5 feet/min when empty.
