Bosch Cross-Line Laser Level GLL50-20G

Key specifications

If you need visible layout lines for positioning work, a green-beam cross-line level offers a different approach from a basic manual level: it projects lines to guide alignment rather than relying on repeated bubble checks. The Bosch GLL50-20G is self-leveling, has an integrated magnetic mount, and carries an IP55 rating for jobsite exposure to dust or rain. Its name identifies it as a 50-ft model, while its stated accuracy is 5/16 inch at 30 feet.

The green lines are described as up to four times brighter than standard red beams. That can be useful when you need to pick out a line while working, but it doesn’t mean visibility is guaranteed in every lighting condition. The Smart Pendulum System self-levels, blinks when the tool is out of level, and locks when switched off for transport. It runs on two AA batteries or a separately sold Bosch 3.7V Lithium-Ion 1.0 Ah battery. The listed laser specifications are 630–650 nm and less than 5 mW.

Who it’s for

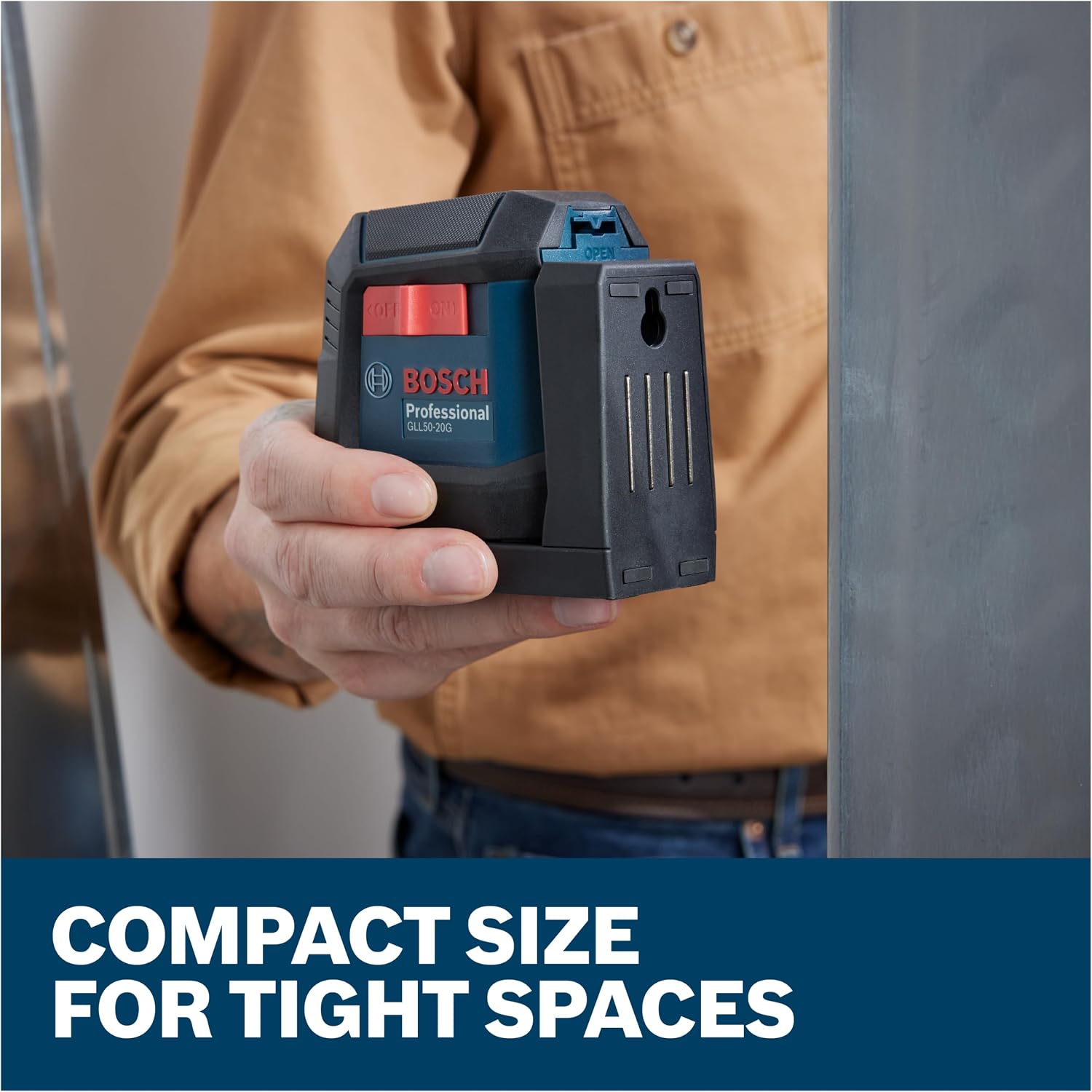

It suits you if you want a compact tool to help align cabinets, shelves, or other layout points without repeatedly checking a bubble level. For example, you can position the tool, let it self-level, and use the projected lines as a guide while marking a wall. The magnetic mount may also help when your setup has a suitable metal surface, rather than requiring you to hold the level in place.

It might not be a great match if your work requires tighter accuracy than 5/16 inch at 30 feet, or if you need the separately sold lithium-ion battery included. In that case, compare the stated tolerance and power setup with your project requirements before choosing. The IP55 rating addresses dust and rain exposure, but the supplied details don’t establish that the tool is waterproof or intended for submersion.

Box contents

The listed package includes the laser level, its integrated magnetic mount, two AA batteries, and a soft pouch. That gives you the stated battery option and a way to store the tool, without needing to buy AA batteries separately. The alternative Bosch lithium-ion battery is sold separately, so don’t count on it being in the box.

Practical doubts

Does it level itself? Yes. The Smart Pendulum System self-levels and blinks to indicate an out-of-level condition. It locks when switched off for transport.

Can it run on rechargeable Bosch power? The product information says it works with a Bosch 3.7V Lithium-Ion 1.0 Ah battery, sold separately, as well as the included two AA batteries.

What does the accuracy rating mean for layout work? The stated accuracy is 5/16 inch at 30 feet. Check that tolerance against the precision your particular installation calls for, the green beam does not change that stated accuracy.

Should you buy it?

Choose the GLL50-20G if self-leveling lines, a green beam, and a magnetic mount fit the way you handle routine alignment and marking. It also makes sense if you want the option to use either AA batteries or the specified Bosch battery. Its main trade-off is clear: the listed accuracy may not suit work with tighter tolerances, and the alternate battery adds a separate purchase. If your projects need more precision, prioritize a level with an accuracy specification that matches those demands, for general layout tasks, this Bosch model’s stated features cover the basics without relying on manual line-by-line leveling.
