Huepar LS04CG 4x360° Green Laser Level with Self-Leveling and Dual Batteries

Some layout jobs call for clear lines across a whole room, others need a precise reference for a ceiling, floor, or square corner. The Huepar LS04CG projects four 360° green laser planes to support both kinds of work. Self-leveling and manual modes let you choose how to set the lines. Two rechargeable batteries help keep a spare ready for the next task.

Key specifications

The LS04CG projects two horizontal 360° lines—one for floor layouts and one for ceiling work—plus two vertical 360° lines that cross at 90° angles. That coverage helps establish references around a room and makes square layouts easier to visualize.

• Accuracy: ±1/9 inch at 33 feet
• Self-leveling range: ±4°
• Line working distance: 98 feet, up to 200 feet with a compatible Huepar LR-6RG or LR-5RG receiver
• Modes: self-leveling, manual, and pulse

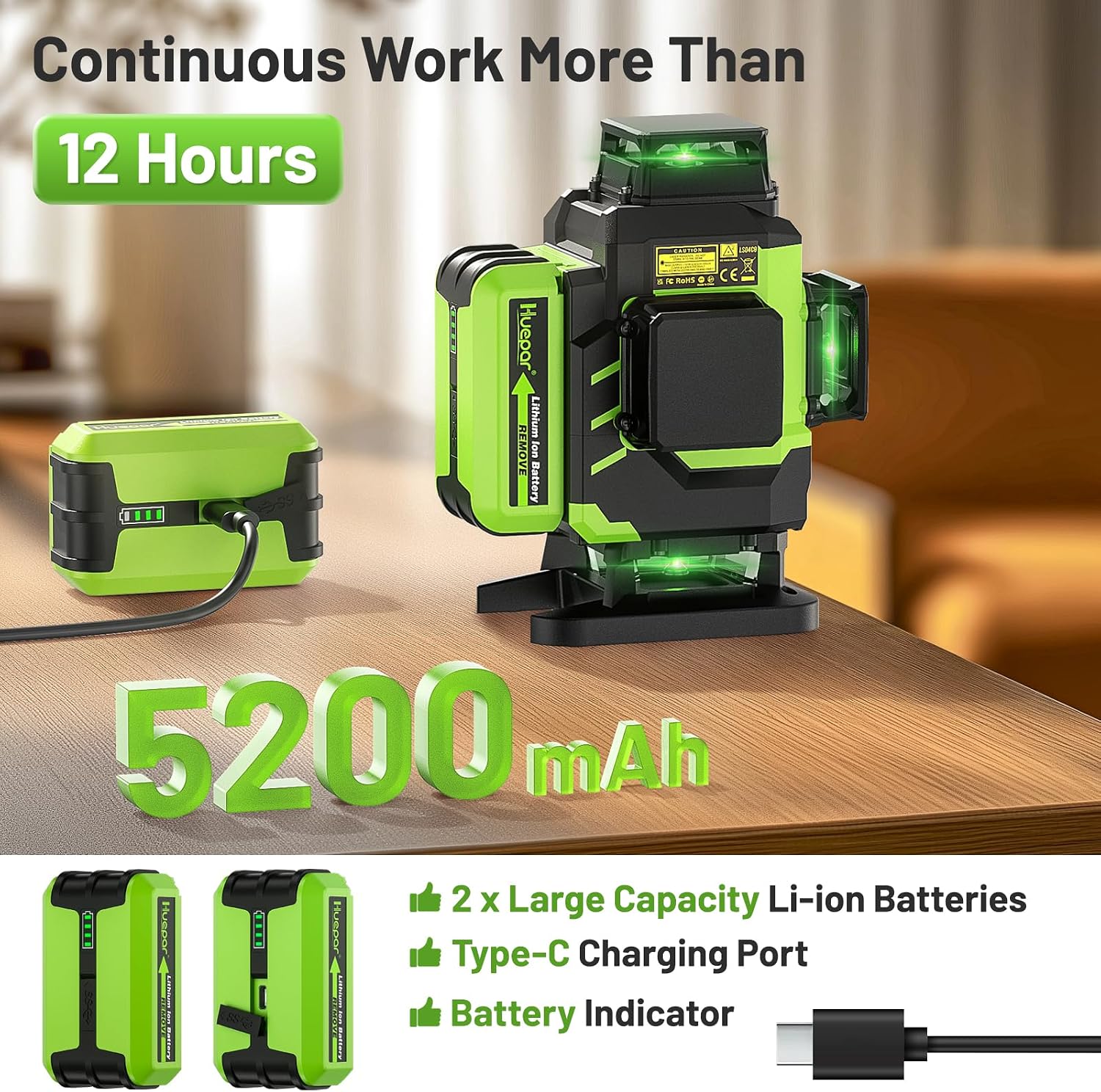

• Power: two 5200mAh Li-ion batteries, up to 6 hours with one battery and all beams on
• Mounting: 1/4\"-20 thread on the level, magnetic bracket with 1/4\"-20 and 5/8\"-11 threads
• Protection: IP54

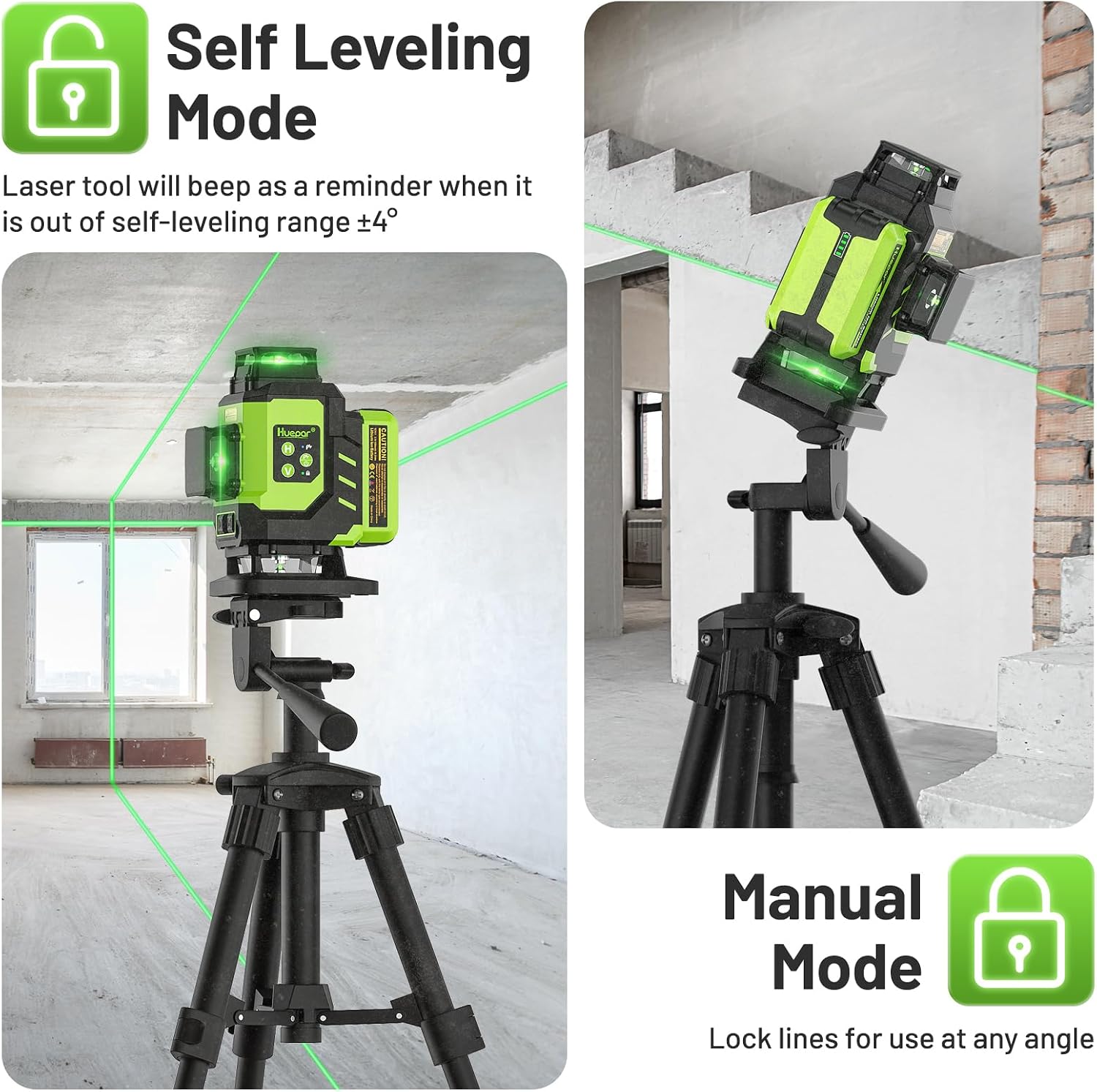

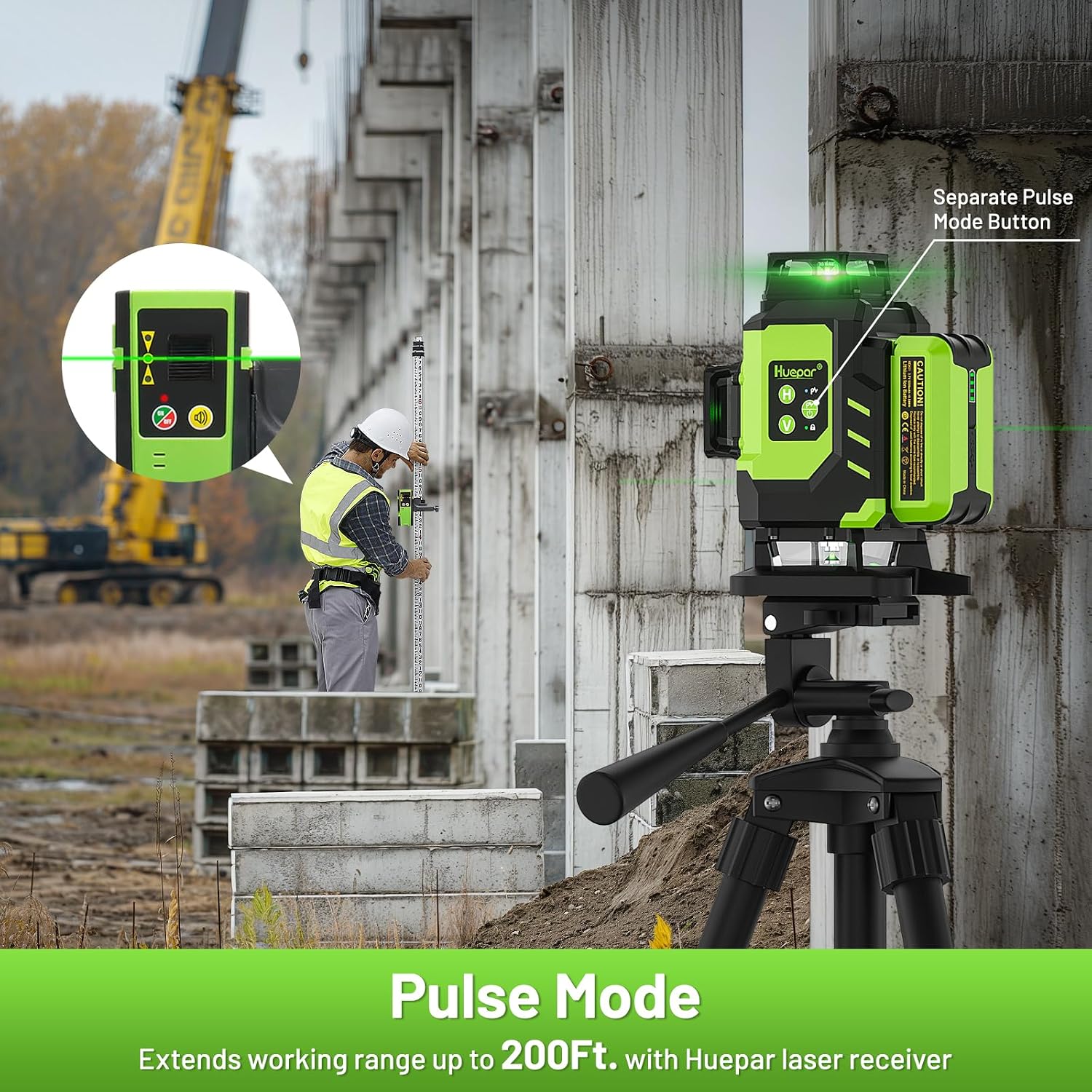

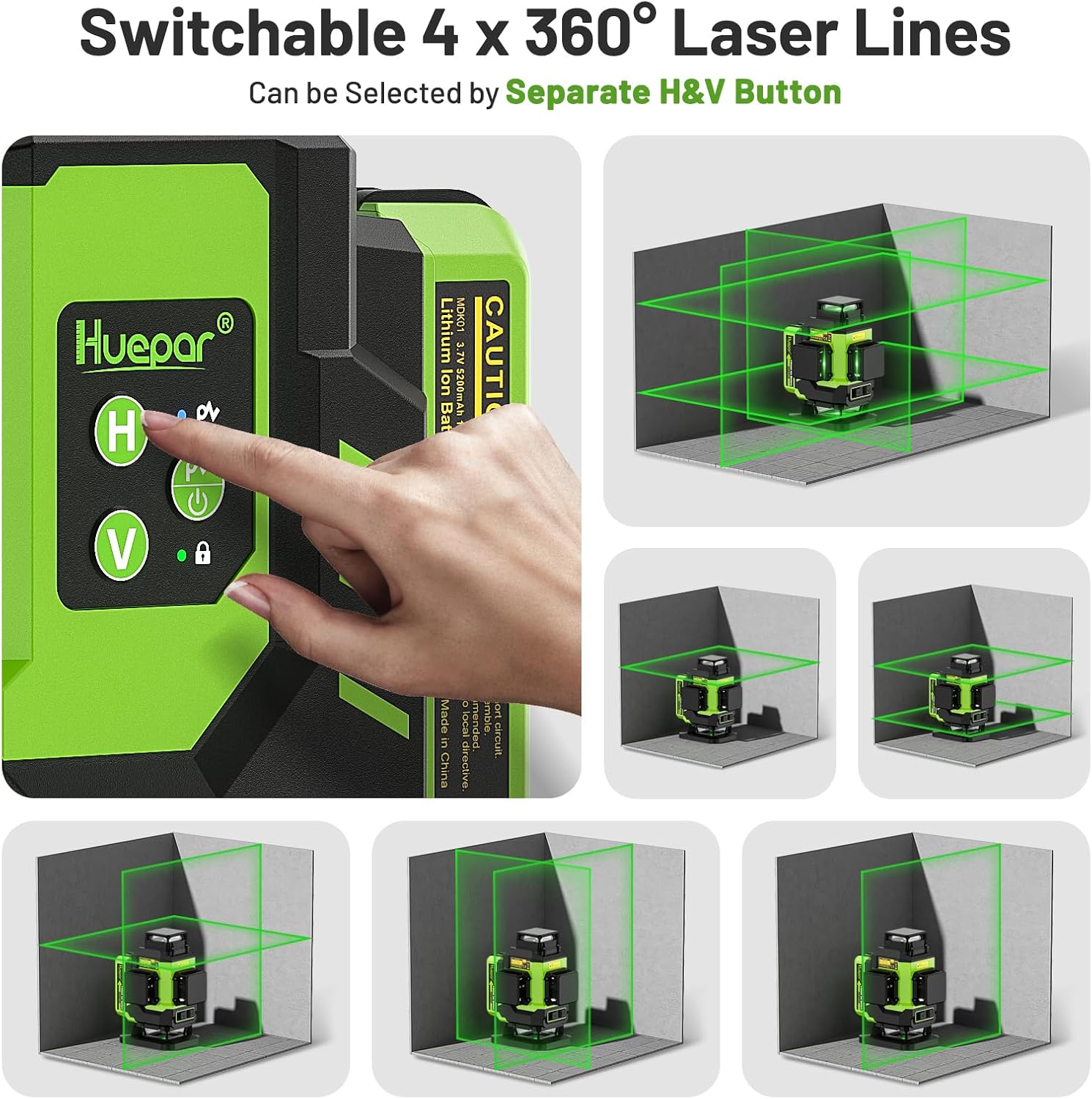

Choose horizontal or vertical planes with the separate H and V buttons. With the pendulum unlocked, the level self-levels and signals when it is outside its ±4° range. Lock the pendulum for manual positioning at an angle, or use pulse mode with a compatible receiver when working at greater distances.

Tips for day-to-day use

For floor tiling, the lower horizontal plane provides a 360° reference around the work area. The lifting base raises that floor line above the surface, with a height adjustment from 1 to 3.54 inches to clear uneven spots or obstructions. For ceiling installation, the upper horizontal plane supplies a full-room reference. The vertical planes cross at 90°, giving a visible guide for square layouts.

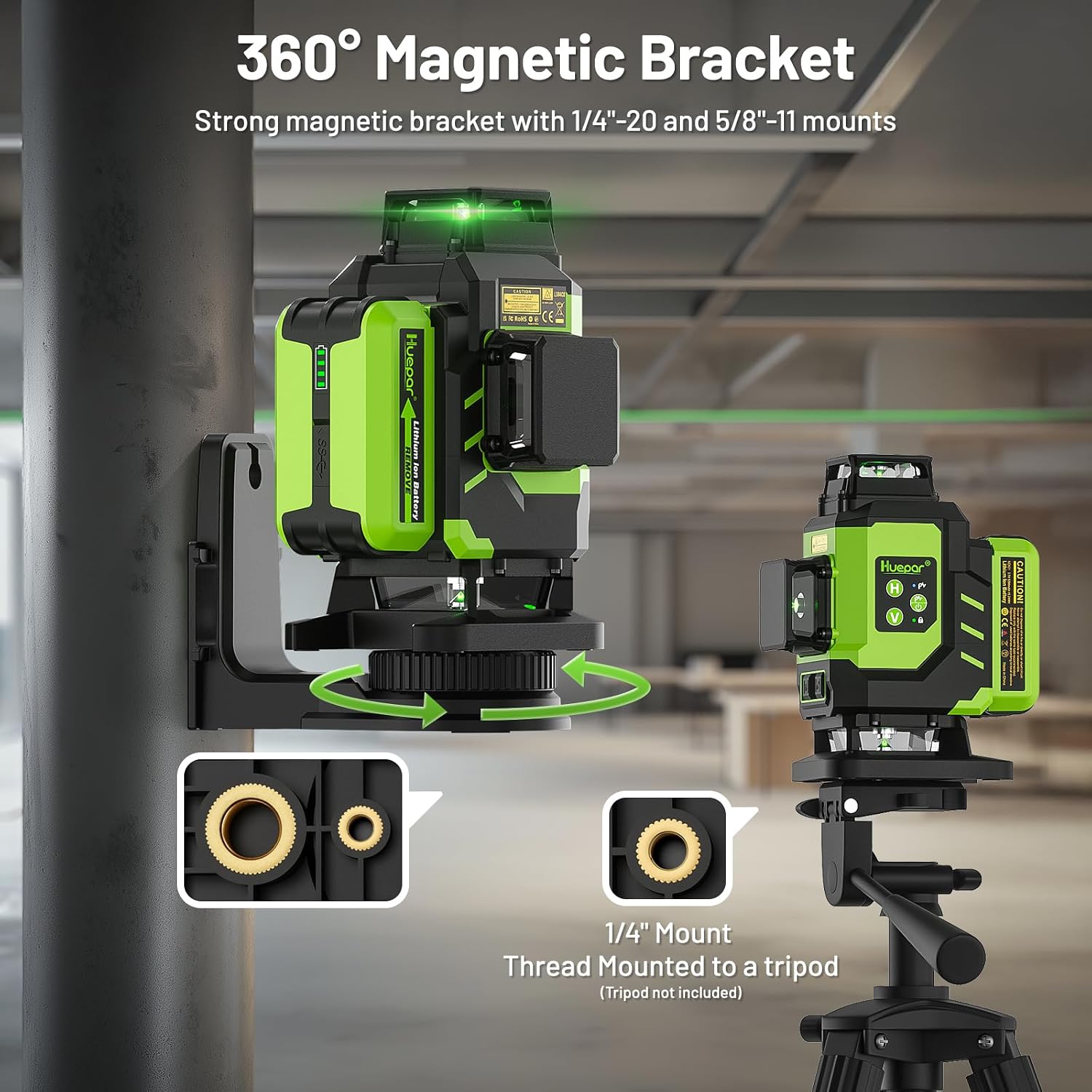

The magnetic bracket can attach to metal surfaces for wall positioning, and its threaded mounts provide options for a compatible tripod. Green beams, separate line controls, and selectable operating modes make it practical to adapt the setup to different layout tasks. Buyers often highlight the brightness of the green lines, ease of operation, and usefulness of the included accessories, those impressions reflect individual experiences, while the stated accuracy and working distance provide the product specifications for planning a job.

What you get

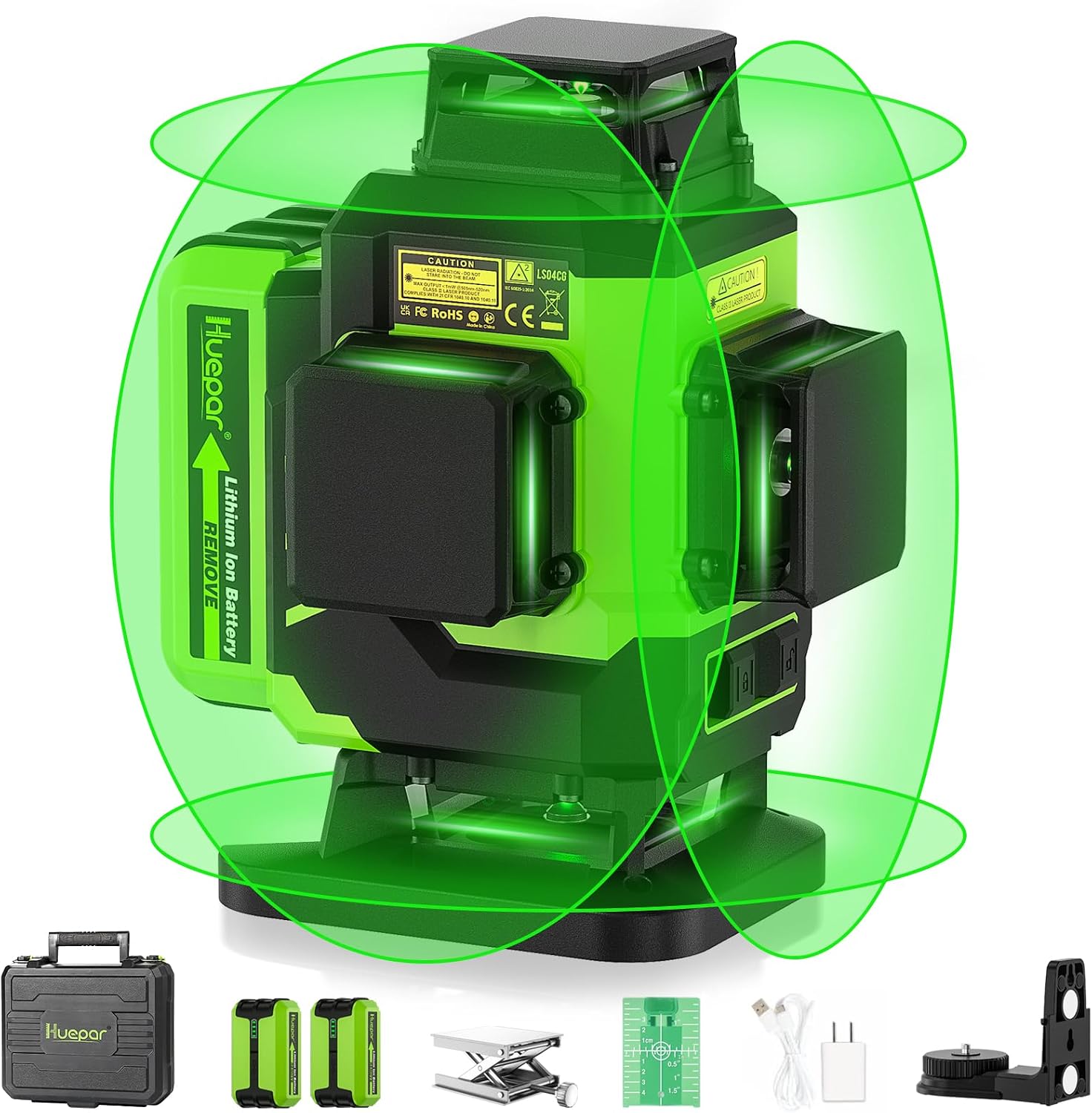

The kit includes the LS04CG laser level, two rechargeable batteries, a magnetic bracket, a lifting base, a green laser target plate, a hard carrying case, a power adapter, a Type-C charging cord, and a user manual. The batteries have four indicators for charge status and a Type-C port, so they can be charged separately using a compatible power source. Keeping the second battery charged gives you a replacement ready when the first needs charging.

Is it worth it?

It suits you if your work benefits from full-room horizontal and vertical references, such as tiling, ceiling installation, or squaring a layout. Compared with a level designed around a single line or plane, this four-plane setup provides more reference coverage from one positioned tool. The magnetic bracket, lifting base, rechargeable battery pair, and hard case support practical setup, positioning, and transport. For construction and renovation layouts where floor, ceiling, and vertical guides all matter, the LS04CG brings those functions together in one green laser level.
