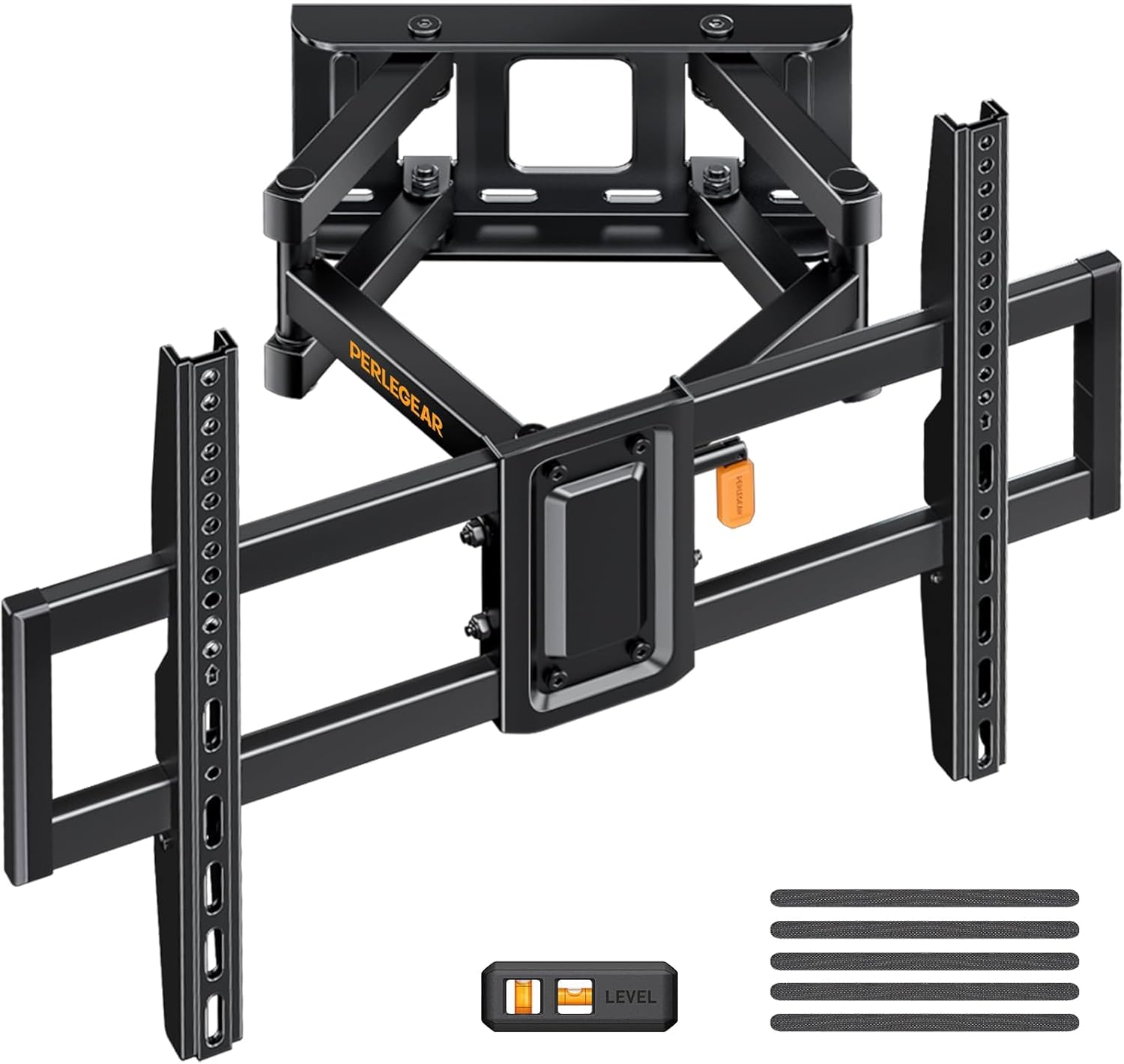

Perlegear Full Motion TV Bracket 60kg

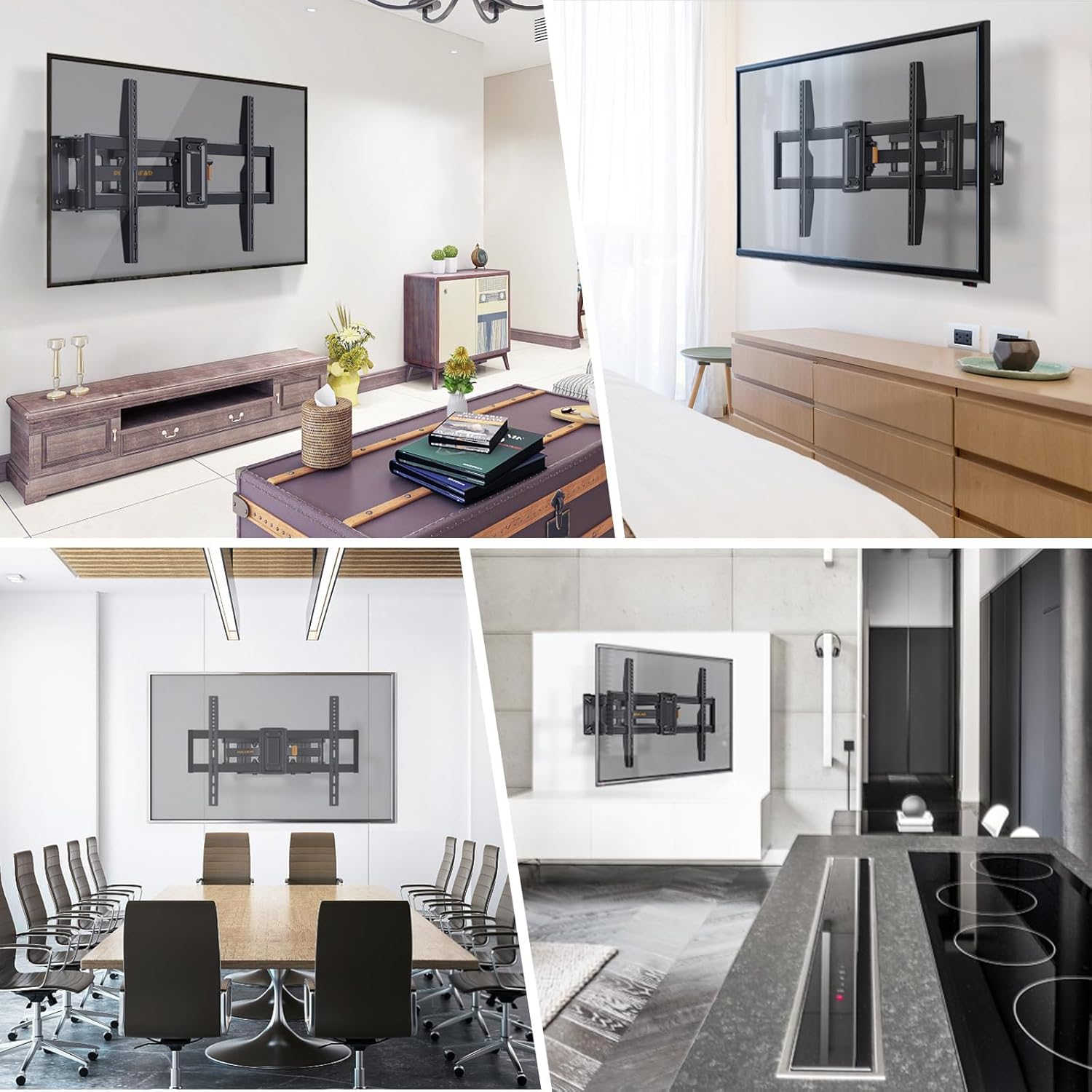

This Perlegear TV wall bracket is a full motion TV bracket for 37-82 inch TVs that offers flexible positioning and strong support for larger flat and curved screens. It allows you to swivel, tilt and extend the screen to suit different seating arrangements, making it useful for living rooms, bedrooms and multi-use spaces.

Key Points

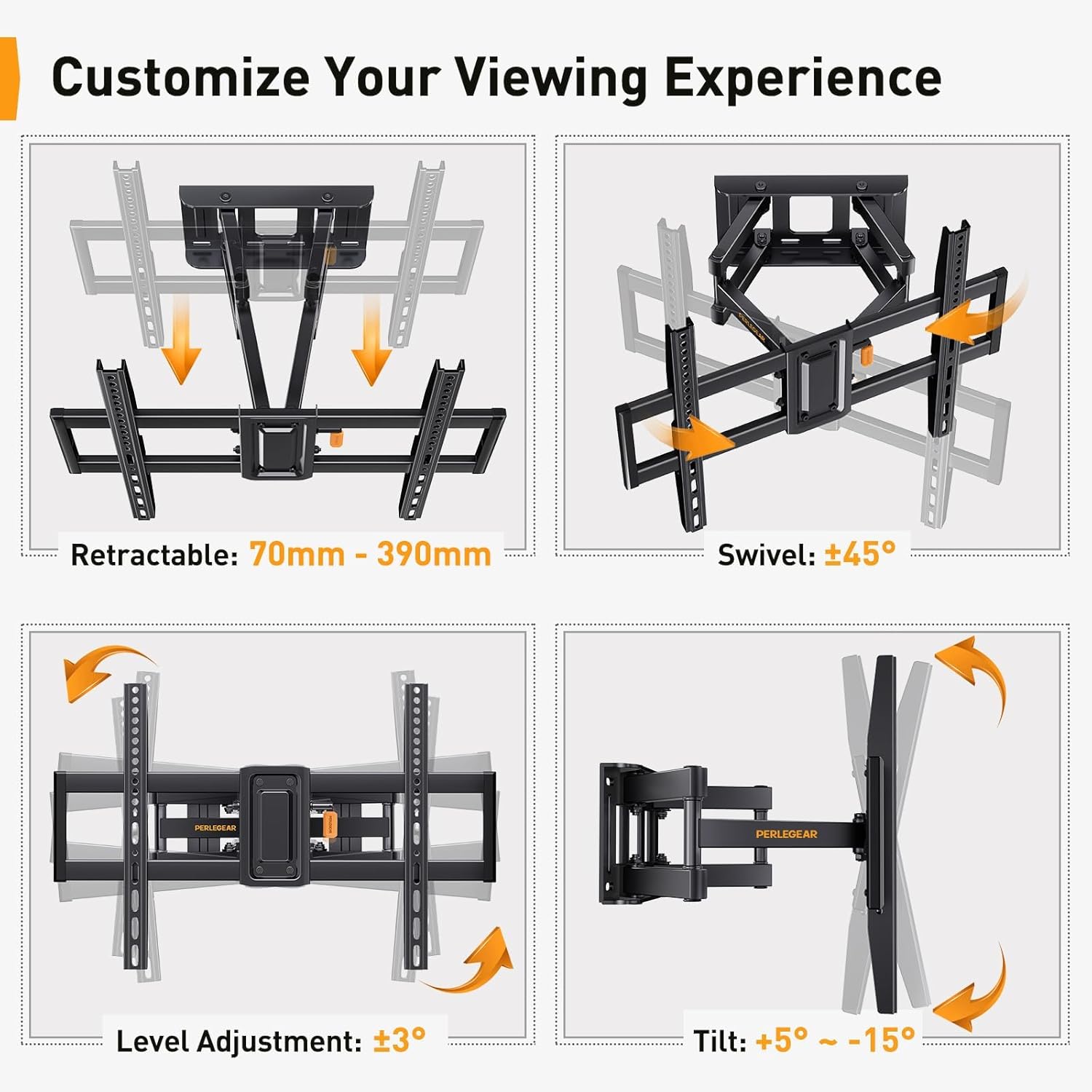

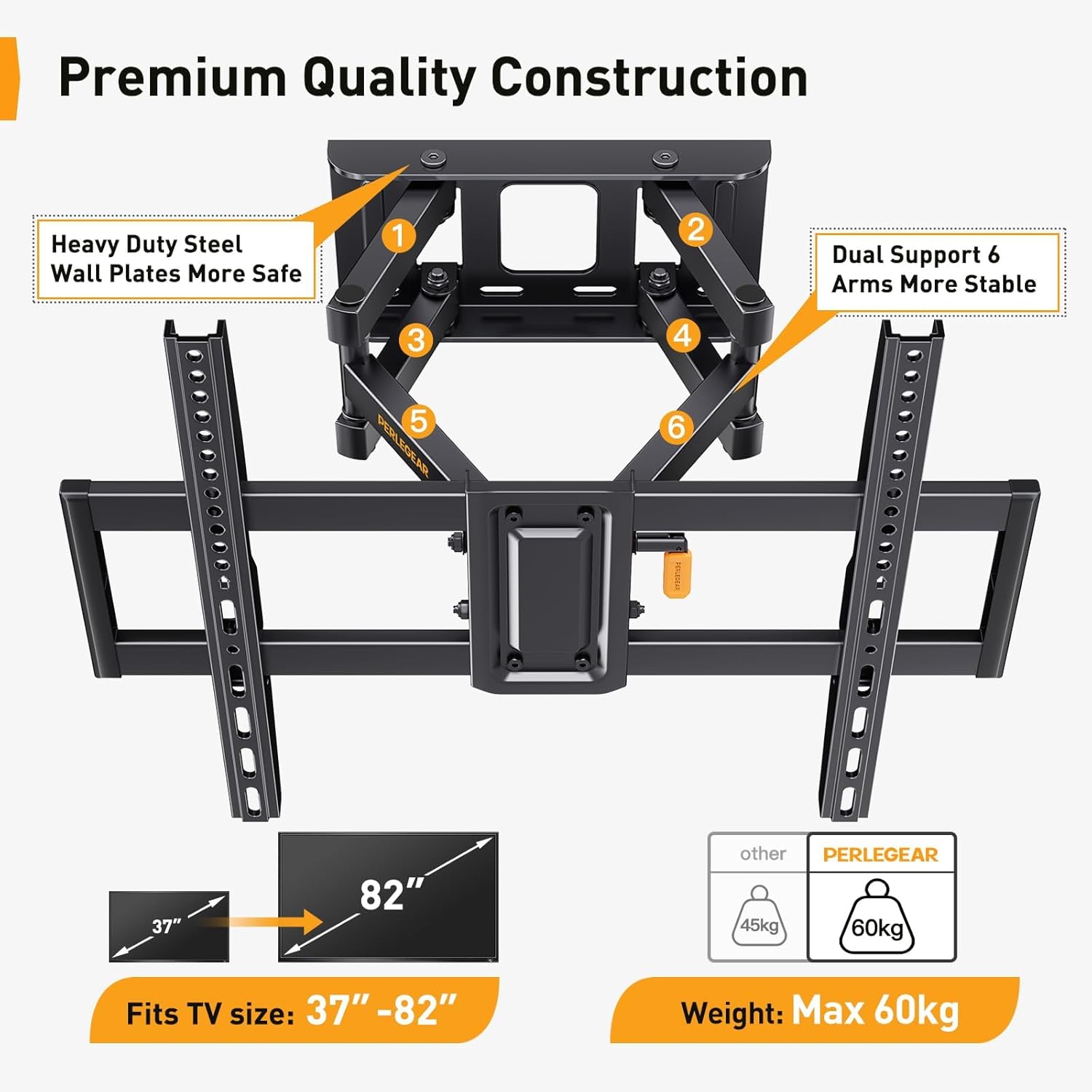

The bracket is built from cold rolled steel and designed to support TVs up to a maximum of 60kg, which covers most large screens. It features dual articulating arms that retract to a slim 70mm profile and extend out to 390mm, so you can push the TV close to the wall when space is tight or pull it forward for a clearer angle. For tilting needs it provides -15°/+5° tilt, and the swivel capability reaches ±45° depending on screen size, allowing a flexible viewing range. 🛠️

Installation is intended to be straightforward with included mounting hardware, graphical instructions and a video tutorial. The mount is recommended for solid concrete, brick or timber stud walls and is not suitable for plasterboard or cavity walls without extra reinforcement. Consider that the swivel angle may be limited on very large screens and always check your TV’s VESA pattern and weight before fitting. 📺

Technical Specifications

• Name: Perlegear TV Wall Bracket Swivels Tilts Extends
• Fits TV size: 37–82 inches
• Maximum load: 60kg

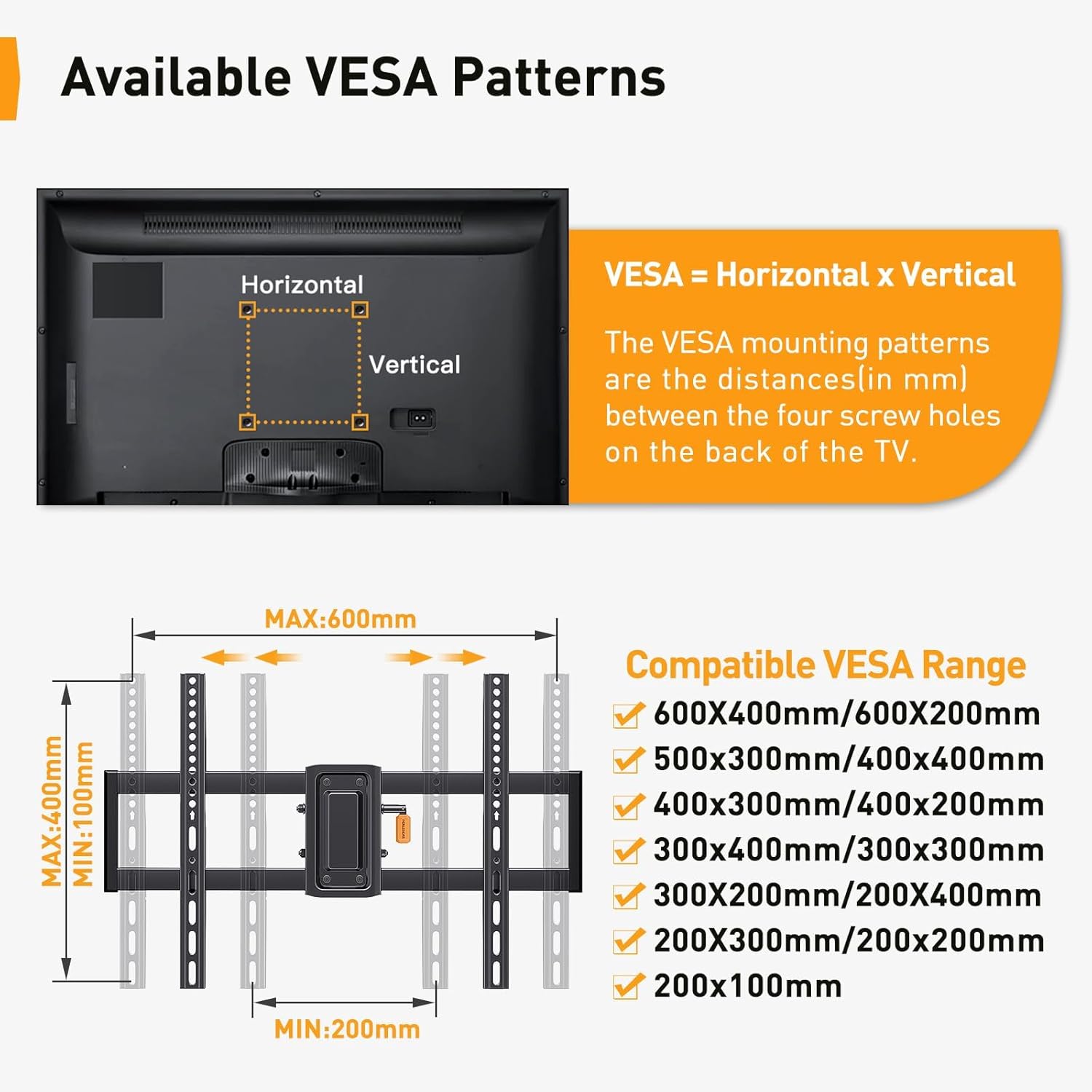

• VESA compatibility: up to 600x400mm (includes 600x200, 500x300, 400x400, 400x300, 400x200, 300x400, 300x300, 300x200, 200x400, 200x300, 200x200, 200x100mm)
• Tilt range: -15° to +5°
• Swivel range: ±45° (swivel angle depends on TV size)
• Extension/retraction: extends to 390mm, retracts to 70mm

Usage Recommendations

When mounting, mark and drill holes into a solid surface and use fixings suitable for the wall material and the combined weight of the TV and bracket. Allow a helper when lifting heavier screens to the bracket and confirm that the VESA holes align before tightening. If your room layout requires frequent angle changes, use the full extension and swivel range to reduce reflections and improve sightlines, and check that the chosen position leaves adequate clearance for cables.

The Essentials

This bracket combines robust construction with adjustable viewing angles and space-saving retraction. It suits a range of screen sizes and VESA standards, and the provided instructions aim to make setup accessible according to the manufacturer.
