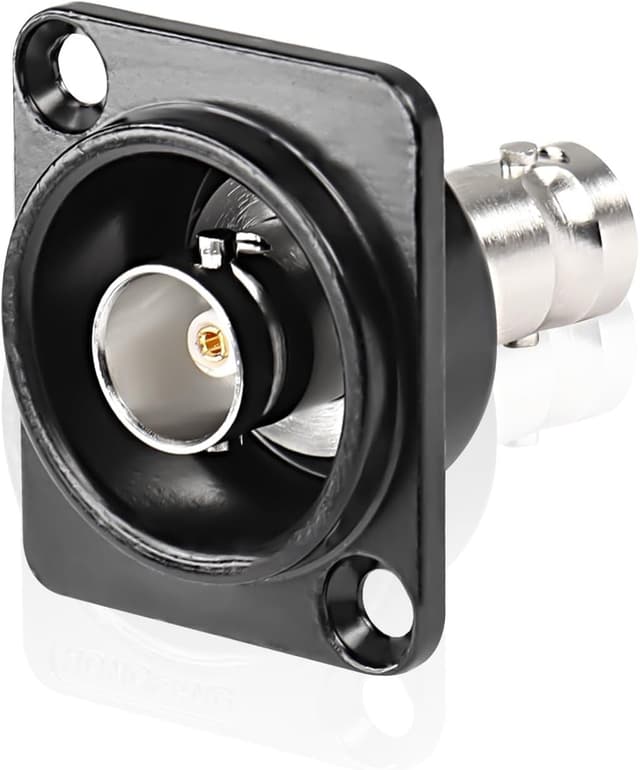

XMSJSIY D-Type BNC panel mount connector (female-to-female feed-through) for SDI video coax
Product description
What it is and why you’d use it
This XMSJSIY D-Type BNC panel mount adapter is a feed-through style coupler designed to bring a BNC coax connection cleanly to a device panel. If you’re building or upgrading a custom input/output setup—think security camera monitoring gear, digital comms panels, or audiovisual test rigs—this kind of panel connector is often the difference between “temporary” wiring and something that looks and holds up properly.
On paper, the key idea is simple: you mount the connector on a chassis or enclosure, then use BNC coax to keep the signal path secure and stable. It’s intended for BNC extension-style arrangements, and specifically described for SDI video coaxial use.
Key points to watch before buying

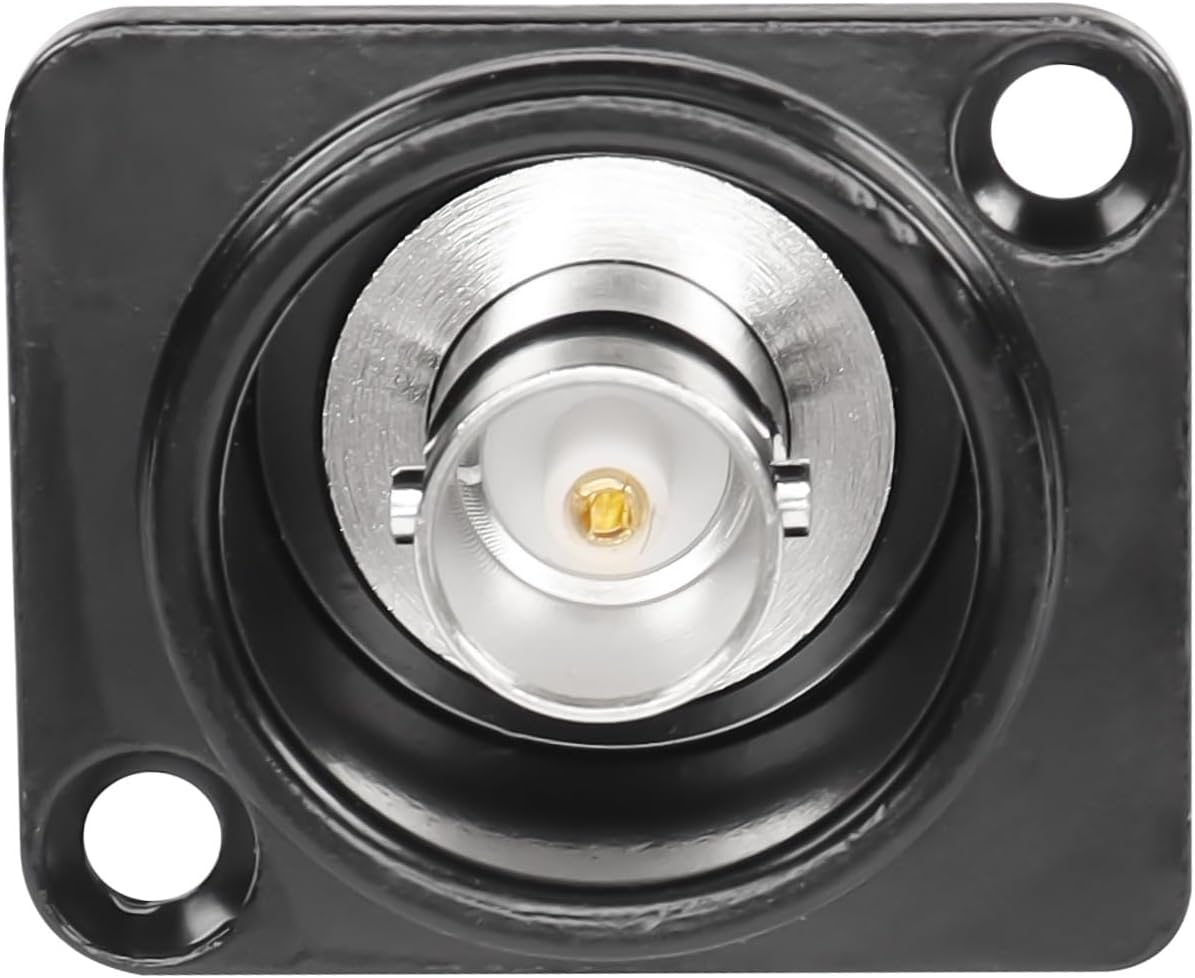

A detail that matters more than people expect is the mounting form factor. This is a D-type panel mount with a panel opening shaped accordingly, and it’s described as being installable using nuts for a secure hold. That’s great if your enclosure has (or you plan to cut) a matching D-shaped panel opening. If not, you may find yourself stuck making the panel fit rather than making the wiring fit.

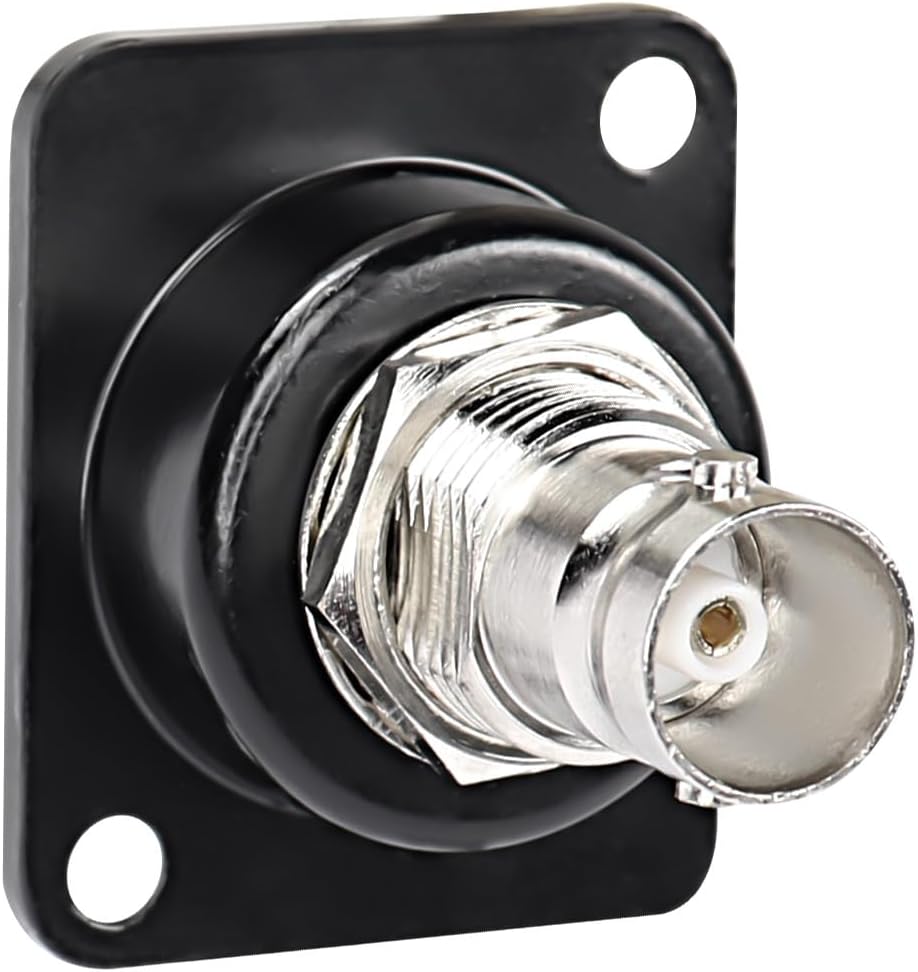

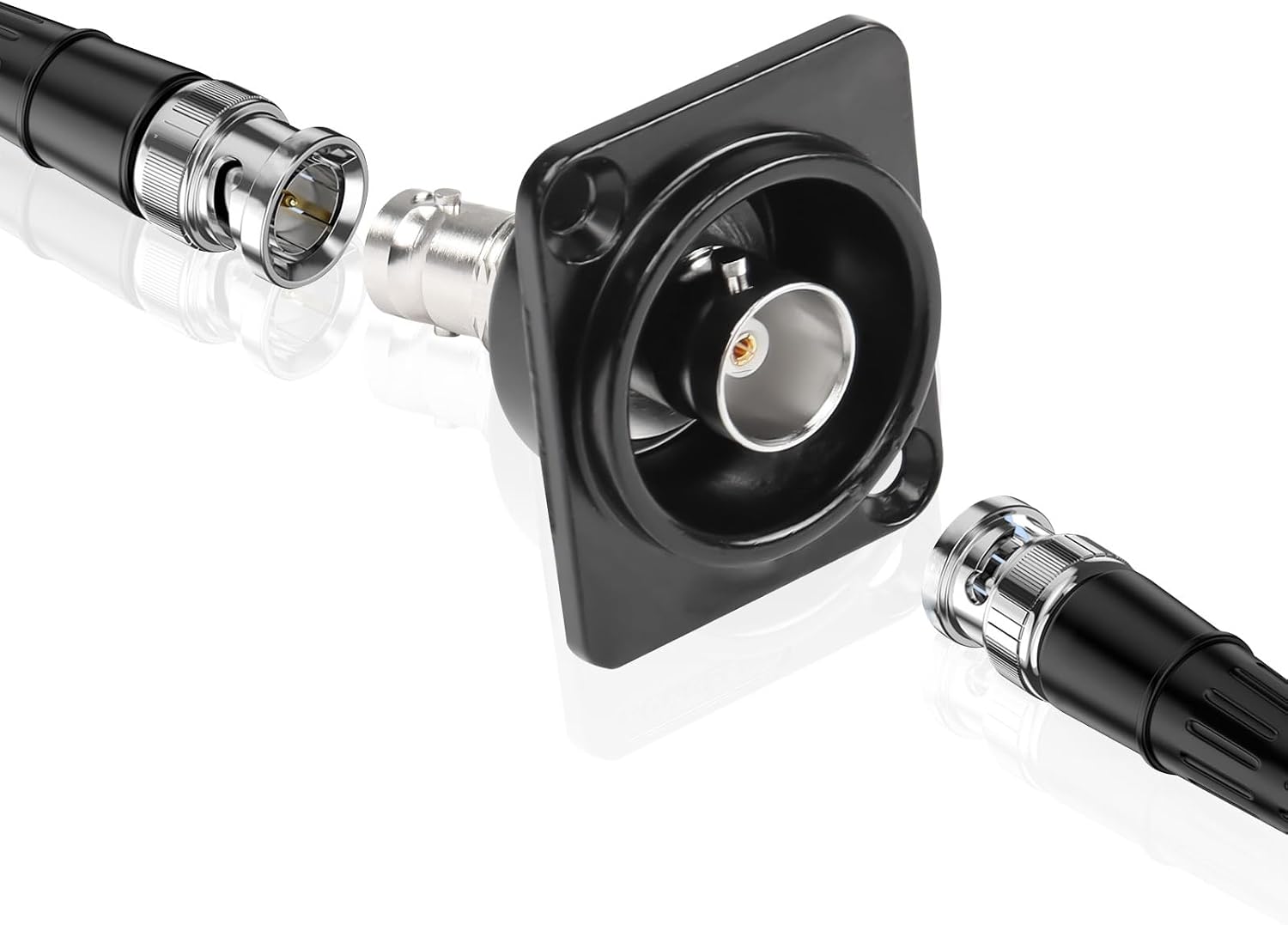

Also note the gender and purpose: it’s a female-to-female panel adapter. That means it’s meant as a “coupling”/feed-through type connection between BNC coax parts, not a single “plug into a device” connector.
Finally, the housing is described as a zinc alloy die-cast chassis. In practical terms, you’re buying for the physical durability of the connector body—less likely to get knocked around and damaged during regular use of racks, wall-mounted boxes, desks, or equipment panels.
What stands out in everyday use

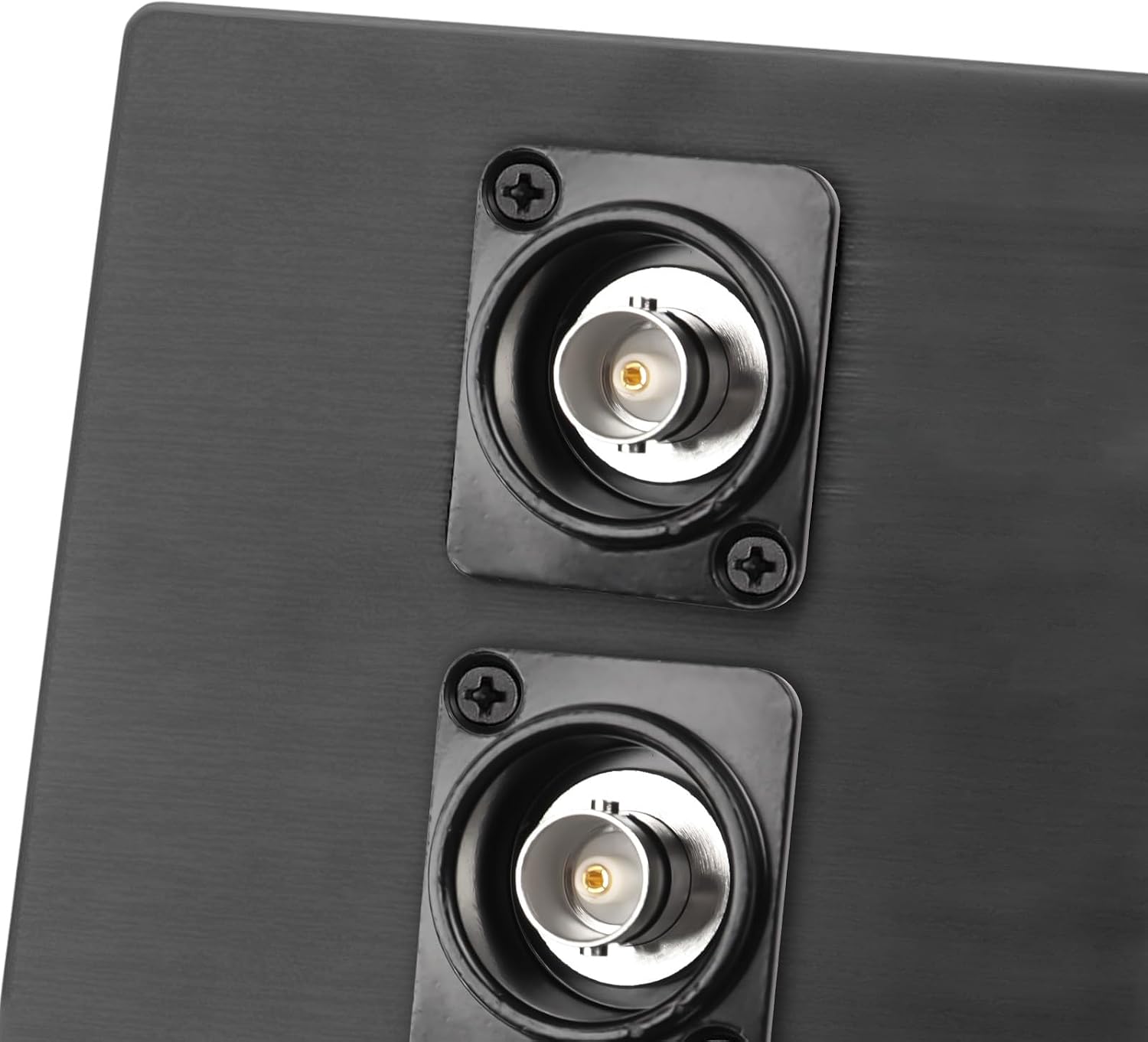

Where this adapter tends to make sense is when you want your coax connections accessible on the outside of a cabinet. For example, if you’re wiring a monitoring setup into a desk enclosure, you can mount the panel adapter so the BNC port sits neatly in the front panel while the coax cables route inside.

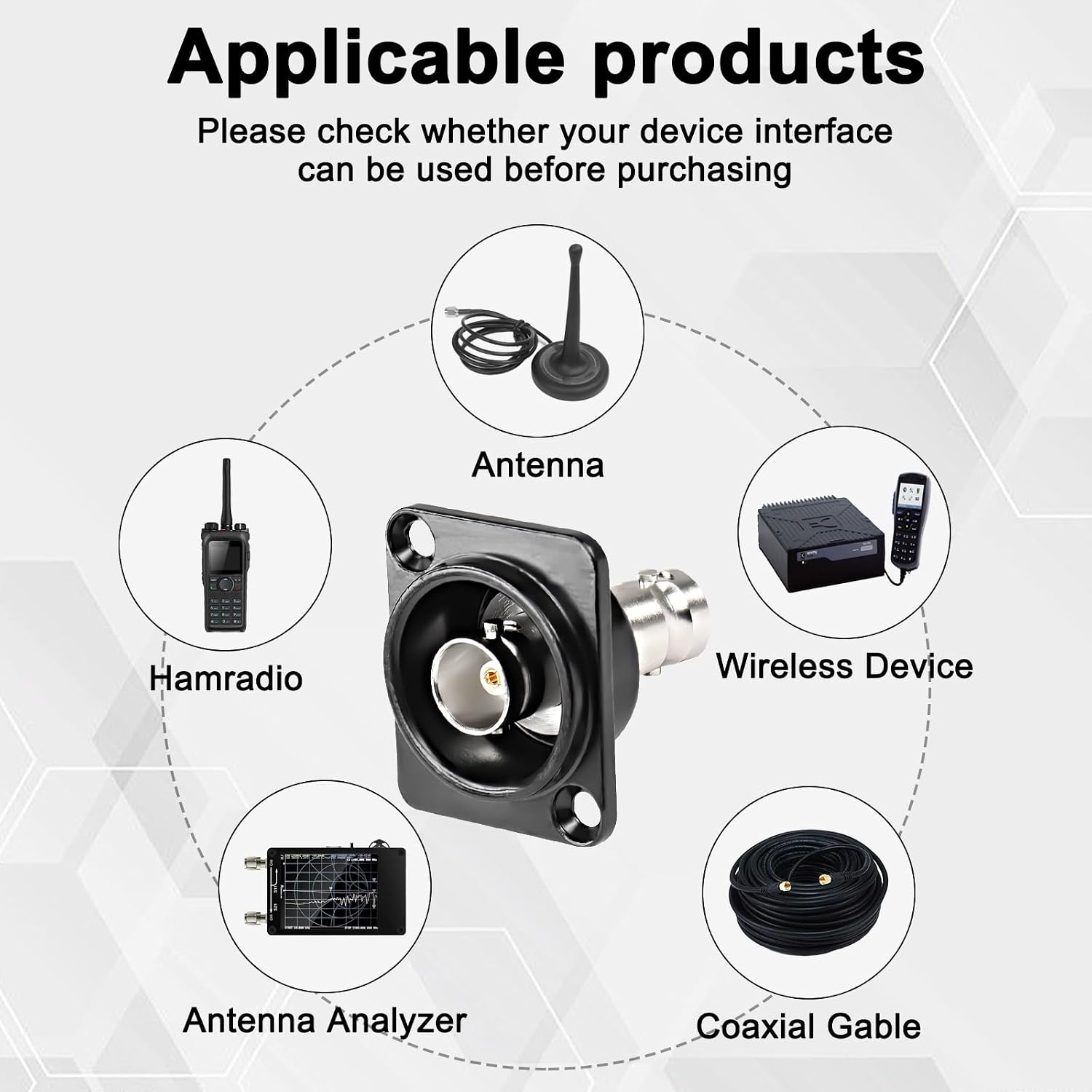

It’s also described for a range of RF and electronics contexts beyond “just cameras”, including monitoring engineering, AV applications, laboratory setups, LMR, wireless LAN-related wiring, and other RF devices. In other words, it’s positioned as a practical connector component for multi-purpose coax projects.
When it’s a solid match (and when it isn’t)
It’s a good fit if you’re building a custom chassis, want a feed-through arrangement, and your enclosure can accommodate a D-shaped panel opening. It also suits you if you prefer a metal die-cast chassis approach rather than a flimsy panel adapter that’s more likely to wear over time.
It’s not for you if you need a different mounting style or a connector meant to be fixed in a standard round cut-out (because this one is explicitly D-type). It might not be a great match if your wiring plan relies on a different gender pairing than female-to-female, or if you’re looking for something like an inline adapter for a fixed cable run rather than a panel-mount solution.
Tech specs (from the provided details)
- Name: XMSJSIY D-Type BNC panel mount connector / chassis panel mount adapter
- Type: BNC panel mount adapter, female-to-female feed-through connector (designed for SDI video coaxial use)
- Material: zinc alloy die-cast chassis housing

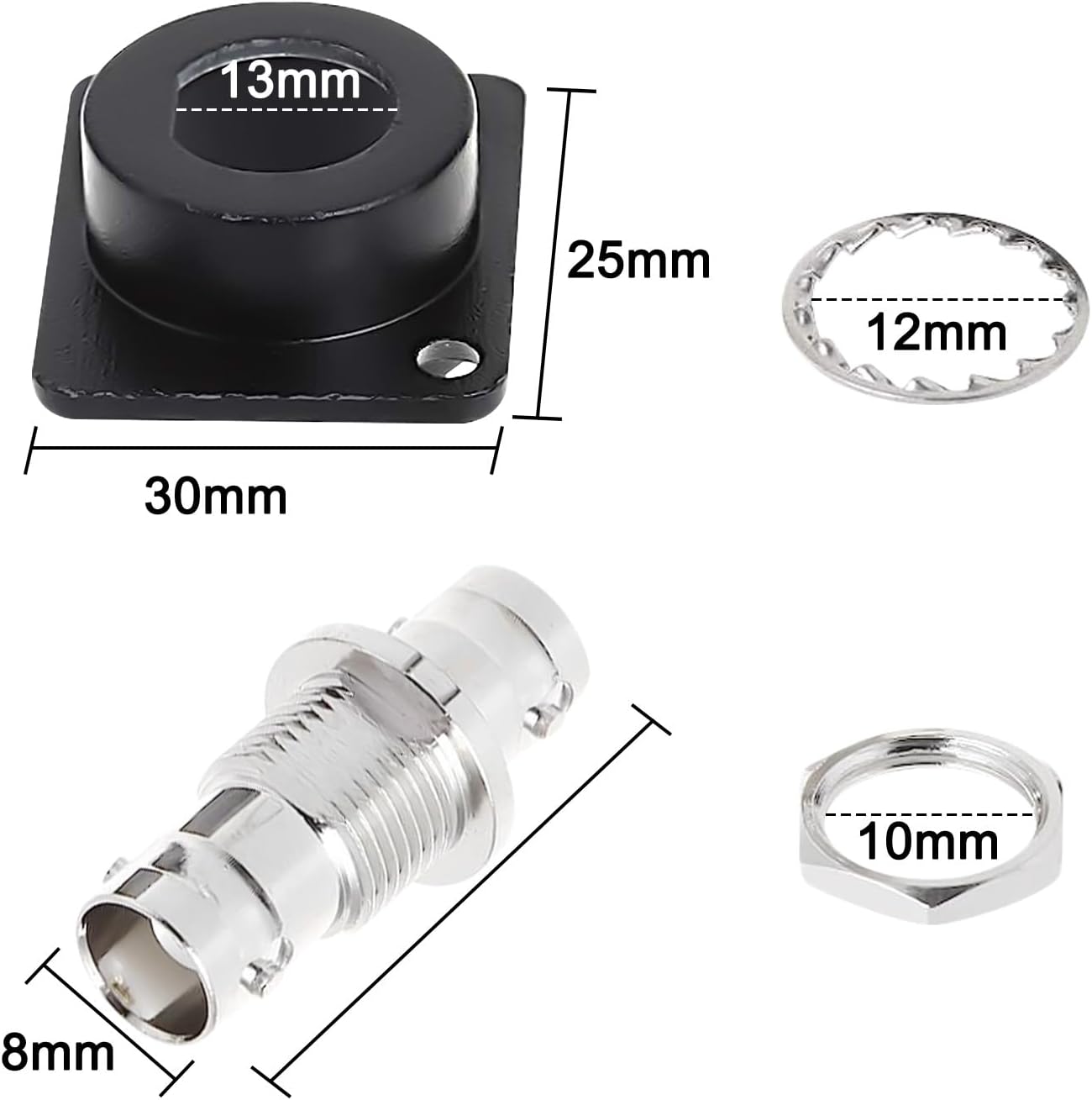

- Mounting style: panel opening in D-shape, installable using panel nuts
- Usage context: BNC coaxial cables, extension/coupling for coaxial and RF-related equipment
Compatibility & practical requirements to double-check
Before you commit, it’s worth checking what your panel and cable plan actually requires. This connector is meant to extend or feed BNC video/coax connections through a chassis panel. So you’ll want to confirm:
- Your enclosure has the right panel opening shape for a D-type mount
- You’re happy with female-to-female coupling in your signal chain
- Your coax and BNC wiring plan aligns with the intended “panel” approach (rather than a purely inline connector)
If any of those assumptions don’t match your build, you may end up spending more time adapting hardware than connecting equipment.
Mini FAQ
Can this be used for SDI video coaxial connections?
The provided description calls it out for SDI video coaxial use, so it’s reasonable to consider it for SDI BNC feed-through/coupling wiring where you want panel access.
Is it an inline adapter or a panel-mount connector?
It’s a panel-mount (chassis panel mount) connector. The intended use is to mount it in a device enclosure using nuts and route coax connections through.
Do I need a D-shaped panel opening?
The description specifically mentions a D-type panel opening. If your panel cut-out doesn’t match, you may need to adjust your enclosure plan.
What’s the advantage of the zinc alloy die-cast chassis?
It’s mainly about durability. A die-cast metal housing is typically more resistant to handling and accidental knocks than lighter plastic alternatives—useful for desk, wall, and rack installations.
Is it suitable for RF and lab-style setups?
Yes, it’s described for RF device wiring and laboratory-type use as well as monitoring and AV applications.
Final verdict
Buying this XMSJSIY D-Type BNC panel mount adapter makes sense if you’re designing a custom enclosure and want a sturdy, metal-housed female-to-female BNC feed-through that keeps coax connections neatly accessible on the panel. It’s not the right choice if your project needs a different mounting cut-out style or relies on a different connector gender arrangement than female-to-female. If you’re confident about the D-type panel opening and you’re building around BNC coax, it’s the kind of part that can quietly save you headaches during wiring and later maintenance.
