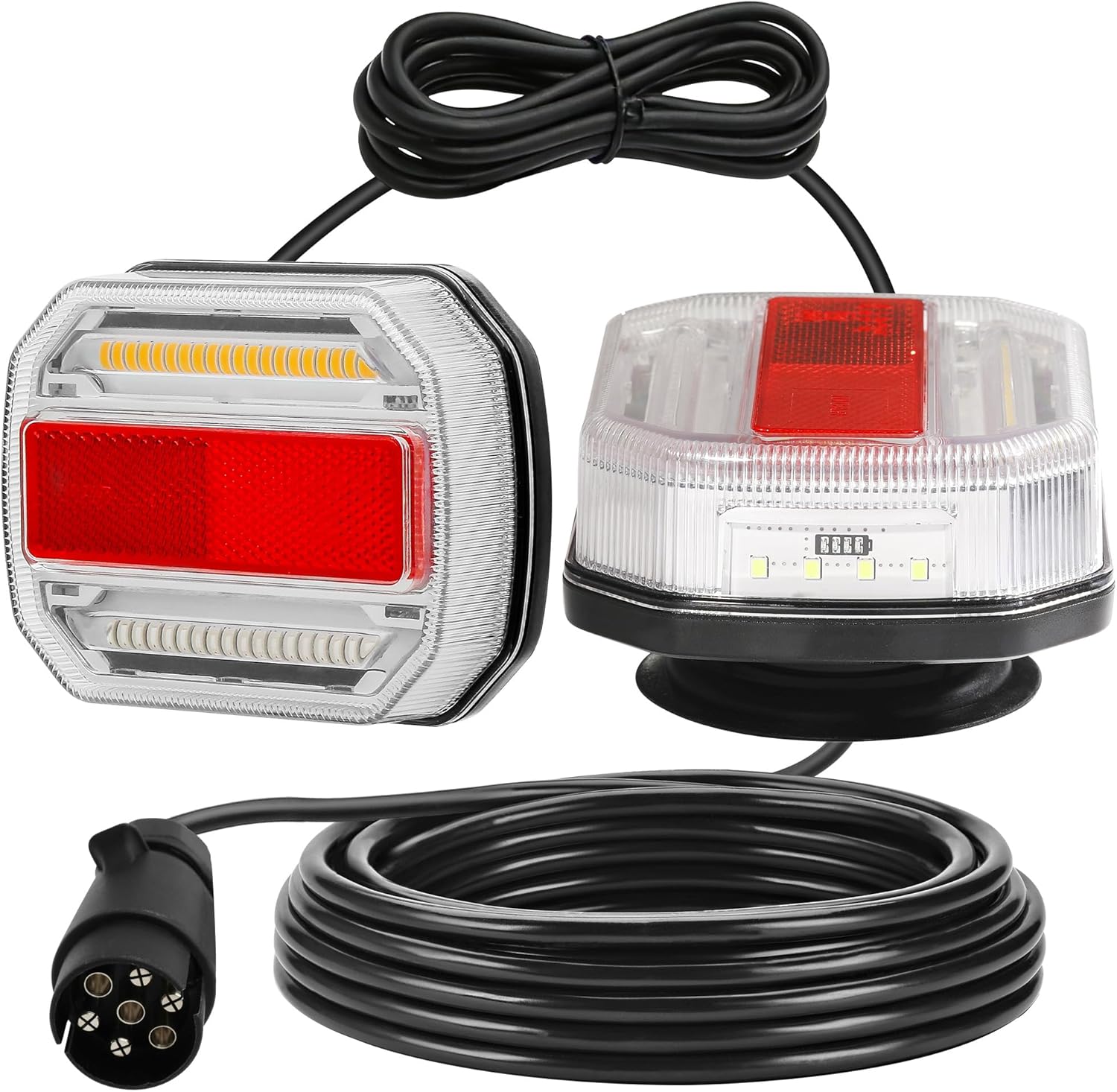

DARKGUARD Magnetic LED Trailer Lights Kit with 7 Pin Plug, IP65 (12V/24V) – 7.5m Cable
Product description
The essentials first
If you tow regularly, trailer lights are one of those things that need to be spot-on—every time. This DARKGUARD magnetic LED trailer lights kit is designed to give you a tidy, practical setup without fiddly rewiring, using a 7-pin plug and a 7.5m cable lead.
On paper, it looks aimed at people who want quick fitting and reliable visibility for day-to-day towing. It also leans into the weather- and dirt-resistance angle with IP65, and the magnet mounting is meant to keep installation straightforward when you don’t want to permanently mount everything.
What it does (and the real-world feel)

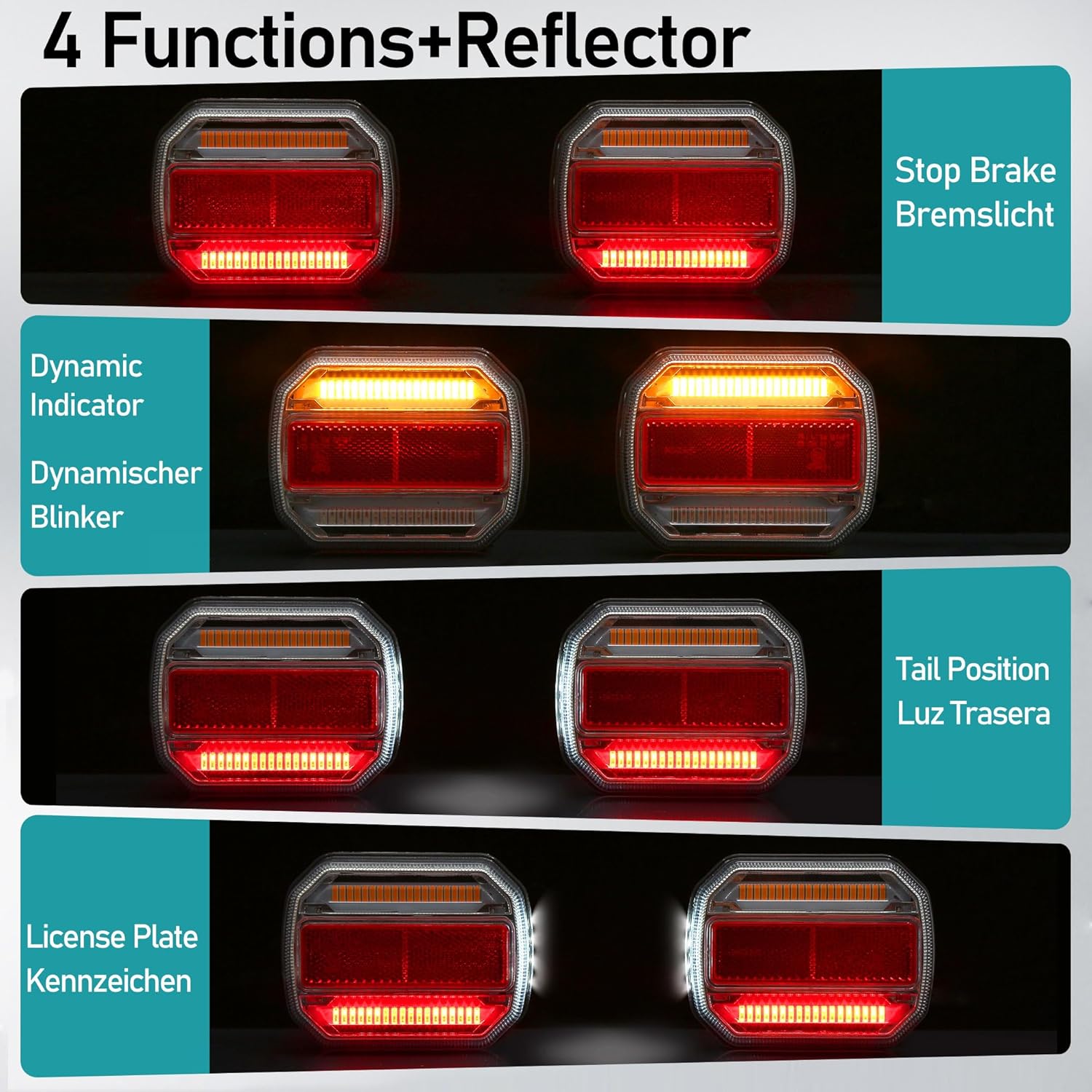

The kit covers both left and right trailer light units and is set up for a vehicle with a 7-pin trailer socket. According to the information provided, the system offers 5 lighting functions: position lights, indicators, brake light, registration plate light, and a reflector.
A practical micro-scenario: say you’ve just loaded a small boat or plant trailer and you’re heading out for a short trip. You can align the left and right lights where you want them on the rear, press them in place using the magnets, then connect the 7-pin plug to your towing vehicle—no reconnecting cables. It’s the sort of approach that can save time compared with fully fixed, hard-mounted lighting, especially if you swap trailers.
Key features that stand out

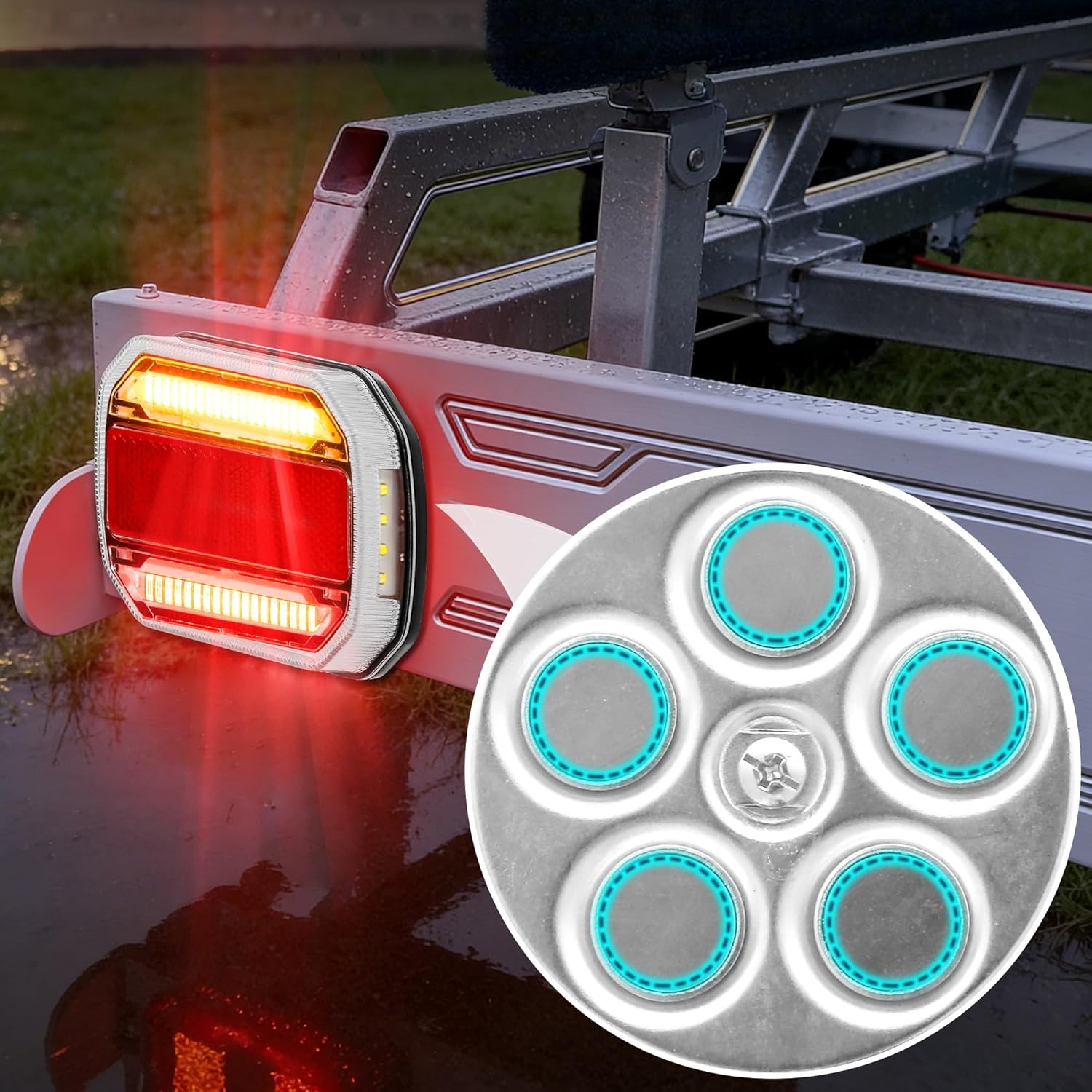

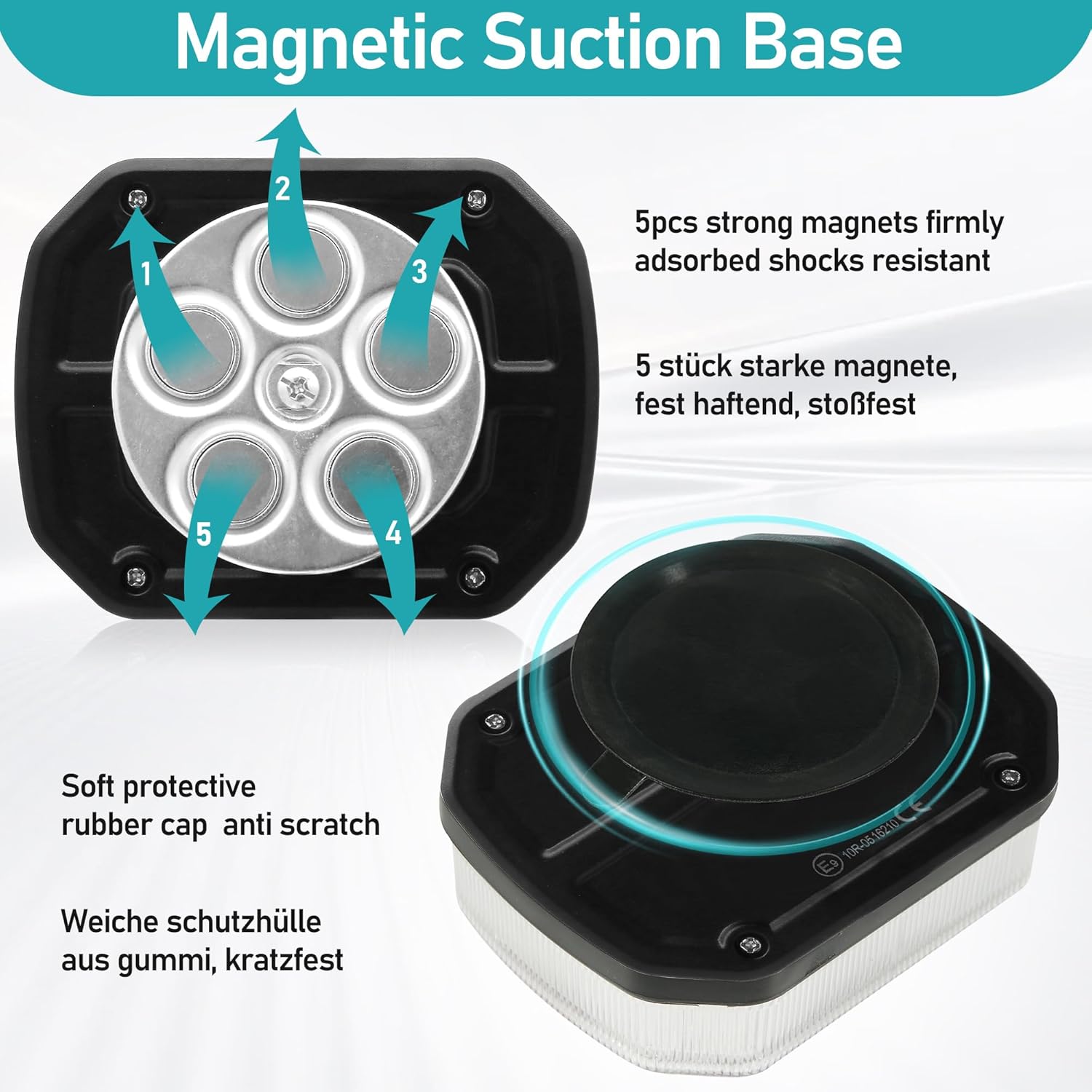

The most distinctive part here is the magnetic attachment. Each rear light unit is described as having five small, strong magnets and includes a protective rubber cover intended to help prevent scratches and improve grip over rough handling.

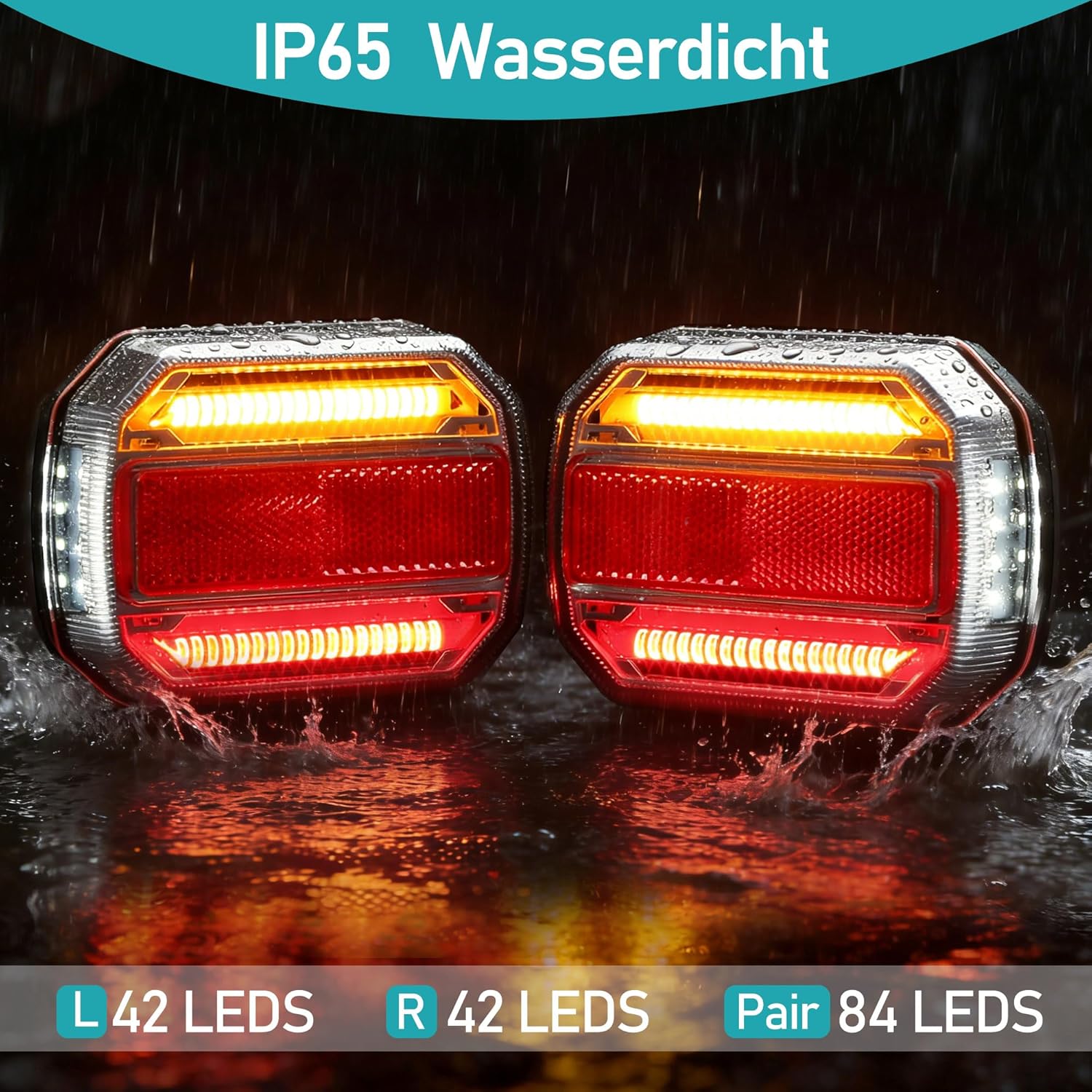

It also uses LED technology (with the kit described as having 42 LEDs per light and 84 LEDs per pair), and the design uses a PC lens with a durable performance housing. Temperature range is listed from -40°C to 65°C, which is useful context if you tow in colder months or store the trailer outdoors.
Important note on mounting expectations
Magnetic lights can be very convenient, but they’re not always for everyone. If your trailer’s rear surface is awkwardly shaped, very dusty/dirty, or you expect frequent heavy vibration, magnet-only mounting may feel a bit more “situational” than a fixed bracket setup.
Tech specs, in plain English

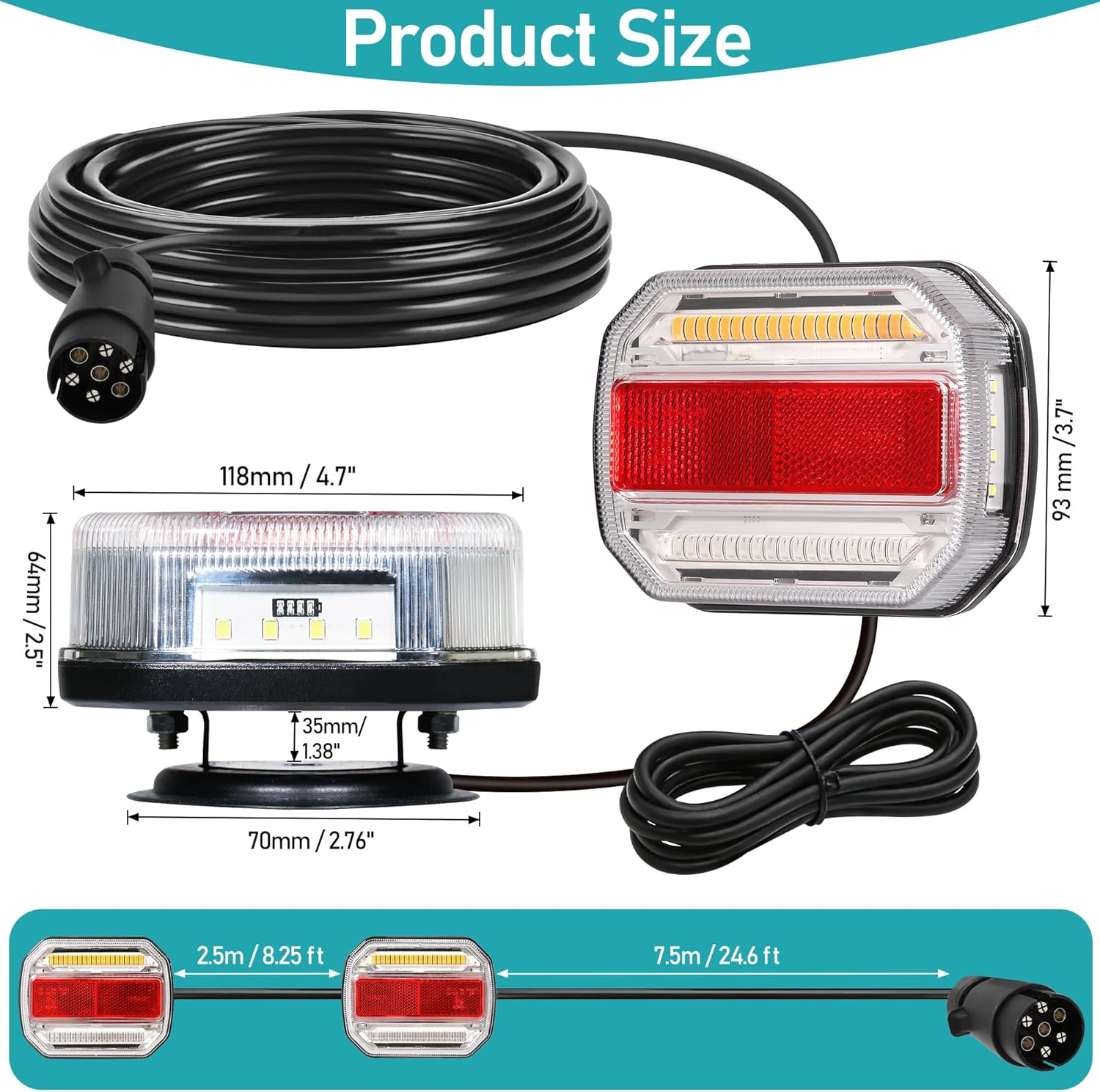

The system is described as working with 12V and 24V towing vehicles, and it’s provided with:
- a pre-cabled section between the two lights (2.5m)
- a 7.5m 7-pin trailer wiring cable with plug

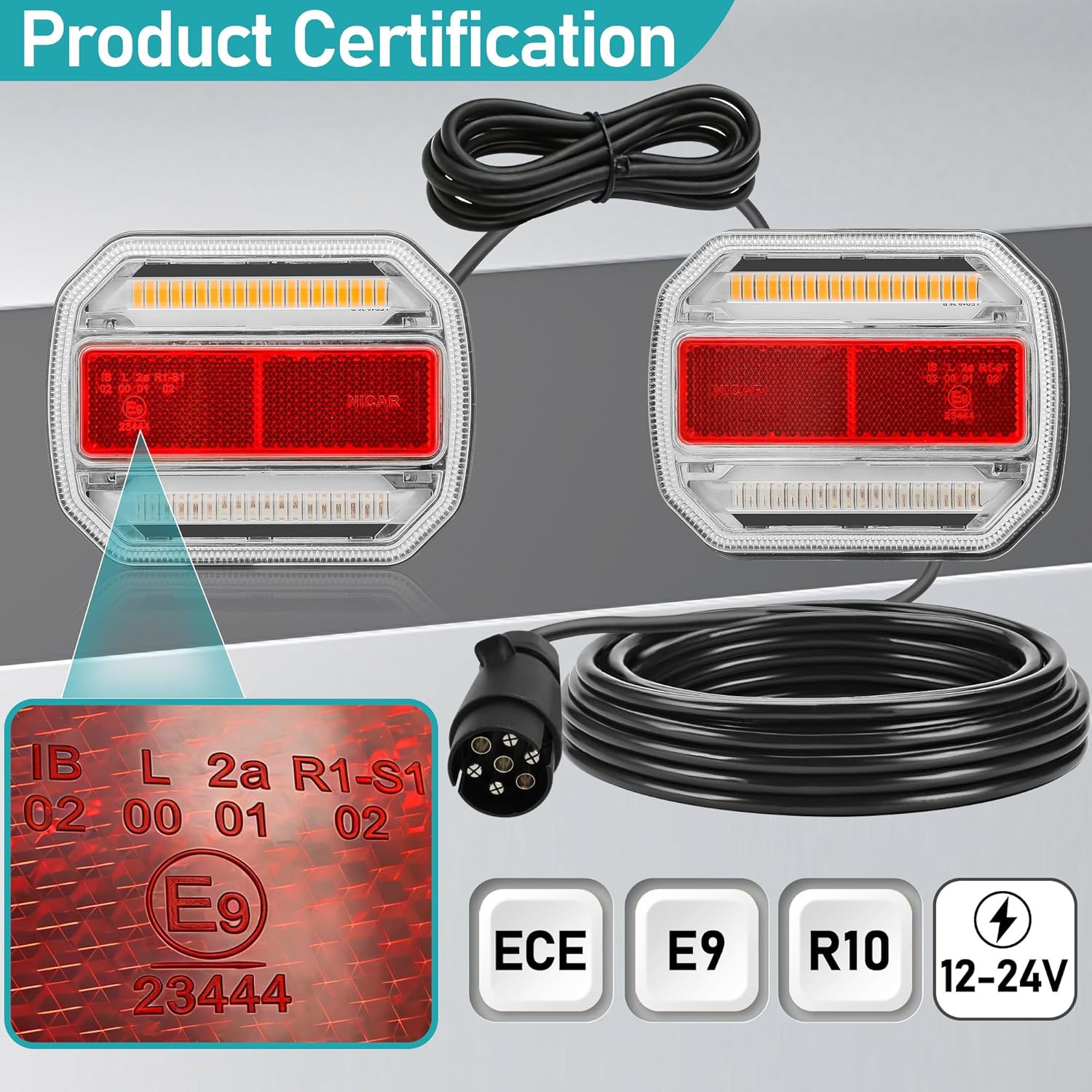

The light body size is listed as 118 x 93 x 64 mm (per light unit). The kit is also described as E-mark approved, with the listing referencing E9 (R3, R4, R6, R7 and R10) for road traffic in Europe.
Pros and where it fits your towing routine
Where it shines: - You want quick installation and don’t fancy reconnecting cables every time - You need both left and right rear lighting with multiple functions covered in one kit - You value weather resistance (IP65 is mentioned) for typical UK towing conditions - You want compatibility with both 12V and 24V towing setups, depending on your vehicle
Why it makes sense for the right buyer: This sits more in the “practical, convenience-led trailer light kit” category rather than a bespoke, permanently fitted lighting system. If you frequently move trailers, store them away, or prefer easier setup, the magnet approach is the obvious motivation.
Is it the best choice for you?
It may not be the best match if you specifically need a fully fixed, non-moving mounting solution (for example, if you’re confident the trailer rear surface isn’t ideal for magnets). Likewise, if your main priority is an ultra-clean permanent install with no reliance on surface contact, you might find yourself wanting a bracket-based approach.
On the other hand, if you’re buying for everyday towing and you want a straightforward way to get rear visibility and signalling sorted—with an IP65 rating and a 7-pin plug—the kit’s design is clearly aimed at making towing light setup less of a chore.
Final verdict
Is it worth it?
Worth considering if you want a magnetic LED trailer lights kit with 5 lighting functions, a 7-pin plug, a long enough 7.5m lead for typical setups, and an IP65 weather-resistance claim—especially if you’d rather avoid reconnection work and you swap trailers.
You may want to skip it if you need permanent, bracket-style mounting or you know the trailer surfaces you’ll use don’t lend themselves well to magnet grip and alignment. It’s not automatically the “fit and forget” option, but it looks like a strong convenience-focused choice for people who tow often and want to keep things manageable.
Mini FAQ
How many functions does the kit include? The listing states 5 functions: position lights, indicators, brake light, registration plate light, and a reflector.
Does it suit both 12V and 24V vehicles? Yes—this kit is described as working with both 12V and 24V systems.
Is it weather resistant? It’s listed as IP65, which indicates protection against dust and water ingress under specified conditions (as described by IP ratings).
Does it require rewiring every time? The information provided says there’s no need to reconnect cables—connect the plug to the vehicle socket to use.
Where are the light units mounted? They’re described as magnetic, with magnets built into the rear units and a protective rubber cover to help reduce scratching.
