MOTOPOWER MP69039 OBD2 Scanner with CAN diagnostic

This OBD2 car scanner brings advanced fault diagnosis to home garages and small workshops, offering live data viewing and error code handling for routine troubleshooting. As a compact handheld tool, it helps identify engine fault codes, check readiness status and view freeze frame data so you can pinpoint issues before taking the vehicle to a garage.

Key Points

The device supports standard OBDII protocols including CAN, KWP2000, ISO9141, J1850 VPW and J1850 PWM, which gives it broad compatibility with petrol and diesel cars from the main markets. It displays sensor data both as text and as graphs, allowing quicker interpretation of parameters like engine RPM, vehicle speed and coolant temperature. ⚙️

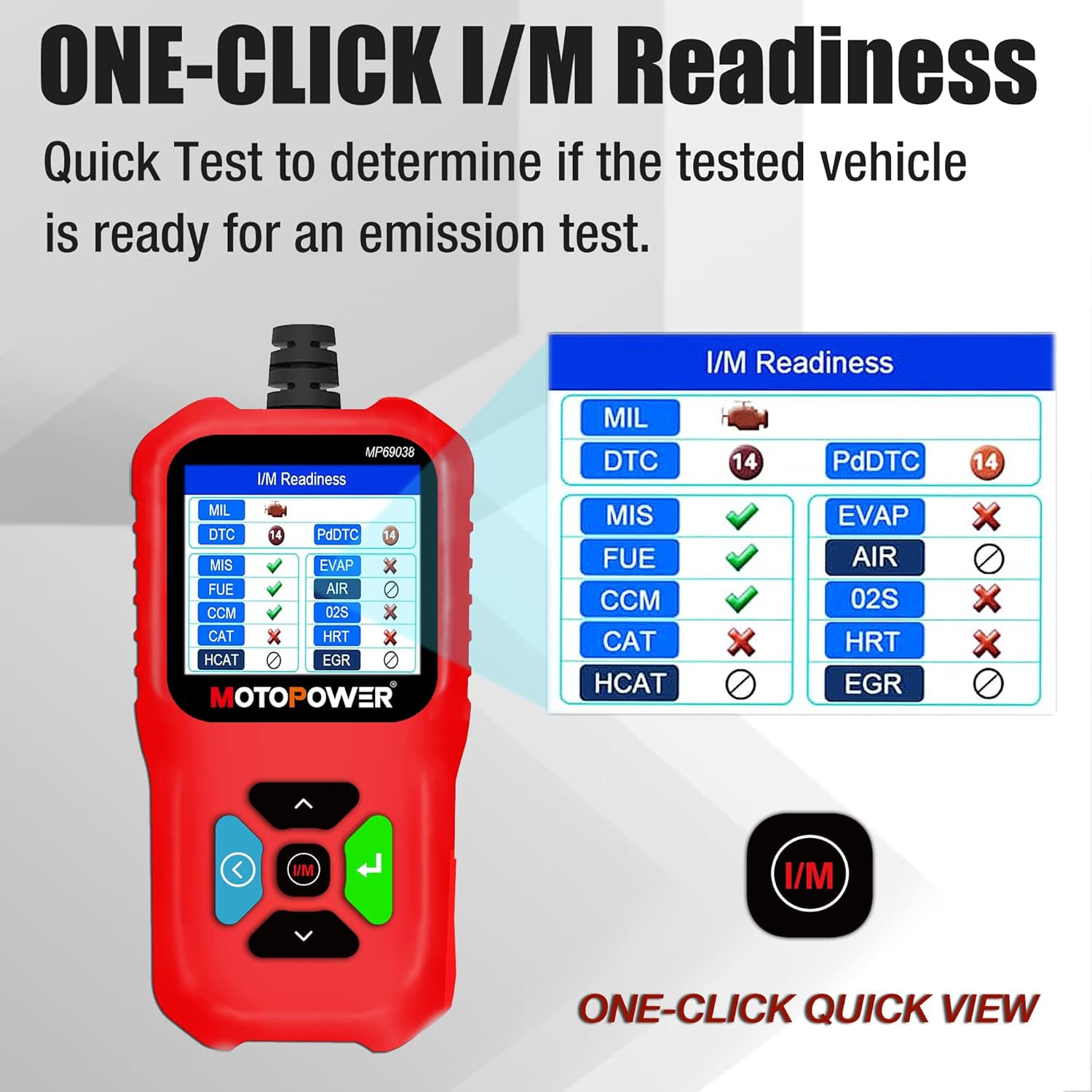

A prominent I/M readiness key and a DTC key make it simple to retrieve emissions readiness and stored trouble codes with a single press, which is useful before emissions testing. The scanner also offers live battery voltage checks and an O2 sensor test, features that help when diagnosing charging or emission-related faults. 🔧

Consider that this model does not support new energy vehicles or hybrids. Also, compatibility is generally for US vehicles from 1996 onwards and for EU models from 2003 and Asian models from 2008, so check the vehicle year and protocol if unsure.

Technical Specifications

• Name: MOTOPOWER MP69039
• Display: 2.8-inch colour TFT
• DTC database: 35,901 DTC integrated according to the manufacturer
• Protocols supported: CAN, KWP2000, ISO9141, J1850 VPW, J1850 PWM
• Languages: 10 built-in languages
• Update method: Type-C cable update for lifetime software upgrades according to the manufacturer

Usage Recommendations

For routine checks, connect the scanner to the vehicle OBD2 port with the ignition on and use the I/M key to view readiness status. Live data can be viewed as graphs to compare sensor trends against freeze frame snapshots, which helps to identify intermittent faults. For printouts and software updates use a Type-C cable and a Windows PC running Windows 7, 8 or 10, as the device supports printing of test data when connected.

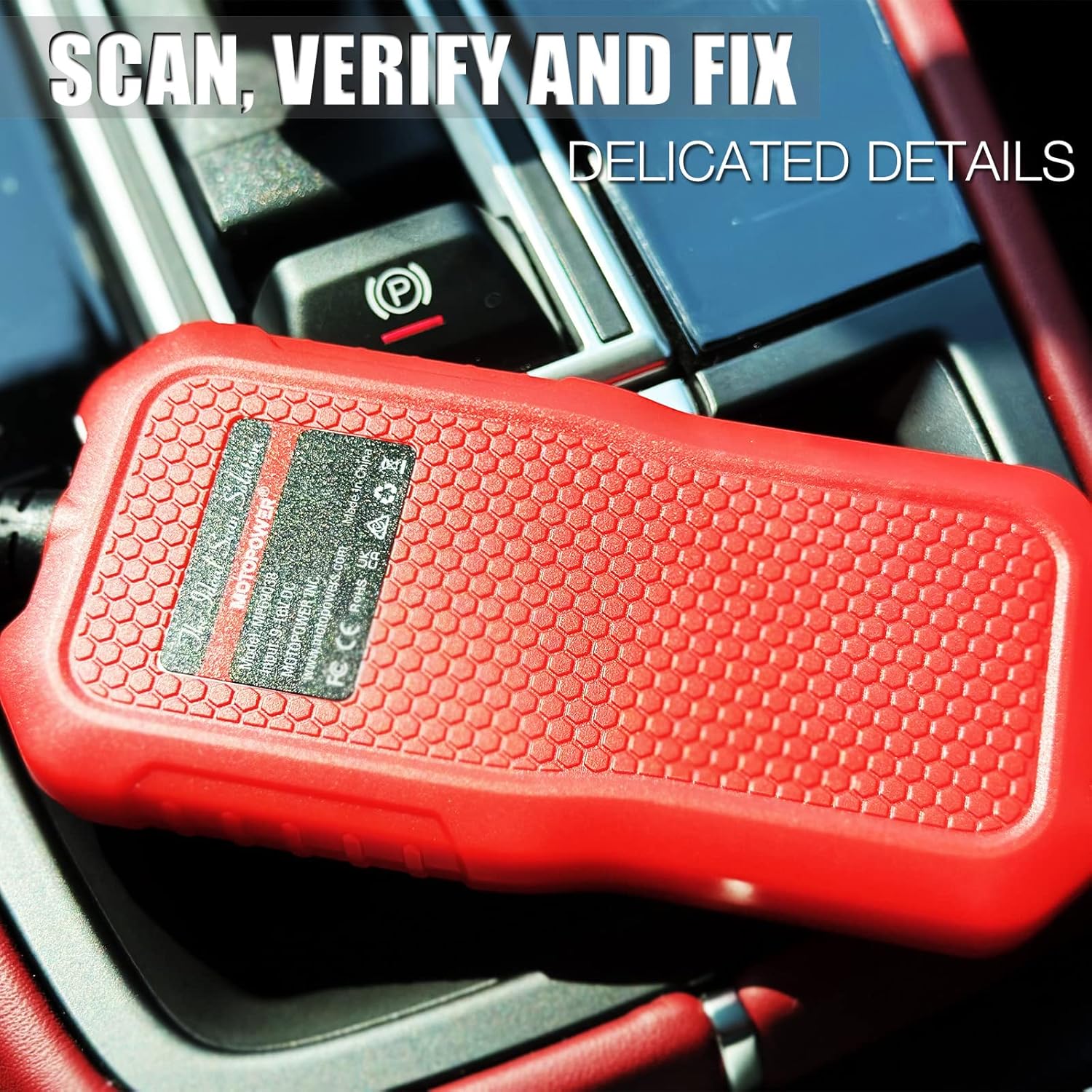

The compact rubber-protected housing makes it practical for workshop use and for carrying in a tool bag, while an updated industrial chip improves processing speed compared with older models. Remember that the full benefits rely on the vehicle being OBDII or CAN compliant, and some manufacturer-specific codes may still require dealer-level tools for deeper diagnostics.
