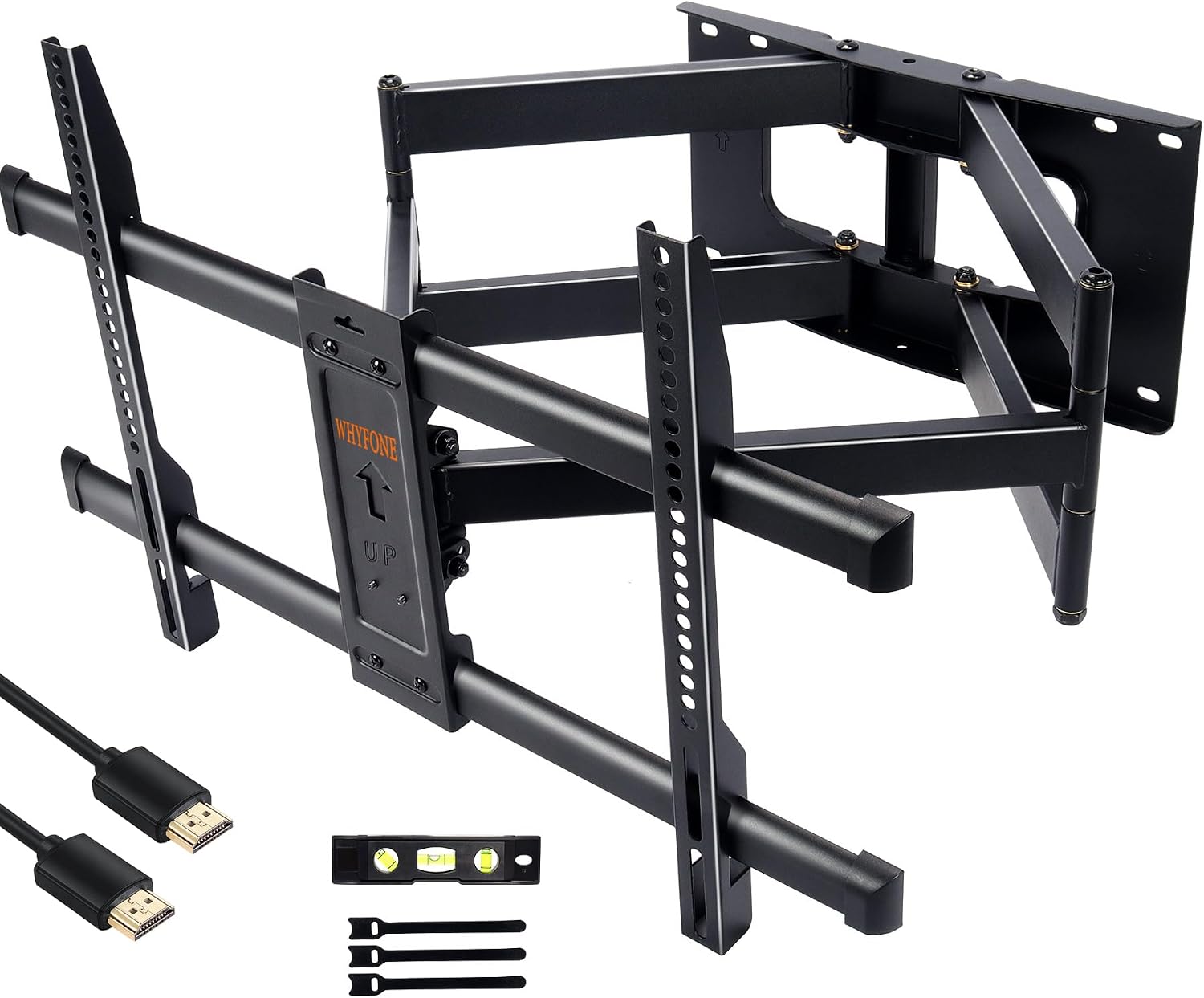

WHYFONE WF9456 TV Wall Bracket for 50–90 Inch TVs, 765mm Dual Arms

For a large TV that needs to be viewed from different parts of a room, the WHYFONE WF9456 gives you room to adjust the screen rather than keeping it fixed against the wall. Its dual articulating arms extend 765mm, helping you bring the TV forward and turn it towards your seating position.

Designed for 50–90 inch televisions, it supports a maximum weight of 75kg and is made from carbon steel.

How to use it

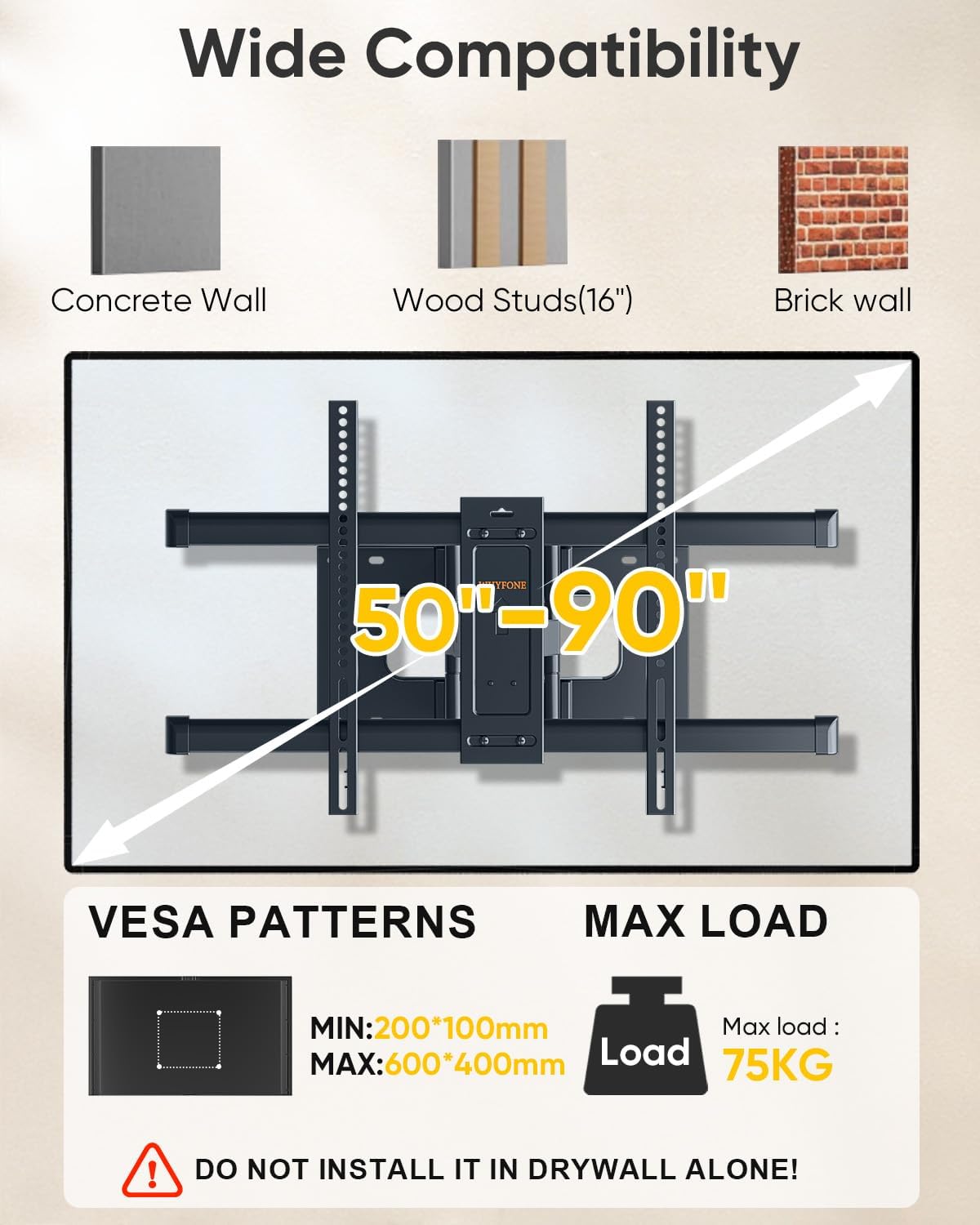

Choose a suitable solid concrete, brick or timber-stud wall, then match the bracket to the TV’s VESA mounting pattern before installation. Supported patterns include 600x400, 600x300, 600x200, 500x300, 400x400, 400x300, 400x200, 300x400, 300x300, 300x200, 200x400, 200x300, 200x200 and 200x100mm. The bracket is not compatible with a 100x200mm VESA pattern. Its supplied mounting hardware and English instruction manual help guide the fitting, while the included spirit level can assist with alignment.

Once mounted, extend the arms to position the screen for viewing, then use the swivel, tilt and level adjustments to fine-tune its angle. The TV can tilt 5° upwards or 10° downwards, swivel up to 180° left or right, and be level-adjusted by +/-3°. The HDMI cable and cable ties are also included.

Strengths

The 765mm reach is useful when a TV needs to move away from the wall for a better viewing angle, then return closer when that extra reach is not needed. This makes the bracket more adaptable than a fixed wall mount, particularly where seating is off-centre or the room serves more than one viewing position. Swivel and tilt adjustments also help direct the screen towards viewers and reduce glare.

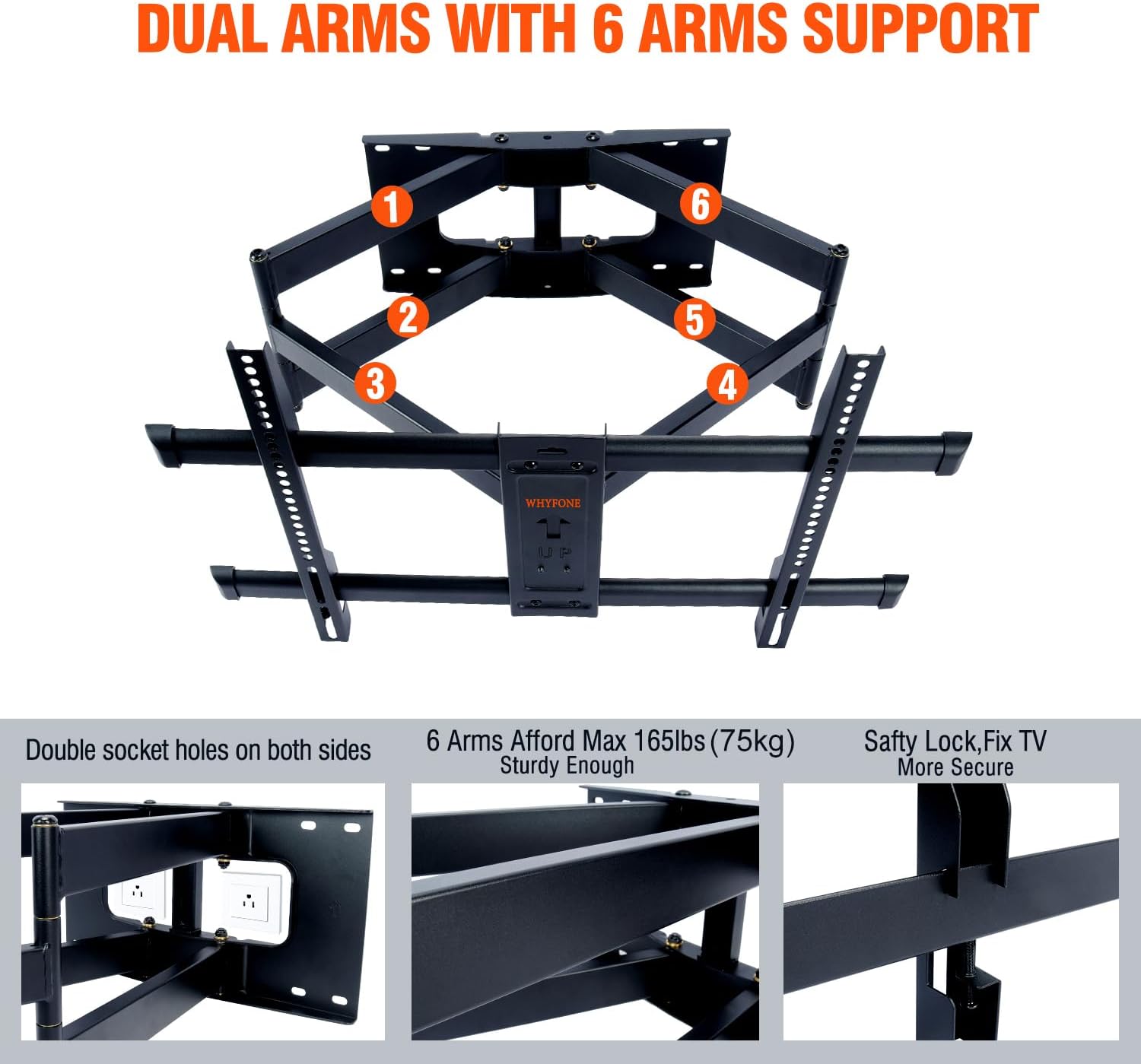

The dual-arm construction is made from carbon steel and supports televisions up to 75kg. Its stated screen-size range of 50–90 inches gives it scope for a range of larger TVs, with the VESA pattern and TV weight providing practical checks before fitting.

Key points

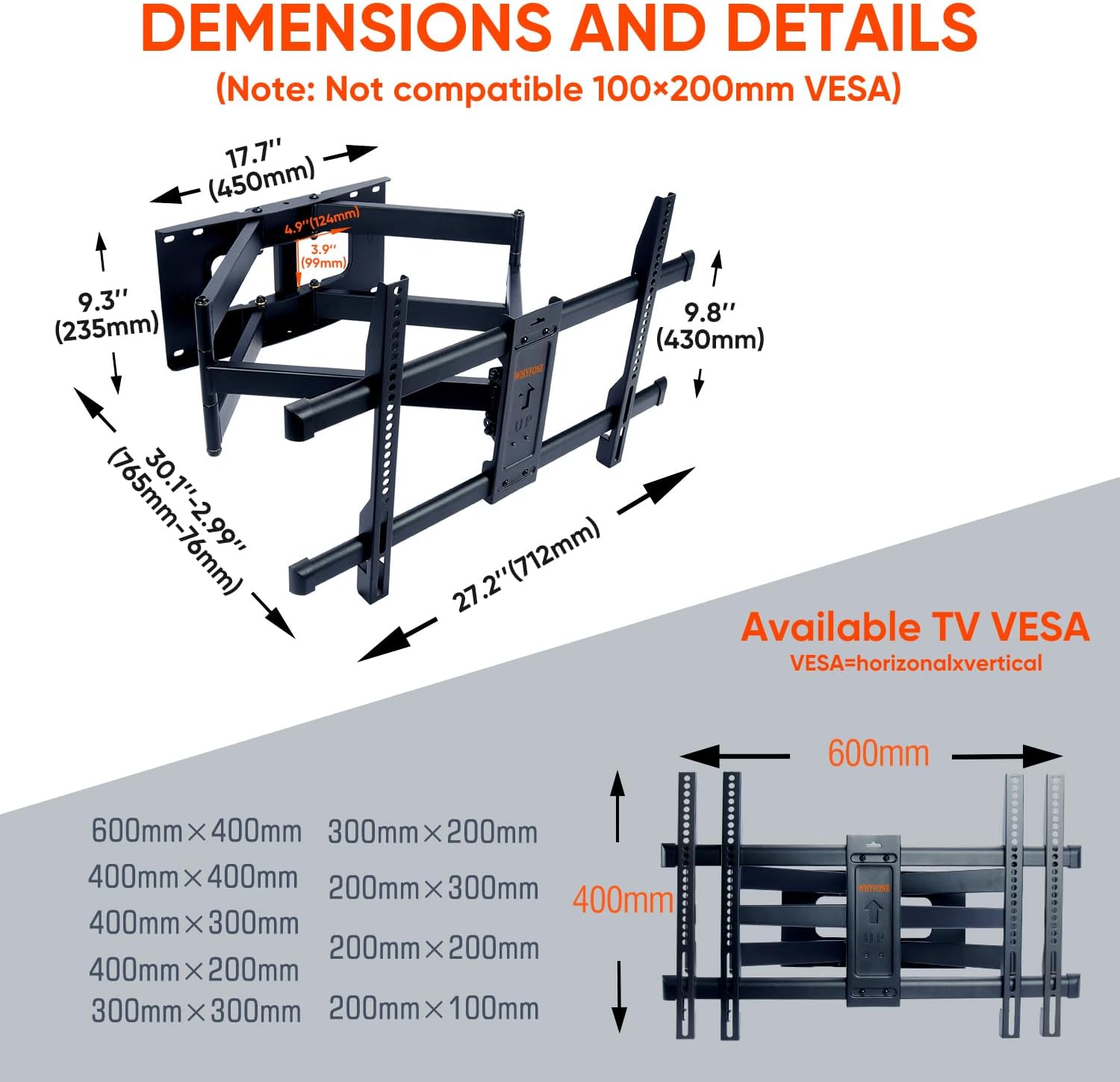

This is a full-motion wall bracket for televisions, with articulating, swivel, tilt and levelling movement. Its maximum supported screen size is 90 inches, and its minimum is 50 inches. The maximum supported weight is 75kg. The stated maximum VESA pattern is 600x400mm, with the additional compatible patterns listed above. Black carbon steel gives the bracket a straightforward finish suited to a wall-mounted TV setup.

For a typical living-room arrangement, the screen can be angled towards a sofa rather than left facing straight ahead. In a room with more than one seating area, the long arms and swivel movement make it easier to adjust the viewing direction as needed. It’s a good fit if you want a wall-mounted TV with more positioning flexibility than a fixed bracket offers.

When it makes sense

Choose the WHYFONE WF9456 when your 50–90 inch TV needs an extended reach and adjustable viewing angle, and its weight, VESA pattern and wall type match the installation. The combination of dual articulating arms, broad movement and included fitting accessories makes it a practical choice for setting up a large screen around the way you use the room.
