Solar panel connectors 20A

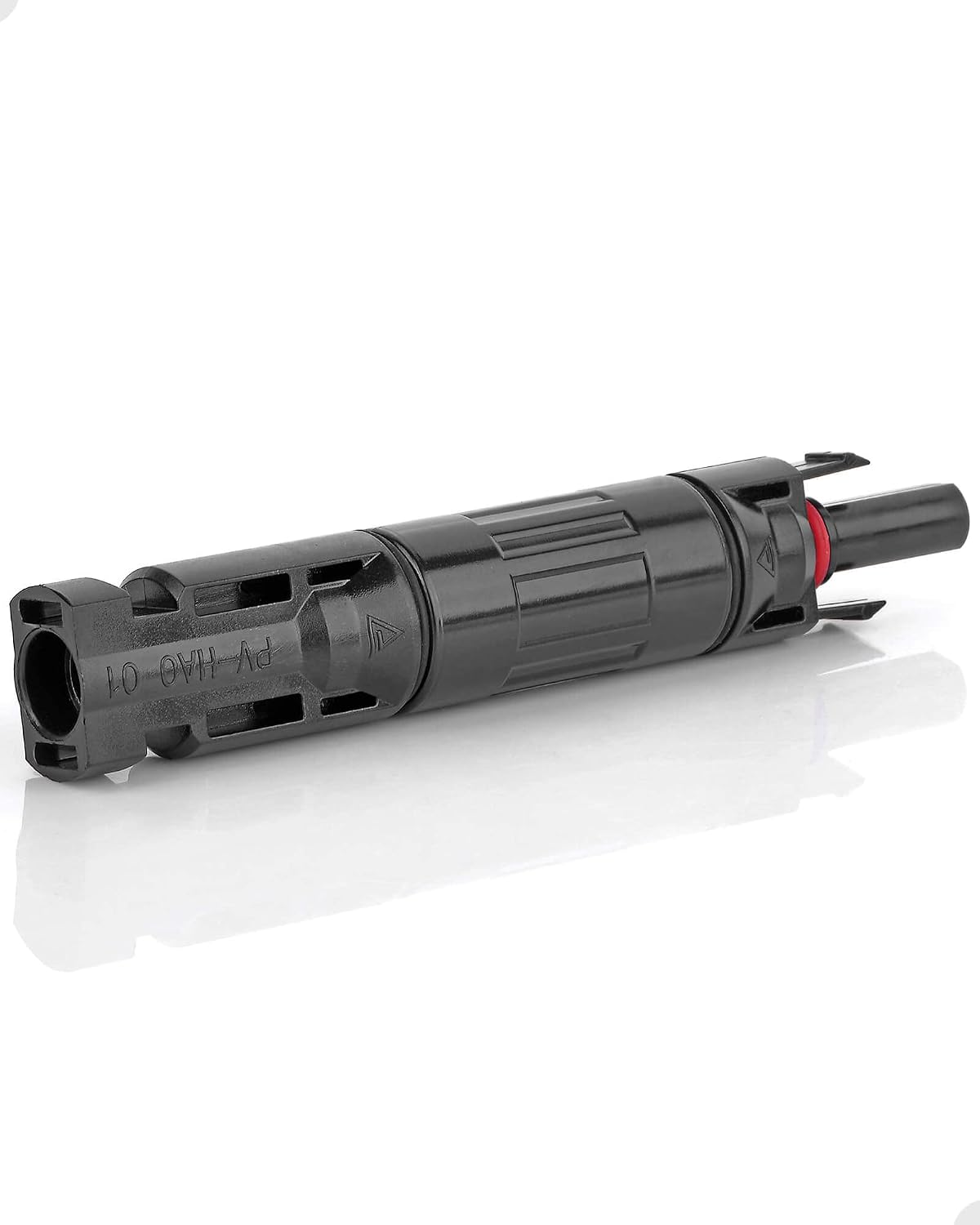

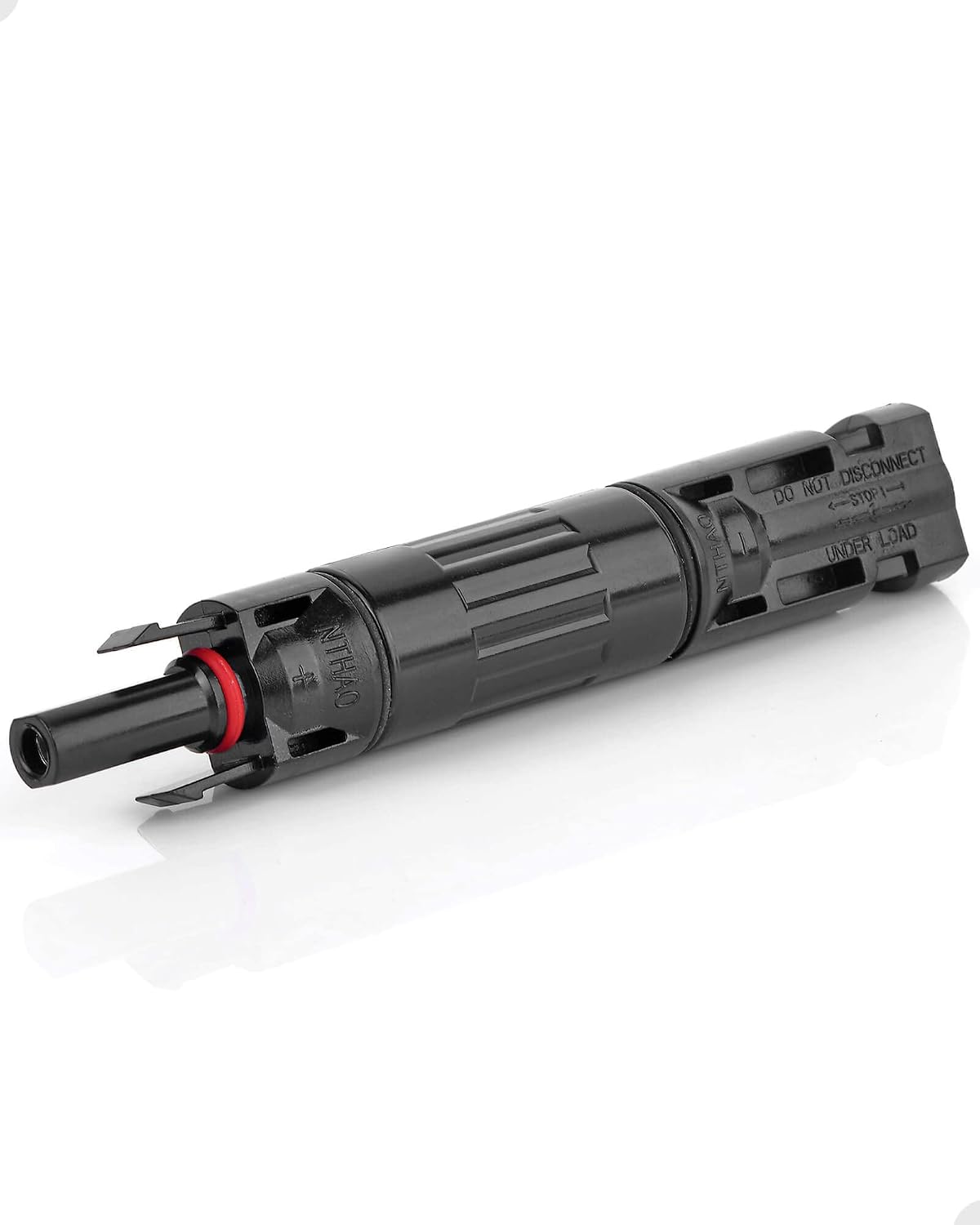

For someone joining solar-panel cables to a switch box or other photovoltaic equipment, these male/female connectors are designed to help prevent reverse current with a built-in diode.

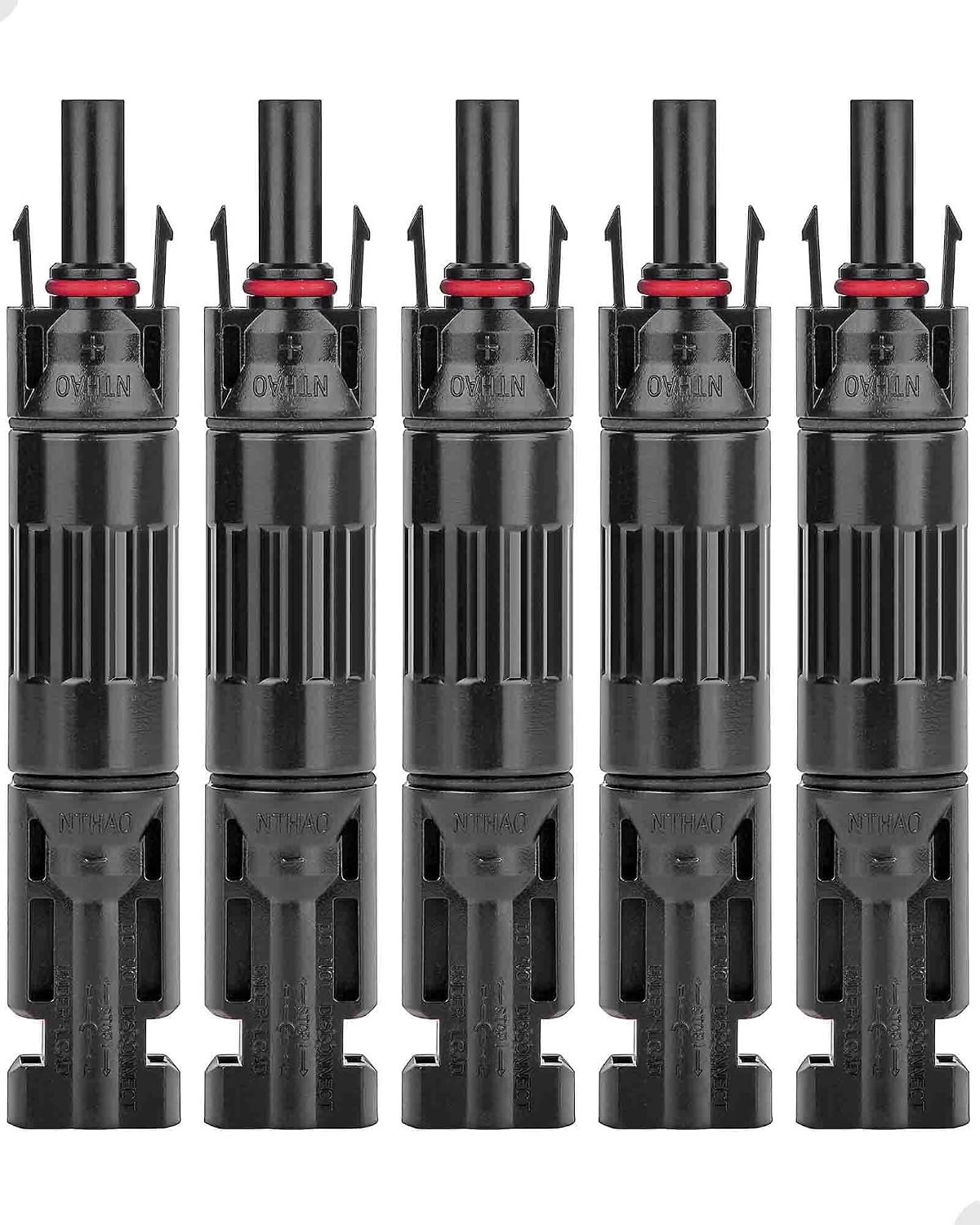

The set contains five pieces and is rated for 20A. The listing describes the connectors as IP67-rated, with double sealing rings intended to help keep out water and dust.

A practical use is connecting a panel cable into a solar setup that leads to a switch box or converter. The diode is the specific feature to weigh here: it addresses current flowing in the wrong direction, rather than adding a broad set of electrical protections.

How to use it

The stated role is to connect solar cables between panels and photovoltaic equipment, including switch boxes and converters. In a typical setup, you would use the matching male and female ends at the cable connection point. The listing describes the connection as quick, but does not provide installation steps, so it is not enough on its own to confirm how it should be fitted in your particular system.

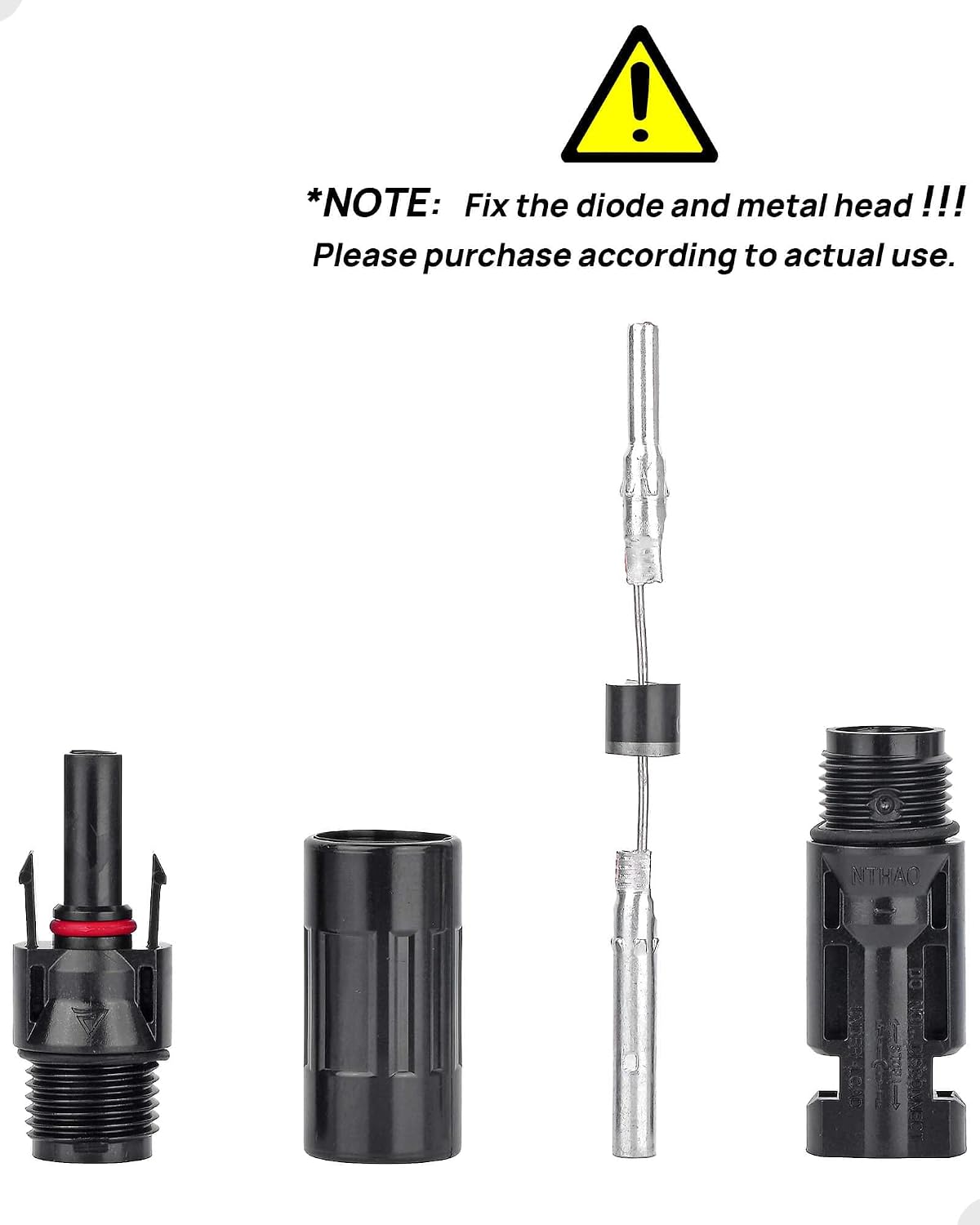

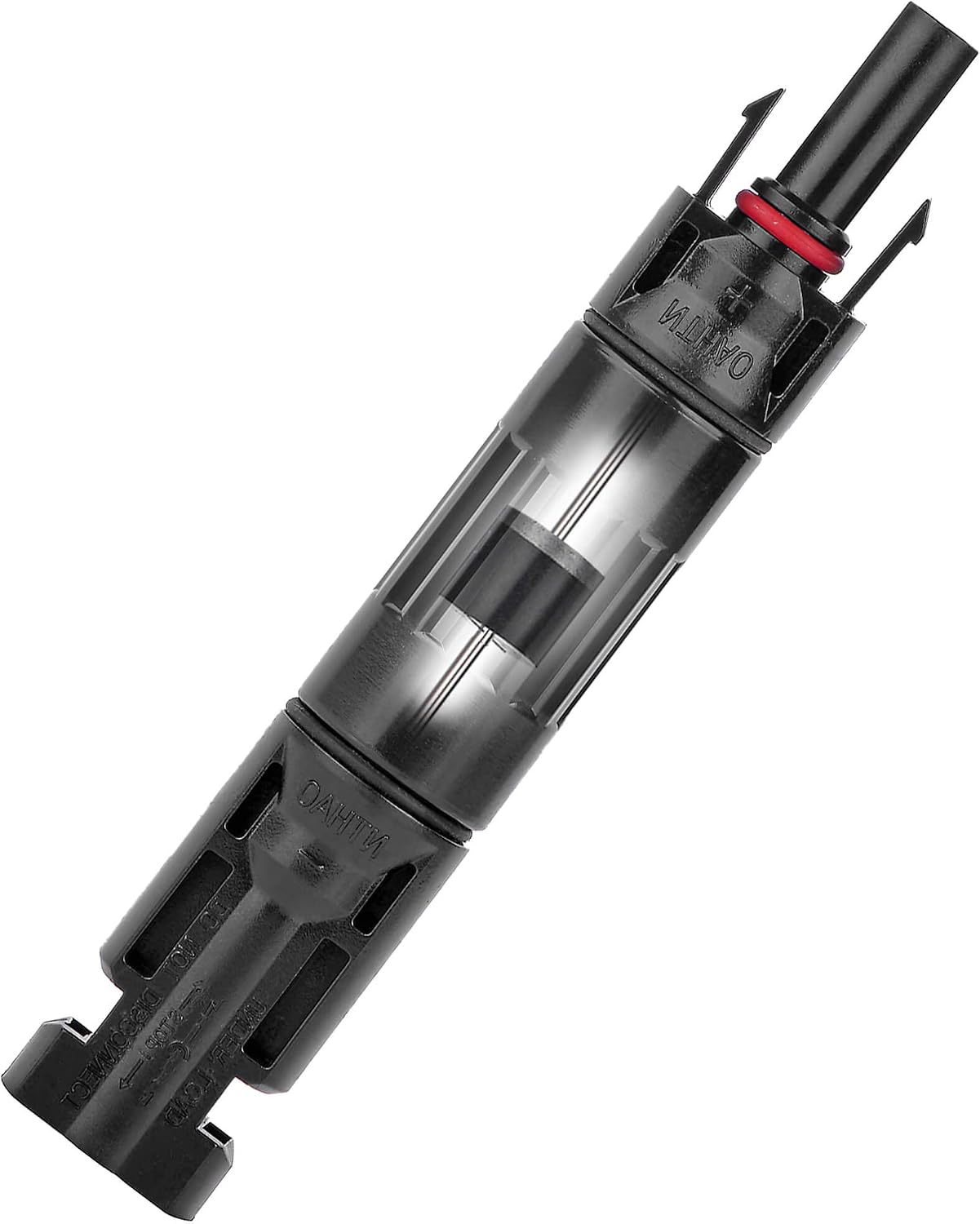

The built-in diode is intended to prevent current reversal. Why choose a connector with that feature rather than a basic cable connector? It may suit a setup where reverse current is a concern, but it should not be treated as a substitute for checking the requirements of the rest of the system. Given its design, the weather-resistant sealing and UV-resistant insulation also point towards use where cables are exposed to outdoor conditions.

It suits you if you need a small batch of male/female solar connectors and the 20A rating matches your application. Skip it if you need a confirmed cable size, connector dimensions or detailed installation guidance, none of those are specified in the available product information.

Pros

• The built-in diode is intended to prevent reverse current, giving it a more specific role than a connector that only joins cable ends.

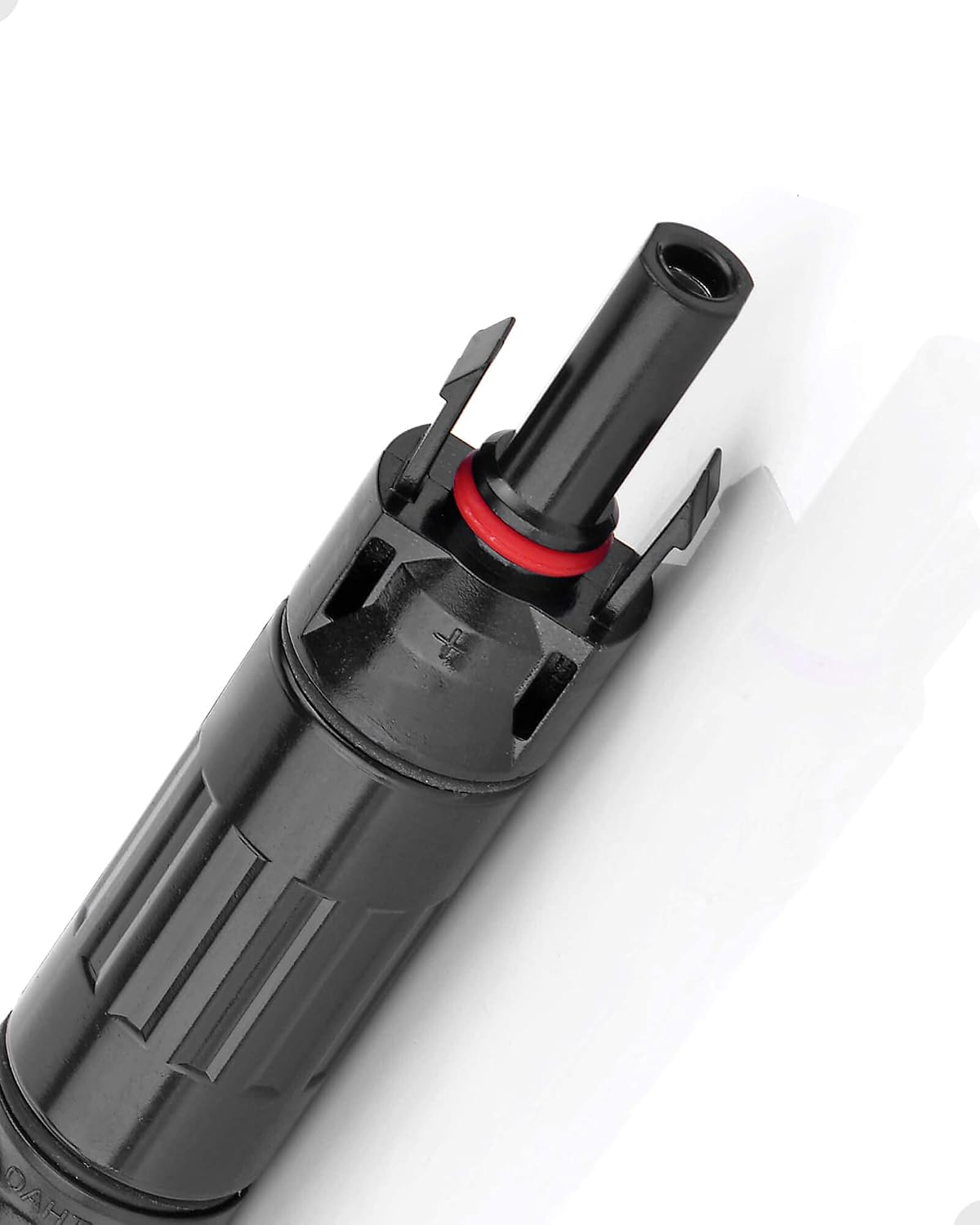

• The stated IP67 rating and double sealing rings are relevant for keeping water and dust away from the connection.
• PPO insulation is described as flame-retardant and resistant to ageing and UV exposure. The contacts are copper coated with tin.
• The listing says the connectors are TUV approved and intended for quick connection in photovoltaic systems.

The main drawback is the missing fit information. Without cable-size and connector-dimension details, you cannot establish from this description alone whether the connectors suit your existing cables. Check those requirements before choosing them, especially if you are replacing a particular connector type.

Spec sheet

• Type: Male/female solar panel wire connectors
• Capacity: 20A
• Format: Five pieces, built-in diode
• Water resistance: IP67 rating
• Material: PPO insulation, tin-coated copper contacts
• Approval: TUV approved, as stated in the listing

What I’d consider

Choose these when the built-in diode, 20A rating and outdoor sealing match the connection you need to make. For a cable run from a panel to a switch box, the stated purpose is clear, and the set includes male and female connectors. If your priority is simply replacing a connector and you already know the required cable fit, the absent dimensions are a real hurdle rather than a minor detail. I would only proceed once the connector and cable requirements for your setup are confirmed, otherwise, a product with those measurements listed is the more straightforward choice.
