20 Gauge 8-Conductor Electrical Wire

The eight-conductor layout gives this cable several wires in one flexible run, which can be useful when routing low-voltage control or signal connections. It is listed for thermostat and heating or air-conditioning controls, as well as doorbells, alarms, intercoms, remote controls and lighting. The description also gives a maximum rating of 300V and 6.5A, so those limits matter when deciding whether it suits a particular circuit. One point needs attention before ordering: the product name refers to both 20 gauge and 22 AWG, while the base details also differ slightly on cable length.

Technical details

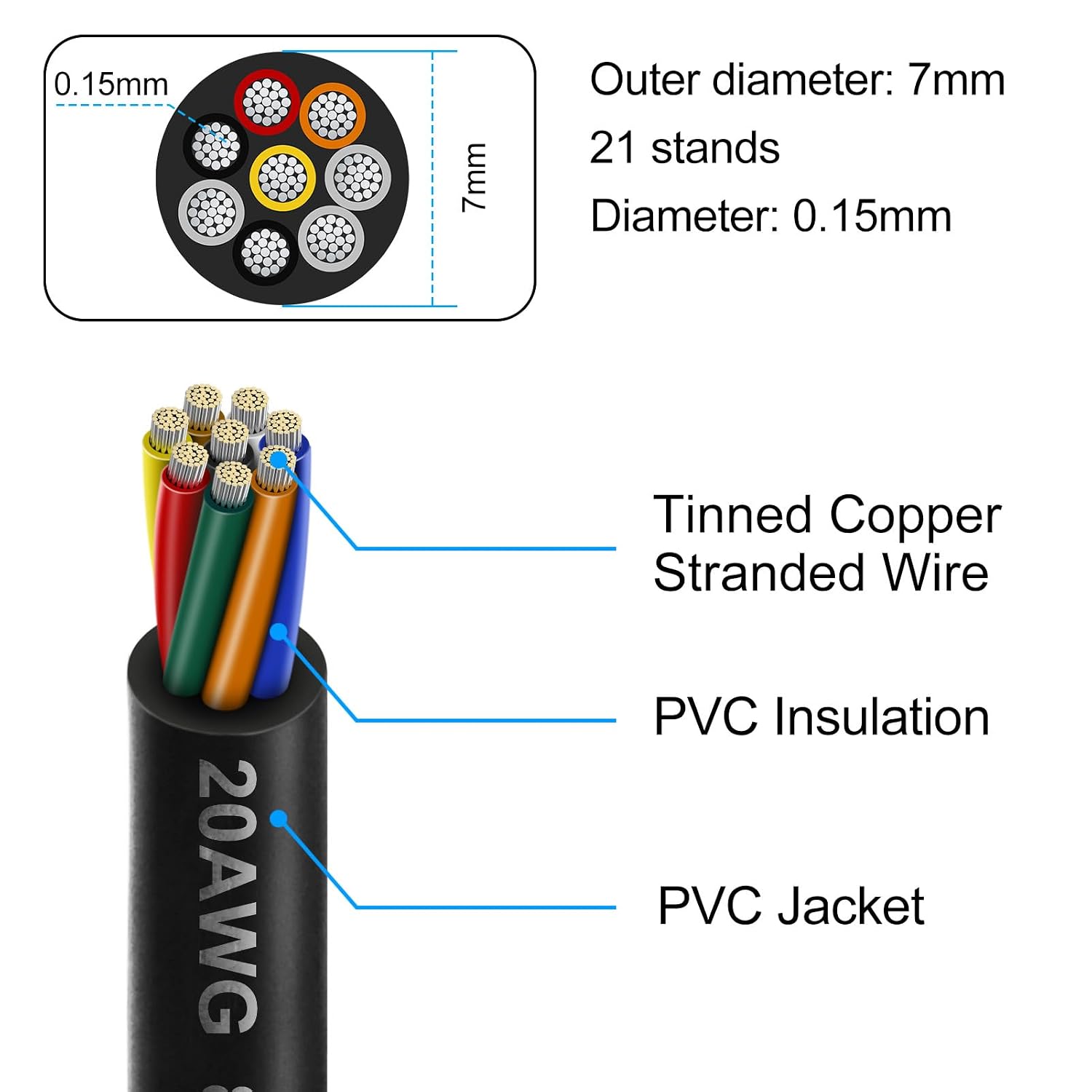

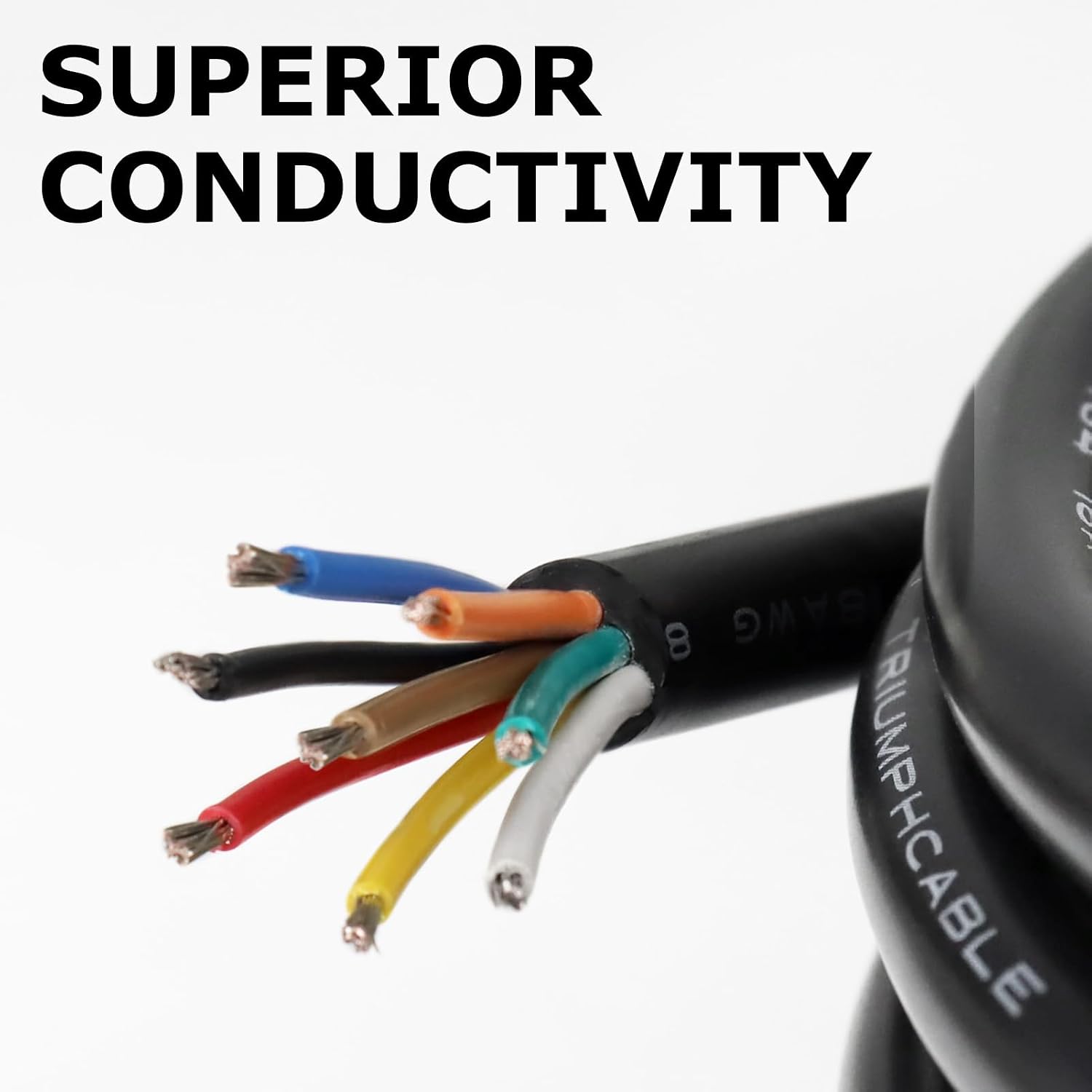

This is an eight-conductor cable with a stated outer diameter of 7.0 mm. The product name gives a length of 32.8 ft, the specification text says 32 ft, so the exact supplied length is not consistently stated. The listing describes tinned copper conductors, intended to help resist tarnishing and oxidation, and a colour-coded insulation option for thermostat wiring. It identifies the insulation as PVC or polypropylene and the outer jacket as PVC. The jacket is described as resistant to heat, moisture and sunlight, but that does not establish that the cable is waterproof or suitable for every outdoor installation.

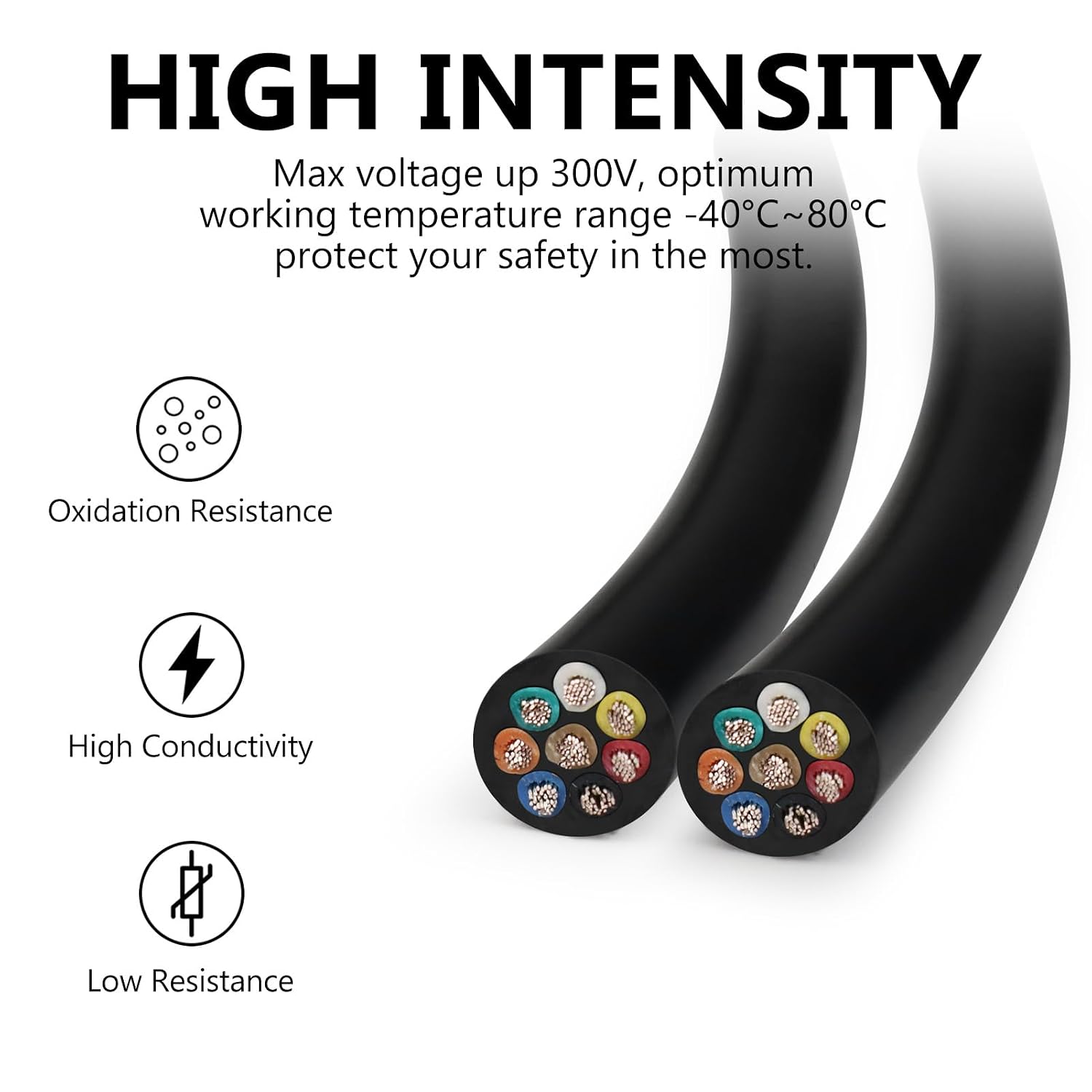

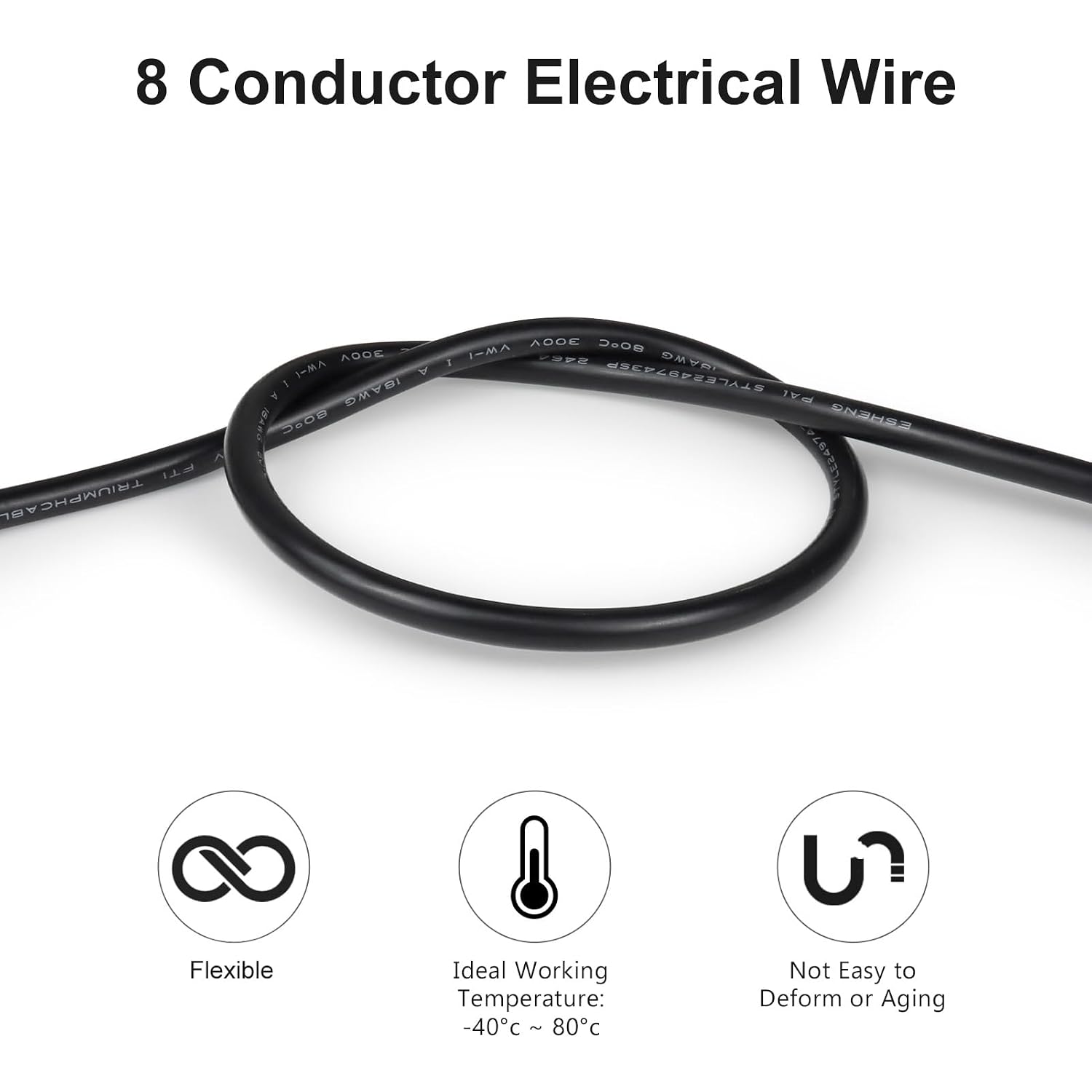

The stated operating temperature range is -40°C to +80°C, with maximum voltage of 300V and maximum current of 6.5A. These are limits, not a recommendation to use the cable at those values in every setup. The gauge mismatch is particularly relevant: 20 gauge appears in the product name, while 22 AWG appears elsewhere. Confirm the conductor size and length with the seller before planning a run that depends on either detail.

Getting the most from it

This cable is aimed at low-voltage control and signal work rather than a general-purpose replacement for household mains wiring. For example, an eight-conductor run could keep several thermostat or alarm connections together between locations, instead of routing separate single-conductor wires. It is also listed for doorbells, intercoms, annunciator systems, remote controls, landscape applications and LED lighting strips. Match the intended circuit to the stated voltage and current limits, and check that the conductor count and cable dimensions suit the terminals and route.

It may suit you if you need several colour-coded conductors in one flexible cable for a control, signal or lighting installation. It won't suit you if your project needs a confirmed gauge, exact cut length, a higher current rating or a specific outdoor certification, none is established consistently in the supplied details. For a simple run with fewer connections, separate wire may be easier to route, while a more demanding installation calls for a cable specified clearly for that application.

Usage tips

Plan the route before cutting, especially where the cable must pass through a narrow opening: its stated outer diameter is 7.0 mm. Keep the intended use within the listed electrical limits, and follow the requirements for the equipment and installation rather than relying on the broad list of applications alone. If you are using it for an LED strip or a doorbell, check the device terminals and wiring diagram first, the listing does not specify connector type or compatibility with a particular model. For an exposed run, the jacket’s stated resistance to sunlight and moisture may be relevant, but do not treat that wording as proof that a connection can be left unprotected.

Before you buy

The main decision is whether the stated format matches your actual wiring plan. Eight conductors can simplify a multi-wire control run, but the inconsistent gauge and length details make this less straightforward when precise sizing is essential. The listing also gives two possible insulation materials, PVC or polypropylene, rather than a single confirmed construction. If those particulars affect fit, performance or an installation requirement, get them confirmed before choosing this cable. For a low-voltage project where the stated limits and conductor arrangement are acceptable, it offers a compact alternative to bundling several separate wires.

Three specific questions

Is this intended for mains wiring? The listing presents it for low-voltage installations and control or signal uses. It does not establish suitability as general household mains wiring.

What is the maximum current stated? The specification gives 6.5A, alongside a maximum voltage of 300V. Both should be treated as stated limits, not universal operating targets.

How many conductors does it have? The product name and specification identify eight conductors. The gauge and cable length, however, are not stated consistently, so confirm those details if they are critical to your project.
