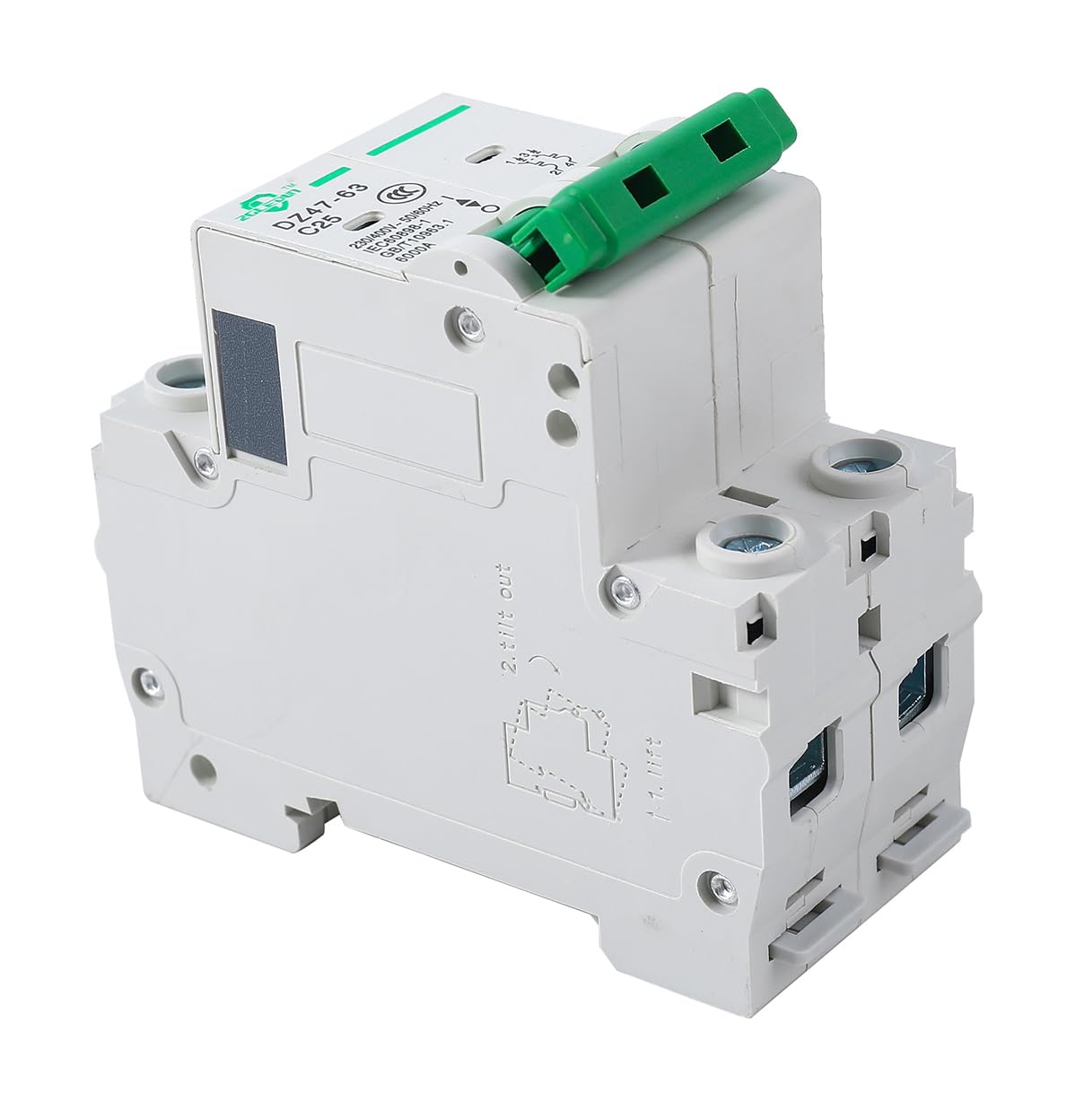

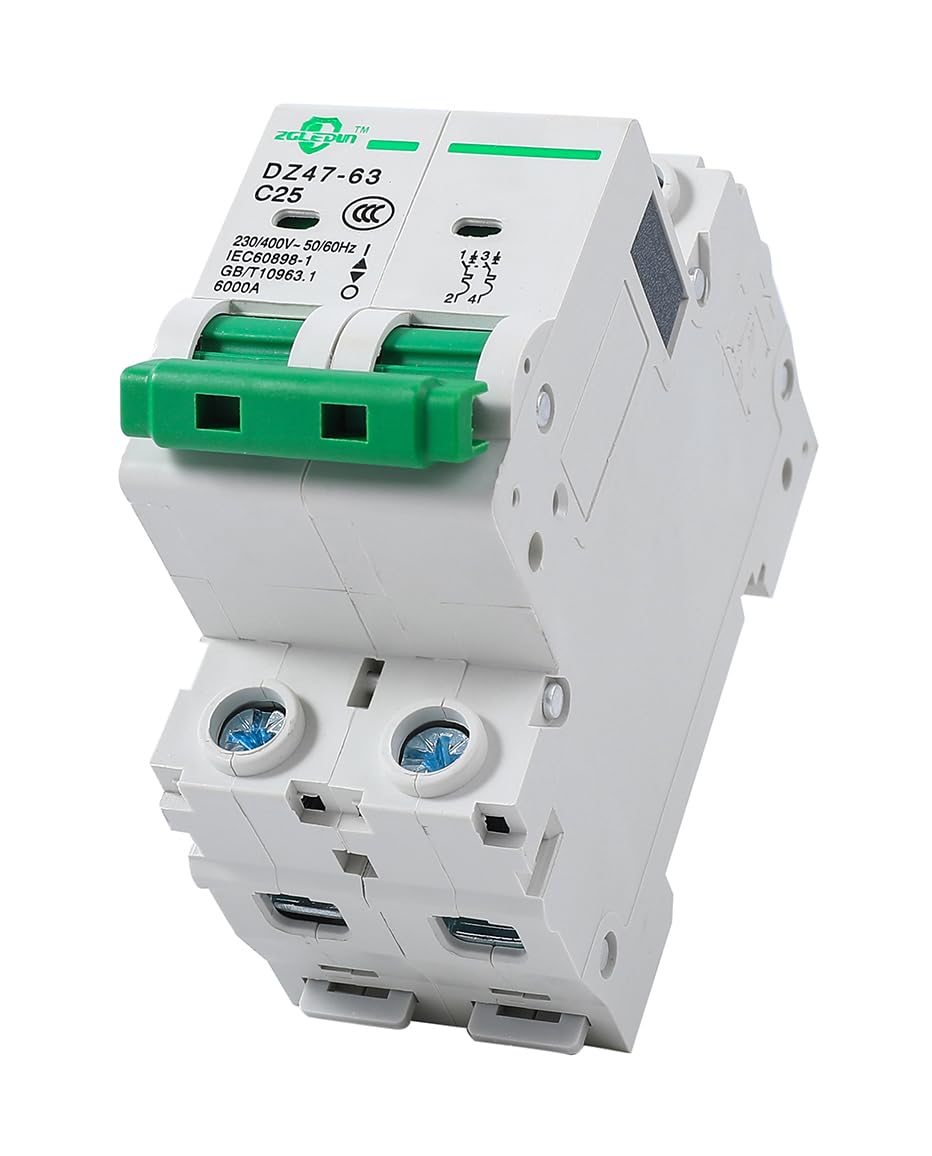

ZGLEDUN Miniature Circuit Breaker 25A

For a distribution box serving household lighting, a small motor or a solar power supply system, this ZGLEDUN miniature circuit breaker is designed to interrupt a circuit during an overload or short circuit. It is a two-pole, 25A breaker with a thermal-magnetic trip and a C tripping curve, and it mounts on a DIN rail. The listing also gives two different voltage descriptions: 120V/240V in the product name and 12VAC~240VAC in the parameter line. That detail matters, so match the breaker to the circuit requirements rather than relying on the headline alone.

Best use cases

This breaker is aimed at circuit protection in household lighting, small-motor control and solar power supply systems. For example, in a distribution box serving a lighting circuit, the DIN-rail mount and buckle design are intended to make placement straightforward without locking screws. It can be wired from the top or the bottom, which may help when planning the layout of the enclosure, though the listing does not specify wire sizes or connection details.

It makes sense if you need a 25A, two-pole breaker for one of those stated applications and the voltage and installation requirements match your setup. It is not worth it if you need a breaker with documented specifications the listing does not provide, or if you cannot confirm that its ratings suit the circuit. For a more demanding installation, compare the full protection and certification details required for that job rather than choosing by amperage alone.

Product specs

• Type: Miniature circuit breaker
• Poles: 2
• Current rating: 25A
• Voltage: Product name states 120V/240V, parameter line states 12VAC~240VAC
• Tripping curve: C
• Trip mechanism: Thermal magnetic

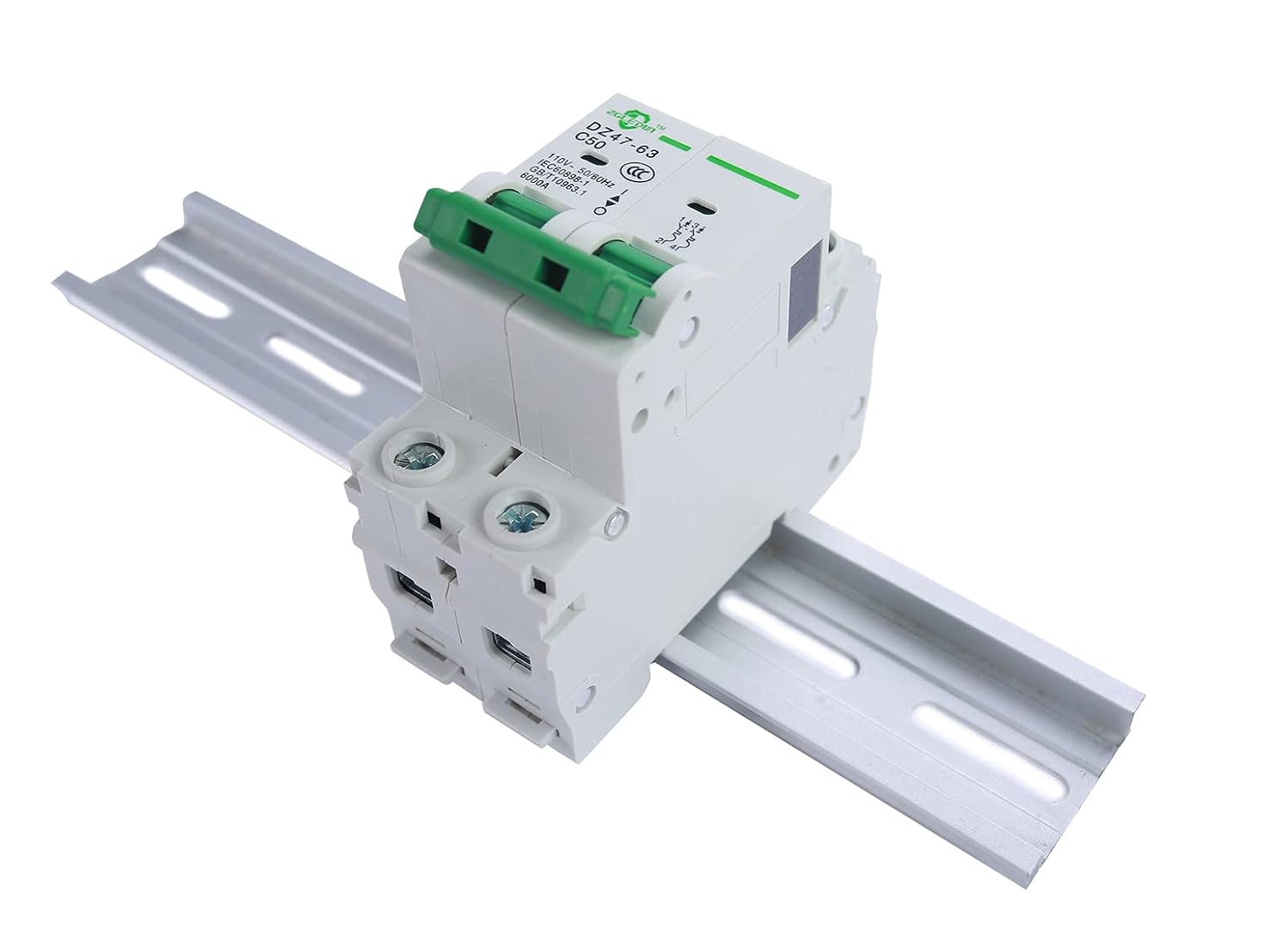

• Mounting: DIN rail, buckle design, with no locking screws required

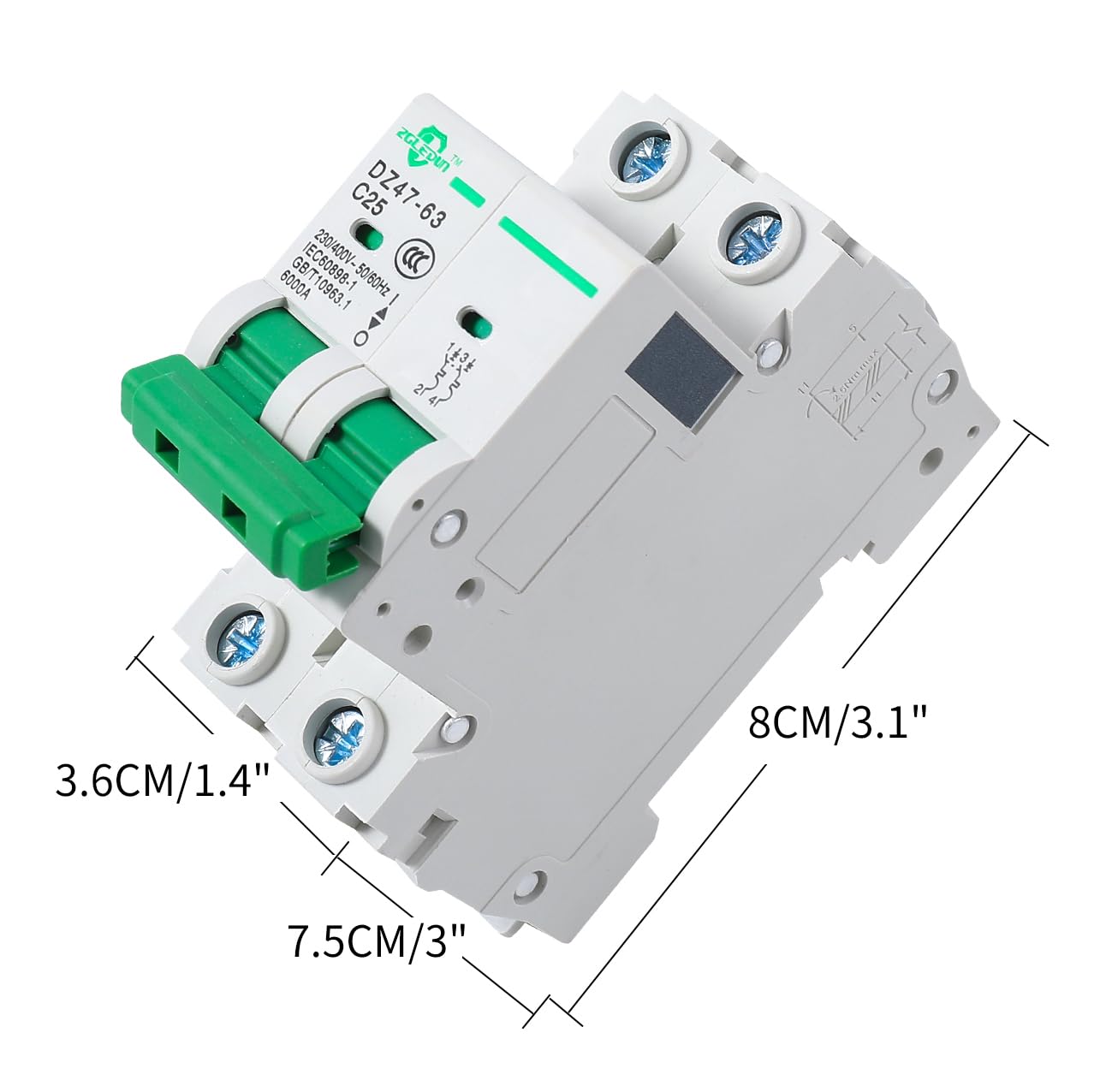

• Dimensions: 75 x 39 x 78mm
• Wiring: Top or bottom
• Stated life: 10,000 electrical cycles and 20,000 mechanical cycles
• Housing: Flame-retardant shell

The voltage discrepancy is the key specification to resolve before purchase or installation. The listing does not give a breaking capacity or certification details, so those should not be assumed from the product name or the flame-retardant housing description. Follow the requirements for the particular circuit and installation.

Where it shines

The practical appeal is its compact DIN-rail format and the flexibility to wire from either end. That can be useful when arranging components in a distribution box, especially where the incoming and outgoing wire paths favour a particular orientation. Its stated applications also make it more specific than a general-purpose accessory: it is presented for lighting, small motors and solar power supply systems, rather than as a solution for every circuit.

The thermal-magnetic trip combines two stated protection functions, while the C curve identifies the trip profile. Still, the listing does not explain how that curve or the 25A rating suits a given load, so a buyer should not treat those numbers as a substitute for matching the breaker to the circuit. Compared with choosing a simpler protective device based only on a current rating, this model gives more installation and trip-profile information—but not every detail needed to assess an installation.

Final decision

Choose this ZGLEDUN breaker if you need a two-pole, 25A DIN-rail unit for one of its listed uses, and you can confirm the correct voltage and suitability for your circuit. Its top-or-bottom wiring and screw-free buckle mounting are useful layout details, while the stated cycle figures and flame-retardant shell add context without establishing suitability on their own. Given how it is designed, it is a focused option for a compatible distribution-box setup, not a safe bet when voltage, certification or interruption requirements are still unknown. If those details are essential, look for a breaker with them clearly documented before deciding.
