Partsam 12V LED Trailer Light Kit

Technical details

For trailer owners replacing a complete pair of rear lights, this Partsam kit brings the main lighting functions together with a wiring harness and mounting hardware. It is a 12V rectangular LED setup, with two lights and a bracket for the licence plate.

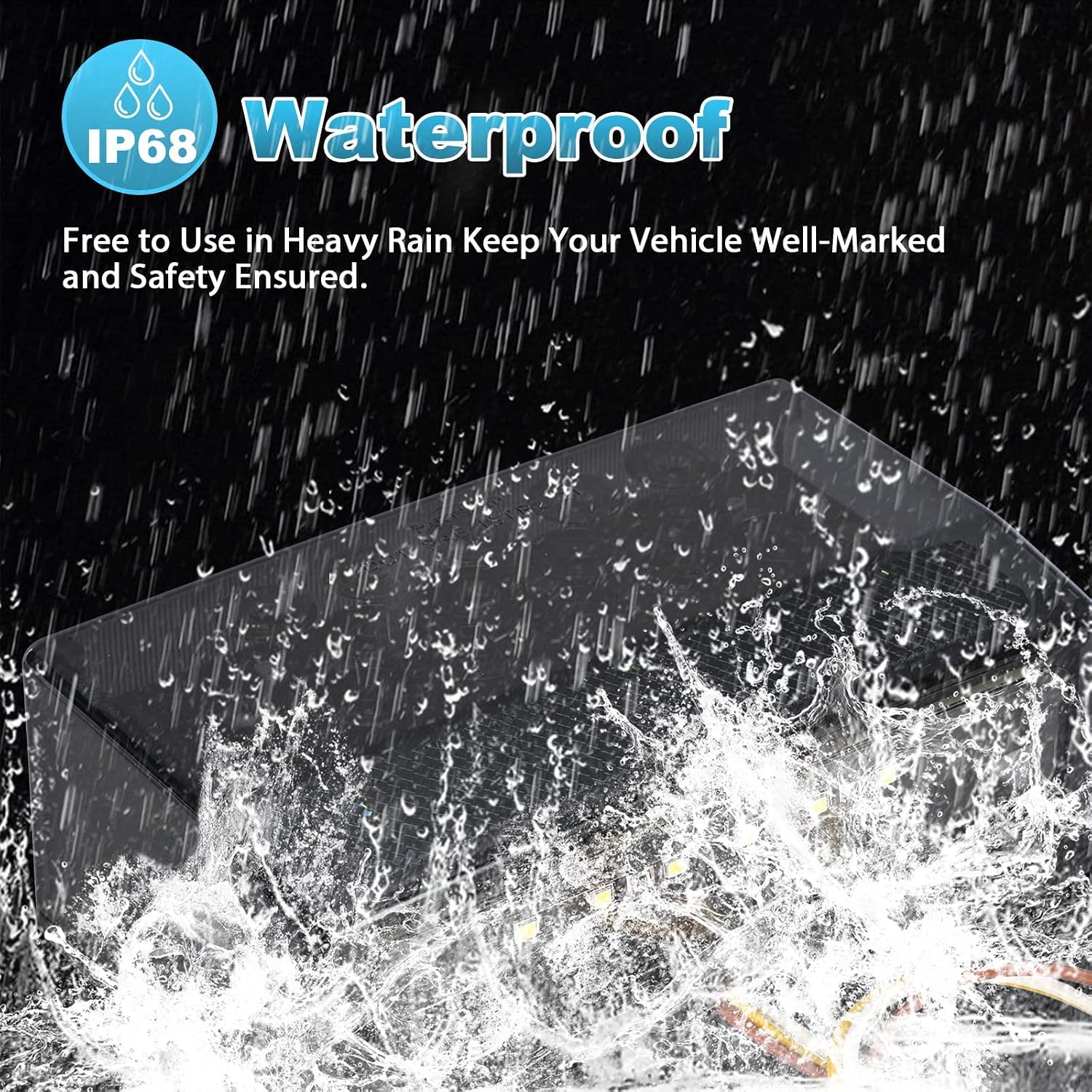

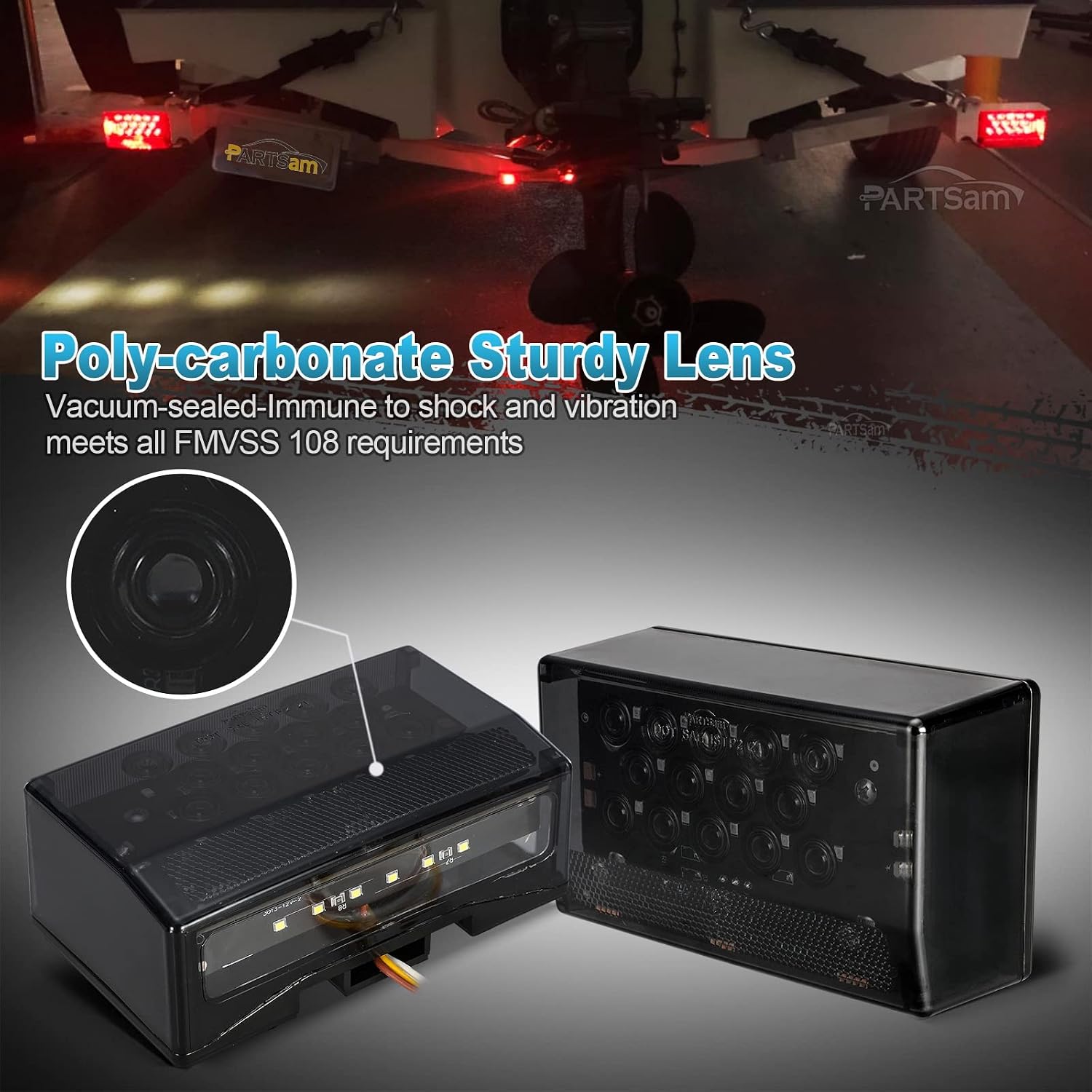

The left light has 22 diodes, including four for the built-in licence plate light, the right has 18. The kit is described as providing running, tail, stop, brake, turn signal, clearance and side marker functions. Its welded lens and sealed circuit board are rated IP68 for waterproofing, and the listing says the lights comply with DOT standards.

Included are the two lights, licence plate bracket, wires, a 25 ft wiring harness and stainless steel fastening hardware. The listing also specifies a one-year warranty. It suits you if you need several trailer-light functions in one kit rather than sourcing individual lamps and a separate plate bracket.

Getting the most from it

The product is listed for trucks, trailers, tractors, semi-trailers, dump trucks, buses, boats and other special vehicles, with examples including campers, snowmobiles and utility trailers. That broad range describes intended use, but it does not provide vehicle-specific fitment or mounting dimensions. Match the light shape and mounting arrangement to your existing setup before choosing it.

The integrated plate light is on the driver’s-side lamp, so the pair is not described as having identical functions. The 25 ft harness may be useful when the connection is some distance from the lights, though the listing does not specify connector types or an installation diagram. The seller describes the lamps as submersible, with what the listing says, the sealed IP68 design is the clearest stated protection detail, not a guide to installation depth or duration.

Usage tips

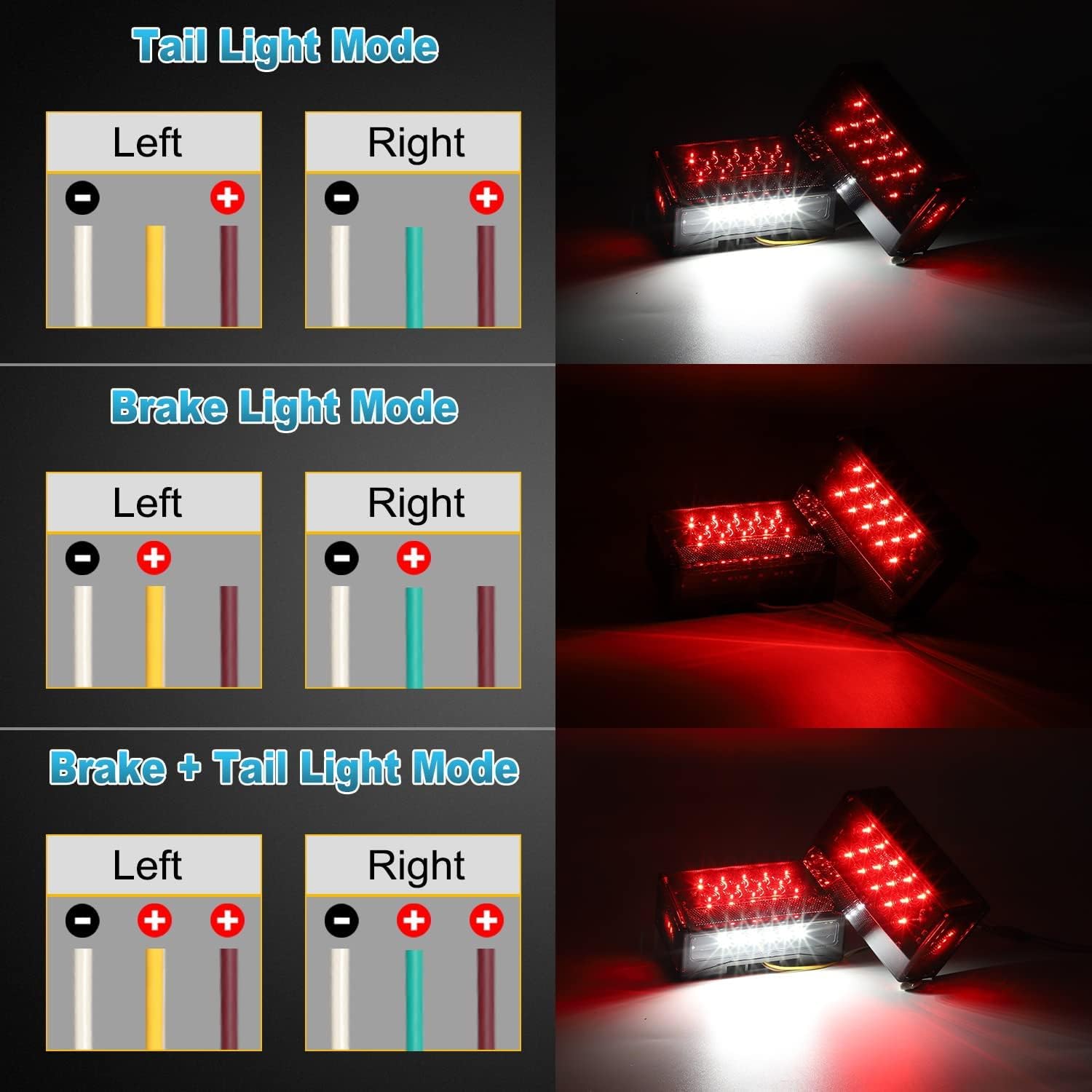

Before wiring, identify the vehicle’s existing connections and compare them with the supplied colour functions: white is ground, brown is the lower-brightness tail-light wire, and yellow/green is for the higher-brightness stop and turn signal functions. The information provided does not explain every possible vehicle wiring arrangement, so avoid treating the colours as a substitute for checking your trailer’s wiring.

A practical use case is replacing a worn pair on a boat trailer: the sealed construction is intended for wet conditions, while the harness and stainless steel hardware are included for fitting. Secure the lights using the existing mounting points where they match, and confirm the plate bracket sits where the plate remains visible. The kit gives you the parts to work with, but does not state how much installation work or adaptation a particular trailer may need.

Antes de decidir

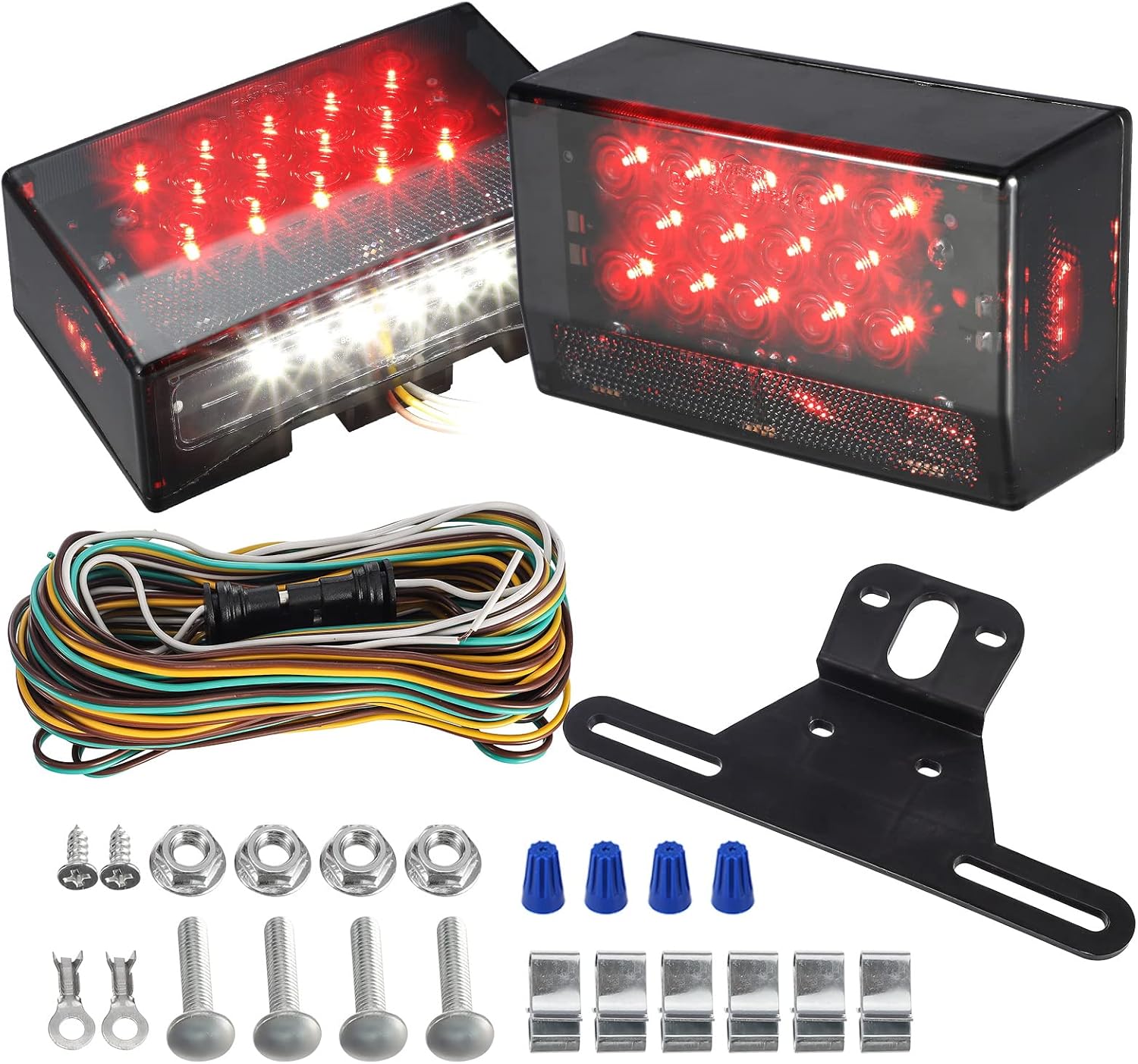

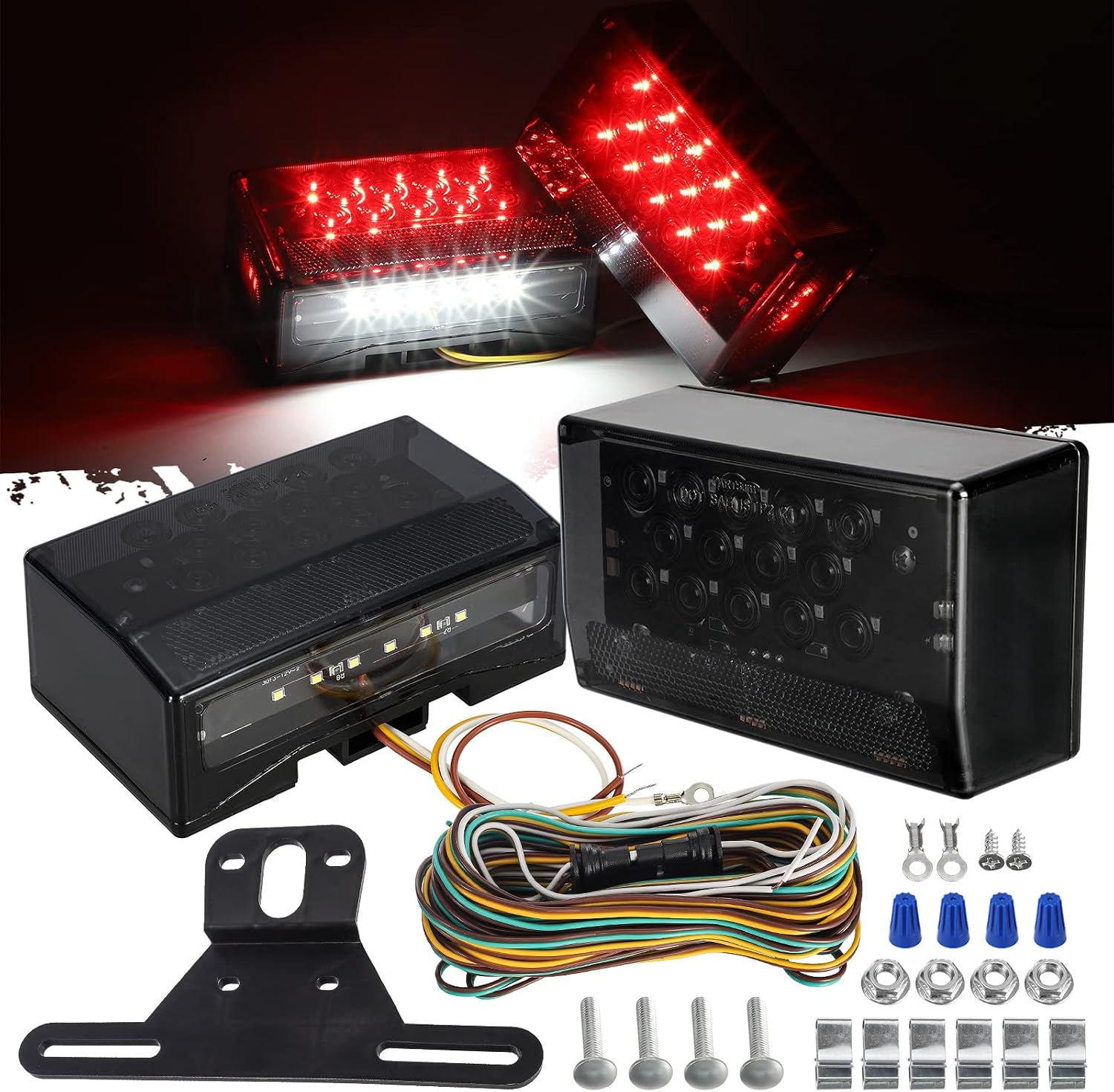

What comes in the kit? Two rectangular LED lights, a licence plate bracket, wires, a 25 ft harness and stainless steel hardware.

Which light illuminates the licence plate? The driver’s-side light has four diodes for that function.

Are the lights described as waterproof? Yes. The listing specifies an IP68 rating and describes the sealed lights as submersible, but gives no further immersion guidance.

Before buying it

This is a more complete replacement approach than buying separate lamps, wiring and a plate bracket, especially if you want the listed signal and marker functions in one kit. It may not be the best choice if you need confirmed fitment for a particular vehicle, connector details or mounting measurements, those are not provided. Check the available space, wiring and required functions on your trailer first. If those line up, the bundled harness and hardware make the kit a practical candidate for a multi-function lighting refresh.
