OPL5 RV power inlet 30A

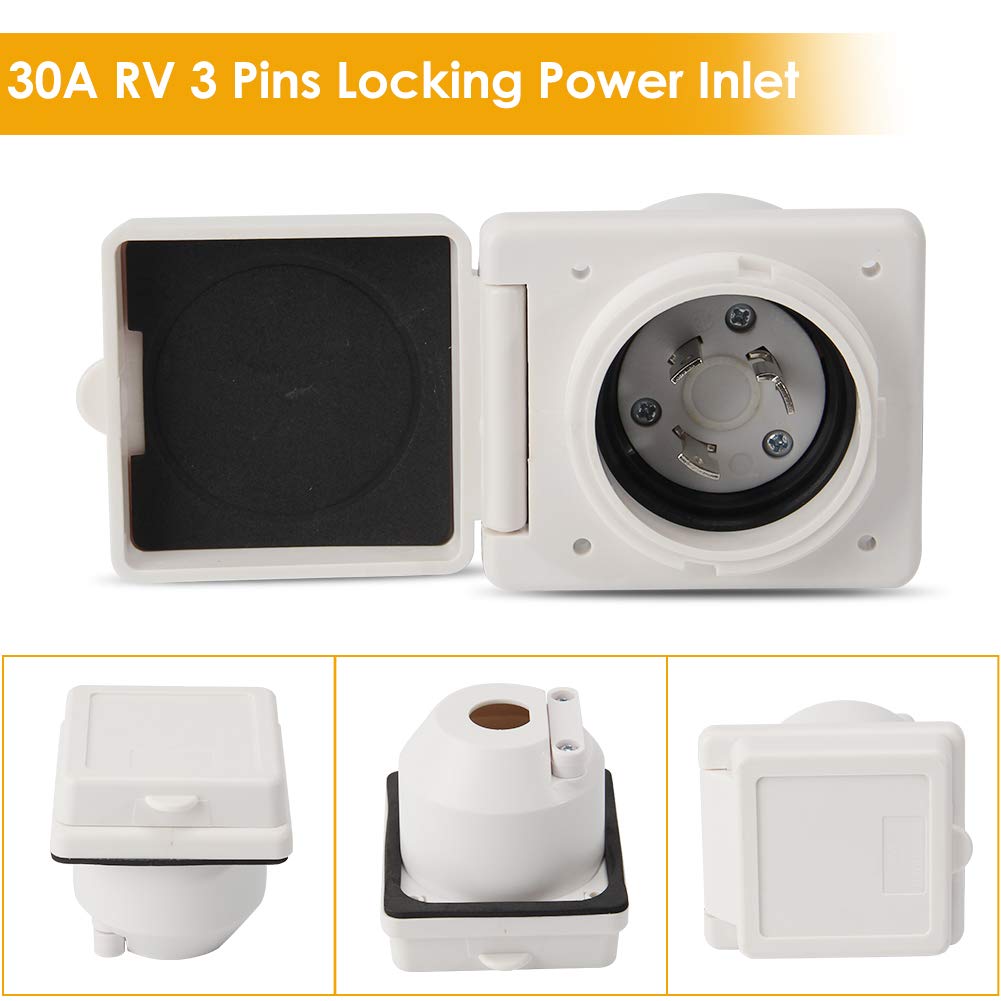

When a trailer or camper needs a fixed connection point for shore power, a loose or unsuitable inlet can make setup awkward. This OPL5 kit pairs a 30A, 125V RV inlet with a female twist-lock connector and a weatherproof boot with a locking ring. The connection locks with a quarter-turn, giving you a defined inlet setup for an RV, trailer, boat or camper. The listing doesn’t describe a complete shore-power cord, so treat this as an inlet kit rather than a full power connection package.

Where it shines

The twist-lock design is the main practical draw: once the connector is seated, it turns to lock into the inlet rather than relying on a straight push-fit. That can suit a camper or trailer where you want the connection to stay secured during ordinary setup and use. For example, you could connect the shore-power lead at a campsite, turn the plug to engage the lock, then cover the inlet area with the supplied boot when the connection is not in use. The kit is also described for boats, caravans, trucks and yachts, though the right installation depends on the vehicle and its electrical setup.

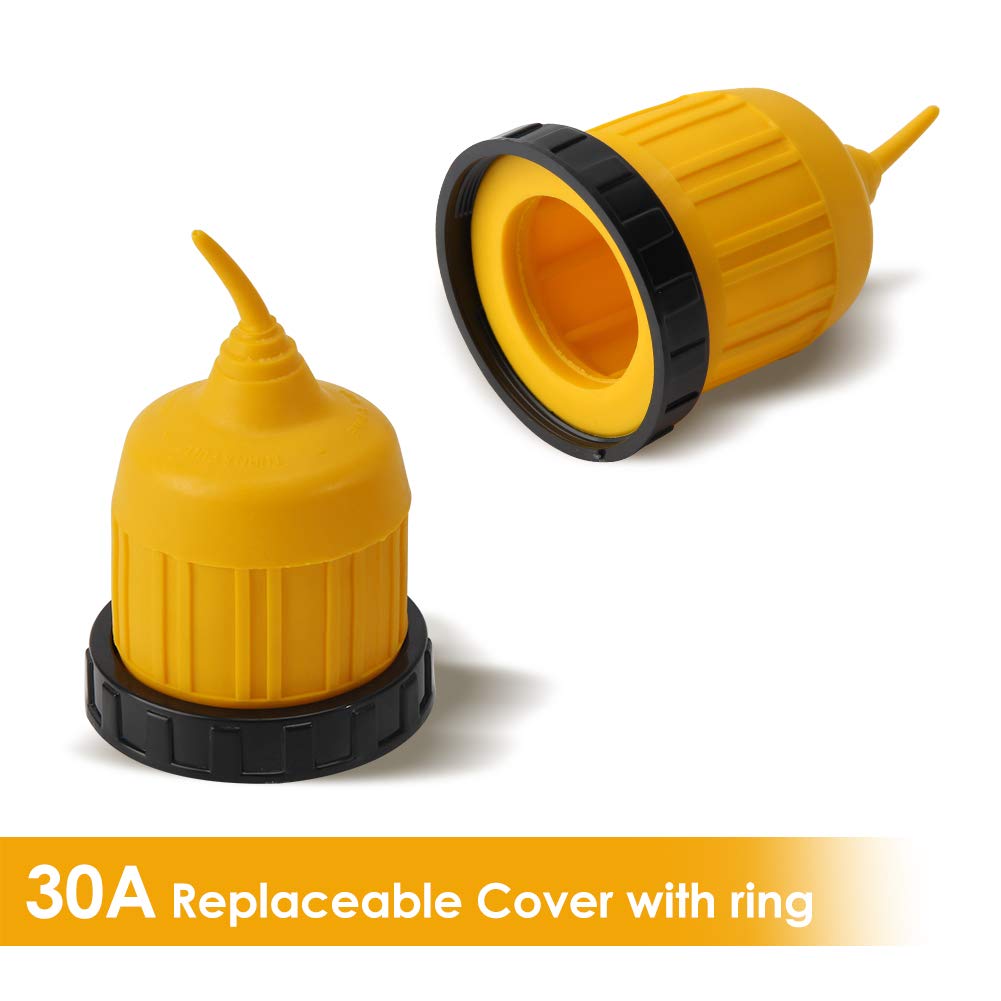

The inlet is made from heavy-duty PVC, and the boot has a locking ring. The product description also presents the boot as weatherproof and resistant to corrosion and wear, without having tried it, those are claims to weigh against the conditions where you plan to use it. It makes sense if you need a replacement or new 30A inlet assembly with a twist-lock connection. If you prioritize a simple fixed connection, this style may suit, if you prefer a ready-to-use complete cord set, look for a package that explicitly includes the cable as well.

What to know

This is specified for 125V AC and 30A, with three conductors identified as load, neutral and equipment ground. The base description gives black for load, white for neutral and green for ground, but its installation notes also refer to red and other wire labels. That inconsistency matters: don’t rely on colour alone when wiring it. Confirm the actual markings and instructions for the specific unit, and have a qualified person handle installation if you are not confident working with mains power.

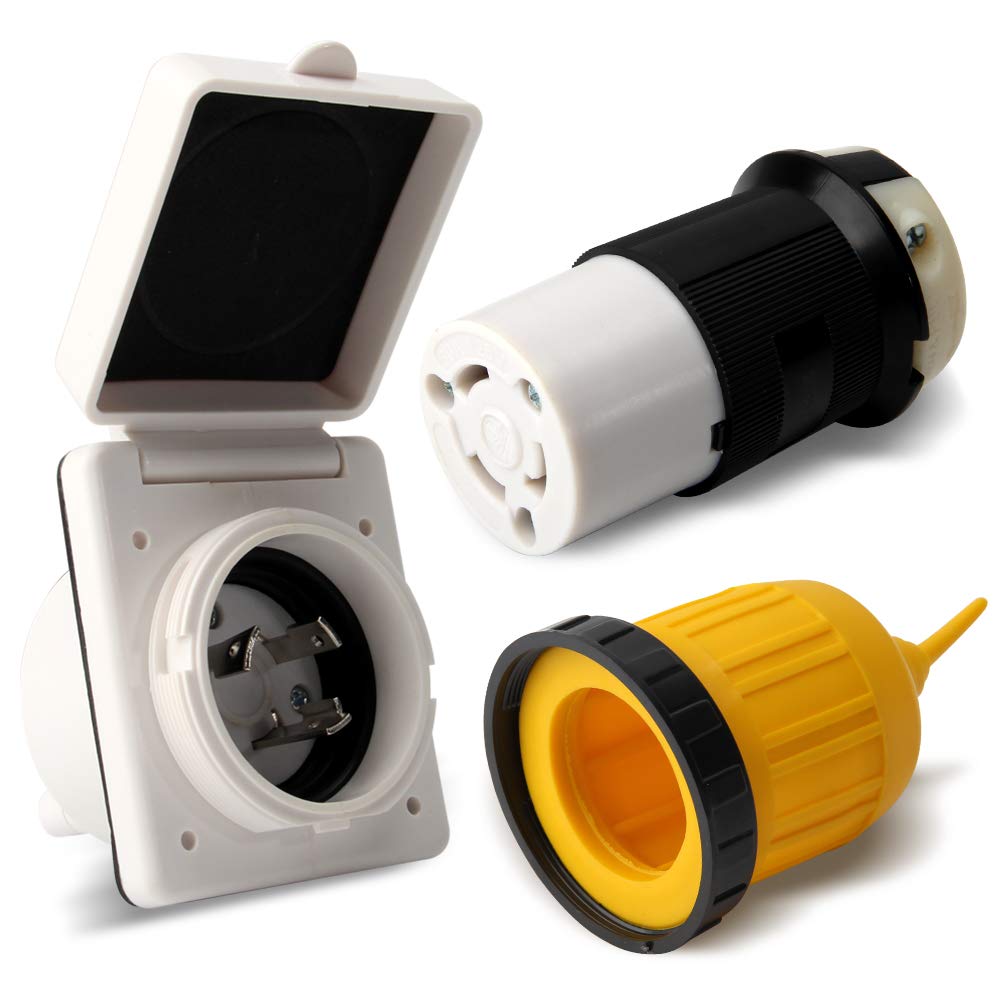

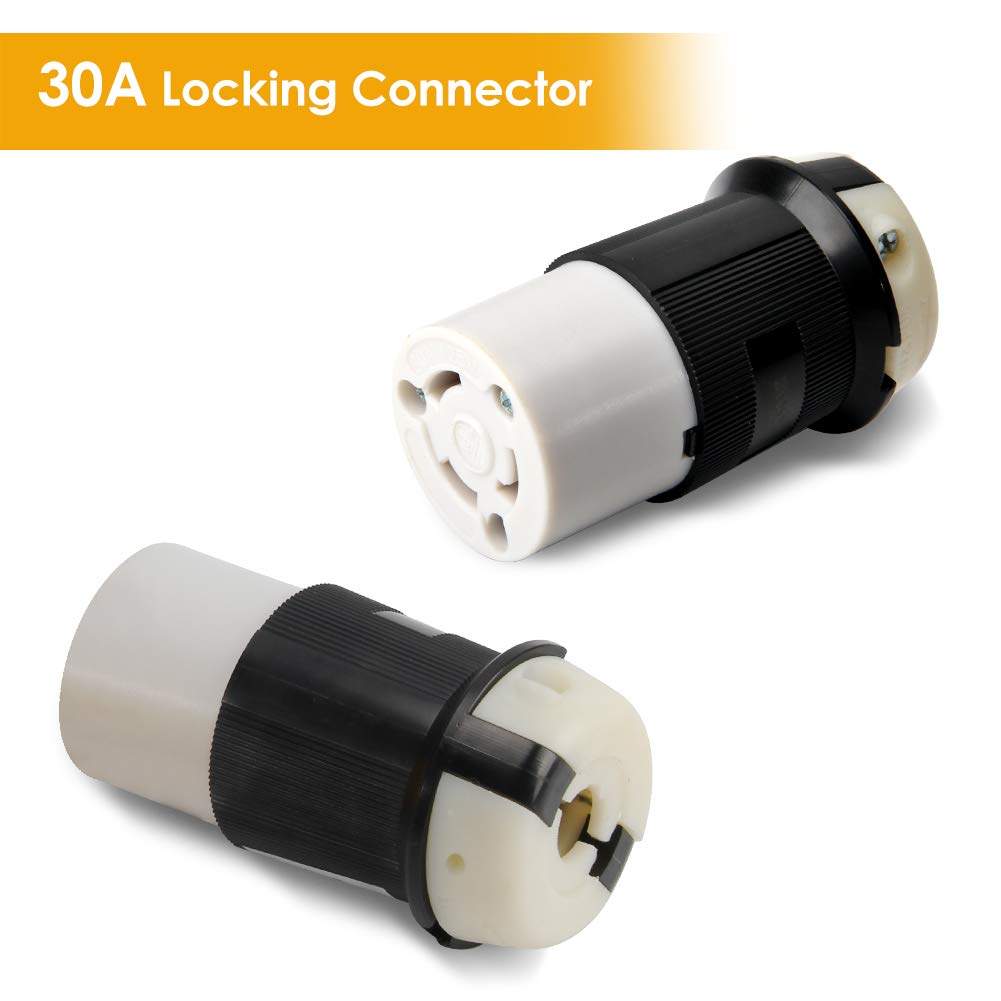

The supplied parts are the inlet receptacle, female twist-lock connector, weatherproof boot and locking ring. A 2.5-inch hole saw is specified for installation, so the mounting location and available space need to suit that opening. The listing doesn’t provide dimensions beyond this cut-out reference, nor does it explain mounting depth or compatibility with a particular RV model. No dedicated fit claim for a specific vehicle is given.

Best use cases

This kit is aimed at replacing or adding an inlet where a 30A, 125V twist-lock setup is appropriate. It may be useful for an RV, camper, trailer or boat project when the mounting surface can accept the specified opening and the existing electrical system matches the stated rating. No es para ti si you need a complete shore-power lead in the same package, or if your installation calls for a different electrical rating or connector style. The listing states a one-year warranty, but gives no further detail here about coverage or exclusions.

The bottom line

Choose this OPL5 kit when you specifically need a 30A, 125V female twist-lock inlet assembly and its boot and locking ring, and you can verify the wiring and fit for your installation. Its useful distinction is the locking connection and weatherproof cover, not an all-in-one power setup. If you can’t confirm the conductor connections or the opening will not suit your mounting surface, pause before buying and choose an inlet with clearly documented fit and wiring details.
