AuInLand battery quick connector kit, 1/0 gauge
Product description
For people who need to disconnect battery power without undoing a fixed connection each time, this AuInLand quick-connect kit is aimed at winches, trailers and other electrical equipment.

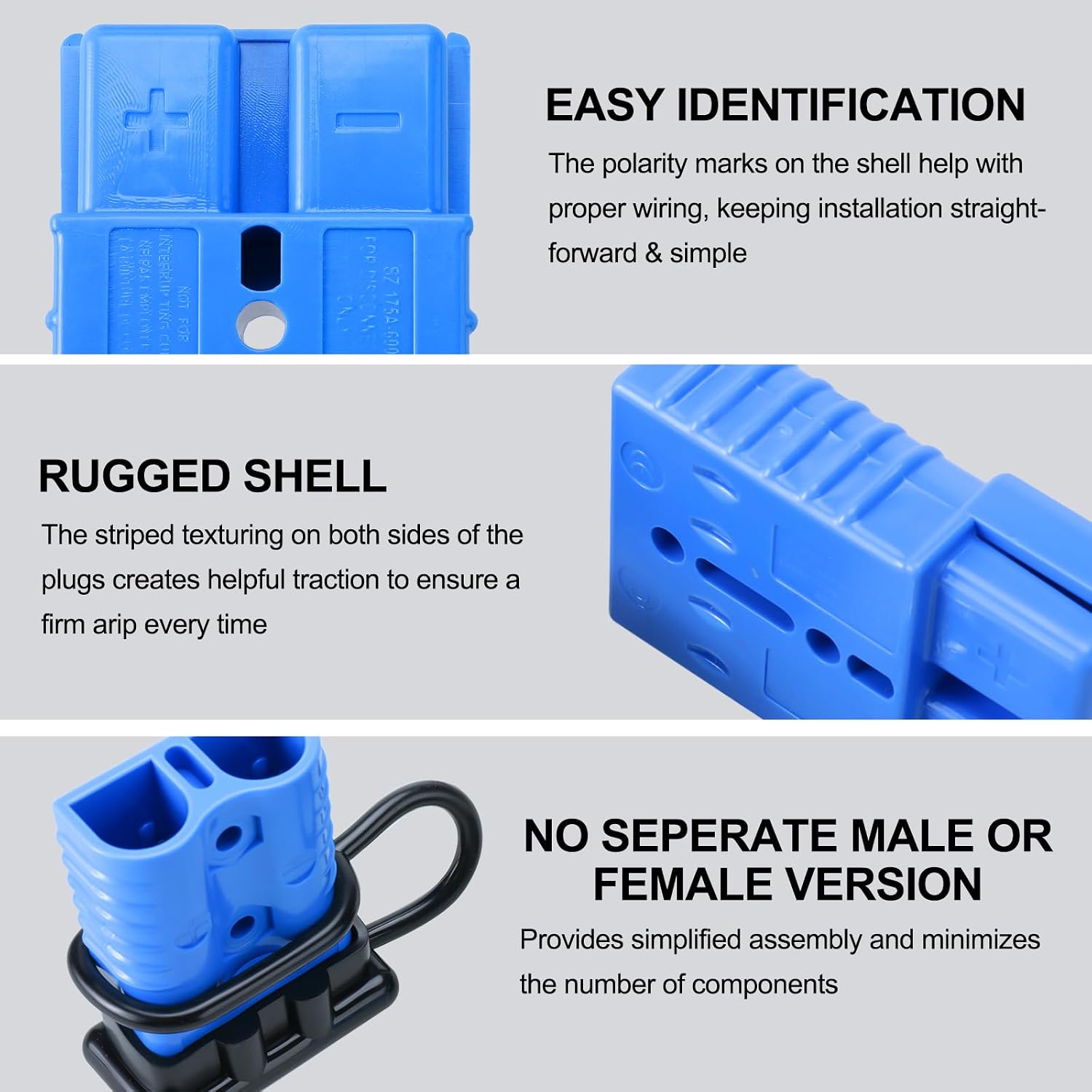

It uses matching connector ends, so either end can go on the power or load side. The housings are marked for positive and negative connections.
The main fit question is the cable: this kit is specified for 1/0-gauge wire and rated at 175 amps. Does that match the wiring and device you plan to connect?
How to use it

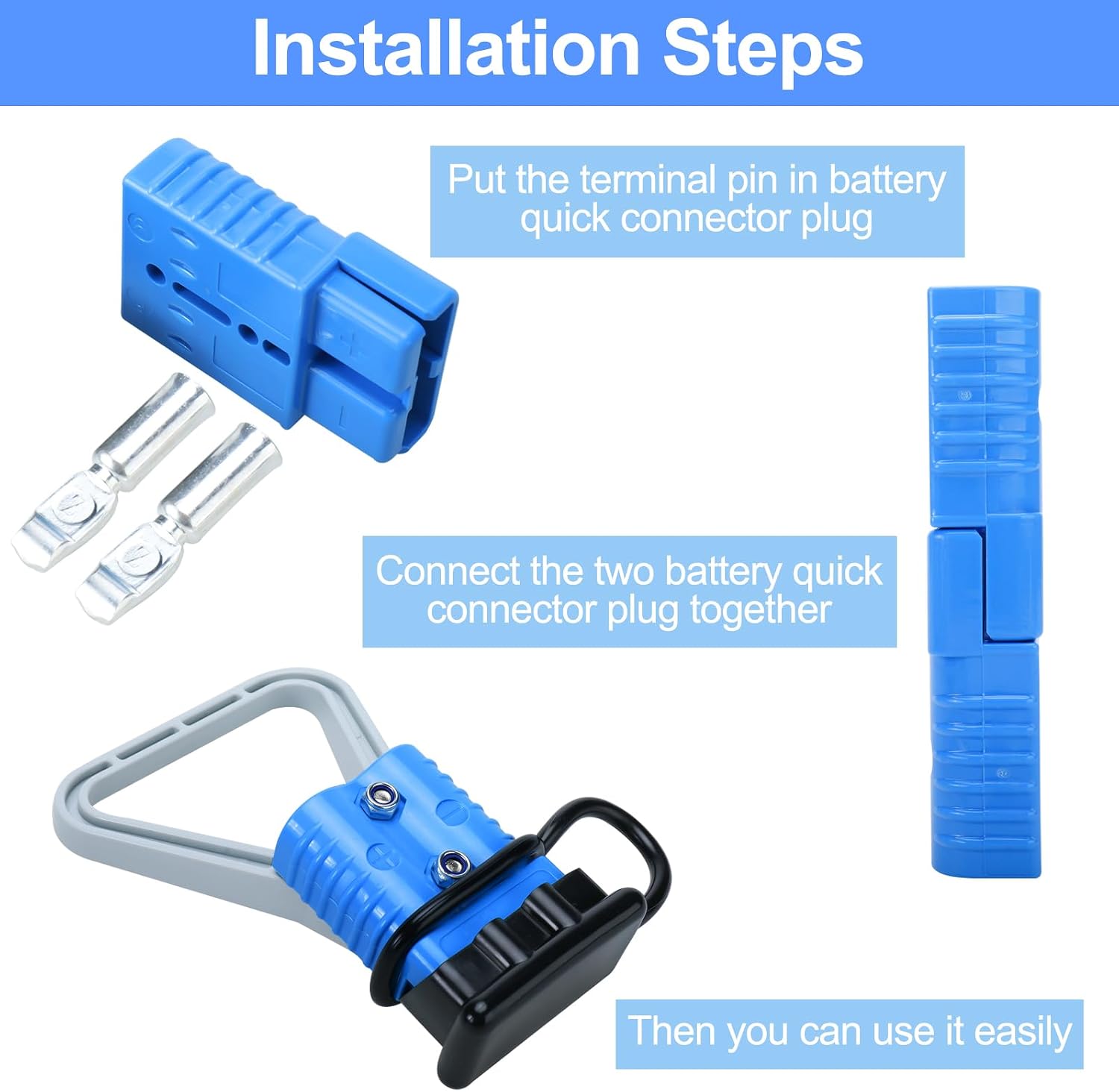

The listed installation process is to insert the wires into the terminal pins, crimp or solder them, then fit the pins into the connector housing until locked. The matching ends avoid having to choose a separate male and female connector, but the positive and negative markings still matter when wiring it up. If you are replacing an existing connection, check the cable gauge and polarity before starting rather than relying on the connector shape alone.
The included handles are intended to help when separating the plugs and reduce strain on the terminals, plugs and cables. For example, on a trailer or winch setup that gets disconnected for storage, the quick connection can make separating the power lead more straightforward than undoing a permanently wired connection. It is a wiring component, though, not a substitute for confirming that the rest of the circuit is suitable for your equipment.
Pros

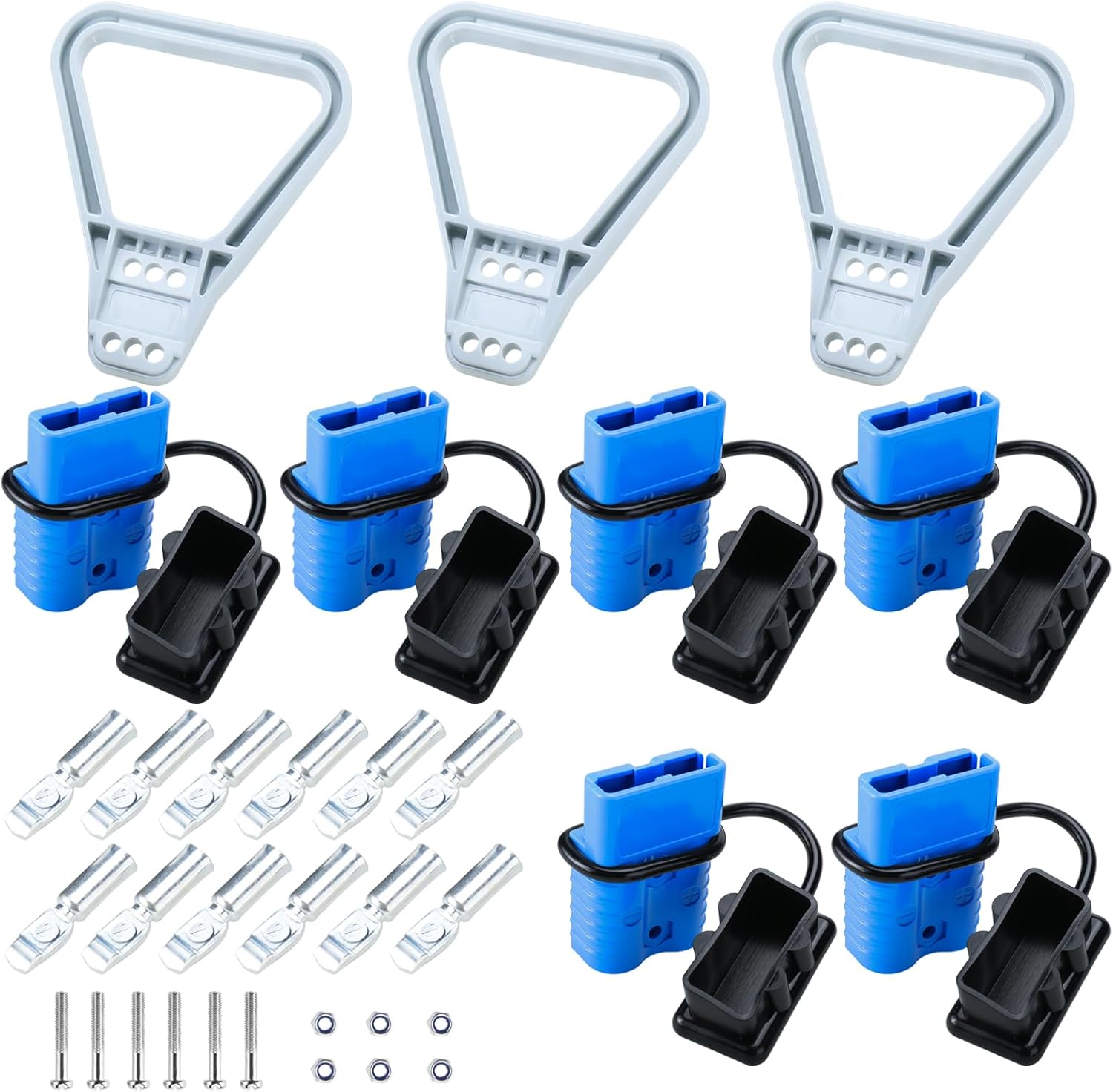

The kit includes six connectors, six covers, three handles and six screw sets. Its specification lists 12 battery terminals, while the product name says six terminal pins, that difference is worth clarifying before purchase if the exact terminal count matters to your build.

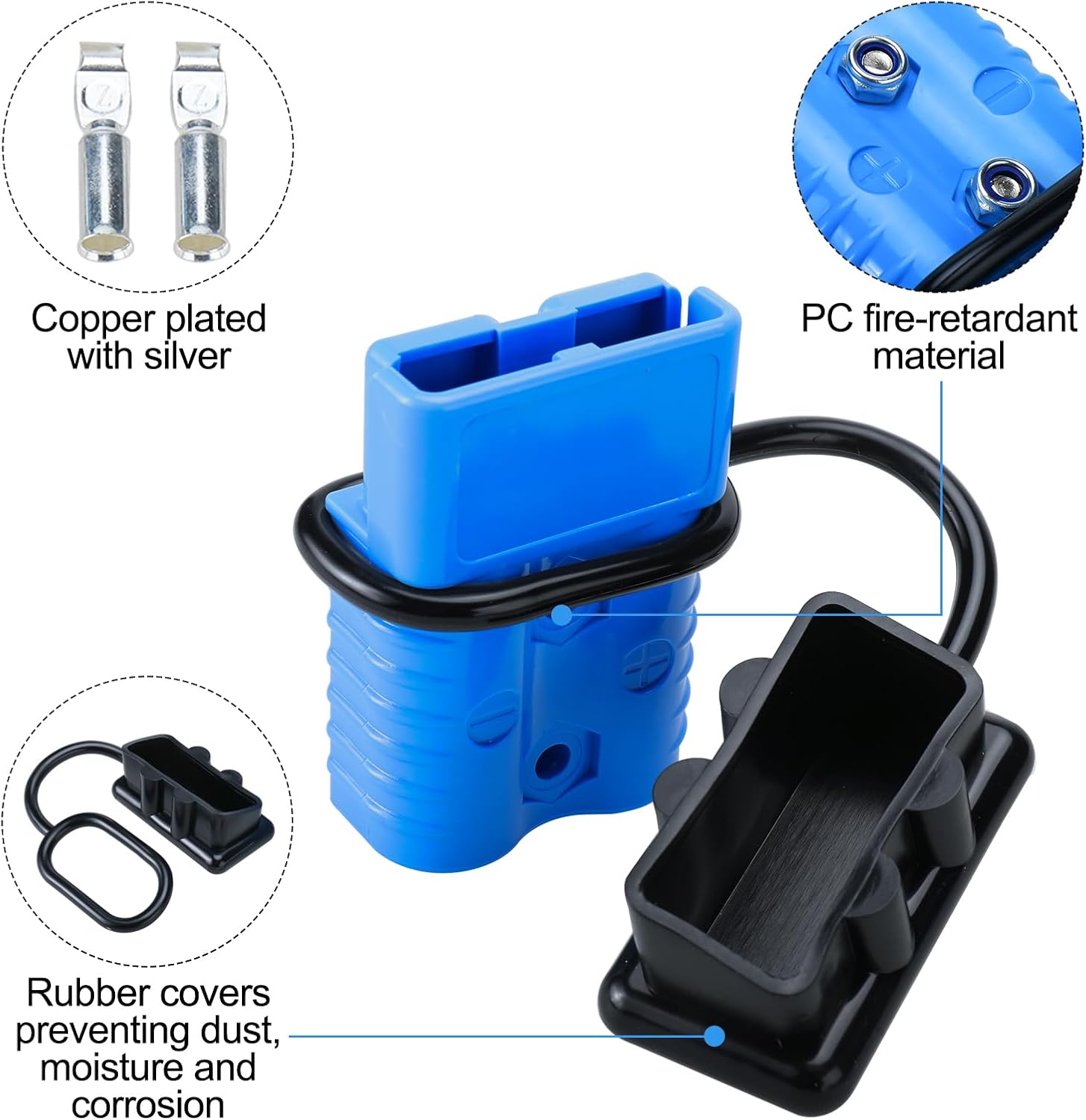

The housings are described as fire-retardant PC, with a UL 94 V-0 flammability rating and an operating temperature range of -20℃ to 105℃. Rubber boot caps are included to help keep dust and moisture away from the connection. The terminals are silver-coated copper, which the listing identifies as conductive.
A 175-amp rating and 600-volt rating are provided, but these figures alone do not confirm suitability for every vehicle or electrical setup. Encaja contigo si you need a removable connection for a compatible 1/0-gauge cable and value having covers and handles in the kit. Compared with a basic fixed cable connection, the practical benefit is easier separation, a fixed connection may make more sense where disconnection is rarely needed.

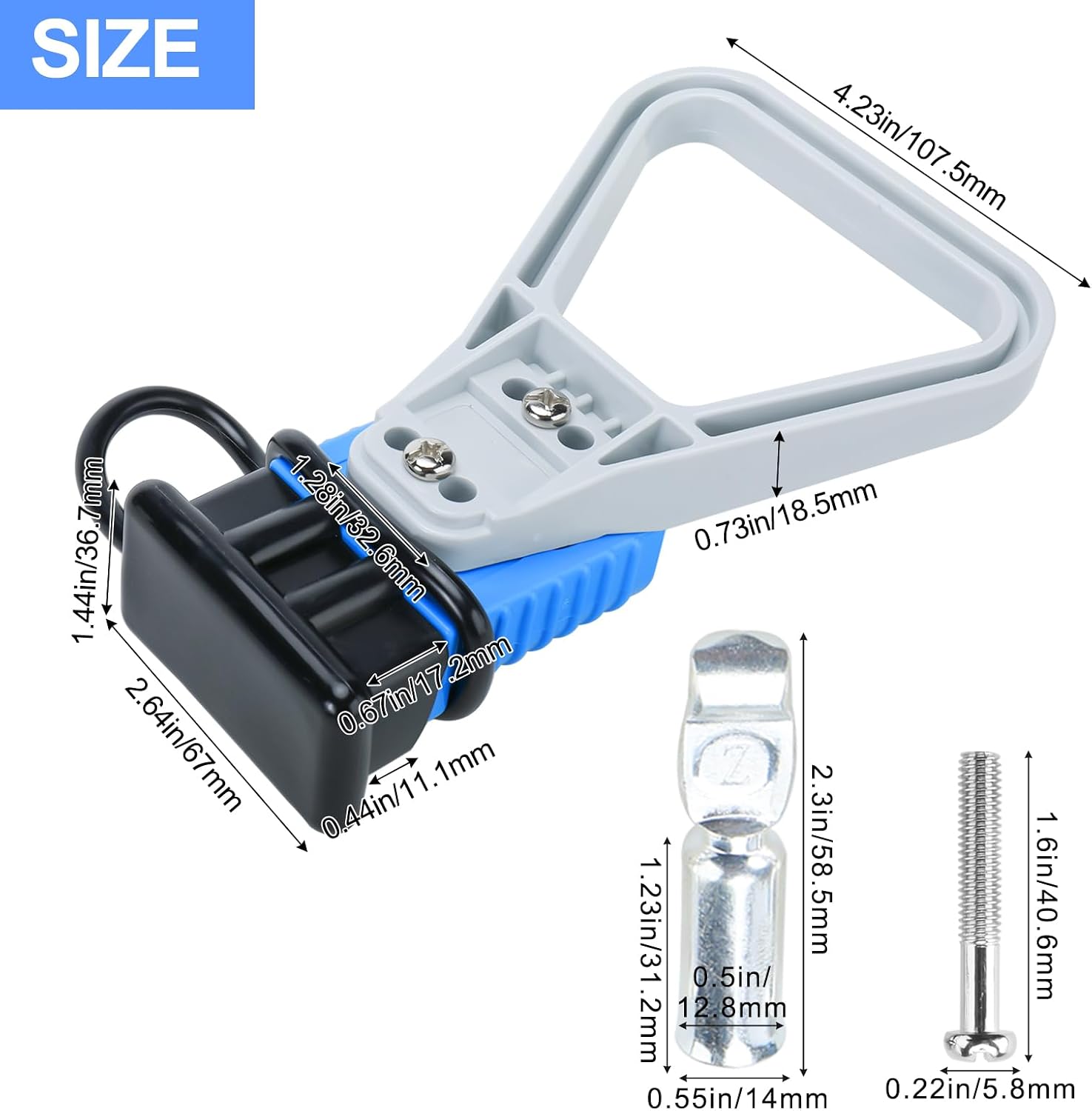

Spec sheet
- Type: Battery quick-connect kit
- Wire gauge: 1/0

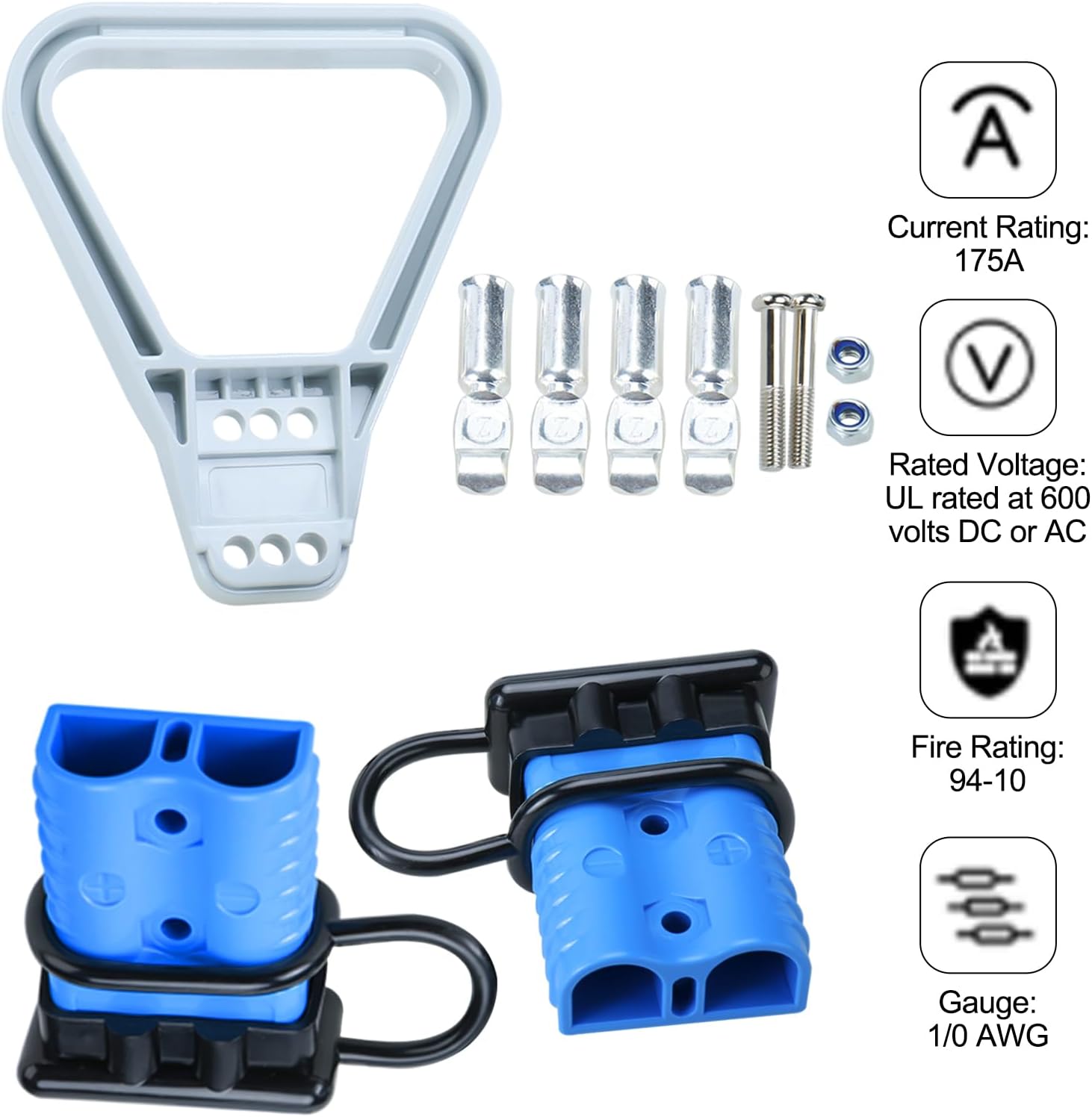

- Rated current: 175 amps
- Rated voltage: 600 volts
- Housing material: Fire-retardant PC
- Terminal material: Silver-coated copper
- Temperature range: -20℃ to 105℃
- Package listing: 6 connectors, 12 battery terminals, 6 covers, 3 handles and 6 screw sets
The listed applications include winches, power inverters, solar setups, trailers, forklifts, golf carts, tractors, lawn mowers, electric wheelchairs and other battery-powered equipment. That range is broad, but the listing does not identify specific vehicle models or provide installation dimensions. No te compensa si your cable is not 1/0 gauge, or if you need confirmed fitment for a particular device before wiring it in. Given its design, the kit is best treated as a connector set whose ratings and wiring details need to match the rest of the system.
What I’d decide
I’d consider it for a battery setup where a 1/0-gauge quick disconnect would make routine removal more convenient, especially for a winch or trailer connection. I’d pause if the cable size, terminal count or fit with the device is uncertain: the listing gives useful electrical ratings, but not model-specific compatibility. Check those details first, then follow the polarity marks and secure the terminals as described.
