LXun DA63-06542B Refrigerator Door Gasket, EPDM Rubber, Black
Product description
The EPDM rubber gasket and reinforced internal magnetic strip are designed to provide a replacement seal for compatible Samsung French-door refrigerators. Its black finish and 39 x 16.73 in size make it a specific replacement part for restoring the door’s sealing surface.
A properly fitted gasket helps limit cold-air leakage and can address issues such as moisture-related ice on the refrigerator’s inner wall. This part is intended for the fresh-food-side door on compatible models, so matching the refrigerator model is an important step when selecting a replacement.
Need to replace a worn door seal without changing the refrigerator? This gasket offers a focused repair: remove the old seal, clean the frame, and fit the new gasket around the door.
Getting the most from it
Before installation, lay the gasket flat and smooth out any folds. If a crease remains, the manufacturer recommends laying it flat in the sun for three hours, soaking it in 80°C water for one hour and allowing it to dry thoroughly, or gently warming it with a hair dryer. Use care with hot water and heated tools.

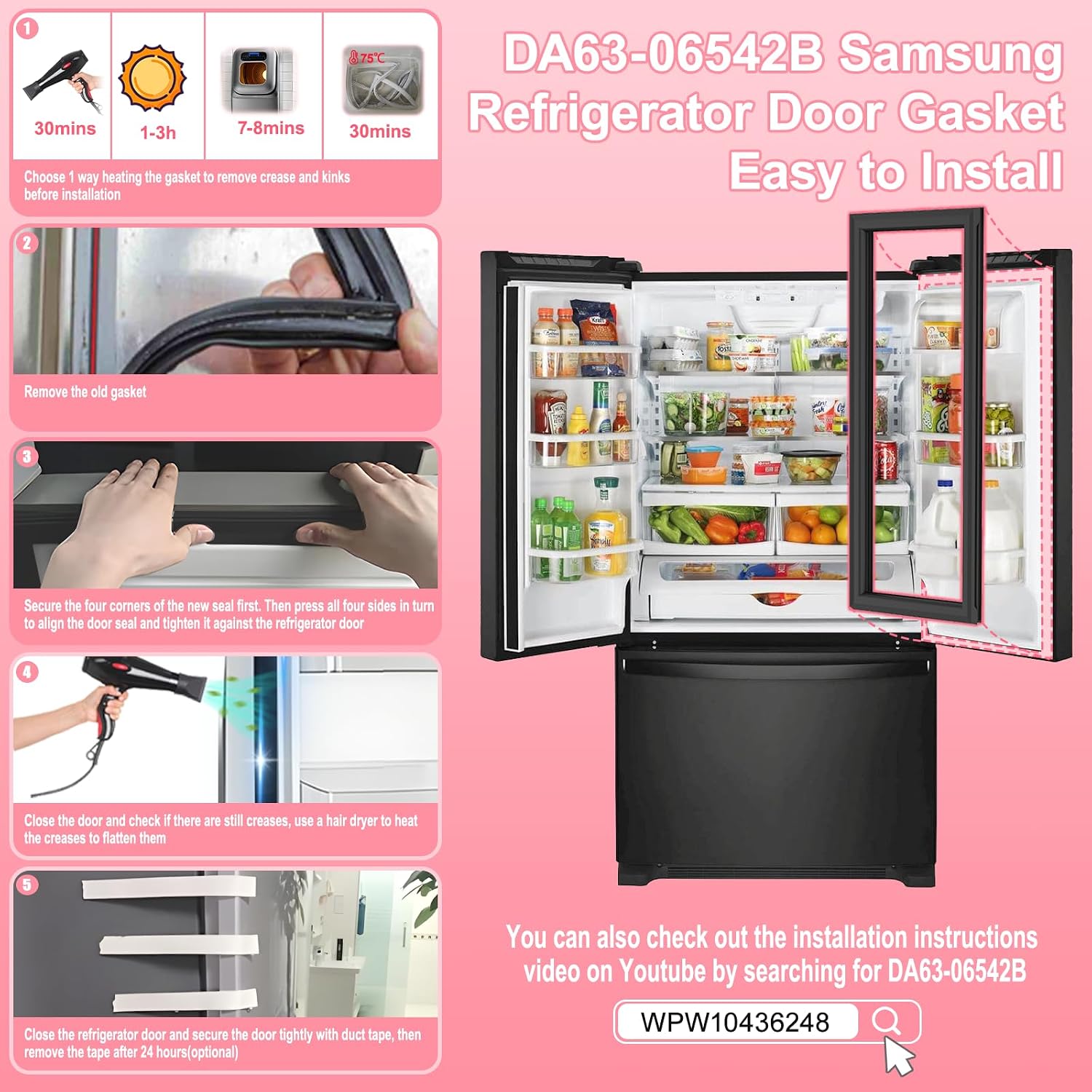

To install, remove the old gasket and clean the door frame. Position the replacement by securing its four corners first, then press the sides into place. If needed, tape can be used to hold the refrigerator door closed for 24 hours after installation. This step is optional.

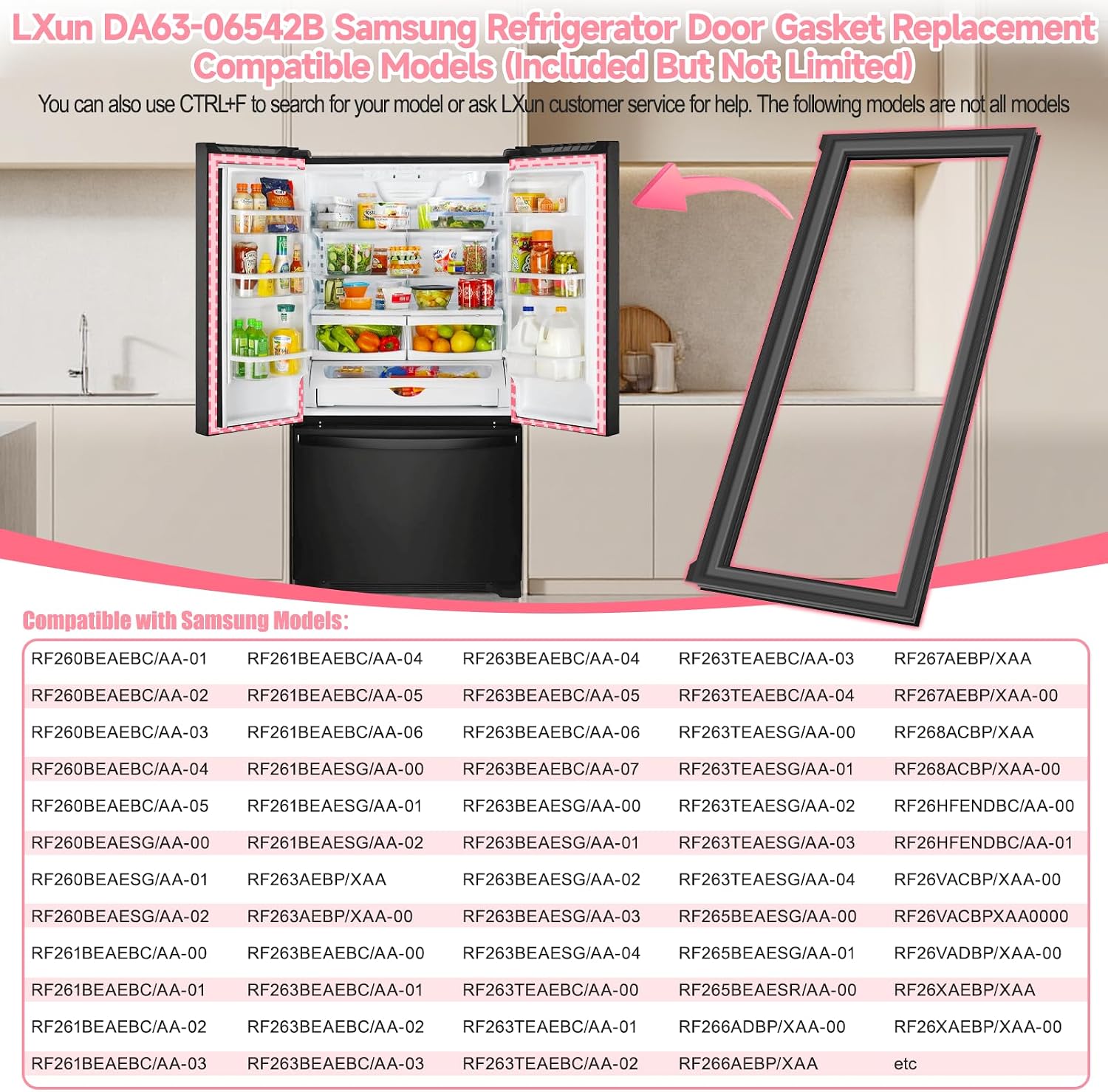

The gasket is listed for a range of Samsung French-door refrigerators, including selected RF260, RF261, RF263, RF265, RF266, RF267, RF268, RF26H, RF26V, and RF26X models. Check the full model number on the refrigerator against the compatible model list before ordering, a similar-looking model name alone does not establish fit.
Technical overview
- Type: Refrigerator door gasket
- Model: DA63-06542B
- Material: EPDM rubber
- Color: Black
- Dimensions: 39 x 16.73 in (98cm x 42.5cm)
- Compatibility: Selected Samsung French-door refrigerator models, fresh-food-side door

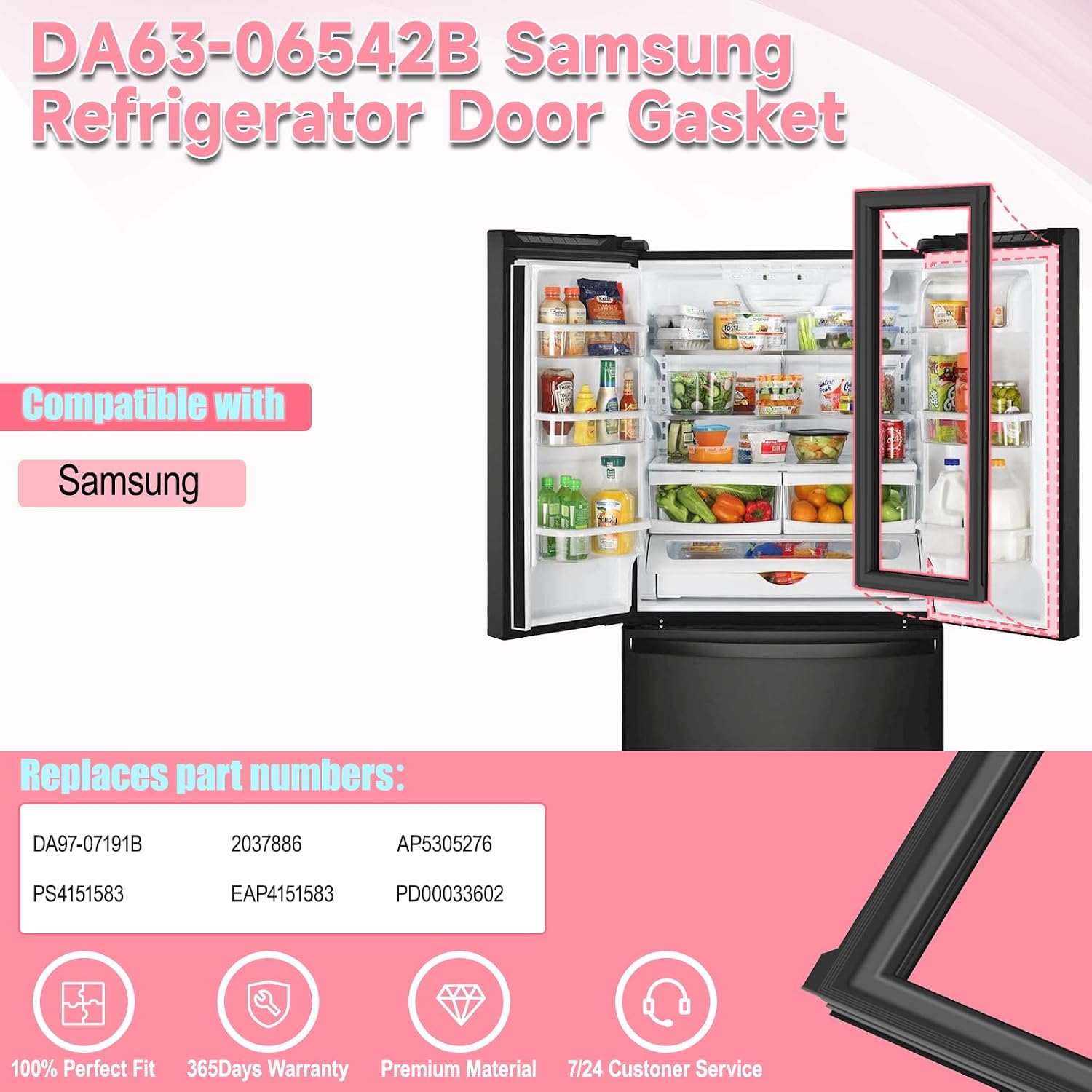

- Compatible part numbers: DA97-07191B, 2037886, AP5305276, PS4151583, EAP4151583, PD00033602
- What’s included: One DA63-06542B refrigerator door gasket
What stands out

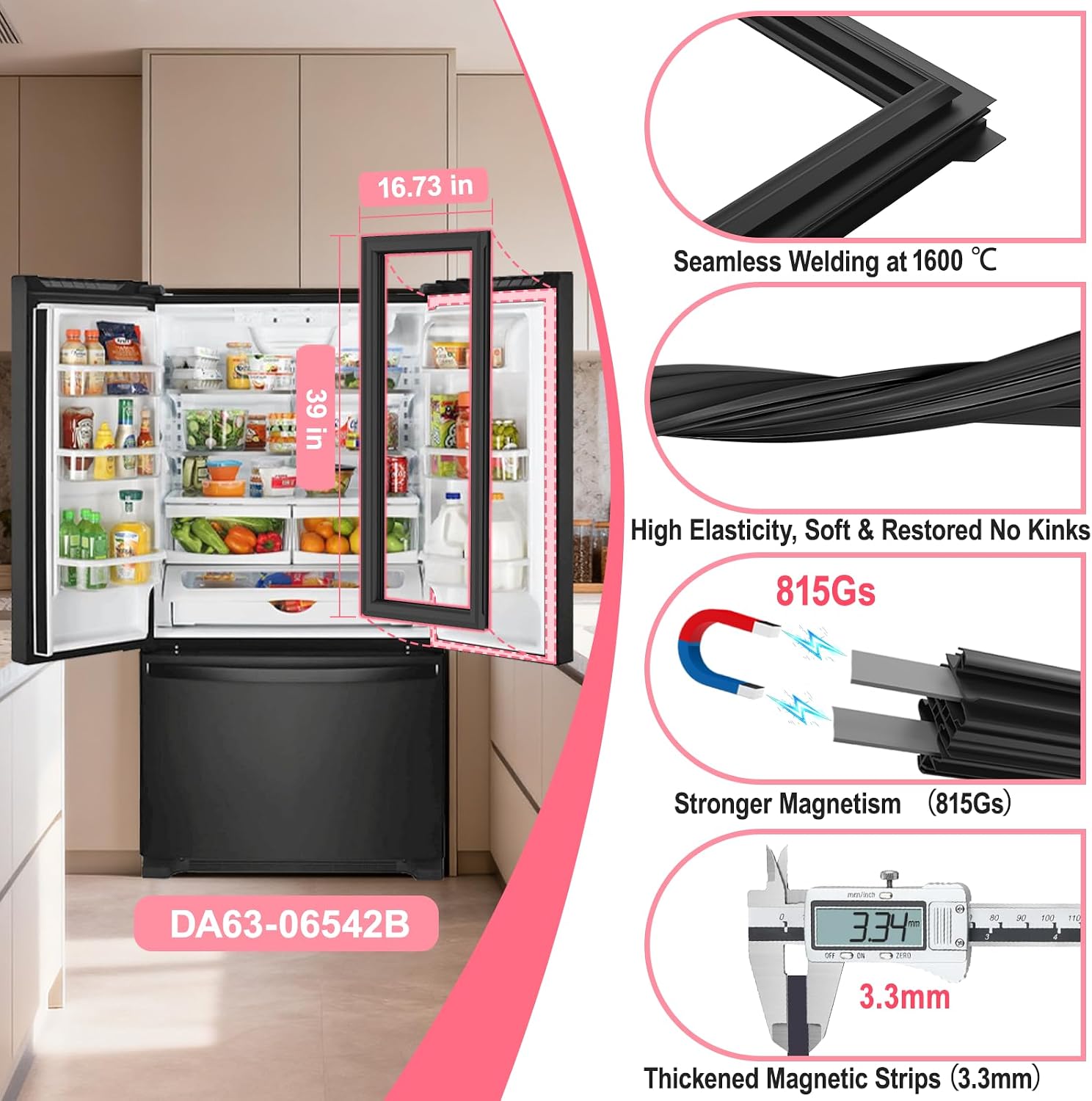

This replacement combines a flexible EPDM gasket with a thickened, reinforced internal magnetic strip. That construction is designed to help the seal adhere to the refrigerator door when installed on a compatible model. The practical difference from a universal, trim-to-fit approach is that this part is identified by a specific gasket model and a set of compatible refrigerator models and replacement references.
For a typical repair, the work centers on the door frame rather than the refrigerator’s internal components: clean the mounting area, seat the corners, then press along each side. Taking time to smooth the gasket before fitting it helps the replacement sit more evenly around the frame.
Practical questions
Which refrigerator models is this gasket listed for? It is compatible with selected Samsung French-door models, including examples such as RF260BEAEBC/AA, RF261BEAESG/AA, RF263BEAEBC/AA, RF263TEAESG/AA, and RF265BEAESG/AA. Match the complete refrigerator model number to the compatibility information before purchase.
What material and size is the replacement? The gasket is black EPDM rubber and measures 39 x 16.73 in (98cm x 42.5cm). These details can help identify the intended replacement alongside the DA63-06542B model number.
How should folds be smoothed before fitting? Lay the gasket flat in the sun, use the recommended warm-water method and let it dry thoroughly, or gently apply heat with a hair dryer. Handle hot water and heated tools carefully.
Is it worth it?
For owners of a listed Samsung French-door refrigerator who need to replace the fresh-food-side door gasket, this part brings together a model-specific fit reference, EPDM construction, and a reinforced magnetic strip. Matching the refrigerator model and following the careful corner-first installation process make it a practical choice for a targeted door-seal repair.
