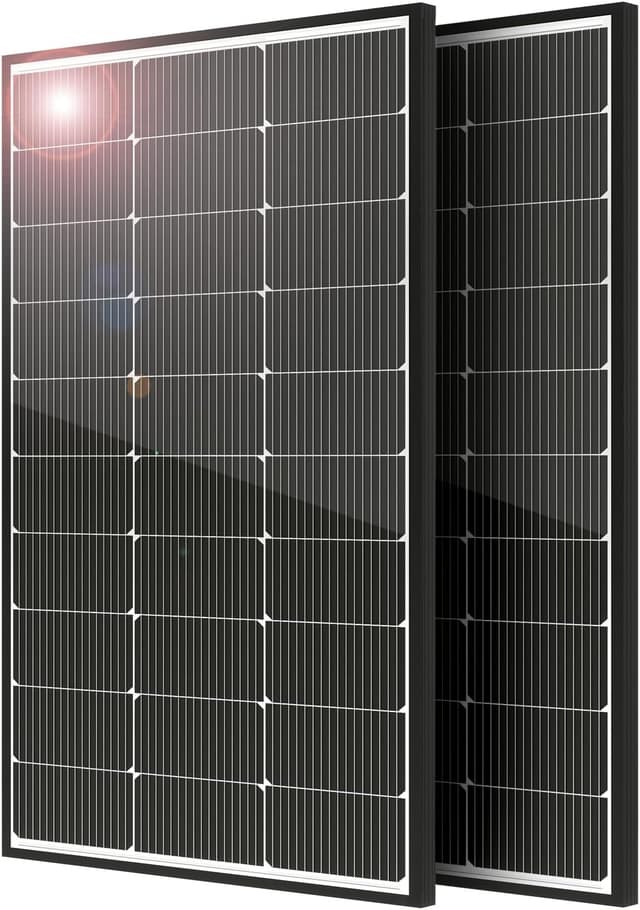

JJN 200W 2×100W N-Type Solar Panel for RVs ☀

This pair of 100W monocrystalline panels forms a 200 watt, 12 volt setup that suits boat roofs, caravans and small off-grid systems where space and weight matter. With N-type cells and a 16-busbar half-cut layout, the modules aim to raise conversion and reduce heat for more reliable energy on the move or at remote sites.

Key Points

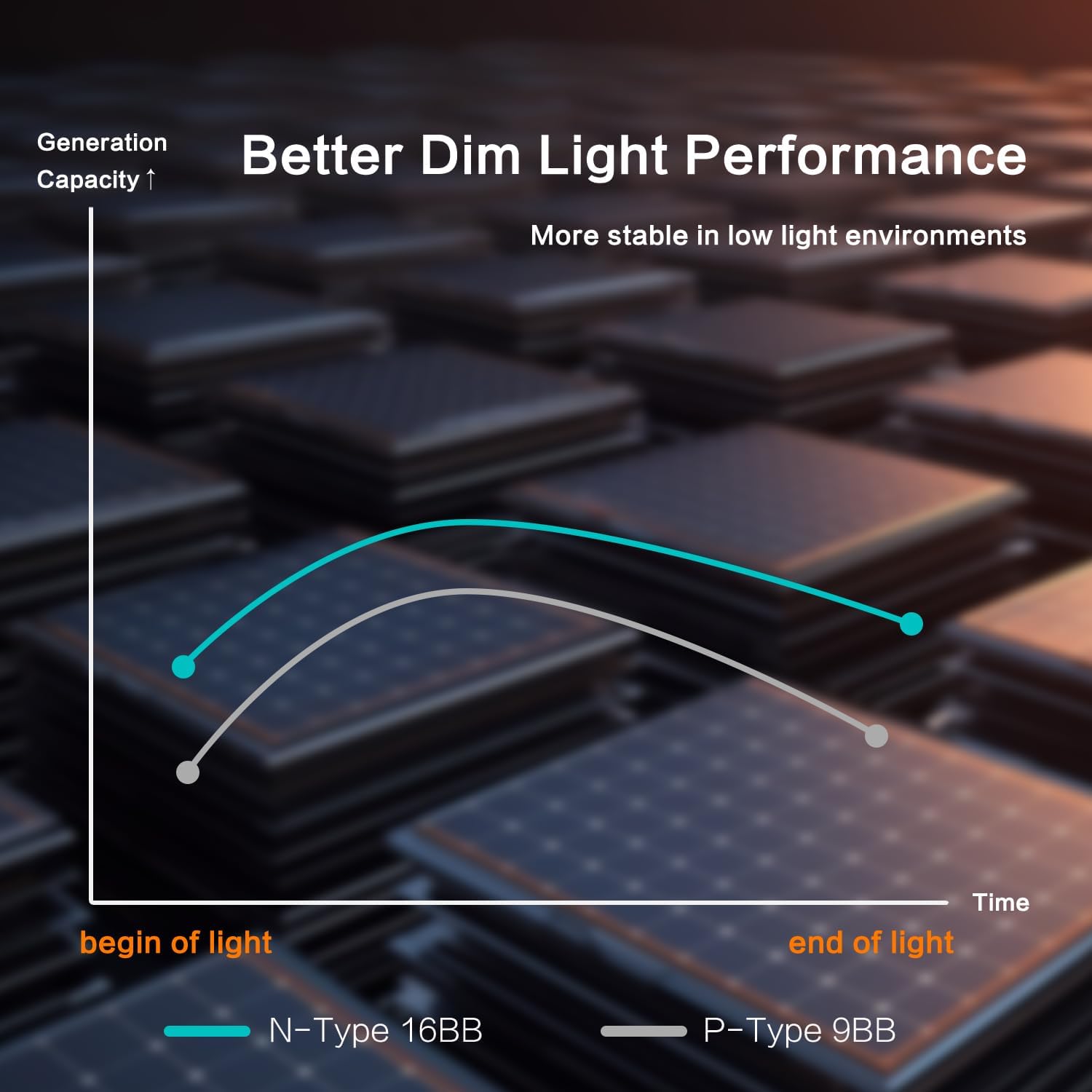

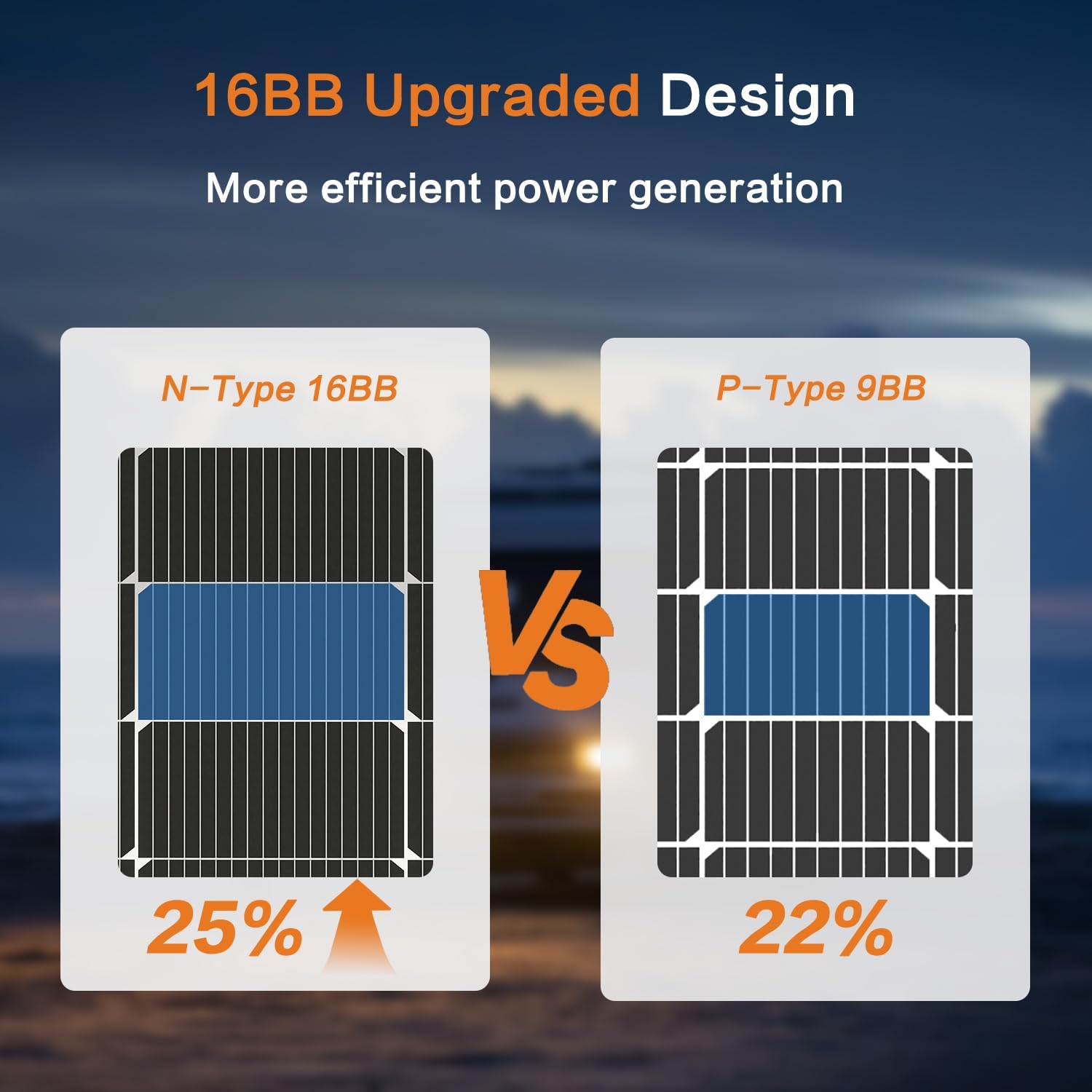

The JJN 200 Watt Solar Panel kit uses N-type solar cells and a 16BB arrangement to improve energy capture and lower degradation over time. According to the manufacturer, conversion can reach up to 25%, which helps when you need maximum output from limited roof area. The panels incorporate half-cut cell technology to reduce resistive losses and to limit the performance impact from partial shading. Mounting is simplified by pre-drilled holes and compatibility with common mount types such as ABS corner mounts, Z mounts, and adjustable tilt mounts. The construction is focused on durability with a corrosion-resistant aluminum frame and weather-rated junction box and connectors.

Technical Specifications

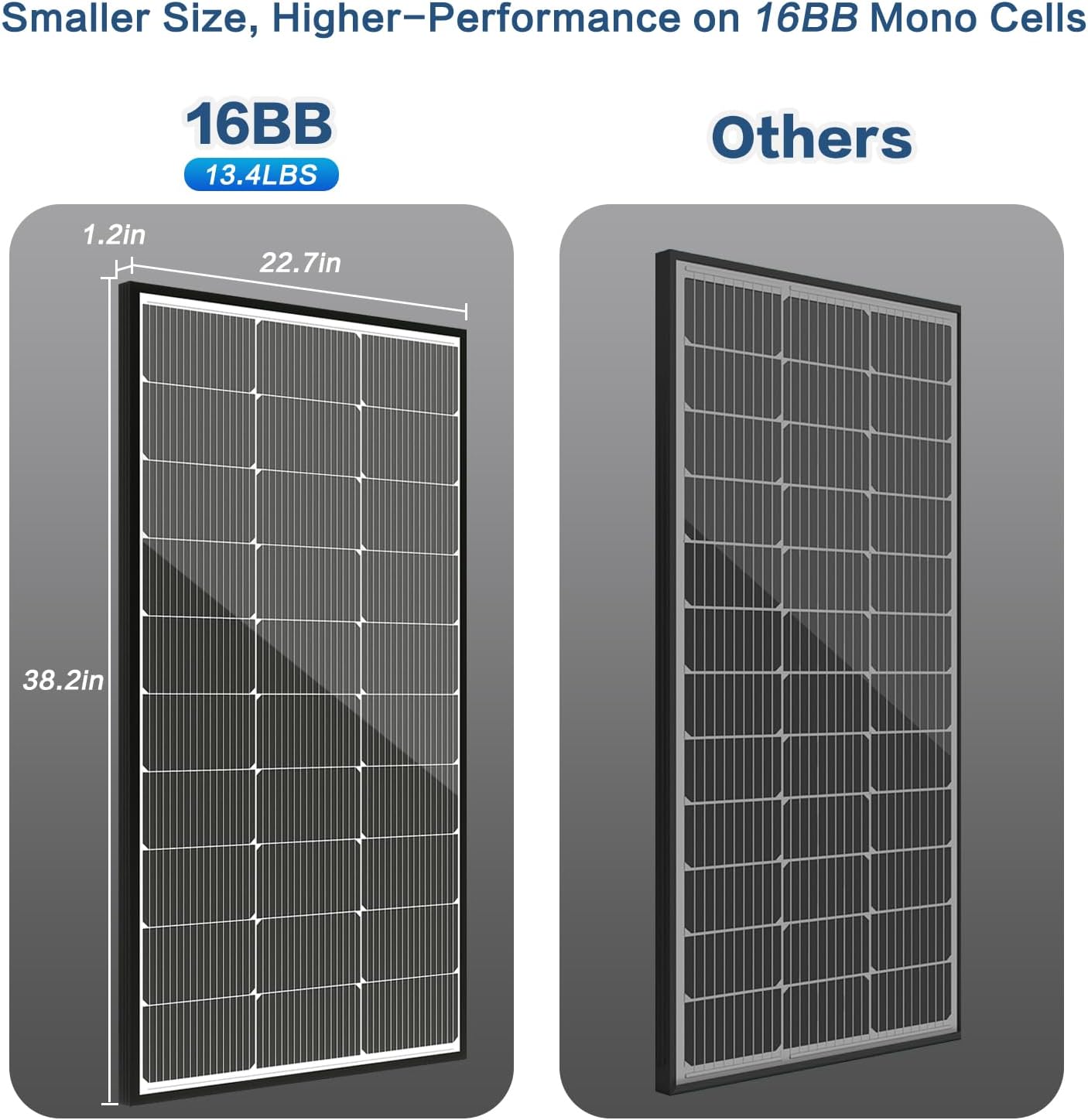

• Name: JJN 200W (2 x 100W) 16BB N-Type solar panels
• Cell type: N-type monocrystalline with half-cut cell design
• Rated power: 200 W total (2 × 100 W) for 12 V systems

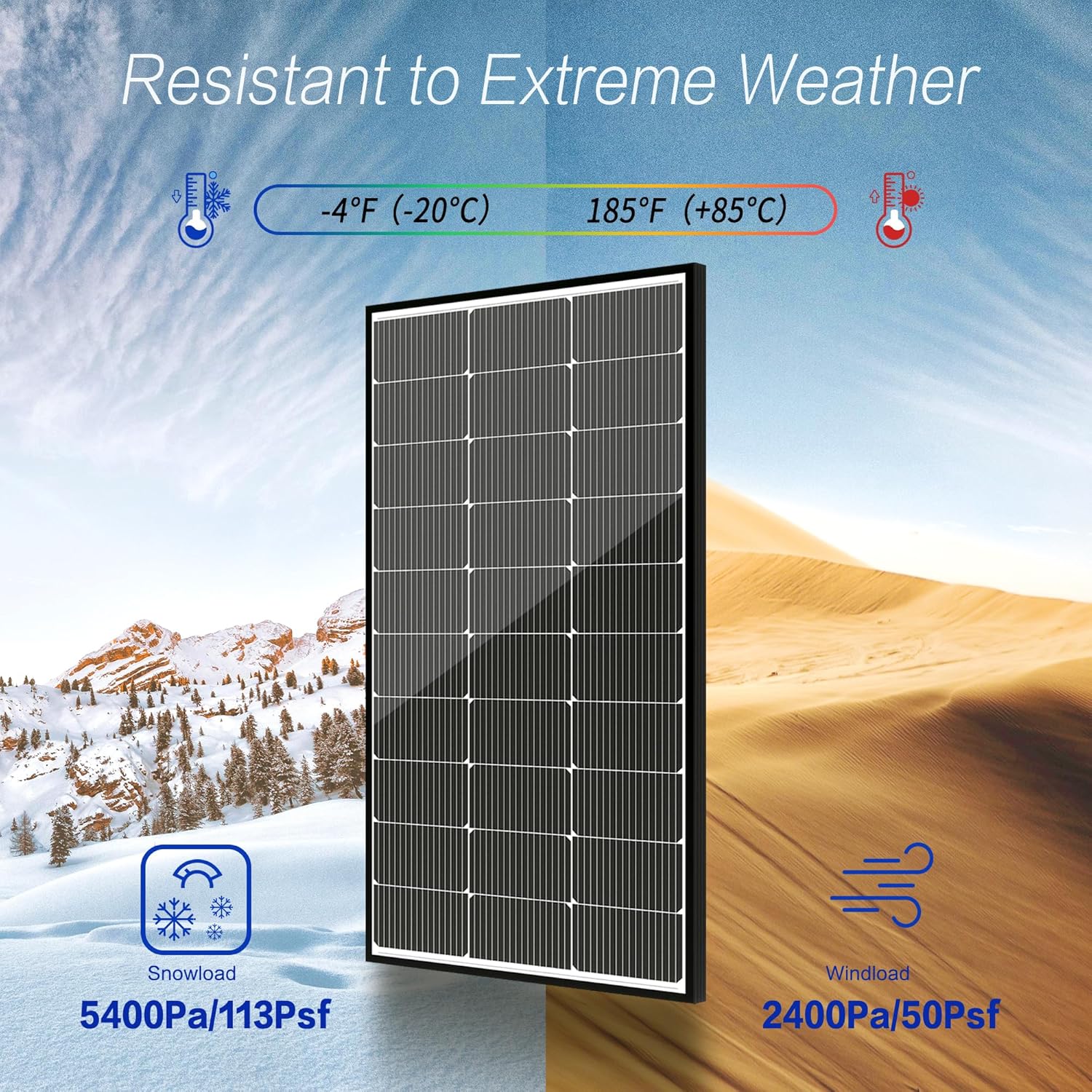

• Durability: Wind load 2400 Pa, snow load 5400 Pa, aluminum frame
• Protection: IP65 junction box and IP67 MC4 connectors
• Warranty: 25-year transferable power output warranty (according to the manufacturer)

Benefits

These panels offer a compact power source that balances efficiency and practical installation features. Lower operating temperature and reduced power loss from the half-cut layout mean more consistent charging for batteries during varied light conditions. The waterproof connectors and robust frame let you place the panels on exposed locations such as a boat deck or caravan roof without frequent maintenance. The long transferable output warranty adds reassurance about long-term performance according to the manufacturer.

Practical Tips

Install the panels where they receive the most consistent sunlight and avoid nearby objects that cast intermittent shade, because partial shading still affects overall output despite the half-cut cell design. For mobile installations, check that the chosen mounting hardware matches the pre-drilled hole pattern to ensure a secure fit during travel. Consider pairing the panels with a 12V charge controller sized for around 200 watts to protect battery health and manage charging efficiently.

Note that the quoted 25% conversion is provided by the manufacturer and real-world performance will vary with temperature, angle, and site conditions.
