Autel PowerScan PS100 Automotive Circuit Tester 2.0 (12-24V) with 20ft Extension Cord

The essentials

If you’re tired of bouncing between a basic test light and a multimeter while chasing electrical gremlins, the Autel PowerScan PS100 is built for quicker, more direct circuit checks. On paper, it’s an all-in-one automotive circuit tester for 12–24V systems, aimed at reducing diagnostic time when you’re dealing with shorts, opens, weak grounds, or circuit signal issues.

What makes it stand out (at least by its design and feature set) is that it goes beyond “is there power?” It includes voltage and polarity awareness, a resistance/continuity-style approach, and a signal/tone mode that helps you interpret what’s happening in a wiring path. It also supports component activation signals—so you can do functional checks on things like lights, motors, wipers, radiator fans, and relays without resorting to jumper-wire chaos.

That said, it’s not a magic wand. If you’re expecting something like full-scope oscilloscope behavior or deep ECU-level diagnosis, this isn’t that. It’s a circuit probe tool and trouble-shooter—useful where you need fast electrical confidence, but it can’t replace higher-end diagnostics when the problem is complex.

Key takeaways (and where it really helps)

The PS100 is essentially a “contact probe + display” workflow. You contact the probe to the circuit and the LCD shows readings, depending on the mode. In practical terms, that can mean spending less time second-guessing your measurements and more time narrowing down what’s open, shorted, or not commanding correctly.

A few areas where it’s especially compelling:

• Circuit tracing for short/open faults: The tool is designed to track shorts and opens, so you can narrow down where the problem likely lives.
• Ground checks: It supports a continuity/resistance-oriented approach and also includes a power-switch method described as helpful for ultra-low resistance ground testing.
• Component activation: Instead of only verifying presence of voltage, it can send activation signals to test whether components respond as expected.

A realistic limitation to keep in mind: some automotive electrical issues are intermittent or caused by software/ECM strategy. The PS100 can show voltage-related behavior (including AC mode details like min/max, frequency, and duty cycle), but it’s still a probe tool—if the symptom depends on very specific conditions, you may still need additional steps.

Modes and what the display is built to tell you

The PS100 includes four advanced modes accessed via a mode button. The core idea is that the screen gives you more context than a simple LED test light.

In DC voltage mode, it reads DC voltage with 0.1 volt resolution. In AC voltage mode, it goes further by showing max/min voltage, frequency, and duty cycle, and it’s described as helping you check the modulation from the ECM to an alternator wire to see whether the ECM is commanding appropriately.

The resistance mode is geared toward continuity and open-circuit diagnosis. By connecting the probe tip and the auxiliary ground lead, it’s described as showing “0.0Ω” on a solid connection (with a green LED), while “OL” indicates an open circuit. There’s also mention of piercing insulation to test without disconnecting wires, which can be handy when you’re working under constraints—but obviously you’d still want to be careful and deliberate.

Finally, the tone mode can indicate on/off status. There’s even a note about turning the tone off to avoid ear interference from noise during testing.

Component activation: faster functional checks (when you want action, not just readings)

One of the most “buy it for a reason” features here is the component activation function. The PS100 is described as activating components in different ways (on the vehicle with ground) and generating signals that help judge whether parts like lights, motors, wipers, radiator fans, and relays are likely good or not.

This is where the PS100 can save time: instead of only measuring whether a circuit looks alive, you can test whether the downstream component actually behaves. The tool also emphasizes that no jumper wires are required for this process, which is a real comfort factor when you’re trying to keep troubleshooting safer and more repeatable.

What you’ll notice day to day

In a garage setting, the workflow is straightforward: you pick a mode, contact the probe and ground as instructed, then interpret the LCD and LED cues. The inclusion of polarity LEDs (red/green) and extended data display in AC/DC/resistance-style tests can help you avoid common “I think it’s working” moments.

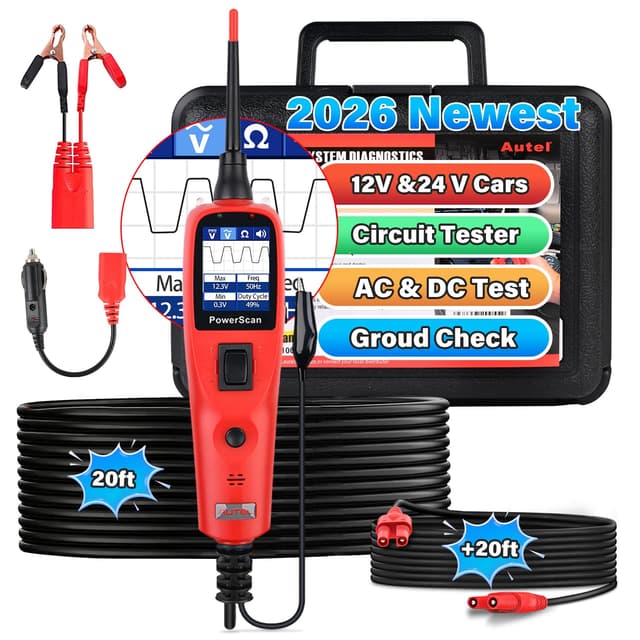

The 20ft extension cord is also practical. Depending on where you’re testing (engine bay vs. more remote harness sections), extra reach can reduce repositioning and help you keep the tool stable while you read.

Who it’s for (and who should think twice)

It makes sense if you’re the kind of DIYer or shop user who frequently deals with vehicle electrical faults and wants faster circuit isolation than relying on a basic test light or constantly switching between separate tools.

It may not be the best match if your work requires deeper wave-form analysis, complex diagnostics that go beyond circuit probing, or if you primarily troubleshoot purely mechanical problems that don’t involve wiring or electrical faults.

Also, keep expectations realistic: “compatible with 99% of vehicles” and the presence of technical support are helpful claims, but compatibility still depends on the scenario and how you apply the tester to the circuit in front of you.

Tech specs

• Name: Autel PowerScan PS100 Automotive Circuit Tester 2.0
• Type: Automotive electrical circuit probe tool
• Format: AC/DC voltage + resistance + component activation + signal/tone test modes
• Size: Not provided
• Weight: Not provided
• Power range: 12–24V vehicle electrical systems (listed as 6–30V in the base description)
• Display: LCD (with LED cues described)
• Cable length: 20ft extension cord (described as 20ft+20ft cable in the provided text)

Care and maintenance

No specific cleaning or maintenance instructions were included in the provided details. As a general rule for electrical testers, it’s smart to keep probes protected, avoid forcing contact on delicate wiring, and follow typical safe handling practices so the tip and leads stay reliable over time.

Is it worth it?

The Autel PowerScan PS100 is worth considering if you want an all-in-one circuit tester workflow that covers DC/AC voltage insight, resistance/open-circuit indication, signal-focused testing, and component activation—things that can meaningfully speed up electrical troubleshooting.

You may want to skip it if your diagnostics don’t involve wiring/circuit faults often, or if you expect advanced instrumentation beyond what a circuit probe can reasonably deliver. In other words: for circuit tracing and practical functional checks, it looks like a solid tool, for deeper debugging, you’ll likely still need more specialized approaches.

Mini FAQ

How does the PS100 help with open circuits?

In resistance mode, the tester is described as showing “OL” to indicate an open circuit, and “0.0Ω” for a solid connection when the probe tip and auxiliary ground lead are properly connected.

Can it test ground quality?

Yes, it’s described as supporting ground checks, including a power-switch method noted as useful for ultra-low resistance ground testing.

Does it only test voltage?

No. It’s designed to handle multiple tasks: voltage (AC/DC), resistance/continuity-style checks, signal testing, and component activation based on activation signals.

What vehicles is it compatible with?

The provided information claims compatibility with 99% of vehicles, but no exact vehicle list or exclusion details were included.

What’s the limitation to watch out for?

If you need deep, high-level electronic analysis (beyond circuit-level probing) or the issue is highly intermittent and condition-dependent, you may still need additional diagnostic steps outside what this tester can provide on its own.
