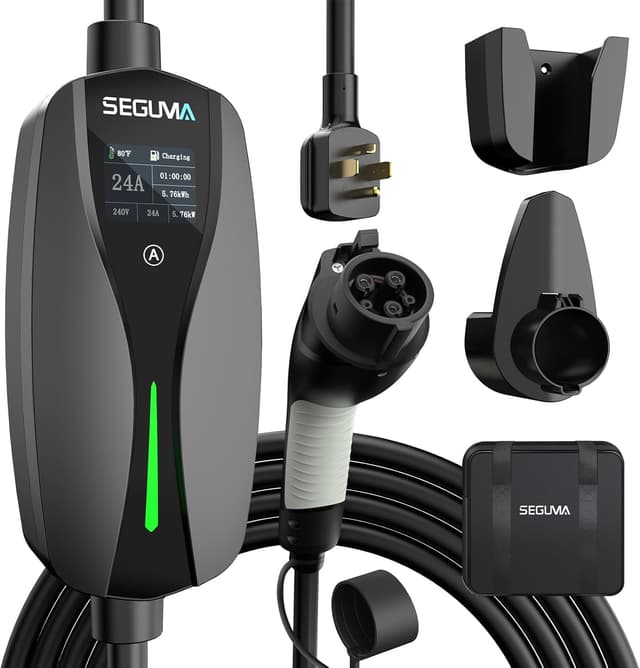

SEGUMA NEMA 14-30 Level 2 EV Charger (24A, 25FT) with J1772 Connector and Dryer Plug
Product description
If you’re tired of slow charging and want a more “plug-in and monitor” setup at home, a portable Level 2 charger like this one targets that exact gap. On paper, it’s designed to use a NEMA 14-30 dryer outlet and deliver up to 24A at 240V—roughly the kind of boost people expect when moving beyond Level 1 charging.
That said, not every outlet is a fit, and the cable length and connector type matter more than most listings make them sound. A charger can look great, then fall short if your home setup or your EV’s charging port isn’t a match.
What to know before buying
This SEGUMA Level 2 portable EV charger is built around a NEMA 14-30 “dryer plug” connection and a standard SAE J1772 connector. The big practical idea is simple: you connect it to a common 4-prong NEMA 14-30 dryer receptacle (240V in North America) and charge at home, in a garage, or even in a laundry room without complex installs.
It also includes an adjustable current feature (10A / 16A / 20A / 24A). That matters because it gives you flexibility to match your circuit capacity and reduce the risk of overloading—something you’ll appreciate if you’re not sure you want max output all the time.
One detail to keep in mind: the dryer plug is for the connection, but the plug and connector themselves are not waterproof. So if you plan to use it outdoors, you’ll want to keep the connection end protected and dry.
Key specs that affect real-world charging

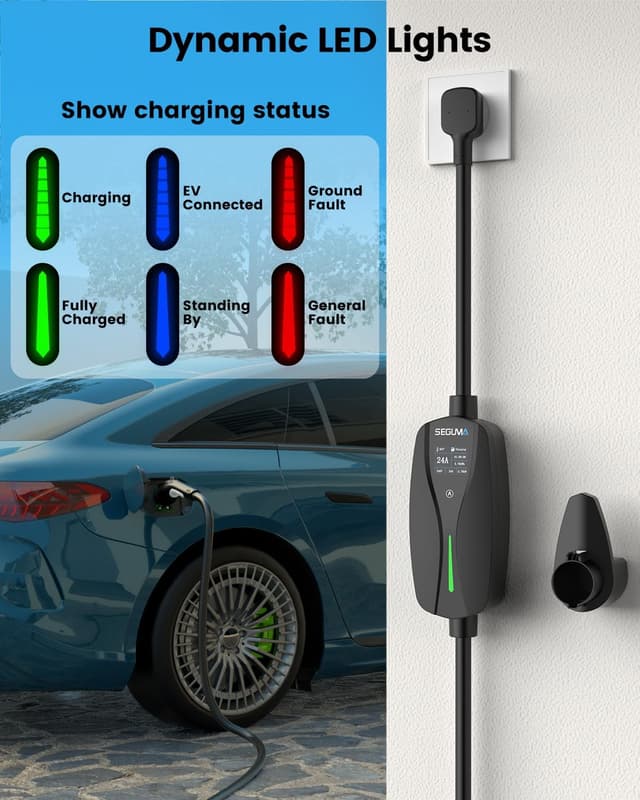

The charger is rated for up to 24A at 240V, with a listed power rate of 5.76kW, and it supports charge monitoring via a 1.77" TFT screen plus a dynamic LED indicator.

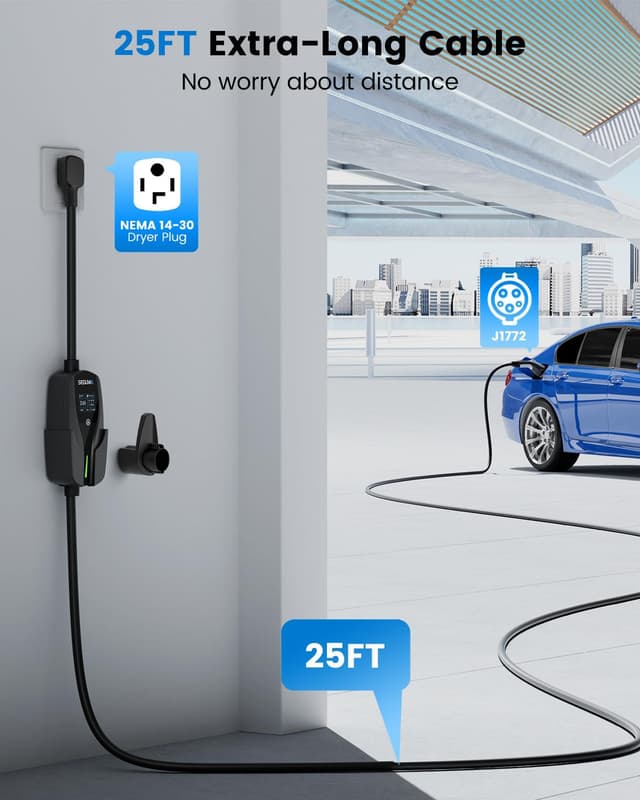

It includes a 25-foot cable, which helps if your parking spot isn’t right next to the outlet. That extra reach can be the difference between “works fine” and “I’m constantly re-positioning the car.”
Quick overview of the setup
- Adjustable current: 10A / 16A / 20A / 24A
- Outlet type: NEMA 14-30 (dryer plug)
- Connector: SAE J1772
- Cable length: 25FT
- Charging status display: 1.77" TFT screen + LED indicators
Where it shines
This is one of those chargers that fits a very specific need: faster home charging without changing your electrical setup beyond using the right dryer outlet.
If you already have a NEMA 14-30 dryer outlet available, this is a convenient path to Level 2 speeds. The adjustable current is a smart bonus too—especially for households where circuits are shared or you want more control than a “fixed output” charger.
Also, the J1772 connector broadens compatibility for many non-Tesla EVs. On the listing, it’s described as widely compatible with J1772-equipped vehicles such as Ford Mustang Mach-E, Chevrolet Bolt, Nissan LEAF, Hyundai Kona EV, Audi e-tron, and other J1772 EVs.
Limitations you should not ignore

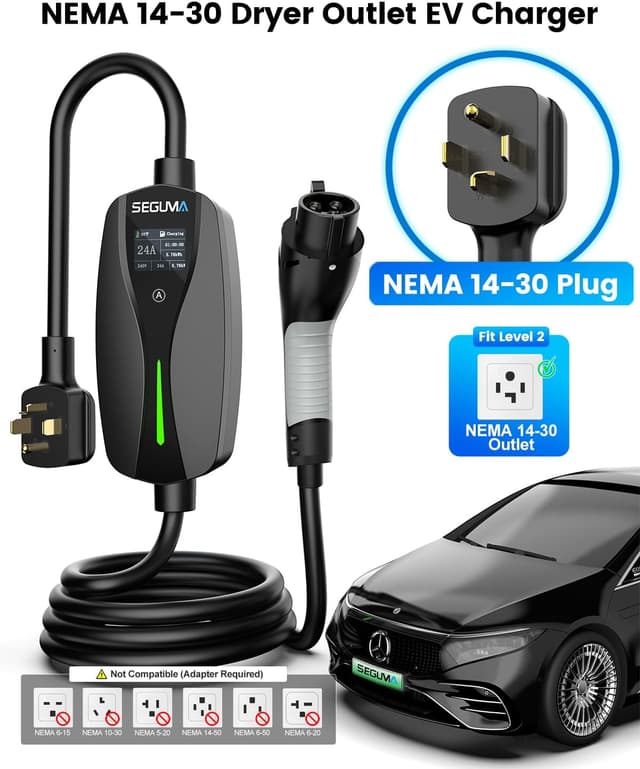

The biggest limitation is outlet compatibility. The charger is designed specifically for a NEMA 14-30 dryer outlet. The listing specifically notes avoiding other common outlets (examples given include NEMA 5-15, 6-20, 10-30, 6-50, and 14-50) because they may require additional adapters.
So if your home doesn’t have a NEMA 14-30 receptacle, you may end up spending more time (and possibly money) figuring out the right adapter or plan.
Another limitation is Tesla compatibility. The listing states Tesla vehicles require an SAE J1772 to Tesla adapter (sold separately). If you don’t already have that adapter, you’ll want to factor it into your decision.
Built-in safety and durability (and what to do with that info)
For safety, this charger is described as IP66 waterproof and UL 94V-0 rated, with temperature resistance from -22°F to 122°F and multiple protections (lightning, current leakage, low-voltage, over-voltage, over-charge, over-heat, and over-current).
However, there’s an important nuance: it notes that the plug and connector are not waterproof. In real use, that means the “outdoor-ready” part is more about the unit body, while the connection end still needs to stay dry and protected during charging and storage.
Is it for you? Practical examples
If you park your EV in a garage where the dryer outlet is within 25 feet, this setup can be pretty straightforward: plug in the J1772, set the current to a value you’re comfortable with (for example, using a lower setting at first), then use the TFT screen and LED indicators to confirm you’re charging properly.

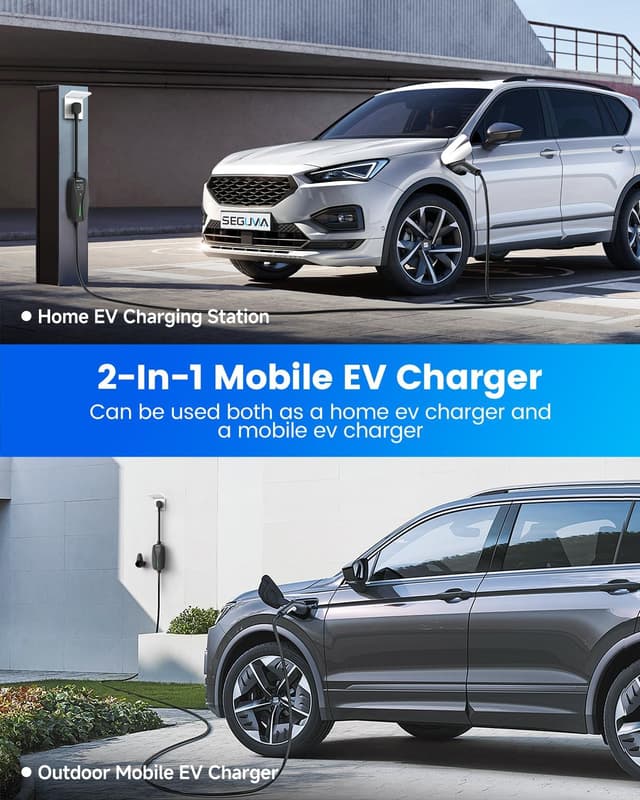

It can also make sense for someone who wants a portable charger they can move between a driveway and a garage—especially with the included storage bag mentioned in the listing.
But if your outlet situation is uncertain, or you’re relying on an outlet type other than NEMA 14-30, you may want to pause and verify compatibility first. Getting the charging hardware wrong is an easy way to lose time.
When it makes sense to buy, and when to skip
It’s a solid pick if you have a NEMA 14-30 dryer outlet and you drive a J1772 EV. Worth considering if you want Level 2 charging speeds, prefer adjustable current control, and need a 25-foot cable for flexibility.
It might not be a great match if you only have a different outlet type at home (and don’t want to deal with adapters), or if you want Tesla charging without considering the need for a J1772-to-Tesla adapter.
Also, don’t overlook the storage and environment detail: even with IP66 on the unit, you should keep the plug and connector dry.
Final verdict
This SEGUMA NEMA 14-30 Level 2 portable charger looks like a practical way to move from Level 1 to faster charging when your home already has the right dryer outlet. The adjustable 10–24A current and the J1772 focus make it feel targeted rather than generic.
Where it can fall short is also pretty clear: outlet compatibility is everything here, and Tesla owners should plan for the adapter requirement. If those two points check out, it’s the kind of charger that can earn its spot in your routine.
Mini FAQ
What EV charging standard does it use?
It uses a standard SAE J1772 connector, and the listing mentions it being compatible with J1772-equipped EVs. Tesla vehicles require an SAE J1772 to Tesla adapter (sold separately).
Does it work with any 240V outlet?
It’s designed for a NEMA 14-30 dryer outlet. The listing specifically suggests avoiding other outlet types unless you’re using additional adapters.
Can you adjust charging speed?
Yes. The adjustable current settings listed are 10A, 16A, 20A, and 24A.
Is it safe to use outdoors?
The unit is described as IP66 and temperature-rated, but the plug and connector are not waterproof, so you’ll want to keep the connection end dry.
How long is the cable?
The cable is listed as 25FT.
