Thermalright Phantom Spirit 120 SE air CPU cooler with AGHP 4.0, dual 120mm TL-C12B V2 PWM fans
Product description
If you’re building or upgrading a PC and want CPU cooling that feels “serious” without turning your case into a project, the Thermalright Phantom Spirit 120 SE is worth a look. On paper it’s designed to move a lot of heat using a 7-heatpipe layout, a copper base, and dual 120mm PWM fans, with support for both AMD AM4/AM5 and a range of Intel sockets.
That said, air coolers live and die by fit and fan behaviour in your specific case. It’s not perfect for every setup, and the extra height is something you’ll want to double-check before buying.
The essentials

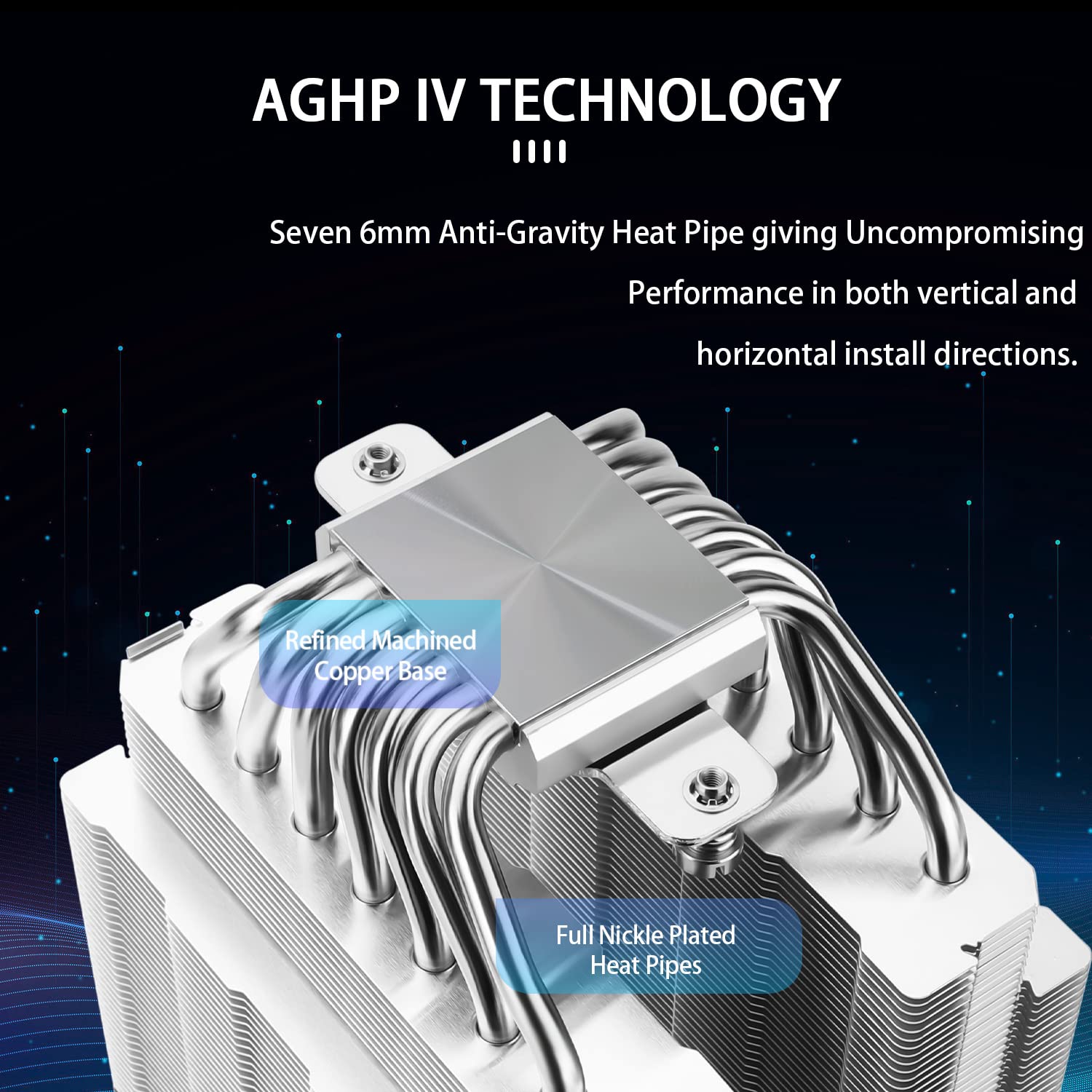

The Phantom Spirit 120 SE is an air CPU cooler that uses a heatsink (aluminium fins) plus a copper base, cooled by two 120mm TL-C12B V2 PWM fans. Thermalright also highlights its AGHP 4th generation technology on a 7x6mm heatpipe design, aiming to improve heat transfer regardless of orientation (it mentions an “inverse gravity effect” when used vertically or horizontally).
You’re getting a fairly straightforward concept executed with a few durability-minded choices: the fans use S-FDB bearings (Thermalright quotes up to 20,000 hours of industrial service life), and the insulation material is described as UL class A with a PBT + PC build for the product.
In everyday terms, it’s the kind of cooler you choose when you want consistent cooling performance under typical daily use and gaming, and you don’t want to rely on simpler single-fan designs.
What stands out in use

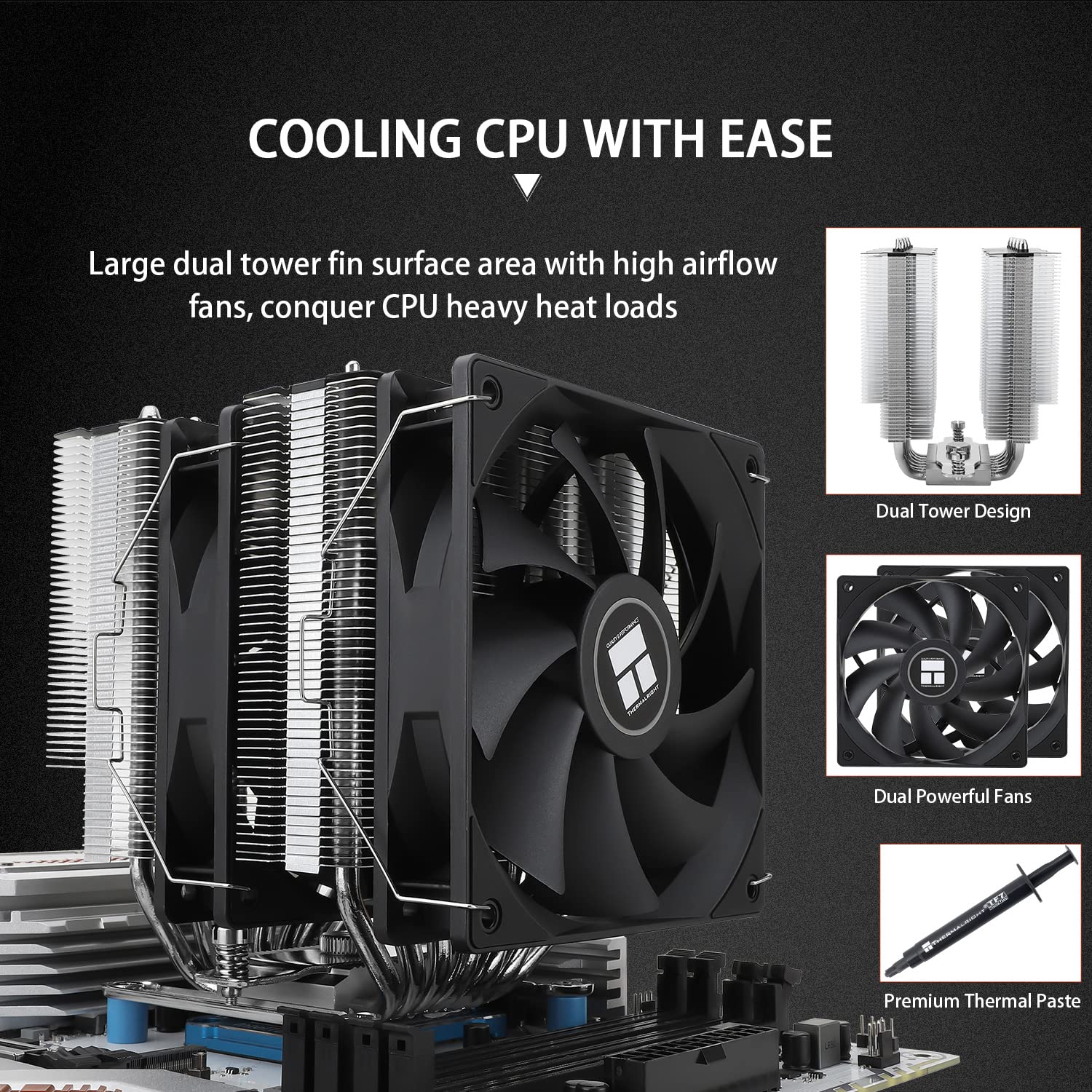

The big practical upside here is the combination of heatsink surface area and airflow control. The heatsink body is described as fully aluminium fins, while the top is anodised black with a finely carved pure copper base technology. In other words, it’s designed to spread and dissipate heat efficiently rather than just “get it done”.
The dual TL-C12B V2 PWM fans are also important. They’re 120x120x25mm, run up to 1500rpm (±10%), and use a 4-pin PWM power port so the motherboard can manage fan speed. Thermalright lists a maximum airflow of 66.17CFM and a noise level of ≤25.6dB(A). That noise figure sounds very low for a max-spec scenario, so it’s best to treat it as a published limit—actual results depend on your case airflow and fan curve.
One small “real life” scenario: imagine installing it for a gaming PC in a mid-tower. The PWM control should let the fans stay relatively quiet during desktop use, then ramp when the CPU warms up during longer sessions.
Tech summary (what the spec implies)

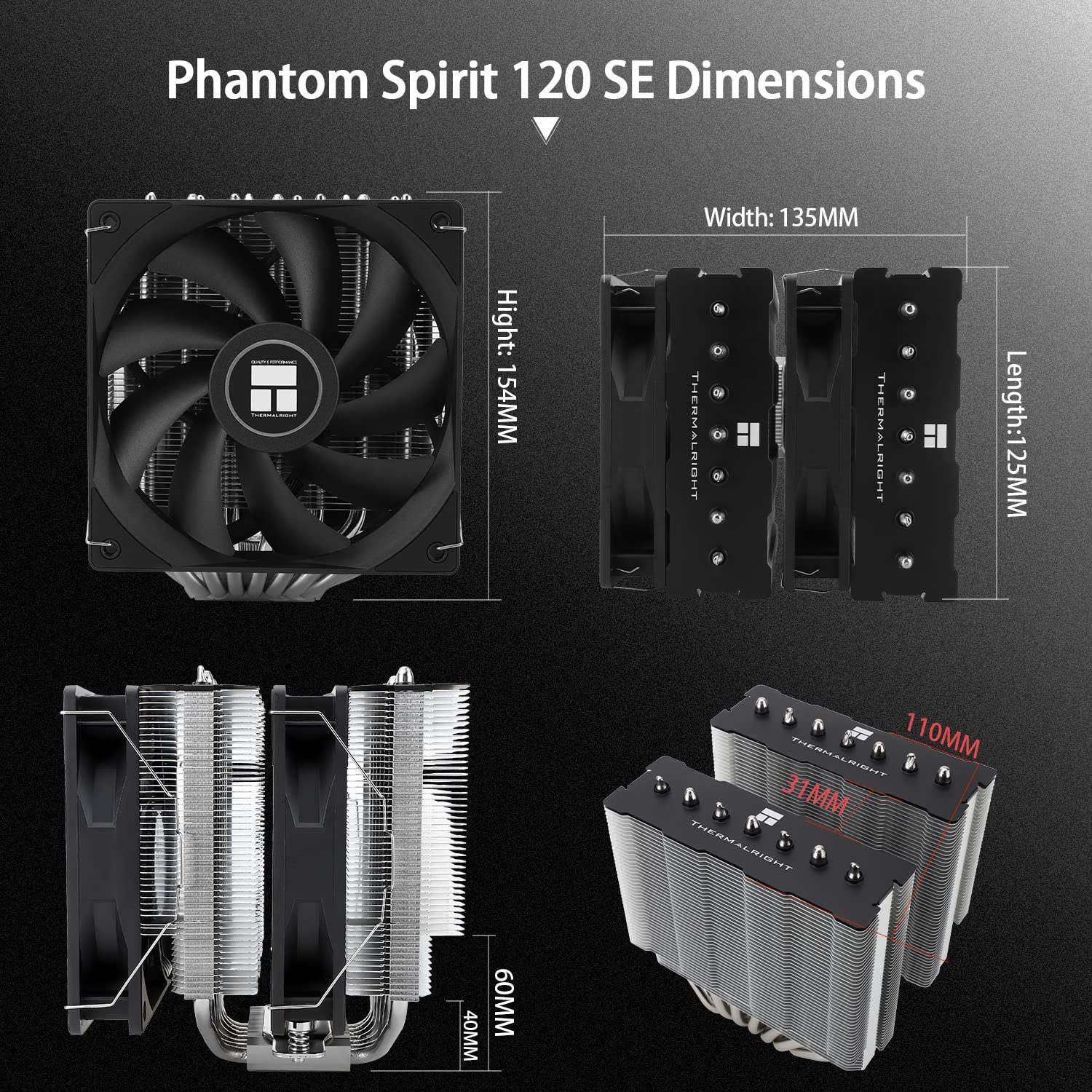

The model is PS120SE. Key dimensions are 125(L) x 135(W) x 154(H)mm, and the cooler is listed at 0.9kg. The heatsink material is aluminium, with the main body described as anodised black frosted top plus a pure copper base technology.

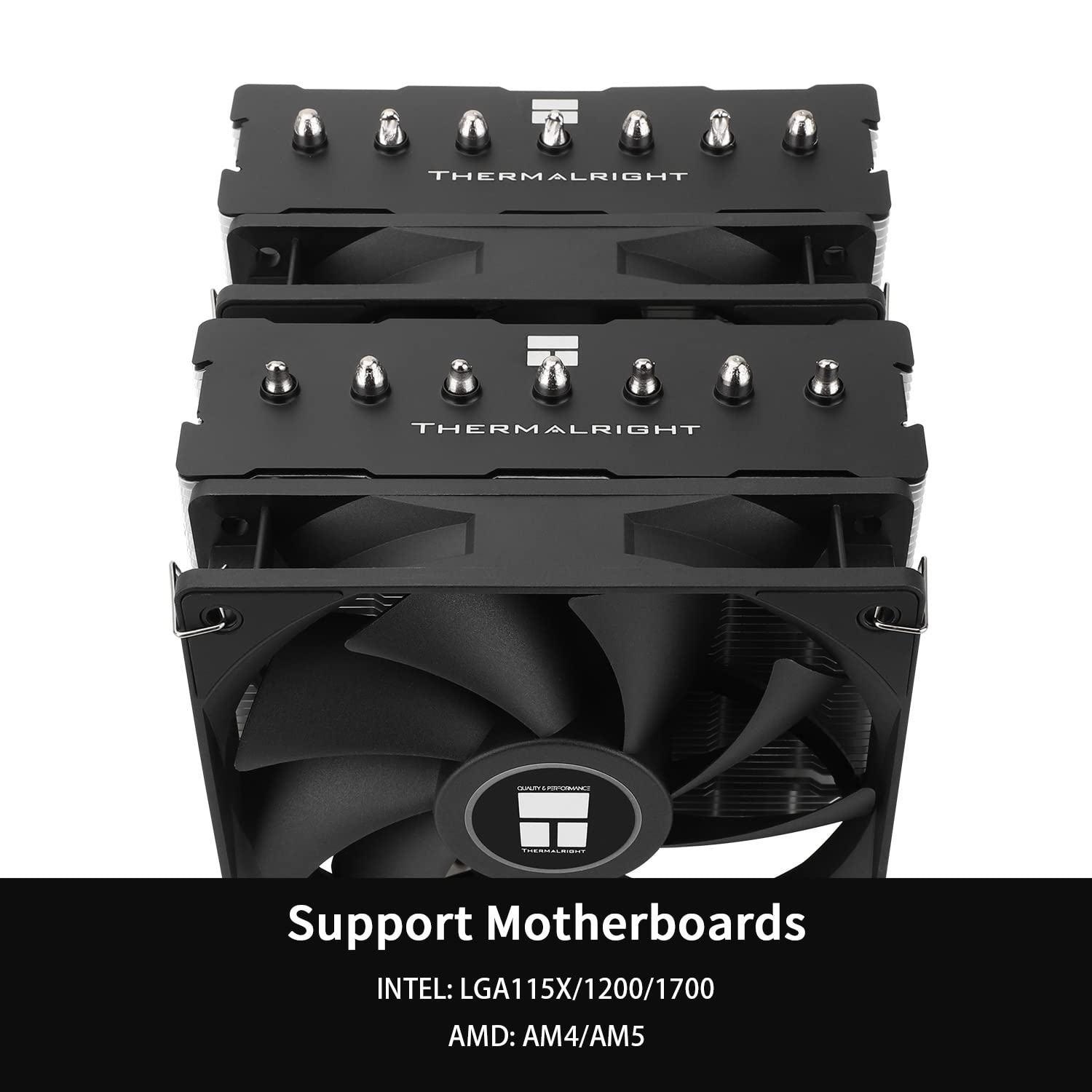

Compatibility is clearly a strength, because it supports Intel LGA1851/1700/1150/1151/1200 (and 1155/1156 are also mentioned), plus AMD AM4/AM5. The wording suggests you may need the corresponding mounting plate or fasteners for your platform, and it points you to installation instructions or tutorials.
Two quick limitations to keep in mind: the 154mm height means your case clearance matters, and although the compatibility list is broad, every motherboard still has its own cooler mounting constraints (RAM height, nearby components, and case layout can make or break clearance).
Compatibility & what to check before you buy
Thermalright states support for Intel LGA1851/1700/1150/1151/1155/1156/1200 and AMD AM4/AM5, with appropriate mounting plates/fasteners required per socket.
Before purchase, it’s sensible to check three things:
- Case CPU cooler clearance for a 154mm-tall air cooler.
- Whether the width (135mm) and heatsink footprint fit around your RAM area.
- That you’re using the correct mounting hardware for your exact CPU socket (the product description implies you’ll follow the instructions or tutorial).
This cooler is a strong “air-cooling build” choice, but it may not suit cramped cases or builds where RAM height is already tight.
Who it suits (and who should skip it)
It makes sense if you’re after a dual-fan air cooler with 7 heatpipes, a copper base, and PWM control—especially if you’re targeting stable cooling for everyday use, gaming, or a long-running system that you don’t want to babysit.
It may not be the best match if you have limited space inside your case. The 154mm height is the obvious blocker, and if your setup leaves little clearance around the CPU area, you’ll be spending time measuring rather than enjoying the build.
Also, if you’re expecting a hassle-free upgrade in a case that’s already crowded with cables, high-RAM modules, or other heatsinks, you could find yourself short on space. It’s not that it’s difficult—it’s just that size is part of the deal with this kind of heatsink.
Is it worth it?
Buy the Thermalright Phantom Spirit 120 SE if you want a reasonably feature-rich air cooler with dual 120mm PWM fans, a 7-heatpipe design using AGHP 4.0 tech, and wide Intel/AMD socket support. It looks like a practical value option for typical desktop use, as long as you can accommodate the listed 154mm height.
Skip it if your case clearance is tight or you already know you’ll struggle with RAM and cooler footprint. Air coolers can be unforgiving in small builds, and this one leans towards “bigger heatsink, more surface area”, which is great until it doesn’t physically fit.
FAQ
Does it support both Intel and AMD sockets?
Yes. The product listing mentions Intel LGA1851/1700/1150/1151/1155/1156/1200 and AMD AM4/AM5.
How tall is the cooler?
Thermalright lists the cooler height as 154mm, so case clearance is important.
Are the fans PWM controlled?
Yes. The dual TL-C12B V2 fans use a 4-pin PWM power port, with a listed maximum speed of 1500rpm (±10%).
How quiet is it?
Thermalright quotes a noise level of ≤25.6dB(A) and also gives a max RPM and airflow figure. In real systems, actual noise will depend on your motherboard fan curve and case airflow.
Does the mounting require the right bracket?
The description suggests that for different CPU platforms you’ll need the corresponding mounting plate or fasteners, and you should follow the installation instructions or tutorial for your setup.
