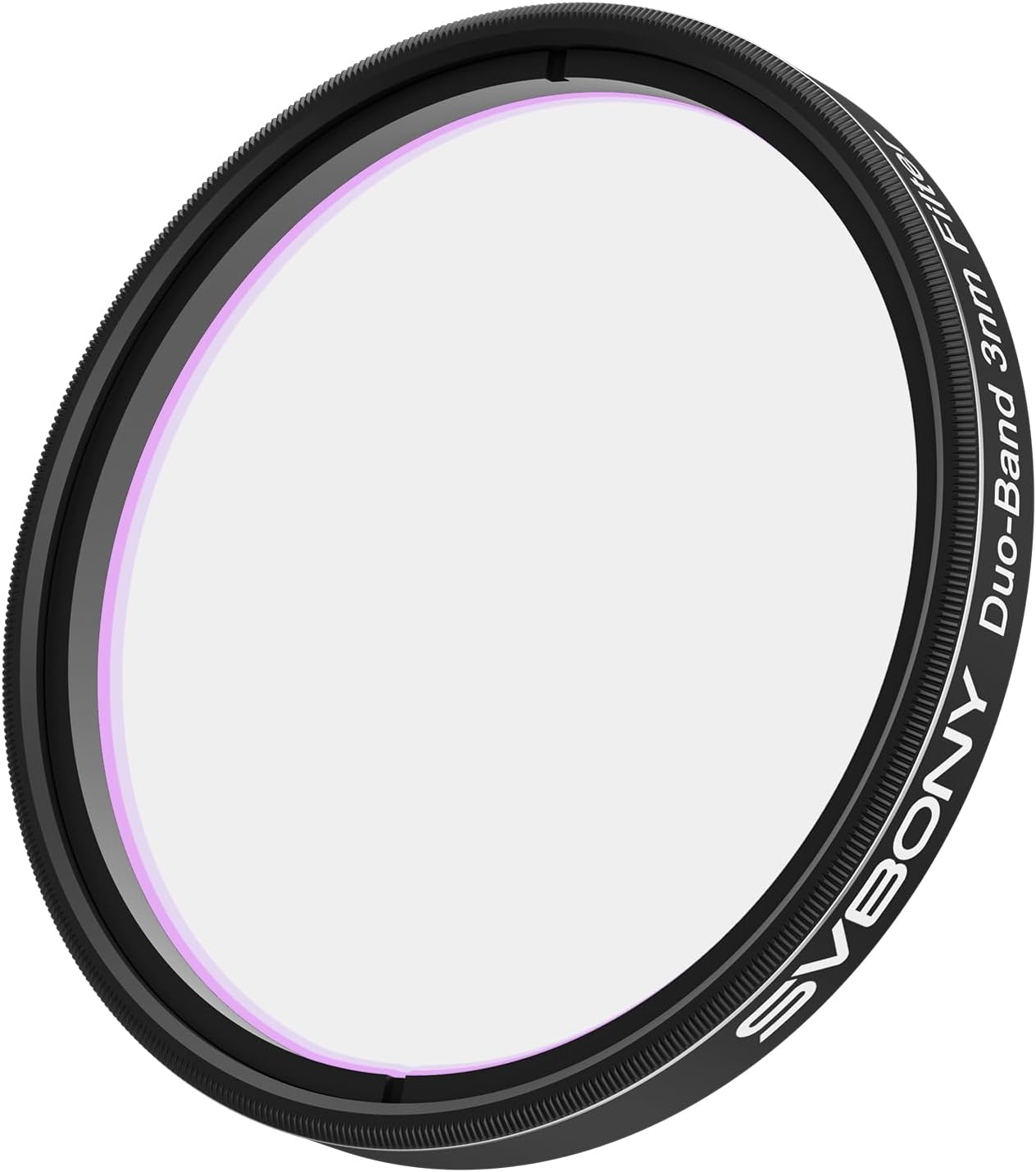

Svbony SV220 3nm Nebula Filter
Product description
This narrowband nebula filter helps astrophotographers cut through urban glow and capture faint emission details with greater clarity. The SV220 combines H‑Alpha and OIII bands in a dual‑band 3nm pass, offering high contrast for deep sky imaging even from light‑polluted locations, and it works well with wide‑angle setups for expansive nebula framing.
Key features

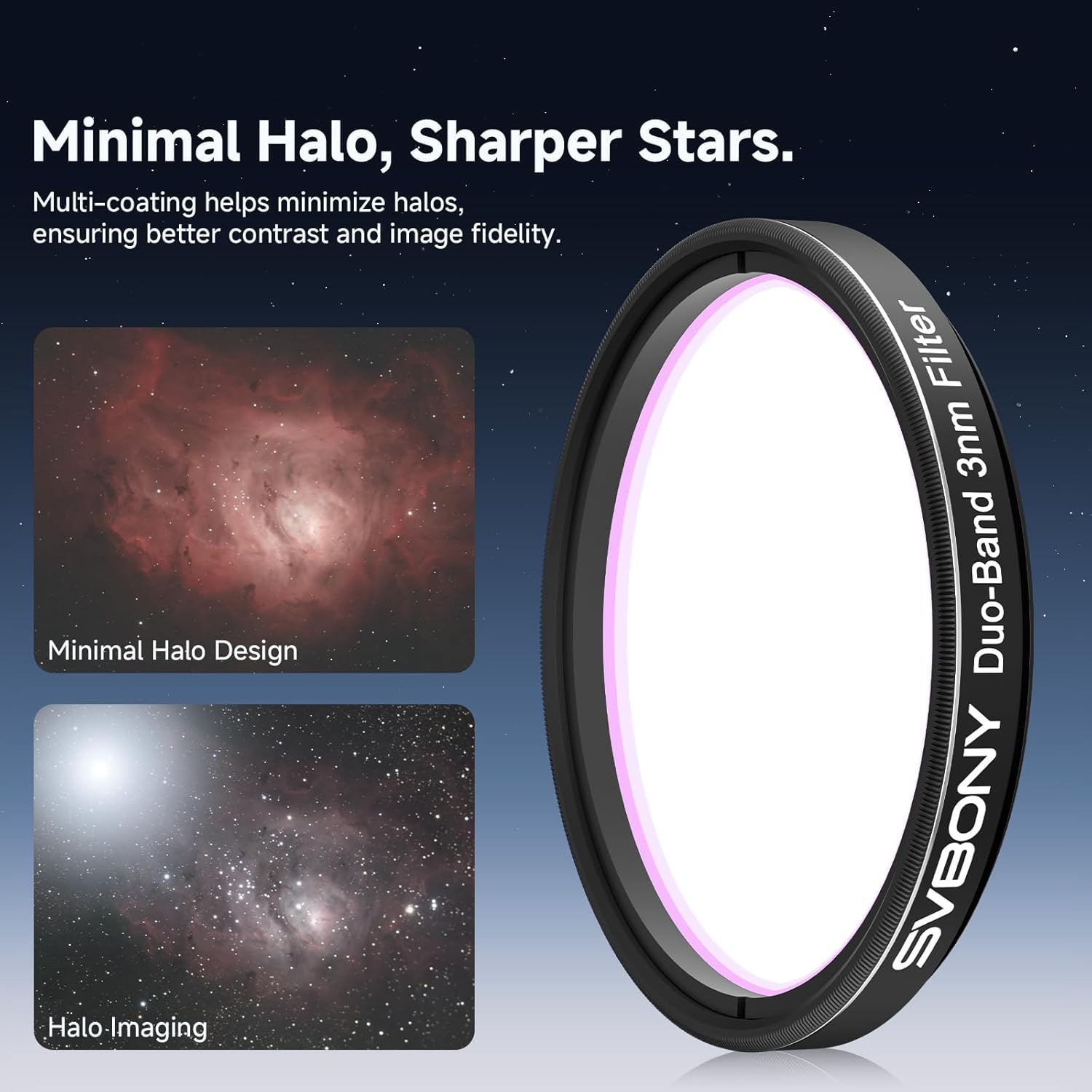

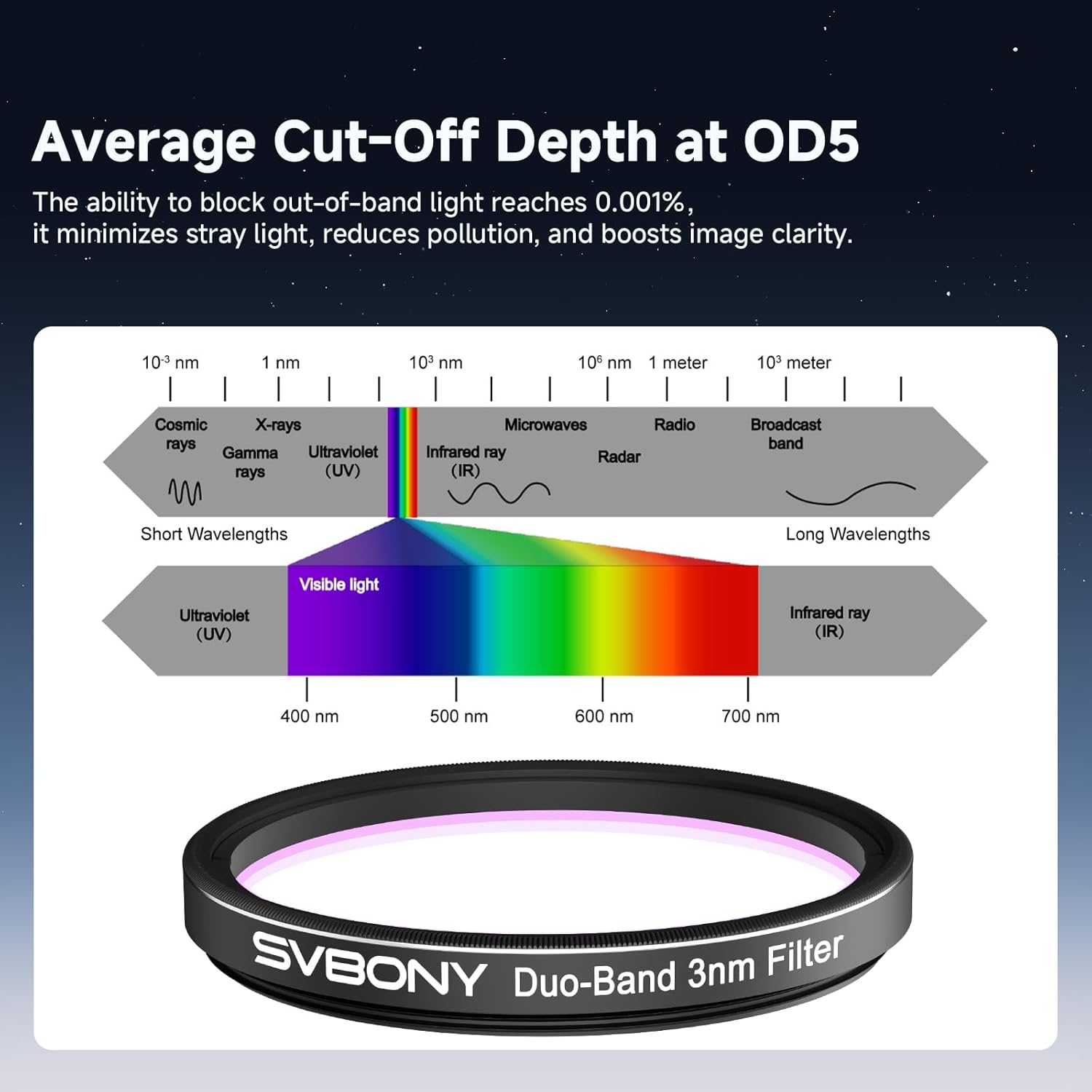

The SV220 is aimed at photographers who need cleaner frames and more signal from emission nebulae. With an OD5 cutoff and a minimal halo coating, stray light is substantially reduced and colour accuracy is preserved across long exposures. The filter is full‑frame compatible and designed for 2 inch holders, so you can keep wide fields and avoid heavy vignetting. 3nm narrowband performance helps isolate H‑Alpha and OIII emissions, improving contrast without overly long integration times. Note that transmission and results depend on your camera and sky conditions, according to the manufacturer.
Technical details
- Name: Svbony SV220

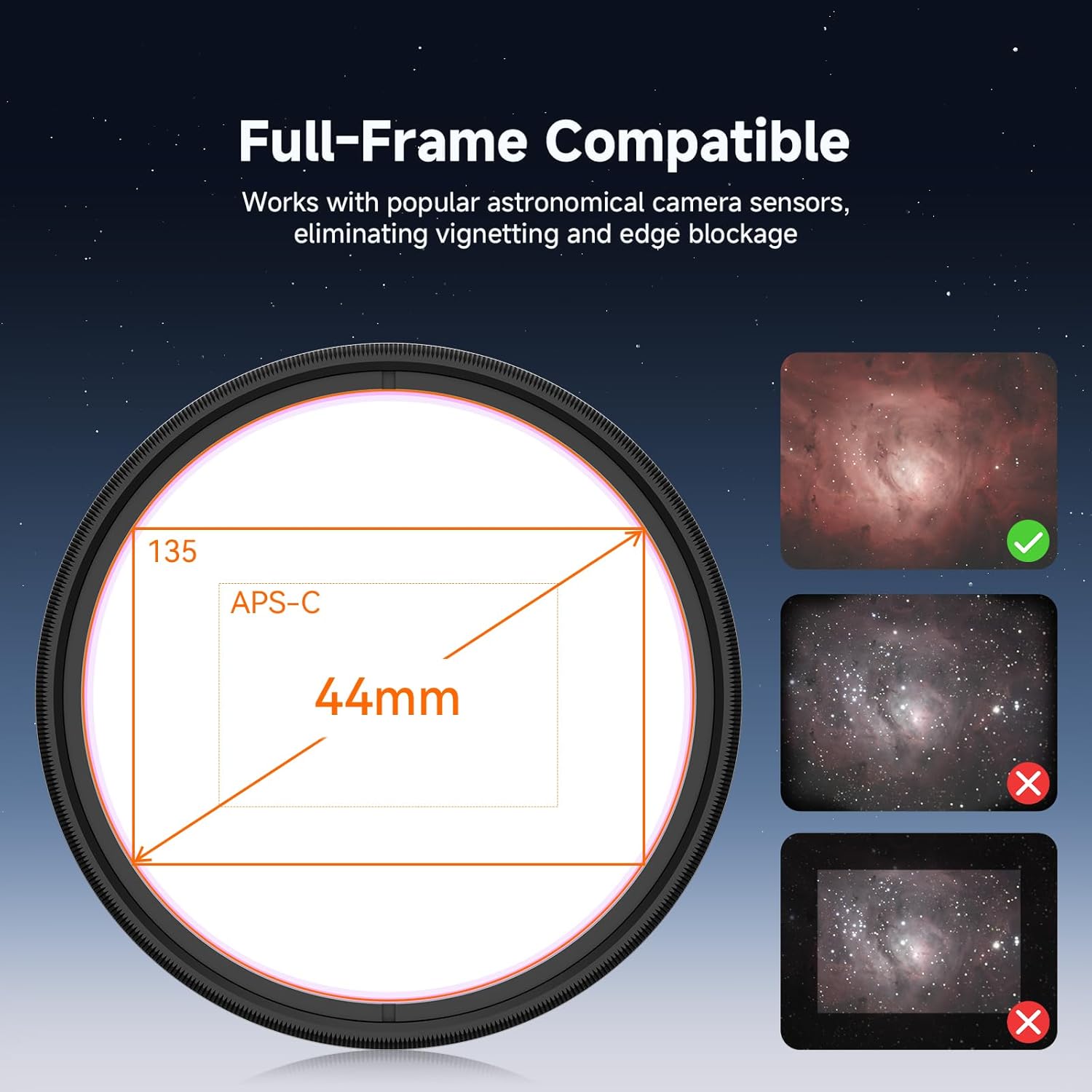

- Compatibility: 2 inch, full‑frame compatible
- Size: Φ50.8×7 mm
- Reference: M48×0.75 thread
- Capacity: 3±1nm FWHM
What you’ll notice day to day
Expect cleaner backgrounds and sharper emission structures in processed frames, especially when shooting from suburbs or city outskirts. The minimal halo coating reduces glare around bright stars, so point sources remain well defined while nebular detail stands out. Colour reproduction tends to stay neutral, which simplifies post‑processing and makes combining H‑Alpha and OIII data more straightforward.

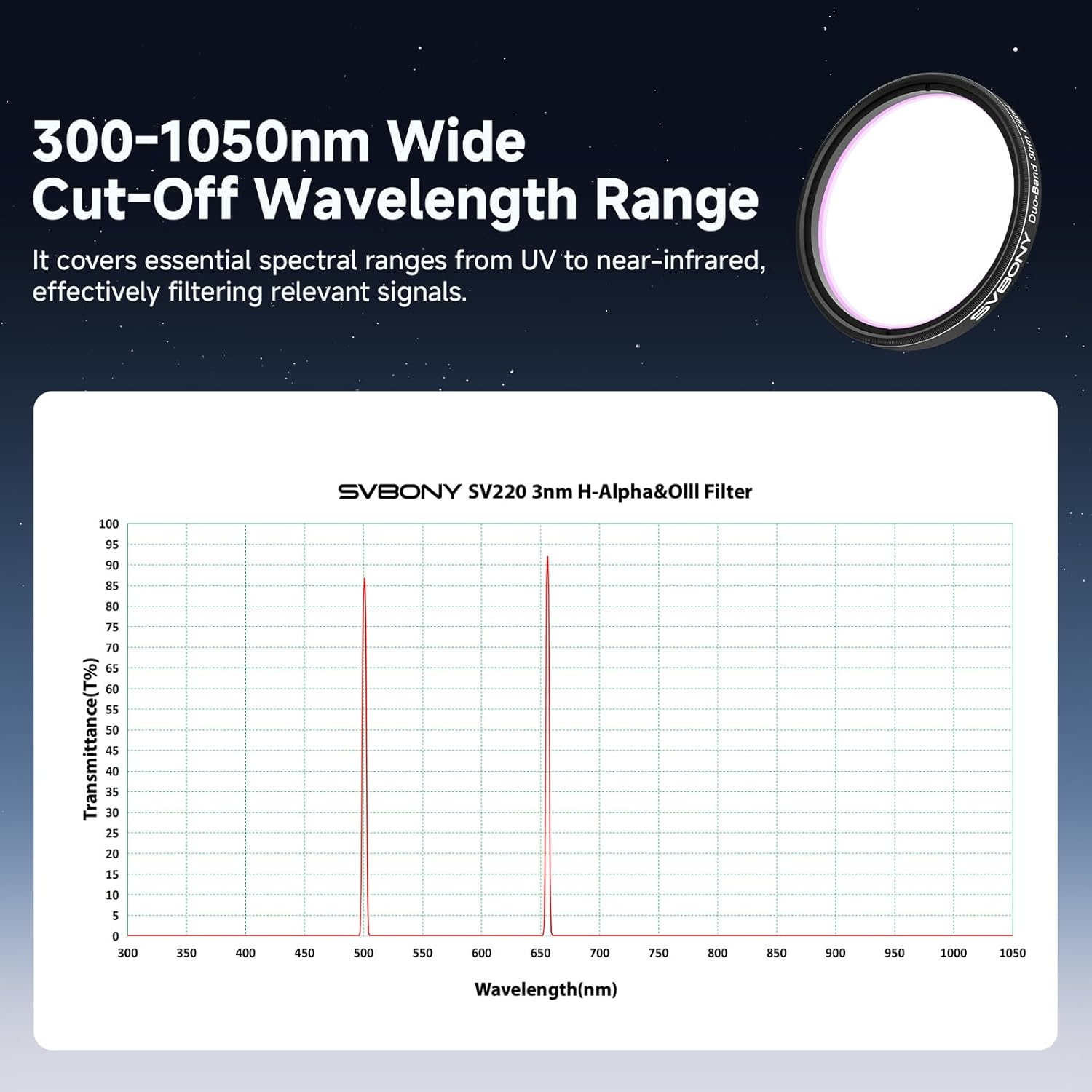

The filter’s high transmission figure of 85%+ aids in shorter exposures for the same signal‑to‑noise, but keep in mind that very faint objects will still benefit from longer integration. An ultra wide spectral coverage from 300nm to 1050nm makes the SV220 versatile for different sensors and target types.
