Svbony Collimator Telescope 1.25” laser collimator

This compact laser collimator helps align the optics of Newtonian and SCT reflector telescopes so you can achieve sharper, more concentric stars and better imaging. It is especially useful for amateur astronomers who want a quick way to check and adjust primary and secondary mirrors, with an adjustable red dot that works in a range of light conditions.

Key Points

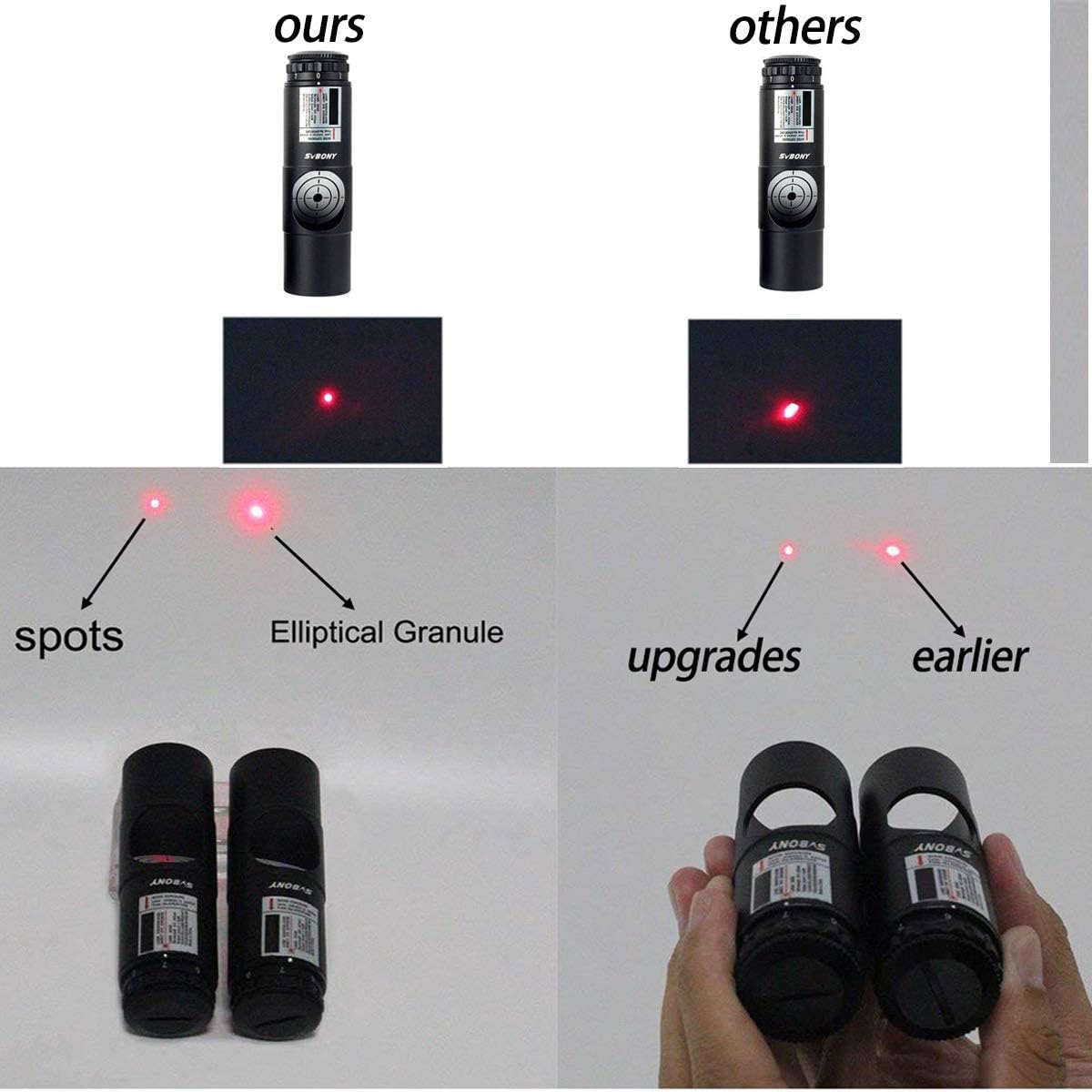

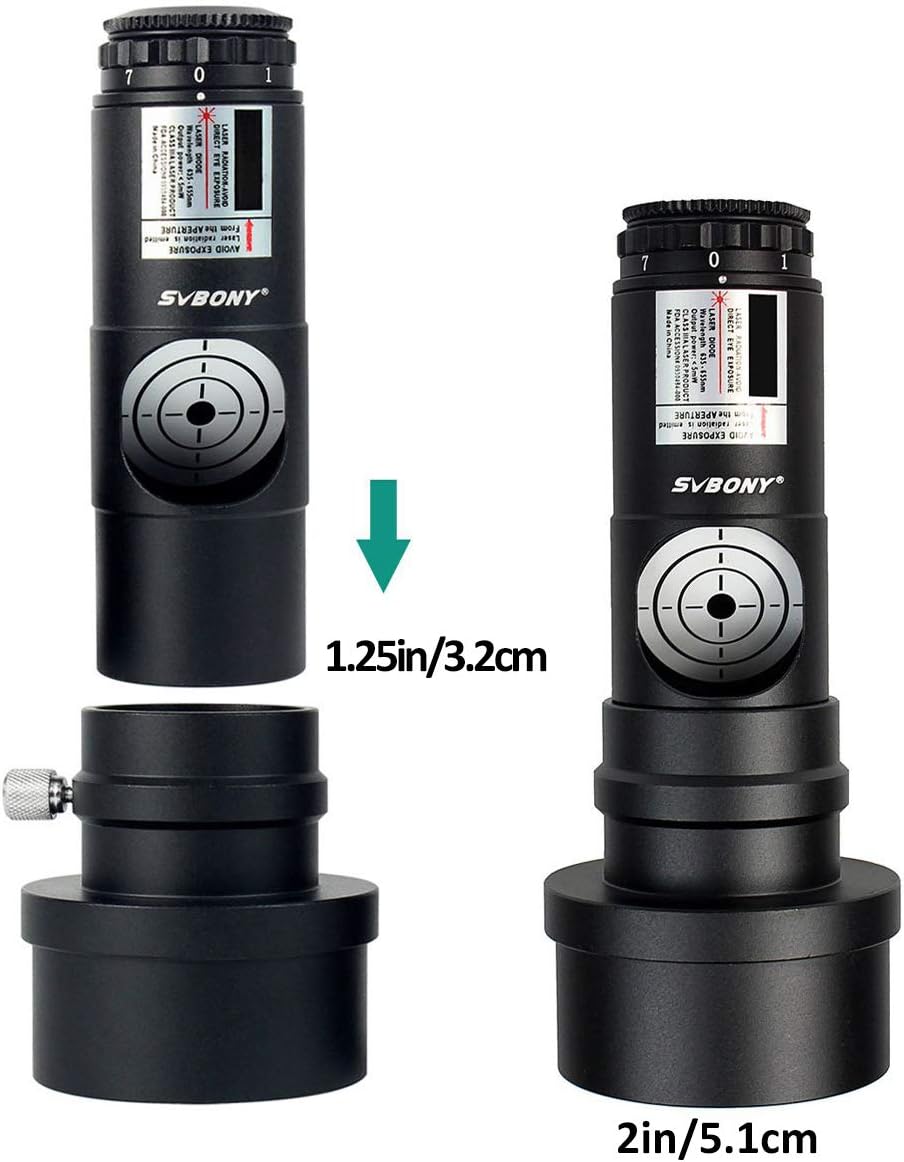

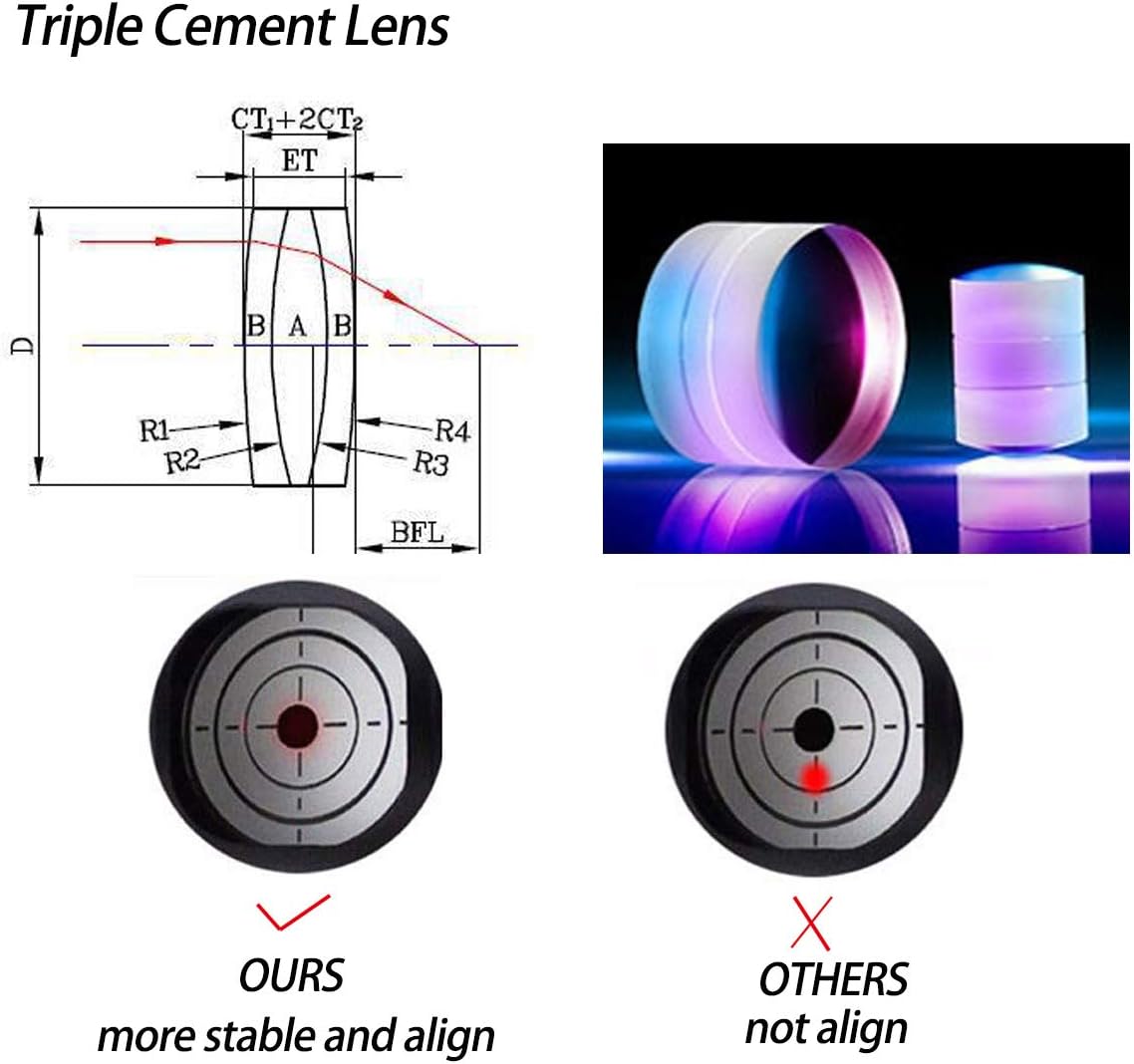

This eyepiece-style tool fits into a 1.25 inch focuser and includes a 2 inch adapter so it also works with larger focusers. The device uses a triple-cemented lens to reduce distortion and spherical aberration, which helps keep the beam tighter and the reference point consistent. The collimator’s red dot is smaller than many older models, making centring more precise when aligning mirror cells. For faint beam work or daylight adjustments you can select from seven brightness steps to match ambient light. 🌙

Accuracy depends on careful insertion and a stable focuser. It is quick to set up and allows repeated checks during an observing session. Note that laser collimators are most useful for initial alignment and coarse adjustments, according to the manufacturer, and final fine-tuning might still require a sight tube or star testing.

Technical Specifications

• Name: SVBONY Collimator Telescope

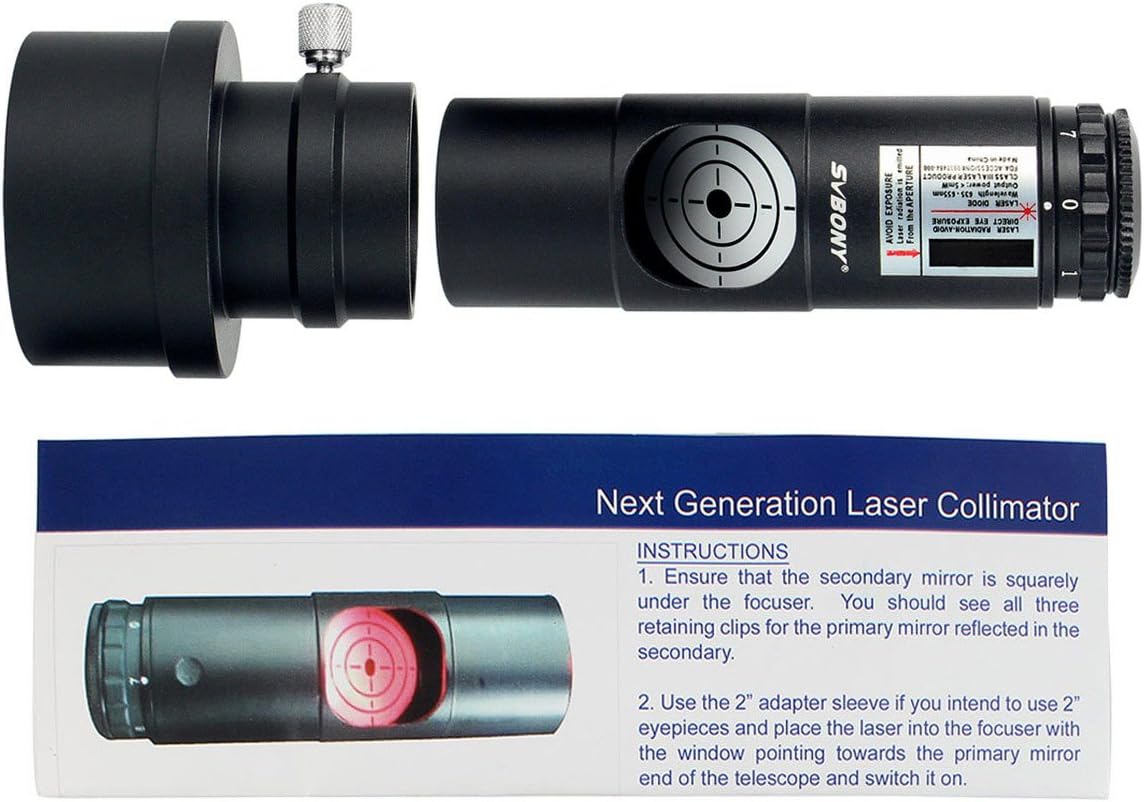

• Format: 1.25" eyepiece with 2" adapter
• Brightness control: 7 brightness levels
• Optics: Triple-cemented lens
• Compatibility: Newtonian and SCT reflector telescopes

Usage Recommendations

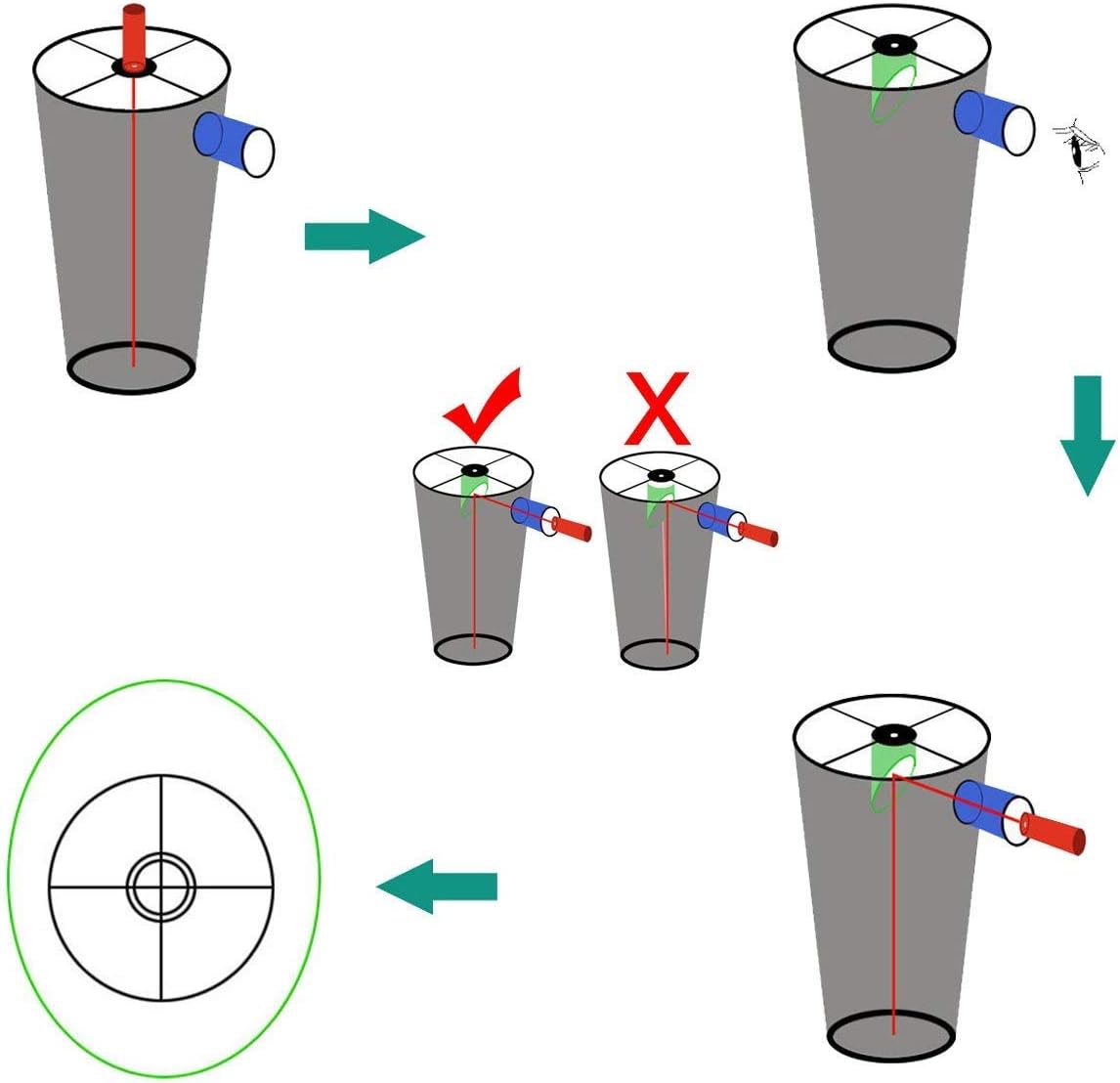

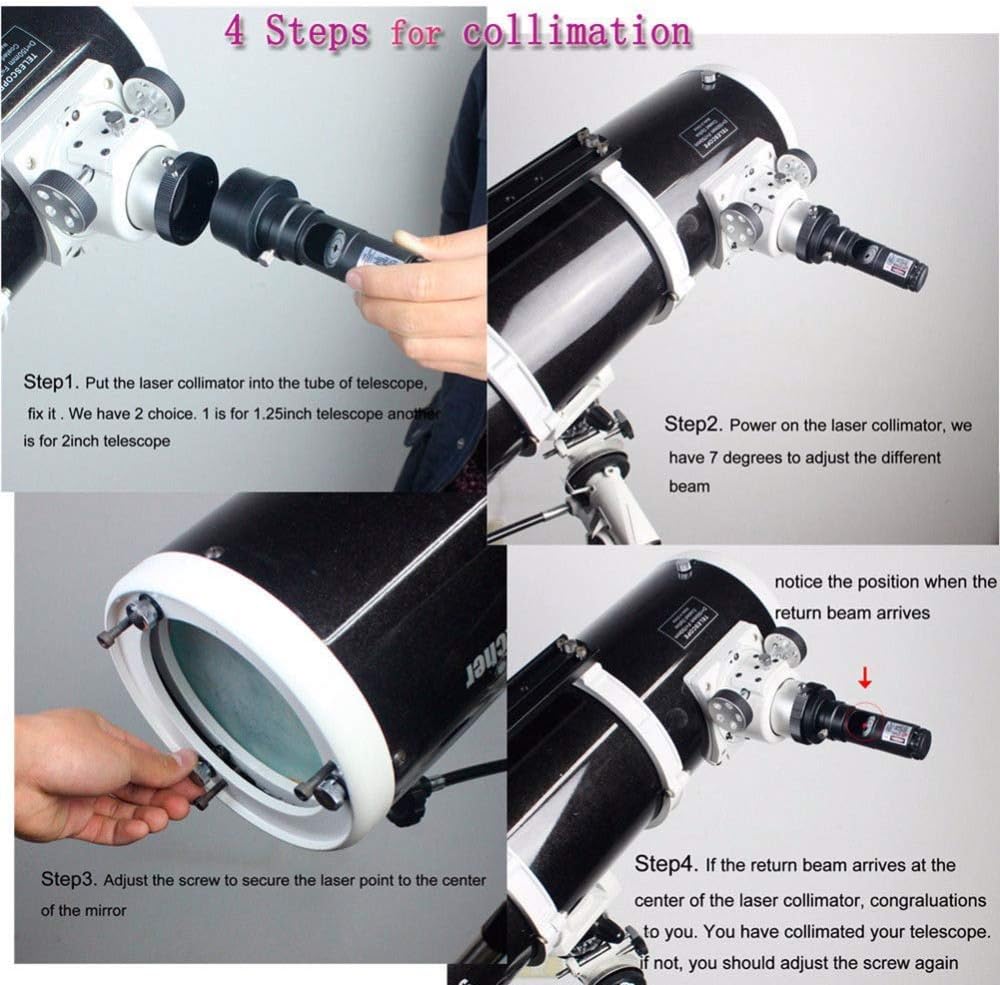

Insert the collimator into the focuser and bring the laser spot onto the centre of the primary mirror or a suitable centre mark. Small adjustments to the secondary and then the primary mirror are typically enough to bring the red dot to the exact centre, which simplifies the collimation routine. For very sensitive work, perform a star test afterwards and refine the mirror mounts as needed. 🔭

Keep the unit dry and avoid strong impacts to preserve alignment of the internal laser. The adjustable brightness is helpful when moving between indoor bench checks and outdoor sky use. For those using large-format focusers check the adapter seating before use to prevent wobble. ⚙️

Positive Aspects

The compact design makes it portable and easy to carry between observing sites. The smaller red dot gives a clearer reference point during alignment, and the inclusion of a 2 inch adapter increases the range of compatible focusers. Consider that laser tools may not reveal certain mirror surface errors, so combine with optical checks for best results.
