Ogival Mini Split Bracket: Heavy-Duty Wall Mount for 9,000–18,000 BTU AC Units

What it is

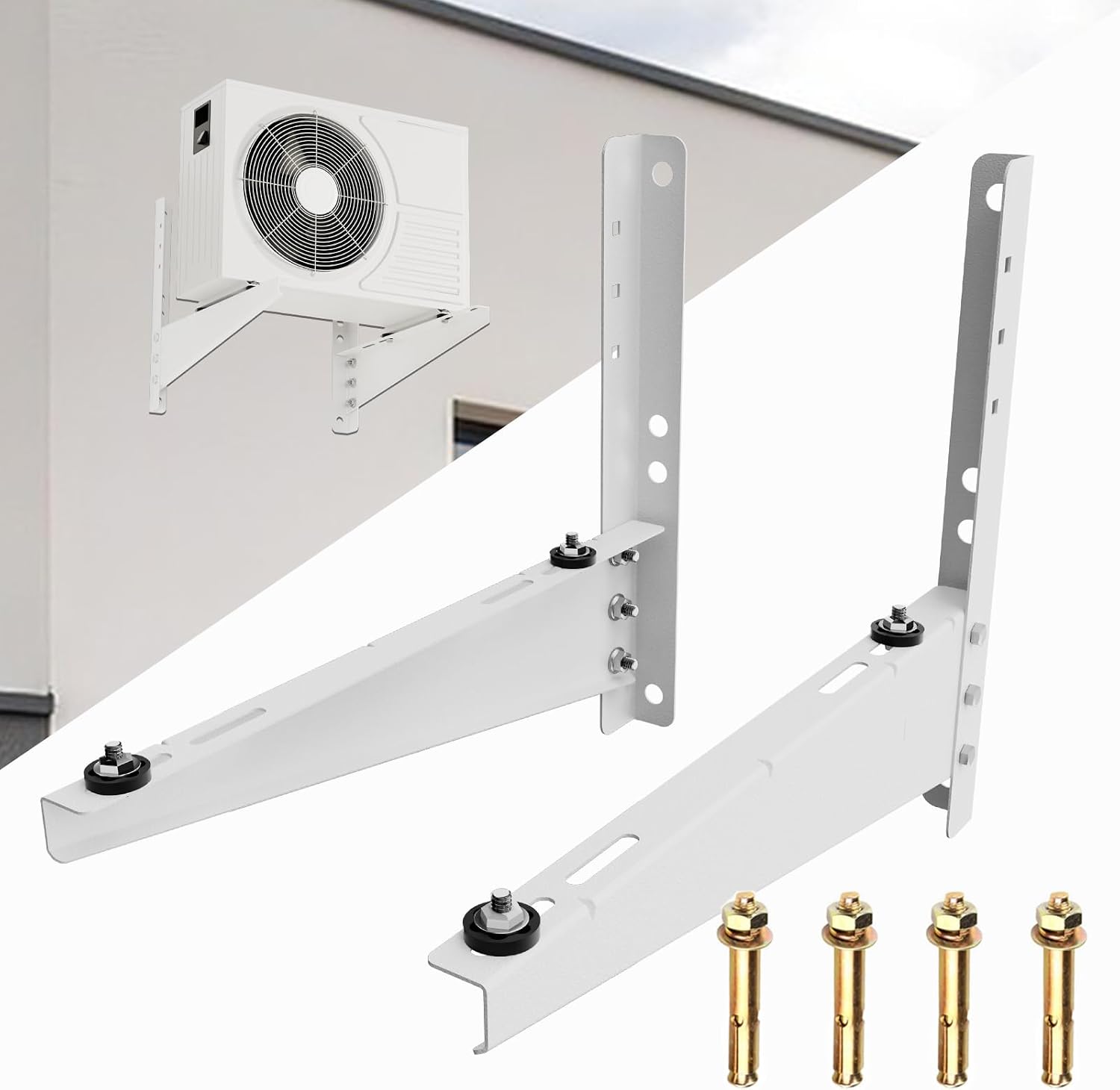

The Ogival Mini Split Bracket is a heavy‑duty wall‑mounting solution designed to support air conditioners in the 9,000–18,000 BTU range. With a stated load capacity of up to 330lbs, it aims to keep outdoor units securely elevated and stable on a typical wall setup.

What it solves

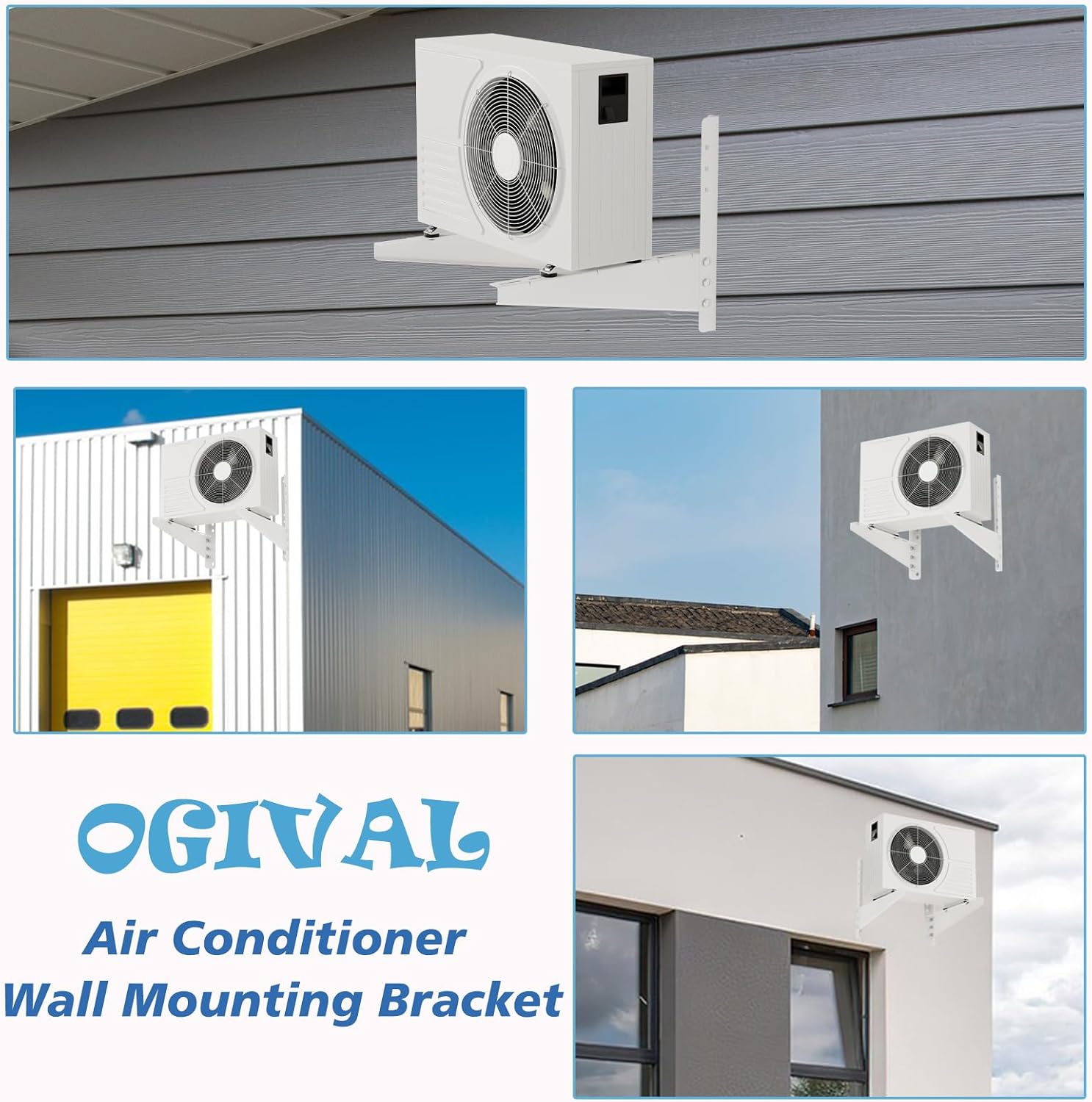

On the ground, outdoor AC units are exposed to dust, debris and standing water. By mounting the unit securely on the wall, this bracket helps reduce exposure to ground‑level contaminants and potential damage, potentially extending the operating life of the unit.

Key features and how they help

• Heavy‑duty design: Built to hold up to 330lbs, which covers the common weight range for many 9,000–18,000 BTU outdoor units on the market.

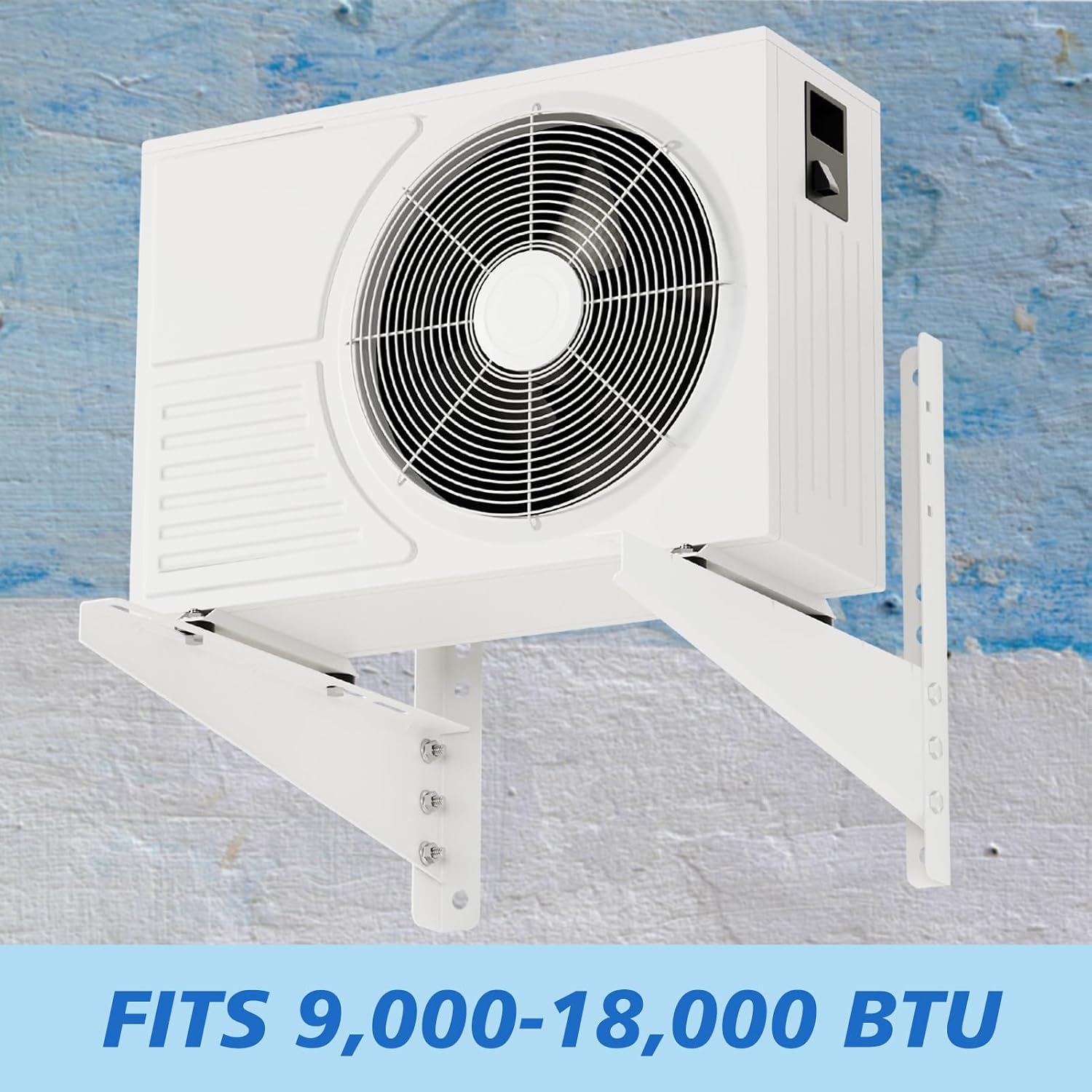

• Broad compatibility: Marketed for small split units, heat pumps and compressors within the 9,000–18,000 BTU band, offering versatility for different installations.
• Ground clearance: Elevates the condenser away from dirt, snow, leaves and water, contributing to cleaner operation and reduced maintenance needs.

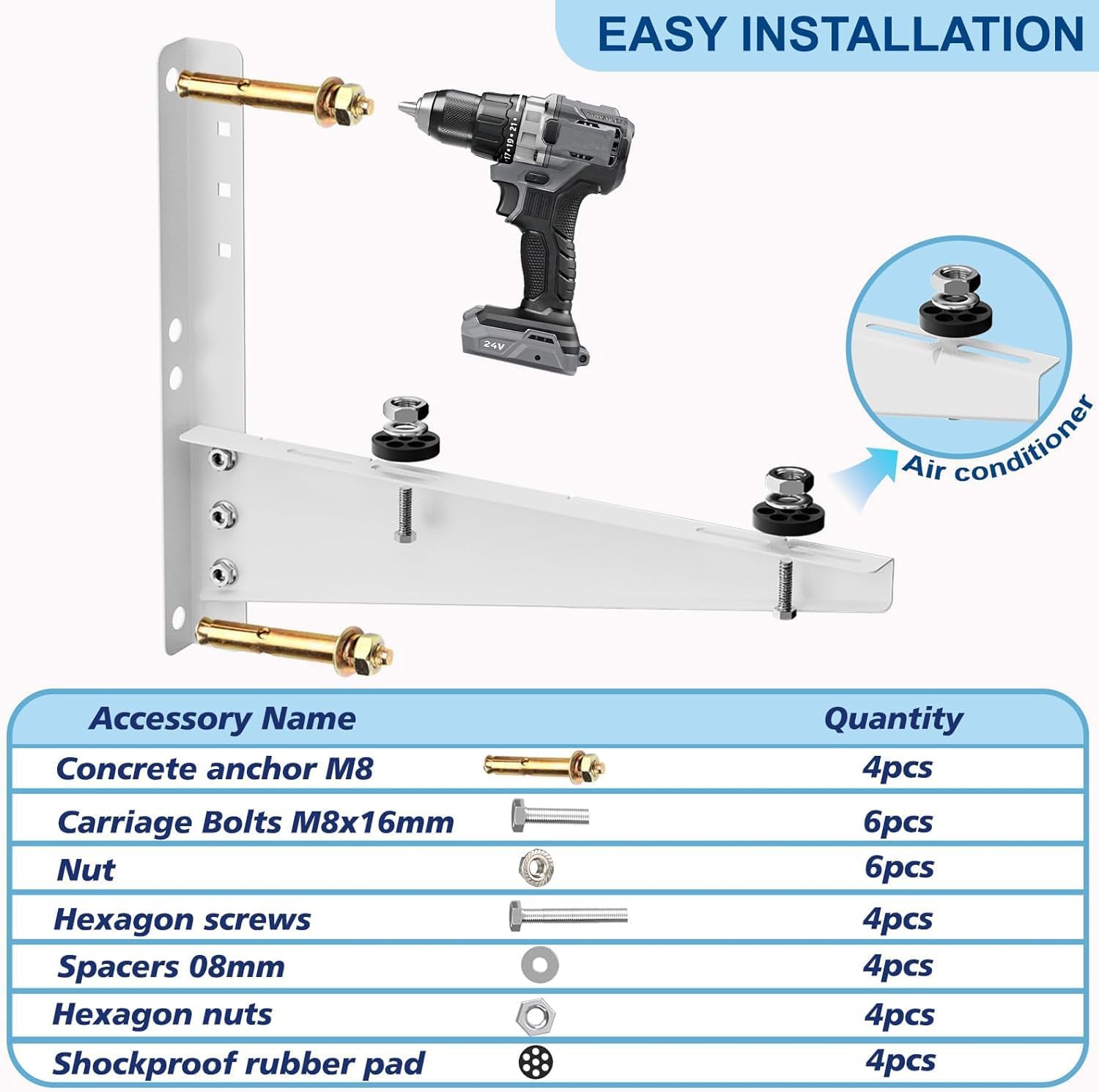

• Complete installation kit: Includes steel plates, bolts, washers and nuts, plus a user manual, making assembly straightforward for a DIY install.

What to consider

• Range clarity: The text also mentions a broader 12,000–24,000 BTU range in a separate line, if your unit sits near the upper end of the 18,000 BTU limit, double‑check compatibility to avoid over‑loading the bracket.
• Wall suitability: As with any wall‑mounted kit, ensure the supporting wall and mounting surface can bear the weight and vibration over time. The description doesn’t specify wall type or required studs, so verification on site is prudent.

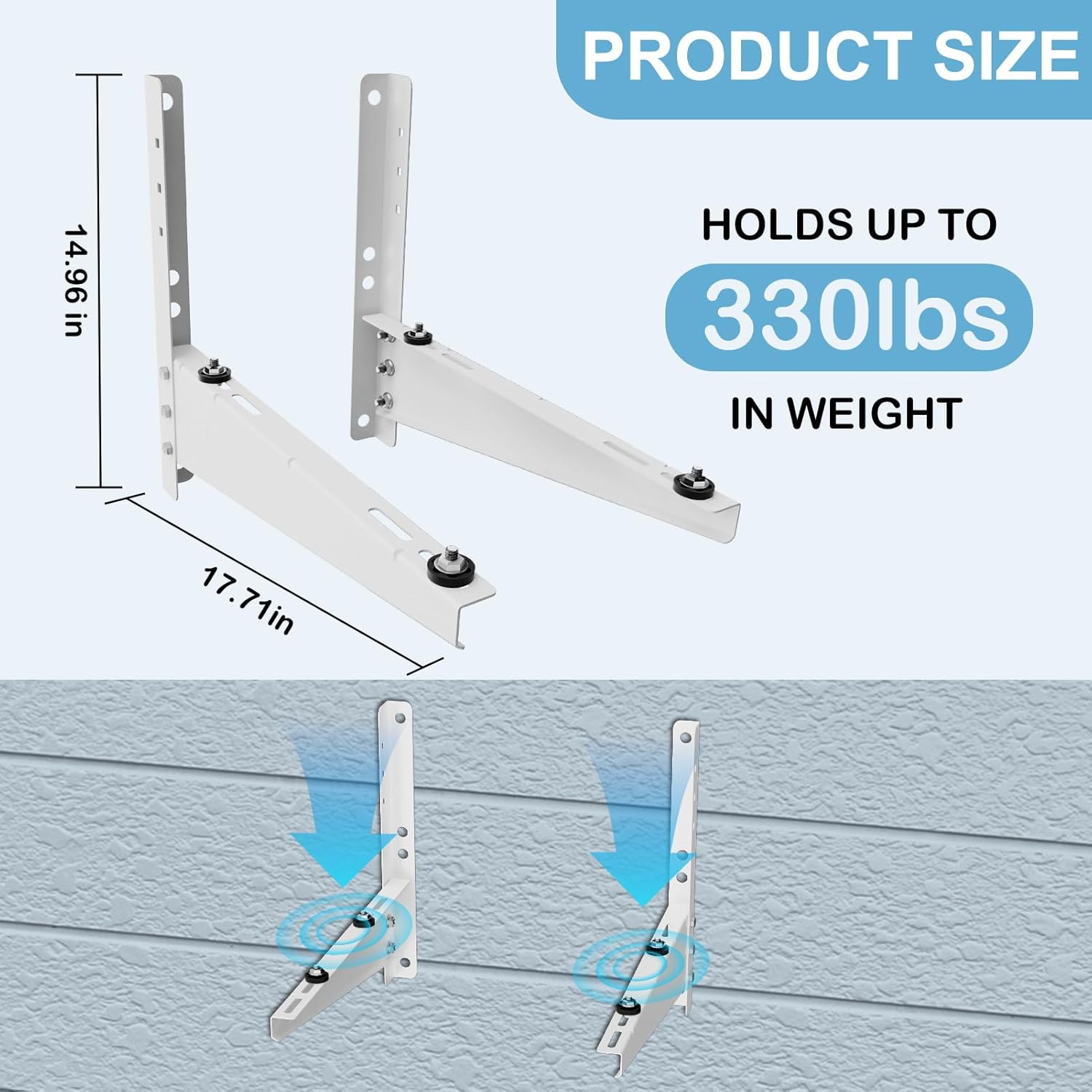

• Real‑world fit: The given dimensions are 14.9 x 17.7 inches, which helps gauge space requirements but may not perfectly align with every outdoor unit’s footprint. Measure your unit and compare before purchase.

Who it’s for

• Homeowners or small business premises looking for a straightforward, value‑driven mounting option for 9,000–18,000 BTU units.
• installers wanting a kit that includes hardware and clear instructions for a relatively easy install.

Who it isn’t ideal for

• Units outside the stated BTU range (e.g., above 18,000 BTU) unless additional guidance confirms suitability.
• Installations on walls that cannot safely bear 330lbs or that lack compatible mounting surfaces.
• Those seeking a premium, feature‑rich mounting system with advanced vibration dampening or integrated corrosion protection may prefer higher‑end alternatives.

Buying considerations: when it makes sense

If you prioritise a simple, practically packaged mounting solution that clears space on the ground and ships with all the necessary hardware, this bracket offers a pragmatic option. It’s sensible to confirm the exact BTU rating of your condenser and the wall’s capacity before committing.

Buying considerations: what to check before you buy

• Confirm BTU compatibility with your outdoor unit and ensure it sits within the 9,000–18,000 BTU window.
• Verify wall integrity and whether the mounting surface can support 330lbs in combination with wind and vibration.
• Review the footprint (14.9 x 17.7 inches) against your condenser’s base to avoid overhang or interference with nearby features.

Practical use example

Imagine a compact home installation where the condenser sits on a bracket high on an exterior wall. The unit stays clean from ground-level debris, and a quick bolt‑in setup means a straightforward weekend project rather than a bespoke mounting solution.

Alternatives in context

If you need more aggressive vibration dampening, corrosion protection, or a higher load capacity, you might look at premium mounting kits or purpose‑built brackets that offer these extras. Conversely, for straightforward, budget‑friendly mounting, this option balances cost and practicality without pretending to be more than a solid, reliable mount.

Final decision

Final verdict

It makes sense if you’re installing a 9,000–18,000 BTU outdoor unit and want a no‑nonsense, kit‑in‑the‑box solution that ship‑with hardware included. It may not be ideal if your unit sits at the very edge of the BTU range or if you require advanced mounting features beyond basic robust support.

Quick FAQ

• Is it suitable for all 9,000–18,000 BTU units? The description targets that range, but always cross‑check the unit’s footprint and weight with the bracket’s dimensions and 330lbs rating.
• Does it come with installation instructions? Yes, the kit includes a user manual along with mounting hardware.
• Can it be used on different wall types? The information provided doesn’t specify wall type requirements, ensure your wall can safely support the load and installation method.
