ELIVED 813mm Long Arm TV Wall Bracket for 37–75" TVs

This long arm TV wall mount extends up to 813 mm from the wall and retracts to 77 mm, keeping the screen out of the way when not in use while offering a generous reach for flexible viewing in a corner or living area. Designed for 37 to 75 inch televisions, it supports VESA patterns from 150 x 100 mm to 600 x 400 mm and a maximum load of 45 kg, making it a versatile solution for many layouts and room sizes.

This ELIVED model uses a corner-friendly design with a single mounting bolt pattern and articulated arms that can be folded or extended to fit the corner space. The long arms provide strong reach for viewing in different seating positions while maintaining a clean, uncluttered appearance. The tilt and swivel options help reduce glare and adjust the screen angle for comfortable viewing from multiple spots in the room. In practice, you can turn the screen up to 90 degrees left or right and fine‑tune the tilt by +5° / -13° and a slight post-installation adjustment of +3° / -3° to suit your seating arrangement and lighting conditions. This makes it a practical choice for rooms where the TV needs to be positioned at a distance from the wall or across a corner.

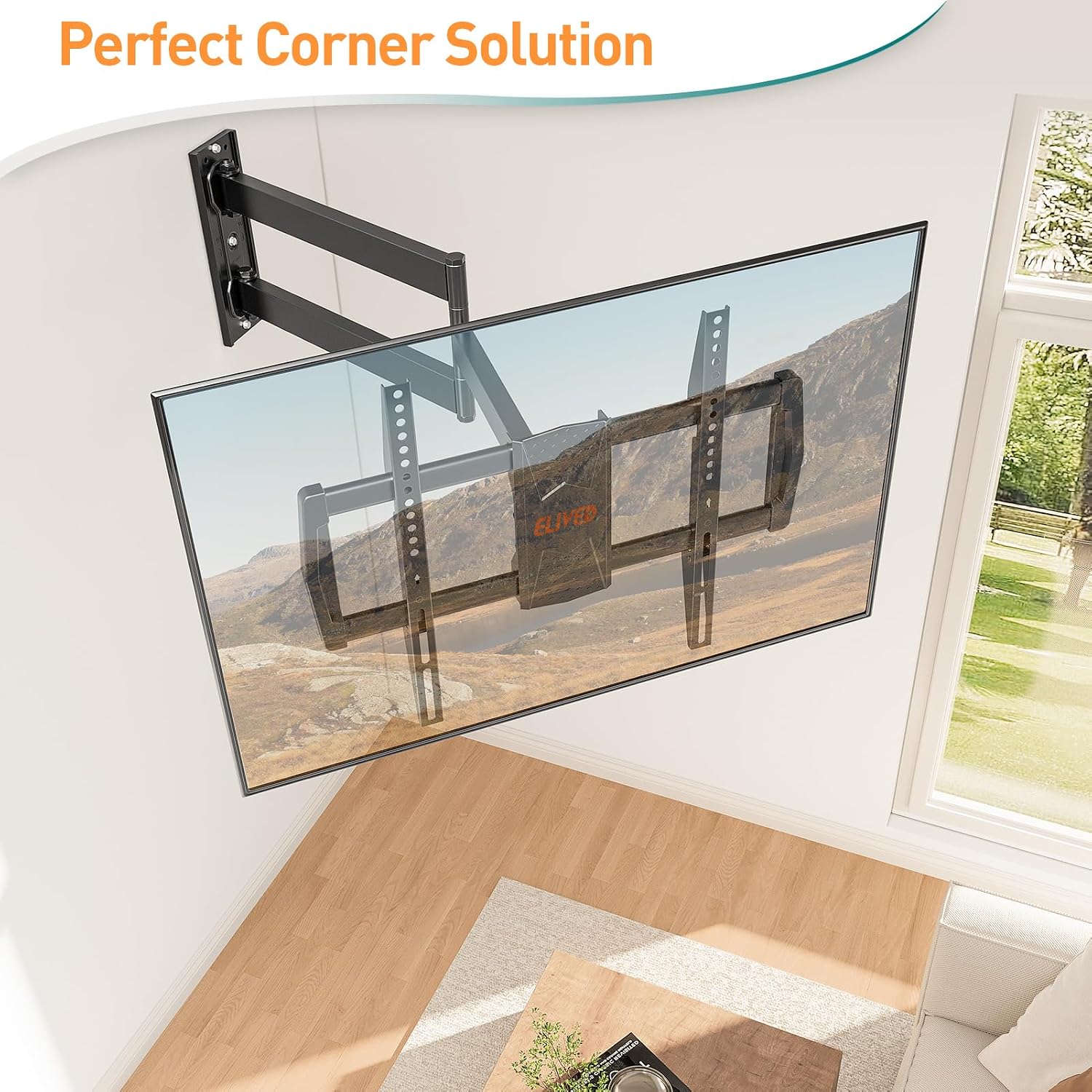

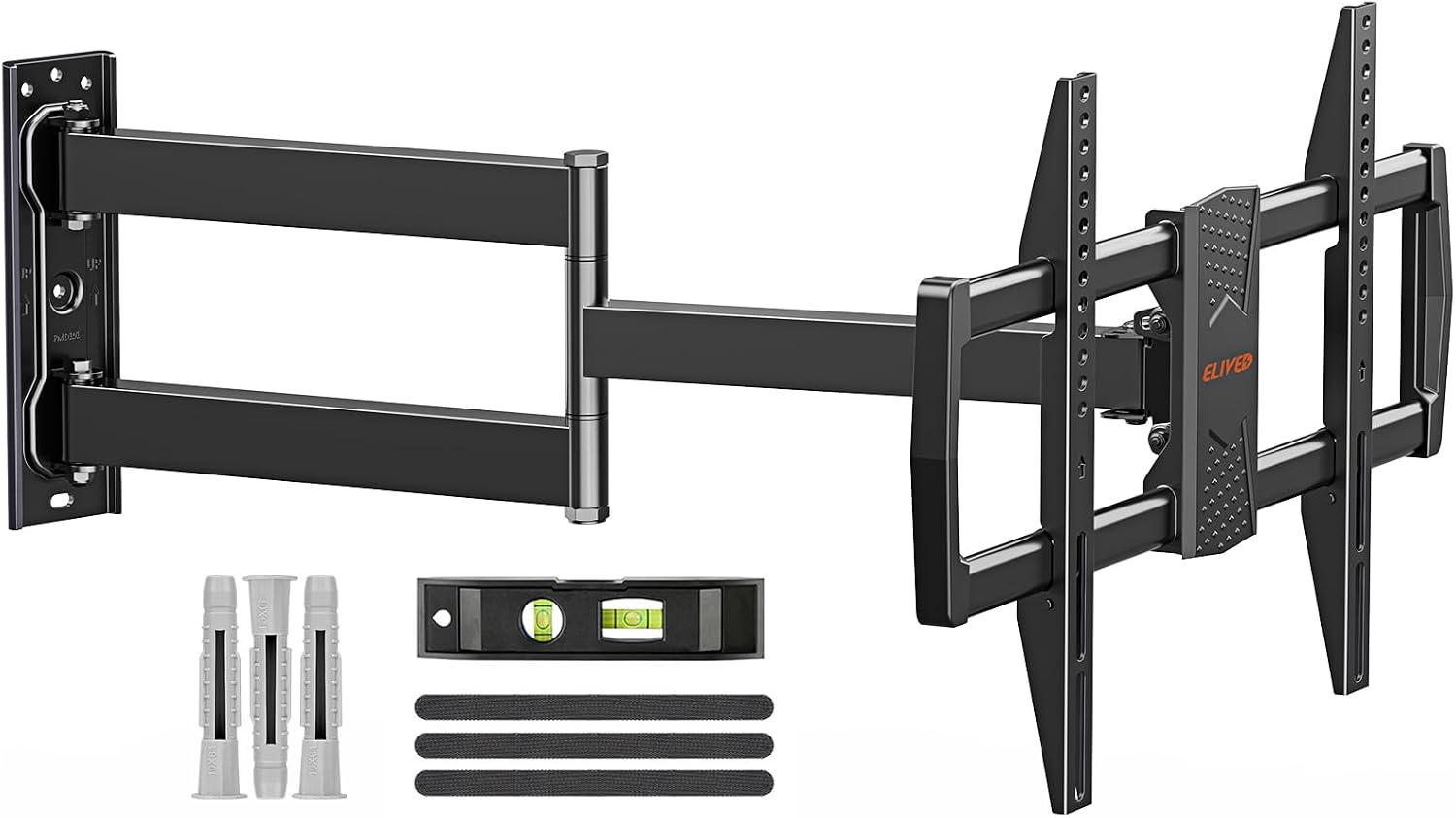

Ideal for corner installations, the arm design maximises flexibility in tight spaces and widens the field of view without sacrificing stability. The mounting kit includes step-by-step instructions, a bubble level, and all required hardware for straightforward assembly, helping you avoid unnecessary handwork. A note to consider is to avoid mounting on plasterboard-only walls to ensure suitable support and safety for the TV.

Key Points

The structure is built to extend and retract smoothly, offering a wide range of movement without compromising steadiness. The bracket supports most TVs within the specified size range and weight limit, with compatibility across common VESA patterns. The tilt helps reduce glare and preserve image quality in bright rooms, while the 90-degree swivel enables viewing from different zones in larger spaces. The corner-fit design allows arms to fold away when not in use, helping to keep walkways clear and rooms neat. Easy installation and included hardware simplify the setup process.

Technical Specifications

• Name: ELIVED EV1036
• Brand: ELIVED
• TV compatibility: 37–75 inches

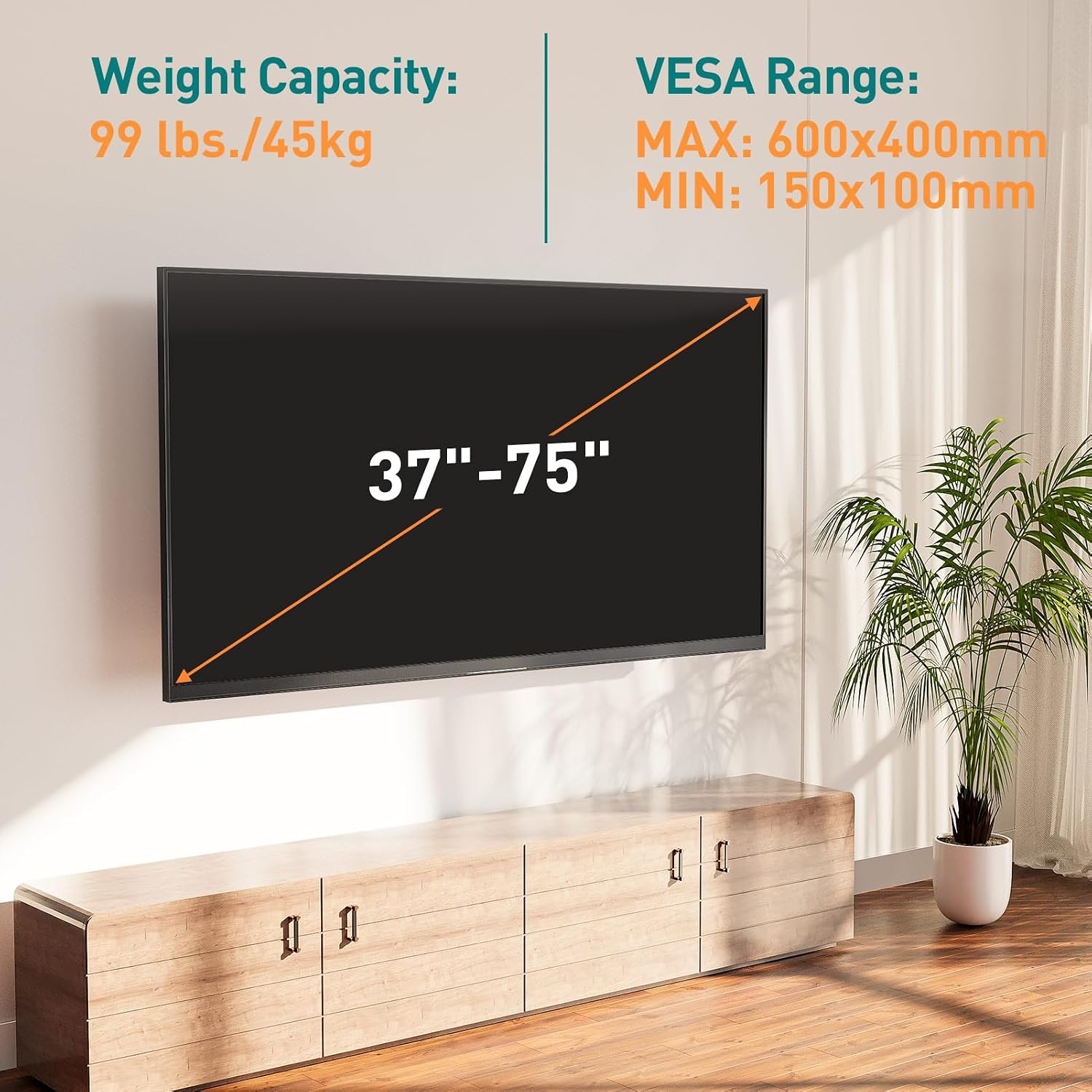

• VESA compatibility: 150 x 100 mm to 600 x 400 mm
• Maximum load: 45 kg

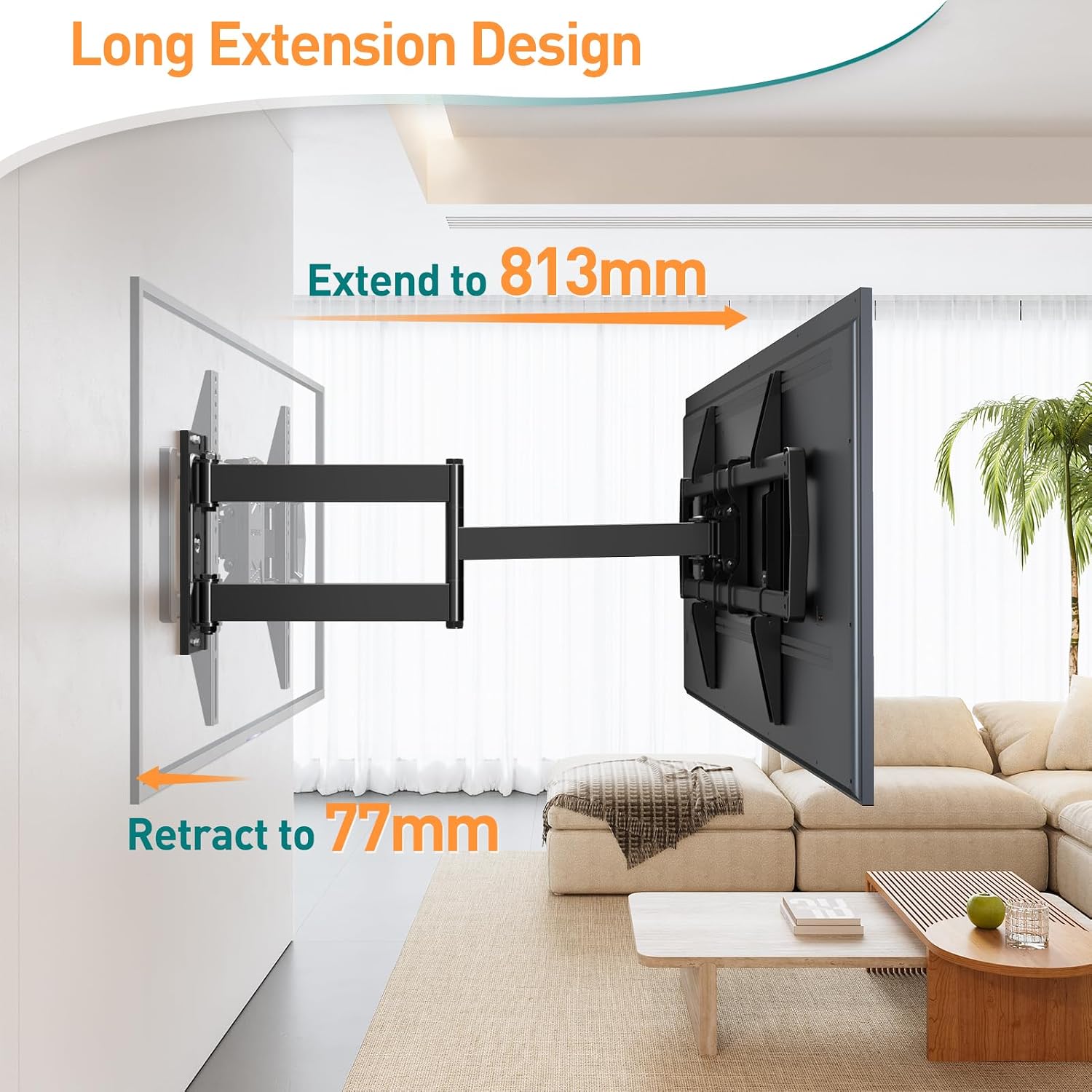

• Extension: 813 mm from wall
• Retracted depth: 77 mm

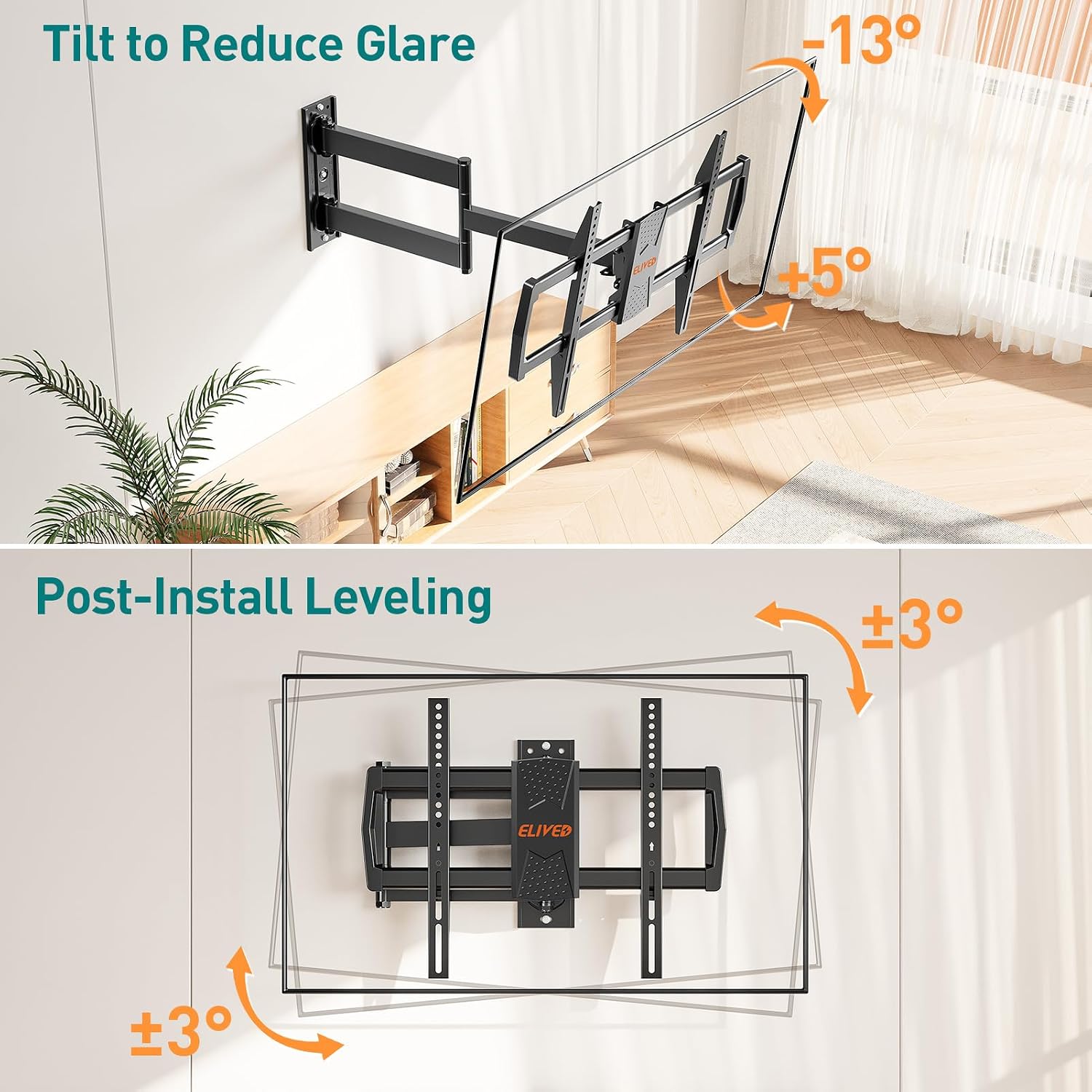

• Tilt range: +5° / -13°

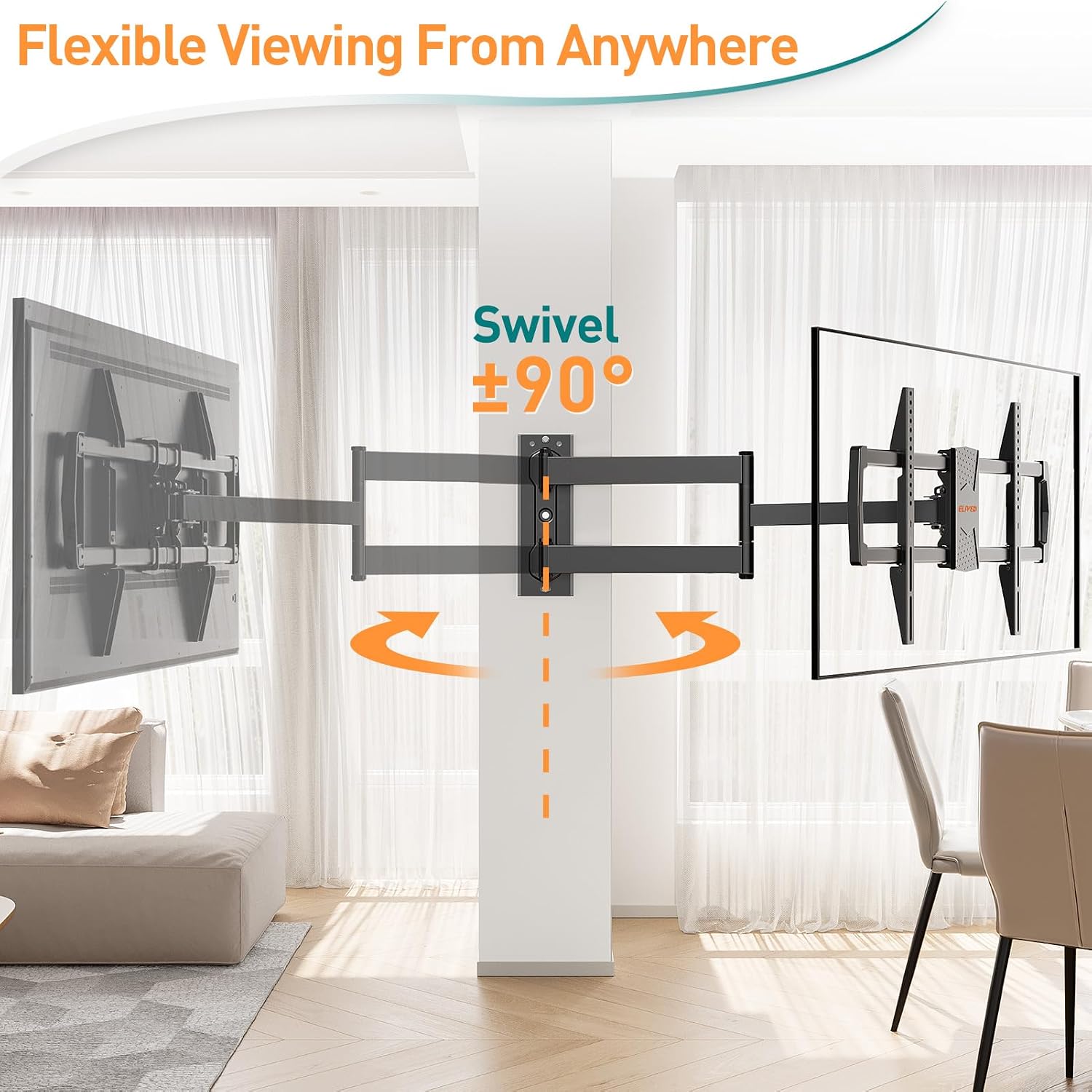

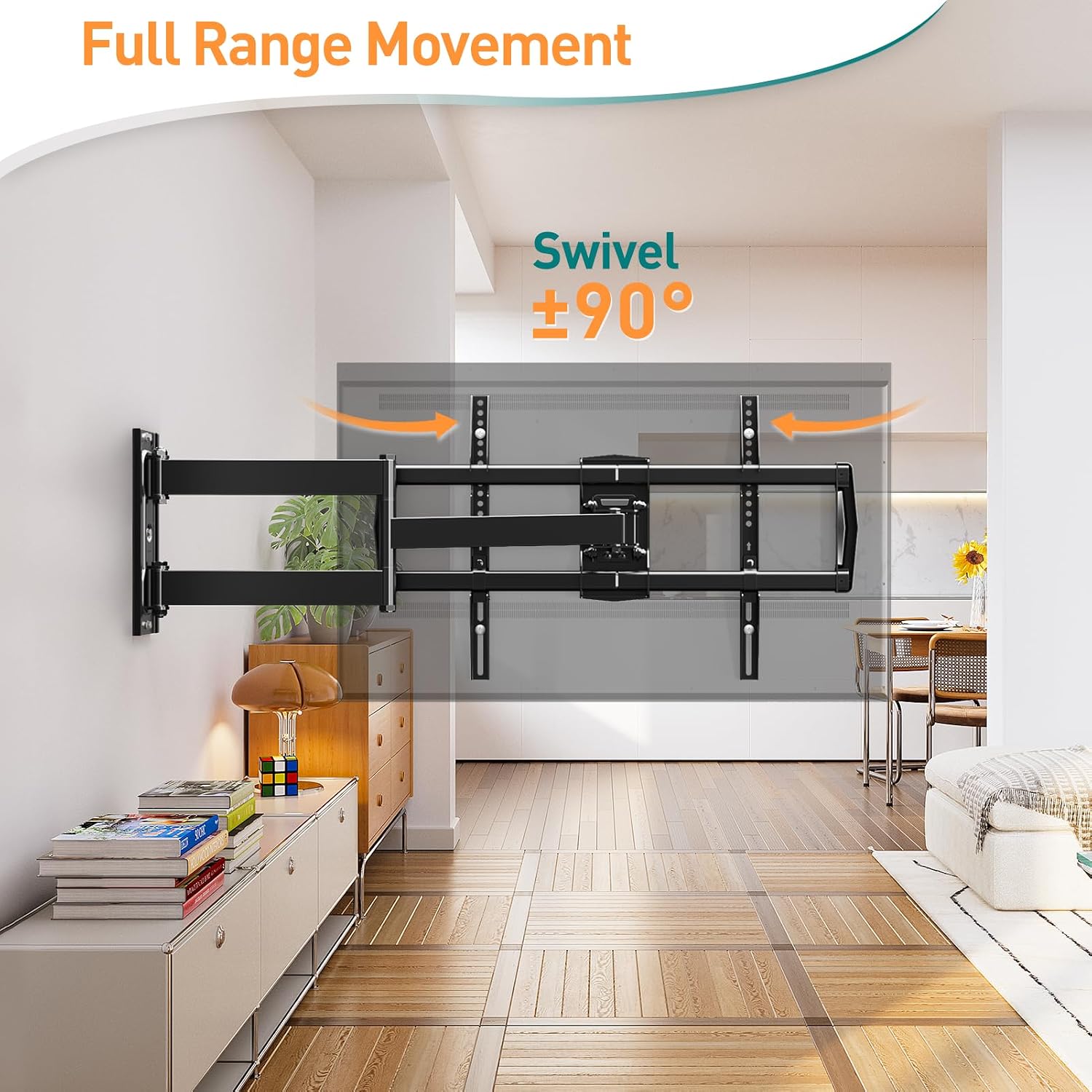

• Swivel range: ±90°
• Materials: metal construction with integrated cable management
• Notes: not recommended for installation on drywall alone

Usage Recommendations

For best results, verify wall strength and stud layout before installation and avoid mounting on unsuitable plasterboard sections. Position the TV so that the extended arm clears obstruction and aligns with your seating area for comfortable viewing. If glare is an issue in the room, adjust the tilt and swivel to find the least reflective angle and reduce eye strain. Include this setup in living rooms, bedrooms, or home offices where corner layouts and flexible viewing angles are valued 🙂.
