NEEWER GM47B Quick Release Plate for Arca‑Style Cameras

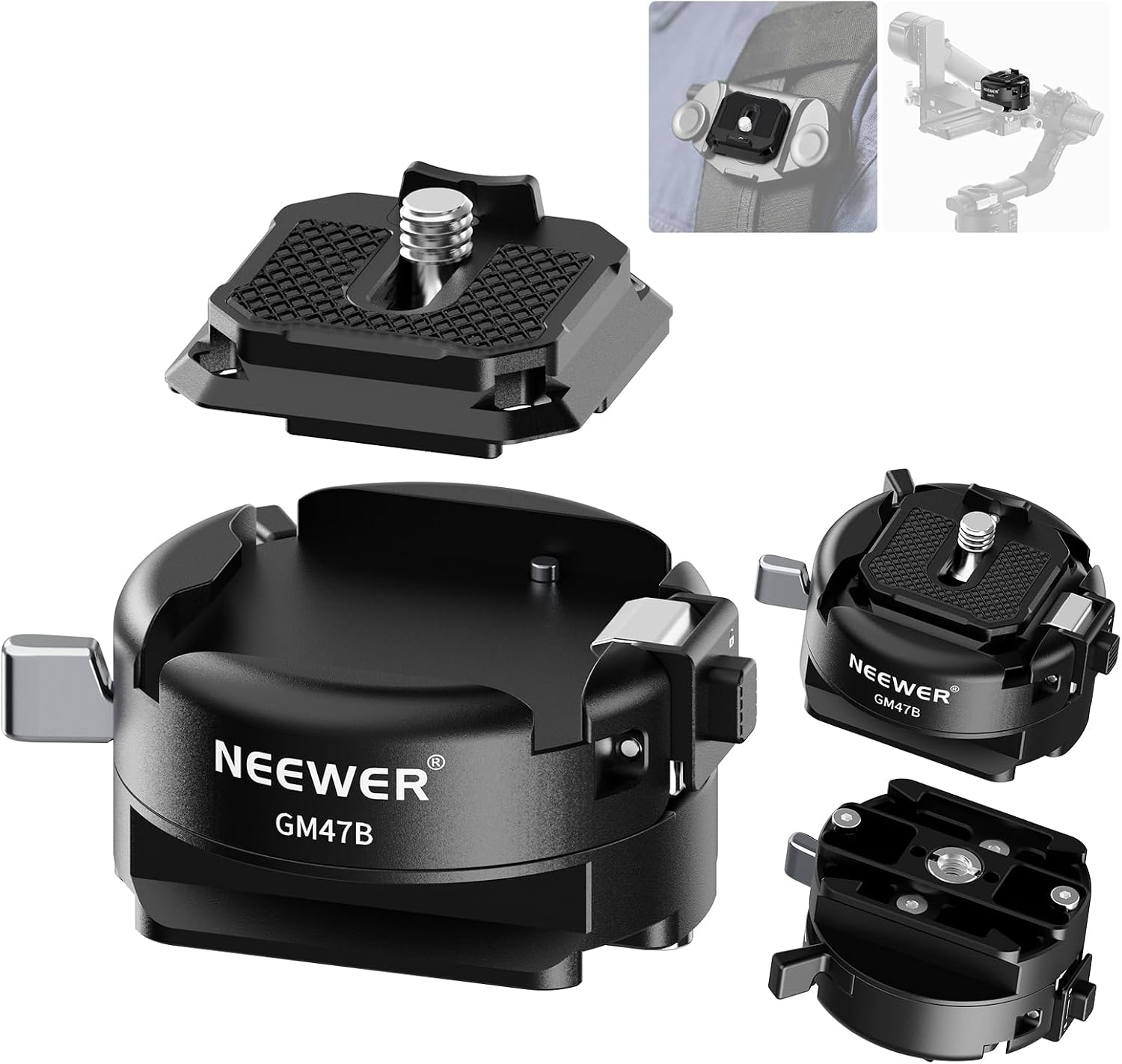

This compact quick release kit turns fast camera swaps into a one-handed task, ideal for gimbal work and tripod mounting when every second counts. The NEEWER GM47B combines an Arca-type square plate and matching clamp base to support both landscape and portrait orientations, giving steadier framing for run-and-gun shoots or tripod setups.

Key Points

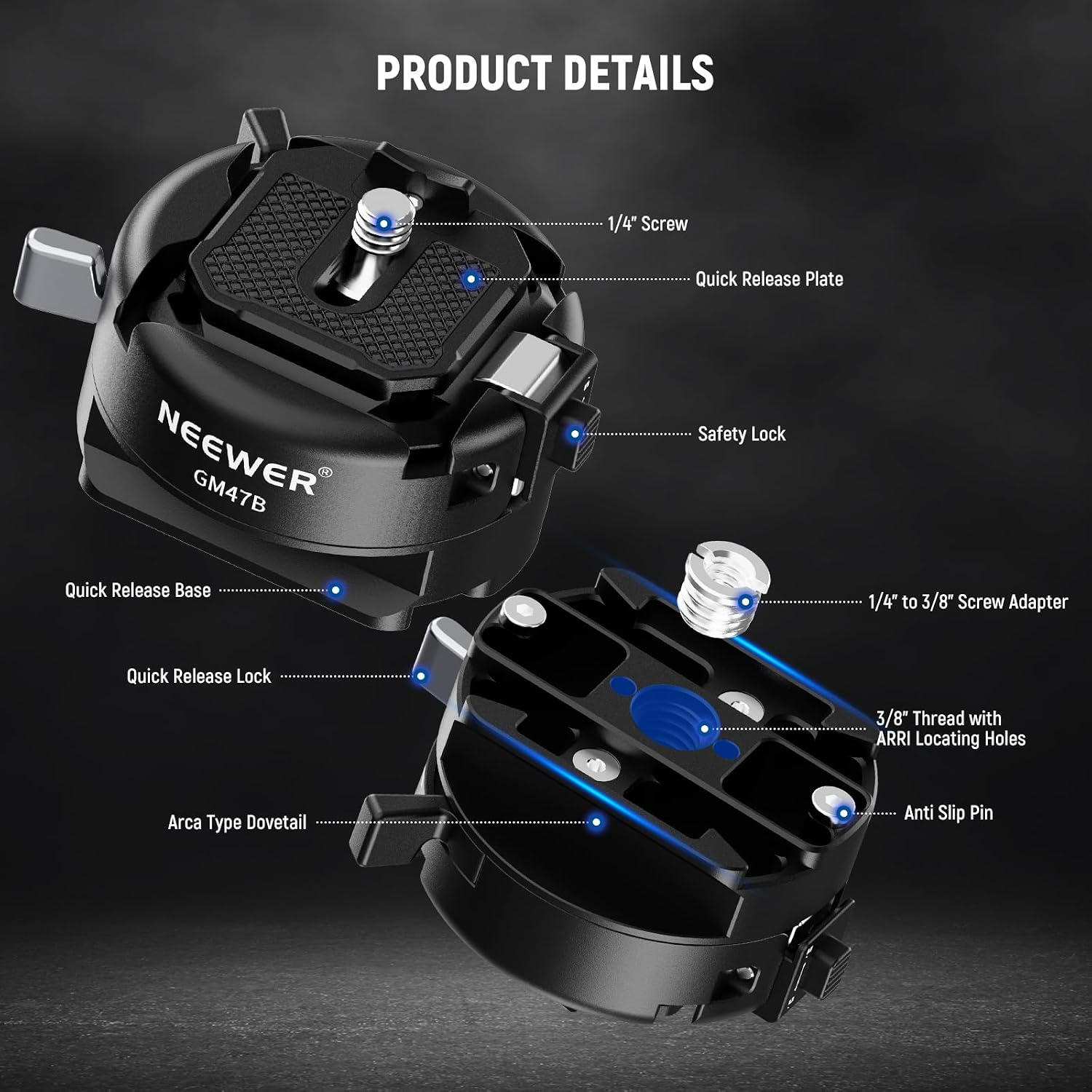

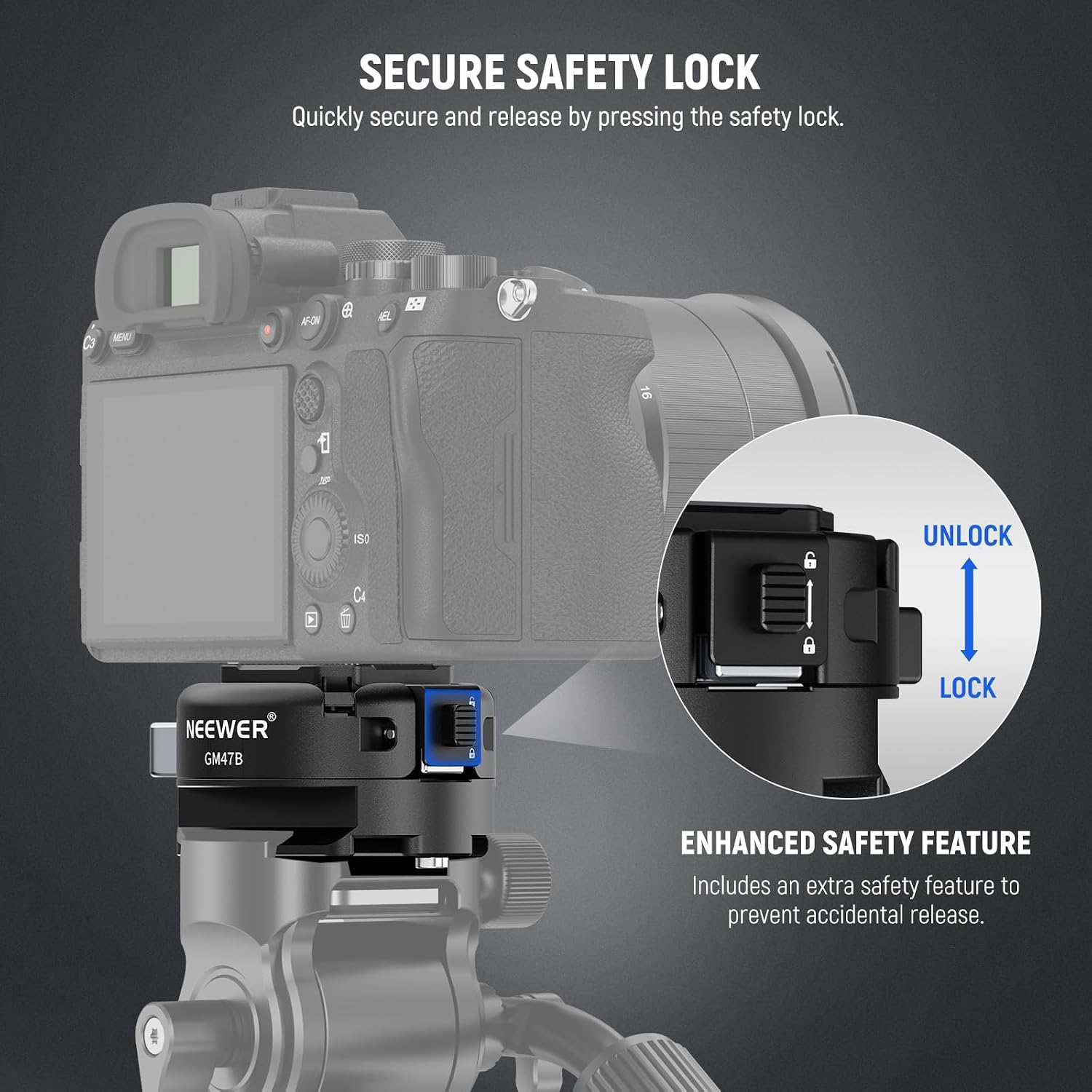

The set is designed for rapid transitions between camera support systems, with automatic locking when the plate is engaged and an additional safety lock button for peace of mind. The square plate includes four side Arca slots so you can slide the camera in from any direction, avoiding the need to remove the plate when changing composition. This anti twist feature reduces the risk of accidental rotation during handheld operation or when using heavier lenses, which can be particularly useful for vloggers and photographers working outdoors. 📸

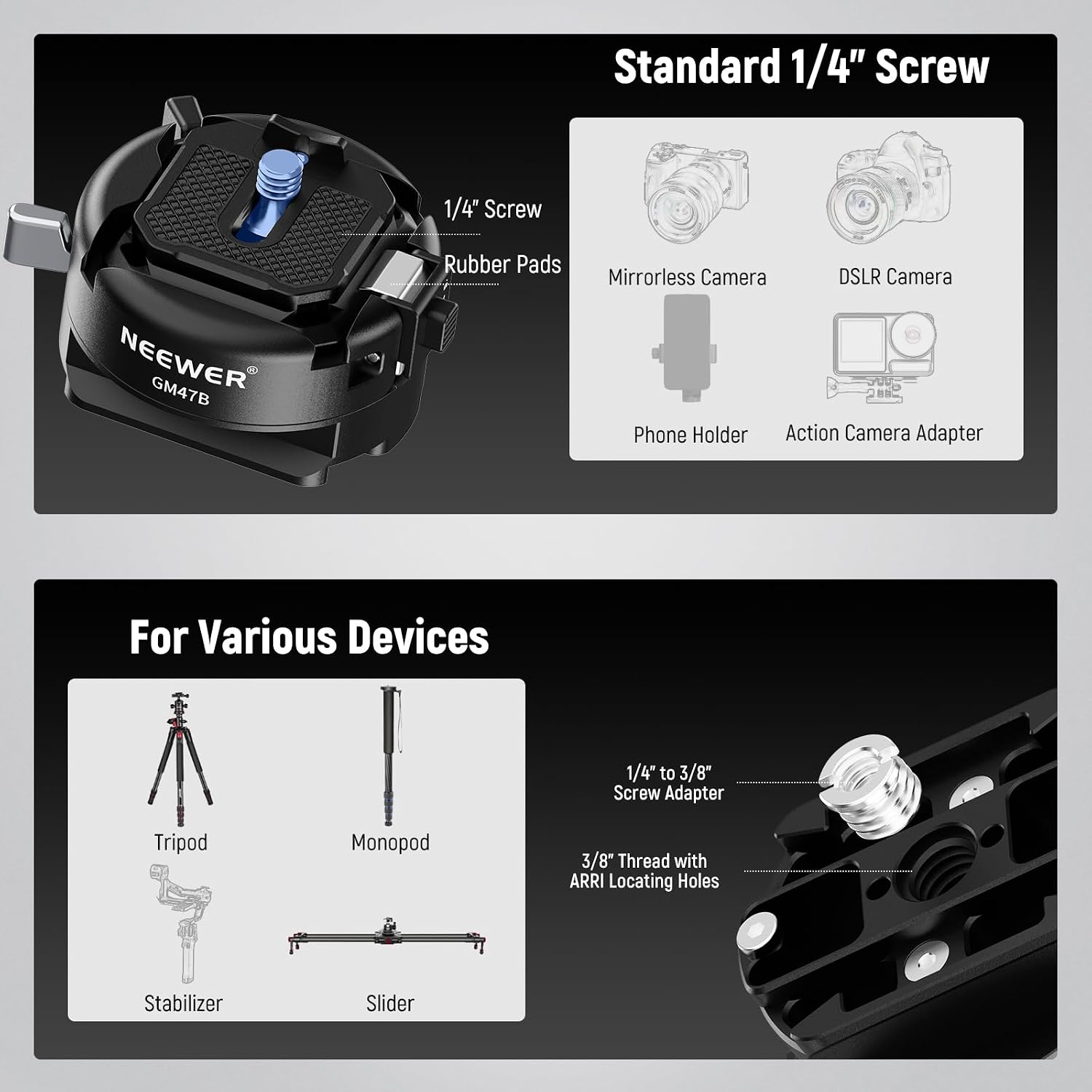

Compatibility is broad. The kit works with DJI RS gimbals such as RS 4 Pro, RS 3 and RS 2, and it is compatible with Peak Design Capture V3 clip systems, tripods and monopods that accept Arca-type plates. The universal 1/4 inch screw lets you attach DSLRs, mirrorless bodies, mini camcorders and accessory brackets. Note that the clamp is compatible with Peak Design QR plates and the supplied Arca plate, according to the manufacturer. ⚙️

A practical nuance to consider is the load limit. The stated capacity is 5 kg, which covers the majority of mirrorless and many DSLR setups but may not be sufficient for very large telephoto lenses or heavy camera rigs. Also, the clamp’s profile may add a small amount of height under low-clearance heads.

Technical Specifications

• Name: NEEWER GM47B Quick Release Plate Kit

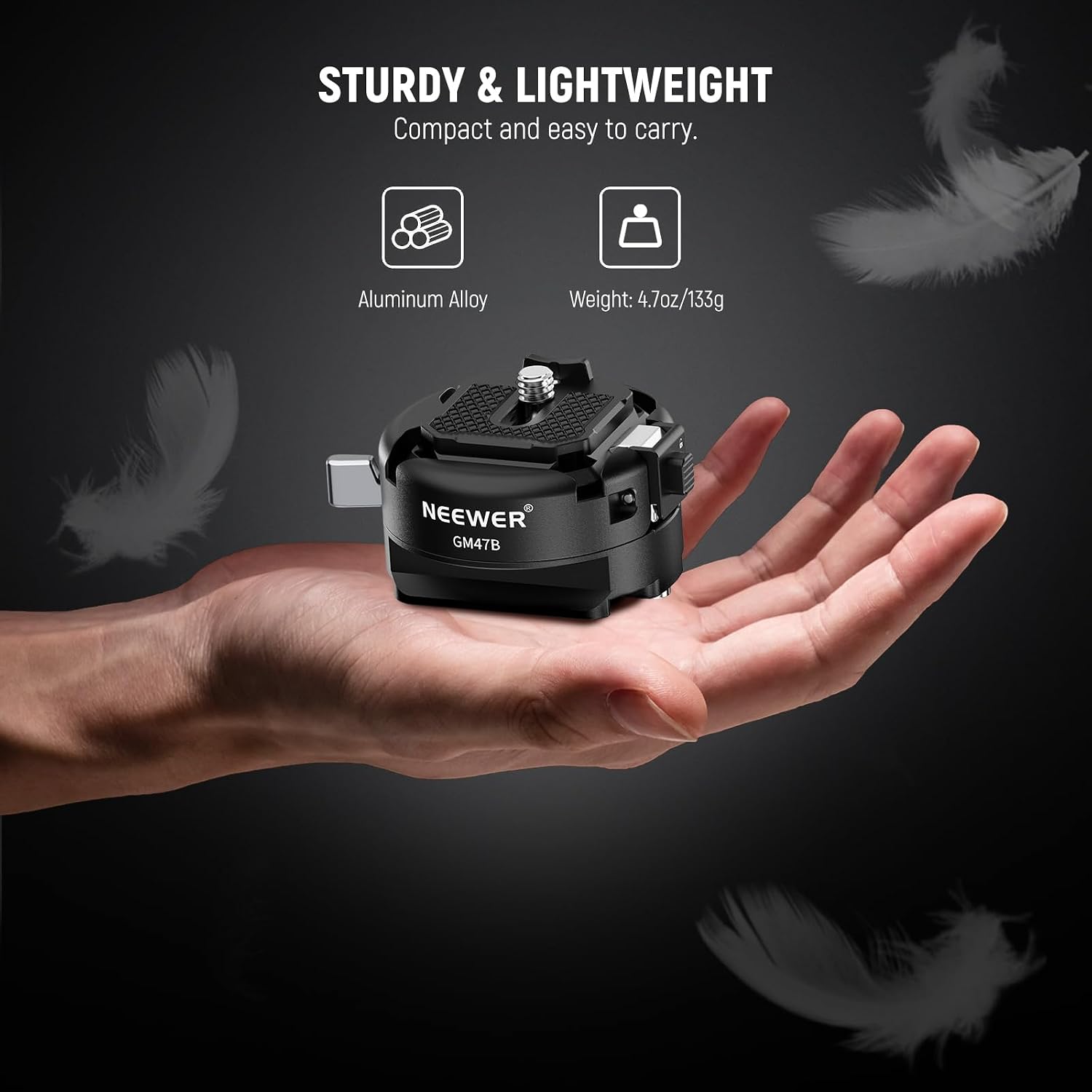

• Material: Aluminium alloy, black anodised finish
• Load capacity: 11 lb / 5 kg
• QR plate dimensions: 38 x 38 x 9 mm (1.5 x 1.5 x 0.35 inches)
• Clamp base dimensions: 53 x 38 x 22 mm (2.1 x 1.5 x 0.9 inches)
• Mounting screw: 1/4 inch universal thread

Usage Recommendations

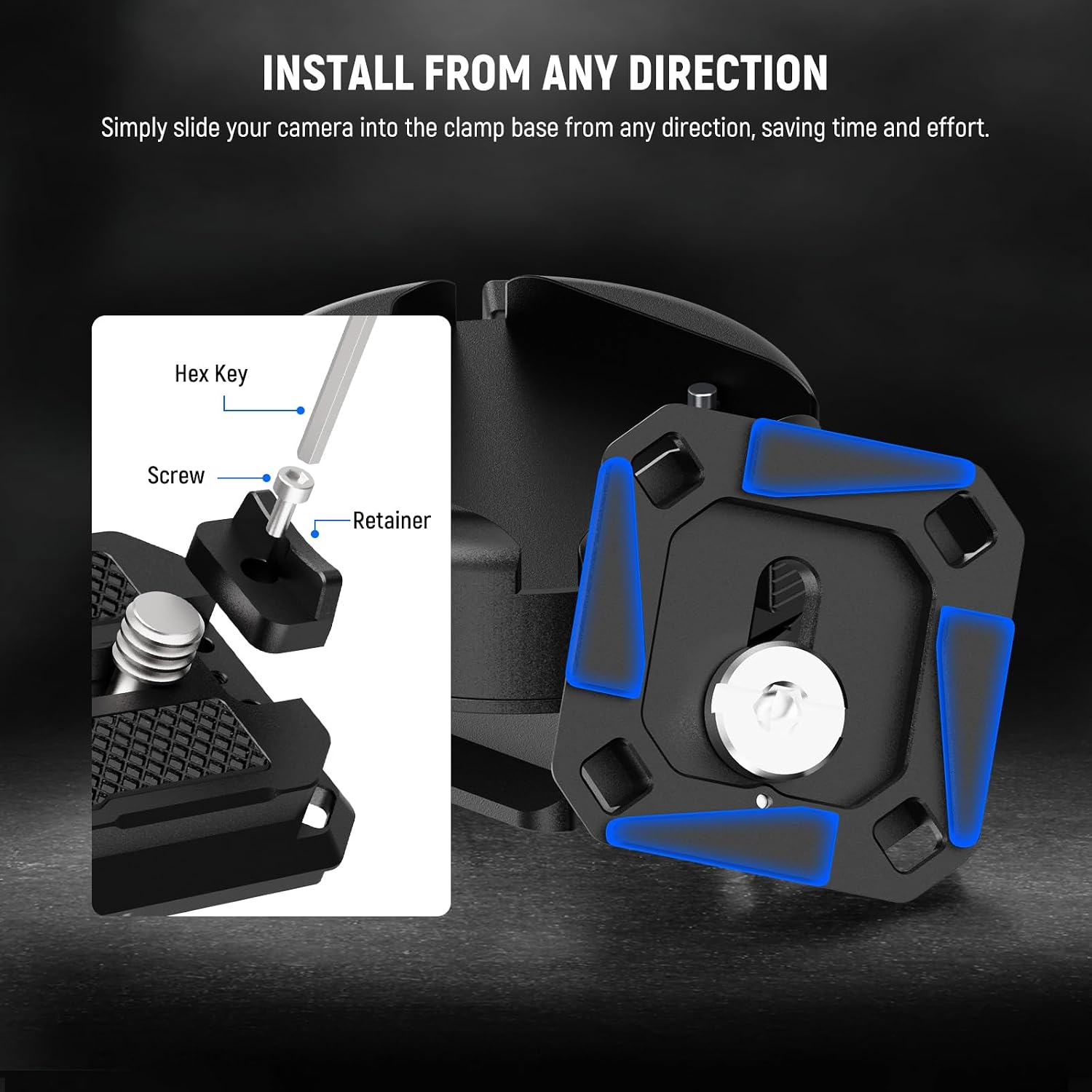

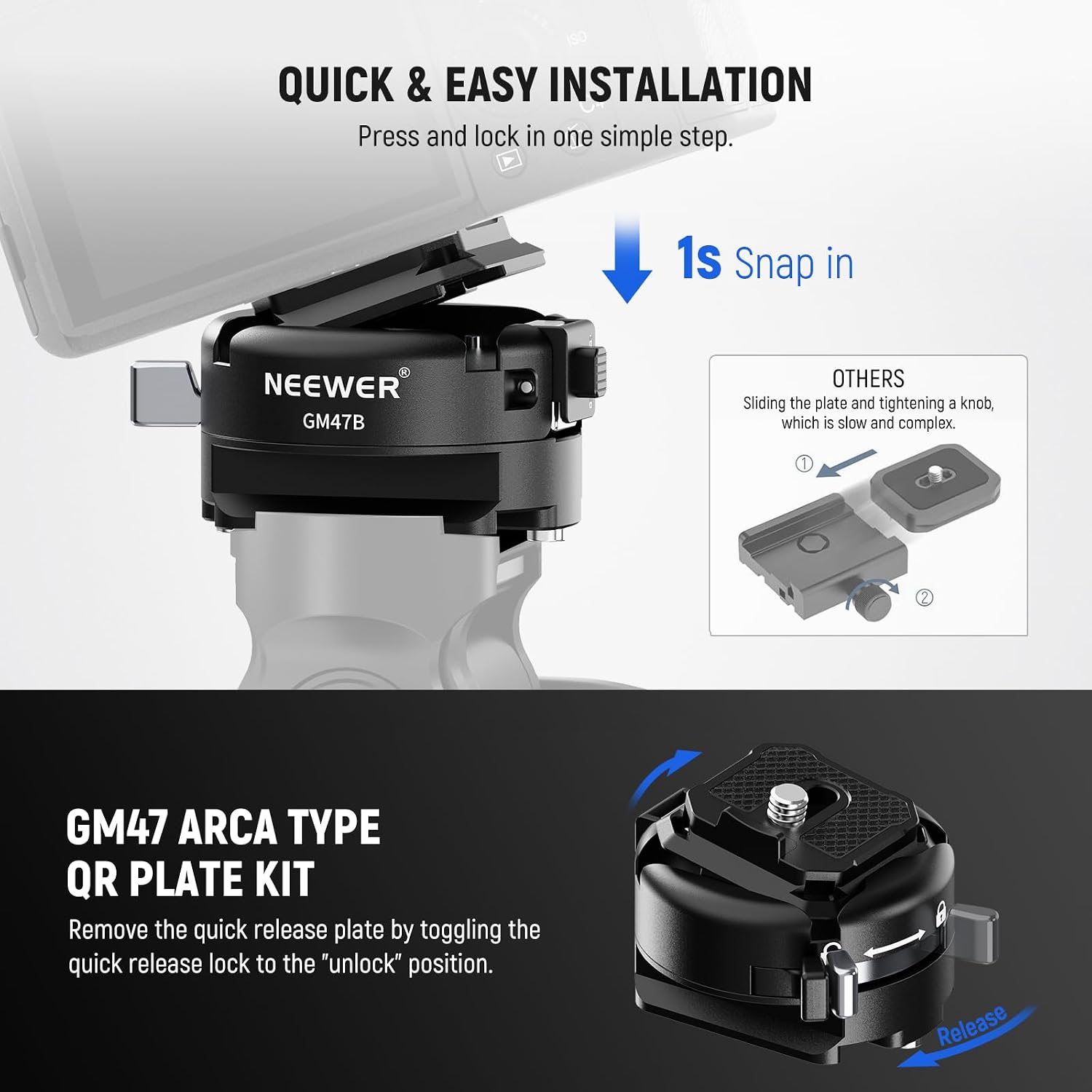

Attach the plate to your camera using the included L-shaped hex key, tightening firmly but without over-torquing to protect threads. Slide the plate into the clamp until the automatic lock engages, then press the safety button to secure it for transport or vigorous movement. For portrait orientation, use one of the side Arca slots so the camera remains balanced and the centre of gravity is preserved. When working with heavier lenses, consider adding a lens support or using the plate on a tripod head rated for higher loads to prevent strain on the mounting point.
