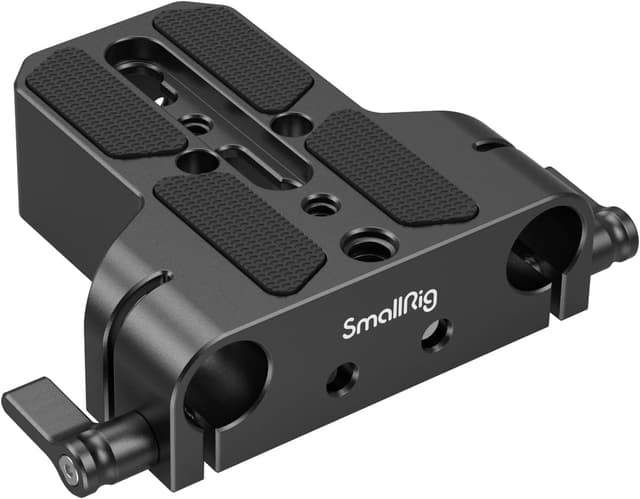

SMALLRIG 1674 universal base plate with 15mm rod

This compact camera base plate from SmallRig adds stable rod support and quick mounting options for mirrorless and cinema cameras, helping to extend rig capabilities for both handheld and tripod setups. It is aimed at photographers and videographers who want a lightweight aluminium base with 15mm rod clamps to add lens support or accessories during shoots.

Key Points

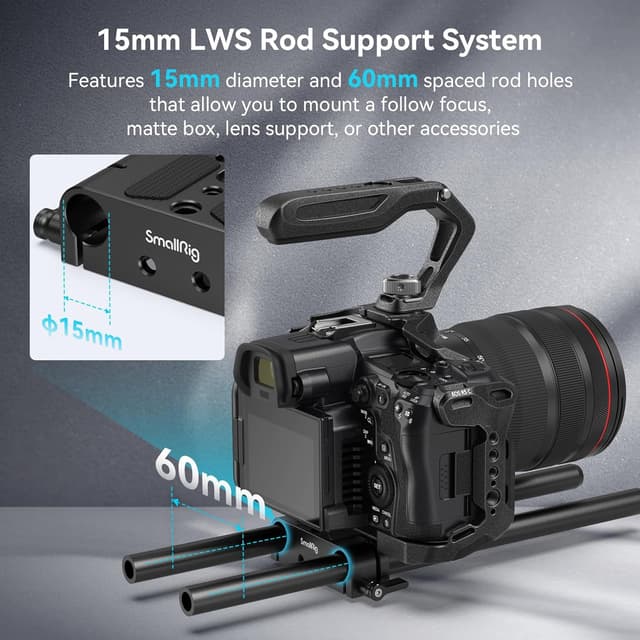

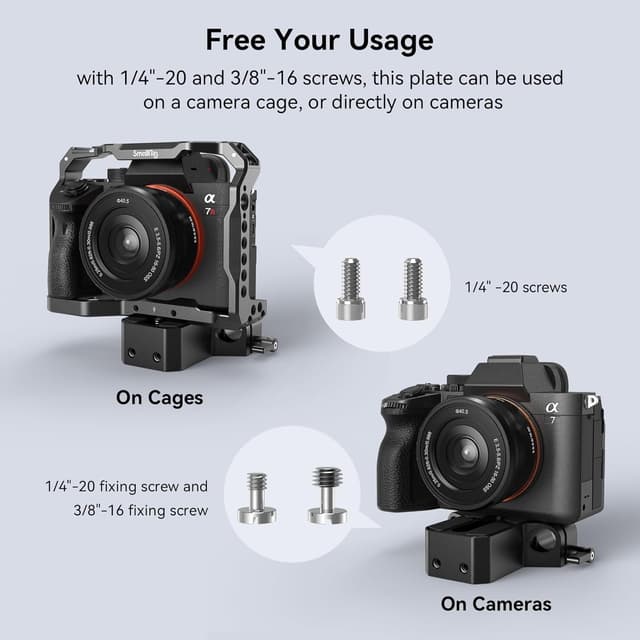

The plate accepts either a 3/8" or 1/4" attachment screw for direct camera mounting and includes rubber cushions to reduce twisting and prevent scratching. It accommodates two 15mm rods with 60mm spacing, so you can fit a standard lens support, follow focus or small matte box. The bottom includes 1/4" and 3/8" threaded holes to secure cages or attach to tripods and quick release plates, offering straightforward integration into most rigs. Consider that compatibility is broad rather than model-specific, and some cameras may require minor adjustments or additional screws according to the manufacturer.

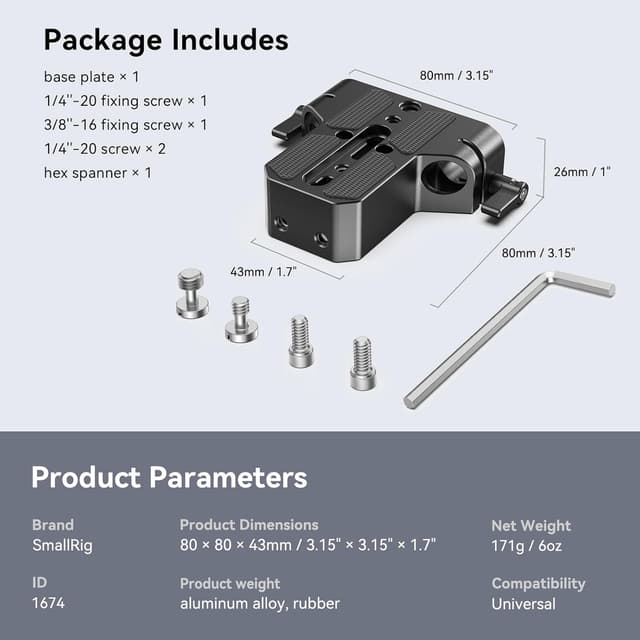

Technical Specifications

• Name: SmallRig Universal Base Plate 1674
• Material: - Aluminium alloy
• Rod system: - 15mm diameter, 60mm spacing
• Mounting screws: - 3/8" and 1/4" compatible

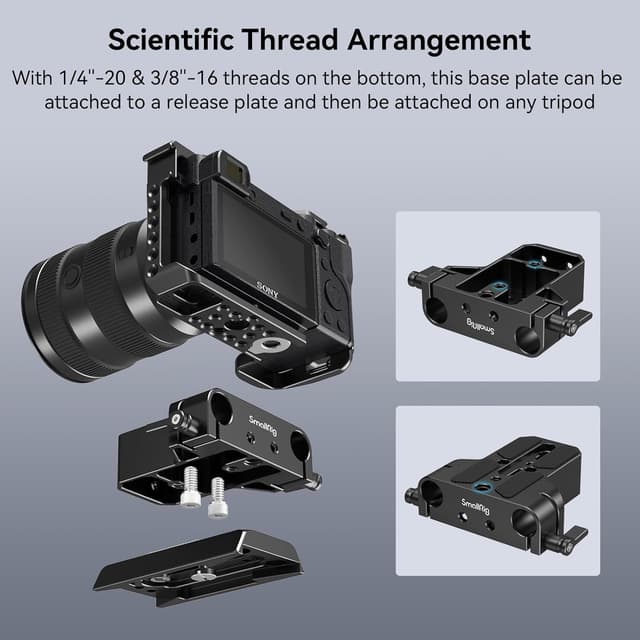

• Bottom mounting: - 1/4" and 3/8" threaded holes
• Protective pads: - Rubber cushions to increase friction and prevent scratches

Usage Recommendations

For run-and-gun setups, attach the plate directly to the camera body using the most suitable screw and then slide in two 15mm rods to add a simple lens support. For tabletop or tripod workflows, use the bottom threaded holes to mount a quick release or cage and keep the rig compact while still allowing accessory expansion. When pairing with larger cine lenses or heavier accessories, verify that your tripod head and quick release system can handle the increased frontal load.

Positive Aspects

The solid aluminium construction provides a sturdy feel while keeping weight low, which helps maintain balance when building a compact rig. The rubber cushions are a small detail that reduces rotation risk and protects finish, which matters during repeated assembly and disassembly. Practicality is high because the plate works with many popular mirrorless and cinema cameras, enabling flexible use across different bodies and projects. 😊 🎥
