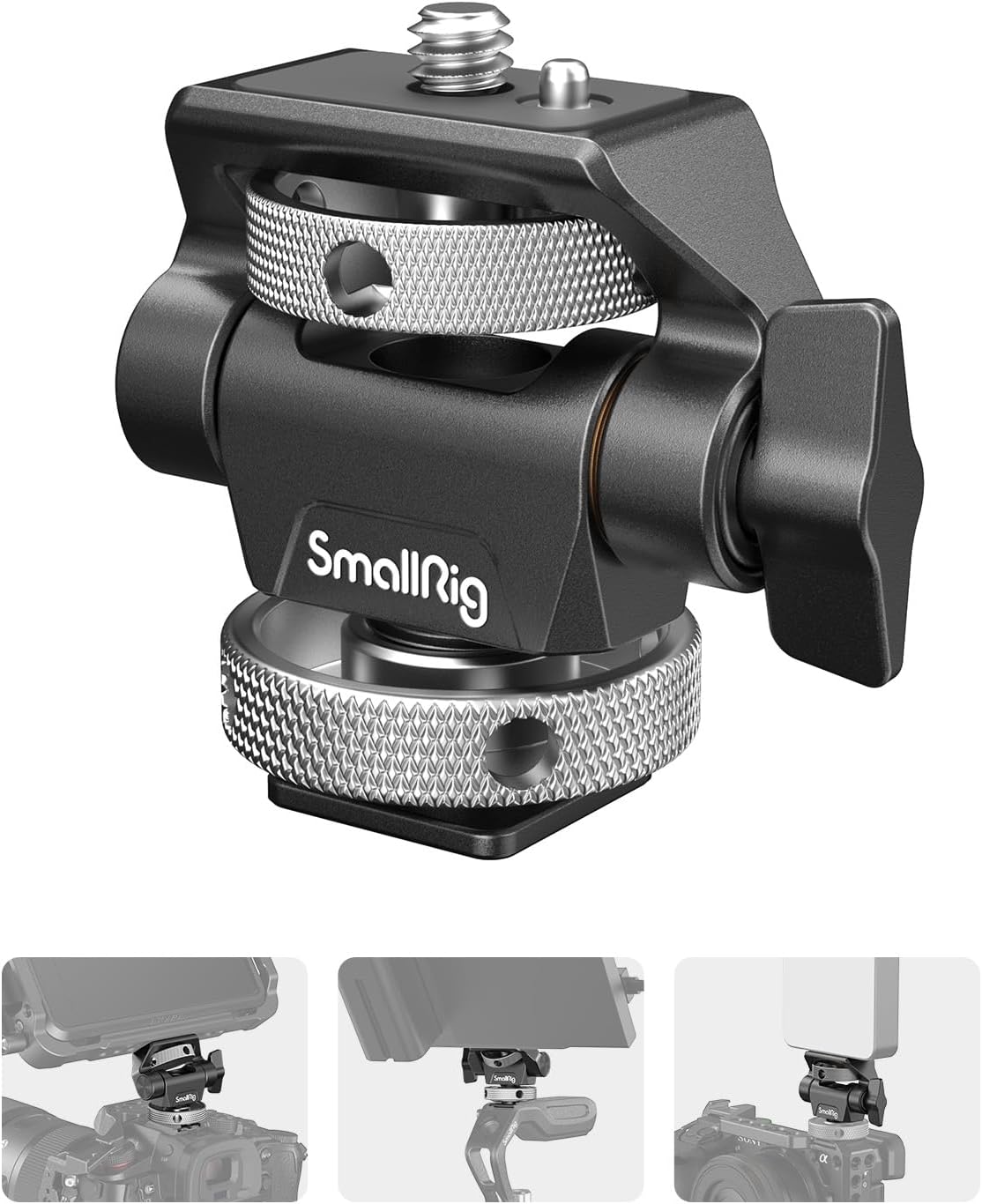

SMALLRIG 2905B (New Version) Small Monitor Mount with Cold Shoe Adapter, 360° Swivel & 180° Tilt

If you’re mounting a small on-camera monitor, the practical question is how reliably it holds position while you work. The (New Version) SMALLRIG Camera Monitor Mount with Cold Shoe Adapter (2905B) is built around flexible shaping: 180° tilt, 360° swivel, plus a quick-adjust tension knob for the tilt (and an Allen key for the swivel tension).

It’s the kind of accessory that won’t look exciting on a shopping list, but on set it matters. When you’re moving between monitoring angles—checking focus from one side, then adjusting for a lower shot—you want something that stays put, doesn’t twist out of alignment, and doesn’t chew up your monitor’s surface.

Key features that affect real filming

This monitor mount is designed for small camera monitors in the 5" and 7" range, using a cold shoe connection on the top of your camera cage/handles. Over the 2905B base design, the “new version” focuses on usability: the tilt tension is adjusted quickly with a thumb knob instead of needing an Allen key every time.

Movement is the headline, but the stability is the point. The mount supports:

• 180° tilt adjustment
• 360° swivel adjustment

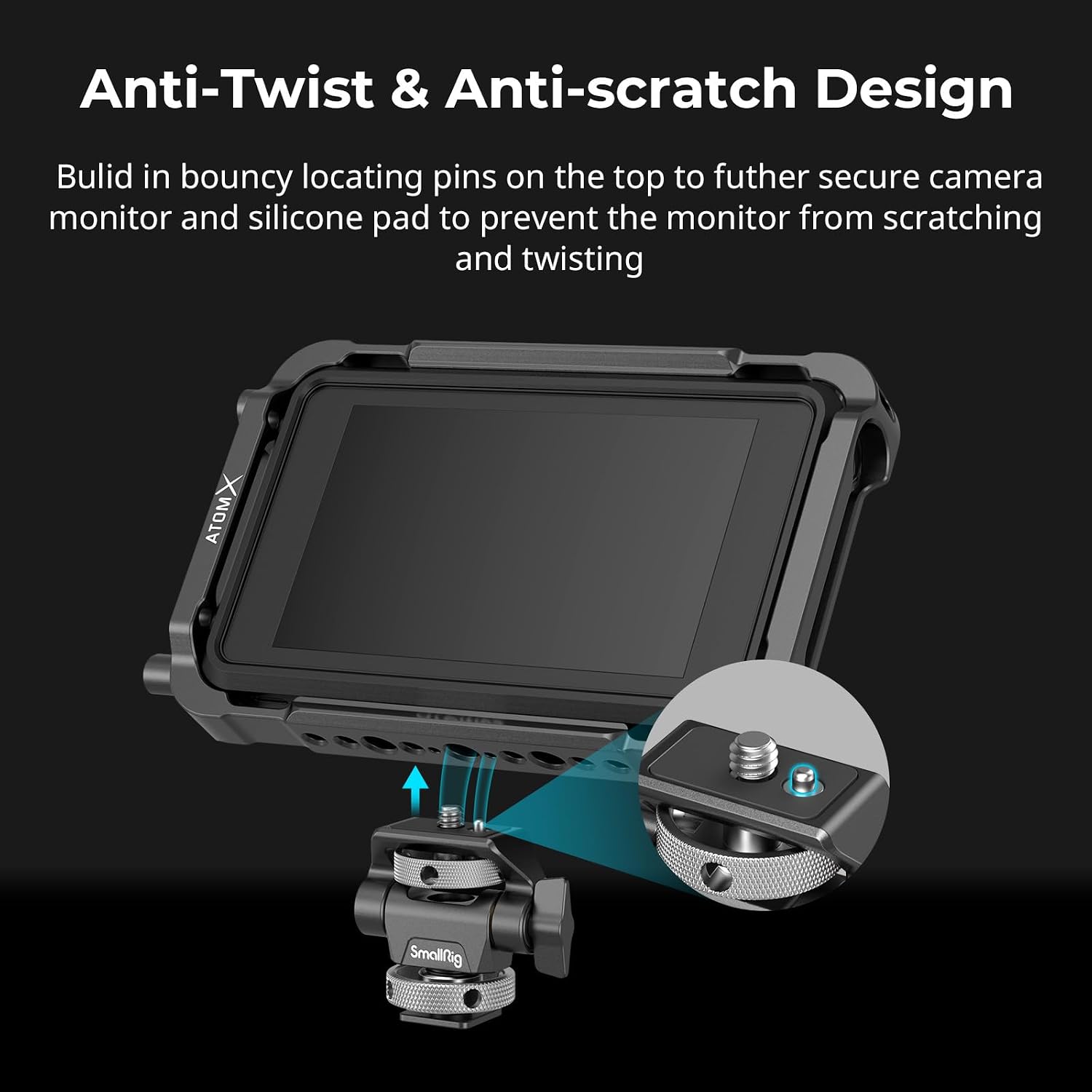

And it includes an anti-twist approach: location pins are intended to “bounce” into the monitor area to help secure devices such as the Ninja V / V+ (mentioned in the original description), plus a silicone pad to help reduce the risk of scratches and twisting.

What to know about load and angle limits

One detail worth taking seriously is that payload depends on the tilt angle. The information provided states:

• At 90° tilt: max payload <4.2 kg
• At 45° tilt: max payload <2.5 kg
• At 30° tilt: max payload <2.3 kg

That means if you tend to run the monitor at a shallow angle for long takes, you should treat <2.3 kg as your safer reference point. If you’re planning heavier setups, keep in mind you may need to reassess the monitor and accessories you’re pairing.

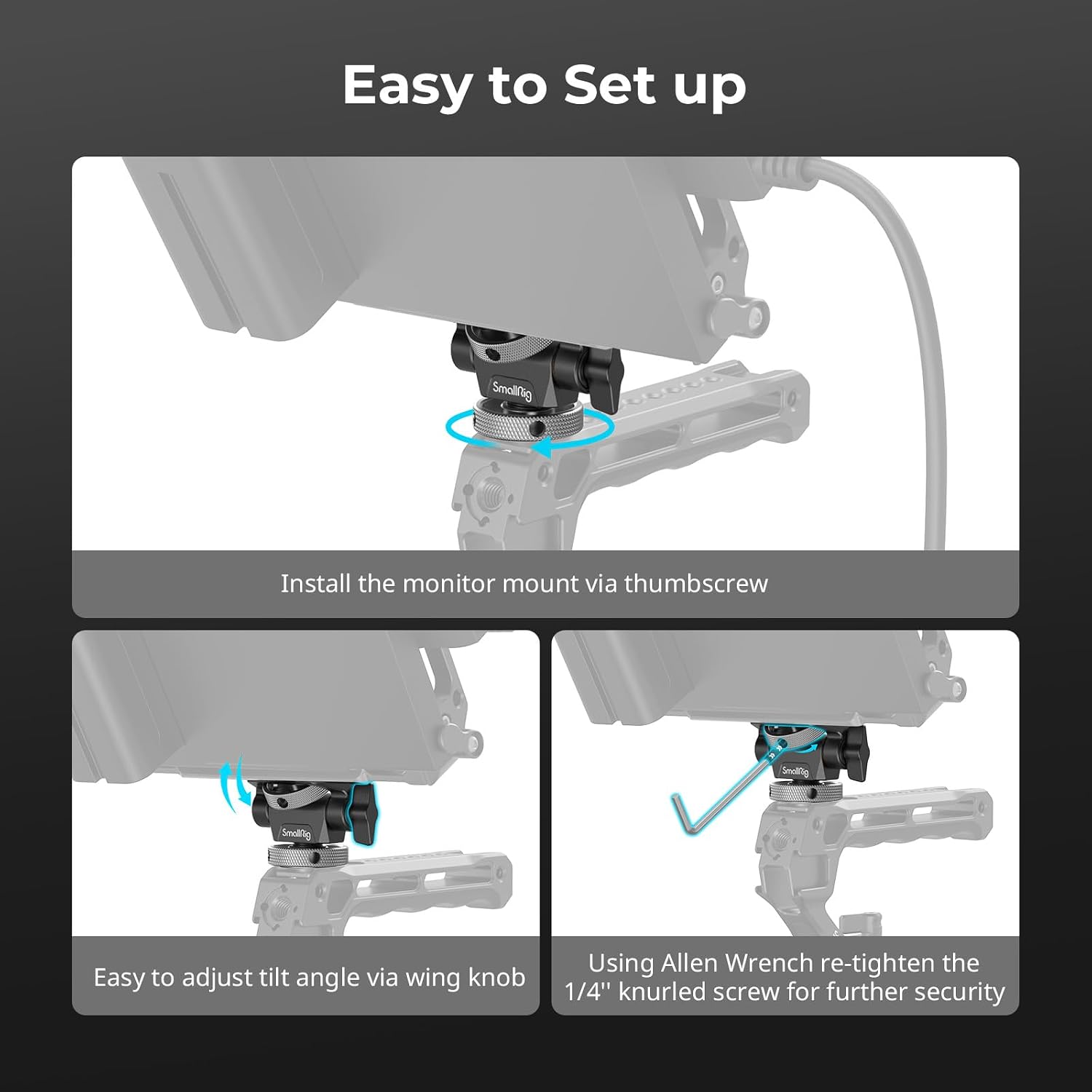

There’s also a safety note: the description advises using the Allen key to re-tighten the 1/4" thumb-screw for extra security. In other words, it’s not a “set it and forget it forever” type of mount—worth giving it a quick check before you roll.

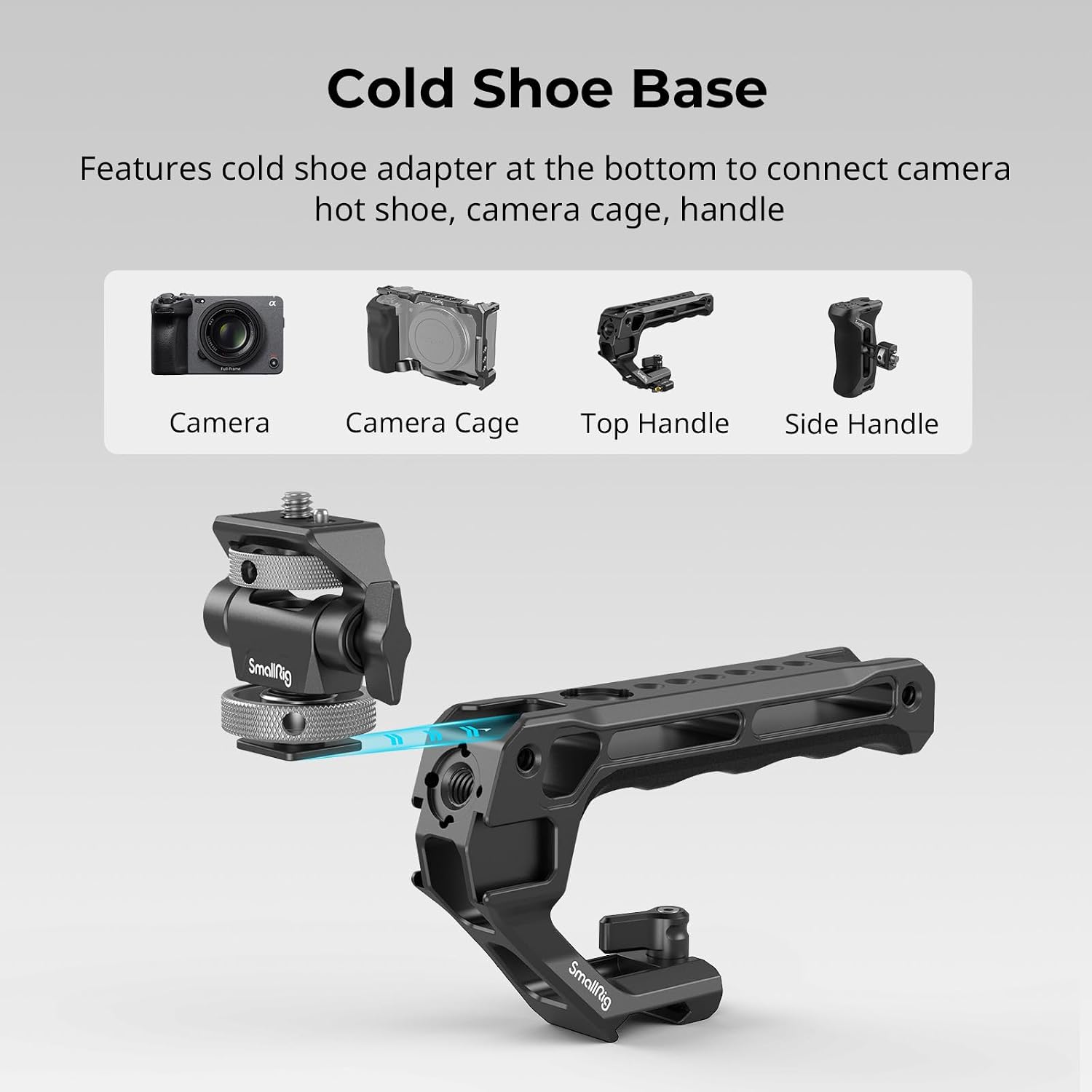

Compatibility and mounting options (cold shoe + 1/4"-20)

The 2905B uses a cold shoe adapter to connect to the camera cage/handles. In practical terms, that’s meant to be a straightforward way to position a monitor without needing a dedicated rail system.

For additional rigging flexibility, the mount also includes a 1/4"-20 threaded hole on the monitor holder area. The description references use cases like attaching a magic arm or stabiliser, and it also mentions fitting a 1/4"-20 screw on the top (for items such as microphones or lights).

If your cage/rig has a cold shoe mount available (or you’re already planning around cold shoe accessories), the mount should slot in logically. If your setup doesn’t use cold shoe connections at all, you may find the mounting approach more awkward than alternatives that are built around other interfaces.

Where this mount shines (and where it can fall short)

It suits shooters who regularly need the monitor angle to change: handheld rigs, gimbal-adjacent setups, small rigs for interviews, and general run-and-gun work where monitor placement affects comfort and framing.

The quick-adjust thumb screw for tilt tension is a small upgrade that can make day-to-day adjustments less fiddly. It also helps when you’re switching between angles quickly on set—rather than stopping to find tools.

That said, it’s not automatically the best choice if you want completely tool-free tension adjustments. The swivel tension is adjusted with the Allen key (as described), and the safety guidance suggests re-tightening the thumb screw with the Allen key.

Usage tips for getting consistent positioning

A good way to get the most out of a swivel-and-tilt mount is to set tension to match your monitor’s weight and your typical operating angle. If your workflow often holds the monitor around a 30°-ish tilt, it’s sensible to treat <2.3 kg as the reference load limit.

Also, don’t rush the first setup: once you’ve positioned the mount, use the Allen key to re-check the 1/4" thumb-screw as recommended. The anti-twist design and silicone pad help with stability and contact protection, but the bolt tension is still what keeps things firmly aligned.

A micro-example: during an interview, you might tilt the monitor down for lower shoulder height, then swivel it slightly to keep it readable from the side. With the quick thumb knob for tilt, you can fine-tune that angle without hunting for tools—then do a quick Allen re-tighten check before the next take.

Tech specs

• Type: Camera monitor mount with cold shoe adapter
• Adjustments: 360° swivel, 180° tilt
• Anti-twist design: location pins and silicone pad
• Cold shoe connection: included via cold shoe adapter
• Threaded interfaces: 1/4"-20
• Load guidance by tilt angle: <4.2 kg at 90°, <2.5 kg at 45°, <2.3 kg at 30°

Is it worth it?

Buy the SMALLRIG 2905B if you want a compact camera monitor mount for a small 5"/7" monitor that offers flexible 360°/180° positioning, plus anti-twist measures to help keep the monitor stable and protected.

Skip it (or think twice) if your rig doesn’t work with cold shoe mounting, or if you expect to run the monitor at angles and weights outside the provided tilt-angle payload guidance. It also may not suit you if you require fully tool-free tension adjustments every time.

In most day-to-day rigs, though, this is the sort of accessory that makes monitoring easier—especially when you’re constantly changing angles and you don’t want the mount to feel loose or prone to twisting.
