ELIVED EV3030 flip-down ceiling TV mount 14–42 inch 📺
Description:
This flip-down ceiling mount transforms under-cabinet or loft spaces into a neat TV position for kitchens, caravans and snug areas, offering a compact solution when the screen is not in use. It suits many flat screens between 14 and 42 inches and helps save floor and wall space while keeping your display accessible for casual viewing or background programming.
Key Points
The bracket folds up flush against a flat or pitched roof, keeping the screen out of the way when not required. Assembly follows a simple three-step process with fittings included, and the mechanism features a tool-free lock for quick folding and unfolding. Ideal for smaller rooms and multifunctional spaces, the mount supports rotation and tilt so you can set the viewing angle from different positions in the room. 📺
This unit can be installed beneath cabinets provided the supporting panel is at least 20 mm thick. Consider that the mount should not be fixed only to plasterboard without appropriate backing or reinforcement, according to the manufacturer. ⚠️
Technical Specifications
- Name: ELIVED EV3030
- Fits screens: 14–42 inches
- Maximum load: 10 kg

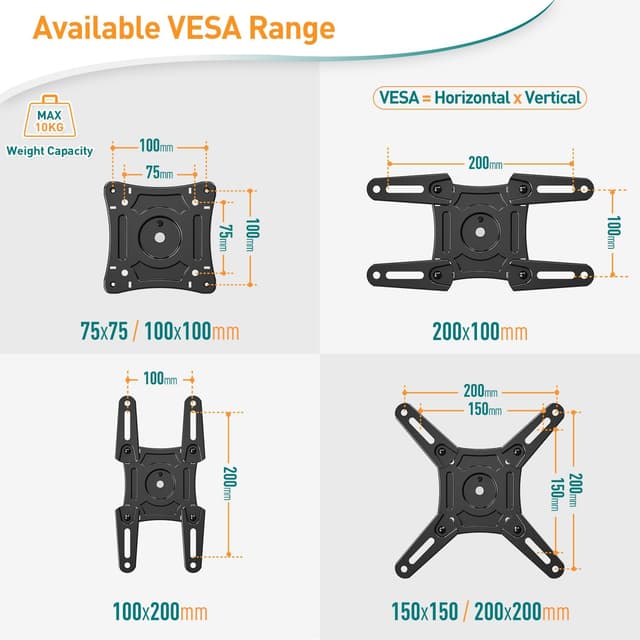

- VESA compatibility: 75 x 75 mm to 200 x 200 mm

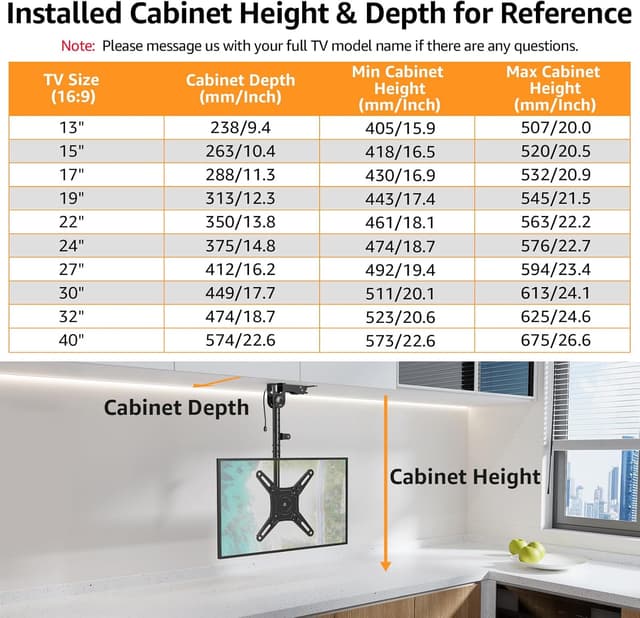

- Height adjustable: 286–388 mm
- Movement: 360° rotation, tilt +3°/-10°, swivel +90°/-90°
Usage Recommendations
Adjust the mount to reduce reflections and improve viewing from multiple seating positions. The combination of 360° rotation and lateral swivel allows you to orient the screen for cooking, dining or working in adjacent areas. Make sure the TV weight and VESA pattern match the mount specifications before fitting to avoid stress on the bracket or the mounting surface. 🔧
If the ceiling or cabinet has a pitch, the design still permits a folded profile and secure locking. For repeated adjustments, check that fastenings remain tight after a few weeks to keep the mechanism operating smoothly and to prevent minor sagging over time. The mount offers a compact way to conceal a screen when not required while retaining broad tilt and swivel ranges for flexible viewing.
