VADANIA 1100mm Ultra Heavy Duty Drawer Runners with Lock (Black) #D76 – Full Extension Side Mount, 130–220kg

What these drawer runners are for

If you’re building, upgrading, or replacing heavy-duty drawers, drawer runners can make or break the whole experience. These VADANIA 1100mm Ultra Heavy Duty Drawer Runners with Lock (#D76, black) are designed for storage that gets used often and loaded properly, with a focus on full extension, smooth travel and a locking mechanism to help keep the drawer secure when it’s fully out or pushed in.

On paper, they’re aimed at industrial-grade style projects rather than light furniture. The combination of a full-extension, three-way design with reinforced double ball bearings and an integrated lock is the core idea: you get a drawer that glides out smoothly, and a locking system that’s meant to prevent it from easing open unintentionally.

Still, it’s worth remembering that load capacity is stated as maximum and it decreases as the runner length increases. So if you’re working at (or near) the 1100mm size, it’s sensible to double-check the capacity guidance shown in the product images.

Key features that matter in day-to-day use

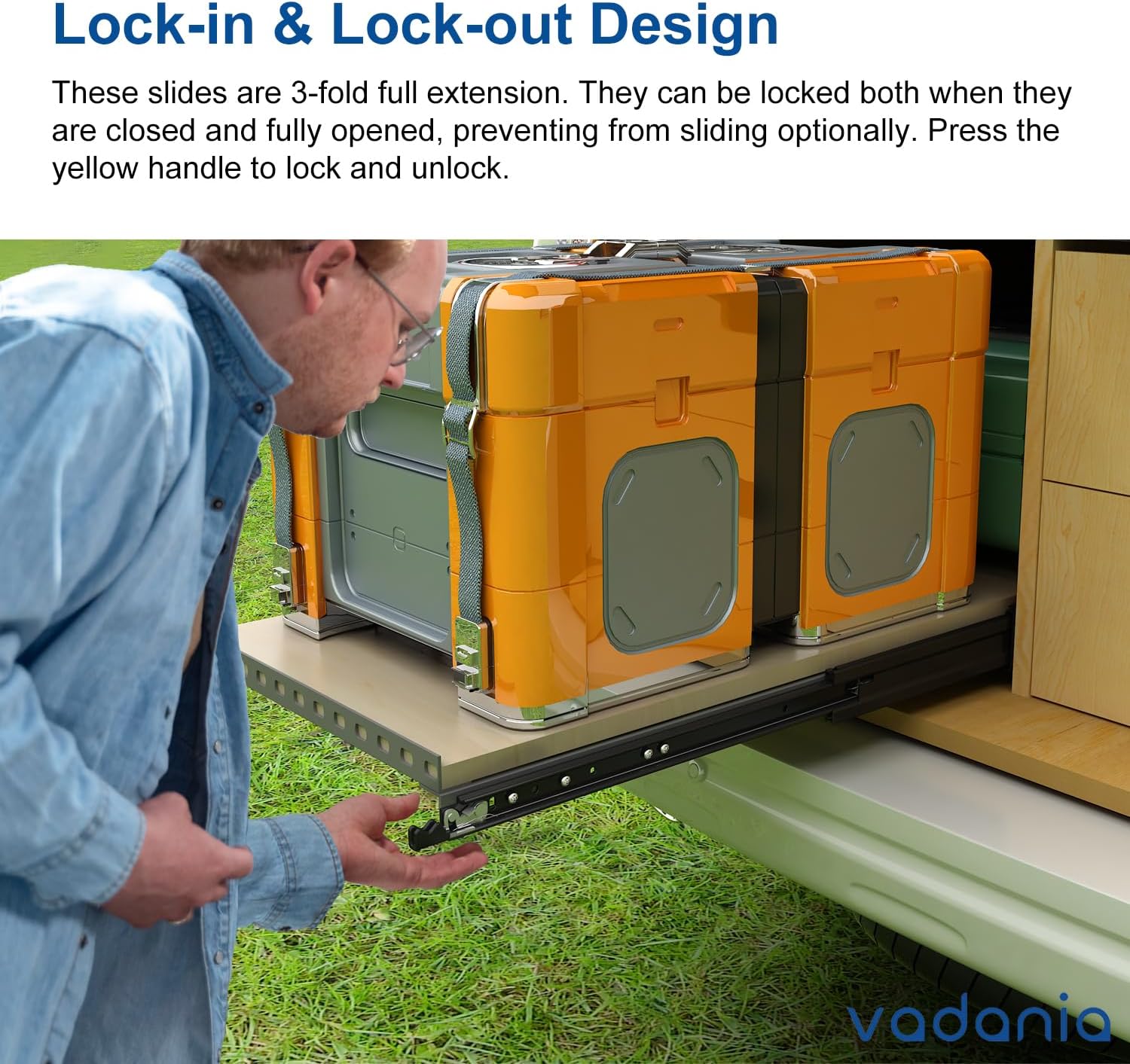

The standout feature here is the locking design. The runners include a practical lock system that secures the drawer when it’s extended or closed. The description suggests you can unlock easily by pressing a button, which is helpful if you don’t want to fumble with separate catches every time.

The other practical win is full extension side mounting. With full extension in a three-way design, you’re not just pulling the drawer a little bit—there’s enough travel to access what’s at the back without leaning in awkwardly. That’s especially handy for tool storage, parts drawers, or vehicle-related storage where items tend to sit behind everything else.

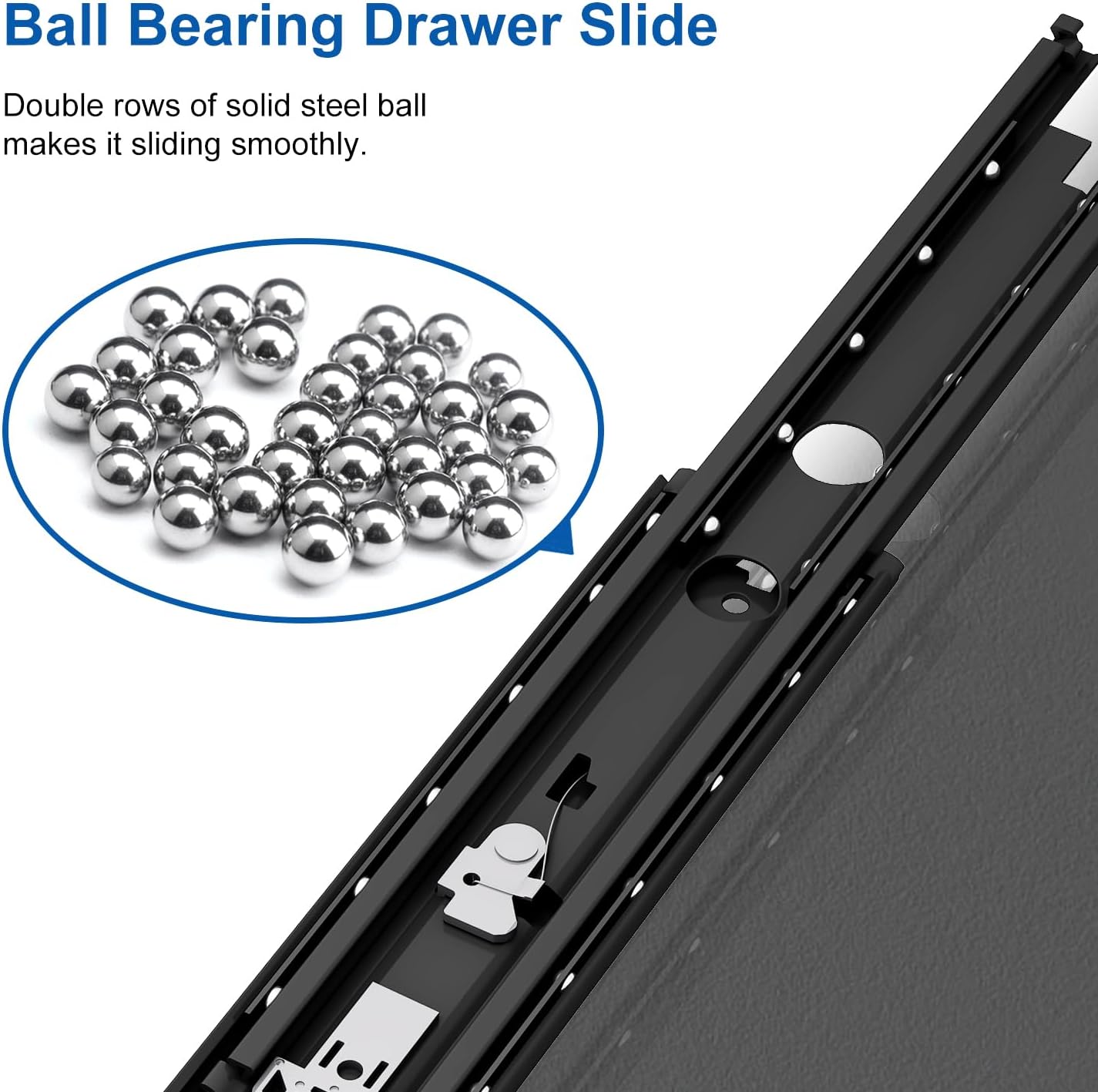

For the feel, the runners use reinforced double ball bearings. The entry mentions reinforced 7.5mm ball bearings, and a smooth, quiet slide even under heavy load is the goal.

Tech specs (the numbers you’ll care about)

• Name: VADANIA 1100mm Ultra Heavy Duty Drawer Runners with Lock #D76 Black (1 Pair)
• Type: Drawer runners with locking system
• Format: Full extension, side mount
• Size: 1100mm length

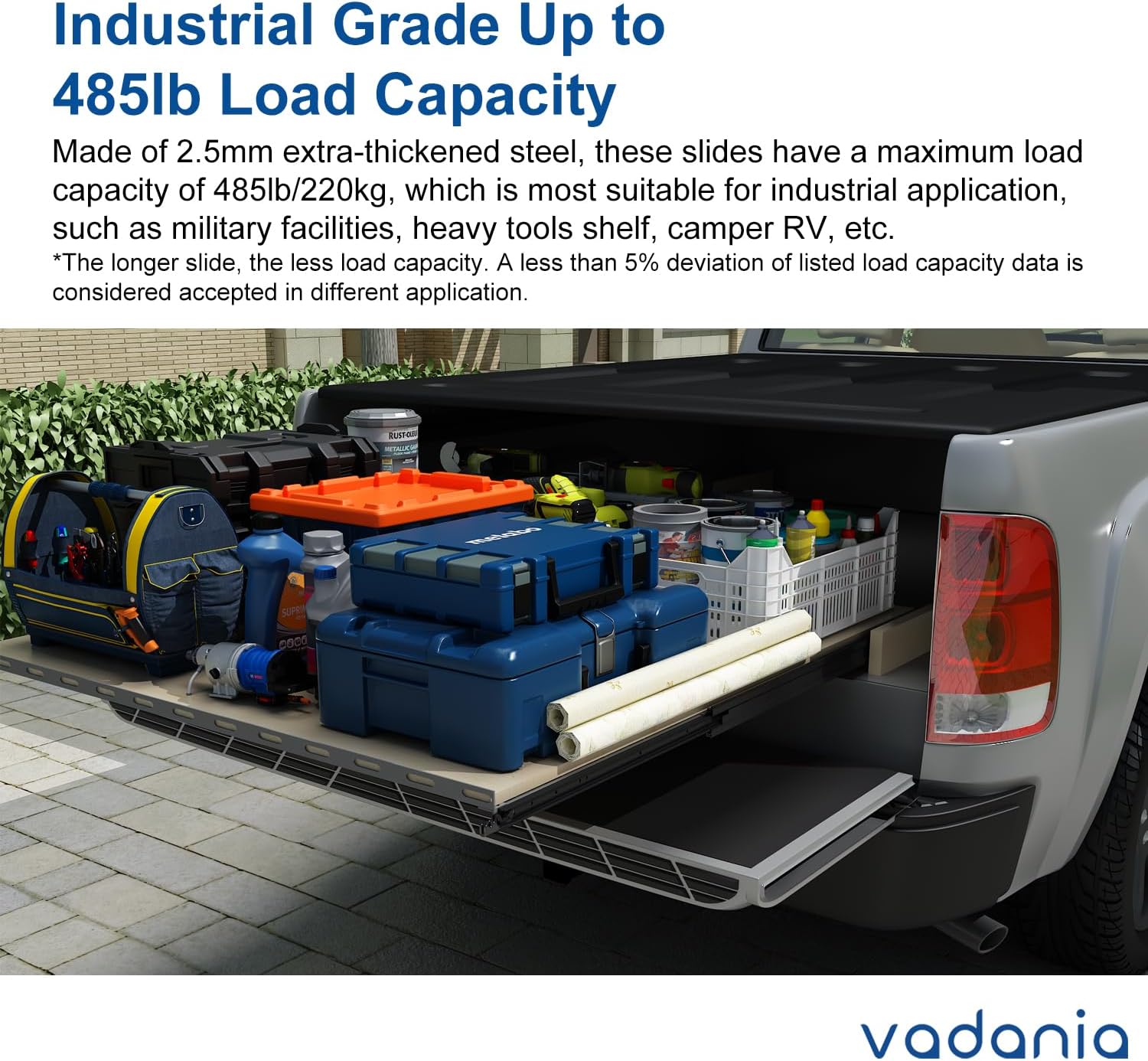

• Capacity: maximum load 130–220kg (capacity decreases with length, check size images)

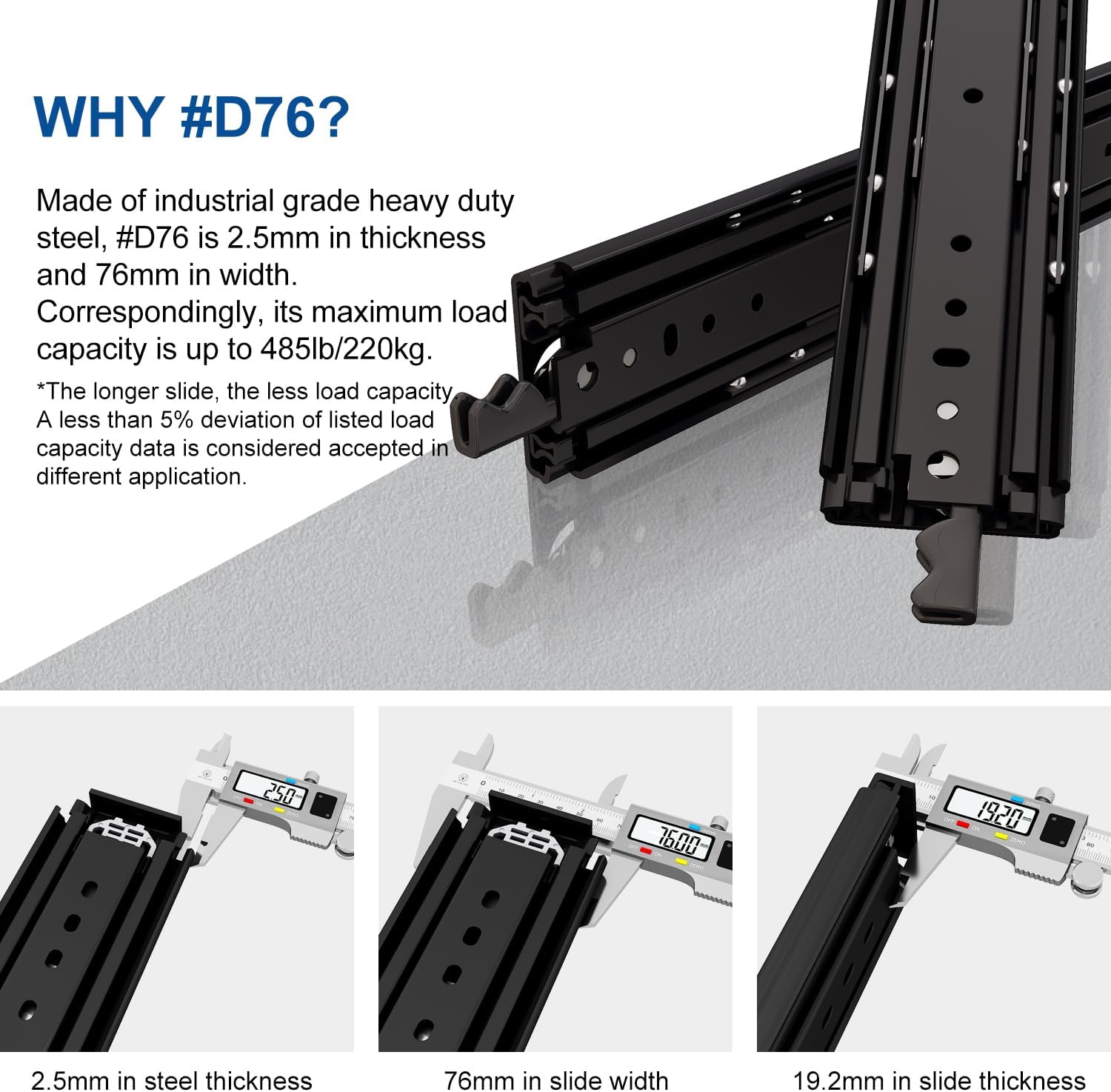

• Material: Q235 cold-rolled steel, 2.5mm thickness
• Colour: Black
• Refresh rate: Not applicable

Installation and fit: what to expect

These are not described as separable, so plan to fit them as a matched pair and avoid assumptions that you can break them down easily. The install is positioned as straightforward because there are large pre-drilled mounting holes for the screws.

Mounting is side mount with a specified clearance space of 19mm on each side. That’s a useful detail if you’re working to tight tolerances in an enclosure or drawer carcass.

The entry also notes that mounting brackets and screws are not included. It recommends M6 screws, and it also advises mounting with the lock button facing upwards for best durability. If your build relies on a specific screw length or bracket setup, it’s worth planning those parts before you start.

As a quick practical example: if you’re fitting these into a heavy storage cabinet, you’d typically line up the side mount position first, use the pre-drilled holes as your reference points, then secure the runners so the lock button ends up facing upward before you test the drawer’s extension.

Where it shines (and what it’s not)

Where these VADANIA runners tend to make sense is storage that needs confidence—drawers that you want to fully access without snagging, and that also need a locking behaviour when the drawer is in or out. The black finish is presented as a deliberate design choice too, intended to suit modern and darker interiors.

Where they may fall short is more about expectations than performance. This is described as ultra heavy duty, but you still need to respect the stated load logic: maximum capacity reduces with longer lengths. If your drawer is pushing load limits, this isn’t the kind of product to “set and forget” without checking the capacity guidance for your exact size.

Also, because the runners are side mounted and not separable, they may not suit every drawer layout. If you’re working with a different mounting arrangement or you need an easier adjustment method, you might find yourself adapting more than you’d like.

Things to double-check before you buy

A few details are worth verifying so you don’t end up fitting the wrong hardware approach:

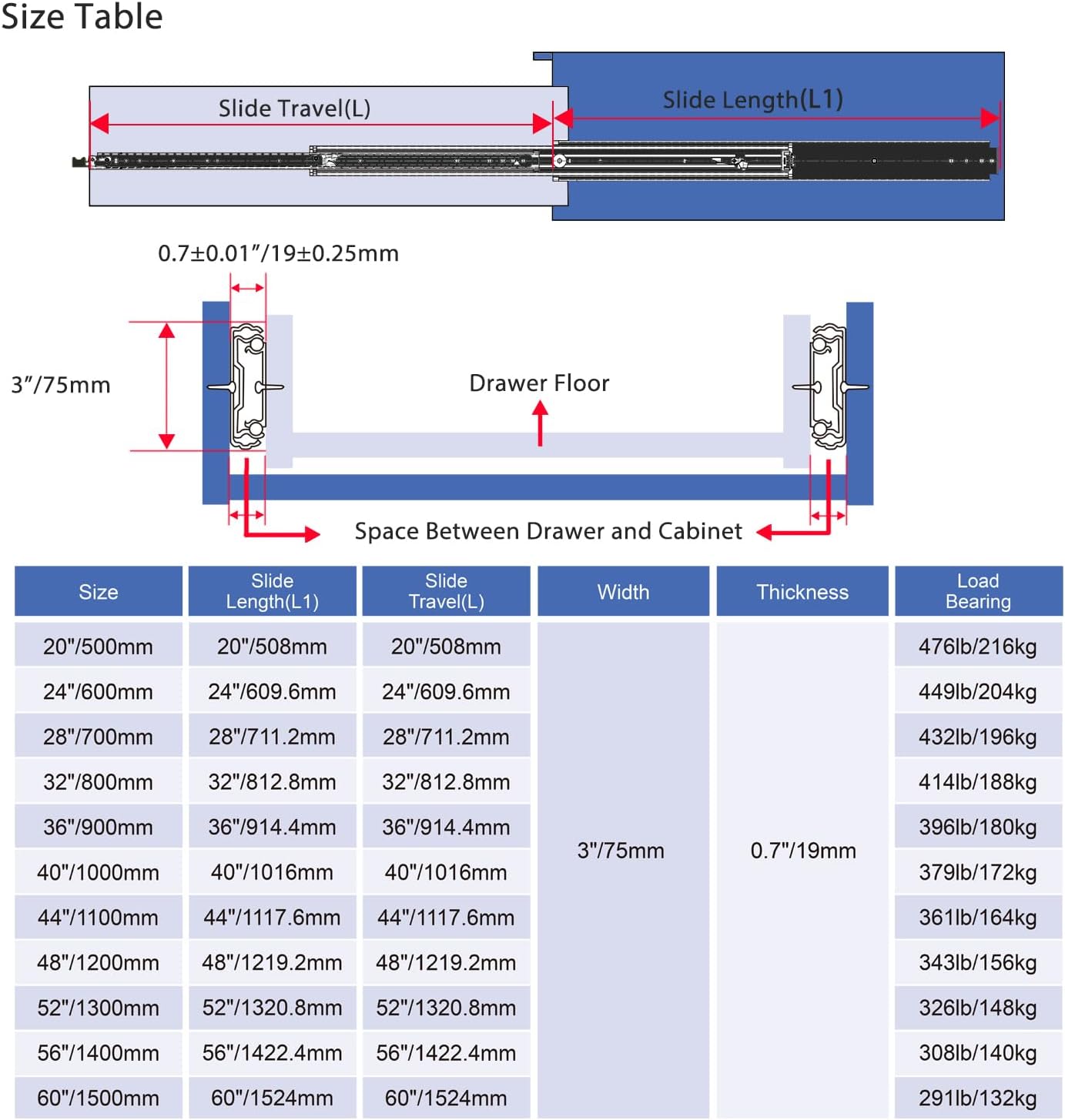

• Length vs load: the maximum load is given as 130–220kg and it decreases with length, so confirm the capacity guidance for the 1100mm size in the images.
• Mounting space: side mount with 19mm clearance each side should align with your drawer carcass and cabinet frame.
• Screws and brackets: they’re not included, and the entry recommends M6 screws.
• Lock orientation: mounting with the button facing upwards is mentioned for durability.

Pros

• Locking system designed to secure the drawer when extended or closed
• Full extension side mount for better access to the back of the drawer
• Reinforced double ball bearings aimed at smooth, quiet travel under load
• Black finish designed to suit darker, modern interiors and resist oxidation/rust (treated for corrosion resistance)
• Pre-drilled large mounting holes to make installation easier

Cons

• Maximum load depends on length, so capacity may be lower at your exact runner length—check the size guidance
• Mounting brackets and screws are not included
• Not separable, which can limit how you approach fitment in some builds

Final verdict

Should you buy these VADANIA 1100mm Ultra Heavy Duty Drawer Runners with Lock (#D76)? If you’re after heavy-duty drawer slides that prioritise full extension, smooth rolling with reinforced double ball bearings, and a locking mechanism you can operate via a button, they look like a sensible pick—especially for storage projects where drawers tend to get loaded and pulled out repeatedly.

However, you may want to skip them if your build can’t accommodate side mounting with the stated clearance, or if you’re sensitive to the fact that the stated maximum load decreases with length. In that case, it’s better to carefully match the runner length and confirm the capacity information shown for your specific size.

Mini FAQ

Are these runners suitable for heavy storage? They’re positioned for heavy-duty, industrial-style storage projects, with a stated maximum load range that’s meant to reflect heavy use. Just be sure to check how capacity changes with length.

Do they lock the drawer when it’s extended? Yes. The lock system is described as securing the drawer when extended or closed, with unlocking via pressing a button.

What mounting hardware do I need? Mounting brackets and screws aren’t included. The entry recommends M6 screws.

Are the runners separable for installation? They’re described as not separable, so they’re intended to be installed as a single assembly.
