NB North Bayou Heavy Duty TV Wall Mount 91 kg

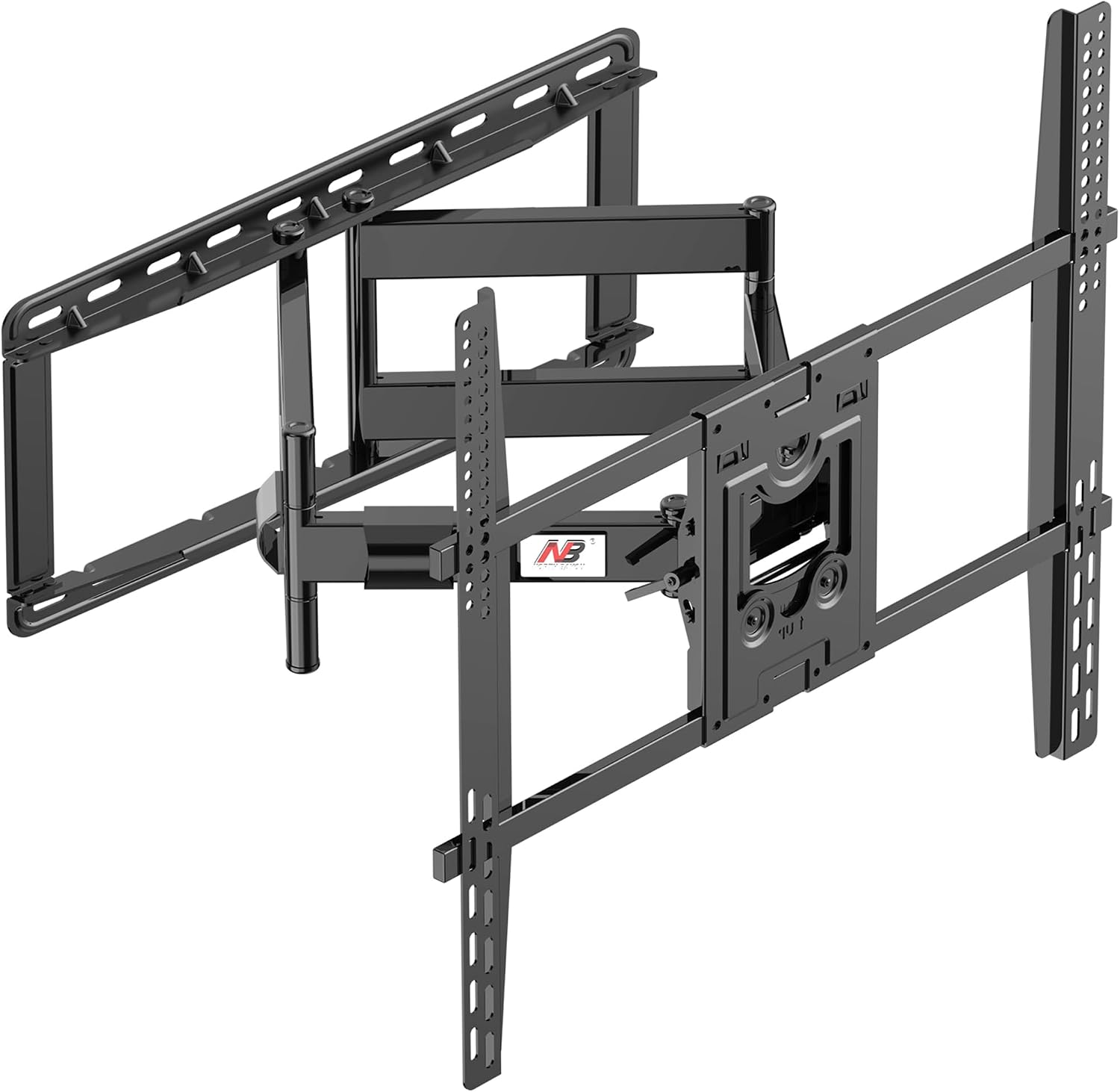

This full-motion TV bracket from NB North Bayou supports very large screens while allowing flexible positioning for living rooms and media rooms. It fits most 75–110 inch TVs and provides a heavy-duty solution for wall mounting, combining extendable dual arms with tilt and swivel adjustments to improve viewing angles.

Key Points

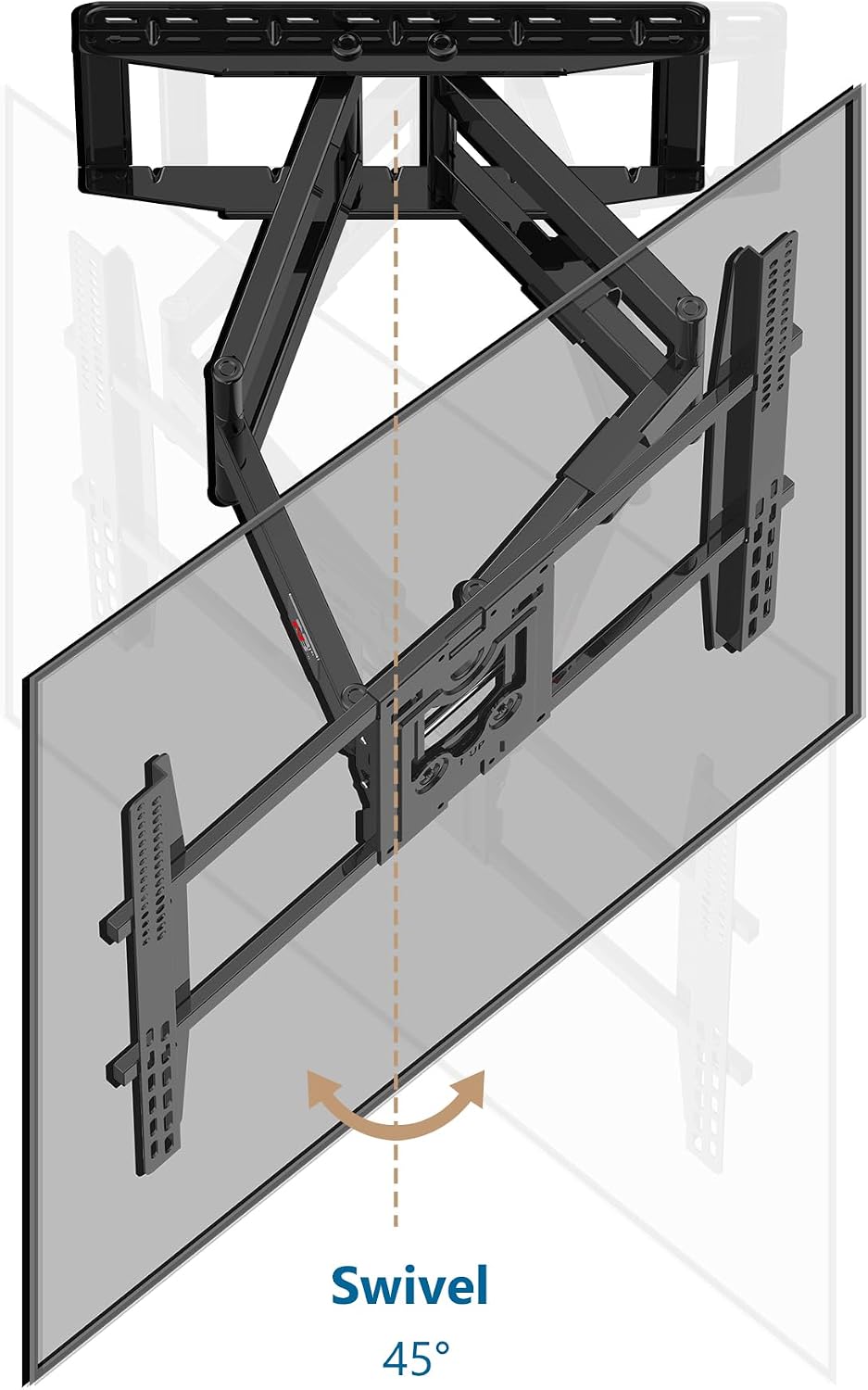

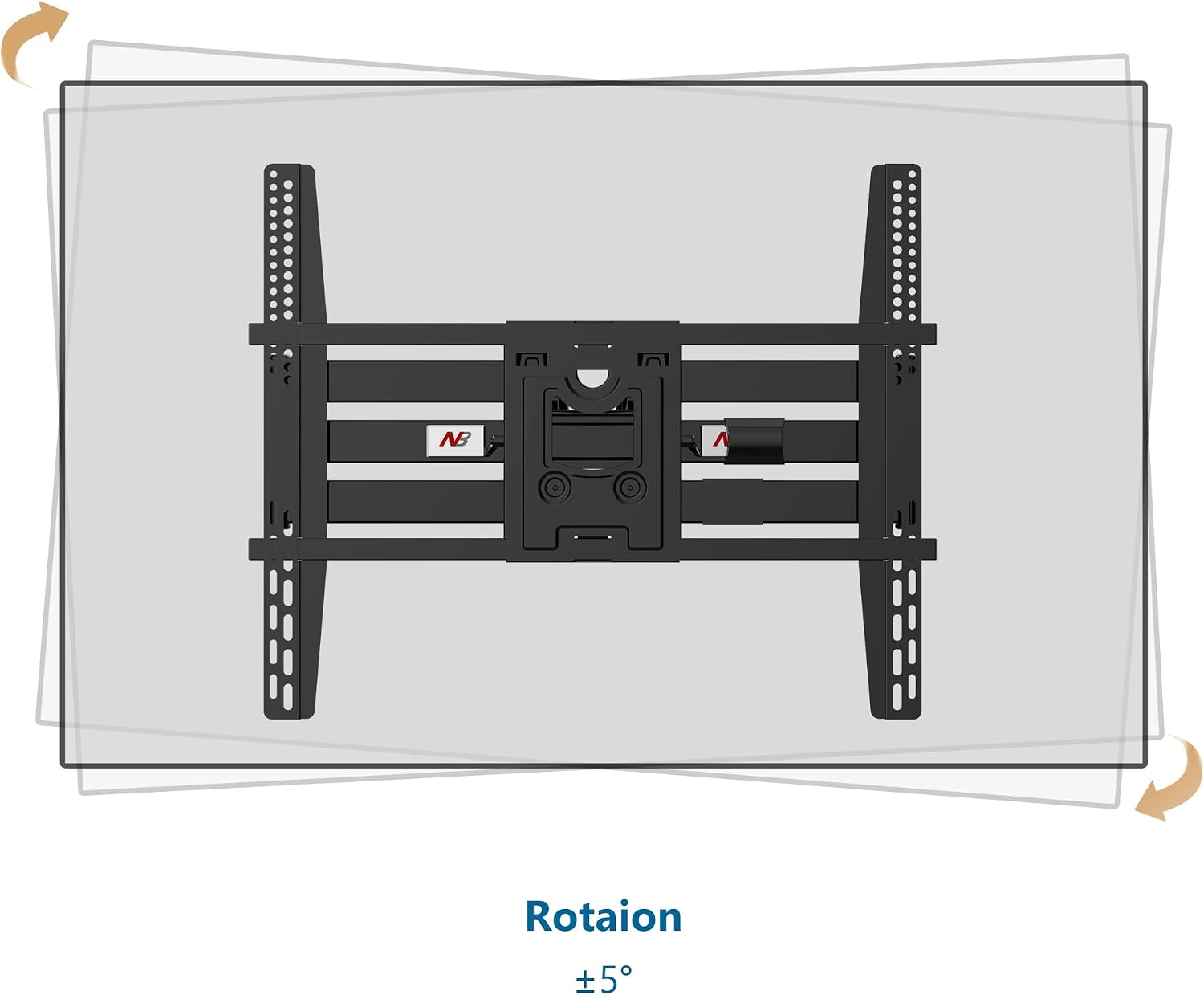

The bracket carries up to 91 kg, according to the manufacturer, and suits a wide range of large-screen VESA patterns. Dual articulating arms extend the screen away from the wall for angled viewing and fold back to sit close to the wall when space is limited. The mount allows tilt from -5° to 10° and lateral rotation to help correct alignment after installation, while left-right swivel up to 45 degrees lets you change viewing direction in day-to-day use.

Technical Specifications

• Name: NB North Bayou Heavy Duty Wall Mount for 75–110 inch TVs
• Load capacity: 91 kg (200 lbs), according to the manufacturer

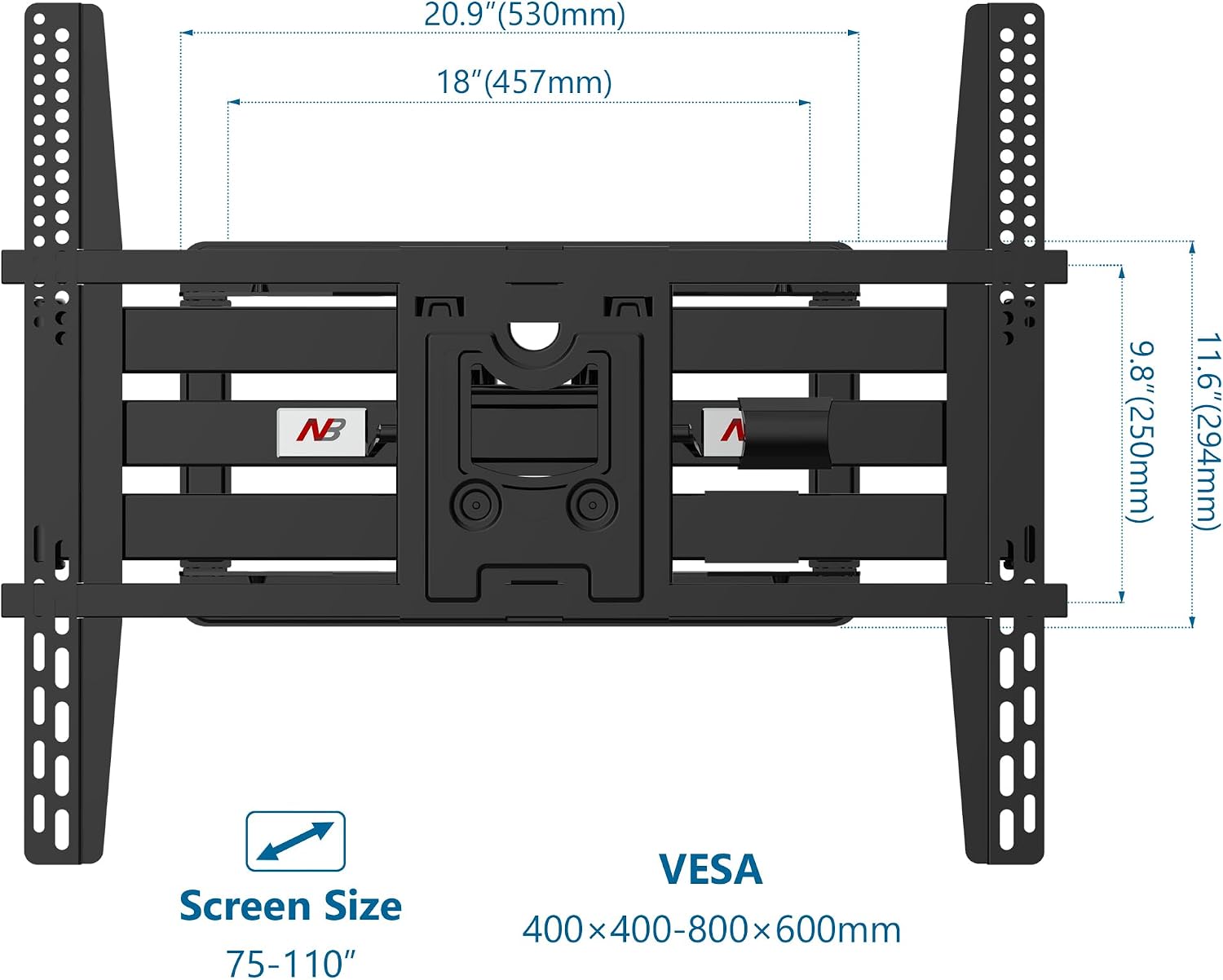

• VESA compatibility: 400x400 mm up to 800x600 mm

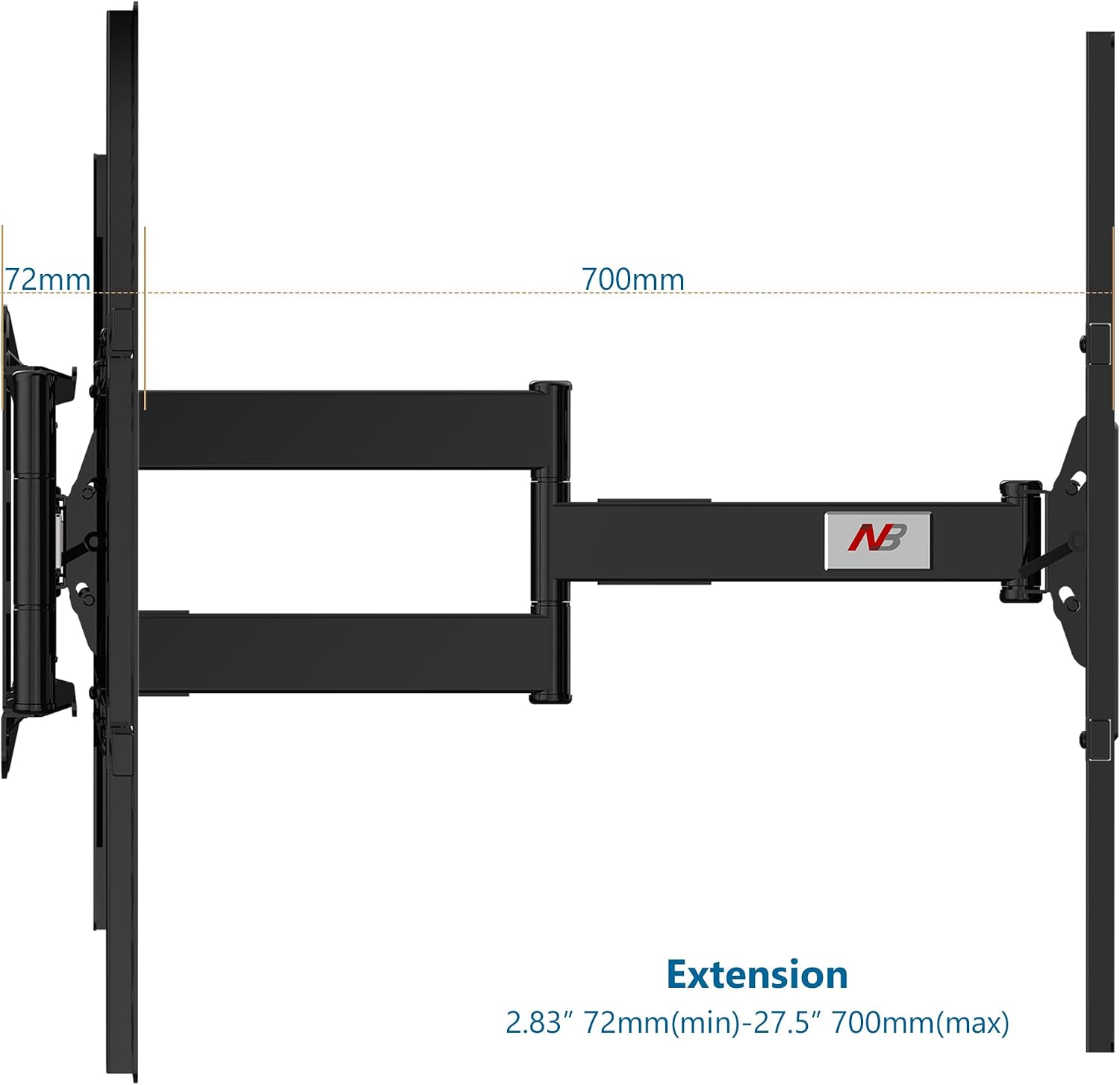

• Extension range: extends to 700 mm, retracts to 72 mm

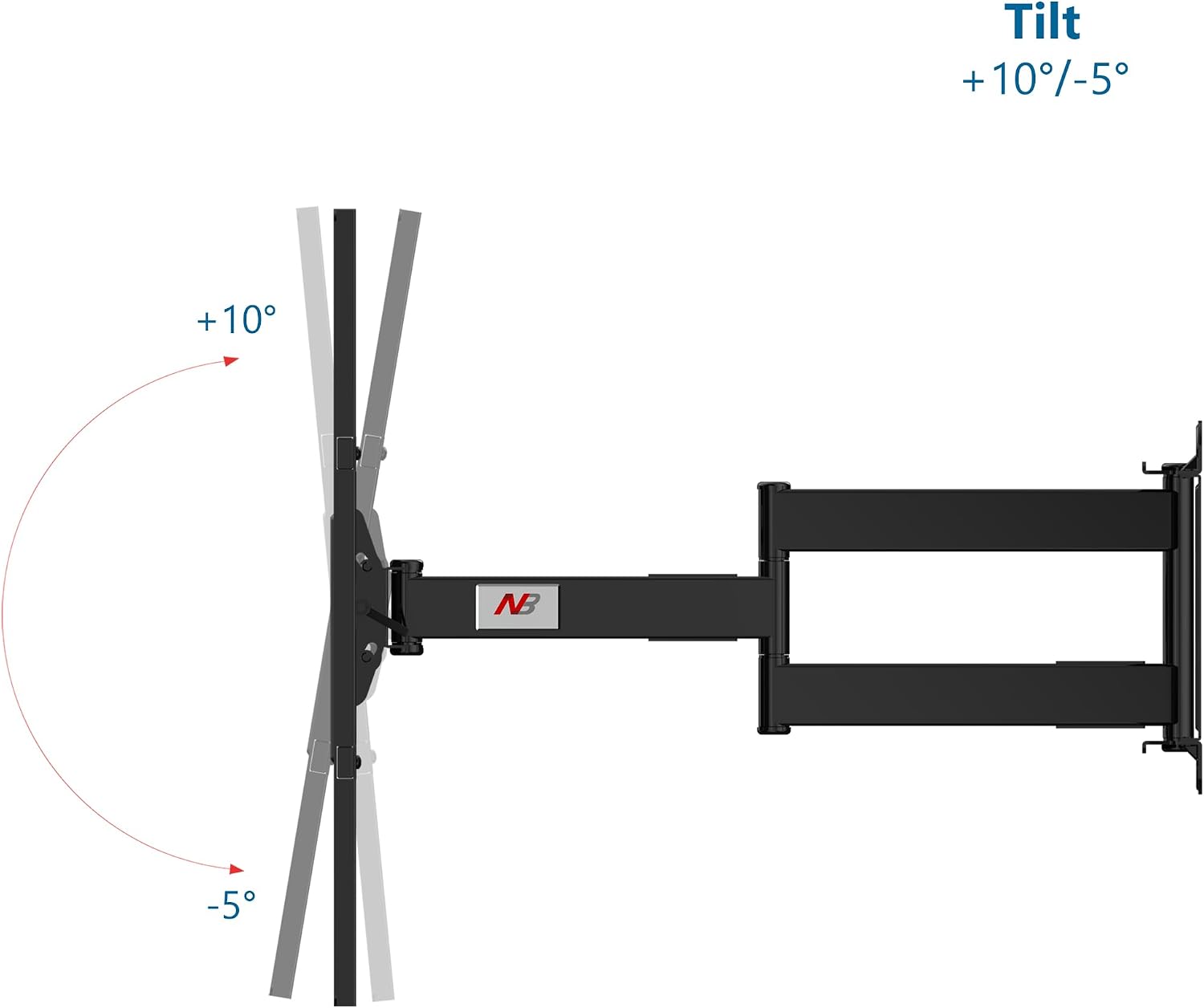

• Tilt range: -5° to 10°
• Suitable screen size: 75–110 inches

Usage Recommendations

Check that your TV’s horizontal and vertical mounting hole distances fall within the stated VESA range, with horizontal spacing between 400 and 800 mm and vertical spacing between 400 and 600 mm. Use timber studs or an appropriate structural backing for installation, as the mount must not be attached only to plasterboard without wooden anchors. The articulating arms are robust, but you may need assistance when lifting very large screens to avoid strain and to ensure accurate alignment.

Positive Aspects

The dual-arm design enhances stability and reduces flex compared with single-arm alternatives, offering a more secure feel for heavier displays. Retracting to just 72 mm keeps the screen unobtrusive when a slim profile is preferred, while full extension to 700 mm gives substantial reach for offset viewing positions. The manufacturer states a 10 year support period for the product, which may offer additional peace of mind.
