Crenova MS8233D multimeter 6000-count 📷
Description:
This compact digital multimeter from Crenova brings a wide set of measurement functions into a portable instrument useful for electricians, hobbyists and technicians working in workshops or at home. It measures voltage, current and resistance while also covering capacitance, frequency and duty cycle, and it includes non-contact voltage detection to help locate live wires quickly.
Key Points

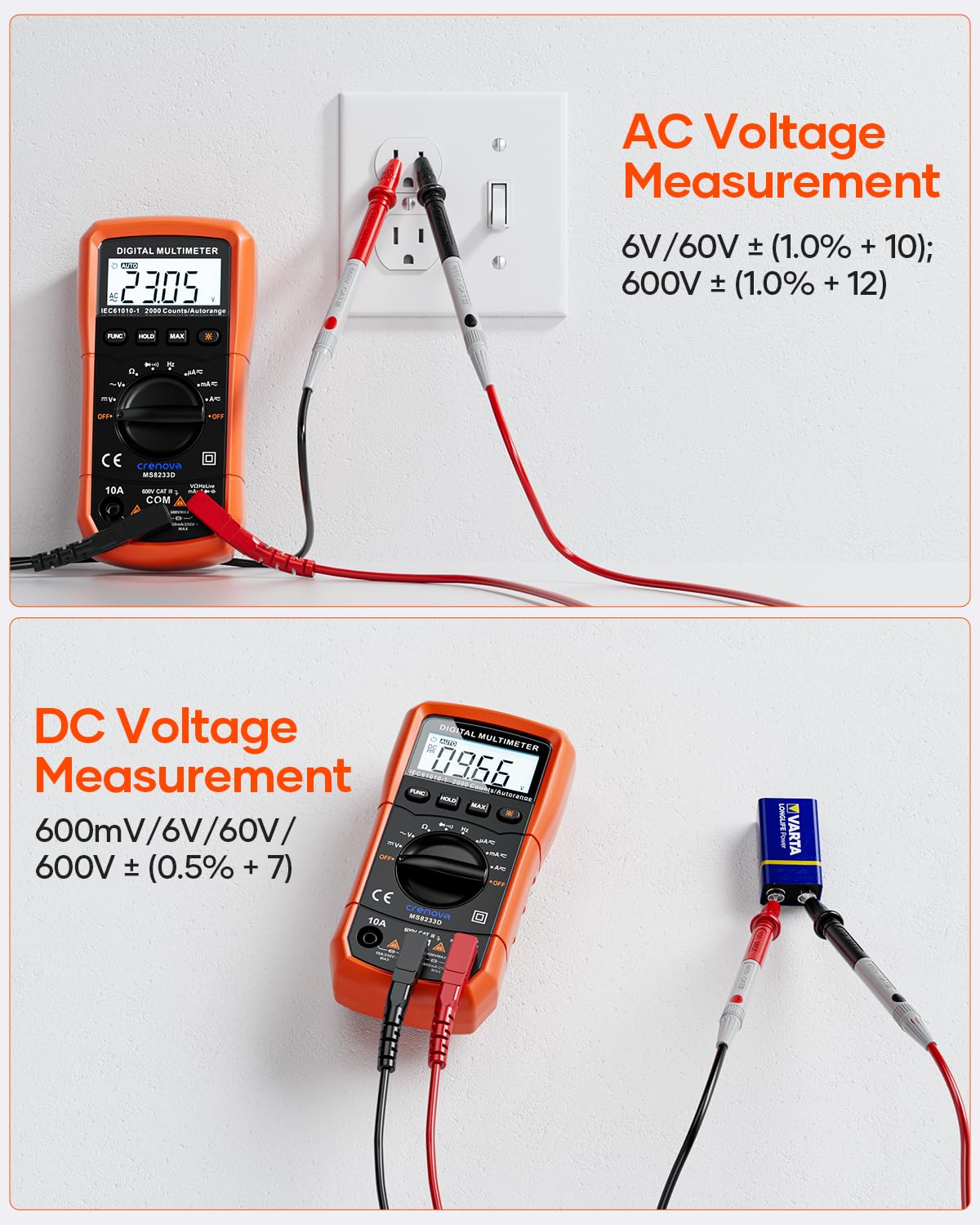

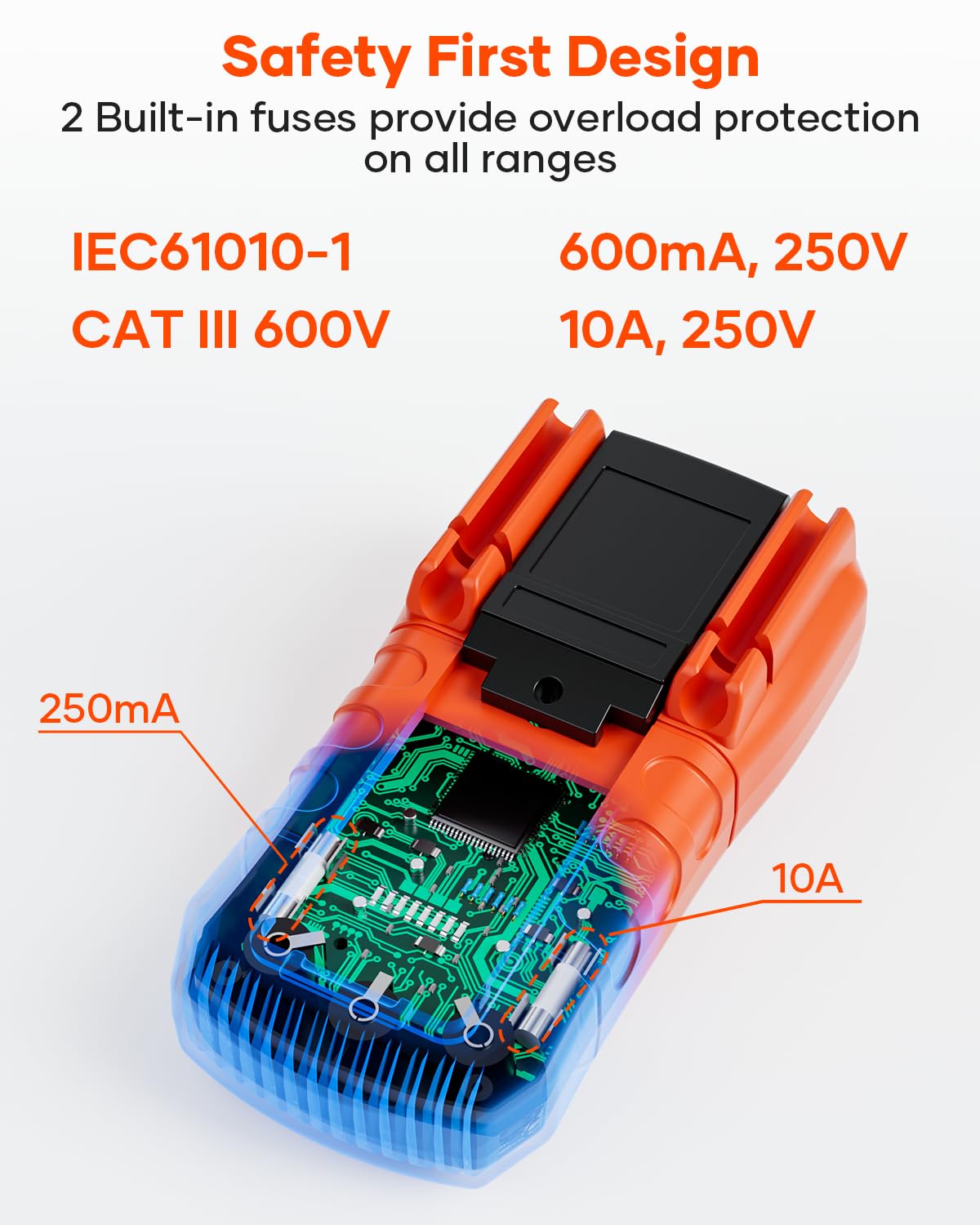

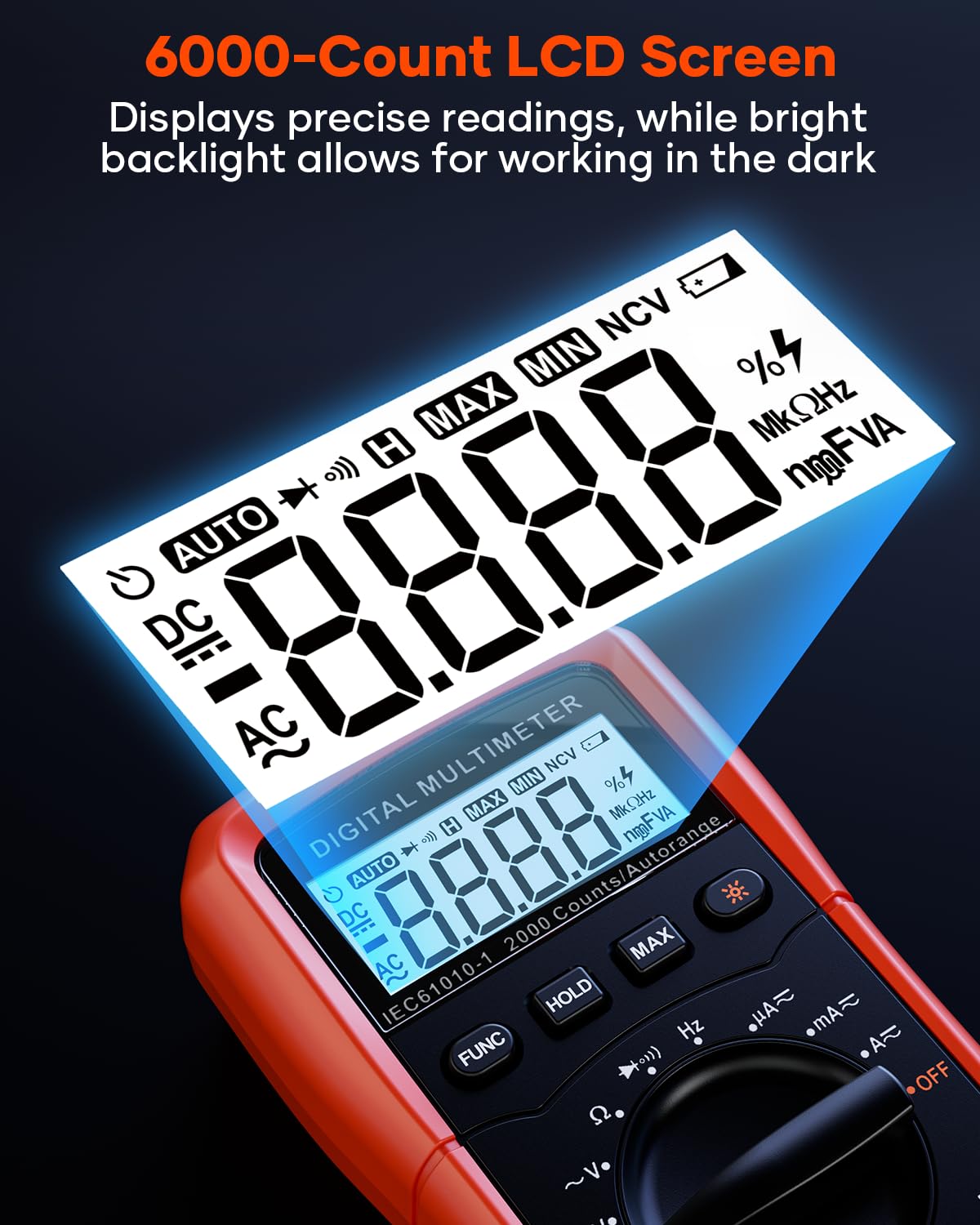

The MS8233D offers a 6000-count LCD with a bright backlight so readings remain legible in poorly lit areas. According to the manufacturer it supports both AC and DC voltage and current measurements, plus continuity and diode tests. User safety is addressed with IEC61010-1 CAT III 600 V compliance, two internal fuses and an insulated rubber holster to reduce shock risk. The unit also has selectable manual and auto-ranging, max/min capture, data hold and an auto power-off function that helps conserve battery life. 🧰
Technical Specifications
- Name: Crenova MS8233D
- Display: 6000-count LCD with backlight
- Safety rating: IEC61010-1 CAT III 600 V
- Power: 2 × AAA batteries included

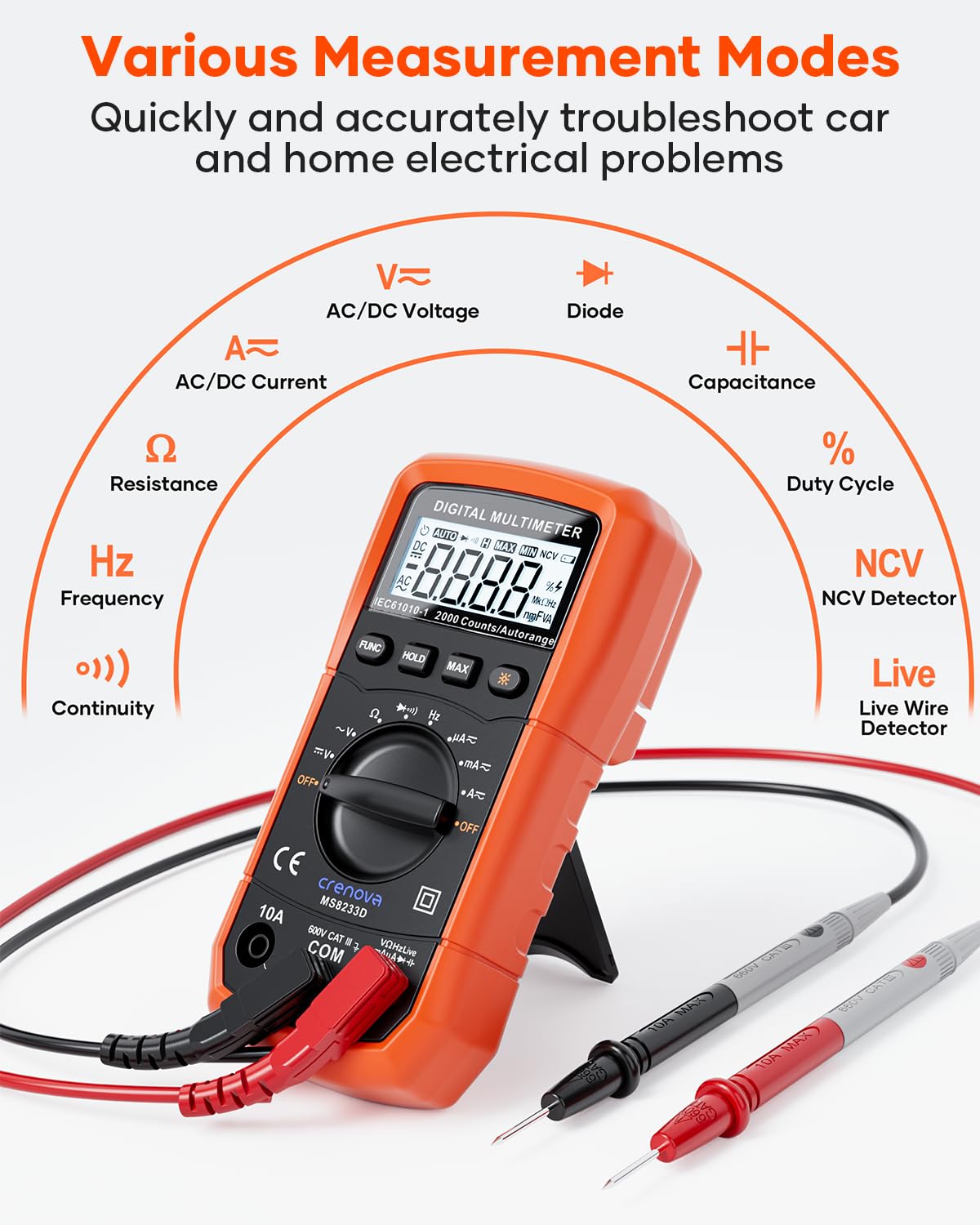

- Functions: Voltage, current, resistance, capacitance, frequency, duty cycle, continuity, diode, NCV
Benefits

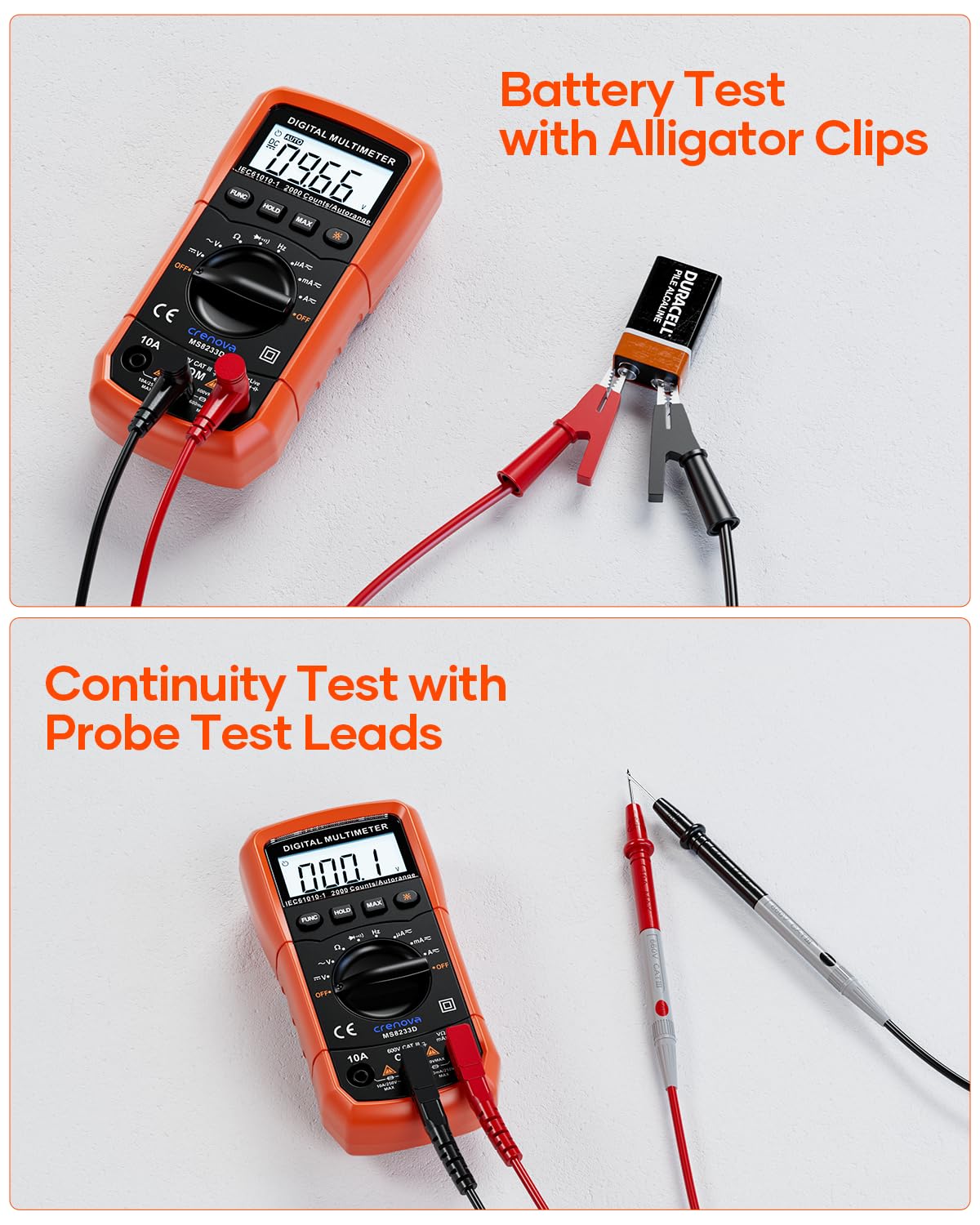

This tester lets you combine several diagnostic tasks without changing instruments, which speeds up troubleshooting in electrical circuits. The 6000-count resolution provides finer readings than lower-count meters, and the sampling rate of about three readings per second helps when monitoring fluctuating signals. The inclusion of both probes and alligator clips increases flexibility for different test setups, while the carry case protects the instrument during transport.
How to Use It

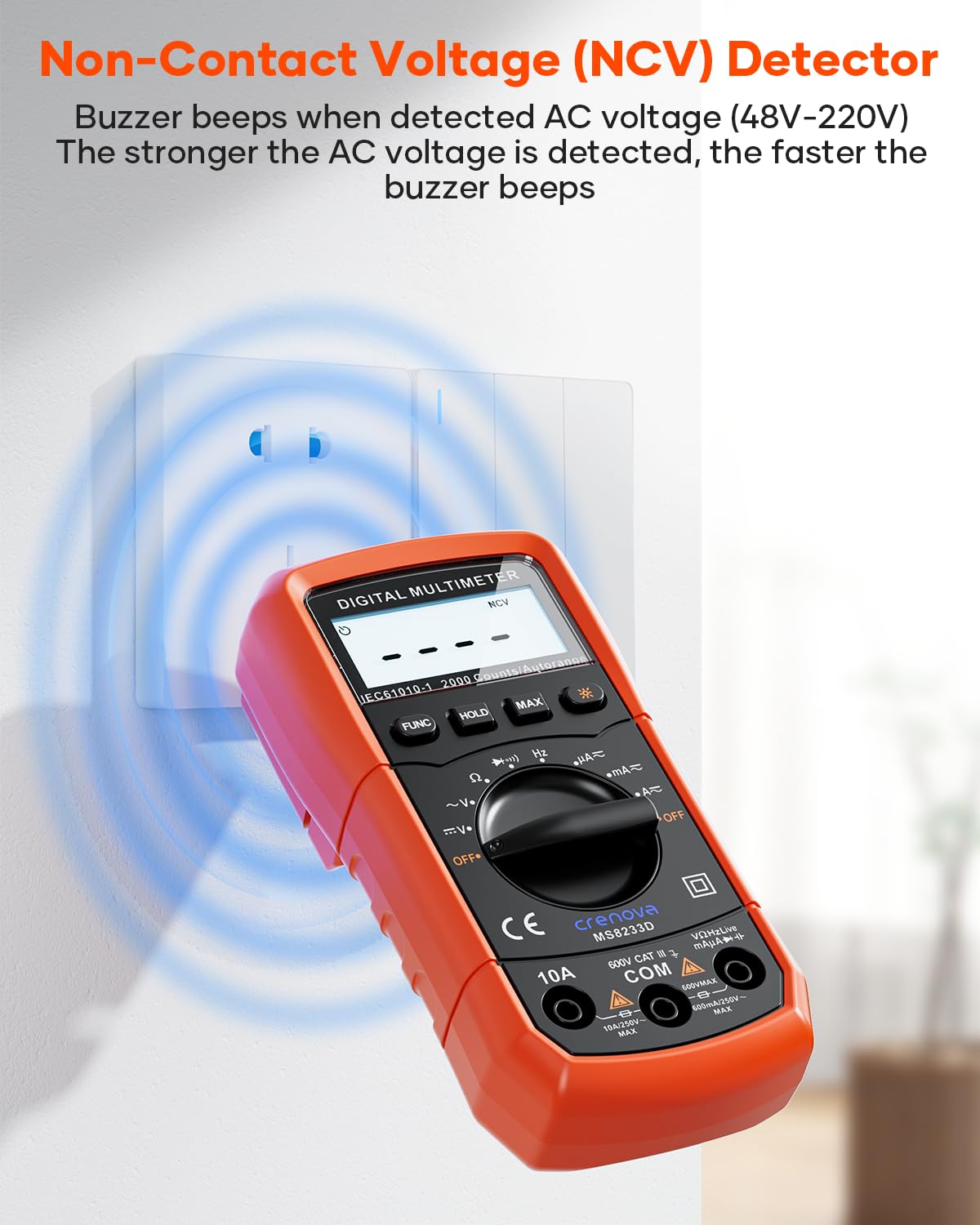

Start by fitting the AAA batteries supplied and inspecting the probes and clips for any damage. For non-contact voltage checks, wave the NCV sensor near the conductor to detect presence of live voltage. When measuring current or voltage, select the correct function and range or switch to auto range for convenience. Use the data hold to capture a reading that might otherwise change, and optionally switch to max/min to log peaks during a test. Consider replacing the internal fuses only with the same specification to maintain safety.
Practical Tips
Keep the rubber holster on during use to enhance grip and protection. The backlight is handy in dim spaces but will drain batteries faster, so activate it only when necessary. Note that, according to the manufacturer, while the meter covers a broad set of ranges it may not replace more specialised bench instruments for high-precision laboratory work. For electrical work near mains supplies the CAT III rating is suitable for distribution-level checks, but always follow safe working practices and local regulations. ⚡🔋.
