Carpuride W502B Pro 5" motorcycle GPS

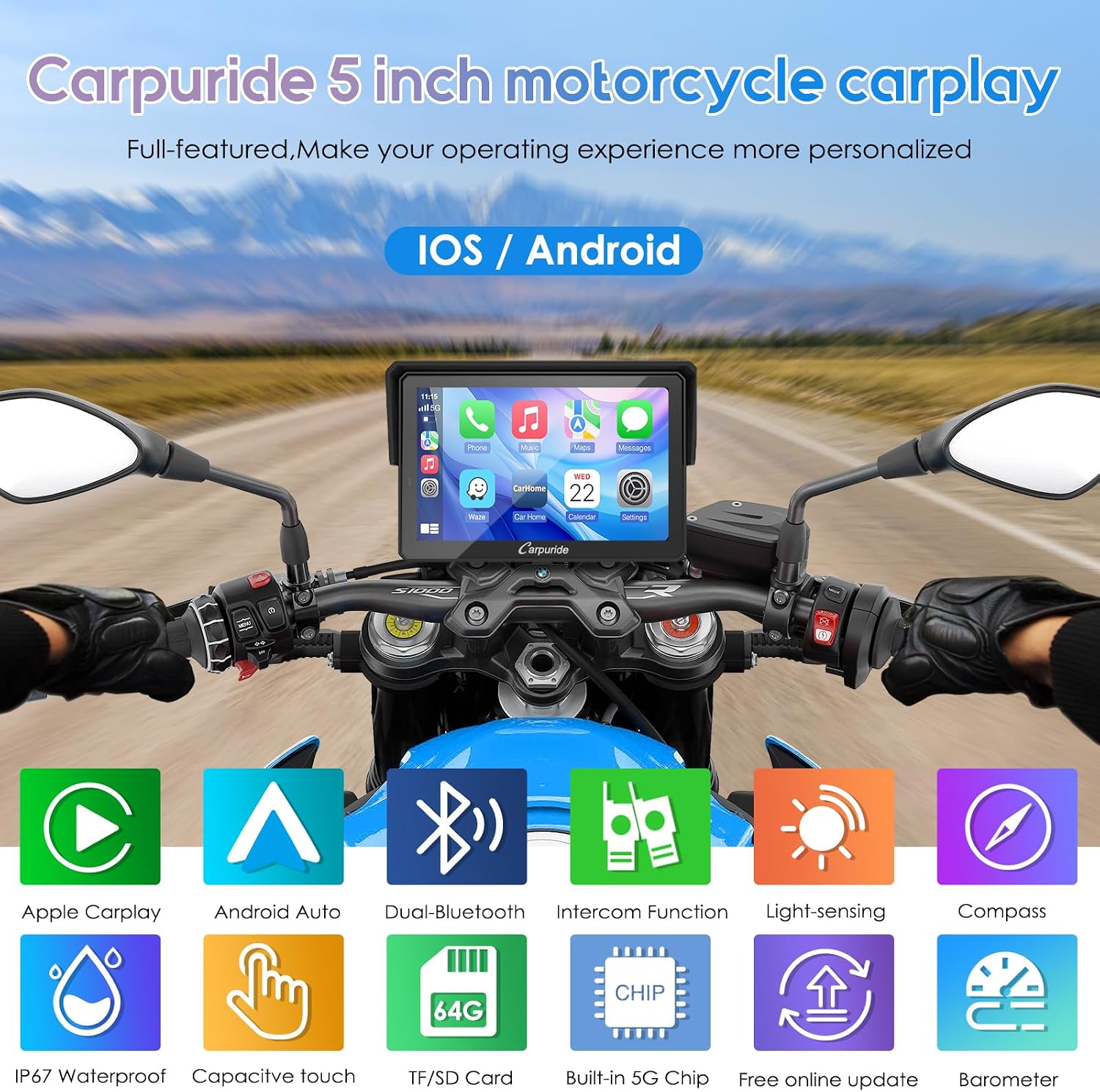

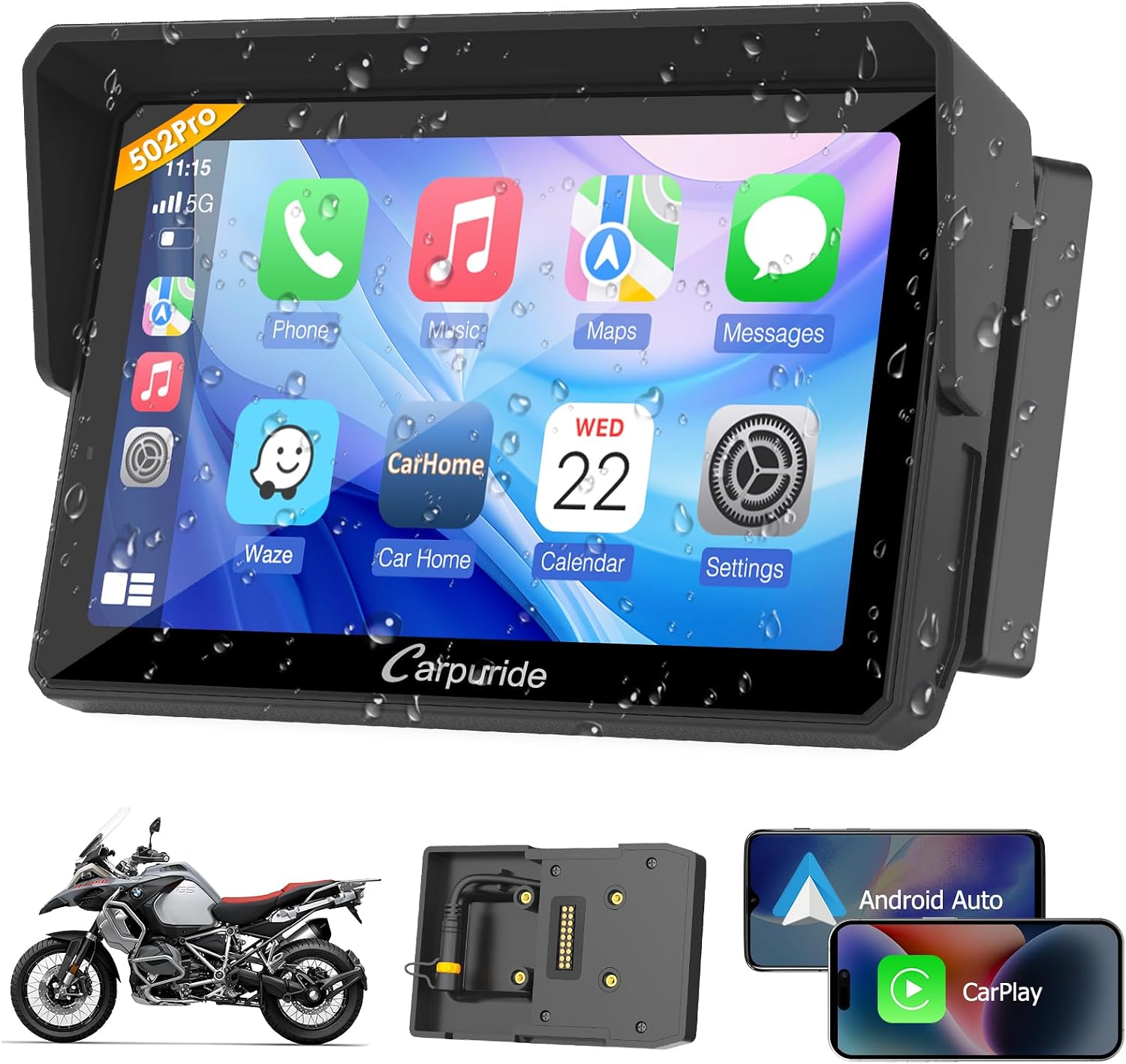

This compact motorcycle display brings CarPlay and Android Auto functionality to BMW bikes, offering wireless phone integration and navigation on a 5-inch waterproof screen for on-road use. It simplifies access to maps, calls and music while riding, and includes dual Bluetooth for music sharing and intercom communication between rider and passenger.

Key Points

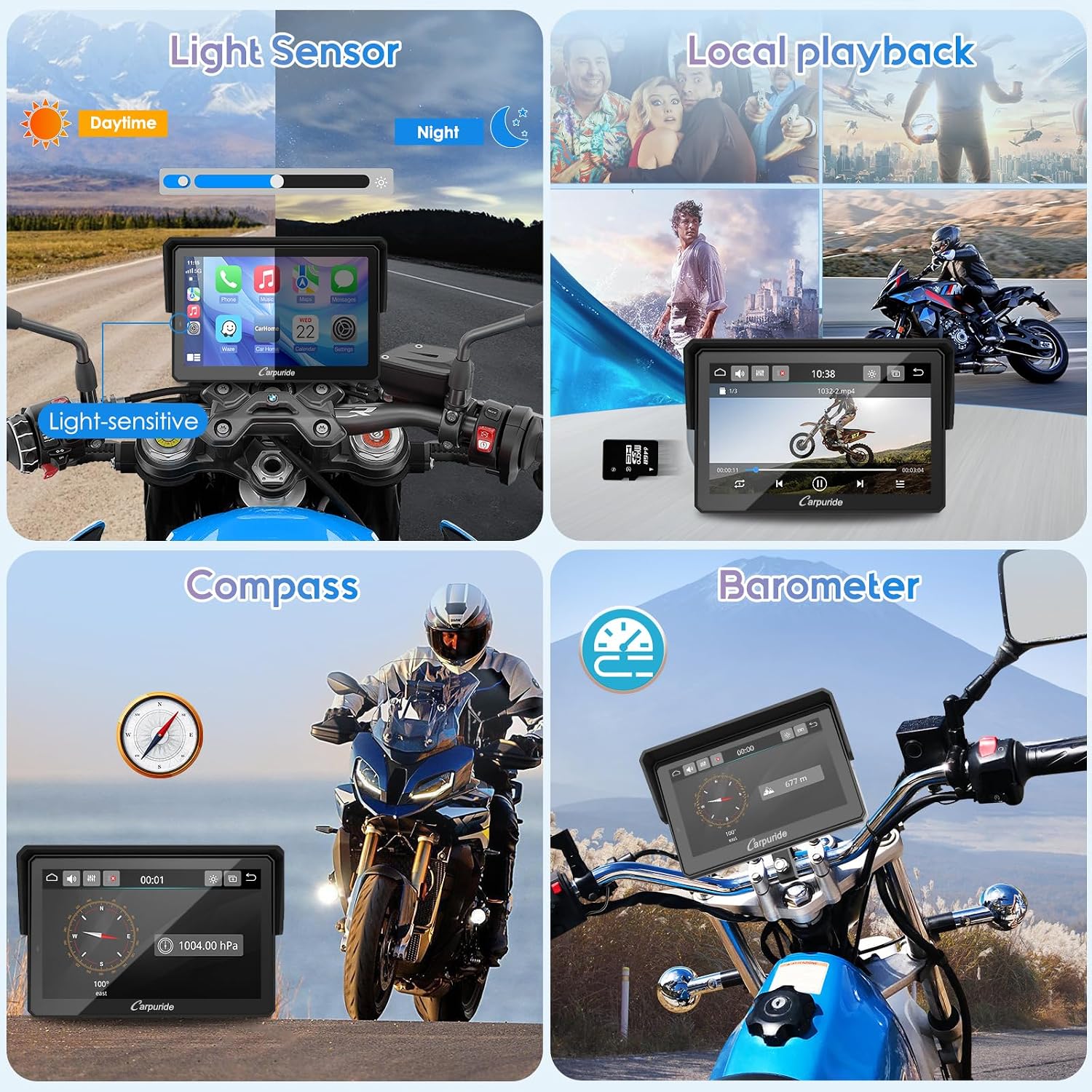

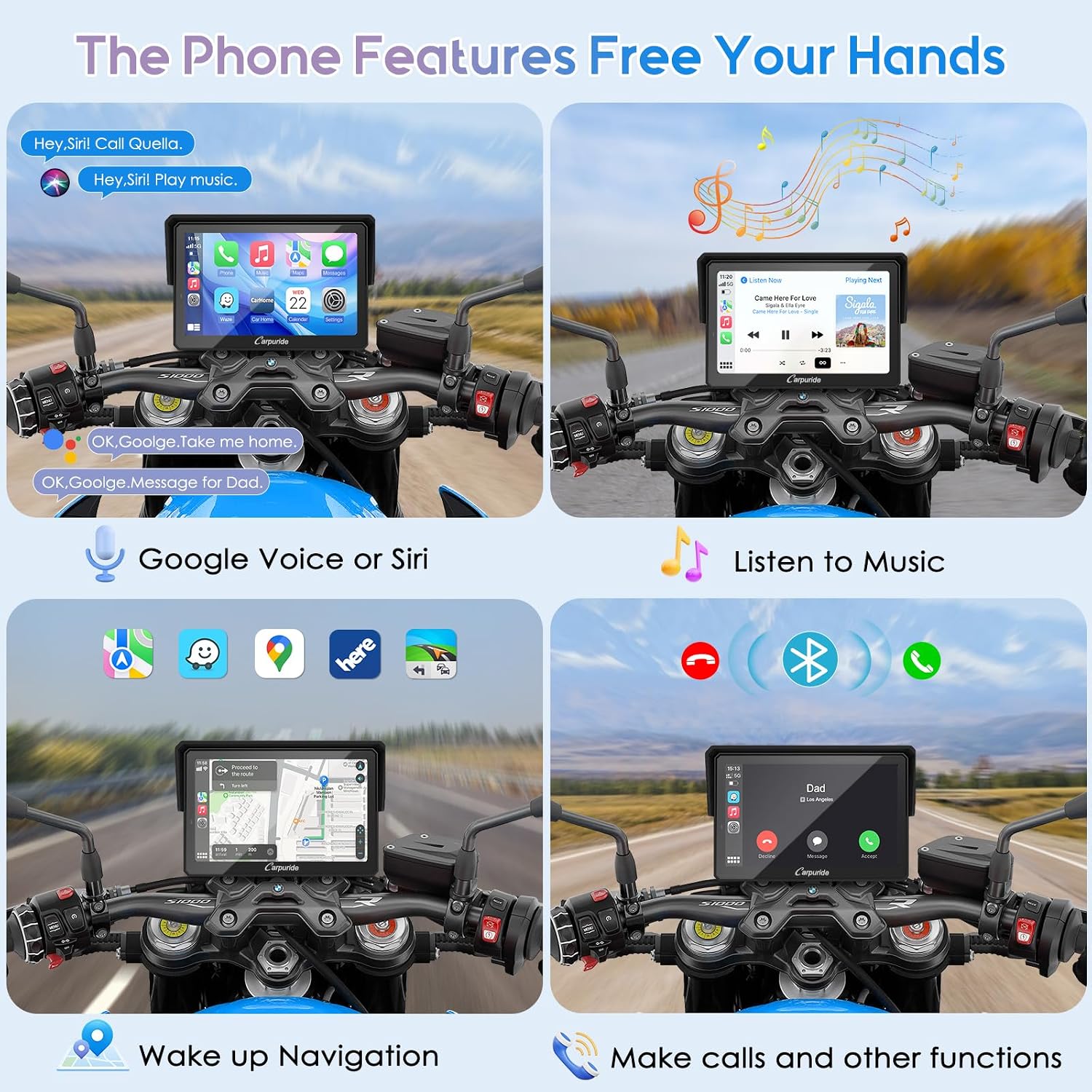

The screen supports wireless CarPlay for iOS 6+ and Android Auto for Android 11+ according to the manufacturer, allowing voice control through Siri or Google Assistant and hands-free calling. Dual Bluetooth lets two headsets connect simultaneously in BT Trans mode, so rider and pillion can share audio and use the intercom without interrupting the journey. The unit includes a light sensor that adjusts brightness automatically to improve visibility and reduce eye strain in changing conditions. The device reaches IP67 water resistance, making it suitable for riding in rain and adverse weather.

Technical Specifications

• Name: CARPURIDE W502B Pro
• Display size: 5 inches
• Water resistance: IP67
• Power requirements: 12 V, 1 A via motorcycle power line or USB input of 4.5 V, 2.5 A or higher
• Bluetooth range: approximately 10 m
• Compatibility: iOS 6+ for CarPlay, Android 11+ for Android Auto

Usage Recommendations

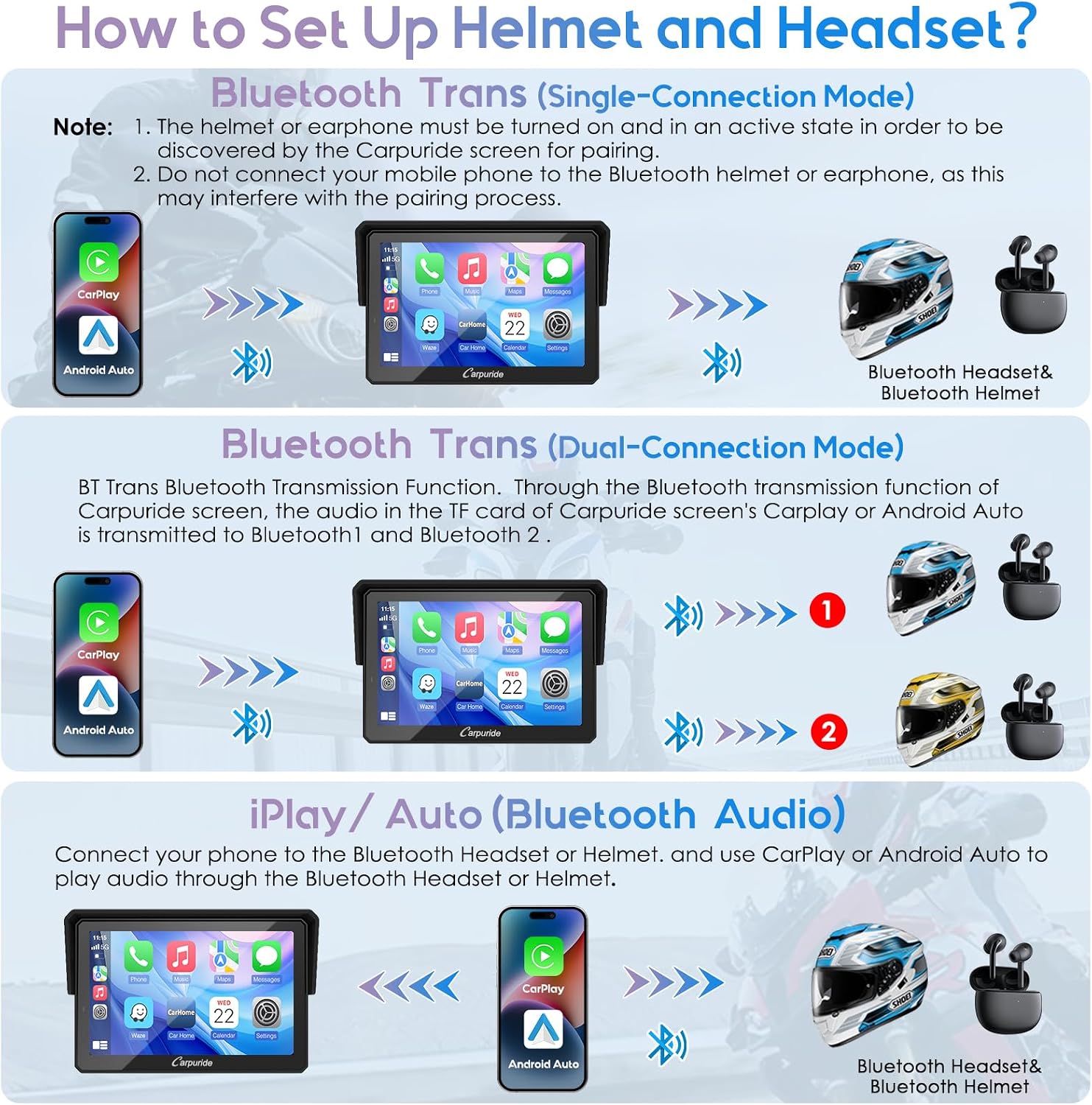

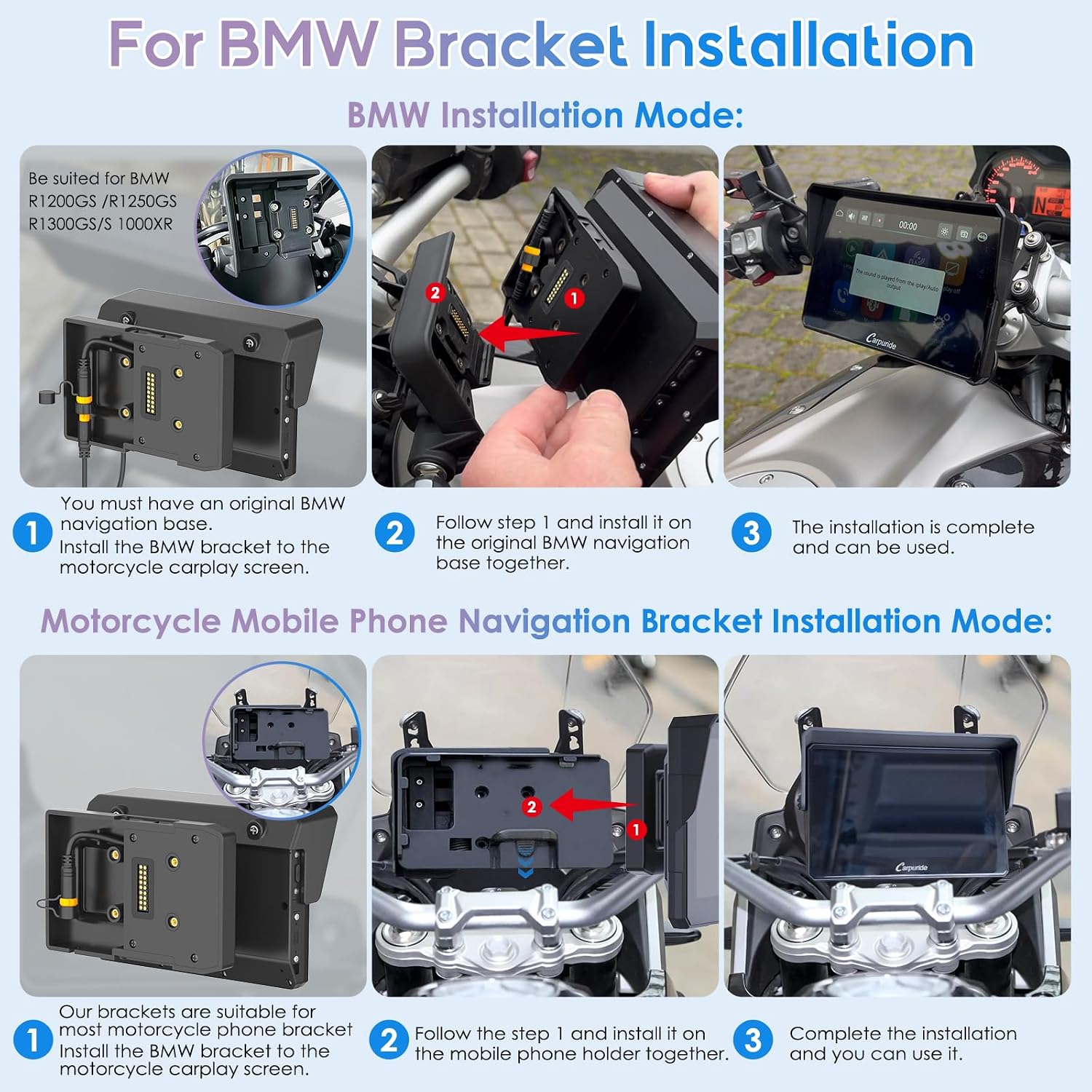

Install the supplied custom BMW mounting kit on bikes that retain the original navigation base, such as certain R1200GS, R1250GS, S1000XR or R1300GS models. For intercom clarity, connect the main rider to Bluetooth 1 in BT Trans mode, as voice assistant commands and call audio are transmitted to Bluetooth 1 only. Ensure the motorcycle power outlet provides the specified 12 V and 1 A if using the main power line. The unit has reverse polarity protection so accidental wiring is less likely to damage the device.

Advantages

The W502B Pro adds practical multimedia and navigation features without replacing existing instruments. Automatic brightness and a built-in equaliser make long rides more comfortable, and music styles can be tailored on the move. The dual Bluetooth configuration reduces the need to swap connections between helmet kits, and local media playback from a microSD card is supported for music and video storage.

Notes and limitations are worth considering. Software updates are not supported on additional 64 GB TF cards according to the manufacturer, so use a smaller capacity card such as 4, 8, 16 or 32 GB if you plan to update firmware. Also take into account that in CarPlay or Android Auto modes only a single headset connection is supported, which affects how audio is routed when using smartphone mirroring.
