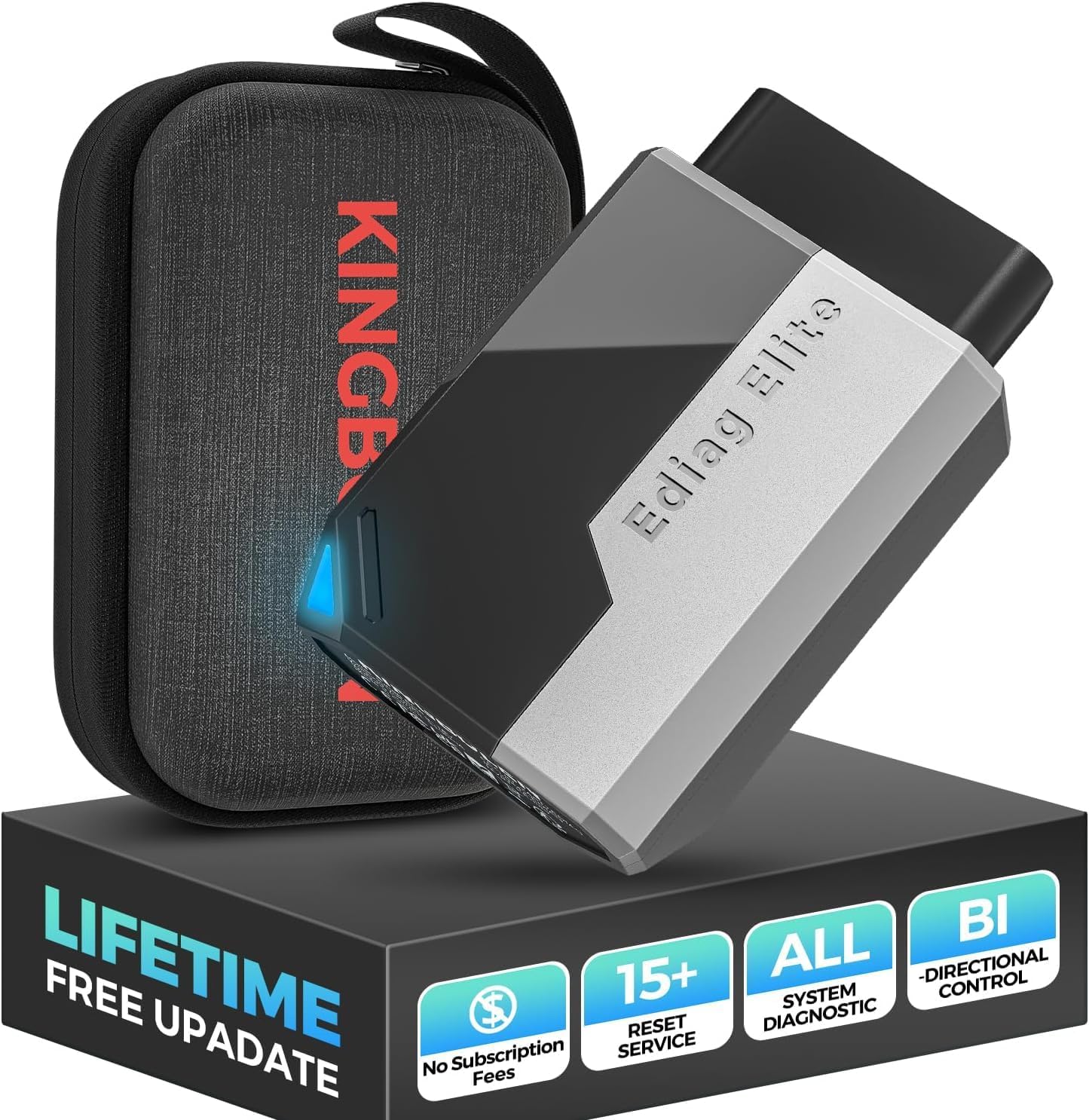

KINGBOLEN EDIAG Elite OBD2 scanner with 15 resets

This Bluetooth OBD2 scanner offers full-system diagnostics and bi-directional control, allowing owners to read and clear fault codes and perform active tests from a smartphone. It is aimed at DIY mechanics and small workshops that need vehicle data, more than basic fault reading.

Key Points

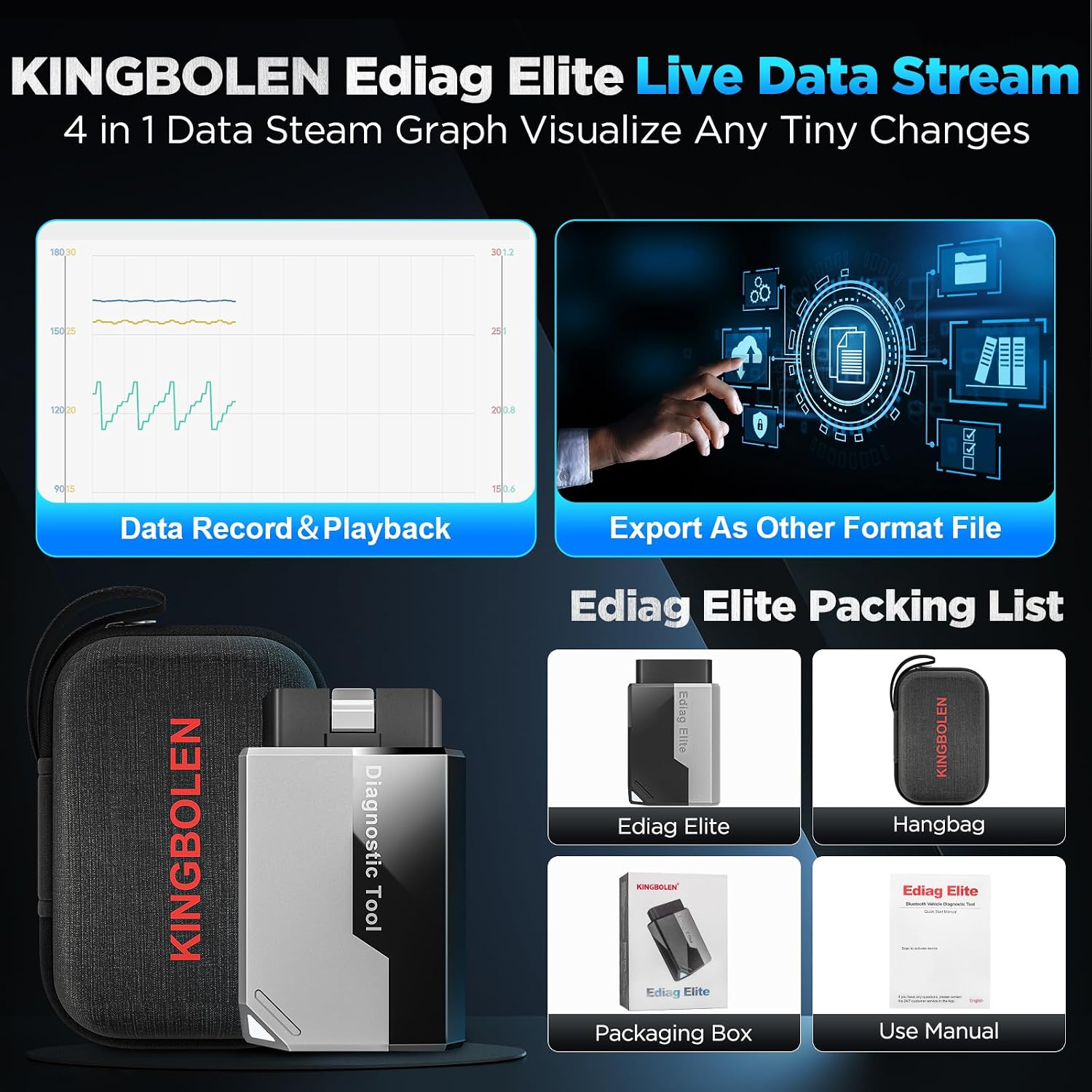

The tool supports over 15 reset functions, including oil reset, DPF regeneration and battery management system reset, helping to maintain service indicators and some post-repair calibrations. It connects wirelessly to Android and iOS devices so you can carry diagnostics in your pocket and view live data wherever the vehicle is located. 😊

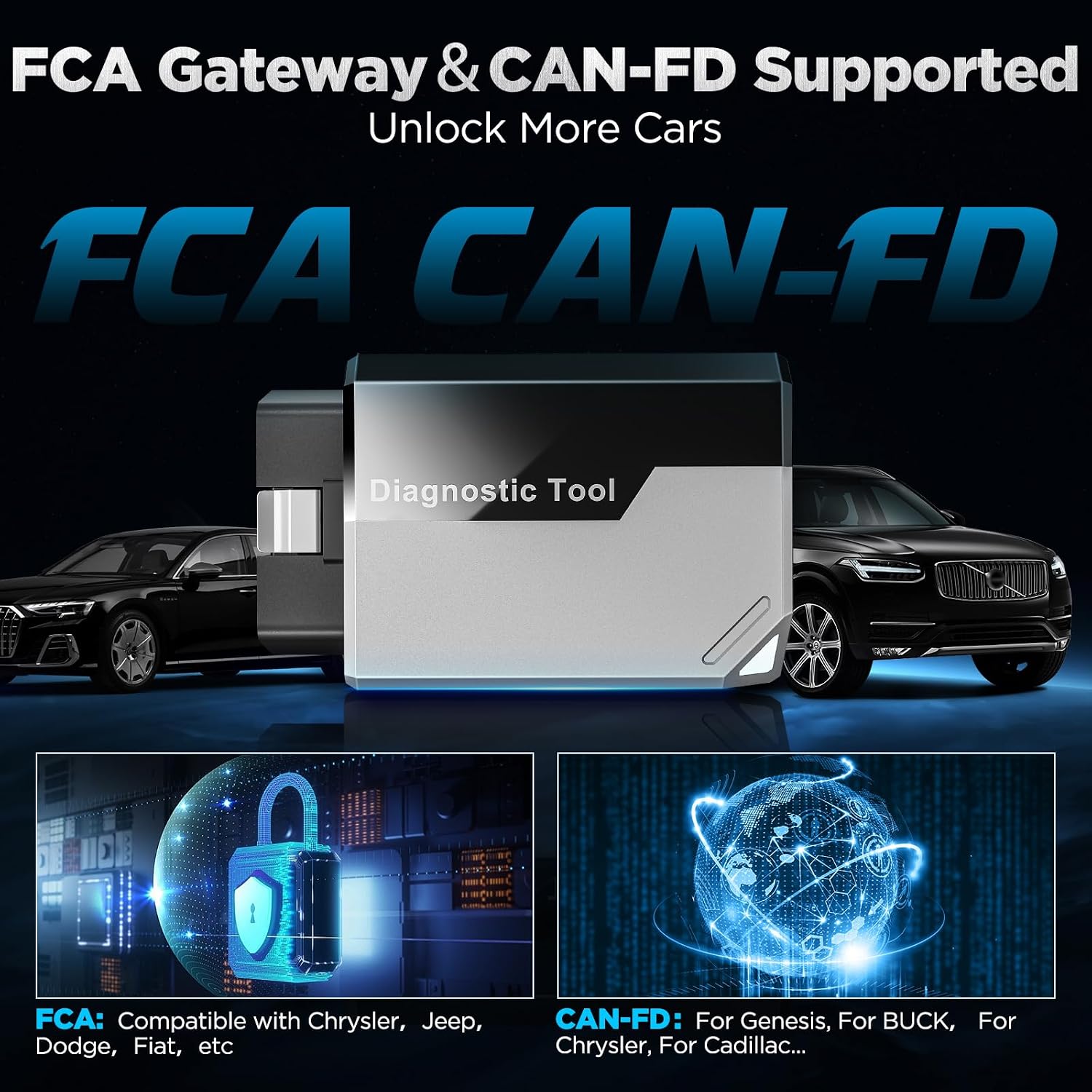

Compatibility covers most OBDII vehicles made from 1997 to 2026, with added support for FCA group models and CAN FD protocol in many cases, according to the manufacturer. Keep in mind that some manufacturers and newer models may use protocols such as DOIP or require manufacturer gateways, so checks for specific vehicle compatibility are recommended. ⚠️

Technical Specifications

• Name: KINGBOLEN EDIAG Elite
• Connectivity: Bluetooth (Bluetooth 5.2)
• Compatible OS: Android 5.0+ and iOS 9.0+ (app required)
• Vehicle coverage: OBDII standard vehicles 1997–2026, FCA group support and CAN FD compatibility (varies by model)
• Functions: Full system scan, read/erase codes, live data stream, active tests and 15+ reset services
• Update policy: Lifetime updates according to the manufacturer

Usage Recommendations

Install the companion EDIAG app on a compatible smartphone and pair with the dongle using Bluetooth 5.2 for faster connection and responsiveness. Begin with a full system scan to capture stored and pending codes, then use live data to compare sensor readings while reproducing the fault. For active or bidirectional tests send simple commands from the phone to verify actuators such as windows, lights or clutches, and monitor the ECU feedback to localise issues.

Note that FCA group vehicles may need an FCA/SGW account for full diagnostic access, and some models may require a diagnostic cable instead of wireless access. Consider keeping the smartphone charged during extended sessions to avoid interruptions during live-data tracing.

Positive Aspects

The lifetime update policy removes the need for annual subscriptions, which can lower long-term cost for hobbyists. The inclusion of bidirectional control expands the tool beyond passive code reading and allows troubleshooting that otherwise requires specialised workshop equipment. The compact dongle design makes it easy to store in a glovebox so you have diagnostic capability on hand when a warning light appears.
