Bosch Professional Wall Scanner GMS 120-27

The essentials

If you regularly drill into walls, the Bosch Professional Wall Scanner GMS 120-27 is the kind of tool that can save you from that sinking “did I just hit something?” moment. On paper, it’s built for quick, on-site scanning of common drilling risks: non-magnetic metal, magnetic metal, live wiring, and wood substructures. The idea is straightforward—choose the right mode, scan, and use the display and colour ring to decide where it’s safer to drill.

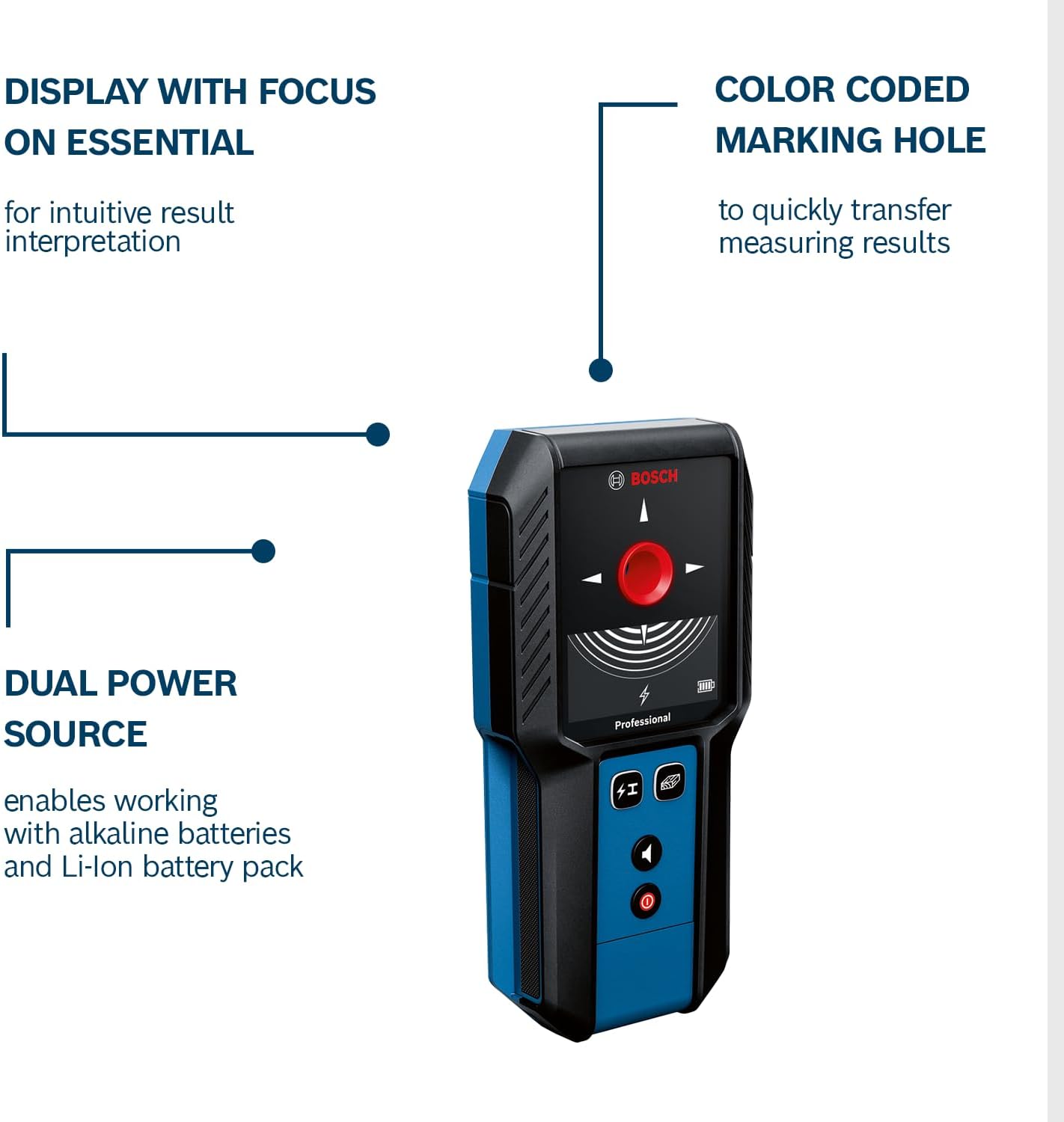

What stands out is the workflow. Instead of forcing you through a complicated interface, it uses simplified mode selection and a central indicator. There’s also a display that shows signal strength and the detected material type. Add in the LED ring around the central marking hole, and you get immediate visual feedback: it lights up red when it detects an object and green when nothing is detected.

No, it’s not a magic wand. Wall scanning is never 100% foolproof, especially with older building materials or unusual fixings. But for everyday trade use and DIY jobs where speed matters, the GMS 120-27’s approach looks genuinely practical.

What to know before you buy

This scanner is positioned as a jobsite-ready tool. The listing mentions an IP 54 protection rating and a rubber housing designed to absorb knocks—both are the sort of details that matter if it spends its life in tool bags and workshops rather than on a neat desk.

It’s also designed around “confidence” drilling. The maximum detection depths vary by target type (non-magnetic metal / magnetic metal / live-wire / wood: 120 / 100 / 50 / 30 mm). That’s useful context when you’re planning where to put fixings. If you mostly deal with wooden battens or timber structures, you’ll be thinking in the lower end of that depth range, if metal and services are more common in your projects, the higher figures for metal detection are the relevant ones.

One limitation worth noting: live-wire detection depth is listed as 50 mm, so you may still need to be cautious with deeper services, layered walls, or anything that doesn’t match typical assumptions.

How it works in real use

Imagine you’re installing a wall bracket. Before you drill, you sweep the area with the GMS 120-27 set to the appropriate detection mode. As you move it, the screen reflects signal intensity and the material type. At the same time, the LED ring around the central marking hole gives you a quick “red/green” read without you having to squint at the display.

Once the ring indicates detection, you can re-scan slightly to confirm the location. Then you use the central marking point as your reference for drilling. This kind of step-by-step workflow is exactly where scanners earn their keep—less time guessing, fewer “measure twice” moments that turn into measure-and-hope.

Key features that affect day-to-day value

• Clear visual guidance: The red/green LED ring around the marking hole makes it easy to interpret results at a glance.
• Signal clarity: The display shows signal strength and the type of material being detected, which helps when you’re deciding how confident to feel.
• Mode-based scanning: Simplified mode selection keeps the process quick, especially when you’re on-site and working under time pressure.
• Jobsite robustness: IP 54 protection and a rubberised, impact-absorbing design are aimed at the realities of trade work.
• Target coverage for common drilling risks: Metal types, live wiring, and wood substructures are included in the detection profile.

Where it may fall short is expected: if you need very advanced localisation beyond “what’s in the zone”, you might prefer a more specialised approach. This one reads as a practical wall scanner that focuses on speed and clarity rather than over-the-top features.

Tech specs

• Type: Wall scanner
• Detection depth (non-magnetic metal): 120 mm
• Detection depth (magnetic metal): 100 mm
• Detection depth (live-wire): 50 mm
• Detection depth (wood): 30 mm
• Power: 2x AA batteries

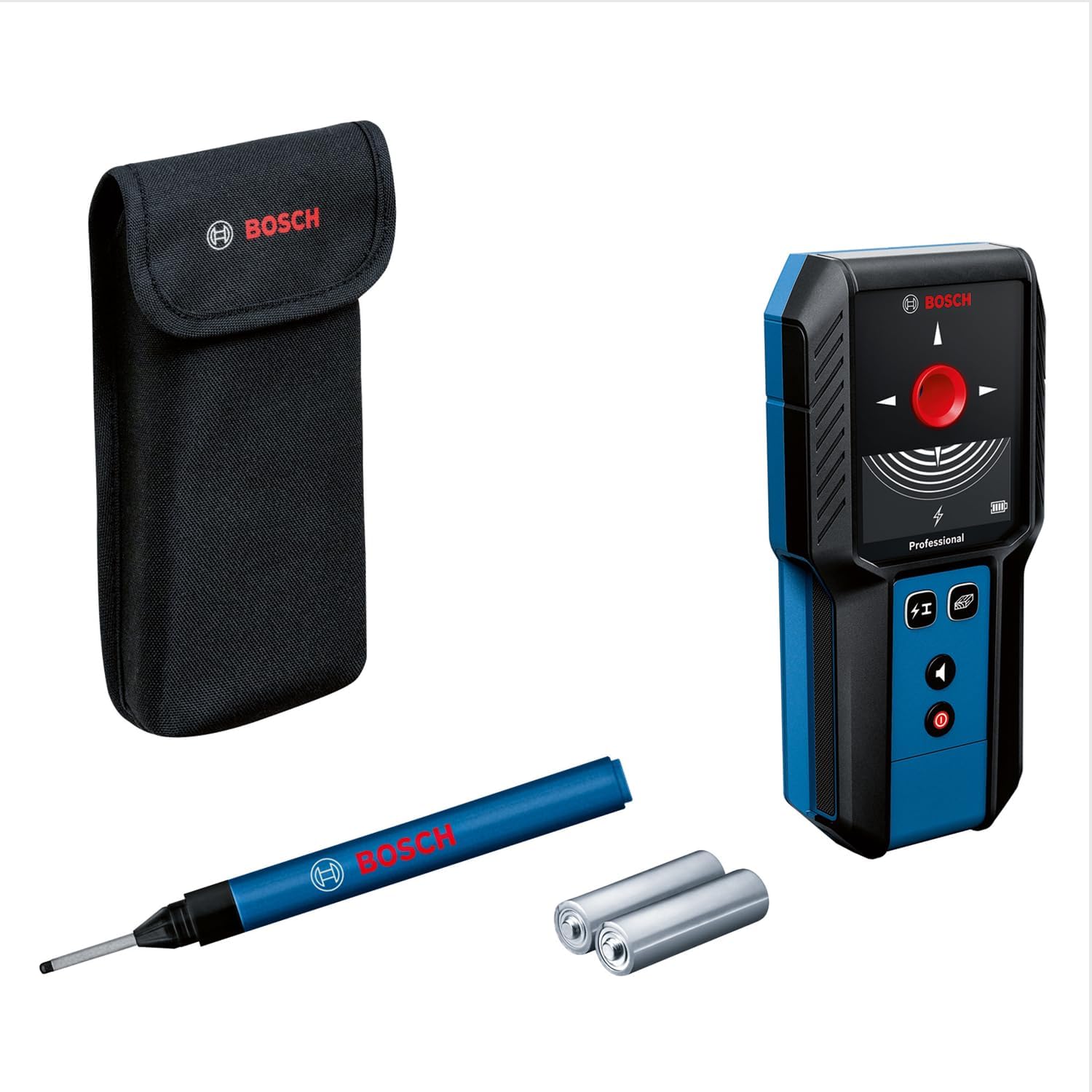

• Included items (listing): wall scanner, pouch, 2x AA alkaline batteries, marker pen
• Protection rating: IP 54

Is it worth it?

It’s worth buying the Bosch Professional Wall Scanner GMS 120-27 if you want a jobsite-friendly scanner that makes drilling decisions quicker—especially when you need to check for non-magnetic metal, magnetic metal, live wiring, and timber substructures. The combination of simplified mode selection, a signal-strength display, and the red/green LED ring is the sort of usability detail that tends to pay off on real jobs.

You may want to skip it if you routinely work with unusual wall build-ups where the listed detection categories and depths are unlikely to reflect reality. Also, if your work demands guaranteed, deep, highly precise service localisation, a wall scanner like this can only go so far, you’ll still need sensible safety habits and verification.

For most practical installers and tradespeople, though, this looks like a solid “grab-and-go” scanner rather than a complicated instrument.

Mini FAQ

How deep can it detect live wiring?

The listing specifies a maximum detection depth for live-wire of 50 mm.

Does the LED ring help while marking?

Yes. The LED ring around the central marking hole is described as lighting red when it detects an object and green when nothing is detected.

What batteries does it use?

It runs on 2x AA batteries.

What’s included in the box?

According to the listing, you get the GMS 100-23 scanner, a pouch, 2x alkaline AA batteries, and a marker pen.

Is it suitable for dusty or rough jobsite conditions?

The listing mentions IP 54 protection and a rubber housing designed to absorb knocks, which suggests it’s meant for demanding work environments.
